DZLF0132BF-0132B

SetupInstallationInstalación Logitech ® Mobile CordlessHeadset Mobile CordlessManualNAFTA.qxd 5/2/03 6:00 PM Page 1 Safety 1 English Safety 1 English • Read these instructions.• Keep these instructions.• Heed all warnings.• Follow all instructions.• Caution: risk of electric shock. Do not open mains operated device. • Do not use apparatus near water.• Clean only with a dry cloth.• Install in accordance with the manufacturer’s instructions. • Do not install near any heat sources such as radiators, heat registers, stoves, or otherapparatus (including amplifiers) that produceheat. • Do not defeat the safety purpose of the polarized plug. A polarized plug has two bladeswith one wider than the other. The wide bladeis provided for your safety. If the provided plugdoes not fit into your outlet, consult anelectrician for replacement of the obsoleteoutlet. • Protect the power cord from being walked on or pinched particularly at plugs, conveniencereceptacles, and the point where they exit fromthe apparatus. • Only use attachments/accessories specified by the manufacturer. • Use only the power adapter provided or recommended by Logitech. For details, contactLogitech using the contact information in thismanual. • Unplug this apparatus when unused for long periods of time or during lightning storms. • Servicing is required when the apparatus has been damaged in any way, such as power-supplycord or plug is damaged, liquid has been spilledor objects have fallen into the apparatus, theapparatus has been exposed to rain or moisture,does not operate normally, or has beendropped. • Refer all servicing to qualified service personnel.• The appliance shall be disconnected from the mains by pulling the mains power plug. Thesocket - outlet shall be installed near theequipment and shall be easily accessible. • Batteries built into device are NOT user replaceable. Discard used batteries according tothe manufacturer’s instructions. WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK,DO NOT EXPOSE THIS APPARATUS TO RAIN,MOISTURE OR SNOW. IMPORTANT SAFETY INFORMATION – FOR POWER SUPPLY ONLY CAUTION ELECTRIC SHOCK HAZARD This product operates in a frequency range that is not EU harmonized.Refer to specific country approvals marked on the packaging, prior toselling/operating in a designated country. Mobile CordlessManualNAFTA.qxd 5/2/03 6:00 PM Page 2 Features 3 English Introduction 2 English IntroductionCongratulations! Your new Mobile Cordless Headset will provide hours of hands-freeconvenience wherever you use your mobile phone.1. Cordless Headset2. Durable carrying case/charging station3. Receiver for phone FeaturesA. Noise canceling microphoneB. Ear clip for comfortable, firm fit.C. Multi-function button. Use this button to power on/off, andanswer/end calls (if supported byyour phone). D. Earclip adjuster E. Convenient volume control and mute button F. Indicator LEDG. Rotating arm/mini-boomH. Protective carrying case and charger The battery may not be fully chargedwhen purchased. For instructions oncharging your headset, please see“Re-charging your headset” on page 7. 1 2 3 Note: The receiver for yourphone may be different. A B D E G H C F Mobile CordlessManualNAFTA.qxd 5/2/03 6:00 PM Page 4 Charging Your Headset 5 English Installation 4 English InstallationHeadset clips to ear by pressing the earclip adjuster and sliding over ear. Place microphone so it ispointing toward the corner of your mouth, but approximately 2 cm away from your face.Receiver connects to bottom/top/side of phone (your receiver may look different than the one shown). Charging Your HeadsetReceiver and headset fit into carry case to charge. 1 C 23 abc def 4 56 jkl ghi mno 7 89 tuv pqrs wxyz 0 abc 1 C 23 abc def 4 56 jkl ghi mno 7 89 tuv pqrs wxyz 0 abc Plug included adapter into carry case and into wall outlet, or plug car charger (sold separately atwww.logitech.com) into your automobile’s power outlet. Mobile CordlessManualNAFTA.qxd 5/2/03 6:00 PM Page 6 Using Your Headset Re-charging Your Headset 7 English 6 English Re-charging Your HeadsetYour carrying case also doubles as a charger for your Mobile Cordless Headset. Charging yourheadset is simple if you follow these steps (see diagram on page 5):1. Place the receiver and headset in the appropriate spots in the charger. Make sure that all contacts are snug. 2. Plug the power adapter into the charger. 3. Connect the power adapter to a nearby electrical outlet.4. The LED lights will be red if charging. If the LED is orange, the connection is not sufficient. Tighten the connection until the LED turns red (or green, if the headset is already fullycharged). 5. When the LED turns green, your headset is fully charged. It should only take approximately 2 hours to fully charge your headset. 6. Remove both the receiver and the headset from the charger. 7. Once charged, gently connect the receiver to your mobile phone. The Logitech logo should be facing the same direction as your phone keys. Headset and receiver LED There are two LED lights, one on the receiver and another on the headset. They will flashat different speeds and display different colors according to certain conditions. The listbelow describes what these mean.Talk Mode Flash Rate On Slow Muted Fast Off No Flash Operation Mode ColorGREEN Normal or Fully Charged ORANGE Lost Connection or Problem with Charging RED Low Battery or Charging Using Your HeadsetTurning the headset on and off Pushing the multi-function button and holding for 2 seconds will turn on the headset. Toturn the headset off, simply push the multi-function button and hold for 2 seconds. Thisfeature will work even if your phone does not support the multi-function call answer/endfeature. Automatic power down The headset will power down and turn off after 5 minutes of no activity. If the headsetdoesn't detect a signal from the receiver for 30 seconds, then the headset will also turnitself off. This will help conserve power. Answering/ending a call To answer or end (hang-up) a phone …

Text truncated - open the document above for the full version.

April 14, 2003 FCC Authorization and Evaluation Division 7434 Oakland Mills Road Columbia, MD 21046 Subject: Cover Letter To Whom It May Concern: Logitech is requesting an original certification for our unlicensed transmitter designated as a Personal Area Network (PAN). The Logitech PAN will operate under FCC Part 15.249 and is comprised of a dongle transceiver unit (MN: F-0132B). The dongle unit connects to a cellular/mobile (e.g. GSM) telephone, and constitutes the remote transceiver unit for communication with the matched headset. The dongle unit connects to the input port of the cellular/mobile phone. Logitech’s PAN will be utilizing the frequency range of 917MHz – 921MHz and employing a FSK modulation scheme. If further clarification of Logitech’s PAN is needed, please feel free to contact me at (360) 944-3708, via e-mail at [email protected] , or fax (360) 896-2020. Sincerely, Mitchell A. Phillipi Sr. Compliance Engineer Logitech, Inc.

04/14/03 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern, We hereby respectfully request that under the provision of 47 CFR 0.459, the documents listed below and attached with this application for certification be provided with confidential status. • Schematics • Theory of Operation • Frequency Block Diagrams Any exhibit/information for which we have requested confidentiality, but which may not be accorded such treatment by the FCC, should be returned to us. The documents listed above contain trade secrets that are treated as confidential by us. Substantial competitive harm to us could result should they be made available to the public. Sincerely, Mitchell A. Phillipi Sr. Compliance Engineer Logitech, Inc.

Northwest EMC TCB Compliance Opinion Revision 1/3/03 LABT0056.2 Information about the Applicant Company Name Logitech Inc Address 6505 Kaiser Drive City, State, Zip Fremont, California 94555 Requested By Mitchell Phillipi Job Number LABT0056.2 Model F-0132B FCC ID DZLF0132B IC Certification Number N/A Agent None Approval Type Original Grant Equipment Type Part 15, Low Power Transceiver, RX Verified Rule Part 15.249 Overview The applicant’s radio device is a low power transceiver operating in the 902-928 MHz band seeking authorization under 15.249. It is a dongle attachment to Nokia cellular phones and is part of a communications system that includes an ear-bud style headset. The system provides hands-free wireless communications for cell phone users. The dongle and headset are certified separately. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. September 17, 2003 _______________________________ ________________ Gregory V. Kiemel, Director of Engineering Date Northwest EMC TCB Compliance Opinion Revision 1/3/03 LABT0056.2 Findings and Resolution Item Antenna Info exhibit does not describe the part no, or manufacturer Resolution Information provided in revised antenna info exhibit Item Include only information for the radio described in this application Resolution Information for other radios was removed from the application Item The cover letter was unclear as to which device is seeking authorization under FCC ID DZLF0132B. Resolution A revised cover letter was submitted that specified the device seeking authorization Item Internal photos exhibit did not show or indicate the antenna. Resolution A revised antenna info exhibit showed antenna and its location in the radio. Item Conflicting information regarding frequency range of the device. Resolution The test report and frequency block diagram were revised Item The test report did not provide an adequate explanation of the graphical data. Resolution A revised test report included additional details concerning testing methods and data. Item The test report did not have a complete equipment list. Resolution A revised test report included a complete equipment list. Item The test report did not state that the semi-anechoic chamber was FCC listed. Resolution The applicant stated the chamber is FCC-listed as #90808 Item The test report had graphical data above 1 GHz compared to average and quasi-peak limits. Resolution The revised test report has graphical data compared to peak and average limits above 1 GHz. Item No evidence was provided that the receiver portion of the radio had been FCC verified. Resolution The revised test report included additional data that demonstrated compliance with FCC verification requirements. Northwest EMC TCB Compliance Opinion Revision 1/3/03 LABT0056.2 Opinion Specification Requirements Description 2.1091, 2.1093 RF Exposure Opinion: The Equipment meets the intent specified by the requirements listed above. It is categorically excluded from routine environmental evaluation. Specification Requirements Description 15.249 Spurious Emissions, Radiated Emissions Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Technical Report Specification Requirements Description 15.249 Field Strength of the Fundamental Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Technical Report Specification Requirements Description 15.207 AC Powerline Conducted Emissions Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has stated that the radio is powered by its own rechargeable battery. It only operates when attached to the cell phone. The radio must be removed from the cell phone for recharging and it does not operate when charging in its charging dock. It will not operate while the cell phone is charging. Therefore, no AC power line conducted emissions measurements are required.

Antenna Info – Nokia HDC-5 Dongle Per 15.203, the antenna included with the device is internal and permanently attached. It is not intended to be serviced by the customer and is, therefore, only replaceable by Logitech repair personnel. Antenna Specification:

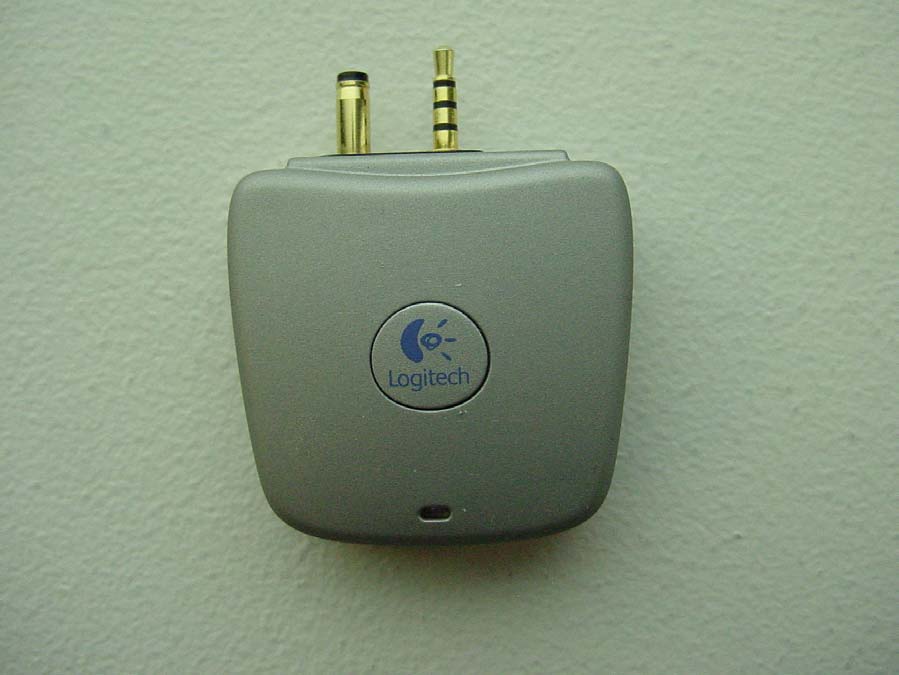

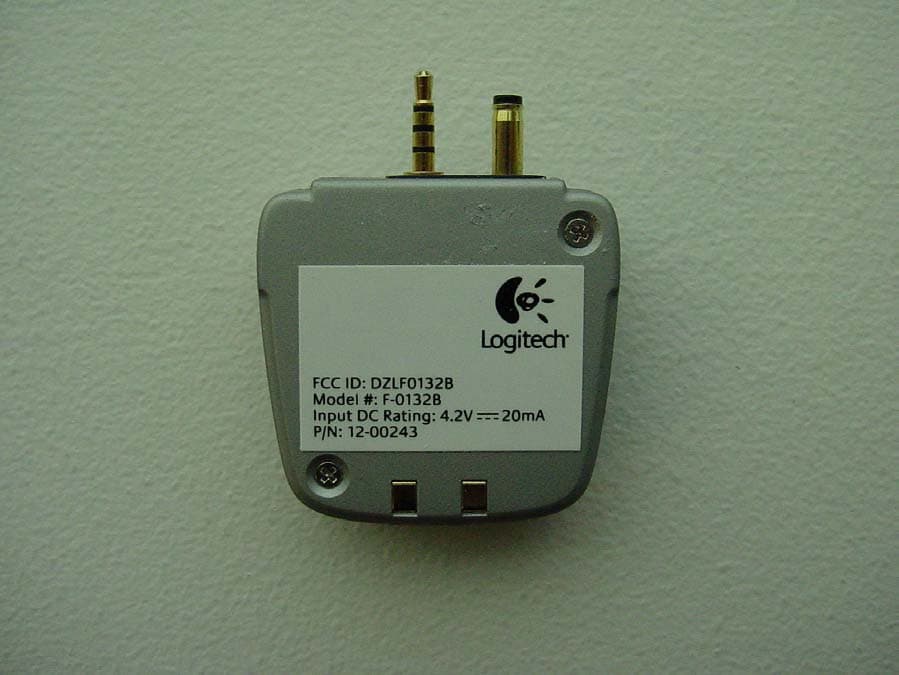

EUT Information EUT Description The type of equipment tested was a pre-production unit containing the identical schematic, PCB layout, and antenna design as will be used during production. No modifications were made during testing for FCC compliance. EUT Firmware Component Description Part Number Revision F-0132B RF Dongle FIRMWARE,XE1202 DONGLE HDC5,920MHZ 51- 00016 00

1 / 62 montena emc sa CH-1728 Rossens - Switzerland - phone +41 26 411 93 33 - fax +41 26 411 93 30 - www.emc.montena.com - [email protected] Test laboratory accredited by metas, the Swiss Federal Office of Metrology and Accreditation Laboratoire d'essai accrédité par metas, l'Office fédéral de métrologie et d'accréditation Prüflabor akkreditiert durch metas, das Bundesamt für Metrologie und Akkreditierung Registration number Numéro d'accréditation Akkreditierungsnummer STS 024 Schweizerischer Prüfstellendienst Service suisse d'essai Swiss testing service Date of test: Date de l'essai: Prüfdatum: January 10 and July 1 to 2, 2003 Report no: Rapport no: Bericht Nr: Draft Mandate no: Mandat no: Auftrag Nr: 20025229 Report: Rapport: Bericht: Electromagnetic compatibility Product name: Nom du produit: Produktname Mobile Cordless Headset - Dongle HDC5 Customer: Client: Kunde: Logitech Serial no: No de série: Seriennummer: Final pre-production sample Standards / Normes / Normen Result Résultat Ergebnis CFR 47, Part 15, Subpart C, Intentional radiator, Paragraph 15.249 Pass Test performed by Essai effectué par : Prüfer Test report prepared by Rapport d’essai préparé par : Berichterstatter Test report controlled and approved by Rapport d’essai contrôlé et approuvé par : Prüfbescheinigung Erich Staub Erich Staub Bertrand Daout ........................ ........................ Rossens, .................................................. (Issue Date / Date d'édition / Ausstelldatum) V0309 Main language / Langue principale / Hauptsprache : english / français / deutsch This report may be reproduced in full. The present document results from tests on a specimen and does not prejudge to the conformity of all the manufactured products. - Ce rapport d’essai peut être reproduit en entier. Le présent document résulte d'essais sur un spécimen. Il ne préjuge pas de la conformité de l'ensemble des produits fabriqués à l'objet essayé. - Dieser Prüfbericht kann als Ganzes vervielfältigt werden. Dieser Bericht beinhaltet die Prüfergebnisse eines Mustergerätes. Es kann daraus nicht auf die Übereinstimmung der Seriegeräte mit dem Mustergerät geschlossen werden. q:\mandats\_mandats_avant_2003\20025229_logitech headset\messungen fcc\2003-01-10 hdc5 dongle\shockfish hdc5 b.doc No. / Nr. : Draft Page / Seite 2 / 62 montena emc sa CH-1728 Rossens - Switzerland - phone +41 26 411 93 33 - fax +41 26 411 93 30 - www.emc.montena.com - [email protected] Contents / Table des matières / Inhaltsverzeichnis Page/Page/Seite 1. SUMMARY OF TEST RESULTS / RÉSUMÉ DES RÉSULTATS D'ESSAIS / ZUSAMMENFASSUNG DER PRÜFERGEBNISSE......................................................................................................................... 3 2. APPLIED STANDARDS / NORMES APPLIQUEES / VERWENDETE NORMEN............................................ 3 3. CLIENT / CLIENT / KUNDE............................................................................................................... 4 4. EQUIPMENT UNDER TEST / EQUIPEMENT A L'ESSAI / PRÜFLING......................................................... 4 4.1 Identification / Identification / Identifikation....................................................................... 4 4.2 Connected cables / Câble connectés / Angeschlossene Kabel ....................................... 4 4.3 Modifications before the tests / Modifications apportées avant les essais / Vor den Prüfungen angebrachte Änderungen ............................................................................... 5 4.4 Pictures of the EUT / Photos de l’EST / Fotos des Prüflings ........................................... 5 4.5 Classification / Classification / Klassierung ...................................................................... 6 5. TEST CONDITIONS / CONDITIONS D'ESSAI / TESTBEDINGUNGEN........................................................ 6 5.1 Climatic conditions / conditions climatiques / klimatologische Bedingungen ................... 6 5.2 Location and Date / Lieu et date / Ort und Datum............................................................ 6 5.3 Persons present / Personnes présentes / Anwesende Personen.................................... 6 5.4 Test configuration / Configuration d’essai / Prüfkonfiguration.......................................... 7 5.5 Operating conditions / Conditions de fonctionnement / Betriebszustand......................... 7 5.6 Auxillary equipment / Matériel auxiliaire / Zusatzgeräte ................................................... 7 6. EMISSION TEST TRANSMITTER....................................................................................................... 8 6.1 Carrier measurement........................................................................................................ 9 6.2 Radiated electromagnetic field 30 - 1000 MHz .............................................................. 19 6.3 Radiated electromagnetic field 1 – 10 GHz.................................................................... 28 7. EMISSION TEST RECEIVER........................................................................................................... 45 7.1 Radiated electromagnetic field 30 - 1000 MHz .............................................................. 46 7.2 Radiated electromagnetic field 1 - 5 GHz....................................................................... 51 8. TEST EQUIPMENT........................................................................................................................ 60 No. / Nr. : Draft Page / Seite 3 / 62 montena emc sa CH-1728 Rossens - Switzerland - phone +41 26 411 93 33 - fax +41 26 411 93 30 - www.emc.montena.com - [email protected] 1. Summary of test results / Résumé des résultats d'essais / Zusammenfassung der Prüfergebnisse ! Pass / Réussi / Bestanden " Fail / Echoué / Nicht bestanden ∅ Not applicable to this product / Pas applicable à ce produit / Nicht anwendbar für dieses Produkt  Not tested…

Text truncated - open the document above for the full version.

No. / Nr. : Draft Page / Seite 5 / 62 montena emc sa Equipment under test / Equipment sous test / Prüfling No. / Nr. : Draft Page / Seite 9 / 62 montena emc sa No. / Nr. : Draft Page / Seite 46 / 62 montena emc sa
