DZLF013XBF013XB

SetupInstallationInstalación Logitech ® Mobile CordlessHeadset Mobile CordlessManualNAFTA.qxd 5/2/03 6:00 PM Page 1 Safety 1 English Safety 1 English • Read these instructions.• Keep these instructions.• Heed all warnings.• Follow all instructions.• Caution: risk of electric shock. Do not open mains operated device. • Do not use apparatus near water.• Clean only with a dry cloth.• Install in accordance with the manufacturer’s instructions. • Do not install near any heat sources such as radiators, heat registers, stoves, or otherapparatus (including amplifiers) that produceheat. • Do not defeat the safety purpose of the polarized plug. A polarized plug has two bladeswith one wider than the other. The wide bladeis provided for your safety. If the provided plugdoes not fit into your outlet, consult anelectrician for replacement of the obsoleteoutlet. • Protect the power cord from being walked on or pinched particularly at plugs, conveniencereceptacles, and the point where they exit fromthe apparatus. • Only use attachments/accessories specified by the manufacturer. • Use only the power adapter provided or recommended by Logitech. For details, contactLogitech using the contact information in thismanual. • Unplug this apparatus when unused for long periods of time or during lightning storms. • Servicing is required when the apparatus has been damaged in any way, such as power-supplycord or plug is damaged, liquid has been spilledor objects have fallen into the apparatus, theapparatus has been exposed to rain or moisture,does not operate normally, or has beendropped. • Refer all servicing to qualified service personnel.• The appliance shall be disconnected from the mains by pulling the mains power plug. Thesocket - outlet shall be installed near theequipment and shall be easily accessible. • Batteries built into device are NOT user replaceable. Discard used batteries according tothe manufacturer’s instructions. WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK,DO NOT EXPOSE THIS APPARATUS TO RAIN,MOISTURE OR SNOW. IMPORTANT SAFETY INFORMATION – FOR POWER SUPPLY ONLY CAUTION ELECTRIC SHOCK HAZARD This product operates in a frequency range that is not EU harmonized.Refer to specific country approvals marked on the packaging, prior toselling/operating in a designated country. Mobile CordlessManualNAFTA.qxd 5/2/03 6:00 PM Page 2 Features 3 English Introduction 2 English IntroductionCongratulations! Your new Mobile Cordless Headset will provide hours of hands-freeconvenience wherever you use your mobile phone.1. Cordless Headset2. Durable carrying case/charging station3. Receiver for phone FeaturesA. Noise canceling microphoneB. Ear clip for comfortable, firm fit.C. Multi-function button. Use this button to power on/off, andanswer/end calls (if supported byyour phone). D. Earclip adjuster E. Convenient volume control and mute button F. Indicator LEDG. Rotating arm/mini-boomH. Protective carrying case and charger The battery may not be fully chargedwhen purchased. For instructions oncharging your headset, please see“Re-charging your headset” on page 7. 1 2 3 Note: The receiver for yourphone may be different. A B D E G H C F Mobile CordlessManualNAFTA.qxd 5/2/03 6:00 PM Page 4 Charging Your Headset 5 English Installation 4 English InstallationHeadset clips to ear by pressing the earclip adjuster and sliding over ear. Place microphone so it ispointing toward the corner of your mouth, but approximately 2 cm away from your face.Receiver connects to bottom/top/side of phone (your receiver may look different than the one shown). Charging Your HeadsetReceiver and headset fit into carry case to charge. 1 C 23 abc def 4 56 jkl ghi mno 7 89 tuv pqrs wxyz 0 abc 1 C 23 abc def 4 56 jkl ghi mno 7 89 tuv pqrs wxyz 0 abc Plug included adapter into carry case and into wall outlet, or plug car charger (sold separately atwww.logitech.com) into your automobile’s power outlet. Mobile CordlessManualNAFTA.qxd 5/2/03 6:00 PM Page 6 Using Your Headset Re-charging Your Headset 7 English 6 English Re-charging Your HeadsetYour carrying case also doubles as a charger for your Mobile Cordless Headset. Charging yourheadset is simple if you follow these steps (see diagram on page 5):1. Place the receiver and headset in the appropriate spots in the charger. Make sure that all contacts are snug. 2. Plug the power adapter into the charger. 3. Connect the power adapter to a nearby electrical outlet.4. The LED lights will be red if charging. If the LED is orange, the connection is not sufficient. Tighten the connection until the LED turns red (or green, if the headset is already fullycharged). 5. When the LED turns green, your headset is fully charged. It should only take approximately 2 hours to fully charge your headset. 6. Remove both the receiver and the headset from the charger. 7. Once charged, gently connect the receiver to your mobile phone. The Logitech logo should be facing the same direction as your phone keys. Headset and receiver LED There are two LED lights, one on the receiver and another on the headset. They will flashat different speeds and display different colors according to certain conditions. The listbelow describes what these mean.Talk Mode Flash Rate On Slow Muted Fast Off No Flash Operation Mode ColorGREEN Normal or Fully Charged ORANGE Lost Connection or Problem with Charging RED Low Battery or Charging Using Your HeadsetTurning the headset on and off Pushing the multi-function button and holding for 2 seconds will turn on the headset. Toturn the headset off, simply push the multi-function button and hold for 2 seconds. Thisfeature will work even if your phone does not support the multi-function call answer/endfeature. Automatic power down The headset will power down and turn off after 5 minutes of no activity. If the headsetdoesn't detect a signal from the receiver for 30 seconds, then the headset will also turnitself off. This will help conserve power. Answering/ending a call To answer or end (hang-up) a phone …

Text truncated - open the document above for the full version.

August 25, 2003 FCC Authorization and Evaluation Division 7434 Oakland Mills Road Columbia, MD 21046 Subject: Cover Letter To Whom It May Concern: Logitech is requesting an original certification for our unlicensed transmitter designated as a Personal Area Network (PAN). The Logitech PAN will operate under FCC Part 15.249 and is comprised of a head mounted transceiver unit (F-013XB). The head mounted transceiver is a low power, battery powered, cordless transceiver which is designed to be worn over the ear of the user to enable a two-way transmission with the dongle unit. Logitech’s PAN will be utilizing the frequency range of 917MHz – 921MHz and employing a FSK modulation scheme. If further clarification of Logitech’s PAN is needed, please feel free to contact me at (360) 944-3708, via e-mail at [email protected] , or fax (360) 896-2020. Sincerely, Mitchell A. Phillipi Sr. Compliance Engineer Logitech, Inc.

Northwest EMC TCB Compliance Opinion Revision 9/13/03 LABT0072 Information about the Applicant Company Name Logitech Address 6505 Kaiser Drive City, State, Zip Fremont, California 94555 Requested By Mitchell Phillipi Job Number LABT0072 Model F-013XB FCC ID DZLF013XB IC Certification Number 1807D-F013XB Agent No agent Approval Type Original Grant Equipment Type Low power transmitter < 1 GHz. Rule Part 15.249 Overview The F-013XB is an ear-bud style headset, which includes a radio transceiver operating in the 902-928 MHz band. The applicant is seeking authorization under 15.249. It is part of a communications system for hands free cellular phone use. The dongle used with cell phones is certified separately. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. 9/19/03 _______________________________ ________________ David M. Tolman, TCB Committee Northwest EMC TCB Compliance Opinion Revision 9/13/03 LABT0072 Findings and Resolution Item The frequency range of the device, as listed in the block diagram, was different from the test report. Resolution The client has submitted an updated block diagram. Block Diagram4.pdf Item The test report submitted list the model tested as a model 1202 while the model listed in the application is F-013XB. Resolution The client has attested that the models are identical. Item Two test reports were submitted. Resolution The client has identified which test report is correct for the product. Item The antenna and location were not clearly identified. Resolution The client has submitted an updated antenna info3.pdf exhibit, clearly identifying the location of the antenna. Northwest EMC TCB Compliance Opinion Revision 9/13/03 LABT0072 Opinion Specification Requirements Description 47 CFR 2.1091, 2.1093 RF Exposure Opinion The equipment meets the intent specified by the requirements listed above. Discussion The device is categorically excluded from routine environmental evaluation. Specification Requirements Description 47 CFR 15.207 Power line Conducted Emissions Opinion The device meets the requirements Discussion No power line conducted emissions are required the product is battery powered only. Specification Requirements Description 47 CFR 15.19 Label requirements Opinion The requirements have been met. Discussion The applicant has submitted exhibits showing the label and placement. Reference User manual and FCC ID Label and Location.pdf Specification Requirements Description 47 CFR 15.249 Field Strength of Fundamental Opinion The device meets the requirements specified above. Discussion The applicant has submitted a test report. Reference Shockfish HeadsetB.pdf Specification Requirements Description 47 CFR 15.249 Field Strength of Spurious Emissions Opinion The device meets the requirements specified above. Discussion The applicant has submitted a test report. Reference Shockfish HeadsetB.pdf

04/14/03 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern, We hereby respectfully request that under the provision of 47 CFR 0.459, the documents listed below and attached with this application for certification be provided with confidential status. • Schematics • Theory of Operation • Frequency Block Diagrams Any exhibit/information for which we have requested confidentiality, but which may not be accorded such treatment by the FCC, should be returned to us. The documents listed above contain trade secrets that are treated as confidential by us. Substantial competitive harm to us could result should they be made available to the public. Sincerely, Mitchell A. Phillipi Sr. Compliance Engineer Logitech, Inc.

FCC/IC ID Number and Placement FCC ID: DZLF013XB IC: 1807D-F013XB

EUT Information EUT Description The type of equipment tested was a pre-production unit containing the identical schematic, PCB layout, and antenna design as will be used during production. No modifications were made during testing for FCC compliance. EUT Firmware Component Description Part Number Revision F-013XB RF Headset FIRMWARE,RF HEADSET,V1.132&433MHZ 51- 00006 03

Antenna Info - Headset Per 15.203, the antenna included with the device is internal and permanently attached. It is not intended to be serviced by the customer and is, therefore, only replaceable by Logitech repair personnel. Antenna Specification: Manufacturer: Chi Shing Part Number: EWF-7034106-01

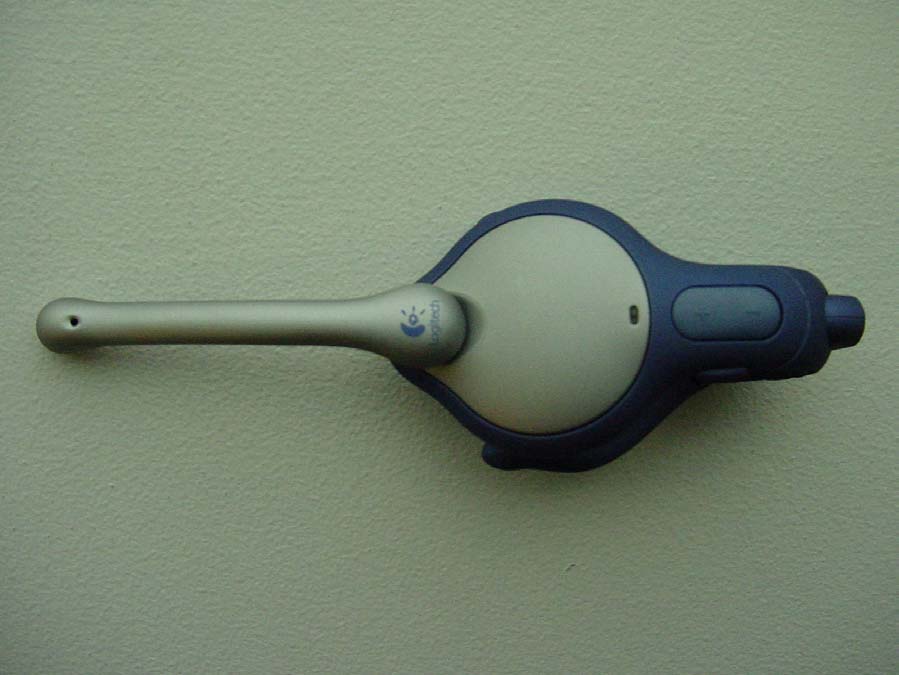

No. / Nr. : Draft Page / Seite 5 / 63 montena emc sa CH-1728 Rossens - Switzerland - phone +41 26 411 93 33 - fax +41 26 411 93 30 - www.emc.montena.com - [email protected] 4.3 Modifications before the tests / Modifications apportées avant les essais / Vor den Prüfungen angebrachte Änderungen none 4.4 Pictures of the EUT / Photos de l’EST / Fotos des Prüflings Equipment under test / Equipment sous test / Prüfling Equipment under test / Equipment sous test / Prüfling 4.5 Classification / Classification / Klassierung • Intentional radiator 5. Test conditions / Conditions d'essai / Testbedingungen 5.1 Climatic conditions / conditions climatiques / klimatologische Bedingungen Temperature / Température / Temperatur: 20 - 25 °C Pressure / Pression / Druck: 1001 - 1012 hPa Relative humidity / Humidité relative / Relative Luftfeuchtigkeit: 36 - 45 % 5.2 Location and Date / Lieu et date / Ort und Datum Test period / Date des essais / Datum der Prüfungen: December 19, 2002 and July 1 to 2, 2003 Location / Lieu / Ort: Rossens No. / Nr. : Draft Page / Seite 6 / 63 montena emc sa CH-1728 Rossens - Switzerland - phone +41 26 411 93 33 - fax +41 26 411 93 30 - www.emc.montena.com - [email protected] 5.3 Persons present / Personnes présentes / Anwesende Personen Test Engineer(s) / Ingénieur(s) d’essai / Prüfingenieur(e) : Erich Staub Other(s) / Autre(s) / Andere : Name / Nom / Name Company / Société / Firma Roger Meier Shockfish SA 5.4 Test configuration / Configuration d’essai / Prüfkonfiguration 5.5 Operating conditions / Conditions de fonctionnement / Betriebszustand Normal mode of operation, modulated transmitter at lowest and highest operating frequencies. 5.6 Auxillary equipment / Matériel auxiliaire / Zusatzgeräte The following pieces of equipment are used for the monitoring of the EUT or are necessary for the EUT but they are not tested with the EUT / Les équipements suivants servent à la surveillance de l’EST ou sont indispensable au fonctionnement de celui-ci mais ne font pas partie de l’essai / Folgende Geräte werden für die Überwachung des Prüflings gebraucht oder sind notwendig für die korrekte Funktion. Sie gehören jedoch nicht zum Prüfling. Product / Produit / Produkt Brand / Marque / Marke Model number ID Remark / Remarque / Bemerkung - - - - - - - - - - - - - - - No. / Nr. : Draft Page / Seite 8 / 63 montena emc sa CH-1728 Rossens - Switzerland - phone +41 26 411 93 33 - fax +41 26 411 93 30 - www.emc.montena.com - [email protected] 6.1 Carrier measurement Test site: # anechoic chamber (foam) $ open test site % anechoic chamber (ferrites) $ ............................................. Distance: $ 30 m % 10 m # 3 m $ ......................... Position of EUT: 0.8 m (height of the equipment under test above floor) Test precision: ± 6 dB (30 - 300 MHz) / ± 5.4 dB (300 - 1000 MHz) Test method: The electromagnetic disturbance radiated by the equipment is measured using a spectrum analyser and a wide band antenna. The antenna is moved from 1 to 4 m in height successively with horizontal and vertical polarisations. The turning table is operated through 360° during the measurements. The recordings are carried out taking into account the maximum value of all the disturbance appearing while the apparatus is under test. The peak values are recorded continuously on the graph. The values exceeding the limits are remeasured manually giving quasi-peak values and average values using a receiver and these measurements are indicated under the graph. The limit must be respected in quasi-peak values (QP). Test set-up: Remarks: • Maximum field strength measured from 1 to 3 m. • During this measurement the resolution bandwidth was 120 kHz and the video bandwidth 100 kHz. The theoretical error for broad band signals will be smaller than 0.8 dB. For narrow band signals the level does not change. • EUT measured in position which showed the highest emission on the first prototype Test equipment: # Spectrum analyser # 88-14 % 90-26 $ 94-24 # Receiver $ 85-04 # 90-43 % 94-35 # Preamplifier $ 88-05 % 90-01 $ 90-42 # 95-86 % 92-39 % Antenna (biconical) $ 82-02 $ 87-05 $ 87-16 $ 91-05 % 94-37 # Antenna (log-per) $ 88-20 $ 90-30 $ 91-35 # 94-64 # Attenuators Result: # pass $ fail $ not applicable $ not tested No. / Nr. : Draft Page / Seite 19 / 63 montena emc sa CH-1728 Rossens - Switzerland - phone +41 26 411 93 33 - fax +41 26 411 93 30 - www.emc.montena.com - [email protected] 6.2 Radiated electromagnetic field 30 - 1000 MHz Test site: # anechoic chamber (foam) $ open test site % anechoic chamber (ferrites) $ ............................................. Distance: $ 30 m % 10 m # 3 m $ ......................... Position of EUT: 0.8 m (height of the equipment under test above floor) Test precision: ± 6 dB (30 - 300 MHz) / ± 5.4 dB (300 - 1000 MHz) Test method: The electromagnetic disturbance radiated by the equipment is measured from 30 to 1000 MHz using a spectrum analyser and a wide band antenna. The antenna is moved from 1 to 4 m in height successively with horizontal and vertical polarisations. The turning table is operated through 360° during the measurements. The recordings are carried out taking into account the maximum value of all the disturbance appearing while the apparatus is under test. The peak values are recorded continuously on the graph. The values exceeding the limits are remeasured manually giving quasi-peak values and average values using a receiver and these measurements are indicated under the graph. The limit must be respected in quasi- peak values (QP). Test set-up: Remarks: • Maximum field strength measured from 1 to 3 m. • EUT measured in position which showed the highest emission on the first prototype • With notch filter at transmitting frequency, for values around carrier see §6.1 Test equipment: # Spectrum analyser # 88-14 % 90-26 $ 94-24 # Receiver $ 85-04 # 90-43 % 94-35 # Preamplifier $ 88-05 % 90-01 $ 90-42 # 95-86 % 92-39 # Antenna (biconical) $ 82-02 $ 87-05 $…

Text truncated - open the document above for the full version.
