DZLF0228AF-0228A

Setup Installation Instalación Logitech ® Mobile Freedom ™ Headset Mobile Freedom ™ Headset ® Safety • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Caution: risk of electric shock. Do not open mains operated device. • Do not use apparatus near water. • Clean only with a dry cloth. • Install in accordance with the manufacturer’s instructions. • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. • Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one wider than the other. The wide blade is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. • Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. • Only use attachments/accessories specified by the manufacturer. • Unplug this apparatus when unused for long periods of time or during lightning storms. • Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. • Refer all servicing to qualified service personnel. • The appliance shall be disconnected from the mains by pulling the mains power plug. The socket - outlet shall be installed near the equipment and shall be easily accessible. • Batteries built into device are NOT user replaceable. Discard used batteries according to the manufacturers instructions. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. IMPORTANT SAFETY INFORMATION CAUTION ELECTRIC SHOCK HAZARD Introduction 1 English 2 English Headset Overview A. WindStop ™ microphone B. LED indicator light C. Volume down: lowers volume D. Volume up: raises volume E. Adjustable/reversible ear piece F. Multi-function button: Power on/off, answer/end calls A F E D C B Technical Specifi cations • Full duplex communication • Rechargeable lithium-ion battery • Adapter: 5.0 V.D.C. • Range: up to 33 feet/10m • Telephone voice quality sound • Talk time: up to 7 hours • Stand by time: up to 300 hours • Weight: 23g • Bluetooth profi le v1.2 compliant – Adaptive-frequency hopping – Quick-connect time – Enhanced audio quality • Maximum conducted output power = 2.5mW (variable adaptive power control) • Operates in (2402MHz-2480MHz) Frequency Bands • GFSK/FHSS Modulation Pairing with a Bluetooth ® Phone You must pair your headset to a Bluetooth ® Mobile Phone. For more details, refer to your mobile phone user guide or contact the phone’s manufacturer. 1. Turn on your phone. Make sure the battery is charged in both devices. Turn off the Headset. 2. Press and hold the Multi-function button until the headset indicator light fl ashes blue and red (about 10 seconds). 3. The Headset is now in Pairing mode. Release the button. The indicator light will continue fl ashing red and blue. 4. Follow the pairing instructions for your Bluetooth® phone. Typically, this is done by going to a ‘setup’ or ‘connect’ menu and then selecting the options to ‘discover’ Bluetooth®devices. 5. Your phone should fi nd the ‘Logitech HS02-Vxx’ headset. Confi rm to pair. 6. Your phone should prompt you for a passkey or PIN. The PIN/passkey is: 0000. 7. If pairing was successful, the Headset LED will fl ash blue. 8. If pairing fails turn the headset and phone off and repeat the process. 9. Red and blue fl ashing will return to stand-by mode (blue fl ashing LED) if not paired in 2 minutes. Comfort & Fit 1. Flip the earpiece and slide the headset to fi t either ear. 2. Rotate the earpiece and slide the headset over ear to your comfort. 3. Rotate the microphone boom so it is pointing toward the corner of your mouth. Please see www.logitech.com for more information. Using your Headset Turning the headset on and off: Push and hold the multi-function button for 4 seconds. A blue light will fl ash when on. Answering/ending a call: Press the multi-function button. Muting a call: Press and hold Volume up for 3 seconds. A repeating beep will indicate that the microphone is muted. Quick-Press of Volume up or down to discontinue mute. Charging the Headset 1. Turn off the headset and connect the power adapter. 2. Plug the power adapter to an electrical outlet. 3. The LED will be orange when charging. If the LED is not orange, the connection is not suffi cient. 4. When the LED turns off, your headset is fully charged. Charging can take up to 3 hours. Setup – Pairing your Headset Wearing and Using your Headset 3 English 4 English Headset OperationActivationLED StatusSounds Turning OnPress multi-function button for more than 3 seconds5 BLUE flashes brief low-to-high tone Receiving incoming callNone - Automatic3 repeating BLUE flashes melody increases in volume Answering callBriefly press multi-function button3 repeating BLUE flashes single beep when answered During callNone - Automatic4 repeating BLUE flashesno beep Mic Mute-on during callPress + volume button more than 2 seconds4 repeating BLUE flashes double-beep every 30 seconds Ending mic mutePress + or - volume button briefly4 repeating BLUE flashes single beep Ending callPress multi-function button briefly3 repeating BLUE flashessingle beep Pairing Option 1 Option 2 While off, press MFB for about 8 seconds until RED and BLUE flashes (times out after 2 minutes if no pairing) From Standby, press MFB for about 8 seconds until RED and BLUE flashes (times out after 2 minutes if no pairing)no pairing) Alternating RED and BLUE flashes Repeating BLUE flash when paired Alternating RED and BLUE flashes Repeating BLUE flash when pairedpaired single high-low tone beep No beep after pairing single high-low tone be…

Text truncated - open the document above for the full version.

August 17, 2004 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern, We, the undersigned, hereby authorize Northwest EMC, Inc., to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Northwest EMC, Inc. within the scope of this authorization shall have the same affect as our own. This authorization shall expire 12 months from original date. Sincerely, Mitchell Phillipi Sr. Compliance Engineer

August 17, 2004 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern, We hereby respectfully request that under the provision of 47 CFR 0.459, the documents listed below and attached with this application for certification be provided with confidential status. • Schematics • Theory of Operation • Frequency Block Diagrams Any exhibit / information for which we have requested confidentiality, but which may not be accorded such treatment by the FCC, should be returned to us. The documents listed above contain trade secrets that are treated as confidential by us. Substantial competitive harm to us could result should they be made available to the public. Sincerely, Mitchell Phillipi Sr. Compliance Engineer

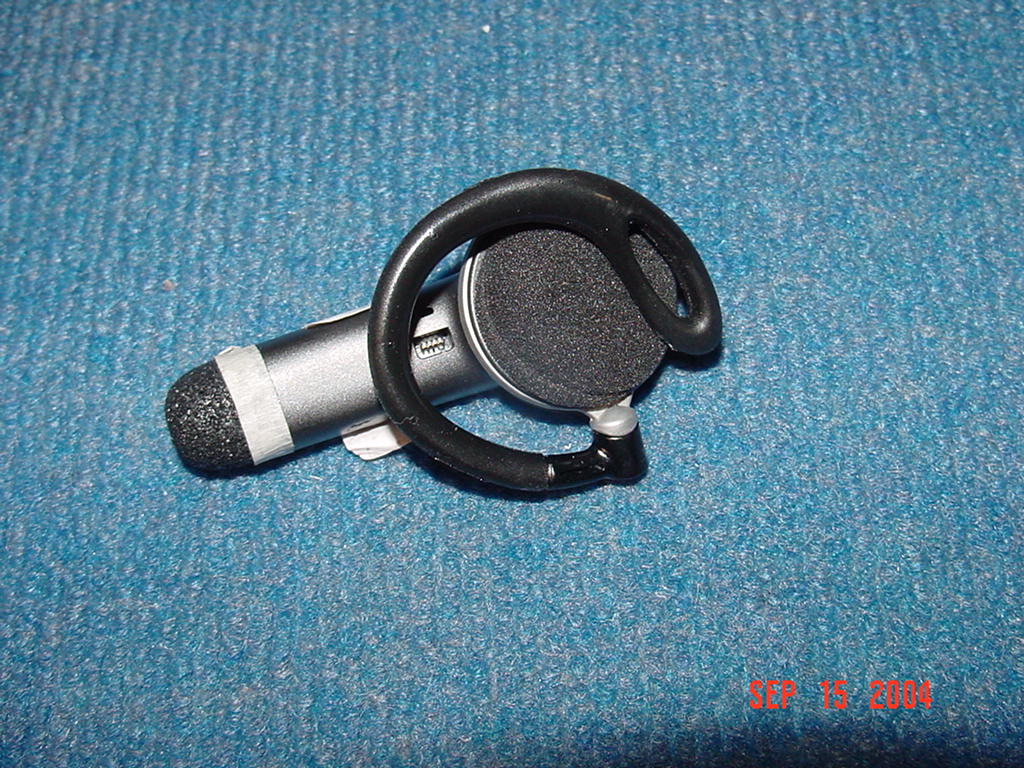

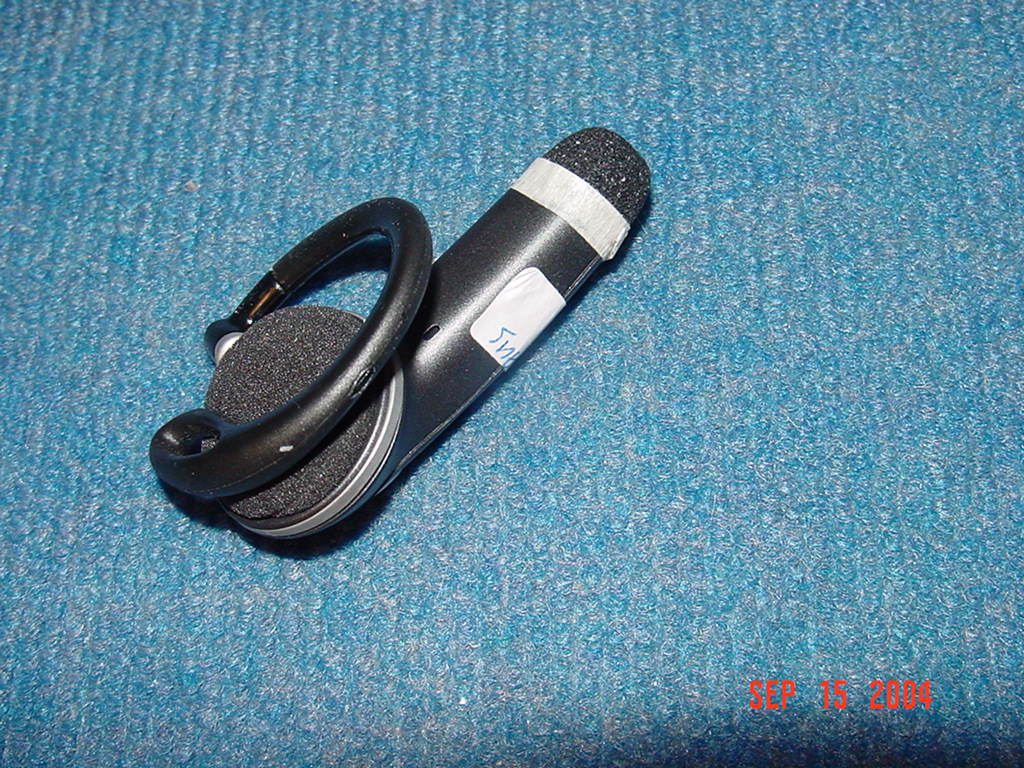

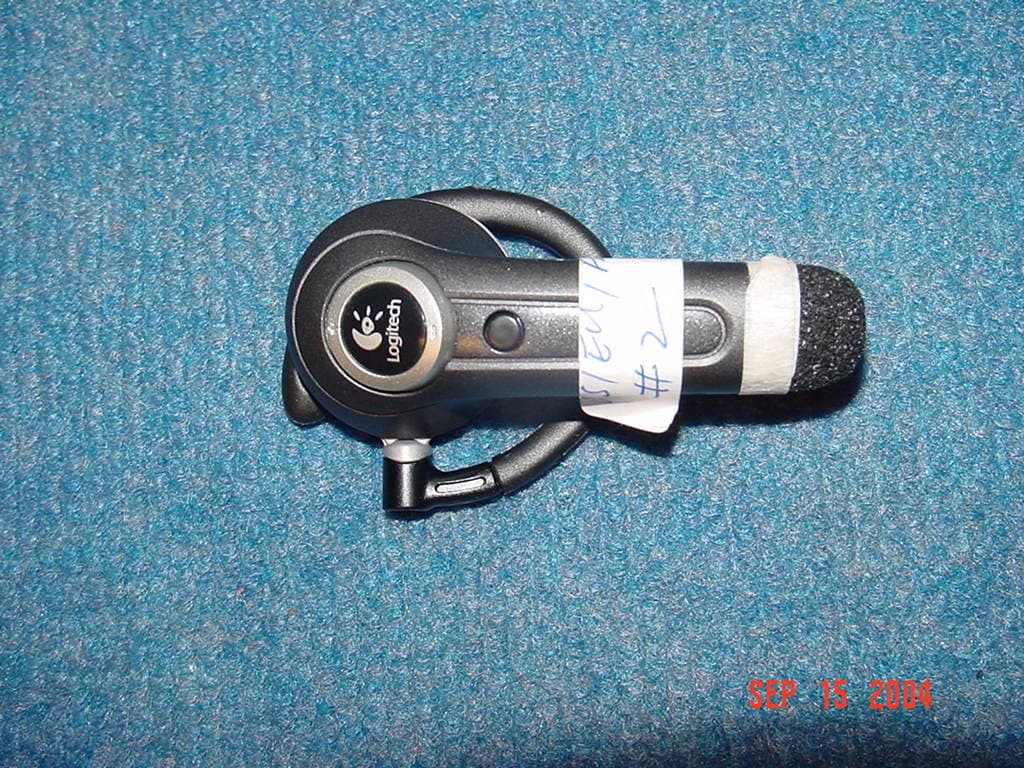

August 17, 2004 FCC Authorization and Evaluation Division 7434 Oakland Mills Road Columbia, MD 21046 Subject: Cover Letter To Whom It May Concern: Logitech is requesting an original certification for our unlicensed Bluetooth Headset (MN: F-0228A). The Logitech Bluetooth Headset will operate under FCC Part 15.247 and consists of a head mounted, over the ear type transceiver. The head mounted transceiver is a low power, battery powered, cordless transceiver which is designed to be worn over the ear of the user to enable a two-way transmission with a Bluetooth compatible cellular telephone. Logitech’s Bluetooth Head set will be utilizing th e frequency range of 2402MHz – 2480MHz an d employin g a FSK/FHSS modulation scheme. If further clarification of Logitech’s PAN is needed, please feel free to contact me at (360) 944-3708, via e-mail at [email protected] , or fax (360) 896-2020. Sincerely, Mitchell A. Phillipi Sr. Compliance Engineer Logitech, Inc.

Northwest EMC TCB Approval Opinion Revision 05//02 LABT0099 Information about the Applicant Applicant: Logitech, Inc. Address: 1499 SE Tech Center Place Suite 350 City, State, Zip Vancouver, WA 98683 Test Requested By: Mitchell Phillipi Model: F-0228A FCC ID: DZLF0228A Agent Northwest EMC, Inc. Approval Type Certification Equipment Type Low power intentional radiator Rule Part 15.247 Overview The equipment is a Logitech Bluetooth Headset (MN: F-0228A). The Logitech Bluetooth Headset will operate under FCC Part 15.247 and consists of a head mounted, over the ear type transceiver. The head mounted transceiver is a low power, battery powered, cordless transceiver which is designed to be worn over the ear of the user to enable a two-way transmission with a Bluetooth compatible cellular telephone. Logitech’s Bluetooth Headset will be utilizing the frequency range of 2402MHz – 2480MHz and employing a FSK/FHSS modulation scheme. Findings The technical report Output power section indicates the EUT was powered by 120 VAC/60 Hz though all other exhibits indicate it is battery powered. These were typographical errors that have been corrected. The technical report Power Spectral Density section indicates the EUT was powered by 120 VAC/60 Hz though all other exhibits indicate it is battery powered. These were typographical errors that have been corrected. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature Northwest EMC TCB Approval Opinion Revision 05//02 LABT0099 Opinion Specification Requirements Description 15.207 Conducted Power Line Emissions Opinion: N/A – Battery powered. Discussion: The Applicant has submitted test results in the form of a test report. Reference: N/A Specification Requirements Description 15.247(a)(1)(ii) Bandwidth Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report Reference: Technical Report Specification Requirements Description 15.247(b)(1) Power Output Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report Reference: Technical Report Specification Requirements Description 15.247( c ) Spurious Emissions, Antenna Conducted Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report Reference: Technical Report Specification Requirements Description 15.247( c ) Spurious Emissions, Radiated Emissions Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Technical Report Northwest EMC TCB Approval Opinion Revision 05//02 LABT0099 Specification Requirements Description 15.247(d) Power Spectral Density Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report Reference: Technical Report Specification Requirements Description 15.247(c) Band Edge Compliance Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Technical Report Specification Requirements Description 2.1091/15.247(b)(5) RF Exposure Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted MPE estimates demonstrating compliance. Reference: RF Exposure Exhibit Specification Requirements Description Additional Requirements FCC Compliance common to all Bluetooth Devices Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted the required information in the test report. Reference: Technical Report

FCC ID: DZLF0228A IC: 1807D - F0228A Model #: F-0228A 183136 Dieline - do not print

Per 15.203, the antenna is internal and permanently attached. It is not intended to be serviced by the customer and is, therefore only serviceable by Logitech, Inc. authorized personnel. The antenna is a printed quarter wave meander antenna with –3.84dBi gain.

Compliance with 47 CFR 15.247(b)(5) “Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter.” The EUT is a head mounted, battery powered, cordless transceiver which is designed to be worn over the ear of the user to enable a two-way transmission with a Bluetooth compatible cellular telephone. It can be considered a portable transmitter per 47 CFR 2.1093(b). The antenna is internal to the unit and permanently attached. The antenna is a printed quarter wave meander antenna with –3.84 dBi gain. The maximum peak conducted output power is 2.89 mW. The maximum peak power is 1.19 mW (EIRP) for FCC ID: DZLF0228A. The transmit frequency is 2402 to 2480 MHz, therefore the EUT does not require routine SAR evaluation per “TCB Exclusions List”, footnote 3 (dated July 17, 2002). See below: The exposure category is “General Population”. The distance is < 2.5 cm. Therefore the “Low Threshold” is 24.5 mW (EIRP) – above which routine SAR evaluation would be required. Since the maximum peak power of the EUT is 2.89 mW (peak conducted), routine SAR evaluation is not required. The applicant’s Bluetooth radio, FCC ID: DZLF0228A, is compliant with the requirements of 15.247(b)(5).

Logitech, Inc. F-0228A August 23, 2004 Report No. LABT0098 Rev 02 Report Prepared By: www.nwemc.com 1-888-EMI-CERT © 2004 Northwest EMC, Inc 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Test Issue Date: August 23, 2004 Logitech, Inc. Model: F-0228A Emissions Specification Test Method Pass Fail FCC 15.247(a) Occupied Bandwidth:2003 ANSI C63.4:2001 FCC 15.247(b) Output Power:2003 ANSI C63.4:2001 FCC 15.247(c) Band Edge Compliance:2003 ANSI C63.4:2001 FCC 15.247(c) Spurious Conducted Emissions:2003 ANSI C63.4:2001 FCC 15.247(c) Spurious Radiated Emissions:2003 ANSI C63.4:2001 FCC 15.247(d) Power Spectral Density:2003 ANSI C63.4:2001 Modifications made to the product See the Modifications section of this report Test Facility The measurement facility used to collect the data is located at: Northwest EMC, Inc. 22975 NW Evergreen Parkway, Suite 400; Hillsboro, OR 97124 Phone: (503) 844-4066 Fax: 844-3826 This site has been fully described in a report filed with and accepted by the FCC (Federal Communications Commission) and Industry Canada. Approved By: Don Facteau, IS Manager This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested, the specific description is noted in each of the individual sections of the test report supporting this certificate of test. Northwest EMC Revision History Revision 05/05/03 Revision Number Description Date Page Number 01 Corrected model number of EUT 9/15/04 13,19,25,30,45,51 02 Correct supply voltage 9/30/04 9, 17, 43, 45, 46, 47 Northwest EMC Accreditations and Authorizations Revision 04/01/04 FCC: Accredited by NVLAP for performance of FCC radio, digital, and ISM device testing. Our Open Area Test Sites, certification chambers, and conducted measurement facilities, have been fully described in reports filed with the FCC and accepted by the FCC in letters maintained in our files. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by the FCC as a Telecommunications Certification Body (TCB). This allows Northwest EMC to certify transmitters to FCC specifications in accordance with 47 CFR 2.960 and 2.962. NVLAP: Northwest EMC, Inc. is recognized under the United States Department of Commerce, National Institute of Standards and Technology, National Voluntary Laboratory Accreditation Program for satisfactory compliance with the requirements of ISO/IEC 17025 for Testing Laboratories. The NVLAP accreditation encompasses Electromagnetic Compatibility Testing in accordance with the European Union EMC Directive 89/336/EEC, ANSI C63.4, MIL-STD 461E, DO-160D and SAE J1113. Additionally, Northwest EMC is accredited by NVLAP to perform radio testing in accordance with the European Union R&TTE Directive 1999/5/EEC, the requirements of FCC, and the RSS radio standards for Industry Canada. Accreditation has been granted to Northwest EMC, Inc. under Certificate Numbers: 200629-0, 200630-0, and 200676-0. Industry Canada: Accredited by NVLAP for performance of Industry Canada RSS and ICES testing. Our Open Area Test Sites and certification chambers comply with RSS 212, Issue 1 (Provisional) and have been filed with Industry Canada and accepted. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by NIST and recognized by Industry Canada as a Certification Body (CB) per the APEC Mutual Recognition Arrangement (MRA). This allows Northwest EMC to certify transmitters to Industry Canada technical requirements. CAB: Designated by NIST and validated by the European Commission as a Conformity Assessment Body (CAB) to conduct tests and approve products to the EMC directive and transmitters to the R&TTE directive, as described in the U.S. - EU Mutual Recognition Agreement TÜV Product Service: Included in TUV Product Service Group's Listing of Recognized Laboratories. It qualifies in connection with the TUV Certification after Recognition of Agent's Testing Program for the product categories and/or standards shown in TUV's current Listing of CARAT Laboratories available from TUV. A certificate was issued to represent that this laboratory continues to meet TUV's CARAT Program requirements. Certificate No. USA0401C Northwest EMC Accreditations and Authorizations Revision 04/01/04 TÜV Rheinland: Authorized to carryout EMC tests by order and under supervision of TÜV Rheinland. This authorization is based on "Conditions for EMC- Subcontractors" of November 1992. NEMKO: Assessed and accredited by NEMKO (Norwegian testing and certification body) for European emissions and immunity testing. As a result of NEMKO's laboratory assessment, they will accept test results from Northwest EMC, Inc. for product certification (Authorization No. ELA 119). Technology International: Assessed in accordance with ISO Guide 25 defining the general international requirements for the competence of calibration and testing laboratories and with ITI assessment criteria LACO196. Based upon that assessment Interference Technology International, Ltd., has granted approval for specifications implementing the EU Directive on EMC (89/336/EEC and amendments). The scope of the approval was provided on a Schedule of Assessment supplied with the certificate and is available upon request. Australia/New Zealand: The National Association of Testing Authorities (NATA), Australia has been appointed by the ACA as an accreditation body to accredit test laboratories and competent bodies for EMC standards. Accredited test reports or assessments by competent bodies must carry the N…
