DZLF0399AF-0399A

User ManualGuidede l’utilisateur Logitech ® Mobile Traveller ™ Headset Mobile Traveller ™ Casque ® 1 English 2 English • Read these instructions.• Keep these instructions.• Heed all warnings.• Follow all instructions.• Caution: risk of electric shock. Do not open mains operated device. • Do not use apparatus near water.• Clean only with a dry cloth.• Install in accordance with the manufacturer’s instructions. • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. • Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one wider than the other. The wide blade is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. • Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. • Only use attachments/accessories specified by the manufacturer. • Unplug this apparatus when unused for long periods of time or during lightning storms. • Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. • Refer all servicing to qualified service personnel.• The appliance shall be disconnected from the mains by pulling the mains power plug. The socket - outlet shall be installed near the equipment and shall be easily accessible. • Batteries built into device are NOT user replaceable. Discard used batteries according to the manufacturers instructions and local regulations. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. IMPORTANT SAFETY INFORMATION CAUTION ELECTRIC SHOCK HAZARD Headset OverviewA. WindStop ™ microphone B. LED indicatorC. Volume down: lowers volumeD. Volume up: raises volumeE. Adjustable/reversible ear pieceF. Multi-function button: Power on/off, answer/end calls Introduction Safety E F A B C D 3 English 4 English Check for phone compatibilityThe Logitech® Mobile Traveller™ Headset is compatible with most Bluetooth® mobile phones. Consult your phone manufacturer for more information on compatibility. Charge Headset BatteryThe Logitech® Mobile Traveller™ Headset comes with a lithium-ion rechargeable battery that must be fully charged before you use the headset for the fi rst time. 1. Turn off the headset. Connect the power adapter to the headset. Plug the AC adapter into the electrical outlet. 2. The LED will be orange when charging. If the LED is not orange, check the connection. 3. During charging, the orange LED will be lit. When the Logitech® Mobile Traveller™ Headset is fully charged, the orange LED turns off. Charging can take up to 4 hours. 4. Remove the AC adapter from the Headset.5. Your Headset is now ready for pairing. See page 4., or the Quick Start Guide for details on pairing. Comfort and Fit1. Rotate the rubber earpiece around the headset for use on either ear.2a. Place the earpiece behind your ear and rotate the product to your comfort. or2b. With one hand, hold earpiece out from the headset and slide product over your ear.3. Rotate microphone boom so it is pointing toward the corner of your mouth. Pairing with a Bluetooth® PhoneYou must pair your headset to a Bluetooth® mobile phone.For more details, refer to your mobile phone user guide or contact the phone’s manufacturer.1. Turn on your phone. Make sure the battery is charged in both devices. Turn off the headset. 2. Press and hold the Multi-function button until the headset indicator light fl ashes blue and red (about 10 seconds). 3. The headset now is in Pairing mode. Release the button. The indicator light will continue fl ashing red and blue. 4. Follow the pairing instructions for your Bluetooth® phone. Typically, this is done by going to a ‘setup’ or ‘connect’ menu on your phone and then selecting the options to ‘discover’ Bluetooth® devices. 5. Your phone should fi nd the ‘Logitech HS03-Vxx’ headset. Confi rm to pair. 6. Your phone should prompt you for a passkey or PIN. The PIN/passkey is: 0000 . 7. If pairing was successful, the headset LED will fl ash blue. 8. If pairing fails, turn the headset and phone off and repeat the process. 9. Red and blue fl ashing will return to stand-by mode (blue fl ashing LED) if not paired in 2 minutes. Multi-functionbutton 1 3 2 a 2 b or Wearing and Using Your Headset Pairing Your Headset 5 English 6 English Using Your Logitech® Mobile Traveller™ HeadsetNote: The features listed below are phone dependent. Check your phone user’s manual.1. Starting a Call Dial the numbers on your mobile phone keypad. When the call is connected, your headset will automatically connect to the phone to take the call. 2. Using Voice Dialing Press and release the Multi-Function Button when in standby mode. Your phone may show a voice dialing request on the screen. A click will be heard in the Headset. After the click, speak the name of the caller. Call voice tags are pre-recorded in the phone. 3. Ending a Call Press and release the Multi-Function Button on the Headset when in call mode, or end call from mobile phone keypad. 4. Answering a Call After an incoming ring tone, press and release the Multi-Function Button once. Or, you can answer the call with your mobile phone’s keypad. To transfer a call to your Headset, press and release the Multi-Function Button once or use the menu on your phone. 5. Muting a Call Press the Volume (+) and Volume (-) simultaneously for 3 seconds while in a Call. You will hear a beep the fi rst time and every 30 seconds afterwards. 6. Ending Mute Press the Volume (+) and Volume (-) simultaneously for 3 seconds while in Mute mode. You will hear a beep. 7. Last Number Redial When in Standby Mode, press …

Text truncated - open the document above for the full version.

October 19, 2004 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern, We, the undersigned, hereby authorize Northwest EMC, Inc., to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Northwest EMC, Inc. within the scope of this authorization shall have the same affect as our own. This authorization shall expire 12 months from original date. Sincerely, Mitchell Phillipi Sr. Compliance Engineer

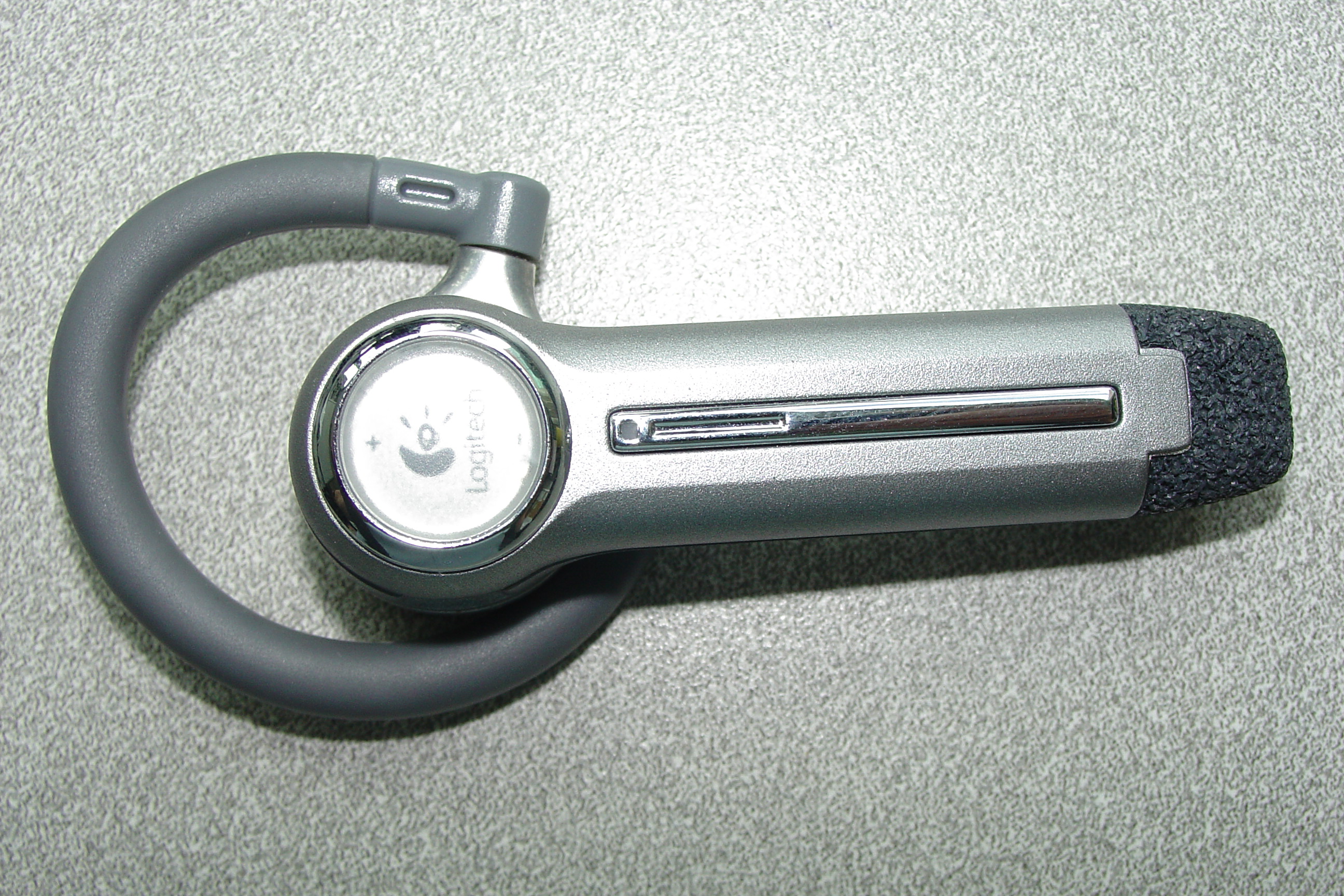

Northwest EMC TCB Compliance Opinion Rev. 9/15/03 Labt0131 Information about the Applicant Company Name Logitech, Inc. Grantee Mitchell Phillipi Address 1499 SE Tech Center Place Suite 350 City, State, Zip Vancouver, WA 98683 Job Number labt0131 Model F-0399A FCC ID DZLF0399A Agent Northwest EMC, Inc. Approval Type Original Equipment Class DTS Digital Transmission System Rule Part Bluetooth Overview This Bluetooth transceiver is a battery powered, cordless, head mounted tranceiver, which is designed to be worn over the ear of the user to enable a two-way transmission with a Bluetooth compatible cellular telephone. It will be utilizing the frequency range of 2402MHz – 2480MHz and employing a GFSK/FHSS modulation scheme. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature 8/17/2005 Dave Tolman, TCB Committee Northwest EMC TCB Compliance Opinion Rev. 9/15/03 Labt0131 Findings Opinions Specification Requirements Description 47 Cfr 2.1033(b)(3) Installation guide, operating instructions,user manual Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference User Manual.pdf Specification Requirements Description 47 Cfr 2.1033(b)(4) Operational description Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference Operational Description.pdf Specification Requirements Description 47 Cfr 2.1033(b)(5) Frequency block diagram Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference Operational Description.pdf Specification Requirements Description 47 Cfr 2.1033(b)(5) Schematic diagram Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference Block Diagram.pdf,Schematics.pdf Specification Requirements Description 47 cfr 2.1033(b)(6) Test Report Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference Report-labt0131.pdf Specification Requirements Description 47 Cfr 2.1033(b)(6) Conversions showing how the test results were achieved Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference Report-labt0131.pdf Northwest EMC TCB Compliance Opinion Rev. 9/15/03 Labt0131 Specification Requirements Description 47 Cfr 2.1033(b)(7) Internal and external photos Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference Internal Photos.pdf, External Photos.pdf Specification Requirements Description 47 Cfr 1.1307(b),2.1091,2.1093 RF Exposure Hazzard Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference Report-labt0131.pdf Specification Requirements Description 47 Cfr 15.19 Labeling Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference User Manual.pdf, Label.pdf Specification Requirements Description 47 Cfr 15.21 Information for user Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference User Manual.pdf Specification Requirements Description 47 Cfr 15.27 Special accessories Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference Report-labt0131.pdf Specification Requirements Description 47 Cfr 15.33 Frequency range of tests Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference Report-labt0131.pdf Specification Requirements Description 47 Cfr 15.35 Measurement detectors Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference Report-labt0131.pdf Northwest EMC TCB Compliance Opinion Rev. 9/15/03 Labt0131 Specification Requirements Description ANSI C63.4 EUT Ports All EUT ports populated,emissions maximized,Antenna height adjusted Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference Report-labt0131.pdf Specification Requirements Description 47 Cfr 15.203 Antenna Requirements Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference Report-labt0131.pdf Specification Requirements Description 47 Cfr 15.205 Restricted bands Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference Report-labt0131.pdf Specification Requirements Description 47 Cfr 15.207 Power line Conducted emissions Opinion NA. Discussion The device has no AC power so conducted emission measurements are not required. Reference Report-labt0131.pdf Specification Requirements Description 47 Cfr 15.209 Spurious Emissions Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference Report-labt0131.pdf Specification Requirements Description BLUETOOTH FCC Procedure 2-15-02 Bluetooth Common Items Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference Report-labt0131.pdf Specification Requirements Description 47 cfr 15.247 Operation within specified bands Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference Report-labt0131.pdf Northwest EMC TCB Compliance Opinion Rev. 9/15/03 Labt0131 Specification Requirements Description 47 Cfr 15.247(a) Occupied Bandwidth Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference Report-labt0131.pdf Specification Requirements Descriptio…

Text truncated - open the document above for the full version.

June 3, 2005 FCC Authorization and Evaluation Division 7434 Oakland Mills Road Columbia, MD 21046 Subject: Cover Letter To Whom It May Concern: Logitech is requesting an original certification for our unlicensed Bluetooth Headset (MN: F-0399A). The Logitech Bluetooth Headset will operate under FCC Part 15.247 and consists of a head mounted, over the ear type transceiver. The FCC ID is DZLF0399A. The head mounted transceiver is a low power, battery powered, cordless transceiver which is designed to be worn over the ear of the user to enable a two-way transmission with a Bluetooth compatible cellular telephone. Logitech’s Bluetooth Headset will be utilizing the frequency range of 2402MHz – 2480MHz and employing a GFSK/FHSS modulation scheme. If further clarification of Logitech’s Bluetooth Headset is needed, please feel free to contact me at (360) 944-3708, via e-mail at [email protected] , or fax (360) 896-2020. Sincerely, Mitchell A. Phillipi Sr. Compliance Engineer Logitech, Inc.

June 3, 2005 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern, We hereby respectfully request that under the provision of 47 CFR 0.459, the documents listed below and attached with this application for certification be provided with confidential status. • Schematics • Theory of Operation • Frequency Block Diagrams Any exhibit / information for which we have requested confidentiality, but which may not be accorded such treatment by the FCC, should be returned to us. The documents listed above contain trade secrets that are treated as confidential by us. Substantial competitive harm to us could result should they be made available to the public. Sincerely, Mitchell Phillipi Sr. Compliance Engineer

Per 15.203, the antenna is internal and permanently attached. It is not intended to be serviced by the customer and is, therefore only serviceable by Logitech, Inc. authorized personnel. The antenna is a printed quarter wave meander with 4.87dBi maximum gain.

Compliance with 47 CFR 15.247(i) “Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter.” The EUT is a cordless Bluetooth transceiver which is designed to be worn over the ear of the user to enable a two-way transmission with a Bluetooth compatible cellular telephone. It can be considered a portable transmitter per 47 CFR 2.1093(b). The antenna is internal to the unit and has 4.87 dBi gain. The maximum peak conducted output power is 3.05 mW. The maximum peak power is 9.35 mW (EIRP) for FCC ID: DZLF0399A. The transmit frequency is 2402 to 2480 MHz, therefore the EUT does not require routine SAR evaluation per “TCB Exclusions List”, footnote 3 (dated July 17, 2002). See below: The exposure category is “General Population”. The distance is < 2.5 cm. Therefore the “Low Threshold” is 24.5 mW (EIRP) – above which routine SAR evaluation would be required. Since the maximum peak power of the EUT is 9.35 mW (peak EIRP), routine SAR evaluation is not required. The applicant’s Bluetooth radio, FCC ID: DZLF0399A, is compliant with the requirements of 15.247(i).

Logitech, Inc. F-0399A July 05, 2005 Report No. LABT0131 Report Prepared By www.nwemc.com 1-888-EMI-CERT © 2005 Northwest EMC, Inc 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Test Issue Date: July 05, 2005 Logitech, Inc. Model: F-0399A Emissions Specification Test Method Pass Fail FCC 15.247(a) Occupied Bandwidth:2005-04 ANSI C63.4:2003 FCC 15.247(b) Output Power:2005-04 ANSI C63.4:2003 FCC 15.247(d) Band Edge Compliance:2005-04 ANSI C63.4:2003 FCC 15.247(d) Spurious Conducted Emissions:2005-04 ANSI C63.4:2003 FCC 15.247(d) Spurious Radiated Emissions:2005-04 ANSI C63.4:2003 FCC 15.247(e) Power Spectral Density:2005-04 ANSI C63.4:2003 FCC 15.109(g) (CISPR 22:1997) Class B:2005-04 ANSI C63.4:2003 Modifications made to the product See the Modifications section of this report Test Facility The measurement facility used to collect the data is located at: Northwest EMC, Inc. 22975 NW Evergreen Parkway, Suite 400; Hillsboro, OR 97124 Phone: (503) 844-4066 Fax: 844-3826 This site has been fully described in a report filed with and accepted by the FCC (Federal Communications Commission) and Industry Canada. Approved By: Greg Kiemel, Director of Engineering This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested, the specific description is noted in each of the individual sections of the test report supporting this certificate of test. Northwest EMC Revision History Revision 05/05/03 Revision Number Description Date Page Number 00 none Northwest EMC Accreditations and Authorizations Revision 03/18/05 FCC: Accredited by NVLAP for performance of FCC radio, digital, and ISM device testing. Our Open Area Test Sites, certification chambers, and conducted measurement facilities have been fully described in reports filed with the FCC and accepted by the FCC in letters maintained in our files. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by the FCC as a Telecommunications Certification Body (TCB). This allows Northwest EMC to certify transmitters to FCC specifications in accordance with 47 CFR 2.960 and 2.962. NVLAP: Northwest EMC, Inc. is recognized under the United States Department of Commerce, National Institute of Standards and Technology, and National Voluntary Laboratory Accreditation Program for satisfactory compliance with the requirements of ISO/IEC 17025 for Testing Laboratories. The NVLAP accreditation encompasses Electromagnetic Compatibility Testing in accordance with the European Union EMC Directive 89/336/EEC, ANSI C63.4, MIL- STD 461E, DO-160D and SAE J1113. Additionally, Northwest EMC is accredited by NVLAP to perform radio testing in accordance with the European Union R&TTE Directive 1999/5/EEC, the requirements of FCC, and the RSS radio standards for Industry Canada. 200629-0 200630-0 200676-0 Industry Canada: Accredited by NVLAP for performance of Industry Canada RSS and ICES testing. Our Open Area Test Sites and certification chambers comply with RSS 212, Issue 1 (Provisional) and have been filed with Industry Canada and accepted. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by NIST and recognized by Industry Canada as a Certification Body (CB) per the APEC Mutual Recognition Arrangement (MRA). This allows Northwest EMC to certify transmitters to Industry Canada technical requirements. CAB: Designated by NIST and validated by the European Commission as a Conformity Assessment Body (CAB) to conduct tests and approve products to the EMC directive and transmitters to the R&TTE directive, as described in the U.S. - EU Mutual Recognition Agreement. TÜV Product Service: Included in TUV Product Service Group's Listing of Recognized Laboratories. It qualifies in connection with the TUV Certification after Recognition of Agent's Testing Program for the product categories and/or standards shown in TUV's current Listing of CARAT Laboratories, available from TUV. A certificate was issued to represent that this laboratory continues to meet TUV's CARAT Program requirements. Certificate No. USA0401C. TÜV Rheinland: Authorized to carryout EMC tests by order and under supervision of TÜV Rheinland. This authorization is based on "Conditions for EMC-Subcontractors" of November 1992. Northwest EMC Accreditations and Authorizations Revision 03/18/05 NEMKO: Assessed and accredited by NEMKO (Norwegian testing and certification body) for European emissions and immunity testing. As a result of NEMKO's laboratory assessment, they will accept test results from Northwest EMC, Inc. for product certification (Authorization No. ELA 119). Technology International: Assessed in accordance with ISO Guide 25 defining the general international requirements for the competence of calibration and testing laboratories and with ITI assessment criteria LACO196. Based upon that assessment, Interference Technology International, Ltd., has granted approval for specifications implementing the EU Directive on EMC (89/336/EEC and amendments). The scope of the approval was provided on a Schedule of Assessment supplied with the certificate and is available upon request. Australia/New Zealand: The National Association of Testing Authorities (NATA), Australia has been appointed by the ACA as an accreditation body to accredit test laboratories and competent bodies for EMC standards. Accredited test reports or assessments by competent bodies must carry the NATA logo. Test reports made by an overseas laboratory that has been accredited for the relevant standards b…

Text truncated - open the document above for the full version.
