DZLF0461AF-0461A

1 1 2 Headphones overview A. Logitech ® FreePulse Wireless ™ Headphones B. Power button / Connect button C. Volume controls D. Wireless adapter E. Indicator lights F. Power adapter/charge connector G. Reset button H. Custom fit iPod® plates (6) Présentation des casques A. Casque d’écoute FreePulse Wireless ™ de Logitech ® B. Bouton de mise sous tension / bouton de connexion C. Réglage de volume D. Adaptateur sans fil E. Témoins lumineux F. Adaptateur d’alimentation / connecteur de chargement G. Bouton de réinitialisation H. Platines pour iPod® spécifiquement adaptées (6) Componentes de los auriculares A. Audífonos Logitech ® FreePulse Wireless ™ B. Botón de encendido / Botón de conexión C. Controles de volumen D. Adaptador inalámbrico E. Indicadores luminosos F. Conector para adaptador de alimentación/carga G. Botón de restablecimiento H. Bases para iPod® a medida (6) 5 1 Product operation Logitech ® wireless headphone indicators: 2 Solid Blue Headphone Wireless Adapter Powered On & Connected Charging Powered On, Not Connected Low Battery Solid Blue Solid Orange Solid Orange Solid Red Solid Red Fast, Blinks Red Fast, Blinks Red LED STATES: Charging your wireless headphones and adapter 1. Plug the AC adapter into your wireless headphones and adapter. 2. Plug the AC adapter into a power outlet. 3. The Charge LED should glow orange while the headphones/adapter are charging. 4. When the light turns off, your headphones/adapter are ready for use. Chargement du casque sans fil et adaptateur 1. Branchez l’adaptateur CA à votre casque sans fil et à l’adaptateur. 2. Branchez l’adaptateur CA à une prise électrique. 3. Le témoin DEL de charge brille en orange durant le chargement du casque et de l’adaptateur. 4. Le casque et l’adaptateur sont prêts à être utilisés lorsque le témoin s’éteint. Carga del adaptador y los auriculares inalámbricos 1. Conecte el adaptador de CA al adaptador y a los audífonos inalámbricos. 2. Conecte el adaptador de CA a una toma de corriente. 3. El diodo de carga debería emitir luz naranja mientras se cargan los audífonos/el adaptador. 4. Cuando se apague la luz, los audífonos/el adaptador estarán listos para usarlos. Using with your iPod® or MP3 Player 1. To power on your headphones, press and hold the Connect button on the headphones until the LED lights up. 2. To power on your wireless adapter, press and hold the Connect button on the wireless adapter until the LED lights up. 3. Identify custom fit plate for your iPod® by model number on plate. Secure to wireless adapter. 4. Plug your iPod® or MP3 player into the wireless adapter. 5. Press Play on your iPod® or MP3 player (with volume at mid level). 6. Turn off headphones and adapter by holding down Connect button until LED blinks red 3 times. Utilisation avec votre iPod® ou lecteur MP3 1. Pour mettre en marche votre casque d’écoute, appuyez sur le bouton Connect situé sur les écouteurs et maintenez-le enfoncé jusqu’à ce que les témoins DEL s’allument. 2. Pour mettre en marche votre l’adaptateur sans fil, appuyez sur le bouton Connect situé sur l’adaptateur sans fil et maintenez-le enfoncé jusqu’à ce que les témoins DEL s’allument. 3. Identifiez la platine spécifiquement adaptée à votre iPod® à l’aide du numéro de modèle retrouvé sur celle-ci. Fixez à l’adaptateur sans fil. 4. Branchez votre iPod® ou lecteur MP3 à l’adaptateur sans fil. 5. Appuyez sur la touche de lecture de votre iPod® ou lecteur MP3 (tout en réglant le volume à un niveau moyen). 6. Éteignez le casque et l’adaptateur en maintenant enfoncé le bouton Connect jusqu’à ce que le témoin rouge clignote à trois reprises. Uso con iPod® o reproductor de MP3 1. Para encender los audífonos, mantenga pulsado el botón de conexión de los audífonos hasta que se ilumine el diodo. 2. Para encender al adaptador inalámbrico, mantenga pulsado el botón de conexión de al adaptador inalámbrico hasta que se ilumine el diodo. 3. Identifique el adaptador a medida para iPod® por el número de modelo en el adaptador. Acóplelo al adaptador inalámbrico. 4. Conecte el iPod® o el reproductor de MP3 al adaptador inalámbrico. 5. Pulse el botón de reproducción en el iPod® o el reproductor de MP3 (con el volumen a un nivel medio). 6. Para apagar los audífonos y el adaptador, mantenga pulsado el botón de conexión hasta que el diodo emita tres destellos rojos. Fonctionnement Témoins du casque sans fil Logitech ® : Casque Adaptateur sans fil Activé et connecté Chargement Activé et déconnecté Piles déchargées Bleu, en continu Illumination constante orange Illumination constante orange Rouge, en continu Bleu, en continu Rouge, en continu Clignotement rapide rouge Clignotement rapide rouge ETATS DU TÉMOIN LUMINEUX: Funcionamiento del producto Indicadores de los auriculares inalámbricos Logitech ® : Auriculares Adaptador inalámbrico Encendido y conectado Carga en curso Encendido pero no conectado Carga de pilas baja Azul permanente Naranja permanente Naranja permanente Rojo permanente Azul permanente Rojo permanente Destellos rojos rápidos Destellos rojos rápidos ESTADO DE DIODOS: 67 Quick-Start Guide Guide de démarrage rapide 2 Dépannage L’adaptateur ou le casque ne s’allume pas. 1. Vérifiez que l’adaptateur et le casque sont totalement chargés. 2. Appuyez sur le bouton Connect jusqu’à ce que le témoin clignote (trois secondes approximativement). 3. Si l’adaptateur ou le casque ne s’allume pas, appuyez sur le bouton Reset (à l’aide d’un trombone). 4. Le casque d’écoute ne se met pas en marche lors du chargement. L’adaptateur et le casque s’allument mais refusent de se connecter entre eux. 1. Vérifiez que les deux dispositifs sont hors tension. 2. Activez d’abord le casque, puis l’adaptateur. Les dispositifs devraient automatiquement se connecter entre eux. 3. Si les appareils ne sont toujours pas connectés, attendez que les voyants DEL de l’adaptateur et du casque d’écoute soient rouges, puis appuyez momentanément sur le bouton Connect du casque d’écoute. 4. S’ils refusent toujours de se connec…

Text truncated - open the document above for the full version.

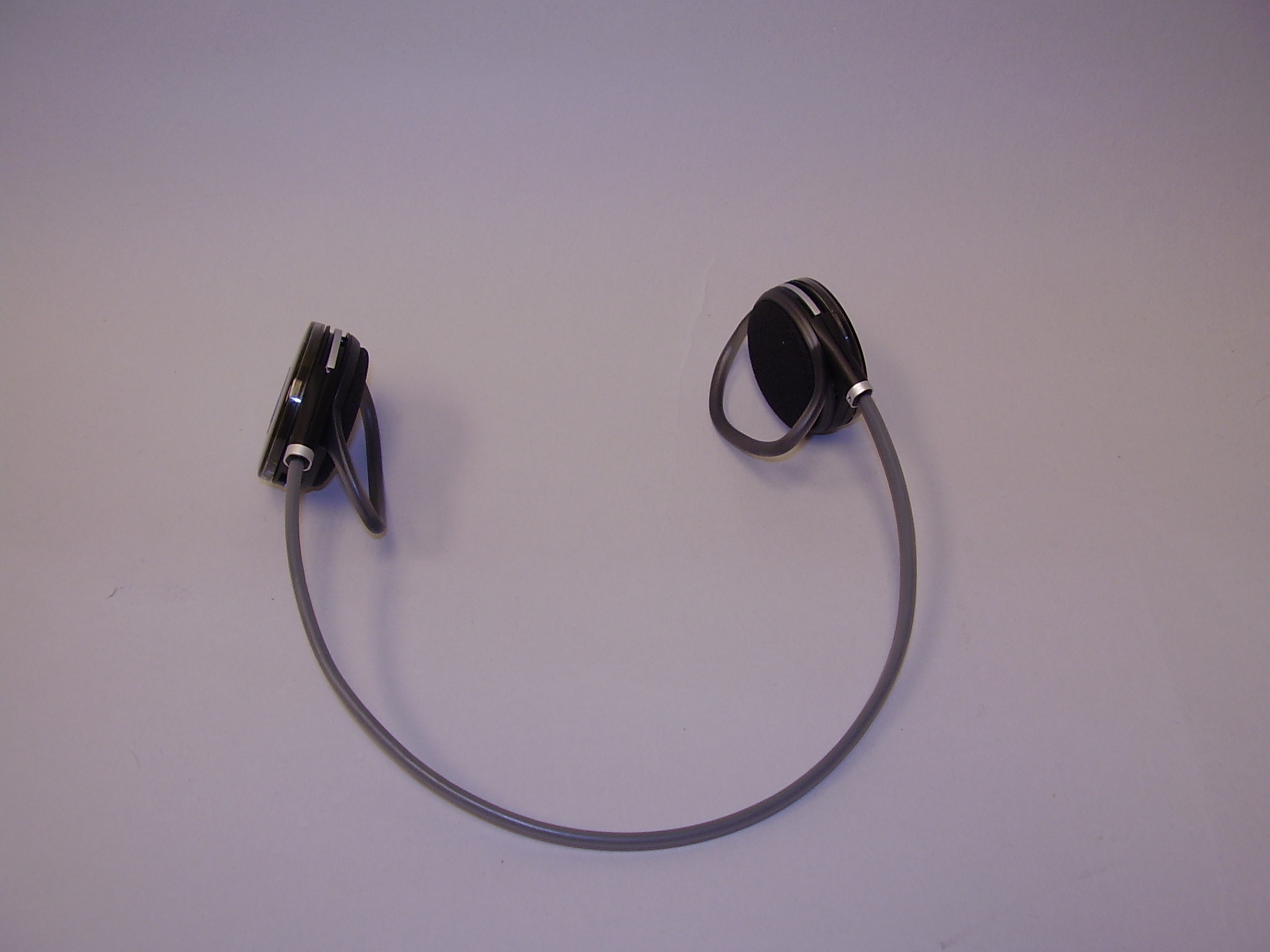

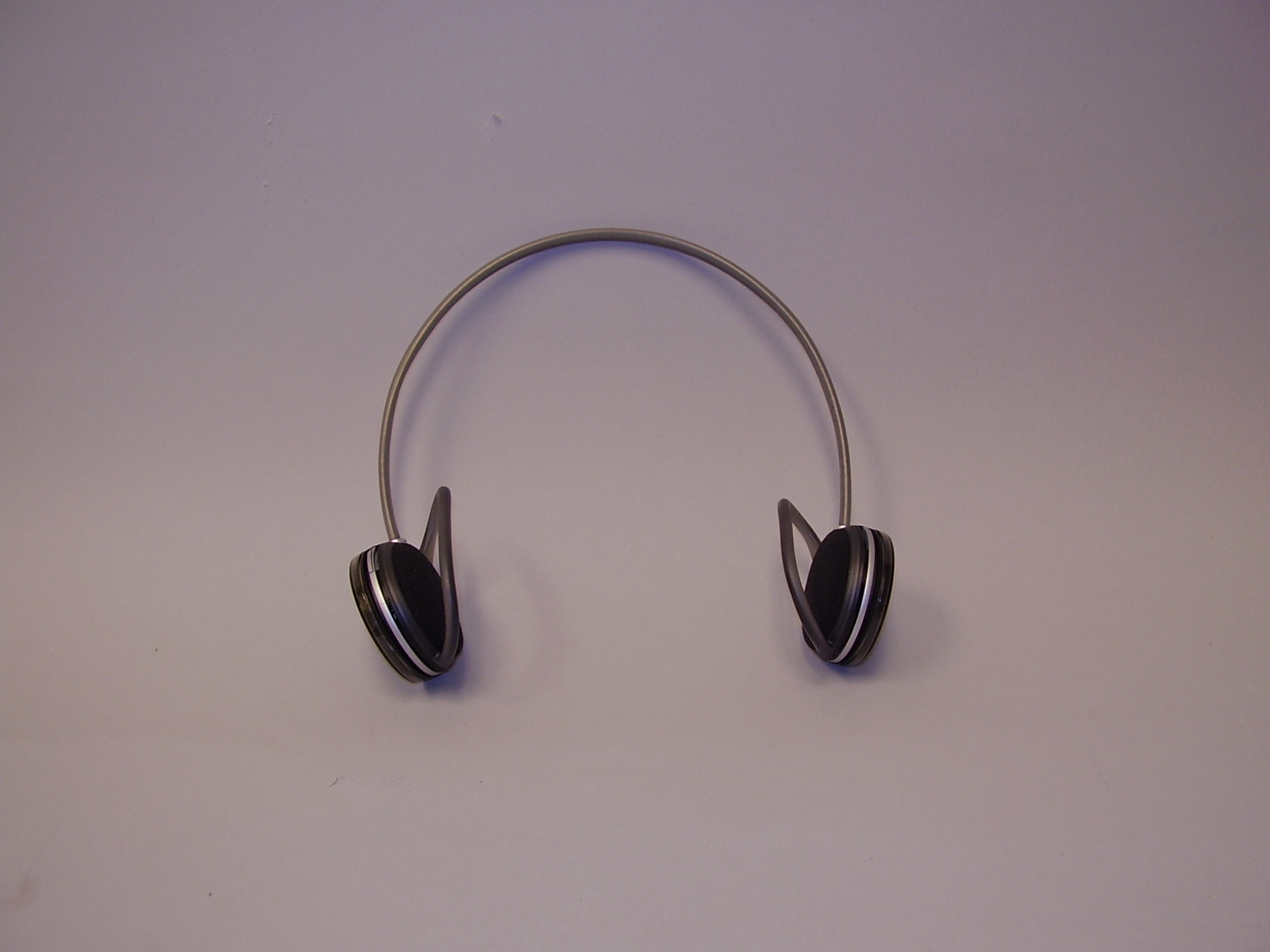

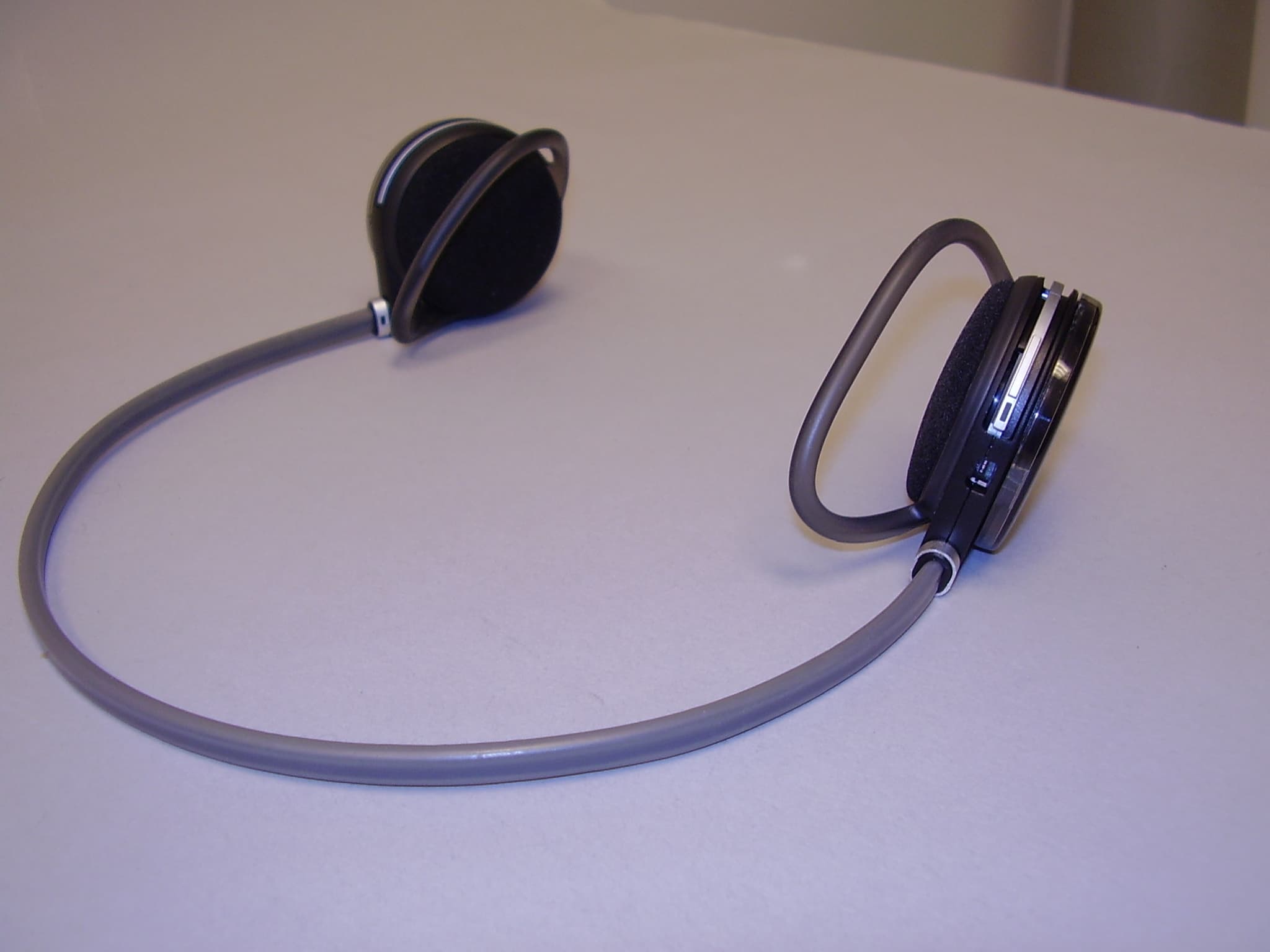

Northwest EMC TCB Compliance Opinion Rev. 9/15/03 LABT0210 Information about the Applicant Company Name Logitech, Inc. Grantee Mitchell Phillipi Address 1499 SE Tech Center Place Suite 350 City, State, Zip Vancouver, WA 98683 Job Number LABT0210 Model F-0461A FCC ID DZLF0461A Agent Northwest EMC, Inc. Approval Type Original Equipment Class DTS Digital Transmission System Rule Part 15.247DSSS Industry Canada Information Model Industry Canada ID Rule Part Overview Logitech is requesting an original certification for our unlicensed Bluetooth Headset (MN: F- 0461A). The Logitech Bluetooth Headset will operate under FCC Part 15.247 and consists of a Bluetooth Headset. The FCC ID number is DZLF0461A. The Bluetooth headset transceiver is a low power, transceiver which is designed to be worn over the ear to enable a cordless two way transmission with the supplied Logitech cordless Bluetooth dongle (MN: F-0461B). Logitech’s Bluetooth headset will be utilizing the frequency range of 2402MHz – 2480MHz and employing an 8-PSK modulation scheme (EDR – Enhanced Data Rate). Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature 9/19/2006 Dean Ghizzone, TCB Committee

July 31, 2006 FCC Authorization and Evaluation Division 7434 Oakland Mills Road Columbia, MD 21046 Subject: Cover Letter To Whom It May Concern: Logitech is requesting an original certification for our unlicensed Bluetooth Headset (MN: F-0461A). The Logitech Bluetooth Headset will operate under FCC Part 15.247 and consists of a Bluetooth Headset. The FCC ID number is DZLF0461A. The Bluetooth headset transceiver is a low power, transceiver which is designed to be worn over the ear to enable a cordless two- way transmission with the supplied Logitech cordless Bluetooth dongle (MN: F-0461B). Logitech’s Bluetooth headset will be utilizing the frequency range of 2402MHz – 2480MHz and employing an 8-PSK modulation scheme (EDR – Enhanced Data Rate). If further clarification of Logitech’s Bluetooth headset is needed, please feel free to contact me at (360) 944-3708, via e-mail at [email protected] , or fax (360) 896-2020. Sincerely, Mitchell A. Phillipi Sr. Compliance Engineer Logitech, Inc.

August 9, 2006 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern, We hereby respectfully request that under the provision of 47 CFR 0.459, the documents listed below and attached with this application for certification be provided with confidential status. • Schematics • Theory of Operation • Frequency Block Diagrams Any exhibit / information for which we have requested confidentiality, but which may not be accorded such treatment by the FCC, should be returned to us. The documents listed above contain trade secrets that are treated as confidential by us. Substantial competitive harm to us could result should they be made available to the public. Sincerely, Mitchell Phillipi Sr. Compliance Engineer

1 83 1 36 F C C I D : D Z L F 0 4 6 1 A I C : 1 8 0 7 D - F 0 4 6 1 A M o d e l # : F - 0 4 6 1 A N23 1

Per 15.203, the antenna is internal and permanently attached. It is not intended to be serviced by the customer and is, therefore only serviceable by Logitech, Inc. authorized personnel. The antenna is a chip antenna, Gigaant with 2.41dBi max peak gain. The antenna part number is 190344-0000.

Compliance with 47 CFR 15.247(i) “Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter.” The EUT is a Bluetooth headset, M/N: F-0461A, which is designed to enable two-way transmission with a Bluetooth dongle. It can be considered a portable transmitter per 47 CFR 2.1093(b). The antenna is internal to the unit and has a peak gain of 2.41 dBi. The headset operates in the 2400-2483.5MHz band. The maximum peak conducted output power is 0.76 mW. The maximum peak power is 1.32 mW (EIRP) for FCC ID: DZLF0461A. The transmit frequency is 2402-2480 MHz, therefore the EUT does not require routine SAR evaluation per "TCB Exclusion List", footnote 3 (dated July 17, 2002). See below: The exposure category is "General Population." The distance is < 2.5 cm. Therefore the "Low Threshold" is 24.5 mW (EIRP) - above which routine SAR evaluation would be required. Since the maximum peak power of the EUT is 1.32 mW (peak EIRP), routine SAR evaluation is not required. The applicant's Bluetooth radio, FCC ID: DZLF0461A, is compliant with the requirements of 15.247(i).

Logitech, Inc. Headset: Model F-0461A September 08, 2006 Report No. LABT0210.3 Report Prepared By www.nwemc.com 1-888-EMI-CERT © 2006 Northwest EMC, Inc 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Test Issue Date: September 08, 2006 Logitech, Inc. Headset: Model F-0461A Emissions Test Description Specification Test Method Pass Fail Radiated Emissions FCC 15.109:2006 ANSI C63.4:2003 Occupied Bandwidth FCC 15.247:2006 ANSI C63.4:2003 Output Power FCC 15.247:2006 ANSI C63.4:2003 Band Edge compliance FCC 15.247:2006 ANSI C63.4:2003 Spurious Conducted Emissions FCC 15.247:2006 ANSI C63.4:2003 Power Spectral Density FCC 15.247:2006 ANSI C63.4:2003 Spurious Radiated Emissions FCC 15.247:2006 ANSI C63.4:2003 Modifications made to the product See the Modifications section of this report Test Facility The measurement facility used to collect the data is located at: Northwest EMC, Inc. 22975 NW Evergreen Parkway, Suite 400; Hillsboro, OR 97124 Phone: (503) 844-4066 Fax: 844-3826 This site has been fully described in a report filed with and accepted by the FCC (Federal Communications Commission) and Industry Canada. Approved By: Greg Kiemel, Director of Engineering This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested, the specific description is noted in each of the individual sections of the test report supporting this certificate of test. Northwest EMC Revision History Revision 05/05/03 Revision Number Description Date Page Number 00 None Northwest EMC Accreditations and Authorizations Revision 03/18/05 FCC: Accredited by NVLAP for performance of FCC radio, digital, and ISM device testing. Our Open Area Test Sites, certification chambers, and conducted measurement facilities have been fully described in reports filed with the FCC and accepted by the FCC in letters maintained in our files. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by the FCC as a Telecommunications Certification Body (TCB). This allows Northwest EMC to certify transmitters to FCC specifications in accordance with 47 CFR 2.960 and 2.962. NVLAP: Northwest EMC, Inc. is accredited under the United States Department of Commerce, National Institute of Standards and Technology, and National Voluntary Laboratory Accreditation Program for satisfactory compliance with the requirements of ISO/IEC 17025 for Testing Laboratories. The NVLAP accreditation encompasses Electromagnetic Compatibility Testing in accordance with the European Union EMC Directive 89/336/EEC, ANSI C63.4, MIL- STD 461E, DO-160D and SAE J1113. Additionally, Northwest EMC is accredited by NVLAP to perform radio testing in accordance with the European Union R&TTE Directive 1999/5/EEC, the requirements of FCC, and the RSS radio standards for Industry Canada. NVLAP LAB CODE 200629-0 NVLAP LAB CODE 200630-0 NVLAP LAB CODE 200676-0 Industry Canada: Accredited by NVLAP for performance of Industry Canada RSS and ICES testing. Our Open Area Test Sites and certification chambers comply with RSS 212, Issue 1 (Provisional) and have been filed with Industry Canada and accepted. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by NIST and recognized by Industry Canada as a Certification Body (CB) per the APEC Mutual Recognition Arrangement (MRA). This allows Northwest EMC to certify transmitters to Industry Canada technical requirements. CAB: Designated by NIST and validated by the European Commission as a Conformity Assessment Body (CAB) to conduct tests and approve products to the EMC directive and transmitters to the R&TTE directive, as described in the U.S. - EU Mutual Recognition Agreement. TÜV Product Service: Included in TUV Product Service Group's Listing of Recognized Laboratories. It qualifies in connection with the TUV Certification after Recognition of Agent's Testing Program for the product categories and/or standards shown in TUV's current Listing of CARAT Laboratories, available from TUV. A certificate was issued to represent that this laboratory continues to meet TUV's CARAT Program requirements. Certificate No. USA0401C. TÜV Rheinland: Authorized to carryout EMC tests by order and under supervision of TÜV Rheinland. This authorization is based on "Conditions for EMC-Subcontractors" of November 1992. Northwest EMC Accreditations and Authorizations Revision 03/18/05 NEMKO: Assessed and accredited by NEMKO (Norwegian testing and certification body) for European emissions and immunity testing. As a result of NEMKO's laboratory assessment, they will accept test results from Northwest EMC, Inc. for product certification (Authorization No. ELA 119). Australia/New Zealand: The National Association of Testing Authorities (NATA), Australia has been appointed by the ACA as an accreditation body to accredit test laboratories and competent bodies for EMC standards. Accredited test reports or assessments by competent bodies must carry the NATA logo. Test reports made by an overseas laboratory that has been accredited for the relevant standards by an overseas accreditation body that has a Mutual Recognition Agreement (MRA) with NATA are also accepted as technical grounds for product conformity. The report should be endorsed with the respective logo of the accreditation body (NVLAP). VCCI: Accepted as an Associate Member to the VCCI, Acceptance No. 564. Conducted and radiated measurement facilities have been registered in accordance with Regulations for Voluntary Control Measures, Article 8. (Registration Numbe…

Text truncated - open the document above for the full version.

NORTHWEST EMC BAND EDGE COMPLIANCE XMit 2006.05.31 NORTHWEST EMC SPURIOUS CONDUCTED EMISSIONS XMit 2006.05.31 NORTHWEST EMC Radiated Emissions PSA 2006.05.30 NORTHWEST EMC POWER SPECTRAL DENSITY XMit 2006.05.31 NORTHWEST EMC OUTPUT POWER XMit 2006.05.31 NORTHWEST EMC OUTPUT POWER XMit 2006.05.31 NORTHWEST EMC OUTPUT POWER XMit 2006.05.31 NORTHWEST EMC OCCUPIED BANDWIDTH XMit 2006.05.31 NORTHWEST EMC SPURIOUS RADIATED EMISSIONS PSA 2006.05.30 NORTHWEST EMC SPURIOUS RADIATED EMISSIONS PSA 2006.05.30
