DZLGRB7Cordless Controller for X-Box

LOGITECH FAR EAST LTD. 6505 Kaiser Dive Fremont, CA 94555-3615 TEL: +1 510 713 4467 FAX: +1 510 713 5090 FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) For the following equipment: Product Name: Logitech Cordless Controller for X-Box Model No.: G-RB7, C-X3A18 Trade Name: Logitech Is herewith confirmed to be in compliance with the requirements of ANSI C63.4 & FCC part 15 regulations. The test result has been shown in the ADT test report with number RF911010R01. And this compliance is subject to the following two conditions: This device may not cause harmful interference and, This device must accept any interference received, including interference that may cause undesired operation. The following local Manufacturer/Importer is responsible for this declaration: LOGITECH FAR EAST LTD. (Company Name) 6505 Kaiser Dive Fremont, CA 94555-3615 (Company Address) TEL +1 510 713 4777 FAX +1 510 713 5090 Bharat Shah/Compliance Engineer (Name) / (Title) (Signature) / (Date)

LOGITECH FAR EAST LTD. 6505 Kaiser Dive Fremont, CA 94555-3615 TEL: +1 510 713 4467 FAX: +1 510 713 5090 FCC ID: DZLGRB7 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ----------------------------------------------- Bharat Shah /Compliance Engineer LOGITECH FAR EAST LTD. Tel: +1 510 713 4467 Fax:+1 510 713 5090 e-mail: [email protected]

POWER OF ATTORNEY To whom it may concern: We, the undersigned, LOGITECH FAR EAST LTD., hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------- Bharat Shah / Compliance Engineer LOGITECH FAR EAST LTD. Tel: +1 510 713 4467 Fax:+1 510 713 5090 e-mail: [email protected] LOGITECH FAR EAST LTD. 6505 Kaiser Dive Fremont, CA 94555-3615 TEL: +1 510 713 4467 FAX: +1 510 713 5090

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 14, 2002 RE: Logitech Inc. FCC ID: DZLGRB7 After a review of the submitted information, I have a few comments on the above referenced Application. 1) The module schematic shows 2 antennas and the device only has 1. Additionally a 3rd antenna is shown on page 2 of the schematics. Please explain. 2) Since this device does not follow a typical Bluetooth protocol, please provide a plot showing the worse case transmit duration in 100 msec to validate the 24% duty cycle. 3) FYI, As long as the intended design of this device is for the X-Box and not as a PC peripheral, but gaming peripheral, the DoC statement is not necessary. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Hello, Here is my response to your question (1) The module has two PC Boards. (1) RF board and (2) Main board. Since, RF board is common across the board for the various Joy stick, it (RF Board) has two possible connections marking for Antenna. One is for connecting directly Antenna on the RF board. The other way is to have antenna connected to main board and connected to RF board using Co-axial wire. That is the reason RF board has two Antenna marking on it. Main Board has Antenna mounted to it, when there is no Antenna on the RF Board. Thus for this product, Antenna is connected to main Board and using coaxial cable it is connected to RF board. (2) Here is plot as requested. You may see total time is less than 2 msec for 100 msec span. (See attached file: TX_max_duty_cycle_for_adt.xls) (3) We will take FCC logo with "Home and Office use only" statement from unit which is connected to "XBOX" via hard wire. Thank you, Regards, Bharat Shah Tele : (510)-713-4777 Fax : (510)-713-4790 Subject: Re: Fwd: Review of Logitech Inc., FCC ID: DZLGRB7 To: "Timothy R. Johnson" <[email protected]> Cc: [email protected], [email protected], [email protected] Page 1 of 1In 11/18/2002Printed for "Timothy R. Johnson" <[email protected]>

Page 9 Page 10

Page 11 Page 12 Page 13 Page 14 Page 15

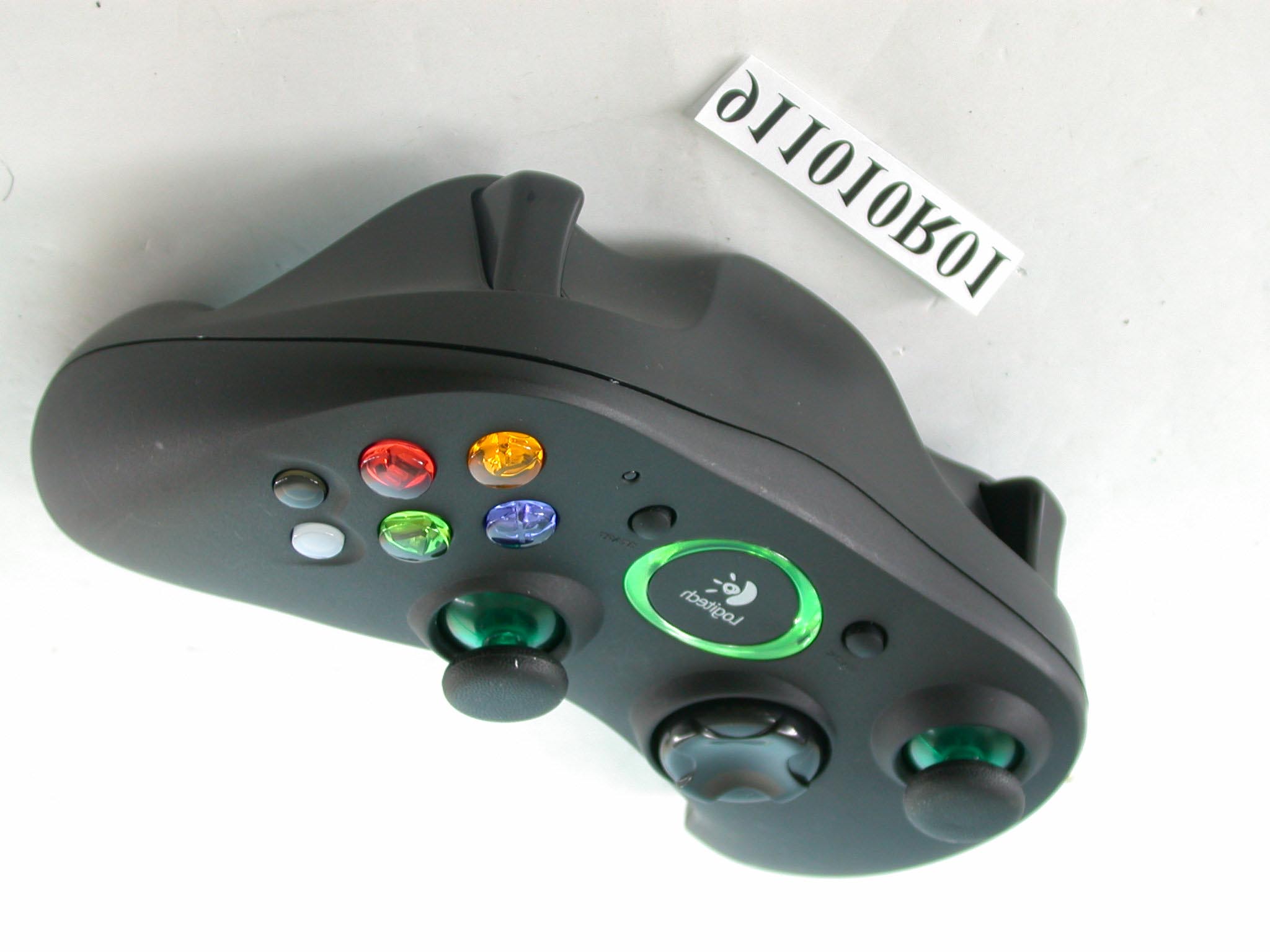

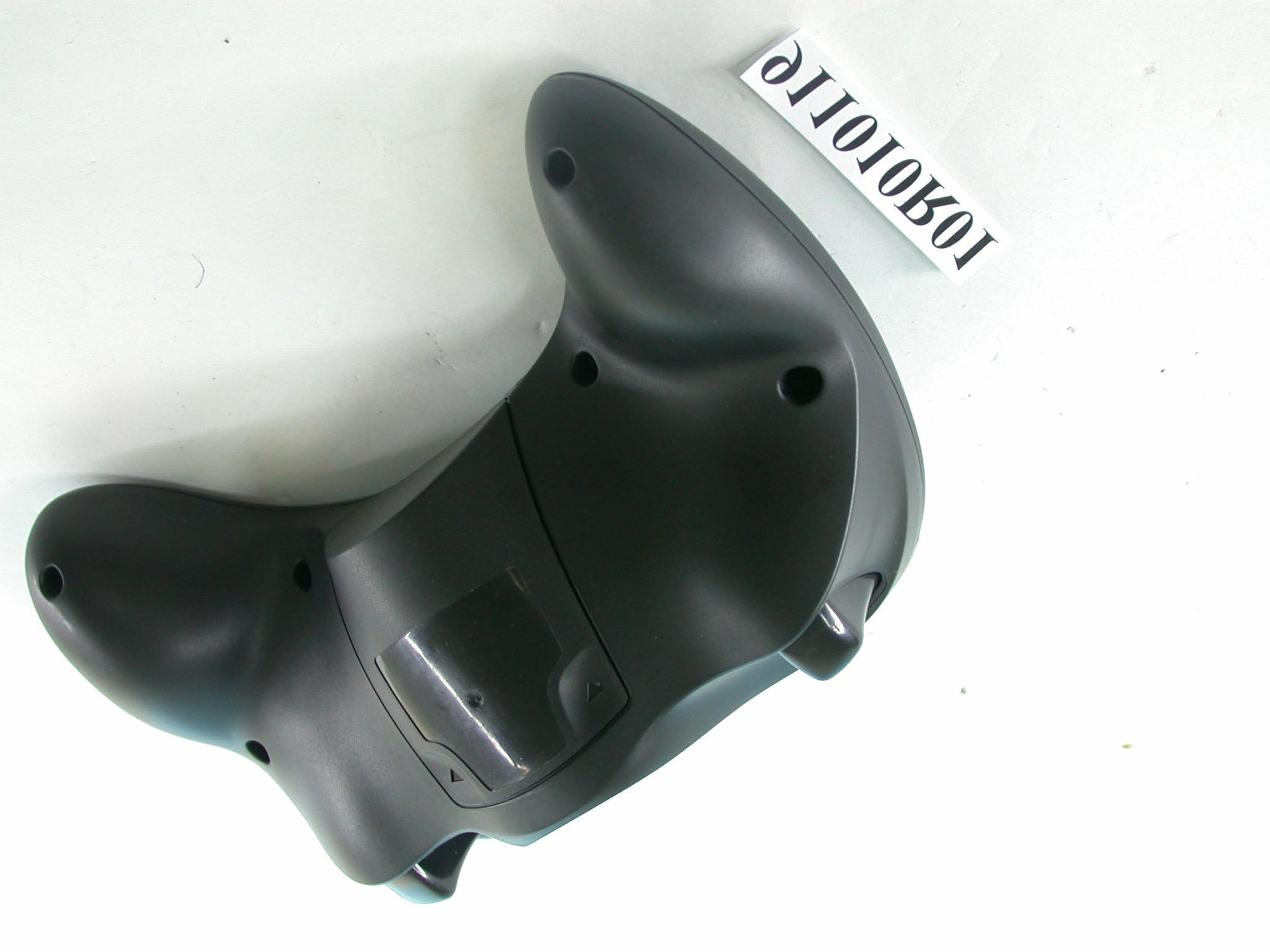

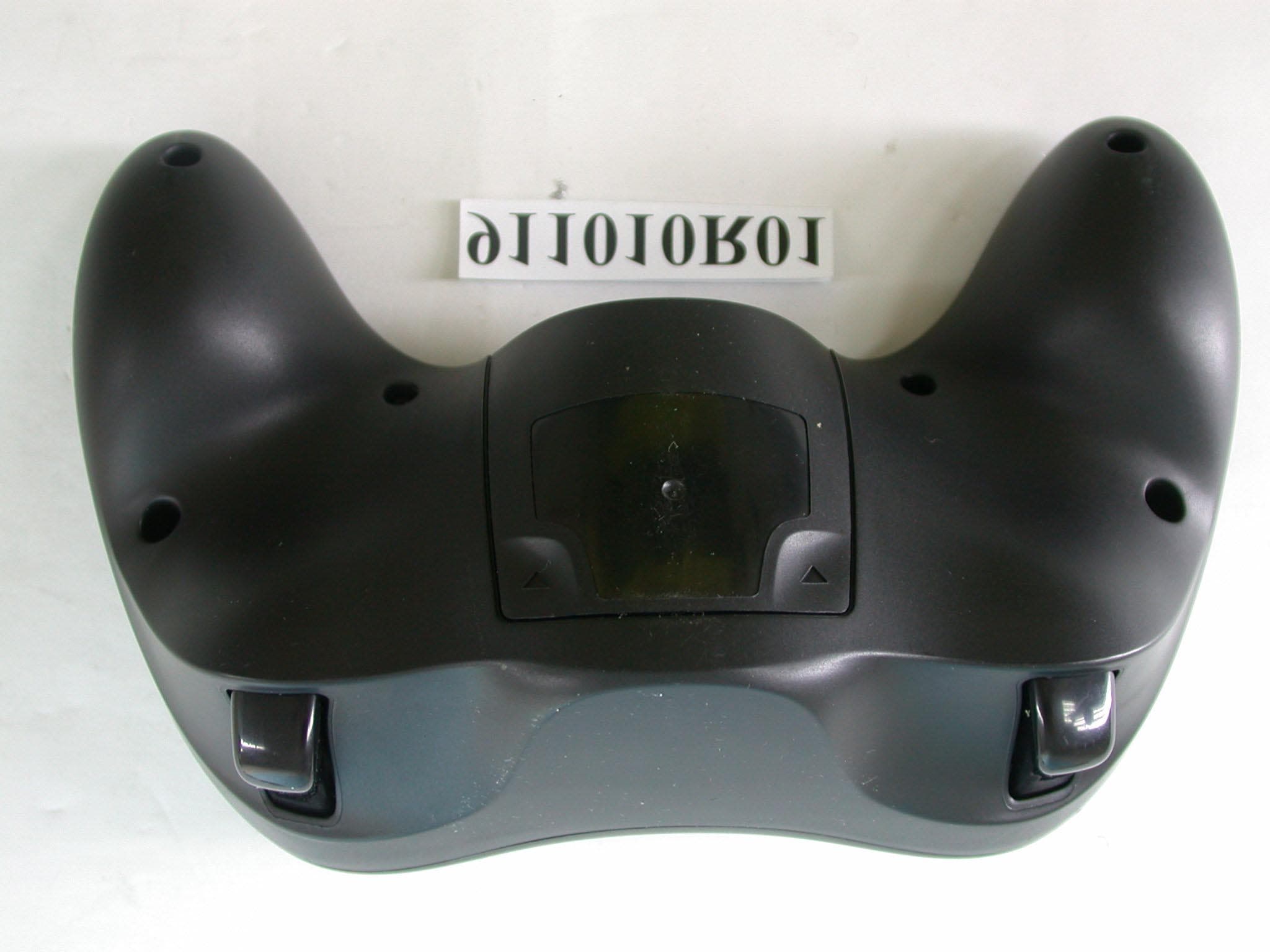

FCC ID: DZLGRB7 FCC ID: DZLCX3A18 ADT No.911010R01 Operational Description The EUT (Logitech Cordless Controller for X-Box) includes two individual parts. One is the Gamepad which is held on the user’s hand, the other is Receiver Unit (a transceiver) which is connected with the host equipment. The Gamepad is powered by 6VDC battery and Receiver Unit is 5VDC from host equipment. This device is a Frequency Hopping device with 79 hopping frequencies. The declared output power is only +2.5mW. The hopping rate as well as the protocol is not the same as bluetooth, so it could not link with the bluetooth device.

FCC ID: DZLGRB7 FCC ID: DZLCX3A18 ADT No.: 911010R01 Nov. 13, 2002 RF Exposure Compliance Statement The maximum RF output power measured is 4dBm or 2.51mW. The maximum Gain of the inverted-F antenna used is only -1dBi. The SAR limit would not be exceeded, even the entire maximum RF power output were absorbed by 1 gram of tissue, which is not possible with a typical RF circuit.

FCC ID: DZLGRB7 FCC ID: DZLCX3A18 Report No.: RF911010R011Issued: Nov. 13, 2002 FCC TEST REPORT REPORT NO.: RF911010R01 MODEL NO.: G-RB7 (for Gamepad) C-X3A18 (for Receiver Unit) RECEIVED: October 10, 2002 TESTED: Oct. 15 ~ Nov. 12, 2002 APPLICANT:Logitech Inc. ADDRESS:6505 Kaiser Drive Fremont, CA 94555-3615 ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 39 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. Lab Code: 200102-0 0528 ILAC MRA FCC ID: DZLGRB7 FCC ID: DZLCX3A18 Report No.: RF911010R012Issued: Nov. 13, 2002 Table of Contents 1CERTIFICATION .........................................................................................................................3 2SUMMARY OF TEST RESULTS.................................................................................................4 3GENERAL INFORMATION .........................................................................................................5 3.1GENERAL DESCRIPTION OF EUT............................................................................................5 3.2DESCRIPTION OF TEST MODES..............................................................................................6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.............................................................6 3.4DESCRIPTION OF SUPPORT UNITS........................................................................................7 4TEST PROCEDURES AND RESULTS .......................................................................................8 4.1CONDUCTED EMISSION MEASUREMENT..............................................................................8 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ...........................................................8 4.1.2TEST INSTRUMENTS ................................................................................................................8 4.1.3TEST PROCEDURES .................................................................................................................9 4.1.4DEVIATION FROM TEST STANDARD .......................................................................................9 4.1.5TEST SETUP ............................................................................................................................10 4.1.6TEST RESULTS (A) .................................................................................................................. 11 4.1.7TEST RESULTS (B) ..................................................................................................................12 4.2RADIATED EMISSION MEASUREMENT .................................................................................18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ..............................................................18 4.2.2TEST INSTRUMENTS ..............................................................................................................19 4.2.3TEST PROCEDURES ...............................................................................................................20 4.2.4DEVIATION FROM TEST STANDARD .....................................................................................20 4.2.5TEST SETUP ............................................................................................................................21 4.2.6TEST RESULTS (A) ..................................................................................................................22 4.2.7TEST RESULTS (B) ..................................................................................................................26 4.3BAND EDGES MEASUREMENT ..............................................................................................30 4.3.1LIMITS OF BAND EDGES MEASUREMENT ...........................................................................30 4.3.2TEST INSTRUMENTS ..............................................................................................................30 4.3.3TEST PROCEDURE .................................................................................................................30 4.3.4DEVIATION FROM TEST STANDARD .....................................................................................30 4.3.5EUT OPERATING CONDITION ................................................................................................31 4.3.6TEST RESULTS ........................................................................................................................31 4.4ANTENNA REQUIREMENT ......................................................................................................36 4.4.1STANDARD APPLICABLE ........................................................................................................36 4.4.2ANTENNA CONNECTED CONSTRUCTION............................................................................36 5PHOTOGRAPHS OF THE TEST CONFIGURATION ...............................................................37 6INFORMATION ON THE TESTING LABORATORIES..............................................................39 FCC ID: DZLGRB7 FCC ID: DZLCX3A18 Report No.: RF911010R013Issued: Nov. 13, 2002 1 CERTIFICATION PRODUCT : Logitech Cordless Controller for X-Box BRAND NAME : Logitech MODEL NO. : G-RB7 (for Gamepad) C-X3A18 (for Receiver Unit) APPLICANT : Logitech Inc. STANDARDS :47 CFR Part 15, Subpart C (Section 15.249) ANSI C63.4-1992 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility from Oct. 15, 2002 to Nov. 12, 2002, The test record, data evaluat…

Text truncated - open the document above for the full version.

Possum project [ES021119] The hopping sequence is designed to hit each of 79 channels once every 316 ms producing a 4 ms frequency dwell period. The Master device's hopping cycle duration is identical in search and connected states. This 4 ms dwell period is decomposed as follows: - Master transmits during first 2 ms window for maximum 490 usec duration. - Slave transmits during second 2 ms window for maximum 490 usec duration. Master Search Mode Master connected Master/Slave Connection

FCC ID: DZLGRB7 FCC ID: DZLCX3A18 Report No.: RF911010R01 37 Issued: Nov. 13, 2002 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: DZLGRB7 FCC ID: DZLCX3A18 Report No.: RF911010R01 38 Issued: Nov. 13, 2002 RADIATED EMISSION TEST
