English Safety information WARNING! ELECTRIC SHOCK HAZARD: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO WATER. Read and follow these instructions, heed all warnings, and keep this document for future reference. • Your product is suitable for use in semi-tropical and moderate climates only. Set up your product in accordance with Logitech’s product documentation, and place your product in a stable location so it will not fall and cause product damage or bodily harm. Operate your product only from the low-level, audio line output jack of your computer or audio component. • Do not use your product near water, including dripping or splashing sources (e.g., indoor fountains), or near objects filled with liquids, such as flower vases or fish tanks. • Do not use your product near heat sources (e.g., radiators, heat registers, stoves, open flames, such as lighted candles, or other heat-producing devices, such as audio amplifiers or TVs). • Do not block ventilation openings or push objects into product vents, ports, or slots. Doing so may create an electric shock or fire hazard. Maintain a minimum distance of at least 15 cm (6 inches) around your product for sufficient ventilation. Covering ventilation openings with such items as newspapers, tablecloths, or curtains may impede ventilation and cause a fire. • Do not, under any circumstance, modify your product’s power cord and plug, including the power cord and plug to your product’s power supply, if one has been included. If the plug does not fit into your AC outlet, have a certified electrician replace your obsolete AC outlet. Protect the power cord from being stepped on or pinched, especially where the cord exits the product or plugs into an AC outlet or power strip. • Unplug your product during lightning storms or when it’s not being used for long periods of time. Disconnect your product from the AC outlet by first turning off the product or by placing it in standby mode (see product documentation for more information) before unplugging the product’s power cord from the AC outlet. Your product’s power cord and plug must remain operational at all times, and the AC outlet (receptacle) should be near the product and easily accessible. • Only use approved attachments and accessories specified by Logitech. • Refer all servicing and repair to qualified service personnel. Servicing is required when your product does not operate normally, the power cord/plug has been damaged, the product has been exposed to water, rain, liquid, or moisture, the product has been dropped, or an object has been inserted into a product port or vent. • For portable products or products weighing less than 7 kg (15 lbs), the product label may be found on the product stand, under a lid, or on the bottom of the product itself. • Clean your product using only a dry cloth and no water or liquid. Warning Symbols Explained This symbol is placed on the product to tell you to proceed with CAUTION. Refer to your product documentation before continuing. Find the section in the manual that pertains to the product feature or function referenced by this symbol. This symbol is placed on the product as a WARNING. Access to this area of the product is restricted. Failure to comply could result in an electrical shock hazard. Protect your hearing Listening advice to avoid hearing damage Listening via headphones, earbuds, or headsets at a high volume may cause permanent hearing loss to occur. The louder the volume, the less time is required before your hearing could be affected. To establish a safe volume level: • Start your equipment with the volume control at its lowest setting. • Slowly increase the sound until you can hear it comfortably and clearly, and without distortion. • Avoid setting the volume at a level that prevents you from hearing conversations and other similar noises around you. Once you have established a comfortable sound level, leave it there. If you experience a ringing in your ears, discomfort or muffled speech, reduce the volume or stop listening and have your hearing checked. See the product support page on the Logitech website www.logitech.com for additional information. Disposal guidelines at product end of life Some Logitech products use non-serviceable, nickel-metal hydride (NiMH) batteries, which should last the duration of a product’s warranty period under normal use. Please do NOT attempt to change the battery yourself. If the battery has died and you do not want Logitech to replace the battery, you should follow the disposal instructions in the documentation that accompanies your product. Also consult local laws and regulations for the proper disposal of batteries and electronic devices in your region. If there are no local regulations concerning electronic waste disposal, place your product (and its battery) in a waste bin for electronic devices. Caution: Battery Warning! There is a risk of explosion, fire, or chemical burns if a battery is replaced by incorrect type, mutilated, or exposed to conducting materials, liquid, fire, or heat (above 54° C or 130° F). Do not use or recharge a damaged rechargeable battery. Do not use or charge a battery if it appears to be leaking, discolored, deformed, or in any way abnormal. Do not leave a battery discharged or unused for extended periods of time. Do not mix battery types. When a battery is misused, it may explode or leak, causing burns and personal injury. If a battery leaks, use normal precaution and discard it immediately following the local laws and regulations in your area. Power supply warning: Caution electric shock/fire hazard! For indoor use only. Do not expose to moisture, liquid, or heat. Do not use any other power supply with your Logitech product. FCC and IC Statements This Class B digital apparatus complies with Canadian ICES-003. (Cet appareil numérique de catégorie B est conforme à la norme canadienne ICES-003.) This device complies with Industry Canada licence-exempt RSS …

Text truncated - open the document above for the full version.

6505 Kaiser Drive, Fremont, CA 94555 USA Tel:(360)817-1200 ; Fax(360)817-1331 February 22, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 ToWhomItMayConcern: I,Mark Ohnstad,officer of Logitech Inc.,do hereby authorizeMr. Terry Chan ofIntertek Testing Servicesand Aaron Cohen of Logitech, Inc.to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of theFCC Rules. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. This authorization is limited to the product: FCC ID: DZLS00113 Sincerely, Contact Person:Mark Ohnstad Title :Sr. Manager, Product Regulatory Compliance Company:Logitech, Inc. Telephone:360 817-1200 Fax:360 817-1331 E-mail :[email protected]

6505 Kaiser Drive, Fremont, CA 94555 USA Tel:(360)817-1200 ; Fax(360)817-1331 February 22, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 To Whom It May Concern, Request is hereby submitted by Logitech, Inc. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: DZLS00113 Schematics DZLS00113 Detailed Block diagrams DZLS00113 Detailed Operational/Functional Description DZLS00113 Tune up procedure DZLS00113 Parts list Request is hereby submitted by Logitech, Inc. to withhold from public review for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. DZLS00113 Test setup photos DZLS00113 External photos DZLS00113Internal photos DZLS00113User manual Logitech has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Sincerely, Contact Person:Mark Ohnstad Title :Sr. Manager, Product Regulatory Compliance Company:Logitech, Inc. E-mail :[email protected]

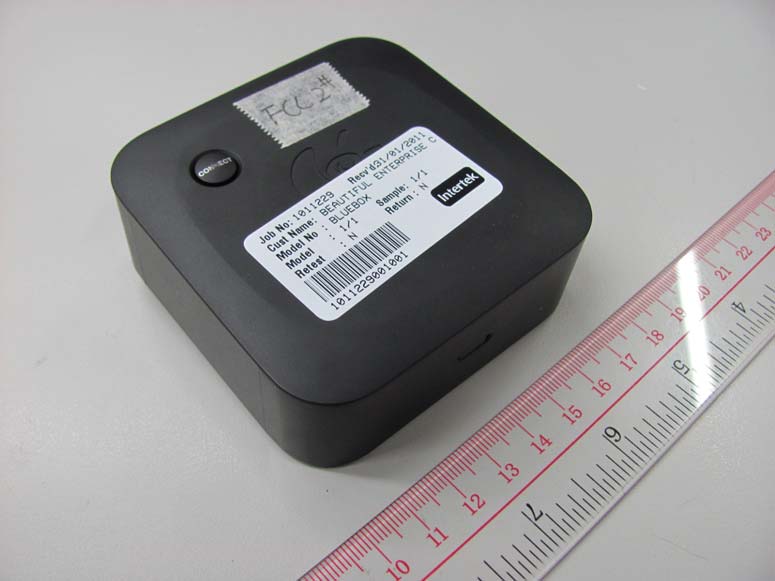

Report No: HK11011230-1 External Photos

DWN/DATE NO.DATE REVISION RECORD CHK/DATE APP/DATEVER. 01 TITLE: DWG/NO.: MODEL NO.: Fo rm NO. :S -ENG-0119-01 UNIT VIEW Bluebox_01_001 Bluebox Rating label P/N:460-032342-000V0

Report No: HK11011230-1 Internal Photos Report No: HK11011230-1 Internal Photos Report No: HK11011230-1 Internal Photos Report No: HK11011230-1 Internal Photos

INTERTEK TESTING SERVICE Report No.: HK11011230-1 FCC ID: DZLS00113 RF Exposure Evaluation According to the guidelines of FCC’s OET KDB 447498 D01, “Mobile and Portable Device - RF Exposure Procedures and Equipment Authorization Policies”, the SAR evaluation for mobile and portable is exempted if the output power is not greater than )( 60 GHz f mW. 1. Tested model of S-00113 is a Portable Device, and the operation frequency range is 2.402 – 2.480 GHz. Output power threshold )(19.24 480.2/60 mW= = 2. The maximum field strength measured (FS) of shaker unit was 102 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor is 3.125%. The radiated power = (FS*D) 2 / 30 = 4.755mW The radiated (EIRP) source-based time-averaging output power = (4.755 * 0.03125) mW = 0.149mW 3. The conducted peak transmit power measured of shaker unit was 0.51 dBm. And the maximum source-based time-averaging duty factor is 3.125%. The conducted power =1.115mW The conducted source-based time-averaging output power = (1.115 *0.03125) mW = 0.0348mW The maximum output power (higher value of conducted or radiated (EIRP) source based time-averaging output power) is 0.149mW and is not greater than the above output power threshold 24.19mW; therefore the hand SAR evaluation is exempted.

INTERTEK TESTING SERVICES 20dB Bandwidth at Antenna Terminal Plots FCC ID: DZLS00113 20dB - Page 1 of 2 INTERTEK TESTING SERVICES 20dB Bandwidth at Antenna Terminal Plots FCC ID: DZLS00113 20dB - Page 2 of 2

INTERTEK TESTING SERVICES Minimum Number of Hopping Frequencies at Antenna Terminal Plots FCC ID: DZLS00113 chno - Page 1 of 2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 INTERTEK TESTING SERVICES Minimum Number of Hopping Frequencies at Antenna Terminal Plots FCC ID: DZLS00113 chno - Page 2 of 2 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79

INTERTEK TESTING SERVICES Minimum Hopping Channel carrier Frequency Separation at Antenna Terminal Plots FCC ID: DZLS00113 fsepa - Page 1 of 1

INTERTEK TESTING SERVICES Maximum Conducted Output Power at Antenna Terminal Plots FCC ID: DZLS00113 maxop - Page 1 of 2 INTERTEK TESTING SERVICES Maximum Conducted Output Power at Antenna Terminal Plots FCC ID: DZLS00113 maxop - Page 2 of 2

INTERTEK TESTING SERVICES Out Band Antenna Conducted Emission at Antenna Terminal Plot FCC ID: DZLS00113 obantcon - Page 1 of 3 INTERTEK TESTING SERVICES Out Band Antenna Conducted Emission at Antenna Terminal Plot FCC ID: DZLS00113 obantcon - Page 2 of 3 INTERTEK TESTING SERVICES Out Band Antenna Conducted Emission at Antenna Terminal Plot FCC ID: DZLS00113 obantcon - Page 3 of 3 INTERTEK TESTING SERVICES Bandedge Plots FCC ID: DZLS00113 be - Page 1 of 1 Calculation at 2.400GHz: 101.8 – 30.1 – 39.43 =32.37dBμV/m <limit 54.0dBμV/m PASS Calculation at 2.4835GHz: 101.4 – 30.1 – 49.73 =21.57dBμV/m <limit 54.0dBμV/m PASS
