ELY547-47-1004-R433MHz 3-stage On/Off Remote (433MHz Rx)

External Photo FCC ID : ELY547-47-1004-R External Photo - front External Photo - rear

3-stage On/Off Remote, 433MHz Input: AC 120V60Hz Output: AC120V60Hz 20mm x 12mm Made in China Dimplex Model No.: 47-1004F-R FCC ID: ELY547-47-1004-R IC: 1492A-471004R 3-stage On/Off Remote, 433MHz Input: AC 120V60Hz Output: AC120V60Hz 20mm x 12mm Made in China Dimplex Model No.: 47-1004G-R FCC ID: ELY547-47-1004-R IC: 1492A-471004R 3-stage On/Off Remote, 433MHz Input: AC 120V60Hz Output: AC120V60Hz 20mm x 12mm Made in China Dimplex Model No.: 47-1004H-R FCC ID: ELY547-47-1004-R IC: 1492A-471004R 3-stage On/Off Remote, 433MHz Input: AC 120V60Hz Output: AC120V60Hz 20mm x 12mm Made in China Jeckson Model No.: 47-1004F-R FCC ID: ELY547-47-1004-R IC: 1492A-471004R 3-stage On/Off Remote, 433MHz Input: AC 120V60Hz Output: AC120V60Hz 20mm x 12mm Made in China Jeckson Model No.: 47-1004G-R FCC ID: ELY547-47-1004-R IC: 1492A-471004R 3-stage On/Off Remote, 433MHz Input: AC 120V60Hz Output: AC120V60Hz 20mm x 12mm Made in China Jeckson Model No.: 47-1004H-R FCC ID: ELY547-47-1004-R IC: 1492A-471004R

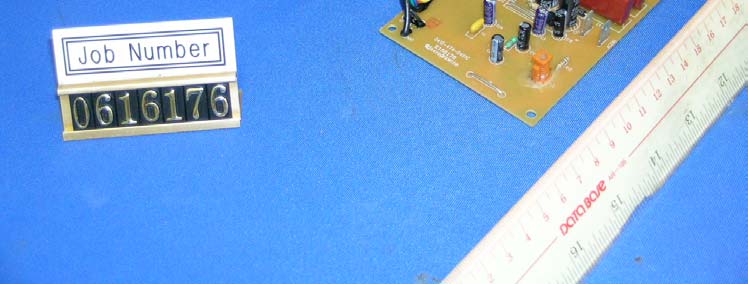

Internal Photo FCC ID : ELY547-47-1004-R Internal Photo - 1 Internal Photo - 2

3-stage On/Off Remote – Receiver Technical Description The 3-stage On/Off Remote composes of 2 modules. One is the remote control unit (Transmitter) and the other is the power switch unit (Receiver). The receiver is operated by AC120V. It consists of several parts, including RF AMP (Q1), DEMOD (Q2), Comparator (U1), Remote Control Decoder (MPU U2), Driver (RL3: Q7,8 RL2: Q5,6 RL: Q3,4) and Output Stage (K1,2,3). When a signal is received through the antenna. The signal will go through the RF AMP, DEMOD and comparator to retrieve the original encoded signal. The Remote Control Decoder (MPU) will decode a correct signal to make or break the relay contacts through the Driver in order to open or close the desired output in the Output stage.

47-1004F.sch-1 - Thu Jul 06 16:39:43 2006

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Jeckson Electric Co., Ltd. Application For Certification (FCC ID: ELY547-47-1004-R) Superregenerative Receiver 0616176 BC/ Sandy Lee September 28, 2006 INTERTEK TESTING SERVICES FCC ID: ELY547-47-1004-R i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: ELY547-47-1004-R ii MEASUREMENT/TECHNICAL REPORT Jeckson Electric Co., Ltd. - MODEL: JECKSON 47-1004F-R JECKSON 47-1004G-R JECKSON 47-1004H-R Dimplex 47-1004F-R Dimplex 47-1004G-R Dimplex 47-1004H-R FCC ID: ELY547-47-1004-R This report concerns (check one:) Original Grant X Class II Change _____ Equipment Type: Superregenerative Receiver (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart B for unintentional radiator - the new 47 CFR [04-05-05 Edition] provision. Report prepared by: Chow Chi Ming, Billy Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8528 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: ELY547-47-1004-R iii Table of Contents 1.0 General Description ........................................................................................ 2 1.1 Product Description ........................................................................................... 2 1.2 Related Submittal(s) Grants............................................................................... 2 1.3 Test Methodology.............................................................................................. 3 1.4 Test Facility ....................................................................................................... 3 2.0 System Test Configuration ............................................................................. 5 2.1 Justification ....................................................................................................... 5 2.2 EUT Exercising Software................................................................................... 5 2.3 Special Accessories .......................................................................................... 5 2.4 Equipment Modification ..................................................................................... 6 2.5 Measurement Uncertainty.................................................................................. 6 2.6 Support Equipment List and Description ............................................................ 6 3.0 Emission Results ............................................................................................ 8 3.1 Field Strength Calculation.................................................................................. 9 3.2 Radiated Emission Configuration Photograph.................................................. 10 3.3 Radiated Emission Data .................................................................................. 11 3.4 Conducted Emission Configuration Photograph............................................... 15 3.5 Conducted Emission Data ............................................................................... 16 4.0 Equipment Photographs ............................................................................... 18 5.0 Product Labelling .......................................................................................... 20 6.0 Technical Specifications ............................................................................... 22 7.0 Instruction Manual ........................................................................................ 24 8.0 Miscellaneous Information ........................................................................... 26 8.1 Stabilization Waveform.................................................................................... 27 8.2 Discussion of Pulse Desensitization................................................................. 28 8.3 Calculation of Average Factor.......................................................................... 29 8.4 Emissions Test Procedures ............................................................................. 30 INTERTEK TESTING SERVICES FCC ID: ELY547-47-1004-R iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Setup Photo Conducted Emission conducted photos.doc Test Report Conducted Emission Test Result conducted.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Stabilization Waveform superreg.pdf INTERTEK TESTING S…

Text truncated - open the document above for the full version.

Test Setup FCC ID : ELY547-47-1004-R Radiated - front Radiated - rear

Test Setup FCC ID : ELY547-47-1004-R Conduct Photo - 1 Conduct Photo - 2 Test Setup FCC ID : ELY547-47-1004-R Conduct Photo - 3
