ELY547-47-1010-RRF Wireless Remote Switch (433MHz Receiver)

1 Owner's Manual WIRELESS REMOTE SWITCH MODEL: 47-1010-R FCC ID: ELY547-47-1010R IC: 1492A-471010R The WIRELESS REMOTE SWITCH for use with all electric appliances from your easy chair or bedside. Safe and convenient with simple plug-in installation. Instructions: 1. Connect the AC Input wires to an AC 120V Power Source. (During connecting, make sure there is no AC power.) 2. Connect the Output Wires to the Input wires of the controlled device. 3. Install a 12 volt. battery into the transmitter. 4. Turn appliance ON, then control the appliance by simply pressing the ON or OFF button of the transmitter. Note: 1. Main switch of the electric appliance must be in the ON position prior to using the Remote Control. 2. Wireless Remote Switch works up to 50’’(15.4m) away. 3. Wireless Remote Switch may be used to control most other electrical devices including T.V.s, stereos and lamps. CAUTION 1. For indoor use in dry areas only. 2. For use on electrical devices with 15amp resistive load or max Power 1000W inductive load. 3. 120 volt AC supply. WARNING Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. CONFORMS TO UL STD. 60730-1A CERTIFIED TO CAN/CSA STD. E60730-1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications Input Rating.........................................................................................................AC 120V, 60Hz Output Rating....................................................................................................... AC 120V, 60Hz Resistive Load...............................................................................................................15A Motor Load................................................................................................................1/3HP Incandescent Lamp.......................................................................................................500W T.V..........................................................................................................................400W Operation Temperature...................................................................................................... 0 - 40°C Storage Temperature .....................................................................................................-25 - 60°C Safety Standard .............................................................................................................ETL/cETL Dimensions .......................................................................................................99 x 67 x 53 (mm) Weight ......................................................................................................................... .125 (g)

ELECTRIC CO., LTD. (A Subsidiary of China Aerospace International Holdings Ltd.) 18/F., China Aerospace Centre, 143 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong. Web-site: http://www.asiansources.com/jeckson.co E-mail: [email protected] Tel: (852) 2389 7337 Fax: (852) 2343 0391

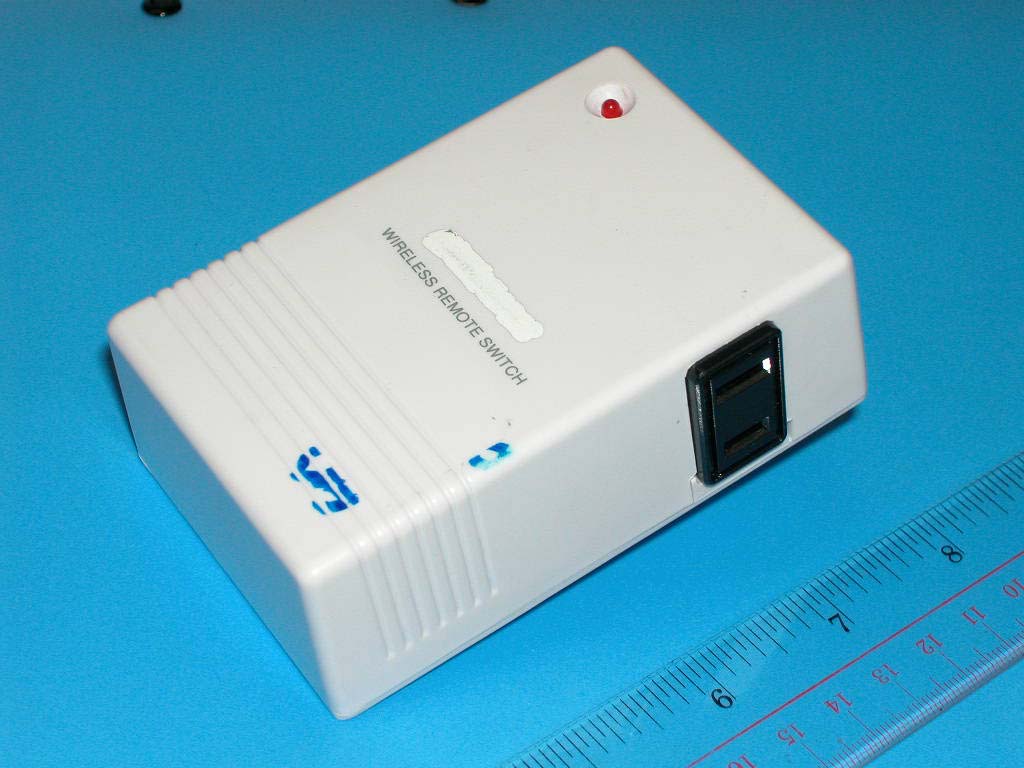

Test Setup FCC ID : ELY547-47-1010-R External Photo - Front External Photo – Rear

Input: AC 120V 60Hz, 15A OUTPUT: AC120V 60Hz CAUTION: 40mm x 50mm Made in China / Fait en Chine / Hecho en China 9700297 Dimplex ATTENTION: POUR USAGEÁ L’INTÈRIRUE SEULEMENT. Cet appareil est conforme a la partie 15 des regles de la FCC. Le fonctionnement de cet appareil est soumis aux conditions suivantes: 1) Cet appareil ne doit pas causer d ́interférence nuisible. 2) cet appareil doit accepter toute interférence pouvant être recue compris I ́interférence pouvant causer un fonctionnement non désire. Alimentation: 120 Vac, 60Hz, 15APuissance: 120 Vac, 60Hz Model No.: 47-1010-RRF Wireless Remote Switch FOR INDOOR USE ONLY. Resistive Load.......................15AMotor Load............................1/3HP Incandescent Lamp..............300WTV.........................................400W FCC ID: ELY547-47-1010-R IC: 1492A-471010R CONFORMS TO UL STD. 60730-1A CERTIFIED TO CAN/CSA STD. E60730-1 T40 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. PRECAUCI N:Ó PARA EL USO DE INTERIOR SOLAMEMTE. Este dispositivo se conforma con la parte 15 de las reglas de la FCC. La operaci operaci ónde este dispositivo es sujeta las condiciones siguientes: 1) este dispositivo puede no causar interferencia dañosa. 2) este dispositivo debe aceptar cualquier interferenciaque se pueda recibir incluyendo interferencia que causa laón indeseada. Entrada: 120Vac, 60Hz, 15ASalida 120Vac, 60Hz Charge r sistive .....................15ACharge du moteur..................1/3HP Lampe Incandescente...........300WT ......................................400W é élé La carga resistente...........................15A Un motor carga..............................1/3HP L mpara Incandescent ...................300W TV.................................................400W á RF Wireless Remote Switch Input: AC 120V 60Hz, 15A OUTPUT: AC120V 60Hz CAUTION: 40mm x 50mm Made in China 9700297 JECKSON ATTENTION: POUR USAGEÁ L’INTÈRIRUE SEULEMENT. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Model No.: 47-1010-R FOR INDOOR USE ONLY. Resistive Load........................................................................15A Motor Load..........................................................................1/3HP Incandescent Lamp..............................................................300W TV.......................................................................................400W FCC ID: ELY547-47-1010-R IC: 1492A-471010R CONFORMS TO UL STD. 60730-1A CERTIFIED TO CAN/CSA STD. E60730-1 T40 ELECTRIC CO., LTD. (A Subsidiary of China Aerospace International Holdings Ltd.) 18/F., China Aerospace Centre, 143 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong. Web-site:http://www.asiansources.com/jeckson.co E-mail: [email protected] Tel: (852) 2389 7337 Fax: (852) 2343 0391FCC FCC Label is putting here. RF Wireless Remote Switch, 433MHzInput: AC 120V 60Hz, 15AOUTPUT: AC120V 60Hz 20mm x 12mm Made in China JECKSON Model No.: 47-1010-B FCC ID: ELY547-47-1010-R IC: 1492A-471010R RF Wireless Remote Switch, 433MHzInput: AC 120V 60Hz, 15AOUTPUT: AC120V 60Hz 20mm x 12mm Made in China Dimplex Model No.: 47-1010-B FCC ID: ELY547-47-1010-R IC: 1492A-471010R FCC location for4 7-1010-B b are-board versio n

Test Setup FCC ID : ELY547-47-1010-R Relay (Version 1) Internal Photo - 1 Internal Photo - 2 Test Setup FCC ID : ELY547-47-1010-R Relay (Version 2) Internal Photo - 3 Internal Photo - 4 Test Setup FCC ID : ELY547-47-1010-R Bare board version Internal Photo - 5 Internal Photo - 6

RF Wireless Remote Switch – Receiver Technical Description The RF Wireless Remote Switch composes of 2 modules. One is the remote control unit (Transmitter) and the other is the power switch unit (Receiver). Both the transmitter and receiver are using a remote control encoder/decoder pair IC. The receiver is an AC120V direct plug-in power switch unit. There is a power relay installed in the unit from which it is in series with an AC receptacle. The AC receptacle has power when the relay makes and breaks contacts upon receiving signal from the remote control unit. The receiver consists of several parts, including RF AMP (Q1), DEMOD (Q2) Amp (U1), Remote Control Decoder (U2), Driver (Q3) and Output Stage (Q4). When a signal is received through the antenna, the RF AMP and DEMOD to retrieve the encoded signal. Then the signal will go through the Amp to Remote Control Decoder. It will decode a correct signal to make or break the relay contacts through the Driver in order to open or close the AC receptacle in the Output stage. Technical difference Alternative relay 832-1A GU-124DM Direct plug-in/ bare board versions receptacle tabs

47-1010 RECEIVER.sch-1 - Wed Mar 01 11:47:02 2006

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Jeckson Electric Co., Ltd. Application For Certification (FCC ID: ELY547-47-1010-R) Superregenerative Receiver 0527678 BC/ Sandy Lee June 9, 2006 INTERTEK TESTING SERVICES FCC ID: ELY547-47-1010-R i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: ELY547-47-1010-R ii MEASUREMENT/TECHNICAL REPORT Jeckson Electric Co., Ltd. - MODEL: JECKSON 47-1010-R Dimplex 47-1010-R JECKSON 47-1010-B Dimplex 47-1010-B FCC ID: ELY547-47-1010-R This report concerns (check one:) Original Grant X Class II Change _____ Equipment Type: Superregenerative Receiver (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart B for unintentional radiator - the new 47 CFR [04-05-05 Edition] provision. Report prepared by: Chow Chi Ming, Billy Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8491 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: ELY547-47-1010-R iii Table of Contents 1.0 General Description ........................................................................................ 2 1.1 Product Description ........................................................................................... 2 1.2 Related Submittal(s) Grants............................................................................... 2 1.3 Test Methodology.............................................................................................. 3 1.4 Test Facility ....................................................................................................... 3 2.0 System Test Configuration ............................................................................. 5 2.1 Justification ....................................................................................................... 5 2.2 EUT Exercising Software................................................................................... 5 2.3 Special Accessories .......................................................................................... 5 2.4 Equipment Modification ..................................................................................... 6 2.5 Measurement Uncertainty.................................................................................. 6 2.6 Support Equipment List and Description ............................................................ 6 3.0 Emission Results ............................................................................................ 8 3.1 Field Strength Calculation.................................................................................. 9 3.2 Radiated Emission Configuration Photograph.................................................. 10 3.3 Radiated Emission Data .................................................................................. 11 3.4 Conducted Emission Configuration Photograph............................................... 14 3.5 Conducted Emission Data ............................................................................... 15 4.0 Equipment Photographs ............................................................................... 17 5.0 Product Labelling .......................................................................................... 19 6.0 Technical Specifications............................................................................... 21 7.0 Instruction Manual........................................................................................ 23 8.0 Miscellaneous Information ........................................................................... 25 8.1 Stabilization Waveform.................................................................................... 26 8.2 Discussion of Pulse Desensitization................................................................. 27 8.3 Calculation of Average Factor.......................................................................... 28 8.4 Emissions Test Procedures ............................................................................. 29 INTERTEK TESTING SERVICES FCC ID: ELY547-47-1010-R iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Setup Photo Conducted Emission conducted photos.doc Test Report Conducted Emission Test Result conducted.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Stabilization Waveform superreg.pdf INTERTEK TESTING SERVICES FCC ID: ELY547-47-1010-R 1 EXHIBIT 1 GENER…

Text truncated - open the document above for the full version.

Test Setup FCC ID : ELY547-47-1010-R Radiated Photo - Front Radiated Photo - Rear RADIATED Model No.: 47-1010-R Job No.: 0527678 RADIATED Model No.: 47-1010-R Job No.: 0527678

Test Setup FCC ID : ELY547-47-1010-R Conduct Photo - Front Conduct Photo - Rear Test Setup FCC ID : ELY547-47-1010-R Conduct Photo - Side

Report No.: 0527678 Relay Version 2 Ctrl No.: N/A PAGE 1 Tested By:Hong, Report No.:0527678 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 2 1 9k 30M EW0699 12 9k 30M EW0192 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A Report No.: 0527678 Relay Version 2 Ctrl No.: N/A Tested By:Hong, Report No.:0527678 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: no Results
