ELY547-47-1010-TRF wireless remote (433MHz Transmitter)

1 Owner's Manual WIRELESS REMOTE SWITCH MODEL: 47-1010-R FCC ID: ELY547-47-1010R IC 1492A-471010R The WIRELESS REMOTE SWITCH for use with all electric appliances from your easy chair or bedside. Safe and convenient with simple plug-in installation. Instructions: 1. Connect the AC Input wires to an AC 120V Power Source. (During connecting, make sure there is no AC power.) 2. Connect the Output Wires to the Input wires of the controlled device. 3. Install a 12 volt. battery into the transmitter. 4. Turn appliance ON, then control the appliance by simply pressing the ON or OFF button of the transmitter. Note: 1. Main switch of the electric appliance must be in the ON position prior to using the Remote Control. 2. Wireless Remote Switch works up to 50’’(15.4m) away. 3. Wireless Remote Switch may be used to control most other electrical devices including T.V.s, stereos and lamps. CAUTION 1. For indoor use in dry areas only. 2. For use on electrical devices with 15amp resistive load or max Power 1000W inductive load. 3. 120 volt AC supply. 2 WARNING Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. Specifications Input Rating.........................................................................................................AC 120V, 60Hz Output Rating....................................................................................................... AC 120V, 60Hz Resistive Load...............................................................................................................15A Motor Load................................................................................................................1/3HP Incandescent Lamp.......................................................................................................500W T.V..........................................................................................................................400W Operation Temperature...................................................................................................... 0 - 40°C Storage Temperature .....................................................................................................-25 - 60°C Safety Standard .............................................................................................................ETL/cETL Dimensions .......................................................................................................99 x 67 x 53 (mm) Weight ......................................................................................................................... .125 (g)

ELECTRIC CO., LTD. (A Subsidiary of China Aerospace International Holdings Ltd.) 18/F., China Aerospace Centre, 143 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong. Web-site: http://www.asiansources.com/jeckson.co E-mail: [email protected] Tel: (852) 2389 7337 Fax: (852) 2343 0391

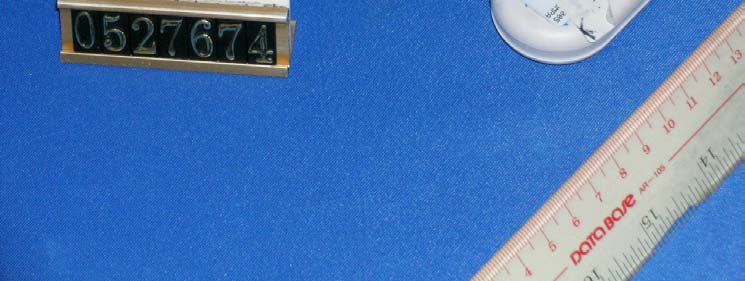

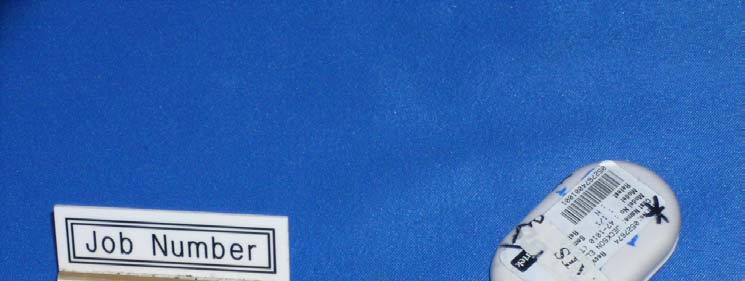

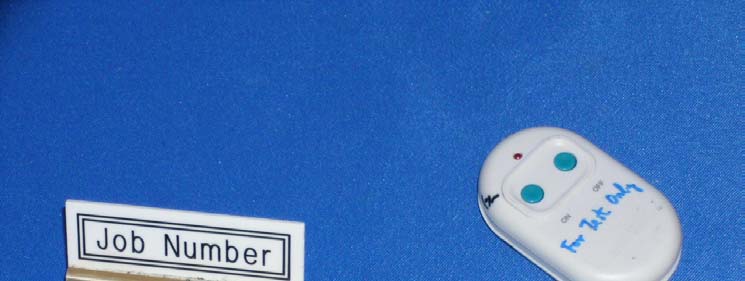

Test Setup FCC ID : ELY547-47-1010-T External Photo - Front External Photo – Rear

Test Setup FCC ID : ELY547-47-1010-T Internal Photo - 1 Internal Photo - 2 Test Setup FCC ID : ELY547-47-1010-T Internal Photo - 3

RF Wireless Remote Switch – Transmitter Technical Description The RF Wireless Remote Switch composes of 2 modules. One is the remote control unit (Transmitter) and the other is the power switch unit (Receiver). Both the transmitter and receiver are using a remote control encoder/decoder pair IC. The transmitter is 12V battery cell operated, hand held device. It consists of 3 parts, Remote Control Encoder, Modulator and RF OSC. When a ON or OFF button is being pressed, it will be encoded by the Remote Control Encoder IC. Then, the encoded signal will be modulated with a carrier frequency of 433.92MHz inside the Modulator. Finally, a modulated signal will be transmitted through the antenna.
