Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

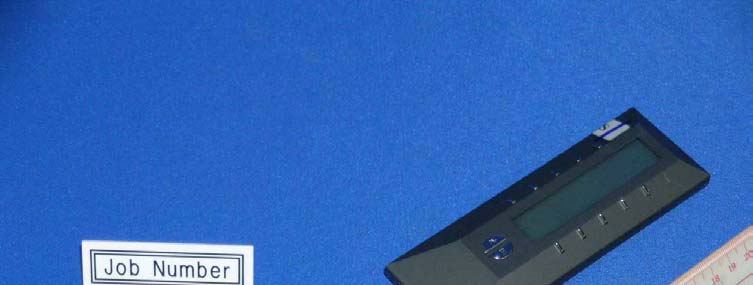

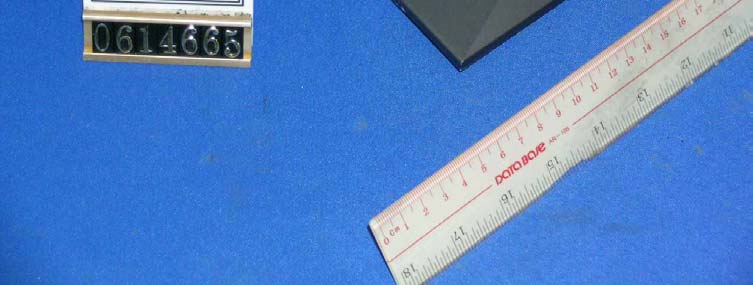

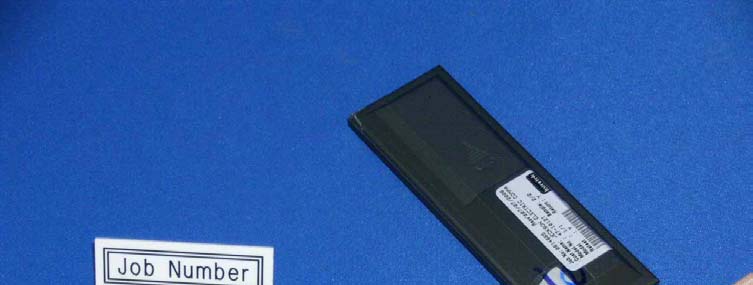

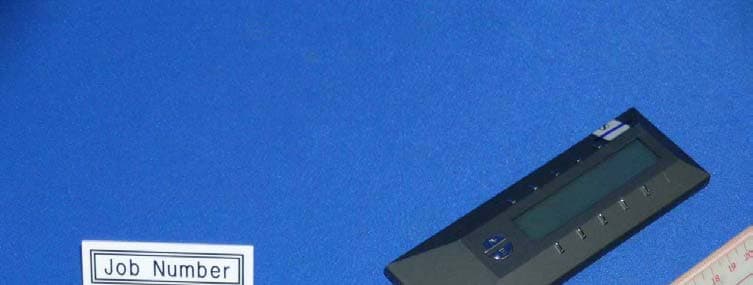

External Photo FCC ID : ELY547-47-1012-T External Photo - front External Photo - rear
FCC Label Location
Internal Photo FCC ID : ELY547-47-1012-T Internal Photo - 1 Internal Photo - 2 Internal Photo FCC ID : ELY547-47-1012-T Internal Photo - 3 Internal Photo - 4
Mid Line Remote โ Transmitter Technical Description The Mid Line Remote composes of 2 modules. One is the remote control unit (Transmitter) and the other is the power switch unit (Receiver). Both the transmitter and receiver are controlled by mircoprocessing unit (MPU U1). The transmitter is 2 x AAA alkaline battery cell operated, hand held device. It consists of 2 parts, Remote Control Encoder (MPU U1), Modulator (Q1). When a button is being pressed, it will be encoded by the Remote Control Encoder (MPU U1). Then, the encoded signal will be modulated with a carrier frequency of 433.92MHz inside the Modulator. Finally, a modulated signal will be transmitted through the antenna.
MIDLINE_REMOTER.sch-1 - Thu Jun 01 11:12:55 2006
โข The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. โข This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. โข For Terms And Conditions of the services, it can be provided upon request. โข The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Jeckson Electric Co., Ltd. Application For Certification (FCC ID: ELY547-47-1012-T) Transmitter 0614665 BC/ Sandy Lee September 14, 2006 INTERTEK TESTING SERVICES FCC ID: ELY547-47-1012-T i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: ELY547-47-1012-T ii MEASUREMENT/TECHNICAL REPORT Jeckson Electric Co., Ltd. - MODEL: JECKSON 47-1012-T Dimplex 47-1012-T FCC ID: ELY547-47-1012-T September 14, 2006 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [04-05-05 Edition] provision. Report prepared by: Chow Chi Ming, Billy Intertek Testing Services Hong Kong Ltd. 2/F., Garment Center, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8528 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: ELY547-47-1012-T iii Table of Contents 1.0 General Description............................................................................................ 2 1.1 Product Description ............................................................................................ 2 1.2 Related Submittal(s) Grants ............................................................................... 2 1.3 Test Methodology............................................................................................... 3 1.4 Test Facility........................................................................................................ 3 2.0 System Test Configuration ................................................................................. 5 2.1 Justification ........................................................................................................ 5 2.2 EUT Exercising Software.................................................................................... 5 2.3 Special Accessories ........................................................................................... 5 2.4 Equipment Modification ...................................................................................... 6 2.5 Measurement Uncertainty .................................................................................. 6 2.6 Support Equipment List and Description ............................................................. 6 3.0 Emission Results ................................................................................................ 8 3.1 Field Strength Calculation................................................................................... 9 3.2 Radiated Emission Configuration Photograph................................................... 10 3.3 Radiated Emission Data ................................................................................... 11 4.0 Equipment Photographs ................................................................................... 14 5.0 Product Labelling.............................................................................................. 16 6.0 Technical Specifications................................................................................... 18 7.0 Instruction Manual ............................................................................................ 20 8.0 Miscellaneous Information ............................................................................... 22 8.1 Measured Bandwidth........................................................................................ 23 8.2 Discussion of Pulse Desensitization.................................................................. 24 8.3 Calculation of Average Factor........................................................................... 25 8.4 Emissions Test Procedures .............................................................................. 26 INTERTEK TESTING SERVICES FCC ID: ELY547-47-1012-T iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Timing Diagram timing.pdf INTERTEK TESTING SERVICES FCC ID: ELY547-47-1012-T 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: ELY547-47-1012-T 2 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a Transmitter operating at 433.92MHz. The EUT is powered by 3.0V d.c. (2 x 1.5V โAAAโ size batteries). There is a 5.5V battery for memory backโฆ
Text truncated - open the document above for the full version.
Test Setup FCC ID : ELY547-47-1012-T Radiated - front Radiated - rear
2/F., Garment Centre, ยท Kowloon ยท Hong Kong
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15.231 | 433.92 MHz - 433.92 MHz | - |
