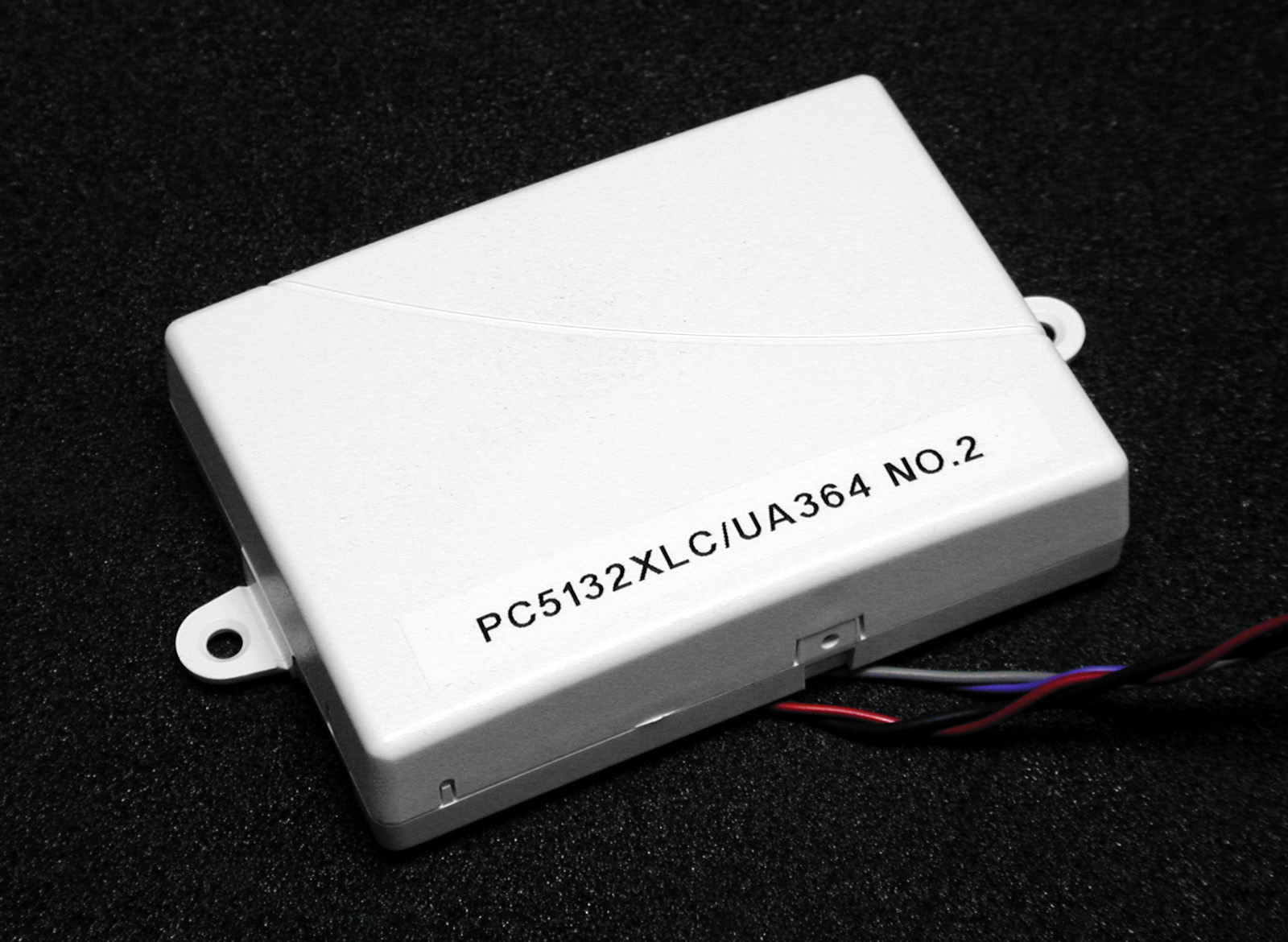

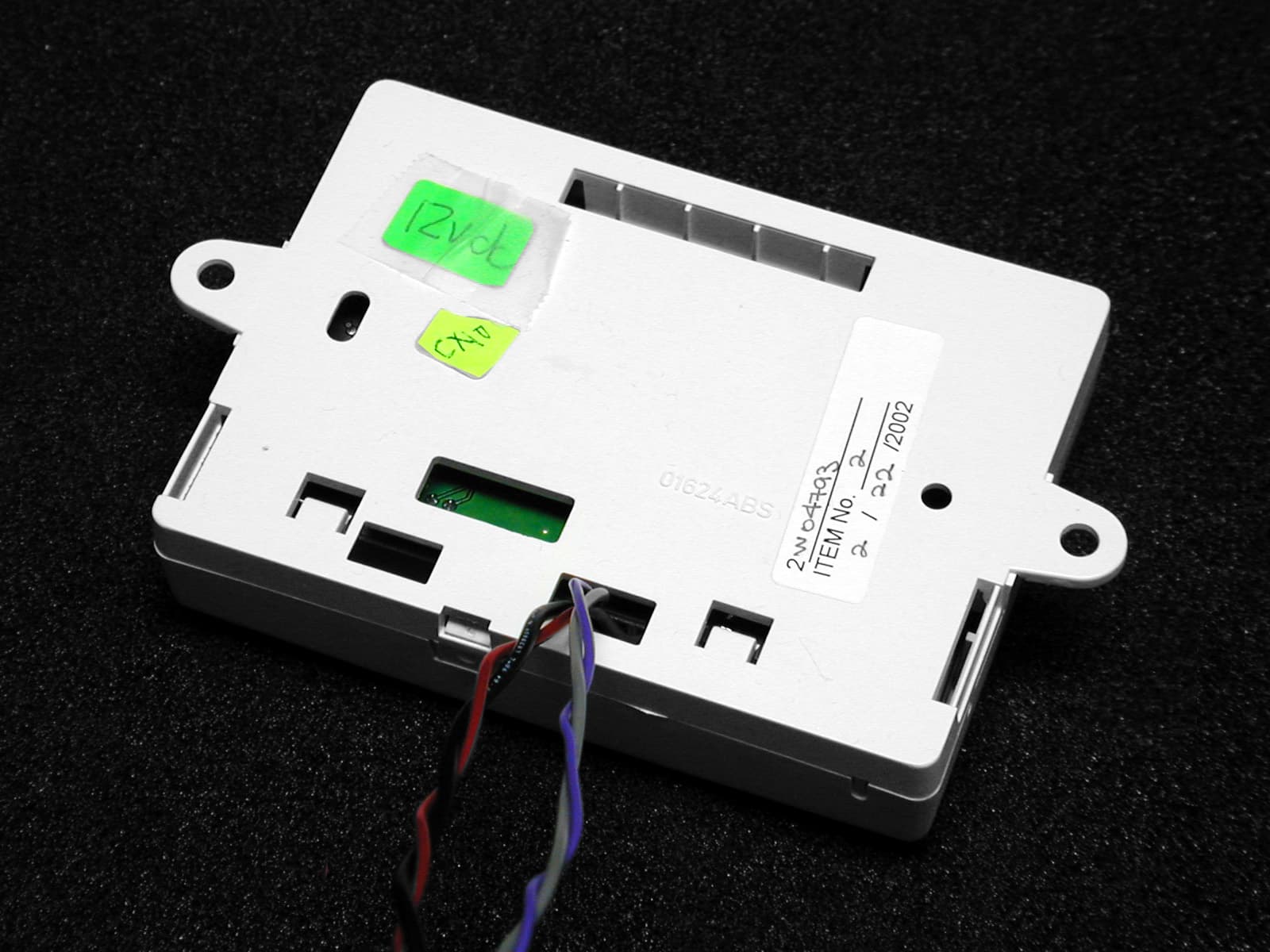

F53005132XS433Receiver

Installation Manual PC5132XS-433 NA Version 5.O • W A R N I N G • This manual contains information on limitations regarding product use and function and information on the limitations as to liability of the manufacturer. LIMITED WARRANTY Digital Security Controls Ltd. warrants the original purchaser that for a period of twelve months from the date of purchase, the product shall be free of defects in materials and workman- ship under normal use. During the warranty period, Digital Security Controls Ltd. shall, at its option, repair or replace any defective product upon return of the product to its factory, at no charge for labour and materials. Any replacement and/or repaired parts are warranted for the remainder of the original warranty or ninety (90) days, whichever is longer. The origi- nal purchaser must promptly notify Digital Security Controls Ltd. in writing that there is defect in material or workmanship, such written notice to be received in all events prior to expiration of the warranty period. There is absolutely no warranty on software and all software products are sold as a user license under the terms of the software license agreement included with the product. The Customer assumes all responsibility for the proper selection, installation, operation and maintenance of any products purchased from DSC. Custom products are only warranted to the extent that they do not function upon delivery. In such cases, DSC can replace or credit at its option. International Warranty The warranty for international customers is the same as for any customer within Canada and the United States, with the exception that Digital Security Controls Ltd. shall not be re- sponsible for any customs fees, taxes, or VAT that may be due. Warranty Procedure To obtain service under this warranty, please return the item(s) in question to the point of purchase. All authorized distributors and dealers have a warranty program. Anyone returning goods to Digital Security Controls Ltd. must first obtain an authorization number. Digital Security Controls Ltd. will not accept any shipment whatsoever for which prior authoriza- tion has not been obtained. Conditions to Void Warranty This warranty applies only to defects in parts and workmanship relating to normal use. It does not cover: • damage incurred in shipping or handling; • damage caused by disaster such as fire, flood, wind, earth- quake or lightning; • damage due to causes beyond the control of Digital Security Controls Ltd. such as excessive voltage, mechanical shock or water damage; • damage caused by unauthorized attachment, alterations, modi- fications or foreign objects; • damage caused by peripherals (unless such peripherals were supplied by Digital Security Controls Ltd.); • defects caused by failure to provide a suitable installation en- vironment for the products; • damage caused by use of the products for purposes other than those for which it was designed; • damage from improper maintenance; • damage arising out of any other abuse, mishandling or im- proper application of the products. Items Not Covered by Warranty In addition to the items which void the Warranty, the following items shall not be covered by Warranty: (i) freight cost to the repair centre; (ii) products which are not identified with DSC's product label and lot number or serial number; (iii) products disassembled or repaired in such a manner as to adversely affect performance or prevent adequate inspection or testing to verify any warranty claim. Access cards or tags returned for replacement under warranty will be credited or replaced at DSC's option. Products not covered by this warranty, or otherwise out of warranty due to age, misuse, or damage shall be evaluated, and a repair estimate shall be provided. No repair work will be performed until a valid purchase order is received from the Customer and a Return Merchandise Authorisation number (RMA) is issued by DSC's Customer Service. Digital Security Controls Ltd.’s liability for failure to repair the product under this warranty after a reasonable number of at- tempts will be limited to a replacement of the product, as the exclusive remedy for breach of warranty. Under no circum- stances shall Digital Security Controls Ltd. be liable for any special, incidental, or consequential damages based upon breach of warranty, breach of contract, negligence, strict liability, or any other legal theory. Such damages include, but are not limited to, loss of profits, loss of the product or any associated equipment, cost of capital, cost of substitute or replacement equipment, facilities or services, down time, purchaser’s time, the claims of third parties, including customers, and injury to property. The laws of some jurisdictions limit or do not allow the disclaimer of consequential damages. If the laws of such a jurisdiction apply to any claim by or against DSC, the limitations and disclaimers contained here shall be to the greatest extent permitted by law. Some states do not allow the exclusion or limitation of incidental or consequential damages, so that the above may not apply to you. Disclaimer of Warranties This warranty contains the entire warranty and shall be in lieu of any and all other warranties, whether expressed or implied (including all implied warranties of merchantability or fitness for a particular purpose) and of all other obligations or liabili- ties on the part of Digital Security Controls Ltd. Digital Secu- rity Controls Ltd. neither assumes responsibility for nor authorizes any other person purporting to act on its behalf to modify or to change this warranty, nor to assume for it any other warranty or liability concerning this product. This disclaimer of warranties and limited warranty are gov- erned by the laws of the province of Ontario, Canada. WARNING: Digital Security Controls Ltd. recommends that the entire system be completely tested on a regular basis. However, despite frequent testing, and due to, but not limited …

Text truncated - open the document above for the full version.

T H E A R T O F S E C U R I T Y MARCH 13, 2002 Office of Engineering & Technology Federal Communications Commission Washington, D.C. 20554 Subject: Request for continuous confidentiality of technical information per Sections 0.459 and 0.457 (d) (2) ( I) of CFR 47. FCC ID: F53005132XS433 Dear Sir or Madam: Digital Security Controls Canada Ltd. is hereby filing this request for continuous confidentiality of the specified items submitted with the application for certification (Form731) with proposed identifier F53005132XS433 The technical documentation for which continuous confidentiality is sought is: (1) Schematic diagrams: (2) Block Diagram This technical documentation is a part of the material supporting the Form 731 application for certification, which this request for confidentiality accompanies. The schematic diagrams disclose proprietary information and technical data which Digital Security Controls Ltd. would guard from its competitors and would not make available to the public. This proprietary information constitutes a trade secret and is not a part of the product documentation that would be made available to the customers of Digital Security Controls Ltd. It would be potentially injurious to Digital Security Controls Ltd. and to its investment in the development of this innovative proprietary product to make available for public disclosure the trade secret technical information specified in this request. If there are any questions about this request for continuous confidentiality regarding trade secrets and proprietary information embodied in the technical documentation filed in support of this Form 731 application, then please contact me via our toll-free telephone number. Yours truly, Kevin Harris Approval Services Manager 905-760-3000 Ext. 2378 Email: [email protected]

Barry Quinlan From: "Ruby Dulmage" <[email protected]> To: "Curtis-Straus TCB" <[email protected]> Sent: Thursday, April 11, 2002 12:46 PM Sub ject: Re: Digital Security Controls FCC ID: F53005132XS433 Page 1 of 1 4/12/2002 Hi Barry: The spectrum was searched from 30 MHz up to the 10th harmonic. No emissions were detected within 20 dB of the limit. Thanks, Ruby Ruby Dulmage Submissions Specialist Nemko Canada Inc. [email protected] Tel: 613-737-9680 x 232 Fax: 613-737-9691 ----- Original Message ----- From: Curtis -Straus TCB To: Ruby Dulmage Sent: April 11, 2002 4:35 PM Subject: Digital Security Controls FCC ID: F53005132XS433 Hi Ruby, Just one issue. Please tell us the frequency range over which the device was investigated for radiated emissions measurements. Thanks. Best regards Barry C. Quinlan Certification Manager Curtis-Straus TCB

Digital Security Controls Ltd.ISO9001 Registered3301 Langstaff Road, ConcordOntario, Canada L4K 4L2Phone: 905-760-3000Toll Free: 1-888-888-7838Fax: 905-760-3030 ® FCC/IC Labeling for PC5132XS-433 SIDE OF TRANSMITTER UNIT SHOWING PLACEMENT OF LABEL(ACTUAL SIZE) File: [pc5132xs-433_fcc+ic_lb_d131-44-5×9-5mm_18007759_r001.cdr] MR12/02 FCC ID: F53005132XS433 Model: PC5132XS-433 Digital Security Controls Ltd. This device complies with Part 15 of the FCC Rules. Operation is subject to the following twoconditions: (1) This device may not cause harmful interference, and (2) this device must ac-cept any interference received, including interference that may cause undesired operation. 18007759 R001 : 160-5132XS43 MADE IN CANADA This Class B digital apparatus meets all requirements of the ICES-003. Cet appareilnumérique de la classe B respecte toutes les exigences du ICES-003.IC FCC ID: F53005132XS433 Model: PC5132XS-433 Digital Security Controls Ltd. This device complies with Part 15 of the FCC Rules. Operation is subject to the following twoconditions: (1) This device may not cause harmful interference, and (2) this device must ac-cept any interference received, including interference that may cause undesired operation. : 160-5132XS43 MADE IN CANADA 18007759 R001 This Class B digital apparatus meets all requirements of the ICES-003. Cet appareilnumérique de la classe B respecte toutes les exigences du ICES-003.IC DASHED LINE INDICATESCUT EDGE OF LABELLABEL TO BE PRINTEDON CLEAR SELF-ADHESIVEMATERIALLABEL SHOWN 250% ACTUAL SIZE 44.5 mm 9.5 mm

CIRCUIT DESCRIPTION Device: Narrow Band Receiver Model: PC5132XS-433 ETSI Identifier: Schematic Diagram: Description: This device is a narrow band ASK receiver for 433.92MHz. It receives signals in the area covered, demodulate the signals then sends them to the control unit of the wireless security system. The unit consists of two main circuit sections, a control section with a microprocessor and an ASK receiver. ASK Receiver: The antenna receives the incoming signals and feeds them to the RF amplifiers to achieve good sensitivity and selectivity. The mixer mixes signals from the RF filter and the local oscillator. The oscillator includes a crystal reference oscillator, a programmable divider, and a phase detector forming a phase-lock-loop ( PLL ) system to lock the free running VCO to /423.22MHz. After mixing, an IF filter passes the desired signals to the IF amplifier and the demodulator. The demodulated signal then is sent to the control unit via the Combus / Keybus interface. The Control Section: This section sends the division ratio to the programmable divider of the local oscillator and provides pulses to switch antennas. It also controls the activities of the Combus / Keybus interface.

Test Report: 2W04793 Applicant: Digital Security Controls LTD. 3301 Langstaff Road Vaughan, Ontario, L4K 4L2 Equipment Under Test: PC5132XS-433 (EUT) 433MHz Receiver FCC ID:F53005132XS433 In Accordance With:FCC Part 15, Subpart B, 15.109 Tested By:Nemko Canada Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: J. Harrington, RF Group Manager Date:4 April 2002 Total Number of Pages:9 Nemko Canada Inc.FCC PART 15, SUBPART B, 15.109 PROJECT NO.:2W04793 EQUIPMENT: PC5132XS-433 Page 2 of 9 Table Of Contents Section 1. Summary of Test Results......................................................................................3 Section 2. General Equipment Specification........................................................................5 Section 3. Radiated Emissions...............................................................................................6 Section 4. Block Diagrams.....................................................................................................8 Section 5. Test Equipment List.............................................................................................9 Nemko Canada Inc.FCC PART 15, SUBPART B, 15.109 PROJECT NO.:2W04793 EQUIPMENT: PC5132XS-433 Page 3 of 9 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15, Subpart B. Measurement procedure ANSI C63.4-1992 was used for all tests. Radiated Emissions were measured on an open area test site. A description of the test facility is on file with the FCC. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. TESTED BY: Glen Westwell, Wireless Technologist DATE: 4 April 2002 Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. The results apply only to the samples tested. Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc.FCC PART 15, SUBPART B, 15.109 PROJECT NO.:2W04793 EQUIPMENT: PC5132XS-433 Page 4 of 9 Summary Of Test Data Name Of TestPara. No.Results Antenna Conducted Emissions15.111N/A Radiated Emissions15.109Complies Powerline Conducted Emissions15.107N/A Test Conditions: IndoorTemperature:24°C Humidity:46% OutdoorTemperature:5°C Humidity:48% Nemko Canada Inc.FCC PART 15, SUBPART B, 15.109 PROJECT NO.:2W04793 EQUIPMENT: PC5132XS-433 Page 5 of 9 Section 2.General Equipment Specification Manufacturer: Digital Security Controls LTD. Model No.:PC5132XS-433 Serial No.: #2 Date Received In Laboratory: 22 Feb. 2002 Nemko Identification No.: #2 Receive Frequency:433.92MHz Receive L.O.:423.22MHz Power:12Vdc Nemko Canada Inc.FCC PART 15, SUBPART B, 15.109 PROJECT NO.:2W04793 EQUIPMENT: PC5132XS-433 Page 6 of 9 Section 3.Radiated Emissions Para. No.: 15.109(a) Test Performed By: John StonierDate of Test: 27 March 2002 Minimum Standard: Frequency(MHz)Field Strength (dBμμV/m @ 3m) 30 - 8840.0 88 - 21643.5 216 - 96046.0 Above 96054.0 Test Results:Complies. Measurement Data:See attached table. Test Data - Radiated Emissions Test Distance (meters) : 3 Range: A Receiver: EVSP RBW(kHz): 120 Detector: Q-Peak Freq. (MHz) Ant.Pol. (V/H) RCVD Signal (dBμμV/m) Ant. Factor (dB)** Amp. Gain (dB)*** Dist. Corr. (dB) Field Strength (dBμμV/m) Limit (dBμμV/m) Margin (dB) 423.22LP1V18.31937.3468.7 423.22LP1H13.019324614 Notes: B/C =Biconical, B/L = Biconilog, L/P = Log-Periodic, H = Horn, D/P = Dipole *Re-measured using dipole antenna. **Includes cable loss when amplifier is not used. ***Includes cable loss. ( )Denotes failing emission level. N.D. =Not Detected Nemko Canada Inc.FCC PART 15, SUBPART B, 15.109 PROJECT NO.:2W04793 EQUIPMENT: PC5132XS-433 Page 7 of 9 PC5132XS-433 Receiver Nemko Canada Inc.FCC PART 15, SUBPART B, 15.109 PROJECT NO.:2W04793 EQUIPMENT: PC5132XS-433 Page 8 of 9 Section 6.Block Diagrams Outdoor Test Site For Radiated Emissions 3 METERS EUT NON-CONDUCTING TURN-TABLE 0.8 METER VARIABLE SEARCH HEIGHT (1 TO 4 m) TO TEST RECEIVER/SPECTRUM ANALYZER SEARCH ANTENNA Nemko Canada Inc.FCC PART 15, SUBPART B, 15.109 PROJECT NO.:2W04793 EQUIPMENT: PC5132XS-433 Page 9 of 9 Section 7.Test Equipment List CAL CYCLE EQUIPMENTMANUFACTURERMODELSERIALLAST CAL.NEXT CAL. 1 Year Spectrum Analyzer-1 Hewlett Packard8566B2311A0223827 Nov 0127 Nov 02 1 YearSpectrum Analyzer Display-1 Hewlett Packard8566B2314A0475927 Nov 0127 Nov 02 1 Year Quasi-peak adapter-1 Hewlett-Packard85650A2043A0030227 Nov 0127 Nov 02 PlotterHewlett Packard7470A2308A30807NCRNCR 1 YearLISNEMCO4825/20002-1/479 Oct. 019 Oct. 02 1 YearReceiverRohde & SchwarzESVP892661/014Apr. 3/01Apr. 3/02 1 YearLog Periodic Antenna 1EMCOLPA-251141Aug. 28/01Aug. 28/02 1 YearSpectrum AnalyzerHewlett Packard8565EFA000981June 8/01June 8/02 NA: Not Applicable NCR: No Cal Required COU: CAL On Use
