F5323PGP9934PWireless Motion detector with integrated camera

NEXT CAM PG+ Motion Detector with Integrated Camera Installation Guide Installation guidelines The reference to NEXT CAM PG+ throughout this manual includes the model NEXT CAM P9M0, NEXT CAM P8M0, and NEXT CAM P8M1. CAUTION: Only qualified personnel may install this equipment. Place this device in non- hazardous indoor locations only. Important: Check the device and the entire alarm system weekly to ensure optimal performance. Figure 1: NEXT CAM PG+ CalloutDescription ACamera lens BMicrophone CLED DLight sensor EPIR lens FBattery pull-tab GBreak-away segment HTerminal block ITamper switch JEnroll button For more information refer to section About NEXT CAM PG+ . D-308840 *D-308840* D-308840 NEXT CAM PG+ Rev. 0 Figure 2: Optimizing detection and avoiding false alarms 1. Do not install near high-voltage electrical lines. 2. Keep away from heat sources. 3. Do not install outdoors. 4. Avoid direct sunlight. 5. Do not expose to air drafts. 6. Do not install behind partitions. 7. Do not mount on an unstable surface. 8. Install on a solid and stable surface at a height of 1.8 m to 2.4 m (6 ft. to 8 ft.). WARNING: Do not obscure partially or completely the detector's field of view. Enrolling the device 1. Refer to the control panel installation manual for the complete set of enrollment instructions and testing procedures. 2. From the Installation menu, enter the Device enrollment menu and select the option to add a new device. 3. Remove the battery pull-tab to power on the device and begin the auto-enrollment process. If the battery pull-tab is not available or if the device does not automatically enroll, open the device cover to trigger the enrollment. Alternatively, press the enroll button until the orange LED light turns on. See Figure 1. 4. If requested, enter the PIN code printed on the device label. 5. To manually enroll the device: a. Scan the QR Code on the device box, using the IQ4 camera if available, or see step b. b. Manually enter the device ID, printed on the product label, in the format ID:145-xxxx. Note: If the device has been powered up for more than 48 hours it will be identified by the system only after the device has been reset. The NEXT CAM PG+ is enrolled with device ID 145-XXXX. In fall back mode it enrolls as NEXT CAM PG2 with device ID 140-XXXX. 6. Select the desired zone. 7. Configure any device parameters that are required. 8. Mount and test the device. See Local diagnostics test for information on testing the device. NEXT CAM PG+ Motion Detector with Integrated Camera Installation Guide2 D-308840 NEXT CAM PG+ Rev. 0 Configuring the device parameters Enter the DEVICE SETTINGS menu and select the required configuration as described in the following table. OptionAction General configuration options Alarm LEDDefine whether the alarm LED indication will be activated. Optional settings: LED ON (default) and LED OFF. Event counterDefine whether an alarm will be activated upon continued motion (low sensitivity) or upon a single alarm event (high sensitivity).. Optional settings: LOW sensitivity (default) and HIGH sensitivity. Disarm activityDefine whether the device is active when the system is disarmed. Optional settings: NOT Active (default), no delay, 5 s delay, 15 s delay, 30 s delay, 1 min delay, 2 min delay, 5 min delay, 10 min delay, 20 min delay and 60 min delay. AC monitoringDetermine whether the device is connected to AC power. When enabled, the device reports power failure and power restore events. Optional settings: Disabled (default) and Enabled. AC LED behaviorDefine whether the LED lights green when connected to AC power. Optional settings: Always OFF (default) and Match AC. Temperature reporting Define the device temperature reporting mechanism. Optional settings: Disabled (default). For further configuration options, refer to the control panel installation guide. Camera configuration options Image colorDetermine whether the image will be in black and white or color. Optional settings: Black & White (default) and Color. Alarm image resolution Set the resolution of an image taken during an alarm. Optional settings: VGA: 640 x 480, QVGA: 320 x 240 (default), QQVGA: 160 x 120 On-demand image resolution Set the resolution of an image taken for an on-demand image request. Optional settings: HD: 1280 x 720, VGA: 640 x 480, QVGA: 320 x 240 (default), QQVGA: 160 x 120 Image qualitySet the quality of an image taken during an alarm. Optional settings: Low (default), High. Image brightness Set the brightness of the image. Normal (default) is recommended for most conditions. Optional settings: Normal (default), -3 (lowest), -2, -1, +1, +2, and +3 (highest). Image contrastSet the contrast of the image. Normal (default) is recommended for most conditions. Optional settings: Normal (default), -3 lowest), -2, -1, +1, +2, and +3 (highest). Microphone settings Determine whether to activate the microphone. When set to enable, the microphone records sound only during image capturing. Optional settings: Disable (default) and Enable. 3NEXT CAM PG+ Motion Detector with Integrated Camera Installation Guide D-308840 NEXT CAM PG+ Rev. 0 Installing the pet mask Install the pet mask if you require pet immunity. The optimal installation height for pet immunity is 2.1 m (7 ft.), measured from the center of the device. Pet immunity is for pets weighing up to 38 kg (85 lb). Note: Pet immunity is not supported at heights of 2.4 m (8 ft.) and above. Do not install the pet mask if you are mounting the device at this height or above. Table 1: Required mounting height Distance to opposite wallMounting height 8 m (26 ft) or less1.8 to 2.1 m (6 ft to 7 ft) 8 m to 12 m (26 ft to 39 ft)2.1 m (7 ft) 1. To open the device cover, use a screwdriver to loosen the cover screw located on the underside of the device. See A in the following figure. Separate the base from the cover. See B in the following figure. Figure 3: Device cover removal 2. To extract the internal assembly, use a screwdriver to open the f…

Text truncated - open the document above for the full version.

Tyco Safety Products Canada Ltd. 3301 Langstaff Road Concord, Ontario, Canada L4K 4L2 Tele: 1-647-480-0200 https://www.tycosafetyproducts.com Certification Application Attestation Statements Statement for 47 CFR section 2.911(d)(5)(i) Tyco Safety Products Canada Ltd. certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) Tyco Safety Products Canada Ltd. (“the applicant”) certifies that, as of the date of the filing of this application, the applicant - is / - is not (3) identified on the Covered List as an entity producing “covered” equipment. Date: City: Concord Name (2) : Dan Nita Function: Approvals Manager Telephone number: 1-647-480-0430 Email address: [email protected] Signature: 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . (2): For FCC it must be the Grantee Code “owner” or the authorized agent. (3): double click on the appropriate box and select ‘’checked” then “OK” To Whom It May Concern: Tyco Safety Products Canada Ltd. 3301 Langstaff Road L4K 4L2 Ontario, Canada Subject: FCC ID: F5323PGP9934P 11-Dec.- 23

Tyco Safety Products Canada Ltd. 3301 Langstaff Road Concord, Ontario, Canada L4K 4L2 Tele: 1- 647-480-0200 https://www.tycosafetyproducts.com U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Kiwa Nederland B.V. Wilmersdorf 50 7327 AC Apeldoorn Postbus 137 7300 AC Apeldoorn Netherlands ATT ENTION: FCC Certification – Section 2.911(d)(7) Information De signated U.S. Agent Company name: Qolsys Inc. FRN: 2AAJX Contact person name: Mark Skeen ZIP/City/State Campbell, CA 95008, USA Telephone number: Email address: [email protected] Signature: Date: Thi s letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. The A pplicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Appl icant Company name: Tyco Safety Products Canada Ltd. Grantee Code: F53 Contact person name: Dan Nita Street address: 3301 Langstaff Road ZIP/City/State LK4 4L2, Concord, Ontario, Canada Telephone number: Email address: [email protected] Signature: Date: 20231029 29.10.2023 Street address: 1919 S. Bascom Ave. Suite 600 Revision Record Sheet: Revision Section number Page number Date Remark(s) issued by 01 07-02-2023 1 st version RvdM 02 1 15-05-2023 Added FRN to Agent details RvdM Issued/modified by : Richard van der Meer Function : Certification assessor Revision : 02 Date : 15-02-2023 Verified by : Willem Jan Jong Function : Team Lead Date : __-02-2023 Released by : Axel Gase Function : Manager Quality Assurance Date of release: : __-02-2023

Tyco Safety Products Canada Ltd. 3301 Langstaff Road Concord, Ontario, Canada L4K 4L2 Tele: 1-647-480-0200 https://www.tycosafetyproducts.com Declaration of Authorization We Name: Tyco Safety Products Canada Ltd. Address: 3301 Langstaff Road City: Concord L4K 4L2 Country: Ontario, Canada Declare that: Name Representative of agent: Peysahov Sheynin Svetlana (1) Agent Company name: Hermon Laboratories Ltd. Address: Harakevet Industrial Zone City: Binyamina 30500 Country Israel is authorized to apply for Certification of the following product(s): Product description: Wireless Motion detector with integrated camera Type designation: PGP9934P P9M3 Trademark: Johnson Controls Validity/expiry date: October 19, 2023 on our behalf. Date: October 28, 2023 Name: Dan Nita (2) Function: Approvals Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent

FCC, Request for non-disclosure Date: 23-06-2023 RF_501, Issue 11 Page 1 of 2 Company Name: Tyco Safety Products Canada Ltd. Address: 3301 Langstaff Road City: Concord L4K 4L2 Country: Ontario, Conada To: Kiwa Netherlands B.V., Dept. FCC TCB Wilmersdorf 50 7327 AC Apeldoorn The Netherlands Subject: Request for confidentiality FCC ID: F5323PGP9934P Reference number: 50798 Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (See notes below): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: in order to avoid exposed of the technology to the competitors Date: December 13, 2023 Name and signature of applicant: Mr. Dan Nita Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! The planned date should state in the RF731 application form. FCC, Request for non-disclosure Date: 23-06-2023 RF_501, Issue 11 Page 2 of 2 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Kiwa NL B.V. at least 7 days before date of actual marketing or before expiration of the STC period FCC, Request for non-disclosure Date: 23-06-2023 RF_501, Issue 11 Page 3 of 2 Revision Record Sheet: Revision Section number Page number Date Remark(s) issued by 10 1 02-01-2023 History sheet added AG 11 1 & 2 23-06-2023 Corrected date and page# WJJ Issued/modified by : Willem Jan Jong Function : Team Lead Revision : 11 Date : 23-06-2023 Verified by : Axel Gase Function : Manager Quality Assurance Date : 23-06-2023 Released by : Axel Gase Function : Manager Quality Assurance Date of release: : 23-06-2023

Tyco Safety Products Canada Ltd. FCC ID: F5323PGP9934P IC: 160A-PGP9934P Page 1 of 3 EXTERNAL PHOTOGRAPHS This document contains 2 photographs Tyco Safety Products Canada Ltd. FCC ID: F5323PGP9934P IC: 160A-PGP9934P Page 2 of 3 Photograph No.1 Wireless Motion detector with integrated camera Front view Tyco Safety Products Canada Ltd. FCC ID: F5323PGP9934P IC: 160A-PGP9934P Page 3 of 3 Photograph No.2 Wireless Motion detector with integrated camera Rear side view

ECM Title: JCI LABEL DRAWING 23392 TBD Product Name: Label PG+ PGP9934P (NEXT CAM) Product Date Name Document No: 4017866 17.11.2022 ALBERT F. Created Document Rev: 01 01.06.2023 ALBERT F. Updated Sheet 1 of 1 01.06.2023 SHAY A. Approved MATERIAL: Polyester S-0001-J SIZE: 23*22 mm - Two in one row. B A

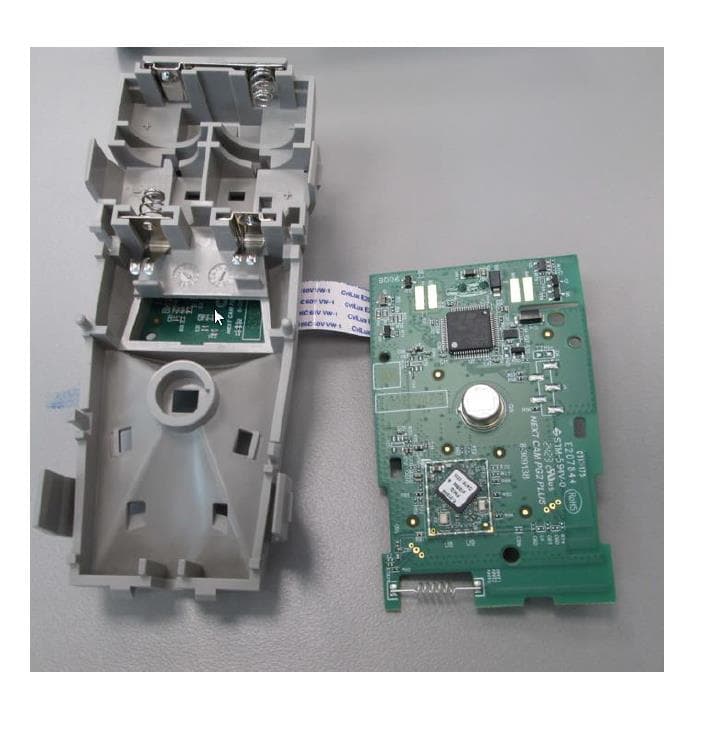

Tyco Safety Products Canada Ltd. FCC ID: F5323PGP9934P IC: 160A-PGP9934P Page 1 of 4 INTERNAL PHOTOGRAPHS This document contains 3 photographs Tyco Safety Products Canada Ltd. FCC ID: F5323PGP9934P IC: 160A-PGP9934P Page 2 of 4 Photograph No.1 Wireless Motion detector with integrated camera PCB Main Board (front side) Tyco Safety Products Canada Ltd. FCC ID: F5323PGP9934P IC: 160A-PGP9934P Page 3 of 4 Photograph No.1 Wireless Motion detector with integrated camera PCB Main Board (back side) Tyco Safety Products Canada Ltd. FCC ID: F5323PGP9934P IC: 160A-PGP9934P Page 4 of 4 Photograph No.1 Wireless Motion detector with integrated camera PCB Camera

FCC ID: F5323PGP9934P Page 1 of 1 Environmental evaluation and exposure limit according to FCC CFR 47part 1, §1.1307, §1.1310 The Wireless Motion Detector is classified as a mobile device. The Wireless Motion Detector includes transmitter operating according to FCC part 15 subpart C section 15.247 (FHSS) The FCC limit for power density for general population/uncontrolled exposure is f/1500 mW/cm 2 for 300 – 1500 MHz frequency range: P = 912.75/1500 = 0.61 mW/cm 2 The power density P (mW/cm 2 ) = P T / 4 r 2 P T is the transmitted power, which is equal to the peak transmitter output power 14.29 dBm plus maximum antenna gain 3 dBi, the maximum equivalent isotropically radiated power EIRP is P T = 14.29 dBm + 3 dBi = 17.29 dBm = 53.57 mW. The power density at 20 cm (minimum safe distance, required for mobile devices), calculated as follows: Compliance with FCC limit: 53.57 mW / 4 (20 cm) 2 = 0.011 mW/cm 2 << 0.61 mW/cm 2 General public cannot be exposed to dangerous RF level.

Johnson Controls 13 Zarhin Street, Raanana 4366241, Israel NEXT CAM P9M0 Antenna Rev. 00 December, 2023 1 1. A ntenna Specifications 1.1. Electrical/Functional Requirements Frequency Range: 902-928 MHz Input Impedance: 50 Ohm nominal Peak Gain (relative to Isotropic): 3 dBi 1.2 Antenna Mechanical View

Hermon Laboratories Ltd. 66 HaTachana str., P.O. Box 23, Binyamina 3055001, Israel Tel. +972 4628 8001 Fax. +972 4628 8277 E-mail: [email protected] Page 1 of 53 Report ID: TYCRAD_FCC.50798.docx Date of Issue: 19-Oct-23 ELECTRICAL TESTING 0839.01 TEST REPORT ACCORDING TO: FCC 47CFR part 15 subpart C §15.247 (FHSS) and subpart B, RSS-247 Issue 2:2017, RSS-Gen Issue 5, ICES-003 Issue 7:2020 FOR: Tyco Safety Products Canada Ltd. Wireless Motion detector with integrated camera Model: PGP9934P P9M3 FCC ID: F5323PGP9934P IC: 160A-PGP9934P This report is in conformity with ISO/ IEC 17025. The "A2LA Accredited" symbol endorsement applies only to the tests and calibrations that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: TYCRAD_FCC.50798.docx Date of Issue: 19-Oct-23 Page 2 of 53 Table of contents 1 Applicant information ..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details .................................................................................................................................................................... 3 5 Tests summary .............................................................................................................................................................. 4 6 EUT description ............................................................................................................................................................. 5 6.1 General information ....................................................................................................................................................... 5 6.2 Test configuration .......................................................................................................................................................... 5 6.3 Changes made in EUT .................................................................................................................................................. 5 6.4 Transmitter characteristics ............................................................................................................................................ 6 7 Transmitter tests according to 47CFR part 15 subpart C and RSS-247 requirements .................................................. 7 7.1 20 dB bandwidth ........................................................................................................................................................... 7 7.2 Carrier frequency separation ....................................................................................................................................... 11 7.3 Number of hopping frequencies .................................................................................................................................. 13 7.4 Average time of occupancy ......................................................................................................................................... 16 7.5 Peak output power ...................................................................................................................................................... 19 7.6 Field strength of spurious emissions ........................................................................................................................... 24 7.7 Band edge radiated emissions .................................................................................................................................... 37 7.8 Antenna requirements ................................................................................................................................................. 41 8 Emissions tests according to FCC 47CFR part 15 subpart B and ICES-003 requirements ......................................... 42 8.1 Radiated emission measurements .............................................................................................................................. 42 9 APPENDIX A Test equipment and ancillaries used for tests ....................................................................................... 46 10 APPENDIX B Test equipment correction factors ......................................................................................................... 47 11 APPENDIX C Measurement uncertainties .................................................................................................................. 50 12 APPENDIX D Test laboratory description ................................................................................................................... 51 13 APPENDIX E Specification references ........................................................................................................................ 52 14 APPENDIX F Abbreviations and acronyms ................................................................................................................. 53 Report ID: TYCRAD_FCC.50798.docx Date of Issue: 19-Oct-23 Page 3 of 53 1 Applicant information Client name: Tyco Safety Products Canada Ltd. Address: 3301 Langstaff Road, Concord, Ontario L4K 4L2, Canada Telephone: 1-647-480-0430 Fax: 1-647-480-0531 E-mail: [email protected] Contact name: Mr. Dan Nita 2 Equipment under test attributes Product name: Wireless Motion detector with integrated camera Product type: Transceiver Model(s): PGP9934P P9M3 Serial number: NA Hardware version:…

Text truncated - open the document above for the full version.

Tyco Safety Products Canada Ltd. FCC ID: F5323PGP9934P IC: 160A-PGP9934P Page 1 of 5 SETUP PHOTOGRAPHS This document contains 5 photographs Tyco Safety Products Canada Ltd. FCC ID: F5323PGP9934P IC: 160A-PGP9934P Page 2 of 5 Photograph No.1 Setup for spurious field strength measurements in anechoic chamber from 9 kHz to 30 MHz Tyco Safety Products Canada Ltd. FCC ID: F5323PGP9934P IC: 160A-PGP9934P Page 3 of 5 Photograph No.2 Setup for carrier and spurious emissions measurements in anechoic chamber from 30 MHz to 1 GHz Tyco Safety Products Canada Ltd. FCC ID: F5323PGP9934P IC: 160A-PGP9934P Page 4 of 5 Photograph No.3 Setup for field strength measurements in anechoic chamber above 1 GHz Tyco Safety Products Canada Ltd. FCC ID: F5323PGP9934P IC: 160A-PGP9934P Page 5 of 5 Photograph No.4 Setup for 20 dB bandwidth measurements
