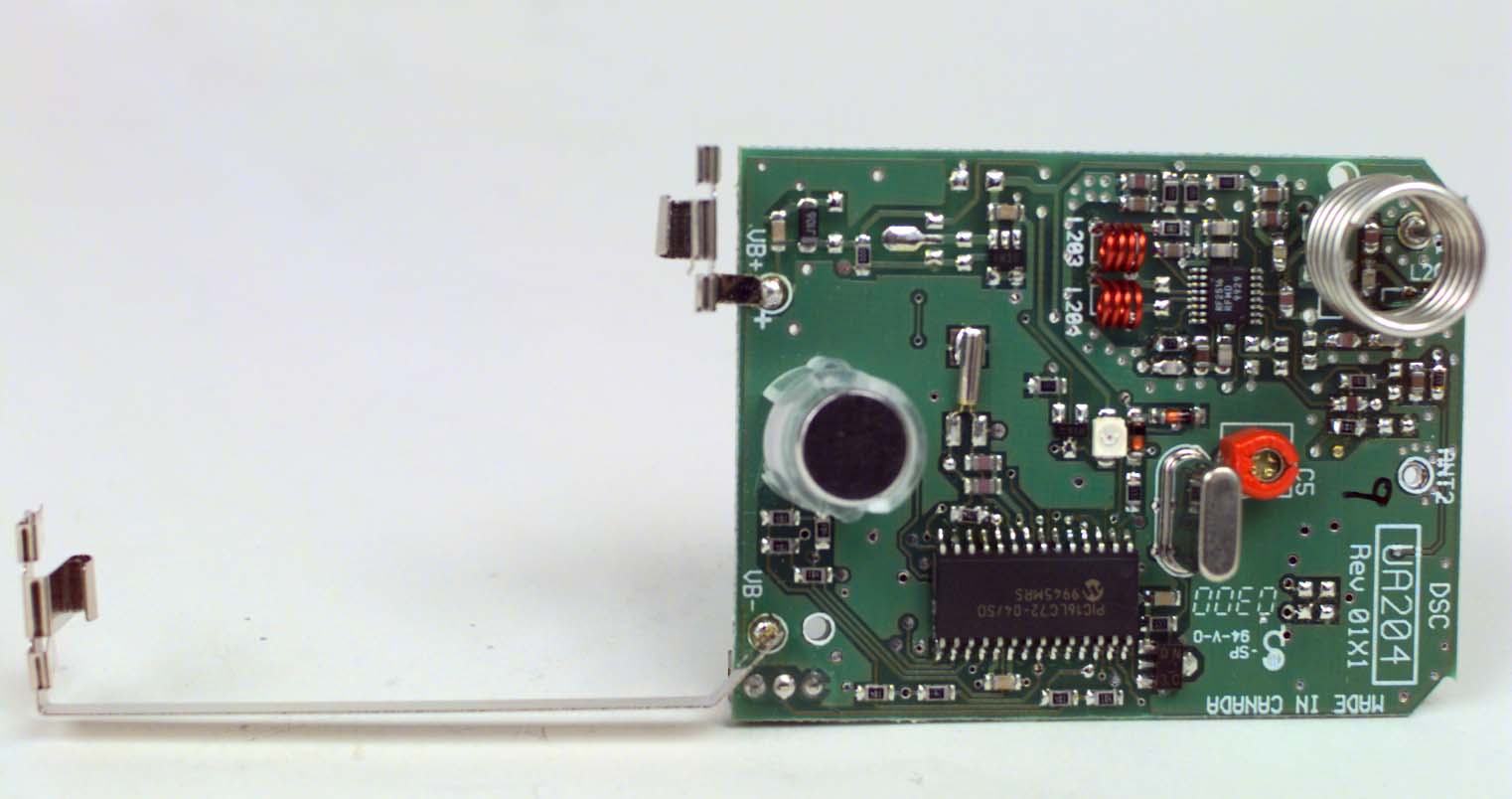

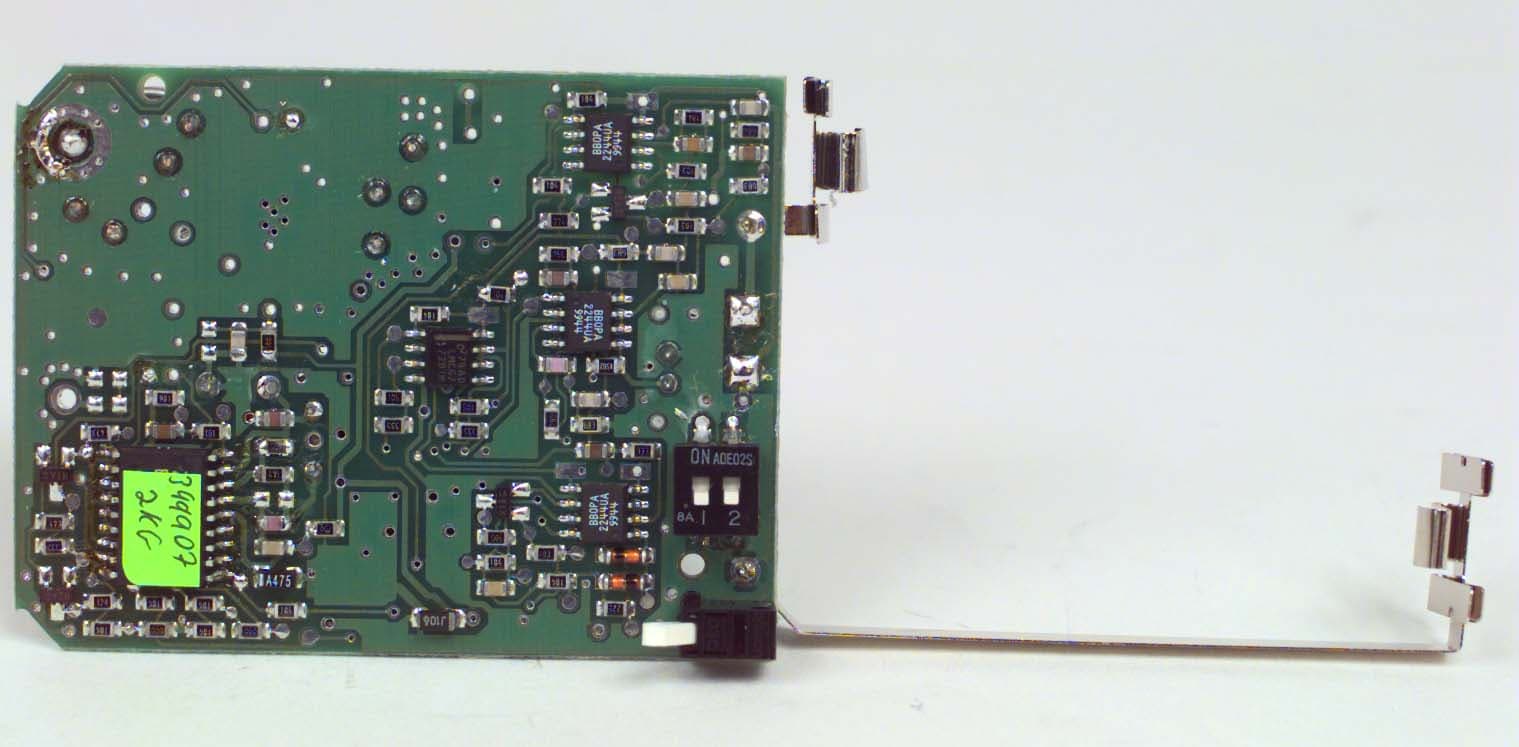

F5300NB912Glassbreak Detector

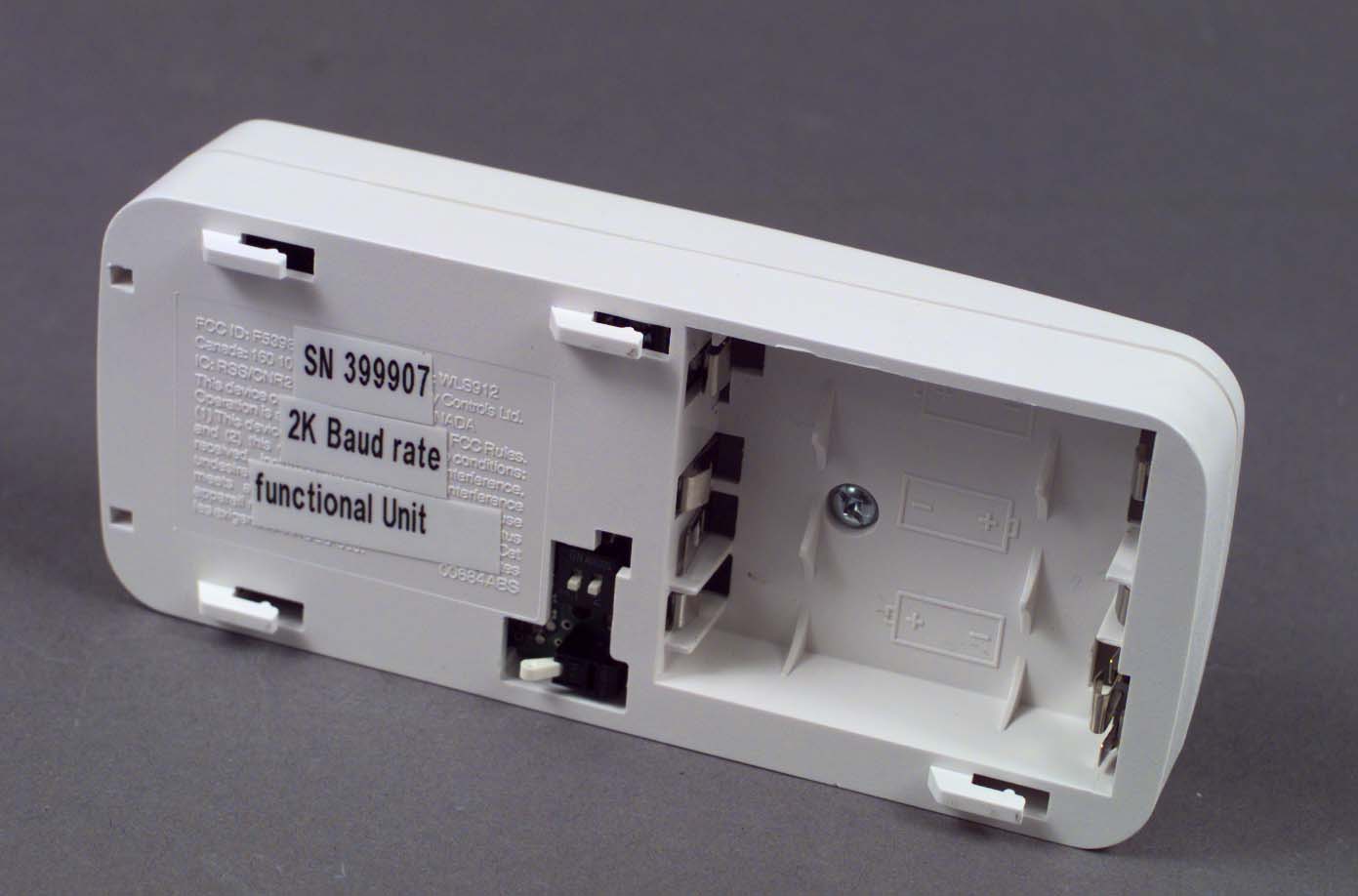

Mounting the Detector Once you have found a location that is within range of the receiver, you can mount the WLS912. 1.Remove the mounting plate from the detector. 2.At the selected mounting location, place the mounting plate on the wall (with the tab facing down, or to the right), or on the ceiling. Mark the screw locations. Wall anchors should be used for all screw locations. 3.Secure the backplate to the wall. 4.Slide the detector onto its backplate. 5.Repeat the installation test using the AFT–100 tester to confirm proper operation. FCC Compliance Statement CAUTION: Changes or modifications not expressly approved by Digital Security Controls Ltd. could void your authority to use this equipment. This equipment generates and uses radio frequency energy and if not installed and used properly, in strict accordance with the manufacturer’s instructions, may cause interference to radio and television reception. It has been type tested and found to comply with the limits for Class B device in accordance with the specifications in Subpart “B” of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in any residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to tele- vision or radio reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Re-orient the receiving antenna •Relocate the alarm control with respect to the receiver •Move the alarm control away from the receiver •Connect the alarm control into a different outlet so that alarm control and receiver are on different circuits. If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet prepared by the FCC helpful: “How to Identify and Resolve Radio/Television Interfer- ence Problems”. This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402, Stock # 004- 000-00345-4. Limited Warranty Digital Security Controls Ltd. warrants that for a period of twelve months from the date of purchase, the product shall be free of defects in material and workmanship under normal use and that in fulfilment of any breach of such warranty, Digital Security Controls Ltd. shall, at its option, repair or replace the defective equipment upon return of the equipment to its repair depot. This warranty applies only to defects in parts and workmanship and not to damage incurred in shipping or handling, or damage due to causes beyond control of Digital Security Controls Ltd. such as lightning, excessive voltage, mechanical shock, water damage, or damage arising out of abuse, alteration or improper application of the equipment. The foregoing warranty shall apply only to the original buyer, and is and shall be in lieu of any and all other warranties, whether express or implied and of all other obligations or liabilities on the part of Digital Security Controls Ltd. This war- ranty contains the entire warranty. Digital Security Controls Ltd. neither assumes, nor authorizes any other person purporting to act on its behalf to modify or to change this warranty, nor to assume for it any other warranty or liability concerning this product. In no event shall Digital Security Controls Ltd. be liable for any direct, indirect or consequential damages, loss of anticipated profits, loss of time or any other losses incurred by the buyer in connection with the purchase, installation or operation or failure of this product. © 1999 Digital Security Controls Ltd. 1645 Flint Road, Downsview, Ontario, Canada M3J 2J6 Tel. (416) 665-8460 • Fax (416) 665-7498 • Technical support line 1-800-387-3630 www.dscgrp.com Printed in Canada 29003922 R002 WLS912 Glassbreak Detector INSTALLATION INSTRUCTIONS The WLS912 is a battery-operated glassbreak sensor, designed to detect the sound produced by the shattering of framed glass. Equipped with an RF transmitter, the WLS912 establishes a supervised, one–way communications link with the system controller. The WLS912 uses Dynamic Signal Processing* to provide accurate detection of plate, laminated, wired and tempered glass types, while rejecting common false alarm sounds. *Protected under US Patent 5,675,320 Specifications Operating Voltage.................4.5V (three "AA" Alkaline Batteries) Operating Temperature..........0 o C - 50 o C (32 o F- 122 o F) Operating Humidity...............5% – 95% RH, non-condensing Maximum detection range Battery Guidelines and Installation Before installing batteries, please note the following guidelines: •The detector is designed to work with Eveready Alkaline Energizer "AA" batteries. Do not install any other type. "No-name" or generic brand batteries may not provide the best quality and dependability. •Always replace all three batteries at the same time. •When disposing of used batteries, follow the instructions and precautions printed on the batteries. Many cities and communities have collection sites or services for used household batteries. Contact your municipal offices for information on the disposal of used batteries. To install batteries: 1.Remove the detector from its mounting plate: If unmounted, hold the detector by its sides and push down on the top end of the mounting plate, as shown at right. If mounted, press the detector in the direction shown below. Glass TypeThicknessMinimum Glass Size (L X W) Level 1 SettingLevel 2 Setting Plate/ Tempered 1/8" – 1/4" 3 – 6mm 12" X 12" 30cm X 30cm 20ft 6m 10ft 3m Wired/ Laminated 1/4" 6mm 18"X18" 46cmX46cm 20ft 6m DO NOT USE 2.Install the batteries negative (–) side first, with the correct polarity, as shown below. Setting the Jumpers The detector has user-selectable jumper settings as shown. Jumper 1– Not Used Jumper 2– Level 1/Level 2 Detection This is a sensitivity…
