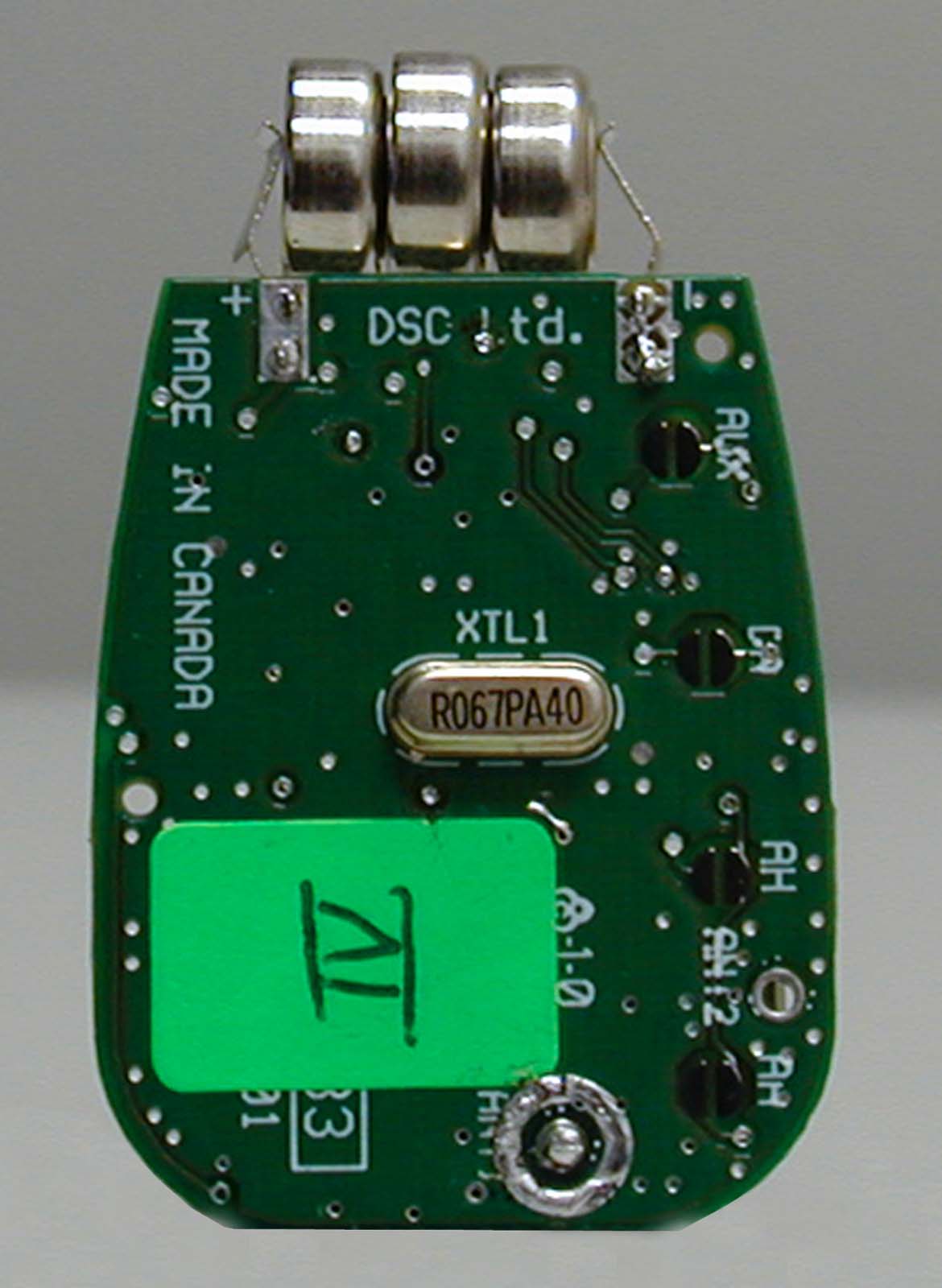

F5300NB929WLS929-433 & PWLS929-433 WIRELESS KEY

FCC COMPLIANCE STATEMENT CAUTION: Changes or modifications not expressly approved by Digital Security Controls Ltd. could void your authority to use this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: n Re-orient the receiving antenna. n Increase the separation between the equipment and receiver. n Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. n Consult the dealer or an experienced radio/television technician for help. The user may find the following booklet prepared by the FCC useful: “How to Identify and Resolve Radio/Television Interference Problems”. This booklet is available from the U.S. Government Printing Office, Washington D.C. 20402, Stock # 004-000-00345-4. Digital Security Controls Ltd. 160 Washburn St., Lockport, NY 14094 This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Ce dispositif satisfait aux exigences d’Industrie Canada, prescrites dans le document CNR-210. son utilisation est autorisée seulement aux conditions suivantes: (1) il ne doit pas produire de brouillage et (2) l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. WLS929 Wireless Key OPERATING INSTRUCTIONS © 2000 Digital Security Controls Ltd. Printed in Canada 29004986 R001 The WLS929 wireless key allows you to arm and disarm your alarm system, as well as perform other keypad functions, from a unit small enough to keep in your pocket. Together with your installer, you can decide which functions you wish to have accessible from your portable key. To activate any one of the four selected functions, press and hold the appropriate button for two seconds. Your installer will indicate each function by applying a circular label on the rear of the unit or by installing pre-printed buttons. Signals will not be received if the key is not within the range of the wireless receiver. The default functions are as follows: Stay Arming Press this button to arm your system in the Stay mode. All perimeter zones will be armed, such as all window and door contacts, but the interior zones will remain inactive, allowing you to stay on the premises without setting off an alarm. Away Arming Press this button to arm your system in the Away mode. Both the interior and exterior zones will be armed, allowing you to exit the premises. Disarm Press this button to disarm your system. You do not have to enter your access code when you use the key to disarm the system. Panic Press this button to notify your central monitoring station of a situation requiring the police, such as a break-in. Other available functions (to be programmed by the installer): Fire - notifies your central monitoring station of a fire condition. Auxiliary - notifies your monitoring station of a non-medical emergency. No Entry Delay Arming - arms the system with no entry delay on delay zones. Chime ON/OFF - turns the door chime feature ON and OFF. System Test - activates the Bell, Keypad LEDs and communications test for 2 seconds. Command Outputs 1, 3, 4 - opens garage door, turns on lights, etc. Command Output 2 - resets smoke detector. Quick Exit - allows 2 minutes to exit the premises while the system is armed, without sounding the alarm. Reactivate Stay/Aways - activates the Stay/Away zones, if system is armed in Stay Mode. Please discuss all WLS929 options with your installer in order to program the best possible combination to suit your needs. Testing the WLS929 Key When any key is pressed on the WLS929 to perform a function, its battery status is sent to the receiver. If the batteries are low, the Trouble light on any of your system’s keypads will turn ON. If the Trouble light turns ON, the key’s batteries must be replaced. NOTE: Do not use a Fire, Auxiliary or Panic key to test your WLS929 unit as pressing these buttons will always notify your monitoring station of a non-medical emergency. To replace the batteries, open the key’s plastic casing. To remove the casing, take a flathead screwdriver and insert it into the slot at the wide end of the plastic. Carefully twist the screwdriver to separate the top and bottom casing. Remove the old batteries from between the two metal clips. Insert the new batteries according to the diagram at right and reattach the key’s plastic casing. The WLS929 requires three batteries of type LR44. NOTE: The polarity of the batteries must be observed. TM – + LIMITED WARRANTY Digital Security Controls Ltd. warrants that for a period of twelve months from the date of purchase, the product shall be free of defect in materials and workmanship under normal use and that in fulfilment of any breach of such warranty, Digital Security Controls Ltd. shall, at its option, repair or replace the defective equipment upon return of the equipment to its repair depot. This warranty applies only to defects in parts and workmanship and not to damage incurred in shipping or handling, or damage due to causes beyond …

Text truncated - open the document above for the full version.

September 27, 2000 Office of Engineering & Technology Federal Communications Commission Washington, D.C. 20554 Subject:Request for continuous confidentiality of technical information per sections 0.459 and 0.457 (d) (2) ( I) of CFR 47. FCC ID:F5300NB929 Dear Sir or Madam: Digital Security Controls Canada Ltd. is hereby filing this request for continuous confidentiality of the specified items submitted with the application for certification ( Form731 ) with proposed identifier F5300NB929. The technical documentation for which continuous confidentiality is sought is: (1) Schematic diagrams: This technical documentation is a part of the material supporting the Form 731 application for certification, which this request for confidentiality accompanies. The schematic diagrams disclose proprietary information and technical data which Digital Security Controls Ltd. would guard from its competitors and would not make available to the public. This proprietary information constitutes a trade secret and is not a part of the product documentation that would be made available to the customers of Digital Security Controls Ltd. It would be potentially injurious to Digital Security Controls Ltd. and to its investment in the development of this innovative proprietary product to make available for public disclosure the trade secret technical information specified in this request. If there are any questions about this request for continuous confidentiality regarding trade secrets and proprietary information embodied in the technical documentation filed in support of this Form 731 application, then please contact me via our toll-free telephone number. Yours truly, Kevin Harris Approval Services Manager 905-760-3000 Ext. 2378 Email: [email protected]

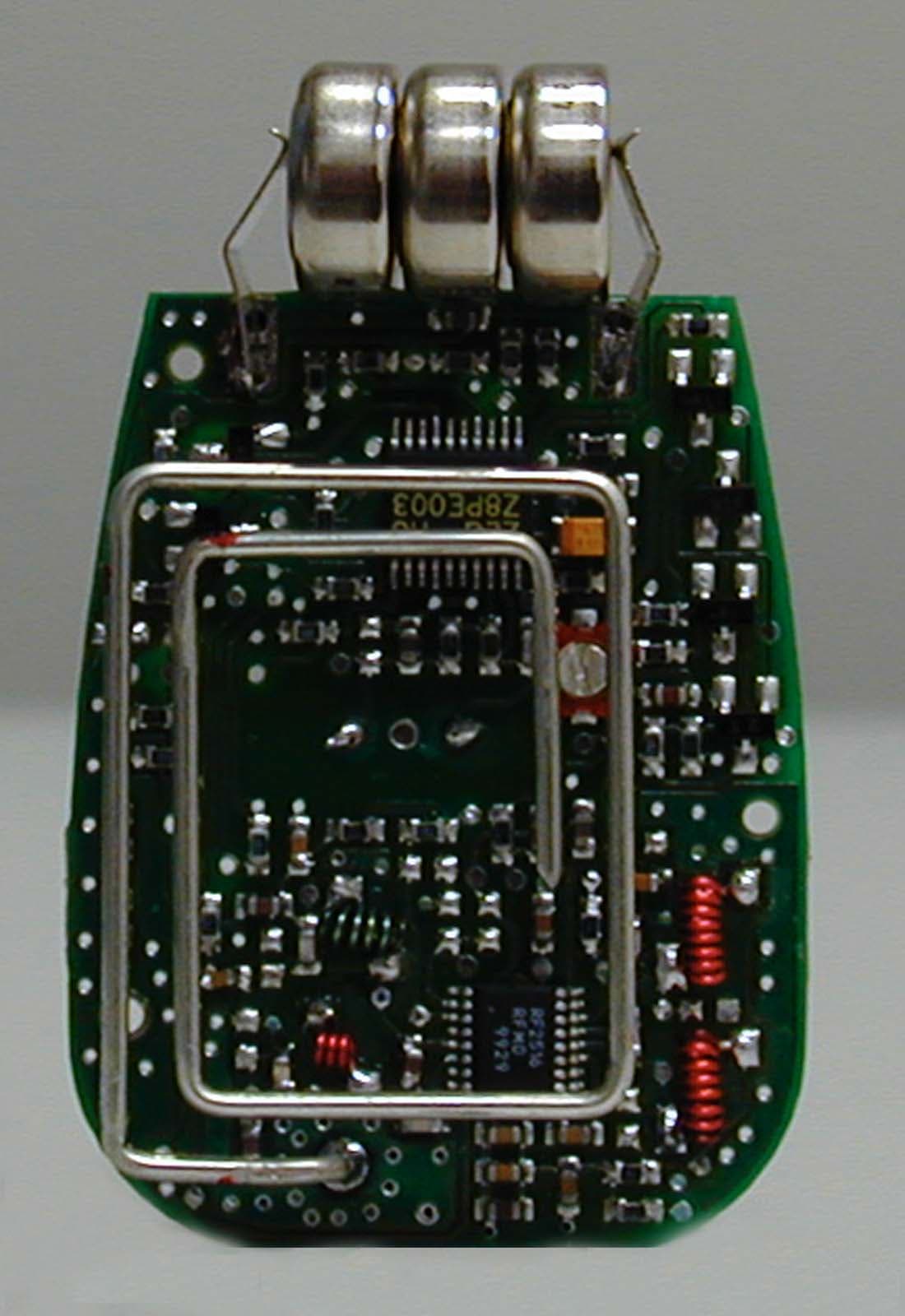

VC O Microprocessor & Digital Lo gic Z8PE003 Crystal6.78MHz ÷ 64 RF2516 Power Down Control Mod ulation ANT 433.92MHz Vba t ( 3 V) Wireless Teardrop Fob Block DiagramDevice: Low Cost 433.92MHz NBFOB Mo de l: UA233 Date: October 6, 2000FCC Identifier: F5300NB929Industry Canada: Low Pass Filter Phase Comp RF Am p Batteries FOB Butto ns

FCC/IC Labeling for WLS929-433 Wireless KeyFile: [wls929-433_rear_house_fcc+ic_0800xxxx_r001.cdr] 092200 REAR HOUSING OF THE UNIT SHOWING PLACEMENT OF LABEL (ACTUAL SIZE) LABEL INFORMATION TO BE ETCHEDINTO PLASTIC MOLDLABEL SHOWN ACTUAL SIZE 29 mm 16 mm FCC ID: XXXXXXXXXXMODEL # : WLS929-433CANADA XXX-XXX-XXXXIC: RSS/CNR210Digital Security ControlsMade in Canada ABSxxxxx Digital Security Controls Ltd.ISO9001 Registered3301 Langstaff Road, ConcordOntario, Canada L4K 4L2Phone: 905-760-3000Toll Free: 1-888-888-7838Fax: 905-760-3030 ® FCC ID: XXXXXXXXXXMODEL # : WLS929-433CANADA XXX-XXX-XXXXIC: RSS/CNR210Digital Security ControlsMade in Canada ABSxxxxx

FCC/IC Labeling for WLS929-433 Wireless KeyFile: [wls929-433_rear_house_fcc+ic_08001367_r001.cdr] 101600 REAR HOUSING OF THE UNIT SHOWING PLACEMENT OF LABEL (ACTUAL SIZE) LABEL INFORMATION TO BE ETCHEDINTO PLASTIC MOLDLABEL SHOWN ACTUAL SIZE 29 mm 16 mm FCC ID: F5300NB929MODEL # : WLS929-433CANADA 160-103-2240IC: RSS/CNR210Digital Security ControlsMade in Canada ABS01367 Digital Security Controls Ltd.ISO9001 Registered3301 Langstaff Road, ConcordOntario, Canada L4K 4L2Phone: 905-760-3000Toll Free: 1-888-888-7838Fax: 905-760-3030 ® FCC ID: F5300NB929MODEL # : WLS929-433CANADA 160-103-2240IC: RSS/CNR210Digital Security ControlsMade in Canada ABS01367

Master: ktlPT15231 Date: April 5, 2000 KTL Test Report:0R02861 Applicant:Digital Security Controls Ltd. 3301 Langstaff Road Vaughn, Ontario L4K 4L2 Equipment Under Test:WLS 929 – 433UA233, Rev. 01 (E.U.T.) In Accordance With:FCC Part 15, Subpart C For Low Power Transmitters Operating Periodically In The Band 40.66 - 40.77 MHz And Above 70 MHz Tested By:KTL Ottawa Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: R. Grant, Wireless Group Manager Date: Total Number of Pages:24 KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 0R02861 EQUIPMENT: WLS 929 – 433UA233, Rev. 01 Page 2 of 22 Table of Contents Section 1. Summary of Test Results.......................................................................................... 3 Section 2. Equipment Under Test (E.U.T.) .............................................................................. 5 Section 3. Transmission Requirements .................................................................................... 6 Section 4. Radiated Emissions................................................................................................. 14 Section 5. Occupied Bandwidth.............................................................................................. 17 Section 6. Block Diagrams.......................................................................................................20 Section 7. Test Equipment List ............................................................................................... 22 Annex A Restricted Bands................................................................................................... A1 KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 0R02861 EQUIPMENT: WLS 929 – 433UA233, Rev. 01 Page 3 of 22 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C, Paragraph 15.231. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit DS C Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 TESTED BY: _____________________________________ DATE: ___________________ Kevin Carr, Technologist KTL Ottawa Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. KTL Ottawa Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 0R02861 EQUIPMENT: WLS 929 – 433UA233, Rev. 01 Page 4 of 22 Summary Of Test Data Name of TestPara. NumberResults Transmission Requirements15.231(a)Complies Radiated Emissions15.231(b)Complies Occupied Bandwidth15.231(c)Complies Frequency Tolerance15.231(d)Not Applicable Periodic Alternate Field Strength Requirements15.231(e)Not Applicable Powerline Conducted Emissions15.207Not Applicable Footnotes For N/A’s: 15.231(d) – The E.U.T. does not transmit in the band specified under this sub-section. 15.213 (e) – The applicant is not seeking approval under this sub- section. 15.207 – The E.U.T. is battery powered. Test Conditions: Indoor Temperature: 25 °C Humidity:64 % Outdoor Temperature: 30 °C Humidity:84 % KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 0R02861 EQUIPMENT: WLS 929 – 433UA233, Rev. 01 Page 5 of 22 Section 2.Equipment Under Test (E.U.T.) General Equipment Information Manufacturer: Digital Security Controls Ltd. Model No.: WLS 929-433UA233, Rev. 01 Serial No.: None Date Received In Laboratory: August 15, 2000 KTL Identification No.: Items 1 & 2 Frequency Range: 433.92 MHz (Fixed) Operating Frequency(ies) of Sample: 433.92 MHz Type of Emission: ASK Emission Designator: 552KL1D Supply Power Requirement: 4.5 VDC, 3 x A76BP2 (1.5V) Batteries Duty Cycle Calculation: 20 Log 100 25.12 = -18.2 dB KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 0R02861 EQUIPMENT: WLS 929 – 433UA233, Rev. 01 Page 6 of 22 Section 3.Transmission Requirements Para. No.: 15.231(a) Test Performed By: Kevin Carr Date of Test: August 15, 2000 Minimum Standard: 15.231(a) Continuous transmissions such as voice, video or data transmissions are not permitted. 15.231(a)(1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds after being released. 15.231(a)(2) A transmitter activated automatically shall cease transmission within 5 seconds of activation. 15.231(a)(3) Periodic transmissions at regular pre-determined intervals are not permitted. However polling or supervisory transmissions to determine system integrity of transmitters used in security or safety applications are allowed if the periodic rate of transmission does not exceed one transmission of not more than one second duration per hour for each transmitter. 15.231(a)(4) Intentional radiators which are employed for radio control purposes during emergencies involving fire, security, and safety of life, when activated to signal an alarm, may operate during the pendency of the alarm. Test Results: Complies. Test Data: Compliance was determined by verification of technical specifications and a functional test on the equipment. KTL Ottawa FCC PART 15, SUBPART C FOR LOW P…
