F5301NB9010NT9010A-433 & PNT9010A-433 RECEIVER

™ WARNING This manual contains information on limitations regarding product use and function and information on the limitations as to liability of the manufacturer. The entire manual should be carefully read. NT9010 v 1.0 Installation Guide DLS-3 v1.3 and higher i Limited Warranty Digital Security Controls Ltd. warrants the original purchaser that for a period of twelve months from the date of purchase, the product shall be free of defects in materials and workmanship under normal use. During the warranty period, Digital Security Controls Ltd. shall, at its option, repair or replace any defective product upon return of the product to its factory, at no charge for labour and materials. Any replacement and/or repaired parts are warranted for the remainder of the original warranty or ninety (90) days, whichever is longer. The original owner must promptly notify Digital Security Controls Ltd. in writing that there is defect in material or workmanship, such written notice to be received in all events prior to expiration of the warranty period. International Warranty The warranty for international customers is the same as for any customer within Canada and the United States, with the exception that Digital Security Controls Ltd. shall not be responsible for any customs fees, taxes, or VAT that may be due. Warranty Procedure To obtain service under this warranty, please return the item(s) in question to the point of purchase. All authorized distributors and dealers have a warranty pro- gram. Anyone returning goods to Digital Security Controls Ltd. must first obtain an authorization number. Digital Security Controls Ltd. will not accept any ship- ment whatsoever for which prior authorization has not been obtained. Conditions to Void Warranty This warranty applies only to defects in parts and workmanship relating to normal use. It does not cover: •damage incurred in shipping or handling; •damage caused by disaster such as fire, flood, wind, earthquake or lightning; •damage due to causes beyond the control of Digital Security Controls Ltd. such as excessive voltage, mechanical shock or water damage; •damage caused by unauthorized attachment, alterations, modifications or foreign objects; •damage caused by peripherals (unless such peripherals were supplied by Digital Security Controls Ltd.); •defects caused by failure to provide a suitable installation environment for the products; •damage caused by use of the products for purposes other than those for which it was designed; •damage from improper maintenance; •damage arising out of any other abuse, mishandling or improper application of the products. Digital Security Controls Ltd.’s liability for failure to repair the product under this warranty after a reasonable number of attempts will be limited to a replacement of the product, as the exclusive remedy for breach of warranty. Under no circum- stances shall Digital Security Controls Ltd. be liable for any special, incidental, or consequential damages based upon breach of warranty, breach of contract, negli- gence, strict liability, or any other legal theory. Such damages include, but are not limited to, loss of profits, loss of the product or any associated equipment, cost of capital, cost of substitute or replacement equipment, facilities or services, down time, purchaser’s time, the claims of third parties, including customers, and injury to property. Disclaimer of Warranties This warranty contains the entire warranty and shall be in lieu of any and all other warranties, whether expressed or implied (including all implied warranties of merchantability or fitness for a particular purpose) And of all other obligations or liabilities on the part of Digital Security Controls Ltd. Digital Security Controls Ltd. neither assumes nor authorizes any other person purporting to act on its behalf to modify or to change this warranty, nor to assume for it any other war- ranty or liability concerning this product. This disclaimer of warranties and limited warranty are governed by the laws of the province of Ontario, Canada. WA R N I N G : Digital Security Controls Ltd. recommends that the entire system be completely tested on a regular basis. However, despite frequent testing, and due to, but not limited to, criminal tampering or electrical disruption, it is possible for this product to fail to perform as expected. Installer’s Lockout Any products returned to DSC which have the Installer’s Lockout option enabled and exhibit no other problems will be subject to a service charge. Out of Warranty Repairs Digital Security Controls Ltd. will at its option repair or replace out-of-warranty products which are returned to its factory according to the following conditions. Anyone returning goods to Digital Security Controls Ltd. must first obtain an authorization number. Digital Security Controls Ltd. will not accept any shipment whatsoever for which prior authorization has not been obtained. Products which Digital Security Controls Ltd. determines to be repairable will be repaired and returned. A set fee which Digital Security Controls Ltd. has predeter- mined and which may be revised from time to time, will be charged for each unit repaired. Products which Digital Security Controls Ltd. determines not to be repairable will be replaced by the nearest equivalent product available at that time. The current market price of the replacement product will be charged for each replacement unit. ii Table of Contents Chapter 1: Quick Set Up Section 1.1: Introduction 1.1.1 About the NT9010 System ................................. 1 1.1.2 About the NT9010 Manual Set .......................... 1 1.1.3 Main system Specifications ................................. 2 1.1.4 Additional Devices ............................................. 3 1.1.5 Peel-off Instruction Labels .................................. 4 Section 1.2: Installing The NT9010 1.2.1 Out of the Box ................................................... 5 1.2.2 Create an In…

Text truncated - open the document above for the full version.

December 7, 2000 Office of Engineering & Technology Federal Communications Commission Washington, D.C. 20554 Subject:Request for continuous confidentiality of technical information per sections 0.459 and 0.457 (d) (2) ( I) of CFR 47. FCC ID:F5301NB9010 Dear Sir or Madam: Digital Security Controls Canada Ltd. is hereby filing this request for continuous confidentiality of the specified items submitted with the application for certification ( Form731 ) with proposed identifier F5301NB9010. The technical documentation for which continuous confidentiality is sought is: (1) Schematic diagrams: (2) Block Diagram This technical documentation is a part of the material supporting the Form 731 application for certification, which this request for confidentiality accompanies. The schematic diagrams disclose proprietary information and technical data which Digital Security Controls Ltd. would guard from its competitors and would not make available to the public. This proprietary information constitutes a trade secret and is not a part of the product documentation that would be made available to the customers of Digital Security Controls Ltd. It would be potentially injurious to Digital Security Controls Ltd. and to its investment in the development of this innovative proprietary product to make available for public disclosure the trade secret technical information specified in this request. If there are any questions about this request for continuous confidentiality regarding trade secrets and proprietary information embodied in the technical documentation filed in support of this Form 731 application, then please contact me via our toll-free telephone number. Yours truly, Kevin Harris Approval Services Manager 905-760-3000 Ext. 2378 Email: [email protected]

2" 1" FCC REG. NO.: F53CAN-34664-AL-EREN: 0.4B FCC ID: F5301NB9010Digital Security Controls Ltd. MODEL NO.: NT9010A-433MADE IN CANADA IC:RSS/CNR 210 CANADA: 160 XXX XXXX This device complies with Part 15 and Part 68 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC REG. NO.: F53CAN-34664-AL-E REN: 0.4B FCC ID: F5301NB9010 Digital Security Controls Ltd. MODEL NO.: NT9010A-433 MADE IN CANADA IC:RSS/CNR 210 CANADA: 160 XXX XXXX This device complies with Part 15 and Part 68 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The FCC/IC labeling is to be located on the top of the rear housing of the unit as shown above. This illustration and labeling are shown 50% of the actual size. DIGITAL SECURITY CONTROLS LTD. ISO 9001 Registered 3301 Langstaff Road, Concord Ontario, Canada L4K 4L2 Phone: 905-760-3000 Toll Free: 1-888-888-7838 Fax: 905-760-3030 ® FCC / IC Labeling for NT9010A-433 Wireless Control Unit December 15, 2000 File: [9010a-433_rear_house_fcc+ic_08000xxx_r001.cdr] Labeling shown above is 100% ofactual size 2" 1" FCC REG. NO.: F53CAN-34664-AL-EREN: 0.4B FCC ID: F5301NB9010Digital Security Controls Ltd. MODEL NO.: PNT9010A-433MADE IN CANADA IC:RSS/CNR 210 CANADA: 160 XXX XXXX This device complies with Part 15 and Part 68 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC REG. NO.: F53CAN-34664-AL-E REN: 0.4B FCC ID: F5301NB9010 Digital Security Controls Ltd. MODEL NO.: PNT9010A-433 MADE IN CANADA IC:RSS/CNR 210 CANADA: 160 XXX XXXX This device complies with Part 15 and Part 68 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The FCC/IC labeling is to be located on the top of the rear housing of the unit as shown above. This illustration and labeling are shown 50% of the actual size. DIGITAL SECURITY CONTROLS LTD. ISO 9001 Registered 3301 Langstaff Road, Concord Ontario, Canada L4K 4L2 Phone: 905-760-3000 Toll Free: 1-888-888-7838 Fax: 905-760-3030 ® FCC / IC Labeling for PNT9010A-433 Wireless Control Unit File: [9010a-433_rear_house_fcc+ic_08000xxx._r001cdr] December 15, 2000 Labeling shown above is 100% ofactual size _

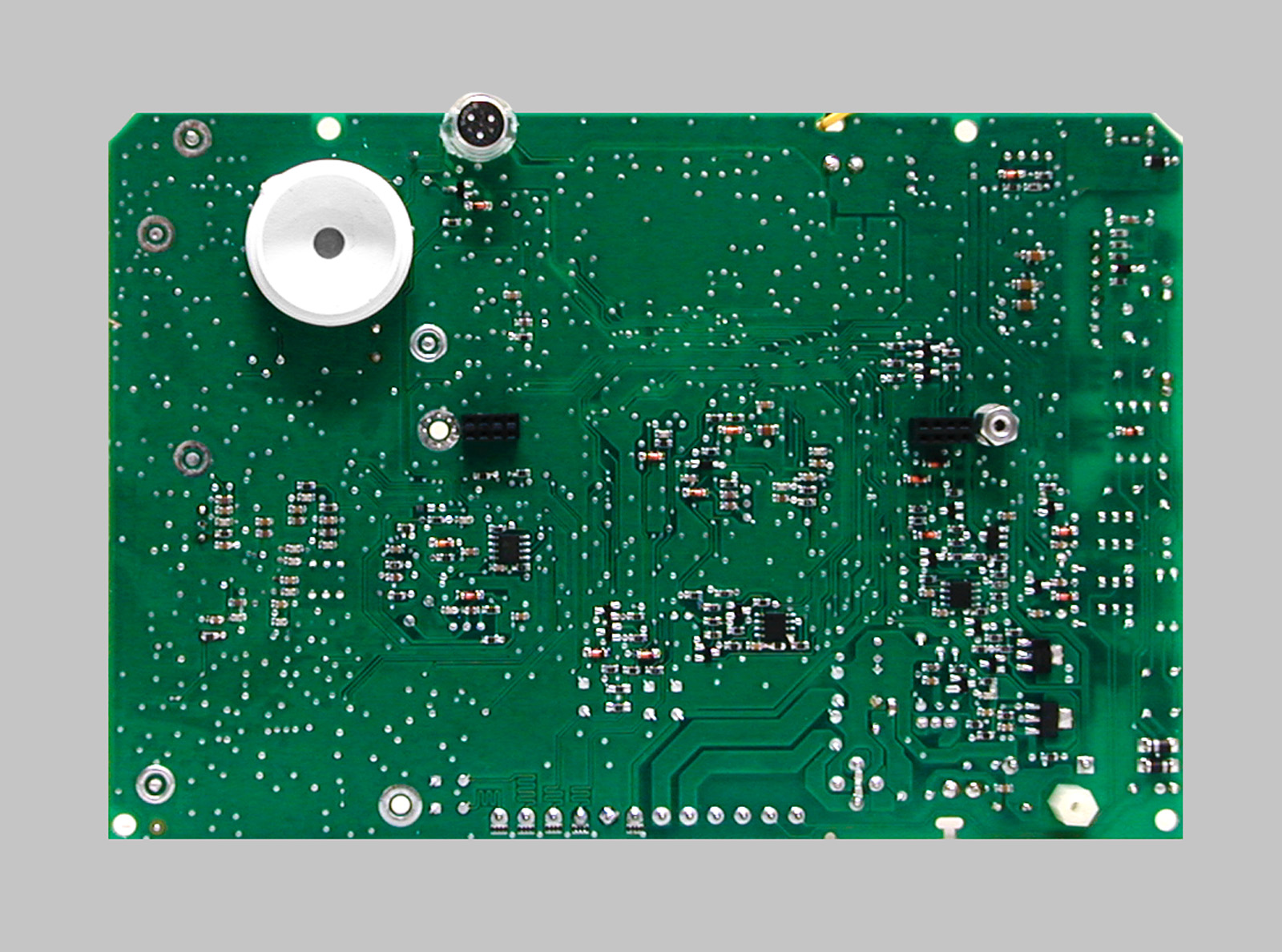

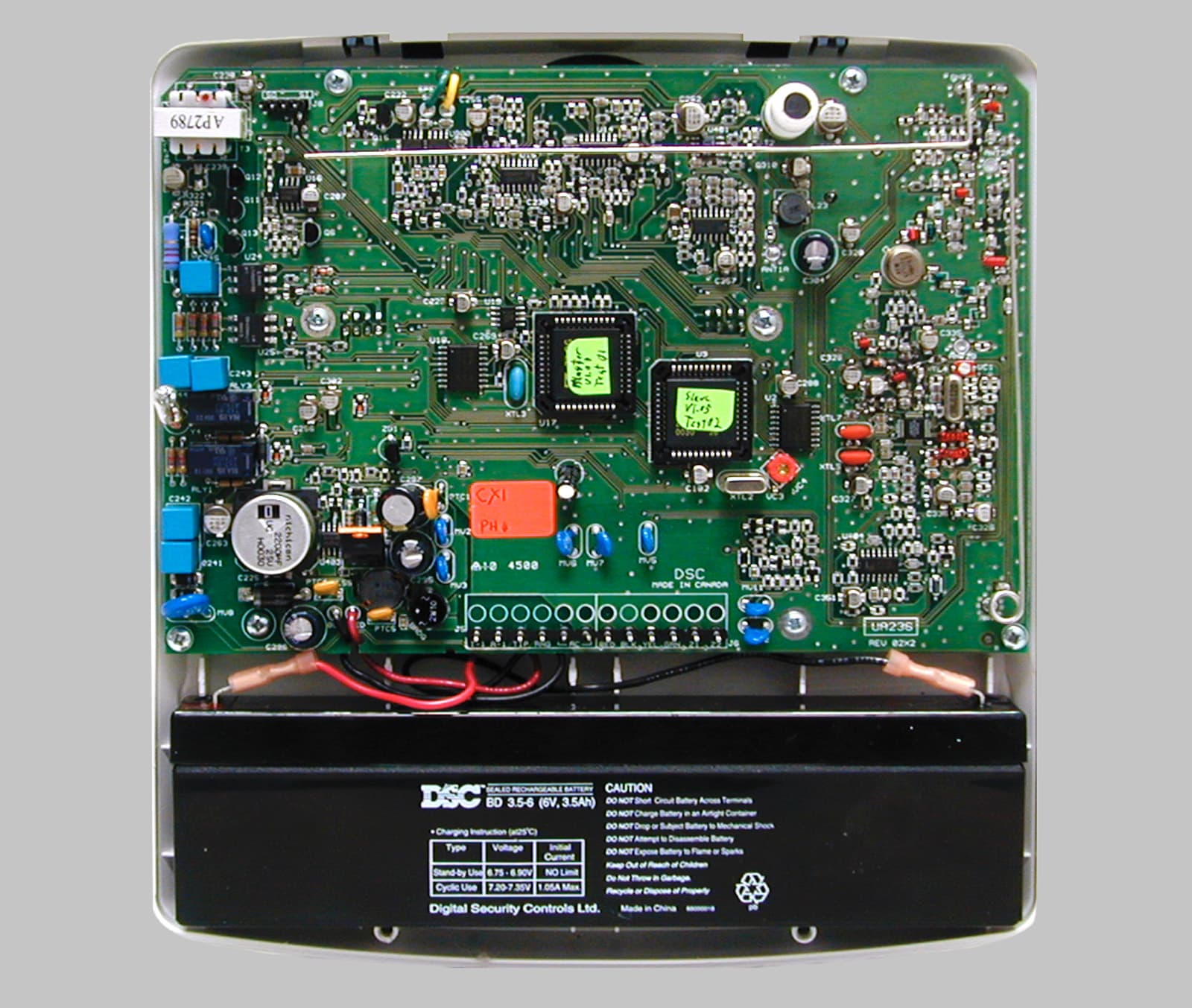

CIRCUIT DESCRIPTION Device: Narrow Band Receiver Model: NT 9010 ETSI Identifier: Schematic Diagram: Description: This is a description of the receiver section for the NT 9010 product. The receiver of the NT 9010 is a narrow band ASK design meant for 433.92MHz signal reception. It receives signals in the area of coverage, demodulate the signals then have those signals processed and acted upon by the microprocessor and digital section of the NT9010. The receiver can be divided into two main circuit sections, an ASK receiver and a control section which it shares with the other functions of the board. ASK Receiver: The antenna receives the incoming signals and feeds them to the RF Front End amplifiers and filter to achieve good sensitivity and selectivity. The RF signal is then fed to the mixer. The mixer combines the signals from the RF filter and the local oscillator. The oscillator circuit consists of a crystal reference oscillator, a programmable divider, and a phase detector forming a phase-lock-loop (PLL) system. The PLL is responsible for locking the free running voltage control oscillator (VCO) to 423.22MHz. After mixing, a filter centered around 10.7 MHz is used to pass the desired IF signals to the IF amplifier and the demodulator. The demodulated signal from the Receiver chip is again externally filtered and shaped to derive the digital baseband information. This information is then presented to the microprocessor for decoding. The Control Section: The digital control circuitry operates the selecting and switching of the two antennas that are terminated into the Front End of the receiver. It decodes the baseband information, makes the decision of whether or not the decoded information is a valid one and then acts upon it accordingly. It also monitors the receiver for any interference condition.

Master: ktlPT15BR Date: April 6, 2000 KTL Test Report:0R03329 Applicant:Digital Security Controls Ltd. 3301 Langstaff Road Vaughan, Ontario L4K 4L2 Equipment Under Test:NT9010A-433 (E.U.T.)Receiver FCC ID:F5301NB9010 In Accordance With:FCC Part 15, Subpart B Radio Receivers Tested By:KTL Ottawa Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: G. Westwell, Technologist Date: Total Number of Pages:15 KTL Ottawa FCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R03329 EQUIPMENT: NT9010A-433 Receiver Page 2 of 15 Table Of Contents Section 1. Summary of Test Results.......................................................................................... 3 Section 2. General Equipment Specification ........................................................................... 5 Section 3. Radiated Emissions...................................................................................................6 Section 4. Powerline Conducted Emissions............................................................................. 9 Section 5. Block Diagrams.......................................................................................................13 Section 6. Test Equipment List ............................................................................................... 15 KTL Ottawa FCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R03329 EQUIPMENT: NT9010A-433 Receiver Page 3 of 15 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15, Subpart B. Measurement procedure ANSI C63.4-1992 was used for all tests. Radiated Emissions were measured on an open area test site. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit CYY Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 TESTED BY: _____________________________________ DATE: ___________________ Russell Grant, Wireless Group Manager KTL Ottawa Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. KTL Ottawa Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. KTL Ottawa FCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R03329 EQUIPMENT: NT9010A-433 Receiver Page 4 of 15 Summary Of Test Data Name Of TestPara. No.Results Antenna Conducted Emissions15.111Not Applicable Radiated Emissions15.109Complies Powerline Conducted Emissions15.107Complies KTL Ottawa FCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R03329 EQUIPMENT: NT9010A-433 Receiver Page 5 of 15 Section 2.General Equipment Specification Manufacturer: Digital Security Controls Ltd. Date Received In Laboratory: November 27, 2000 KTL Identification No.: Item #1 Frequency Range: 433.92 MHz Number of Channels: 1 KTL Ottawa FCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R03329 EQUIPMENT: NT9010A-433 Receiver Page 6 of 15 Section 3.Radiated Emissions Para. No.: 15.109(a) Test Performed By: Russell Grant Date of Test: November 28, 2000 Minimum Standard: Frequency(MHz)Field Strength (dB μ μμ μ V/m @ 3m) 30 - 8840.0 88 - 21643.5 216 - 96046.0 Above 96054.0 Test Results: Complies. The worst-case emission level is 43.2 dBμV/m @ 3m at 846.44 MHz. This is 2.8 dB below the specification limit. Measurement Data: See attached table. For super-regenerative receivers the receiver is cohered using a signal generator and dipole antenna. Handheld equipment and equipment not designed to be mounted in any fixed orientation, the E.U.T. is tested in three orthogonal axis to obtain worst case results. KTL Ottawa FCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R03329 EQUIPMENT: NT9010A-433 Receiver Page 7 of 15 Test Data - Radiated Emissions Test Distance (meters) : 3 Range : A Towe r Re ce ive r: ESVP RBW(kHz ): 120 Detector: Q-Peak Fre q. (M Hz) Ant. * Pol. (V/H) RCVD Signal (dB μ μμ μ V/m) Ant. Factor (dB)** Amp. Gain (dB)*** Dist. Corr. (dB) Fie ld Strength (dB μ μμ μ V/m) Limit (dB μ μμ μ V/m) Margin (dB) 174.08B/C1V21.713.935.643.57.9 174.08B/C1H23.513.937.443.56.1 163.84B/C1V19.413.733.143.510.4 163.84B/C1H21.713.735.443.58.1 194.56B/C1V18.415.533.943.59.6 194.56B/C1H21.615.537.143.56.4 423.22L/P2V21.720.241.946.04.1 423.22L/P2H21.320.241.546.04.5 846.44L/P2V15.527.442.946.03.1 846.44L/P2H15.827.443.246.02.8 300.0L/P2V13.317.530.846.015.2 300.0L/P2H13.117.530.646.015.4 Note s: B/C =Biconical, B/L = Biconilog, L/P = Log-Periodic, H = Horn, D/P = Dipole *Re-Measured Using Dipole Antenna. ( ) Denotes Failing Emission Level. (1) 120 kHz, Q-Peak, (2) 10 kHz, Peak, (3) 100 kHz RGW, 300 kHz VBW, Peak, (4) 300 kHz RBW, 1 MHz VBW, Peak, (5) 1 MHz RBW, 3 MHz VBW, Peak, (6) 1 MHz RBW, 10 Hz VBW, Peak N.D. = Not Detected KTL Ottawa FCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R03329 EQUIPMENT: NT9010A-433 Receiver Page 8 of 15 Radiated Photographs Front View Rear View KTL Ottawa FCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R03329 EQUIPMENT: NT9010A-433 Receiver Page 9 of 15 Section 4.Powerline Conducted Emissions Para. No.: 15.107 Test Performed By: Russell Grant Date of Test: November 28, 2000 Minimum Standard: The RF energy feed back into the power lines shall not exceed 48 dBμV on any frequency between 0.45 MHz and 30 MHz inclusive. Test Results: Complies. See attached graphs. Measurement Data: See attached graphs. KTL Ottawa FCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R03329 EQUIPMENT: NT9010A-433 Receiver Page 10 …

Text truncated - open the document above for the full version.
