F5302WLS919NBRemote Control

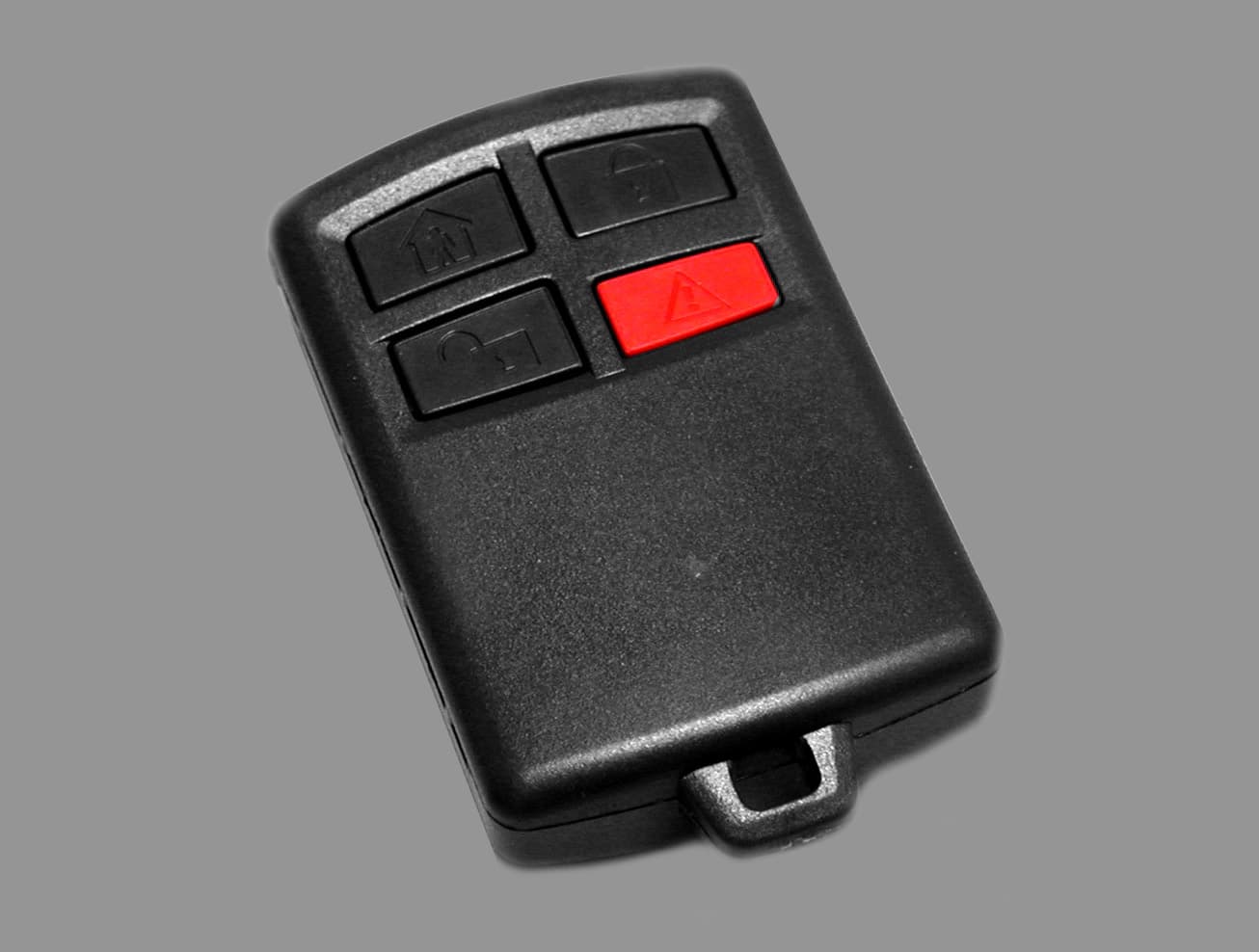

WLS919-433 Wireless Key Operating InstructionsThe WLS919-433 wireless key allows you to arm anddisarm your alarm system, as well as perform other key-pad functions, from a unit small enough to keep in yourpocket. Together with your installer, you can decidewhich functions you wish to have accessible from yourportable key. To activate any one of the four selected functions, pressand hold the appropriate button for two seconds. Thefunctions will be etched on each button. These can bechanged by the installer by placing labels on the buttonthat needs to be changed.False Alarm PreventionThe WLS919-433 has a slide cover, used to cover 2 or all of the buttons, to preventaccidental activation. The WLS919-433 is shipped with a red panic button ( ). The color difference will make this button easy to identify to ensure the correct key ispressed in a panic situation.NOTE : Signals will not be received if the key is not within the range of the wireless receiver. The default functions are as follows: Stay Arming Press this button to arm your system in the Stay mode. All perimeter zones will bearmed, such as all window and door contacts, but the interior zones will remain inac-tive, allowing you to stay on the premises without setting off an alarm. Away Arming Press this button to arm your system in the Away mode. Both the interior and exteriorzones will be armed, allowing you to exit the premises. Disarm Press this button to disarm your system. You do not have to enter your access codewhen you use the key to disarm the system. Panic Press this button to notify your central monitoring station of a situation requiring thepolice, such as a break-in.Other available functions (to be programmed by the installer): Fire* Press this button to notify your central monitoring station of a fire condition.*NOTE: NOT to be used with UL Listed installations. Auxiliary Press this button to notify your monitoring station of a non-medical emergency. Quick Exit Press this button to allow 2 minutes to exit the premises while the system is armed,without sounding the alarm. If the system is OFF normal, it will not be armed. System Test Press this button to activate a system test. The alarm will sound for 2 seconds and acommunication will be sent to the central monitoring station, if programmed to do so.NOTE : Please discuss all WLS919-433 options with your installer in order to pro- gram the best possible combination to suit your needs. Testing the WLS919-433 KeyWhen any key is pressed on the WLS919-433 to perform a function, its battery sta-tus is sent to the receiver. If the batteries are low, the Trouble light on your system’skeypads will turn ON. If this occurs, the key’s batteries must be replaced. NOTE : Do not use an Auxiliary or Panic key to test your WLS919-433 unit as pressing these buttons will always notify your monitoring station of a non-medical emergency. Note to Installer : For UL installations, the ‘Arm/Disarm Bell Squawk’ feature of the control panel must be enabled. The bell squawk must be heard from outside the pre-mises. Refer to the control panel’s Installation Manual for more information. WLS919-433 Clé Sans Fil Instructions pour l’utilisationLa clé sans fil WLS919-433 vous permet d’armer et dedésarmer votre système d’alarme ainsi que d’exécuterd’autres fonctions du clavier à partir d’une unité assezpetite pour se loger dans votre poche. Vous pouvezdécider avec votre installateur quelles sont les fonc-tions que vous désirez être en mesure d’exécuter àpartir de votre clé portative.Pour activer l’une ou l’autre des quatre fonctionssélectionnées, maintenez enfoncé le bouton appropriédurant deux secondes. Les fonctions sont gravées surchaque bouton. Ces identifications peuvent être modifiées par l’installateur quiplacera des étiquettes sur les boutons qui nécessitent un changement.Prévention contre les fausses alarmesLa clé WLS919-433 est munie d’un couvercle à glissière utilisé pour recouvrir 2 outous les boutons de la clé afin de prévenir une activation accidentelle. La cléWLS919-433 vient avec un bouton de panique rouge ( ). Cette couleur dif- férente rend ce bouton facile à identifier afin de s’assurer que le bon bouton soitenfoncé en situation de panique.NOTE : Les signaux ne seront pas reçus si le bouton n’est pas à l’intérieur du champ de réception du récepteur sans fil. Les fonctions par défaut sont énumérées ci-dessous: Armement à domicile Appuyez sur ce bouton pour armer votre système dans le mode À domicile. Toutesles zones du périmètre, telles que les contacts de portes et fenêtres, seront arméesmais les zones intérieures demeureront inactives vous permettant de vous déplacerlibrement à l’intérieur sans déclencher d’alarme. Armement absent Appuyez sur ce bouton pour armer votre système dans le mode Absent. À la fois leszones de protection intérieure et du périmètre seront armées, vous permettant dequitter les lieux. Désarmement Appuyez sur ce bouton pour désarmer votre système. Lorsque vous utilisez le bou-ton pour désarmer votre système, vous n’avez pas à entrer votre code d’accès. Panique Appuyez sur ce bouton pour signaler à votre station centrale une situation requérantl’intervention de la police, comme par exemple lors d’une entrée par effraction.Autres fonctions disponibles (doivent être programmées par l’installateur): Incendie Appuyez sur ce bouton pour signaler une condition d’incendie à votre station centrale.NOTE : N’utilisez pas ce bouton dans les installations UL. Auxiliaire Appuyez sur ce bouton pour signaler une condition d’urgence non médicale à votrestation centrale. Sortie Rapide Appuyez sur ce bouton pour vous allouer une période de 2 minutes pour quitter leslieux sans déclencher l’alarme lorsque le système est armé. Test du système Appuyez sur ce bouton pour activer un test du système. L’alarme se fera entendredurant 2 secondes et, si votre système est programmé pour le faire, un signal seratransmis à votre station centrale. NOTE : Discutez avec votre installateur de toutes…

Text truncated - open the document above for the full version.

T H E A R T O F S E C U R I T Y June 14, 2002 Office of Engineering & Technology Federal Communications Commission Washington, D.C. 20554 Subject: Request for continuous confidentiality of technical information per Sections 0.459 and 0.457 (d) (2) ( I) of CFR 47. FCC ID: F5302WLS919LNB Dear Sir or Madam: Digital Security Controls Canada Ltd. is hereby filing this request for continuous confidentiality of the specified items submitted with the application for certification (Form731) with proposed identifier F5302WLS919LNB. The technical documentation for which continuous confidentiality is sought is: (1) Schematic diagrams: (2) Block Diagram This technical documentation is a part of the material supporting the Form 731 application for certification, which this request for confidentiality accompanies. The schematic diagrams disclose proprietary information and technical data which Digital Security Controls Ltd. would guard from its competitors and would not make available to the public. This proprietary information constitutes a trade secret and is not a part of the product documentation that would be made available to the customers of Digital Security Controls Ltd. It would be potentially injurious to Digital Security Controls Ltd. and to its investment in the development of this innovative proprietary product to make available for public disclosure the trade secret technical information specified in this request. If there are any questions about this request for continuous confidentiality regarding trade secrets and proprietary information embodied in the technical documentation filed in support of this Form 731 application, then please contact me via our toll-free telephone number. Yours truly, Kevin Harris Approval Services Manager 905-760-3000 Ext. 2378 Email: [email protected]

WLS919-433NA(1) Wireless Key Rear Housing with FCC/IC Info File: [wls919-433na(1)_rear_house_fcc+ic_08001652_r001_.cdr] June 14, 2002 REAR HOUSING OF THE UNIT SHOWING PLACEMENT OF LABEL (ACTUAL SIZE) LABEL INFORMATION TO BE ETCHED INTO PLASTIC MOLD LABEL SHOWN ACTUAL SIZE 29 mm 16 mm Digital Security Controls Ltd. ISO9001 Registered 3301 Langstaff Road, Concord Ontario, Canada L4K 4L2 Phone: 905-760-3000 Toll Free: 1-888-888-7838 Fax: 905-760-3030 ® MODEL: WLS919-433NA(1) FCC ID: F5302WLS919NB IC: 160A-WLS919NB Digital Security Controls Ltd. Made in Canada ABS01652 MODEL: WLS919-433NA(1) F5302WLS919NB IC: 160A-WLS919NB Digital Security Controls Ltd. Made in Canada ABS01652 FCC ID:

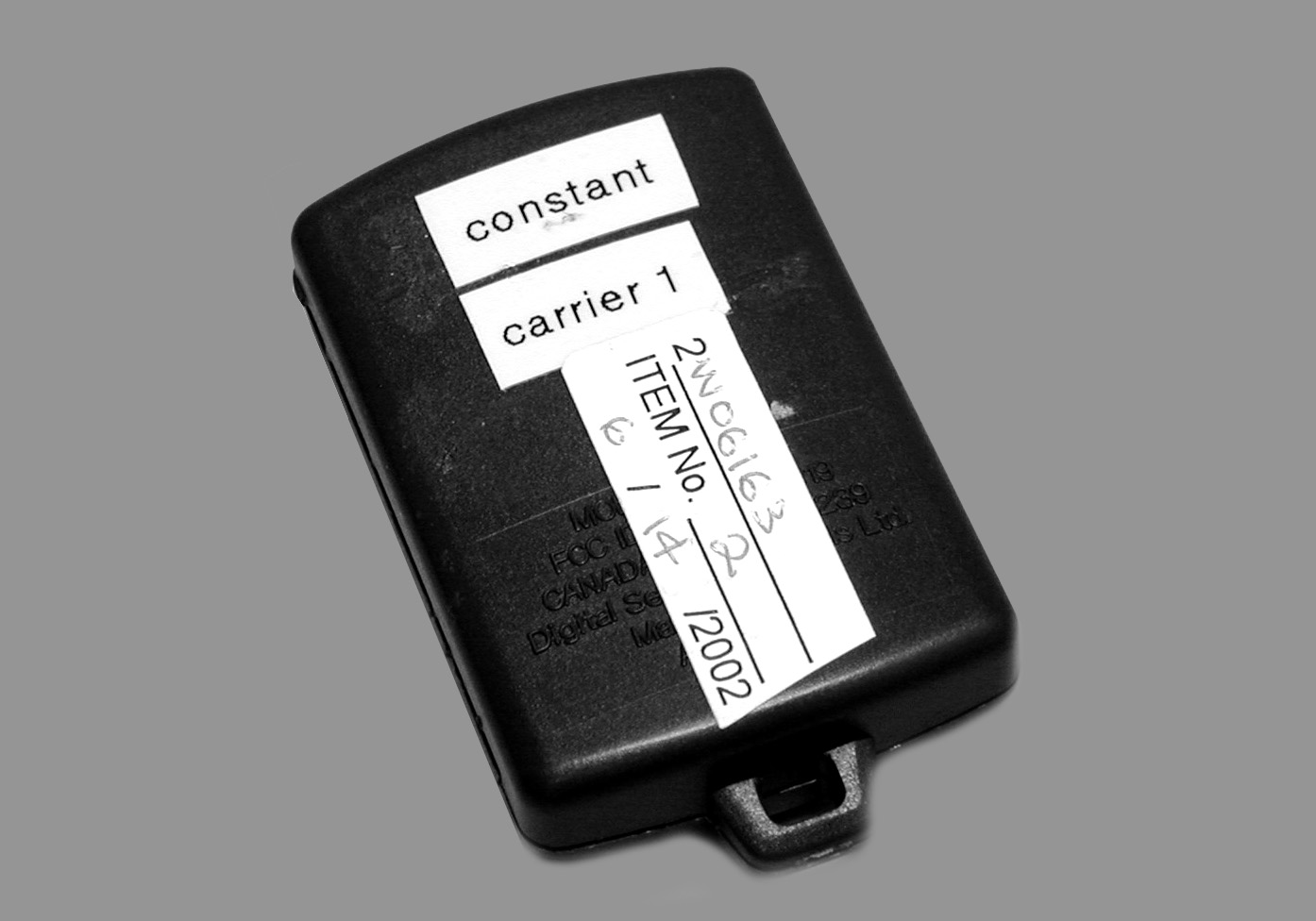

Master:PT15-Sub-C-15231 Date: November 12, 2001 Test Report:2W06163 Applicant:Digital Security Controls Ltd. 3301 Langstaff Road Vaughan, Ontario L4K 4L2 Equipment Under Test:WLS919-433NA (EUT)433MHz Transmitter FCC ID:F5302WLS919NB In Accordance With:FCC Part 15, Subpart C, 15.231 Tested By:Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: J. Harrington, RF Group Manager Date:25 June 2002 Total Number of Pages:18 Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.:2W06163 EQUIPMENT: WLS919-433NA Page 2 of 18 Table of Contents Section 1. Summary of Test Results......................................................................................3 Section 2. Equipment Under Test.........................................................................................5 Section 3. Transmission Requirements.................................................................................7 Section 4. Radiated Emissions.............................................................................................10 Section 5. Occupied Bandwidth..........................................................................................15 Section 6. Block Diagrams...................................................................................................17 Section 7. Test Equipment List...........................................................................................18 Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.:2W06163 EQUIPMENT: WLS919-433NA Page 3 of 18 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. TESTED BY: ______________________________DATE: 25 June 2002 Glen Westwell, Wireless Technologist Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. The results apply only to the samples tested. Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.:2W06163 EQUIPMENT: WLS919-433NA Page 4 of 18 Summary Of Test Data Name of TestPara. NumberResults Transmission Requirements15.231(a)Complies Radiated Emissions15.231(b)Complies Occupied Bandwidth15.231(c)Complies Frequency Tolerance15.231(d)N/A Periodic Alternate Field Strength Requirements15.231(e)N/A Powerline Conducted Emissions15.207N/A Note: This Device is powered by a 3Vdc cell only. All tests were performed with fresh batteries. Test Conditions: IndoorTemperature:20°C Humidity:42% OutdoorTemperature:25°C Humidity:46% Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.:2W06163 EQUIPMENT: WLS919-433NA Page 5 of 18 Section 2.Equipment Under Test General Equipment Information Manufacturer: Digital Security Controls Ltd. Model No.: WLS919-433NA Serial No.: Constant Carrier 1 Date Received In Laboratory: June 14 2002 Nemko Identification No.: #2 Transmit Frequency (Fixed):433MHz Emission Designator:450KL1D Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.:2W06163 EQUIPMENT: WLS919-433NA Page 6 of 18 Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.:2W06163 EQUIPMENT: WLS919-433NA Page 7 of 18 Section 3.Transmission Requirements Para. No.: 15.231(a) Test Performed By: Glen WestwellDate of Test: 25 June 2002 Minimum Standard:15.231(a) Continuous transmissions such as voice, video or data transmissions are not permitted. 15.231(a)(1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds after being released. 15.231(a)(2) A transmitter activated automatically shall cease transmission within 5 seconds of activation. 15.231(a)(3) Periodic transmissions at regular pre-determined intervals are not permitted. However polling or supervisory transmissions to determine system integrity of transmitters used in security or safety applications are allowed if the periodic rate of transmission does not exceed one transmission of not more than one second duration per hour for each transmitter. 15.231(a)(4) Intentional radiators which are employed for radio control purposes during emergencies involving fire, security, and safety of life, when activated to signal an alarm, may operate during the pendency of the alarm. Test Results:Complies. Test Data:See Attached Data. Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.:2W06163 EQUIPMENT: WLS919-433NA Page 8 of 18 Rationale for Compliance with Transmission Requirements 15.231(a)(1) : Transmission ceases within 1.5 seconds of activation. 15.231(a)(2) : N/A 15.231(a)(3) : This transmitter has no regular pre-determined periodic transmissions. 15.231(a)(4) : N/A Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.:2W06163 EQUIPMENT: WLS919-433NA Page 9 of 18 Nemko Canada Inc.FCC PART 15, SUBPART C, 15.231 PROJECT NO.:2W06163 EQUIPMENT: WLS919-433NA Page 10 of 18 Section 4.Radiated Emissions Para. No.: 15.231(b) Test Performed By: Glen WestwellDate of Test: 25 June 2002 Minimum…
