F5307WS4916Wireless Smoke Detector

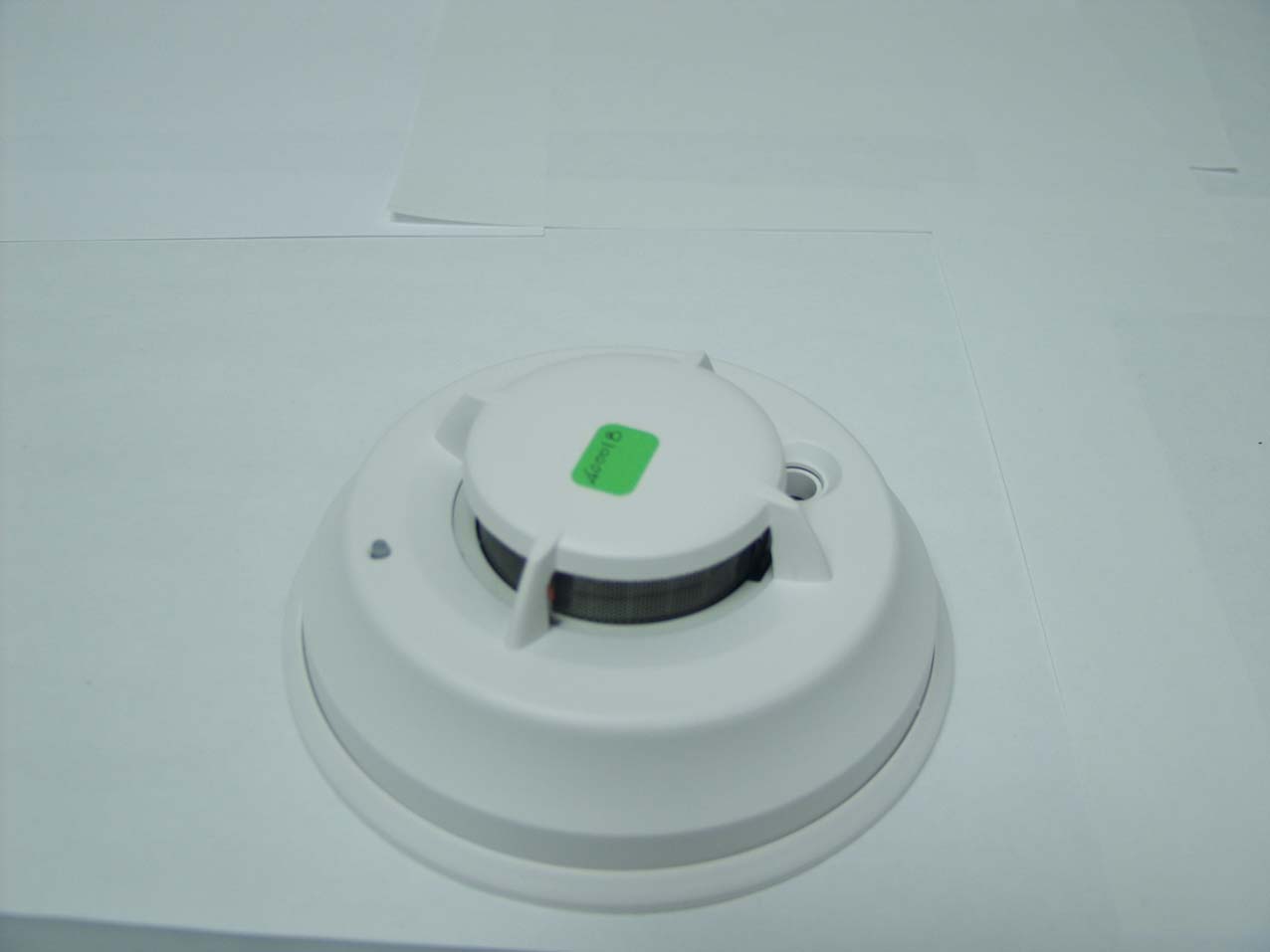

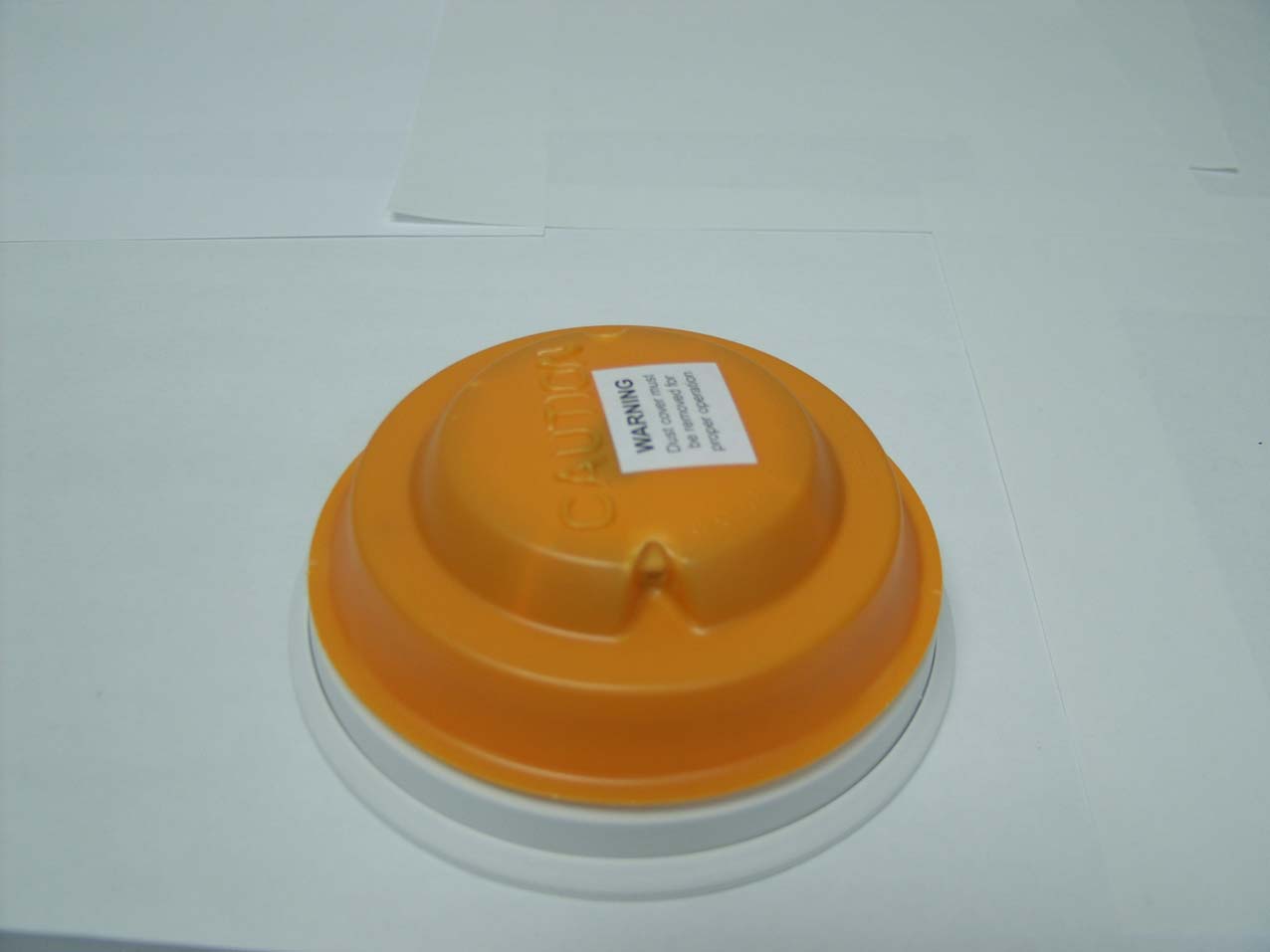

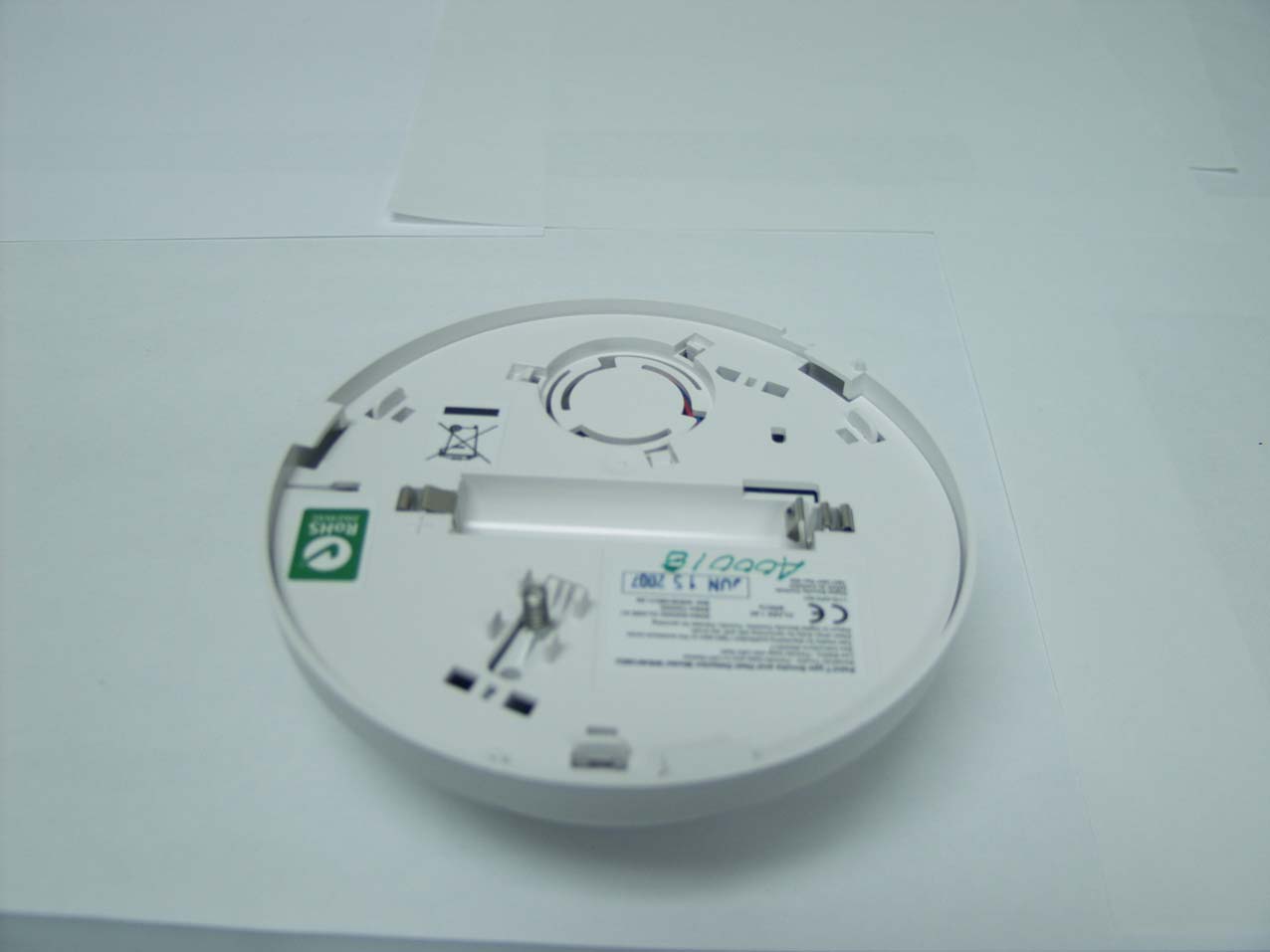

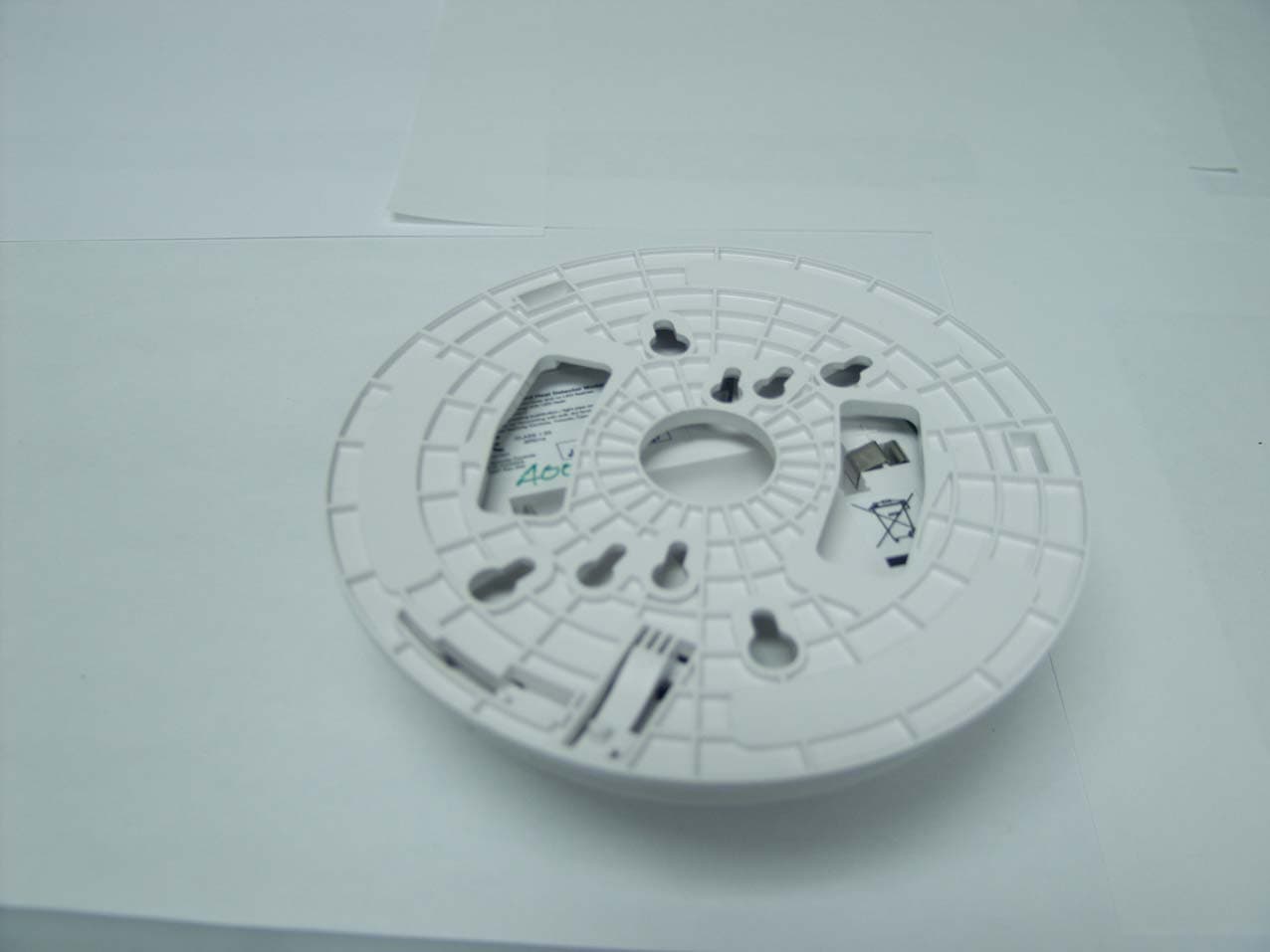

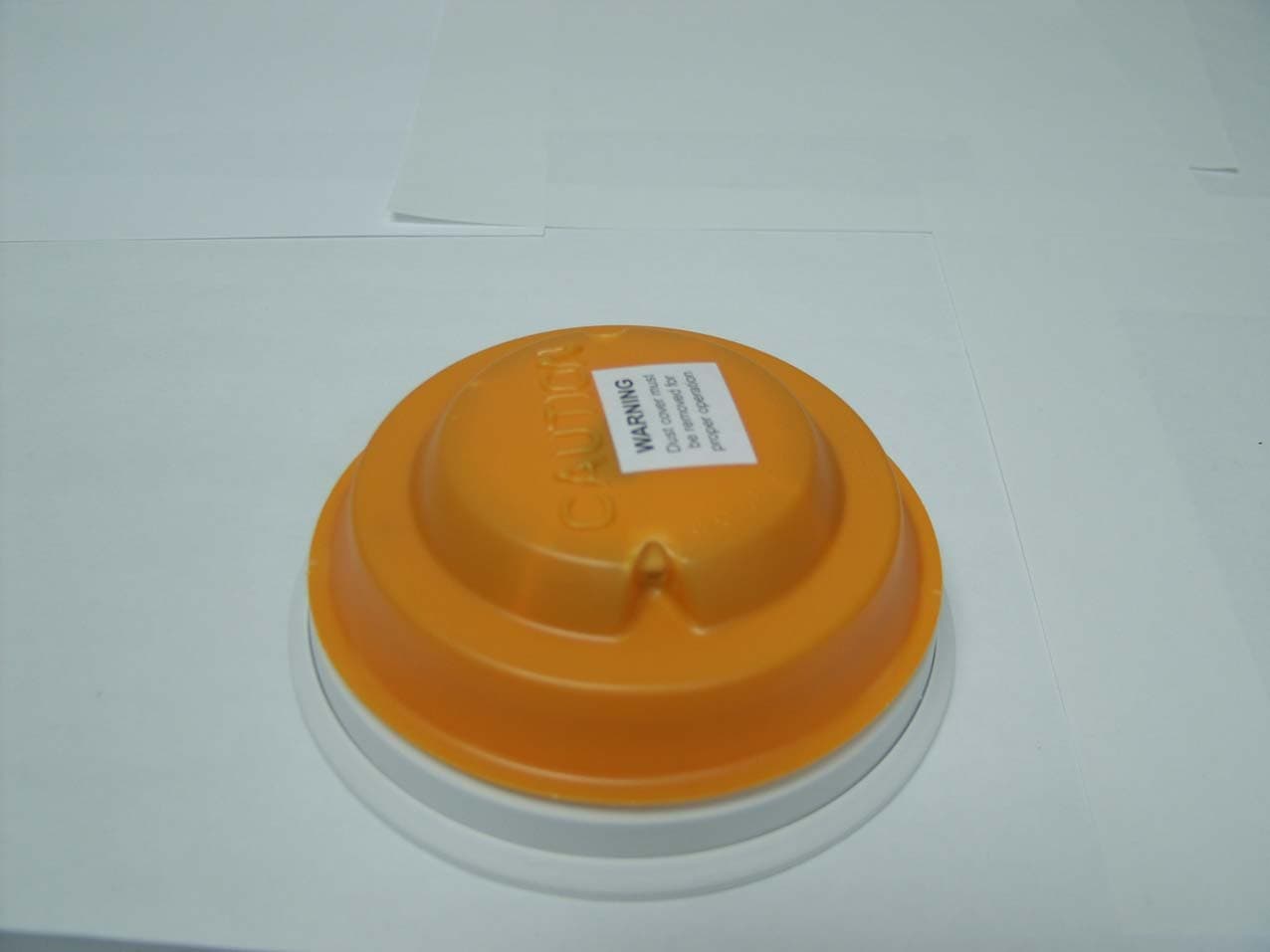

WS4916 Series Wireless Smoke Detector Installation and Operating Instructions Read this instruction sheet thoroughly before installation and use of the WS4916 Wireless Smoke Detector Introduction The WS4916 is a wireless photoelectric smoke detector with a fixed temperature heat detector and an internal piezoelectric alarm. Three version are available: US version (UL), Canadian ver- sion (ULC) and an International version (EU). Operation Approximately every 7 to 8 seconds the unit tests for a smoke or heat alarm condition. During this sequence the unit also performs self diagnostics, and checks for tampers and faults. During normal operation the LED will flash every 50 seconds and the sounder will not sound. Smoke Alarm The smoke detector will go into alarm when the signal level exceeds the 'alarm' threshold and automatically restore when the signal level falls below the alarm 'restore' threshold. During an alarm the LED will flash 1/second and the sounder will sound the evacuation temporal pattern (UL, EU) or continuous beeps (ULC). The smoke detector has a preset warning threshold at 75% of the alarm threshold. If the signal level stays above this threshold, but below the alarm threshold, for more than 120 seconds, the detec- tor will go into the 'warning' state. If the signal level falls below the early warning 'restore' threshold, the detector will restore to its normal state automatically. If the signal level rises above the alarm threshold, the detector will go into alarm. The LED will flash and the sounder will chirp every 50 seconds when in the warning state. NOTE: This feature is intended to provide a warning if the envi- ronment is persistently close to the alarm threshold and provide more time to investigate and either escape or correct the situa- tion. Smoke - Drift Compensation The detector automatically compensates for long-term environ- mentally induced changes to maintain a constant smoke sensitiv- ity. When the drift compensation has reached its high or low limit of adjustment, the detector will go into the trouble state. Heat Alarm The heat detector will go into alarm when the heat signal level exceeds the heat alarm threshold (135ºF/57ºC); and will automat- ically restore when the heat signal level falls below the heat alarm threshold (restore). During an alarm the LED will flash 1/second and the sounder will sound the evacuation temporal pattern (UL, EU) or continuous beeps (ULC). Ta m p e r The removal of the detector from the mounting plate initiates a 'tamper' transmission. The tamper condition is restored after the detector is mounted on the plate. Wireless Transmissions A supervisory message is transmitted at 64 minute intervals (12 minutes in EU model) to the control panel. If the signal is not received the control panel determines that the detector is missing. The detector transmits the following: •Alarm / Alarm Restore - (heat or smoke alarm). Transmitted at time of occurrence. •Tamper / Tamper Restore - (tamper switch activated) 10 second maximum delay on restore before transmission. •Low Battery - (battery voltage falls below threshold). The batteries are tested & transmitted at the time of a supervisory or other trans- missions. •Trouble - (detector fault or sensor compensation limit reached). Troubles are transmitted at the time of occurrence (one trouble per supervisory interval). Batteries The WS4916 is powered by two, 3VDC lithium batteries. Do NOT use batteries other than those listed. The low battery threshold is set so the batteries will provide not less than 14 days of operation and at that point the detector will send a 'low battery' signal. If the battery is still low 7 days after falling through the low battery threshold, the horn will 'chirp' once every 48 seconds until battery failure. During the first 7 days after low battery detection, (non-chirp period), if the detector is tested or goes into alarm, the horn will 'chirp' once the test or alarm is restored and remain 'chirping' until battery failure. Installation Instructions Installation The WS4916 Series wireless Smoke detector shall be installed and used within an environment that provides the pollution degree max 2 and overvoltages category II in NON HAZARDOUS LOCA- TIONS, indoor only. The equipment is designed to be installed by SERVICE PERSONS only; [SERVICE PERSON is defined as a person having the appropriate technical training and experience neces- sary to be aware of hazards to which that person may be exposed in performing a task and of measures to minimize the risks to that person or other persons.] 1. Smoke Detector Placement On smooth ceilings, detectors may be spaced 9.1m (30 feet) apart as a guide. Other spacing may be required depending on ceiling height, air movement, the presence of joists, uninsulated ceilings, etc. Consult National Fire Alarm Code NFPA 72 Chapter 11, CAN/ ULC-S553-02 or other appropriate national standards for installa- tion recommendations. •Do NOT locate smoke detectors at the top of peaked or gabled ceilings; the dead air space in these locations may prevent the unit from detecting smoke. Avoid areas with turbulent air flow, such as near doors, fans or windows. Rapid air movement around the detector may prevent smoke from entering the unit. •Do NOT locate detectors in areas of high humidity. •Do NOT locate detectors in areas where the temperature rises above 38ºC (100ºF) or falls below 5ºC (41ºF). Install Smoke detectors in accordance with NFPA 72, Chapter 11. “Smoke detectors shall be installed outside of each sleeping area in the immediate vicinity of the bedrooms and on each additional story of the family living unit, includ- ing basements and excluding crawl spaces and unfinished attics. In new construction, a smoke detector also shall be installed in each sleep- ing room.” LED/Test Button Piezo Sounder Alignment Marks 29034617R008 2. Mount Smoke Detector Backplate Secure backplate to the mounting surface using the screws pro- vided. CAUTION: The du…
