F53123G260RDUAL ALARM COMMUNICATOR

HE863 Family Hardware User Guide 1vv0300891 Rev.5 – 2011-03-18 HE863 Family Hardware User Guide 1vv0300891 Rev.5 - 2011-03-18 Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 2 of 89 APPLICABLE PRODUCT PRODUCT HE863-EUD HE863-EUR HE863-EUG HE863-NAD HE863-NAR HE863-NAG HE863-AUD HE863-AUG HE863 Family Hardware User Guide 1vv0300891 Rev.5 - 2011-03-18 Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 3 of 89 Disclaimer The information contained in this document is the proprietary information of Telit Communications S.p.A. and its affiliates (“TELIT”). The contents are confidential and any disclosure to persons other than the officers, employees, agents or subcontractors of the owner or licensee of this document, without the prior written consent of Telit, is strictly prohibited. Telit makes every effort to ensure the quality of the information it makes available. Notwithstanding the foregoing, Telit does not make any warranty as to the information contained herein, and does not accept any liability for any injury, loss or damage of any kind incurred by use of or reliance upon the information. Telit disclaims any and all responsibility for the application of the devices characterized in this document, and notes that the application of the device must comply with the SAFETY standards of the applicable country, and where applicable, with the relevant wiring rules. Telit reserves the right to make modifications, additions and deletions to this document due to typographical errors, inaccurate information, or improvements to programs and/or equipment at any time and without notice. Such changes will, nevertheless be incorporated into new editions of this document. Copyright: Transmittal, reproduction, dissemination and/or editing of this document as well as utilization of its contents and communication thereof to others without express authorization are prohibited. Offenders will be held liable for payment of damages. All rights are reserved. Copyright © Telit Communications S.p.A. 2010. HE863 Family Hardware User Guide 1vv0300891 Rev.5 - 2011-03-18 Reproduction forbidden without Telit Communications S.p.A’s. written authorization - All Rights Reserved. Page 4 of 89 Contents 1. INTRODUCTION ................................................................................................................................................. 6 1.1. S COPE ................................................................................................................................................................. 6 1.2. A UDIENCE ............................................................................................................................................................ 6 1.3. C ONTACT INFORMATION, SUPPORT ................................................................................................................... 6 1.4. D OCUMENT ORGANIZATION ................................................................................................................................ 7 1.5. T EXT CONVENTIONS ........................................................................................................................................... 8 1.6. R ELATED DOCUMENTS ....................................................................................................................................... 8 1.7. D OCUMENT HISTORY .......................................................................................................................................... 9 2. OVERVIEW ....................................................................................................................................................... 11 2.1. HE863 FAMILY PRODUCT SPECIFICATION ................................................................................................................... 12 3. HE863 FAMILY MECHANICAL DIMENSIONS ....................................................................................................... 14 4. HE863 FAMILY MODULE CONNECTIONS ........................................................................................................... 15 4.1. HE863-EUD/NAD/AUD PIN-OUT ................................................................................................................ 15 4.2. HE863-EUR/NAR PIN-OUT .......................................................................................................................... 20 4.3. HE863-EUG/NAG/AUG PIN-OUT ................................................................................................................ 25 4.4. BALLS LAYOUT ............................................................................................................................................. 30 5. HARDWARE COMMANDS ................................................................................................................................. 31 5.1. T URNING ON THE HE863 ................................................................................................................................ 31 5.2. I NITIALIZATION AND ACTIVATION STATE ............................................................................................................ 31 5.3. T URNING OFF THE HE863 .............................................................................................................................. 34 5.3.1. Hardware Unconditional Restart ......................................................................................................... 36 5.4. S UMMARY OF TURNING ON AND OFF THE HE863 ......................................................................................... 37 6. POWER SUPPLY................................................................................................................................................ 38 6.1. P OWER SUPPLY REQUIREMENTS ....................…

Text truncated - open the document above for the full version.

Installation Manual v3.0 Warning: This manual contains information on limitations regarding product use and function and information on the limitations as to liability of the manufacturer. 3G2060(R) HSPA/3G WIRELESS ALARM COMMUNICATOR 3G Communicator – North America TL260(R) ETHERNET/INTERNET ALARM COMMUNICATOR Ethernet Communicator TL2603G(R) ETHERNET/INTERNET AND HSPA/3G DUAL-PATH ALARM COMMUNICATOR 3G / Ethernet Communicator - North America 3G Alarm Communicator Installlation Manual 2 Warning: Installer Please Read Carefully . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Initial Panel Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Communicator Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 This manual covers Communicator models with and without ‘R’ throughout entire manual unless specifically states otherwise. . .4 UL/ULC Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Ratings Compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Ratings Compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Software Compatability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Communicator Installation Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Encryption. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Communicator Configuration with SCW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Installing CAT 5 Cable (TL260R/TL2603GR only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Communicator Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Establishing a Communication Channel with the SCW Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Label Programming for SMS Message. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Programming Options Sections ETHERNET/Cellular Programming Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 System Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Programming Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Communications Reporting Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Ethernet Receiver 1 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Ethernet Receiver 2 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Ethernet Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Cellular Receiver 1 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Cellular Receiver 2 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Cellular Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 System Information (Read Only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 System Reset Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Communicator Status, Initialization, Diagnostics and Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Programming Worksheets Sections Ethernet/Cellular Programming Worksheets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 System Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 Programming Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 Ethernet Re…

Text truncated - open the document above for the full version.

Digital Security Controls 3301 Langstaff Road Concord, Ontario Canada L4K 4L2 Tele: 905 760 3000 Toll Free: 888 888 7838 www.dsc.com April 30, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 Re: FCC ID: F53123G260R Modular Approval Dear examiner, We the undersigned intent to submit for authorization TL2603GR under FCC ID: F53123G260R as a modular approval. This device meets the requirements as a modular device stated in public notice KDB 996399 D01 and summarized below: 1. This modular transmitter has its own RF shielding and will not rely upon the shielding provided by the host into which it is installed in order for all modular transmitter emissions to comply with Part 22/24 limits, nor will it cause any coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. The TL2603GR has its own PCB (UA601) where the Telit radio module HE863-NAR is installed. The radio module HE863-NAR has its own shield. Test report for FCC Part 22/24 shows compliance with radiated emissions levels for this subassembly 2. This modular transmitter has buffered input data according the definition of KDB 996399 D01 and complies with Part 22/24 requirements under conditions of excessive data rates or over-modulation. The radio module from Telit HE863-NAR has buffered inputs. The PCB UA601 on which the radio module is integrated within the TL2603GR subassembly is connected to the host alarm panel with 6-wire cable for low speed data communication and power supply. 3. The modular transmitter has its own power supply regulation to ensure compliance with Part 22/24 requirements regardless of the design of the power supplying circuitry in the host device into which the module is installed. The TL2603GR has its own regulator for input voltage received from host alarm control panel. Also the Telit radio module has its own regulator. 4. This modular transmitter complies with the antenna requirements of FCC rule Tile 47 Section 15.203 and 15.204(c). The antenna is permanently attached. Please refer to the pictures of the module that indicate antenna is attached inside the host alarm control panel. 5. This modular transmitter is tested in a "stand-alone" configuration and not inside any hosting device to ensure compliance with Part 22/24 emission limits regardless of the host device into which it is eventually installed. All accessories, peripherals, or support equipment connected to the module during testing are unmodified or commercially available. The TL2603GR has been tested inside the alarm control panel with which is going to be used in the field. This communicator can only be used in conjunction with this DSC model of alarm panels: PC1864, PC1832, PC1616 and it cannot be used with any other hosts. The Telit radio module HE863-NAR has been tested separately and complies with all modular type approvals requirements. The TL2603GR meets all requirements of the FCC Part 22/24 for digital and conducted emissions as indicated in the report from Cetecom 6. This modular transmitter will be labeled with its own FCC ID number. In the event that the module is installed inside a host device and the FCC ID of the module is not visible the host device will display a label referring to the FCC ID of the enclosed module. We the grantee will either provide such a label to the integrator or instructions explaining this requirement. A copy of these instructions will be included in this application for equipment authorization. Yes, the TL2603GR has its own label and the label of the host equipment is referencing the FCC ID for this communication subassembly. This label is visible from outside of the host equipment. 7. This modular transmitter complies with any specific rule or operating requirements applicable to the transmitter. Adequate instructions, along with the module, will be provided to the integrator to explain any such requirements. A copy of these instructions will be included in this application for equipment authorization. Cetecom tested the TL2603GR for compliance with FCC Part 22, 24. The Radio module from Telit is already compliant and has FCC Grant issued. 8. This modular transmitter complies with any applicable RF exposure requirements. Cetecom test report provided calculations to show compliance with RF exposure limits. Manual also indicates that the device shall not be operated closer than 20cm from the antenna. Please contact me if there are any further questions. Yours truly, Dan Nita Approvals Manager Ext. 2706

Digital Security Controls 3301 Langstaff Road Concord, Ontario Canada L4K 4L2 Tele: 905 760 3000 Toll Free: 888 888 7838 www.dsc.com Date: April 1, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Ref: FCC ID: F53123G260R Applicant: Digital Security Controls, a division of Tyco Security Products Canada Ltd. Dear Examiner, We the undersigned, hereby authorize Heiko Strehlow, Director of Compliance (Cetecom, Inc., 411 Dixon Landing Road, Milpitas, CA 95035, Tel.408 586 6214) to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CETECOM Inc., on our behalf shall have the same effect as acts of our own. The authorization from Digital Security Controls, is valid for 365 days from the date of this letter. Sincerely, Dan Nita Approvals Manager Digital Security Controls 3301 Langstaff Road, Concord, ON L4K4L2 Canada

Digital Security Controls 3301 Langstaff Road Concord, Ontario Canada L4K 4L2 Tele: 905 760 3000 Toll Free: 888 888 7838 www.dsc.com Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 April 1, 2012 Dear FCC Examiner, Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Digital Security Controls requests confidentiality for the following products: FCC ID Number Product Title/Model F53123G260R TL2603GR, 3G2060R TL2603G, 3G2060 For the product stated above, we request that the following information be held confidential: 1) Block Diagram 2) Schematics 3) Parts List 4) Tune-up procedure 5) Operational Description The above exhibits contain Digital Security Controls trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our device. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Dan Nita Approvals Manager

Digital Security Controls 3301 Langstaff Road Concord, Ontario Canada L4K 4L2 Tele: 905 760 3000 Toll Free: 888 888 7838 www.dsc.com April 20, 2012 To Whom It May Concern: Subject: Validity of Test Results from Testing / Certification of the integrated Module WE, DIGITAL SECURITY CONTROLS, A DIV. OF TYCO SAFETY PRODUCTS CANADA LTD., 3301 LANGSTAFF RD., CONCORD, ON L4K4L2 CANADA This is to confirm that that the results from conducted tests applied to the radio module Telit, model HE863-NAR, FCC ID:RI7HE863NA, IC:5131A-HE863NA which is incorporated in our host equipment DSC, models TL2603GR, 3G2060R, TL2603G, 3G2060, FCC ID: F53123G260R, IC: 160A-3G260R and as reported in module test report(s) 10B334R-HPUSP07V01-A V 2.0, issue date 2011/01/28 accurately represent the test results under the new conditions when the identified radio module is integrated in the identified host equipment. By integration of the said radio module into the identified host equipment no changes were made to it or by external adaptation circuitry that impacts the validity of the results of the original module’s test reports. Dan Nita Approvals Manager +1 905-760-3000 Ext. 2706

April 1, 2012 Federal Communication Commission Equipment Authorization Divisions, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 Certification and Engineering Bureau Industry Canada Spectrum Engineering Branch 3701 Carling Avenue, Building 94 Ottawa, Ontario K2H 8S2 Declaration on Electrically Identical Models TO WHOM IT MAY CONCERN We, Digital Security Controls, declare on our sole responsibility that the new models TL2603GR, 3G2060R, TL2603G and 3G2060 with FCC ID: F53123G260R and IC: 160A-3G260R are all identical in hardware (UA601 Rev. 03) and software Ver 3.0 The only differences between the four different marketing model names are: - Model TL2603GR is equipped with an IP and a 3G alarm communication channel and can connect to a third party application through an RS-422 interface, - Model 3G2060R is similar to TL2603GR model but it is equipped only with 3G communication channel (IP circuitry is depopulated), - Model TL2603G is equipped with an IP and a 3G alarm communication channel identical to the TL2603GR model but it does not have the RS-422 interface populated. - Model 3G2060 is similar to TL2603GR model but it is equipped only with a 3G communication channel and it does not have the RS-422 interface populated. We attest that above difference are not relevant for any RF behaviour subject to regulatory items. Additional Spurious Emissions measurements on representative configurations have been performed to justify. Therefore the provided test reports remain applicable for all four models. If you have any questions, please feel free to contact us at the address shown below Sincerely, Dan Nita, Approvals Manager, Ext. 2706

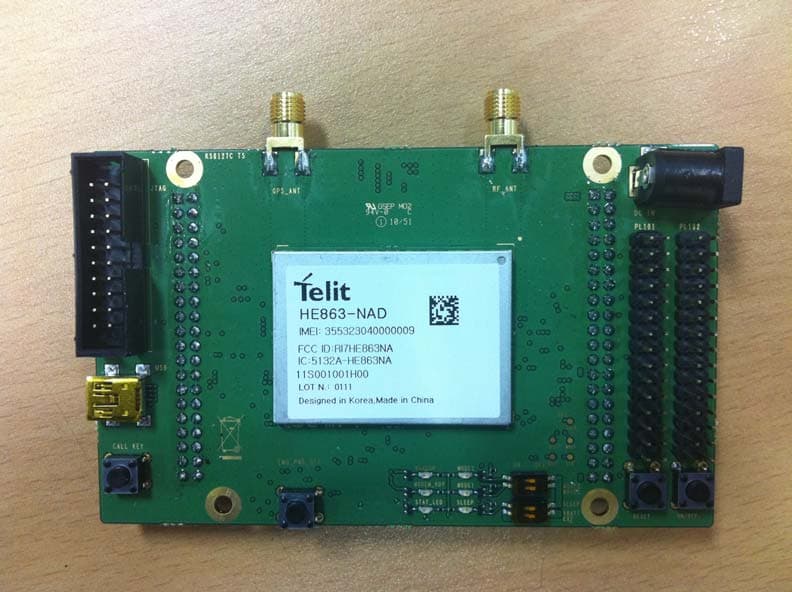

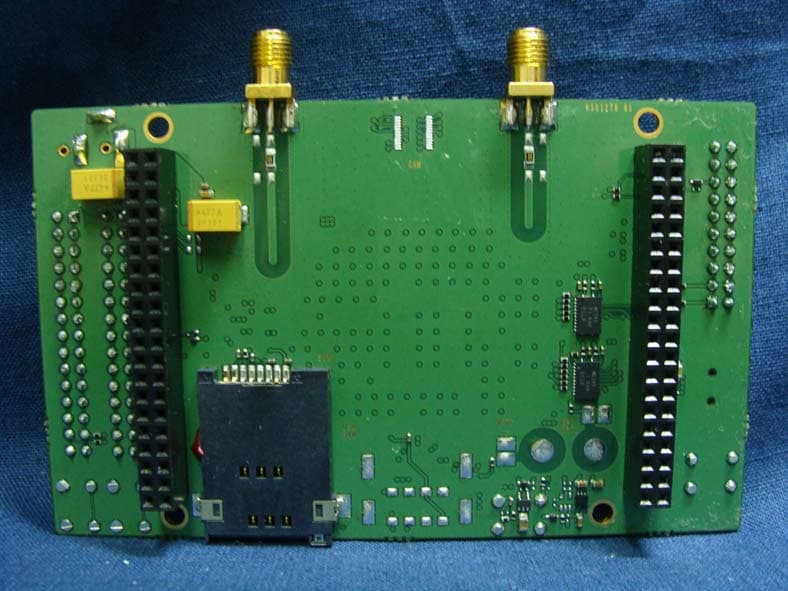

Report No.: 10B334R-HPUSP07V01-A Page : 1 of 2 Attachment 2 : EUT Detailed Photographs (1) EUT (Module) + Test Board Front Photo (2) Test Board Back Photo Report No.: 10B334R-HPUSP07V01-A Page : 2 of 2 (3) Connecter Photo

Project #: EMC_TYCO_043_12001_ExternalPhotos FCC ID: F53123G260R Date: 2012‐04‐16 IC ID: 160A-3G260R EUT Top with Cover EUT Top without Cover Project #: EMC_TYCO_043_12001_ExternalPhotos FCC ID: F53123G260R Date: 2012‐04‐16 IC ID: 160A-3G260R EUT Side EUT AUX #1 Top Project #: EMC_TYCO_043_12001_ExternalPhotos FCC ID: F53123G260R Date: 2012‐04‐16 IC ID: 160A-3G260R EUT AUX #1 Bottom EUT AUX #2 Top Project #: EMC_TYCO_043_12001_ExternalPhotos FCC ID: F53123G260R Date: 2012‐04‐16 IC ID: 160A-3G260R EUT AUX #2 Bottom

18008715R001 3G2060R Listing Label (FCC/IC/UL/ULC) April 2, 2012 Colour: Pantone Process Black Material: WHITE UL approved self-adhesive Mylar type material - on a roll e.g. 2M POLY WH TC/LP50/50# (2F8), or equivalent Lamination: Top Gloss finish lamination e.g. 1M CL POLY NTC/P1212/50# (1F1), or equivalent Adhesive: Permanent adhesive backed with protective liner Cutting: Tolerance +/- 0.010” Dashed line indicates cutting - will not print Square label corners are acceptable. NOTES: 1. All items must be RoHS compliant. 2. Markings on label must be PERMANENT. 3. Indelible Ink. 4. Conductive inks may not be used. 5. Non-conductive label adhesive shall be used ONLY. NOTES: 1. All UL and ULC Labels shall be printed on UL approved material. The first time the label is ordered, the artwork must be sent to UL Label Center [email: [email protected], fax: (847)509-6201] for approval. 2. All UL and ULC Labels shall be printed by a UL Listed printing facility. The issue number (when applicable) shall be requested from the same center as above by the printing facility at the time of printing. Digital Security Controls 3301 Langstaff Road Concord, Ontario Canada L4K 4L2 Tele: 905 760 3000 Toll Free: 888 888 7838 Fax: 905-760-3020 Top of the PCB showing the label location (80% of actual size) Label shown 150% of actual size 18 mm (0.7 ”) 48 mm (1.9”) 18008715R001 Model: 3G2060R Res Fire and Com/Res Burg 3G Alarm Communicator DIGITAL SECURITY CONTROLS, TORONTO, CANADA MADE IN CANADA FABRIQUE AU CANADA FIRE ALARM AND SECURITY SUBASSEMBLY 89SL STANDARD/ENCRYPTED LINE SECURITY Type of signalling: PSDN This device complies with Part 15 Class B of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: F53123G260R For use in dry indoor locations only. For installation refer to Installation Manual 29008306. IC:160A-3G260R This Class B digital apparatus meets all requirements of the ICES-003. Cet appareil numérique de la classe B respecte toutes les exigences du ICES-003. 18008715R001 Model: 3G2060R Res Fire and Com/Res Burg 3G Alarm Communicator DIGITAL SECURITY CONTROLS, TORONTO, CANADA MADE IN CANADA FABRIQUE AU CANADA FIRE ALARM AND SECURITY SUBASSEMBLY 89SL STANDARD/ENCRYPTED LINE SECURITY Type of signalling: PSDN This device complies with Part 15 Class B of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: F53123G260R For use in dry indoor locations only. For installation refer to Installation Manual 29008306. IC:160A-3G260R This Class B digital apparatus meets all requirements of the ICES-003. Cet appareil numérique de la classe B respecte toutes les exigences du ICES-003. Label 18008715 18008736R001 3G2060 Listing Label (FCC/IC/UL/ULC) April 2, 2012 Colour: Pantone Process Black Material: WHITE UL approved self-adhesive Mylar type material - on a roll e.g. 2M POLY WH TC/LP50/50# (2F8), or equivalent Lamination: Top Gloss finish lamination e.g. 1M CL POLY NTC/P1212/50# (1F1), or equivalent Adhesive: Permanent adhesive backed with protective liner Cutting: Tolerance +/- 0.010” Dashed line indicates cutting - will not print Square label corners are acceptable. NOTES: 1. All items must be RoHS compliant. 2. Markings on label must be PERMANENT. 3. Indelible Ink. 4. Conductive inks may not be used. 5. Non-conductive label adhesive shall be used ONLY. NOTES: 1. All UL and ULC Labels shall be printed on UL approved material. The first time the label is ordered, the artwork must be sent to UL Label Center [email: [email protected], fax: (847)509-6201] for approval. 2. All UL and ULC Labels shall be printed by a UL Listed printing facility. The issue number (when applicable) shall be requested from the same center as above by the printing facility at the time of printing. Digital Security Controls 3301 Langstaff Road Concord, Ontario Canada L4K 4L2 Tele: 905 760 3000 Toll Free: 888 888 7838 Fax: 905-760-3020 Top of the PCB showing the label location (80% of actual size) Label shown 150% of actual size 18 mm (0.7 ”) 48 mm (1.9”) 18008736R001 Model: 3G2060 Res Fire and Com/Res Burg 3G Alarm Communicator DIGITAL SECURITY CONTROLS, TORONTO, CANADA MADE IN CANADA FABRIQUE AU CANADA FIRE ALARM AND SECURITY SUBASSEMBLY 89SL STANDARD/ENCRYPTED LINE SECURITY Type of signalling: PSDN This device complies with Part 15 Class B of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: F53123G260R For use in dry indoor locations only. For installation refer to Installation Manual 29008306. IC:160A-3G260R This Class B digital apparatus meets all requirements of the ICES-003. Cet appareil numérique de la classe B respecte toutes les exigences du ICES-003. 18008736R001 Model: 3G2060 Res Fire and Com/Res Burg 3G Alarm Communicator DIGITAL SECURITY CONTROLS, TORONTO, CANADA MADE IN CANADA FABRIQUE AU CANADA FIRE ALARM AND SECURITY SUBASSEMBLY 89SL STANDARD/ENCRYPTED LINE SECURITY Type of signalling: PSDN This device complies with Part 15 Class B of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: F53123G260R For use in dry indoor locations only. For installation refer to Installation Manual 29008306. IC:160A-3G260R This Class B digital apparatus meets all requirements of the ICES-003. Cet appareil numérique de la classe B respecte toutes les exigences du …

Text truncated - open the document above for the full version.

Report No.: 10B334R-HPUSP07V01-A Page : 1 of 3 Attachment 2 : EUT Detailed Photographs (1) EUT Front Photo (2) EUT Internal Photo Report No.: 10B334R-HPUSP07V01-A Page : 2 of 3 (3) EUT Back Photo (4) Cable Photo Report No.: 10B334R-HPUSP07V01-A Page : 3 of 3 (5) Antenna Photo

RF Exposure Evaluation Report FOR: Model Name: TL2603GR, 3G2060R, TL2603G, 3G2060 Alarm communicator for DSC Power Series Panels FCC ID: F53123G260R IC ID: 160A-3G260R References: 1. FCC OET Bulletin 65 Supplement C 2. FCC CFR Part 2 3. RSS-102- Radio Frequency Exposure Compliance of Radiocommunication Apparatus Issue 4 March 2010 Test Report #: EMC_ TYCO_043_12001_MPE FCC ID: F53123G260R Date of Report : 2012-04-20 IC ID: 160A-3G260R Feb 2012. Rev 1.0 Page 2 of 10 1 Administrative Data 1.1 Identification of the Testing Laboratory Issuing the Test Report Company Name: CETECOM Inc. Department: Compliance Address: 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. Telephone: +1 (408) 586 6200 Fax: +1 (408) 586 6299 Test Lab Director: Heiko Strehlow Responsible Project Leader: Tunji Yusuf 1.2 Identification of the Client Applicant’s Name: Tyco Safety Products Street Address: 3301 Langstaff Road City/Zip Code Concord ON L4K 4L2 Country Canada Contact Person: Dan Nita Phone No. 905-760-3000 Fax: 905-760-3020 e-mail: [email protected] 1.3 Identification of the Manufacturer Manufacturer’s Name: Same as above Manufacturers Address: City/Zip Code Country Test Report #: EMC_ TYCO_043_12001_MPE FCC ID: F53123G260R Date of Report : 2012-04-20 IC ID: 160A-3G260R Feb 2012. Rev 1.0 Page 3 of 10 2 Equipment under Test (EU…
