G2X-64004AGEM Radio Trigger

Telecom 4000 User Guide All the reassurance you need Part Number D3607104A Tunstall Canada Inc, 7540 Bath Road, Mississauga, Ontario, L4T 1L2, Canada. Tel. 905-677-1144 • Fax. 905-677-1121 • http://www.tunstallcanada.com/ Tel. 1-800-892-2205 Contents Setting up1 Place Telecom 40001 Connect Telecom 40002 Test Telecom 40003 Using Telecom 40004 Requesting help4 Answering a call5 Making a call6 Adjusting the volume7 The Away feature8 The Intruder Alarm9 Using Away and Intruder together11 Using medication reminders12 Using radio pendants13 How close do I have to be to use my radio pendant?14 Amie15 Fall Detector16 Telecom 4000 in detail19 Understanding alarm calls22 Reliability23 Configuring Telecom25 Fast Dial Keys25 Voice Announcements27 Problems and Answers29 Copyright © 2002 Tunstall Group Ltd. All rights reserved. Neither the paper-based guide, nor the electronic version of the same, nor any portion of the text and/or images, may be copied, distributed, broadcast, or transmitted in any form or using any means howsoever, without the express written permis- sion of Tunstall Group Ltd., with the one exception described below. Under no circumstances may the paper-based or electronic guide be edited, amended or adapted, or used for any purpose other than as an aid to using Telecom 4000. Reproducing manuals for visually-impaired users This manual can be copied and enlarged to help visually-impaired users. Such copies may only be given to owners and users of Telecom 4000, and this is the only purpose for which anyone outside Tunstall may reproduce this manual. You may enlarge this manual using a photocopier. Alternatively, you can obtain these manuals as Adobe Acrobat documents (also called PDF files) and print in an enlarged format using the free Adobe Acrobat Reader. You can download these PDF files from the Tunstall web site: http://www.tunstallgroup.com/docs/ You can obtain copies of Adobe Acrobat Reader from Adobe's web site: http://www.adobe.com/ To enlarge a manual while printing with Adobe Acrobat select the 'Fit to Page' option when printing. Trade Marks TM TUNSTALL, AMIE, PNC3 VISION, PNC4 VISION, and TELECOM 4000 are trademarks of the Tunstall Group Limited. © 2002 Tunstall Group Ltd.Telecom 4000 User Guide1 Setting up Three simple steps 1.Place Telecom™ in a suitable position 2.Connect Telecom to your telephone line and a power receptacle 3.Test Telecom by pressing the radio pendant to raise an alarm Although Telecom is a rather clever piece of equipment, it is quite robust, and you can treat it just like any other telephone. However, this means that you should not: •Place your Telecom next to something that makes a lot of noise, such as next to a television, radio or washing machine. •Put it right next to your stove, or close to any other heat source. •Set Telecom in a place where it will get damp, such as a bathroom, or near house plants that are sprayed at any time. • Place it very close to any large metal objects, such as microwave ovens, as large pieces of metal stop the signals from the radio pendant reaching Telecom. •Put Telecom on top of something soft, such as a thick towel, as this can stop sound reaching the microphone. Place Telecom 4000 Place Telecom on a flat surface, or have it mounted on a wall. Put it somewhere you can easily reach. It should also be close to a telephone jack and a power receptacle. Attaching to a wall. If you decide to attach your Telecom to a wall then you will find slots to grip the screws on the back of Telecom. There is a separate paper template included in the packaging that will show you where to drill the holes for the screws. Note: As most users do not mount Telecom 4000 on the wall the screws needed for mounting are not provided. 2Telecom 4000 User Guide© 2002 Tunstall Group Ltd. 2. You can then connect your ordinary telephone to Telecom. If you do not connect your other telephones through Telecom, but use a telephone adaptor instead, then Telecom may have difficulty making alarm calls if another telephone is being used for a call. 3. Next, connect the lead from the AC adapter to the back of your Telecom, and then plug the AC adapter into a power receptacle. Connect Telecom 4000 1. First, connect your Telecom to a telephone jack in your home using the cable that came in the box with Telecom. Do not connect Telecom to the telephone jack via a telephone adaptor. © 2002 Tunstall Group Ltd.Telecom 4000 User Guide3 4. When you connect your Telecom to the power the largest button on the top of your Telecom should light up. Test Telecom 4000 Once you have connected your Telecom you can test it. Press the button on the Fall Detector or Amie pendant that came with your Telecom, and wait a few seconds. Telecom will call your response center. When your call is answered tell the operator that you are testing your new Telecom—the operator will be pleased to hear from you. Problems? In the unlikely event that something does not work as you expect then consult the Problems and Answers section towards the back of this guide. 4Telecom 4000 User Guide© 2002 Tunstall Group Ltd. Using Telecom 4000 Requesting help If you need help simply press the button on your Fall Detector or radio pendant. This sends a signal to Telecom which tells it to call your response center. Alternatively, if you can easily reach your Telecom you can press the large alarm button. Your home can also be fitted with extra buttons and pull cords that raise an alarm. The person who installs these in your home will show you where they are and how they work. Cancelling If you accidentally raise an alarm call (i.e. you unintentionally press one of the alarm buttons on your Telecom or radio pendant) you can cancel the alarm call by waiting five seconds and then pressing your Telecom’s Cancel key. However, once the call reaches a response center pressing the Cancel key will have no effect. This is a safety feature. When the operator answers your call simply explain that it was an error—the op…

Text truncated - open the document above for the full version.

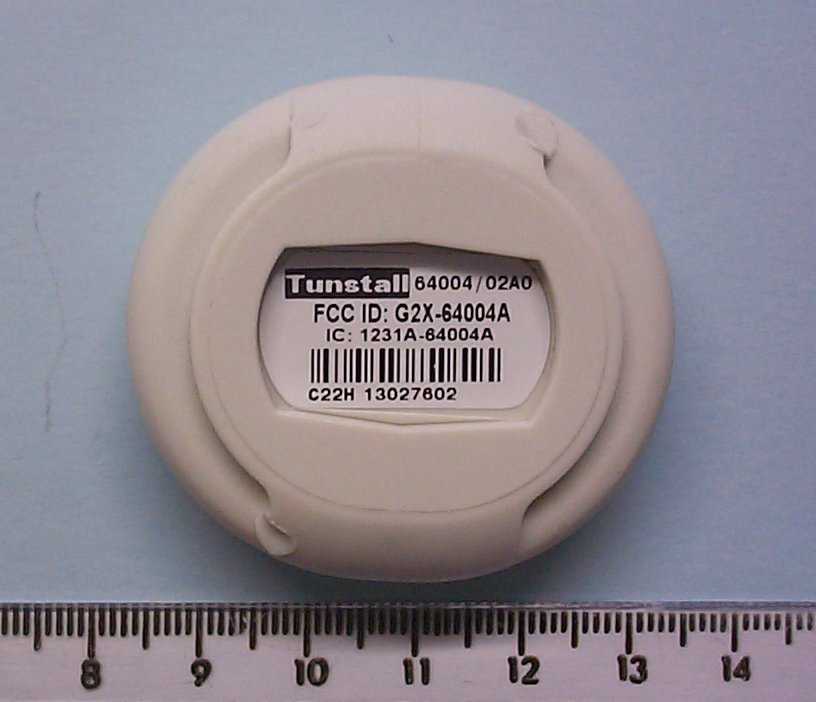

D3607127A – Alternative Pendant (North America) Alternative Pendant (GEM) GEM Radio Pendant (Part Number 64004/02) Re-order code P64004/02 (Packed Pendant with Neckcord and beltclip) Approval Notices USA: FCC ID: G2X-64004A Canada: IC 1231A-64004A

C001S1251046CAP 2n7F 50V 10% X7R 0805 C002S1251021CAP 470pF 50V 10% COG 0805 C003S1251009CAP 15pF 50V 5% COG 0805 C004S1251041CAP 12pF 50V 5% COG 0805 C005S1251006CAP 100pF 50V 5% COG 0805 C006S1251021CAP 470pF 50V 10% COG 0805 C007S1251046CAP 2n7F 50V 10% X7R 0805 C008S1251026CAP 27pF 50V 5% COG 0805 C009S1251026CAP 27pF 50V 5% COG 0805 C010S1251013CAP 3p3F 50V +/-0p25 COG 0805 C011S1251004CAP 5p6F 50V +/-0p25 COG 0805 C012S1251006CAP 100pF 50V 5% COG 0805 C013S1251117CAP 4n7F 50V 10% X7R 0805 C014S1251046CAP 2n7F 50V 10% X7R 0805 C015S1262221CAP 220pF 50V 5% COG 0603 C016S1251028CAP 100nF 50V 20% Z5U 0805 C017NOT FITTEDNO COMPONENT FITTED C018S1251028CAP 100nF 50V 20% Z5U 0805 C019S1252027CAP 1u5F 16V -20+80% Y5V 1206 C020NOT FITTEDNO COMPONENT FITTED C021S1251028CAP 100nF 50V 20% Z5U 0805 C022NOT FITTEDNO COMPONENT FITTED D001S1355001VARICAP DIODE 1SV223 T&R D002S1357003DIODE-LED RED 125mcd 20mA PLC2 IC001D6006034AASIC FOR D59 TRANSMITTER L001S1551034INDUCTOR 100nH 5% (TDK) 1210 L002S1551030INDUCTOR 68nH 5% (TDK) 1210 L003S1551033INDUCTOR 330nH 5% (TDK) 1210 L004S1551030INDUCTOR 68nH 5% (TDK) 1210 L005S1551037INDUCTOR 39nH 5% (TDK) 1210 PCBD6401076BPCB 312 MHz GEM (ASIC) R001S1157103RESISTOR 10K 1% 0W1 0805 R002S1157273RESISTOR 27K 1% 0W1 0805 R003S1157101RESISTOR 100R 1% 0W1 0805 R004S1157222RESISTOR 2K2 1% 0W1 0805 R005S1157151RESISTOR 150R 1% 0W1 0805 R006S1157472RESISTOR 4K7 1% 0W1 0805 R007S1160332RESISTOR 3K3 1% 0W063 0603 R008NOT FITTEDNO COMPONENT FITTED R009S1160106RESISTOR 10M 1% 0W063 0603 R010S1160332RESISTOR 3K3 1% 0W063 0603 R011NOT FITTEDNO COMPONENT FITTED R012NOT FITTEDNO COMPONENT FITTED R013S1157153RESISTOR 15K 1% 0W1 0805 R014S1157105RESISTOR 1M 1% 0W1 0805 R015S1157472RESISTOR 4K7 1% 0W1 0805 R016S1157332RESISTOR 3K3 1% 0W1 0805 R017S1157682RESISTOR 6K8 1% 0W1 0805 R018S1157391RESISTOR 390R 1% 0W1 0805 SW001S2550001SWITCH SMD TACTILE TR001S1451045TRANSISTOR FMMT918 TR002S1451046TRANSISTOR BFS17P NPN TR003S1451005TRANSISTOR BC856B PNP SOT-23 VC001S1259019CAP 2.5-5pF VARIABLE RV=25VDC XT001S1901021CRYSTAL 104.0000MHz.

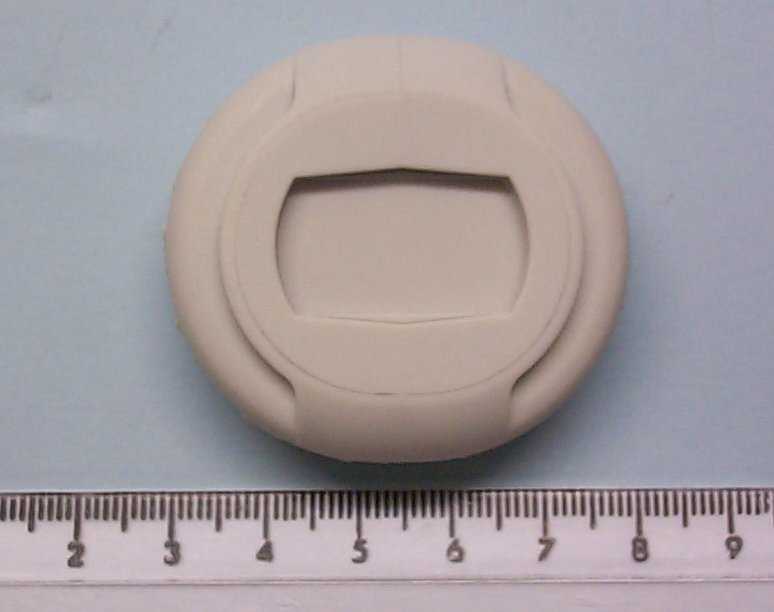

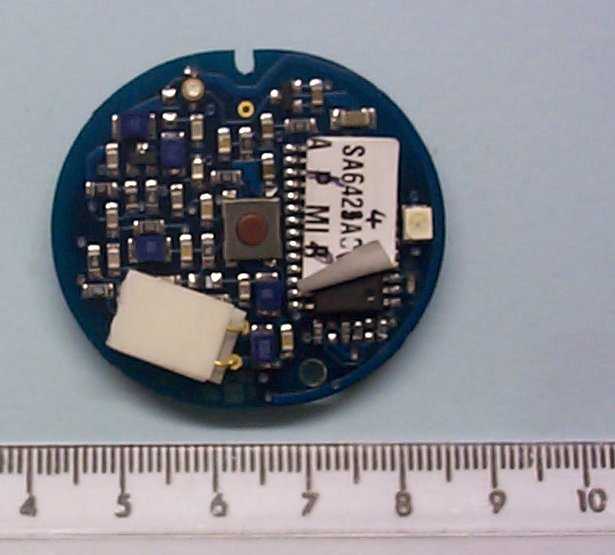

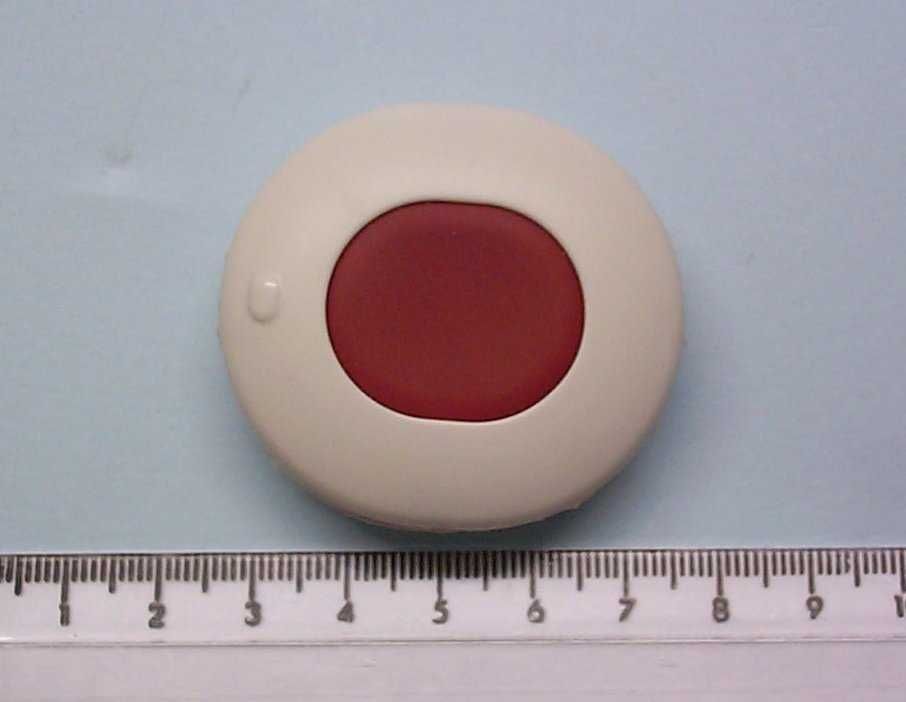

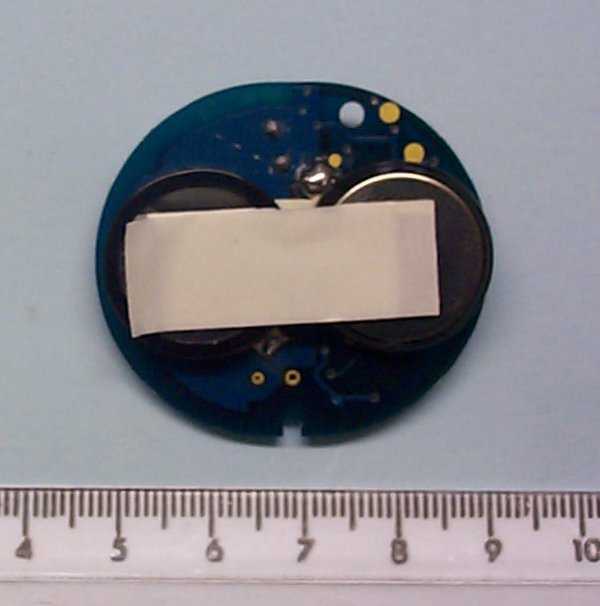

TRL C OMPLIANCE S ERVICES L TD EMC D IVISION M OSS V IEW N IPE L ANE U P H OLLAND W EST L ANCASHIRE WN8 9PY U NITED K INGDOM T ELEPHONE +44 (0)1695 556666 F AX +44 (0)1695 557077 E- MAIL [email protected] www.trlcompliance.com 0728 FS 21805 TEST REPORT NO: RU1102/5358 COPY NO: 2 ISSUE NO: 1 FCC ID: G2X-64004A REPORT ON THE CERTIFICATION TESTING OF A TUNSTALL TELECOM Ltd. GEM Radio Trigger WITH RESPECT TO THE FCC RULES CFR 47, PART 15.231 DECEMBER 2003 INTENTIONAL RADIATOR SPECIFICATION TEST DATE: 26 th February – 1 st March 2004 TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER DATE: 3 rd March 2004 Distribution: Copy Nos: 1. TUNSTALL TELECOM Ltd. 2. FCC EVALUATION LABORATORIES 3. TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF335U iss03 RU1102/5358 Page 2 of 24 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 6 SAMPLE CALCULATIONS 6 TEST RESULTS 7-8 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Transmitter front view PHOTOGRAPH No. 3: Transmitter rear view PHOTOGRAPH No. 4: Transmitter PCB track side PHOTOGRAPH No. 5: Transmitter PCB component side PHOTOGRAPH No. 6: Transmitter battery in place APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B BAND OCCUPANCY PLOT C Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. 4. The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. RF335U iss03 RU1102/5358 Page 3 of 24 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: G2X-64004A PURPOSE OF TEST: CERTIFICATION TEST SPECIFICATION: FCC RULES CFR 47, PART 15.231 DECEMBER 2003 TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: GEM Radio Trigger EQUIPMENT SERIAL No: Engineering sample ITU: EMISSION CODE: 3K00F1DAN EQUIPMENT TYPE: 64004A/02 PRODUCT USE: Nurse call CARRIER EMISSION: 4027.170μV/m @ 3m ANTENNA TYPE: Integral ALTERNATIVE ANTENNA: N/A FREQUENCY OF OPERATION: 312.00MHz CHANNEL SPACING: N/A Wideband NUMBER OF CHANNELS: 1 FREQUENCY GENERATION: SAW Resonator [ ] Crystal [X] Synthesiser [ ] MODULATION METHOD: Amplitude [ ] Digital [X] Angle [ ] POWER SOURCE(s): +6Vdc TEST DATE(s): 26 th February – 1 st March 2004 ORDER No(s): 256739 APPLICANT: TUNSTALL TELECOM Ltd. ADDRESS: Whitley Lodge Whitley Bridge Yorkshire DN14 0HR TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER RF335U iss03 RU1102/5358 Page 4 of 24 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): GEM Radio Trigger EQUIPMENT TYPE: 64004A/02 SERIAL NUMBER OF EUT: Engineering sample PURPOSE OF TEST: CERTIFICATION TEST SPECIFICATION(s): FCC RULES CFR 47, PART 15.231 8 th DECEMBER 2003 TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 256739 APPLICANT’S CONTACT PERSON(s): Mr R Nadin E-mail address: [email protected] APPLICANT: TUNSTALL TELECOM Ltd. ADDRESS: Whitley Lodge Whitley Bridge Yorkshire DN14 0HR TEL: 01977 661234 FAX: 01977 662452 MANUFACTURER: TUNSTALL TELECOM Ltd. EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL EMC UKAS ACCREDITATION No: 0728 TEST DATE(s) 26 th February – 1 st March 2004 TEST REPORT No: RU1102/5358 RF335U iss03 RU1102/5358 Page 5 of 24 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART DETECTOR APPLICABILITY Intentional Emission Frequency: 15.231 Quasi-Peak Yes Intentional Emission Field Strength: 15.231(b) Quasi-Peak Yes Intentional Emission Band Occupancy: 15.231(c) Peak Yes Intentional Emission ERP (mW): - - No Spurious Emissions – Conducted: 15.207 - No Spurious Emissions – Radiated <1000MHz: 15.209 Quasi-Peak Yes Spurious Emissions – Radiated >1000MHz: Average Yes Maximum Frequency of Search: 15.33 - Yes Antenna Arrangements Integral: 15.203 - Yes Antenna Arrangements External Connector: 15.204 - Yes Restricted Bands 15.205 - Yes Extrapolation Factor 15.31(f) - Yes 2. Product Use: Nurse Call 3. Emission Designator: 3K00F1DAN 4. Duty Cycle: <0.1% 5. Temperatures: Ambient (Tnom) 9.0 o C 6. Supply Voltages: Vnom +6Vdc Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [X] Two channel [ ] 7. Equipment Category: Multi-channel [ ] Narrowband [ ] Wideband [X] 8. Channel spacing: RF335U iss03 RU1102/5358 Page 6 of 24 TRANSMITTER TESTS TRANSMITTER SPURIOUS EMISSIONS – RADIATED – PART 15.209 Ambient temperature = 9 o C(<1GHz) 3m measurements <1GHz [X] Relative humidity = 40% (<1GHz), 0.3m measurements >1GHz [X] Conditions = Open Area Test Site (OATS) 3m extrapolated from 0.3m [X] Supply voltage = 6Vdc Channel number = 1 FREQ. (MHz) MEAS. Rx. (dBμV) CABLE LOSS (dB) ANT FACT. FIELD STRENGTH (dBμV/m) EXTRAP. FACTOR (dB) FIELD STRENGTH (μV/m) LIMIT (μV/m) 30MHz - 88MHz 88MHz - 216MHz 216MHz - 960MHz 624.0 936.0 28.7 29.9 2.9 4.0 18.8 20.2 50.4 54.1 - 331.13 506.99 588.0 588.0 960MHz - 1GHz 1GHz - 5GHz 1559.97(R) 1871.95 2183.94 27.97 30.49 30.39 0.67 0.7 0.7 25.7 26.9 28.0 54.34 58.09 59.09 -20 -20 -20 52.12 80.26 90.05 500.0 588.0 588.0 1.705MHz to 30MHz 30μV/m @ 30m 30MHz to 88MHz 100μV/m @ 3m 88MHz to 216MHz 150μV/m @ 3m 216MHz to 960MHz 200μV/m @ 3m 960MHz to 1GHz 500μV/m @ 3m Limits 1GHz to 5GHz 500μV/m @ 3m Notes: 1 Results quoted are extrapolated as indicated 2 Emissions were searched to: (x) 1000MHz inclusive, as per Part 15.33a 3 Extrapolation factor 20dB from 0.3m to 3m, as per Part 15.31f 4 Measurements >1GHz @ 1m as per Part 15.31f(1) 5 Receiver detector >1GHz = CISPR, Quasi-Peak, 120kHz bandwidth 6 Receiver detector >1GHz = Peak Hold, 1MHz resolution bandwidth 7 New batteries used for battery powered products. 8 (R) indicated frequency within restricted band from 15.205 9 Due to the transmitted signal lasti…

Text truncated - open the document above for the full version.
