G2X-6460474ARadio Smoke Detector model 64604/74

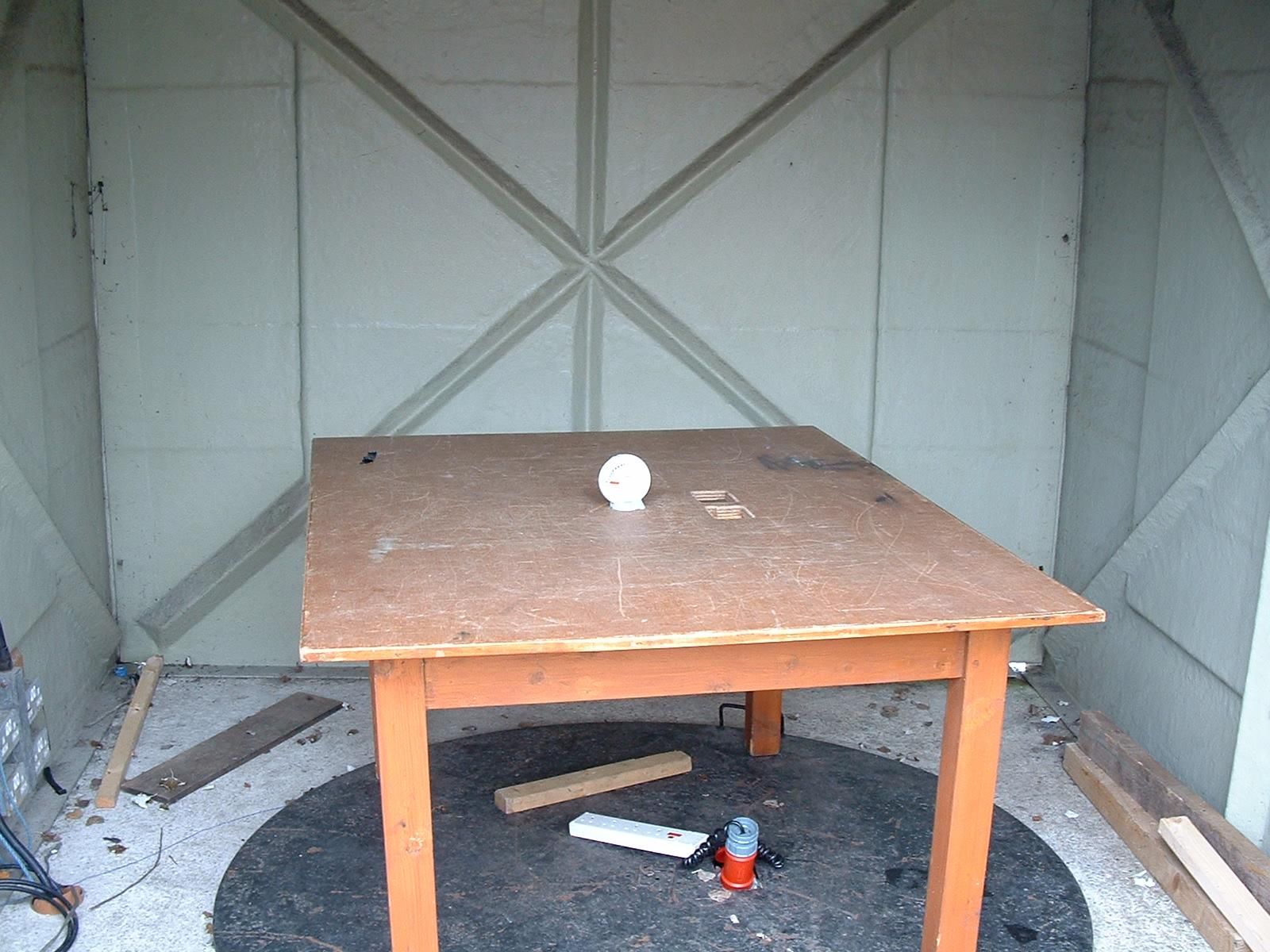

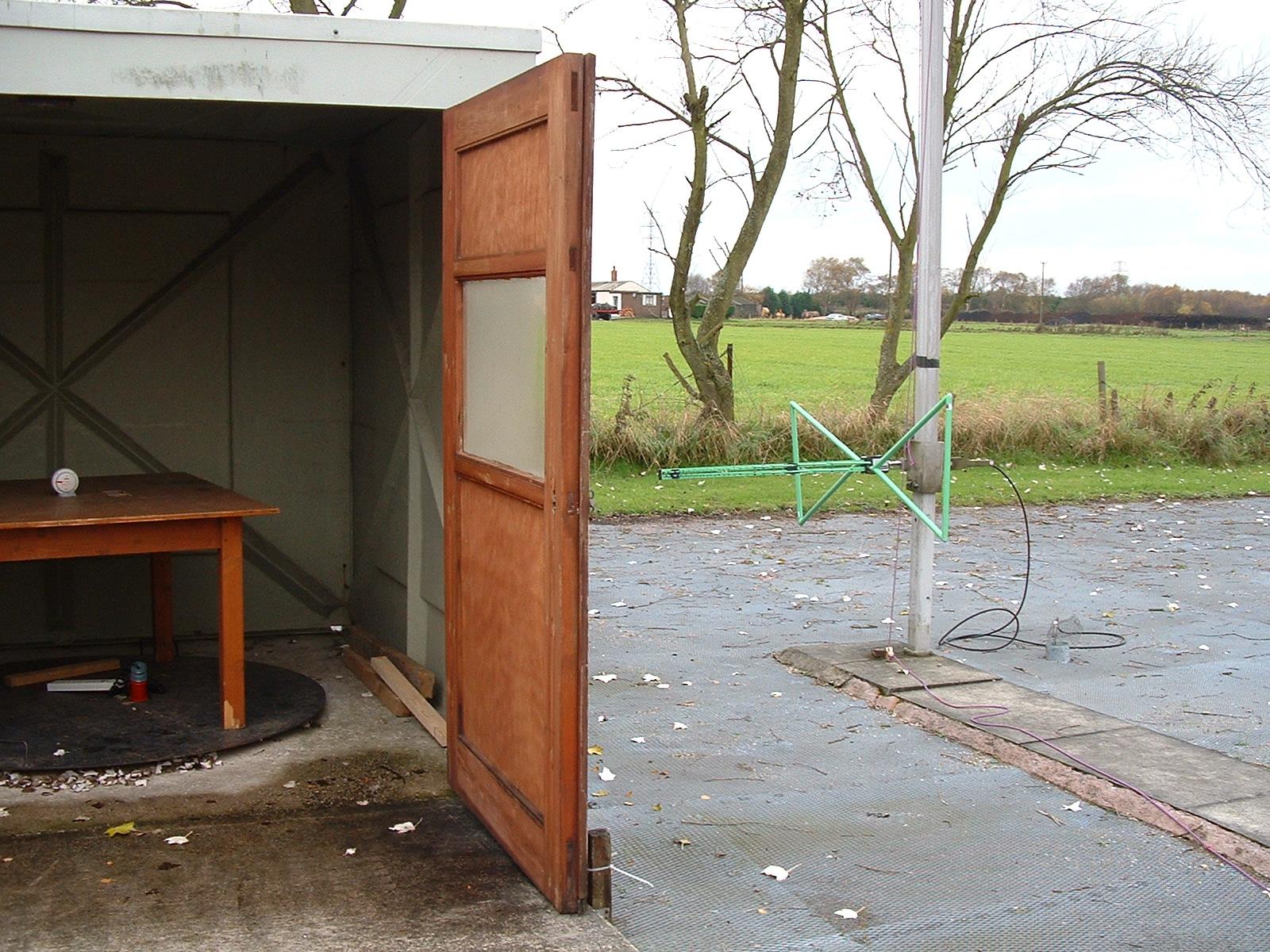

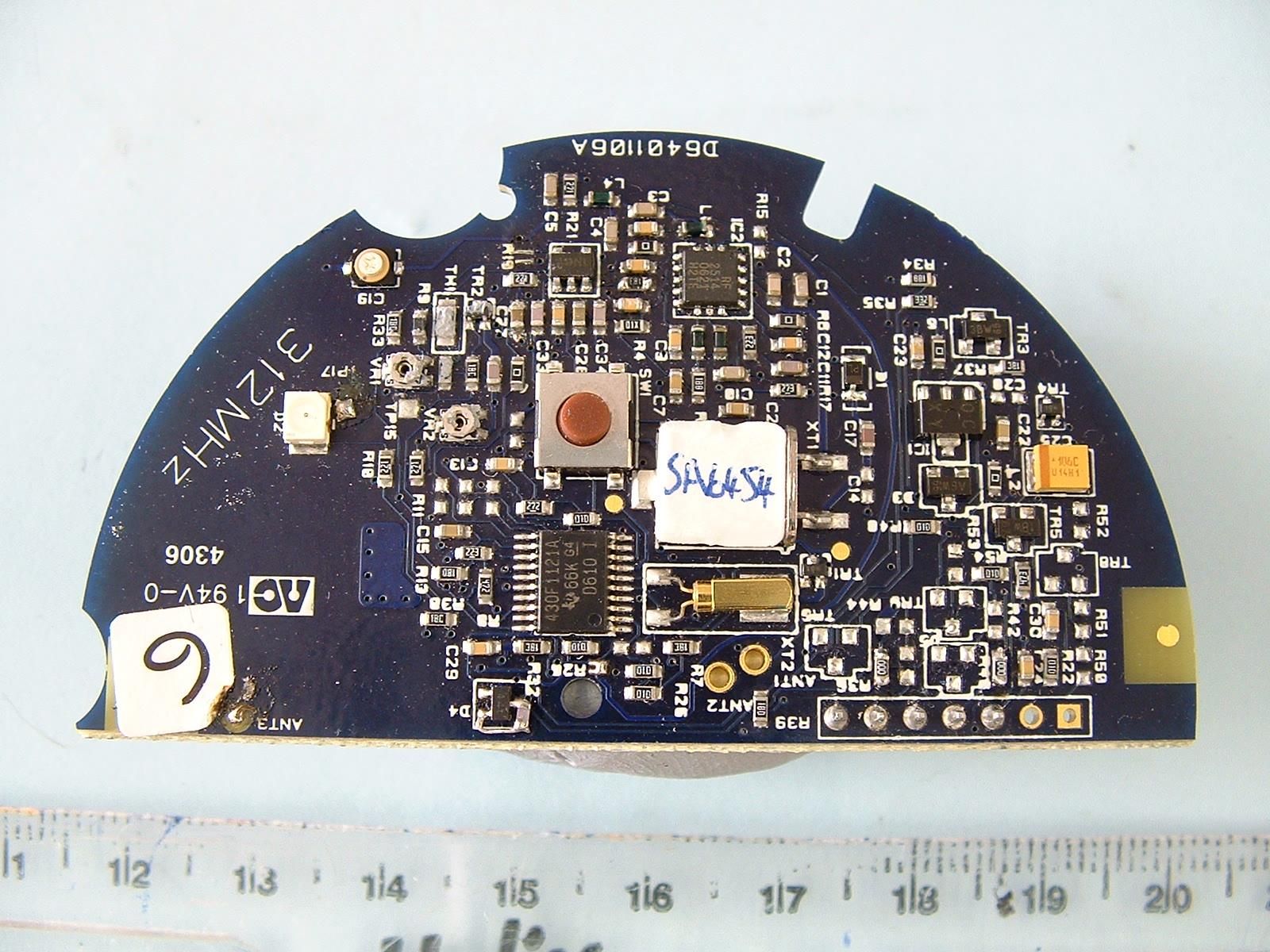

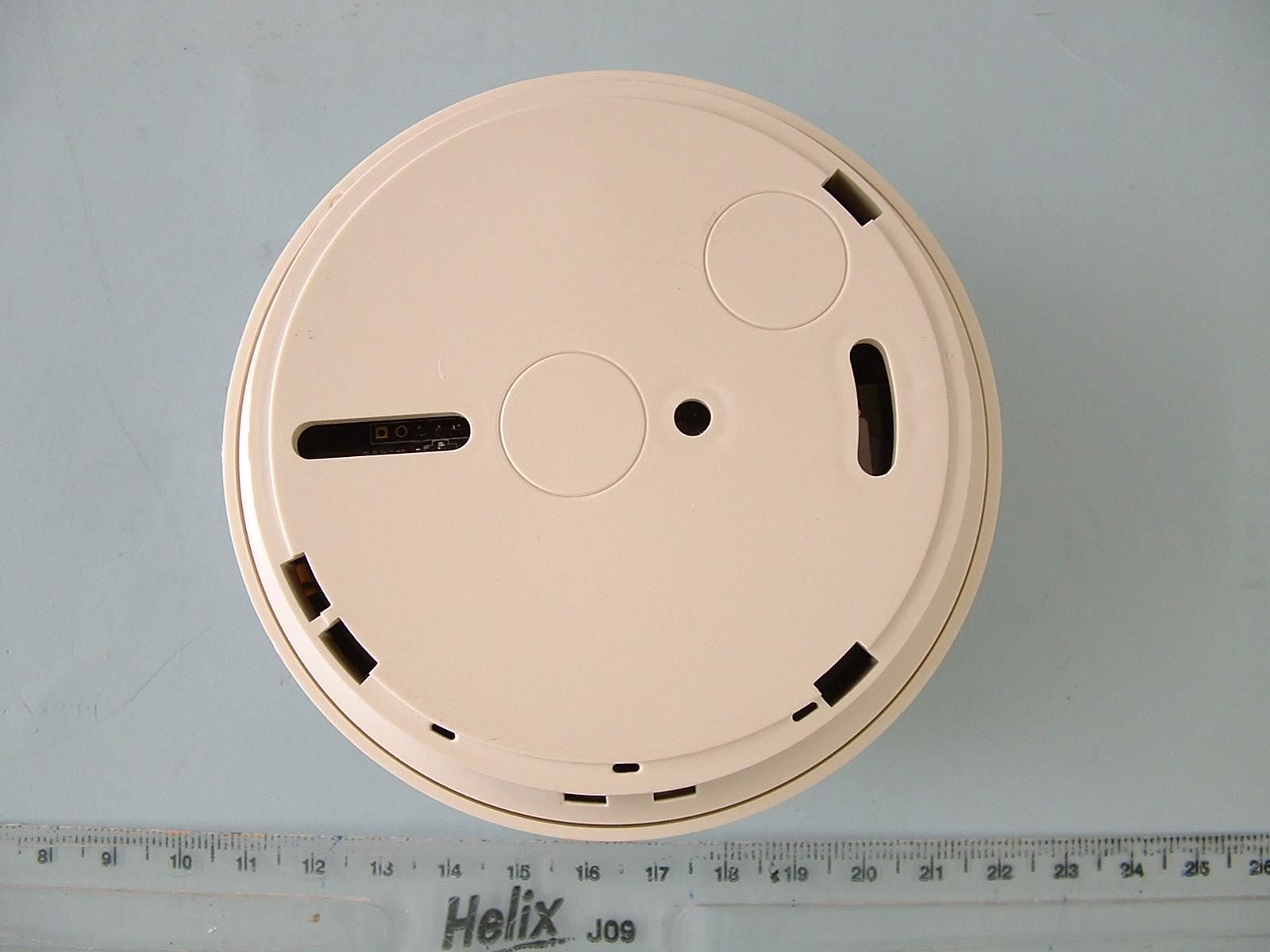

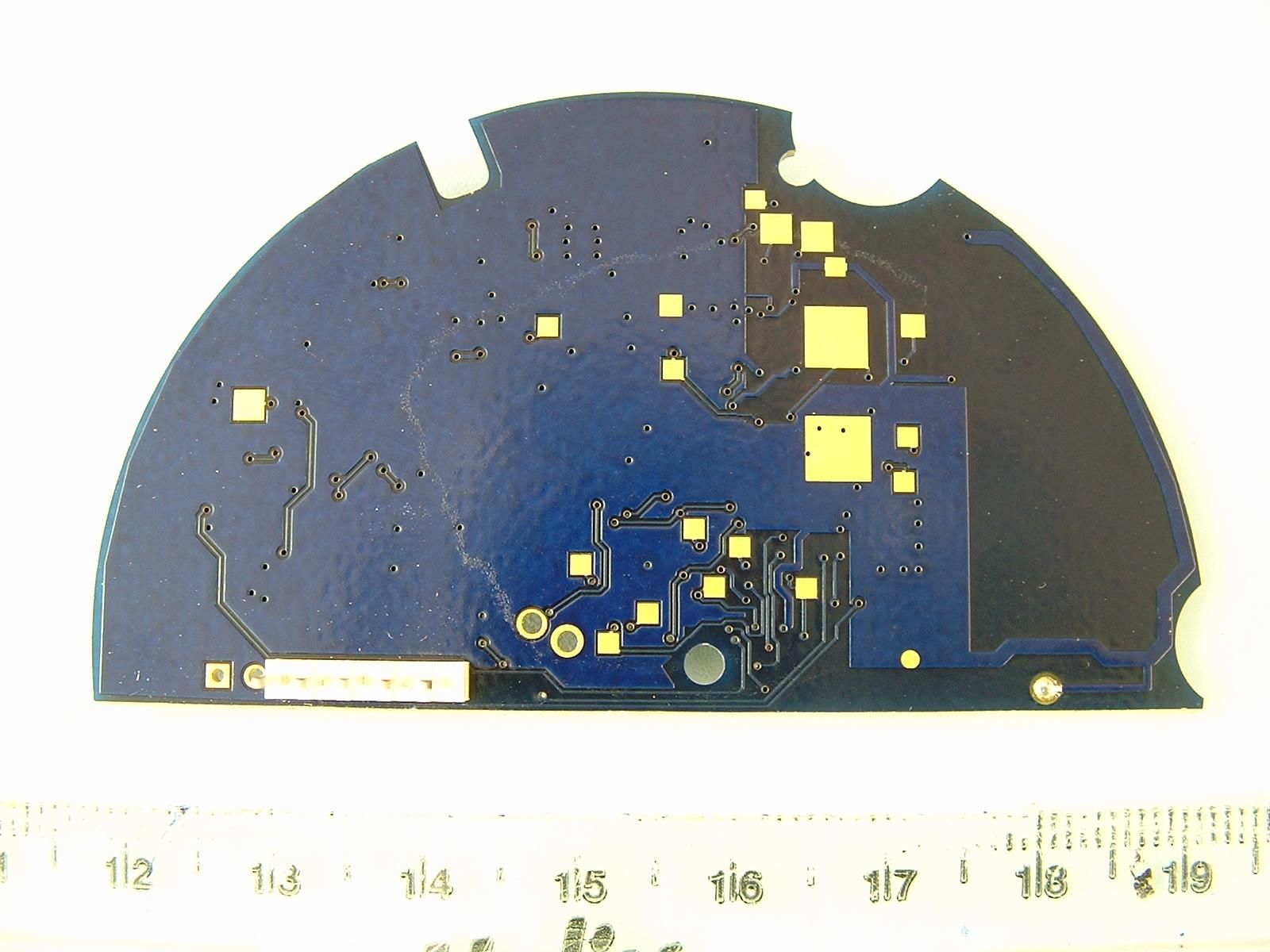

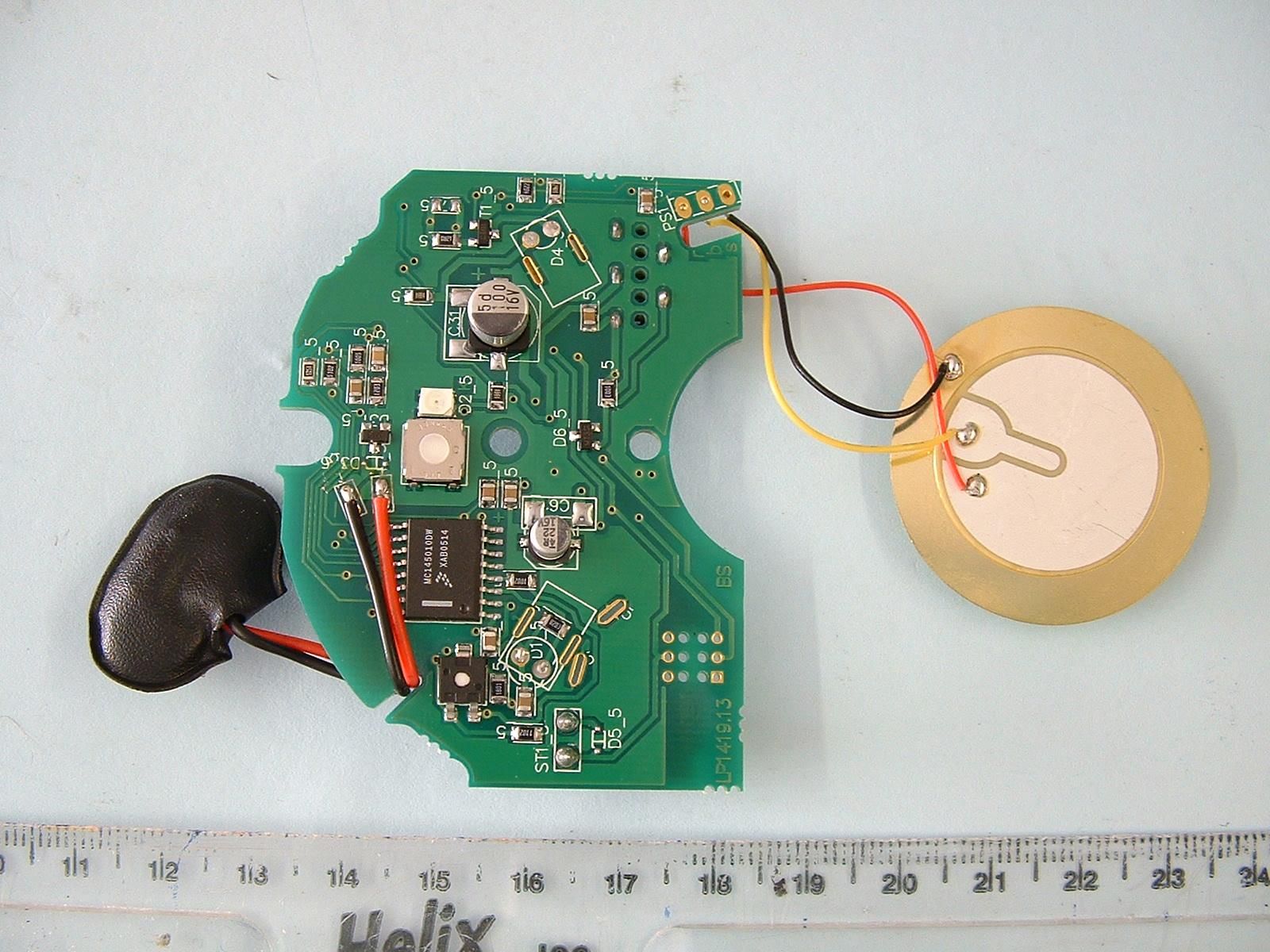

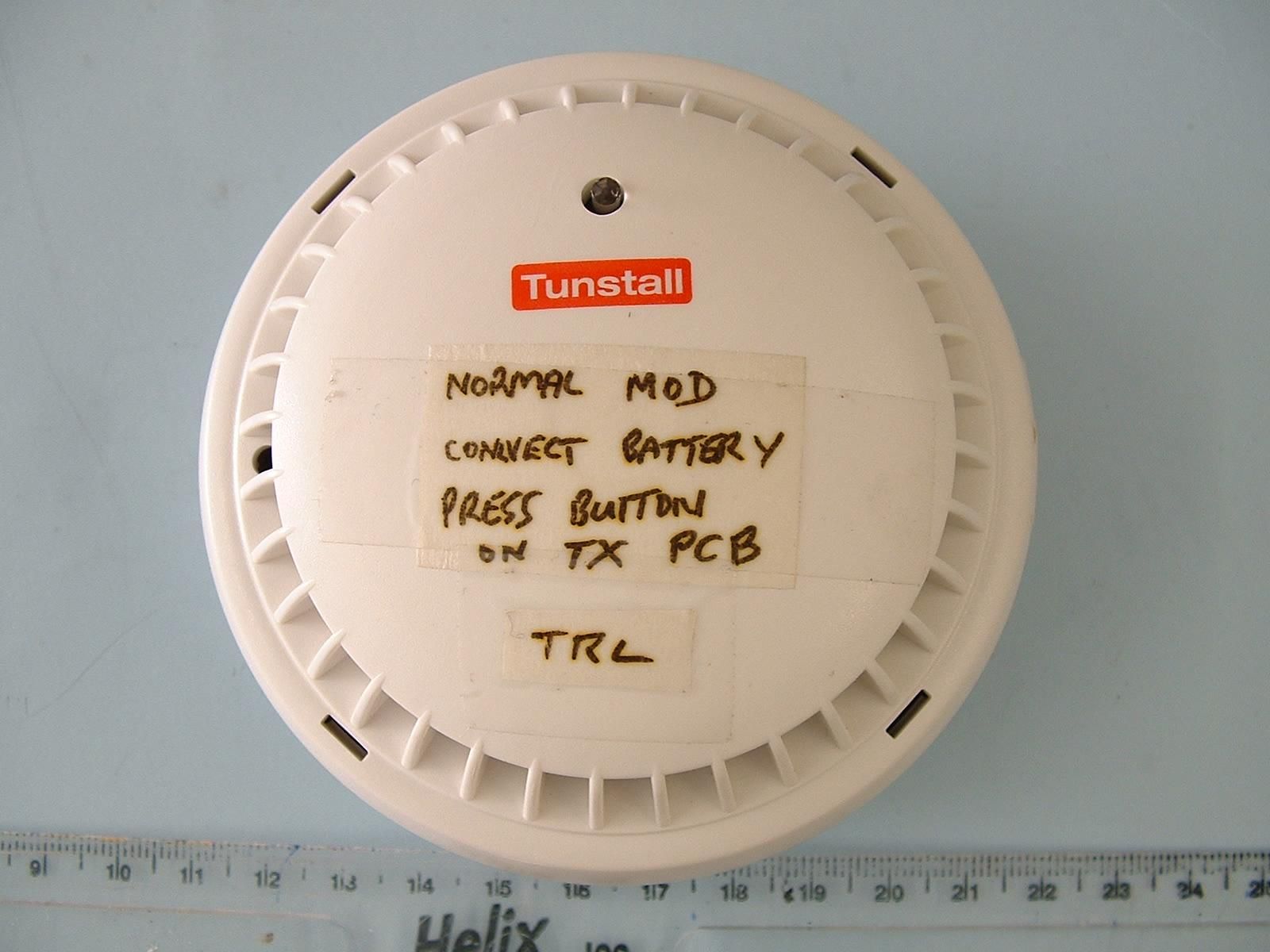

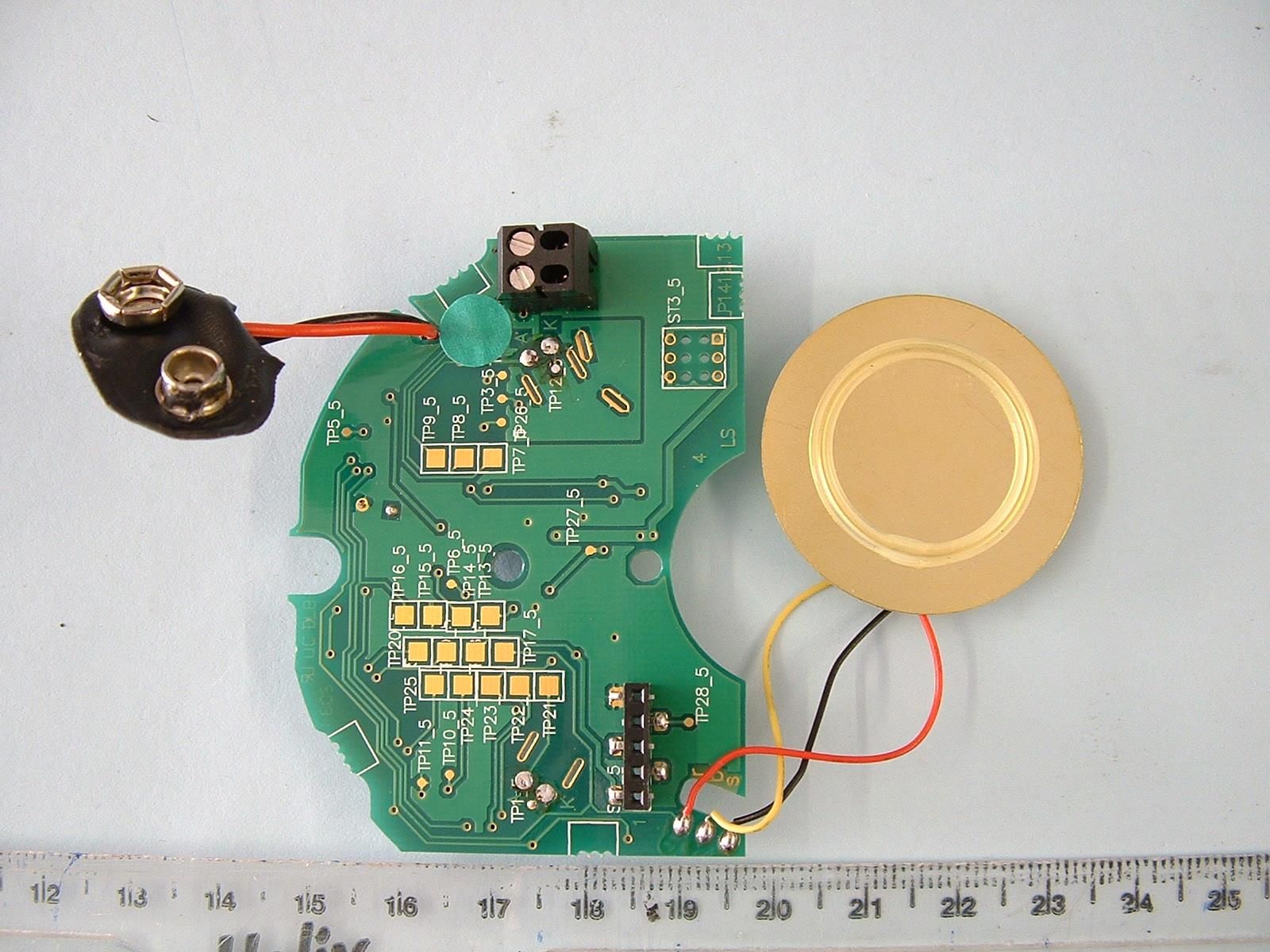

TRL COMPLIANCE LTD M OSS VIEW NIPE LANE UP HOLLAND WEST LANCASHIRE WN8 9PY UNITED KINGDOM T ELEPHONE +44 (0)1695 556666 FAX +44 (0)1695 557077 E-MAIL [email protected] www.trlcompliance.com 0728 TEST REPORT NO: RU1277/7357 COPY NO: 2 ISSUE NO: 1 FCC ID: G2X-6460474A REPORT ON THE CERTIFICATION TESTING OF A TUNSTALL TELECOM Ltd RADIO SMOKE DETECTOR WITH RESPECT TO FCC RULES CFR 47, PART 15.231 August 2006 INTENTIONAL RADIATOR SPECIFICATION TEST DATE: 15 th – 29 th November 2006 TESTED BY: S Hodgkinson APPROVED BY: J Charters Radio Section Leader DATE: 11 th December 2006 Distribution: Copy Nos: 1. Tunstall Telecom Ltd 2. FCC EVALUATION LABORATORIES 3. TRL Compliance Ltd THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE TRL RF335U iss01B RU1277/7357 Page 2 of 29 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6-9 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Transmitter front view PHOTOGRAPH No. 3: Transmitter rear view PHOTOGRAPH No. 4: Control PCB track side PHOTOGRAPH No. 5: Control PCB component side PHOTOGRAPH No. 6: RF PCB track side PHOTOGRAPH No. 7: RF PCB component side APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B BAND OCCUPANCY PLOT C TRANSMITTER TIMING PULSES D EQUIPMENT CALIBRATION E MEASUREMENT UNCERTAINTY F Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. 4. The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. TRL RF335U iss01B RU1277/7357 Page 3 of 29 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: G2X-6460474A PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 15.231 August 2006 TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: Radio Smoke Detector EQUIPMENT SERIAL No: 46061998 & 46062000 ITU: EMISSION CODE: 70k5F1D EQUIPMENT TYPE: Low Power Radio Smoke Detector PRODUCT USE: Personal Care Monitoring & Alarm System CARRIER EMISSION: 4897.78 μV/m @ 3m ANTENNA TYPE: Integral ALTERNATIVE ANTENNA: Not applicable FREQUENCY OF OPERATION: 312 MHz CHANNEL SPACING: Not applicable, wideband NUMBER OF CHANNELS: 1 FREQUENCY GENERATION: SAW Resonator [ ] Crystal [X] Synthesiser [ ] MODULATION METHOD: Amplitude [ ] Digital [X] Angle [ ] POWER SOURCE(s): +9Vdc TEST DATE(s): 15 th – 29 th November 2006 ORDER No(s): 58792 APPLICANT: Tunstall Telecom Ltd ADDRESS: Whitley Lodge Whitley Bridge Yorkshire DN14 0HR TESTED BY: S Hodgkinson APPROVED BY: J Charters Radio Section Leader TRL RF335U iss01B RU1277/7357 Page 4 of 29 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): Radio Smoke Detector EQUIPMENT TYPE: Low Power Radio Smoke Detector SERIAL NUMBER OF EUT: 46061998 & 46062000 PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 15.231 August 2006 TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 58792 APPLICANT’S CONTACT PERSON(s): Mr R Nadin E-mail address: [email protected] APPLICANT: Tunstall Telecom Ltd ADDRESS: Whitley Lodge Whitley Bridge Yorkshire DN14 0HR TEL: +44 (0) 1977 661234 FAX: +44 (0) 1977 662452 EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL Compliance UKAS ACCREDITATION No: 0728 TEST DATE(s): 15 th – 29 th November 2006 TEST REPORT No: RU1277/7357 TRL RF335U iss01B RU1277/7357 Page 5 of 29 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART DETECTOR APPLICABILITY Intentional Emission Frequency: 15.231(b) Quasi Peak Yes Intentional Emission Field Strength: 15.231(b) Quasi Peak Yes Intentional Emission Band Occupancy: 15.231(c) Peak Yes Intentional Emission ERP (mW): - - No Spurious Emissions – Conducted: 15.207 - No Spurious Emissions – Radiated <1000MHz: 15.231(b) 15.209 Quasi Peak Yes Spurious Emissions – Radiated >1000MHz: 15.231(b) 15.209 Quasi Peak Average Yes Maximum Frequency of Search: 15.33 - Yes Antenna Arrangements Integral: 15.203 - Yes Antenna Arrangements External Connector: 15.204 - N/A Restricted Bands: 15.205 - Yes Extrapolation Factor: 15.31(f) - Yes 2. Product Use: Personal Care Monitoring & Alarm System 3. Emission Designator: 70k5F1D 4. Duty Cycle: <100% 5. Transmitter bit or pulse rate and level: 1000bps 6. Temperatures: Ambient (Tnom) 9 o C 7. Supply Voltages: Vnom +9Vdc Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [X] Two channel [ ] 8. Equipment Category: Multi-channel [ ] Narrowband [ ] Wideband [X] 9. Channel spacing: TRL RF335U iss01B RU1277/7357 Page 6 of 29 TRANSMITTER TESTS TRANSMITTER SPURIOUS EMISSIONS – RADIATED – PART 15.209 Ambient temperature = 9 o C(<1GHz) 3m measurements <1GHz [X] Relative humidity = 39% (<1GHz), 0.3m measurements >1GHz [X] Conditions = Open Area Test Site (OATS) 3m extrapolated from 0.3m [X] Supply voltage = +9Vdc Channel number = 1 FREQ (MHz) MEAS Rx (dBμV) CABLE LOSS (dB) ANT FACT FIELD STRENGTH (dBμV/m) EXTRAP FACTOR (dB) FIELD STRENGTH (μV/m) Limit (μV/m) 1.705MHz - 30MHz Note 12 30MHz - 88MHz Note 12 88MHz - 216MHz Note 12 216MHz - 960MHz Note 12 960MHz - 1GHz Note 12 1GHz - 5GHz Note 12 1.705MHz to 30MHz 30μV/m @ 30m 30MHz to 88MHz 100μV/m @ 3m 88MHz to 216MHz 150μV/m @ 3m 216MHz to 960MHz 200μV/m @ 3m 960MHz to 1GHz 500μV/m @ 3m Limits 1GHz to 5GHz 500μV/m @ 3m Notes: 1 Results quoted are extrapolated as indicated. 2 Emissions were searched to: (x) 1000MHz inclusive, as per Part 15.33a. 3 Extrapolation factor 20dB from 0.3m to 3m, as per Part 15.31f. 4 Measurements >1GHz @ 0.3m as per Part 15.31f(1). 5 Receiver detector <1GHz = CISPR, Quasi-Peak, 120kHz bandwidth. 6 Receiver detector >1GHz = Peak Hold, 1MHz resolution bandwidth. 7 New batteries used for ba…
