G2X66004312 Fall Detector

Fall Detector™ 312.00MHz User guide Installation and User Guide Page 2 of 10 What is the fall detector? Your fall detector™ is a battery operated device containing a microprocessor, detector and a radio transmitter. It will automatically trigger an alarm call on your personal emergency response system if it detects that you have fallen. You can also use it to manually raise an alarm call. Activity indicator light Manual trigger button Belt / clothing clip Battery cover Installation and User Guide Page 3 of 10 Wearing the fall detector Clip the fall detector to your belt or clothing in the upright position shown in the drawing. It needs to be in the upright position to reduce the possibility of false activation. Correct upright position Incorrect position NOTE: An optional Belt and Holster is available (Part Number D6609001C). Installation and User Guide Page 4 of 10 Automatic fall detection • Green light and two "beeps" indicate that the fall detector has been activated. • The fall detector will then monitor for between 6 and 15 seconds to verify if there could have been a fall. The green light will flash while it does this. • If the detector has decided that there is a fall, then a red light and four "beeps" indicates that the fall detector is about to trigger an alarm call (because it has detected an impact and has not been upright for between 6 and 15 seconds). • If the detector has decided that it was activated by error then the green flashing light will stop after between 6 to 15 Seconds and the unit will revert to normal again. • Due to the complex dynamics of falling, all falls may not be detected. In this unlikely event the manual button can still be used to call for help. Manual operation • Press the button on the fall detector to raise a manual alarm call. • The fall detector will "beep" and a red light indicates the fall detector is triggering an alarm call. • If the red light flashes on and off, the fall detector is still triggering an alarm call, but is also indicating to you that the battery needs to be replaced. Remember, the fall detector will only detect you falling if you are wearing it. Installation and User Guide Page 5 of 10 • The fall detector must be worn at or above the waist, where it will detect the maximum number of falls. • When removing the fall detector, handle carefully to avoid false calls, place it on an even surface in the upright position and preferably in the stand provided. • If the fall detector does wake up and beep when you know you have not fallen, you can prevent it raising an alarm by ensuring that it is returned to an upright position. • It is not recommended that you wear the fall detector whilst in bed, as normal movement in bed will cause the fall detector to trigger. Installation and User Guide Page 6 of 10 Battery Replacement From time to time the battery will need replacing, you will know this because somebody from your monitoring service (if you have one) may inform you, or you may see the red light flashing rather than staying on continuously when a manual alarm call is made. • The unit automatically tests the battery several times within each 24 hour period. It is able to automatically generate an alarm call when low battery is detected. • If it is necessary for you to change the battery, the fall detector uses a 6 volt Duracell PX28L battery. • After a year the battery should be replaced. Contact your provider for a replacement. In many cases your provider will change the battery for you. On the back of this user guide is a handy table to help you remember when the battery should be changed. Installation and User Guide Page 7 of 10 To replace the battery 1) To access the battery, remove the battery cover screw 2) Then remove the battery cover by sliding it in the direction of the arrow. 3) Remove battery and replace it with the new battery, remember to observe the correct orientation. When the battery is first placed in the unit an automatic test call will be generated (no lights will show and no buzzer will sound). 4) Replace the sliding cover and the screw. Test the fall detector by making a manual call. Inform the operator that you are making a battery test call. 5) If the device fails to make a test call then check the orientation of the battery. If this is correct then contact your supplier. NOTE: Dispose of used battery in accordance with the latest legislation. Do not dispose of in household waste. 1 2 3 + - Installation and User Guide Page 8 of 10 Care of the fall detector • Avoid getting the fall detector wet (if it does then dry it quickly and make a manual test call to confirm it is working correctly). • If required, the fall detector may be cleaned periodically with a damp cloth and mild detergent. • It is recommended that you test the fall detector once a month: • Make a manual test call. • Start with the fall detector vertical. Place the fall detector horizontal and then tap within 3 seconds after placing horizontal. After 5 Seconds the fall detector should beep and the green light start to flash. If you put the unit quickly back upright (in its stand, for instance), the alarm call will not be raised. Installation and User Guide Page 9 of 10 Radio Approval Notices Australia The Fall Detector operates on a frequency of 312MHz and is certified approved by TRL Compliance to AS/NZS 4268:2003 Canada Canadian Certification Approvals Number IC: 1231A-66004A USA Federal Communications Commission (FCC) notices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular i…

Text truncated - open the document above for the full version.

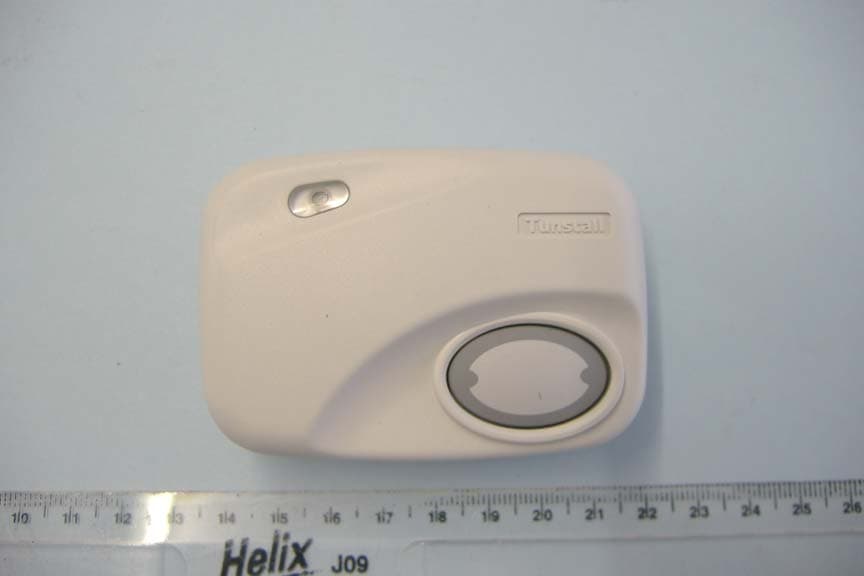

EUT Front Overview EUT Rear Overview

FCC Documentation Page 1 of 3 Date 21 January 2008 FCC CERTIFICATION ADDITIONAL DOCUMENTATION PACK Project Description 312 MHz Fall Detector Product Number 66004/07 66004/08 Date 21 January 2008 Applicant Tunstall Telecom Ltd Whitley Lodge Whitley Bridge Yorkshire England DN14 0HR Company Registration Number: 1332249 Equipment Specifications See separate document Data sheet 66004_07 User Guides & Manual See separate document Fall Detector 312 user guide USA-Aust-NZ-Sing-Mal v1 Equipment Circuit Diagram See separate document: PR275 312MHz Fall Detector Circuit Description Equipment Block Diagram See separate document: PR275 312MHz Fall Detector Circuit Description Equipment Schematic See separate documents: Cadstar - SA6610-CCTA1 Cadstar - SA6617A0 Antenna Specification The Fall Detector transmitter uses an integral tuned loop antenna. The antenna loop is formed using a trace around part of the perimeter of the RF PCB. There is no provision for an external antenna. Antenna Manufacturer Integral with product Parts List See separate documents: PR275 Parts List All the reassurance you need FCC Documentation Page 2 of 3 Date 21 January 2008 Equipment Photographs 66004/07 (External) Equipment Photographs 66004/08 (External) Equipment Photographs (Internal) Note! Internal components common to both models Detail of typical label Note! Detail to be completed upon receipt of certification Self adhesive label fixed within a moulded rebate on the rear face of the product. Product Number FCC ID Product Serial Number FCC Documentation Page 3 of 3 Date 21 January 2008 Notes One test unit has been labelled “Test Mod” this unit will function normally and is completely representative of normal manufacture. One test unit has been labelled “Insert battery for CW” this unit has been modified to facilitate continuous transmission. Continuous transmission will begin as soon as the battery is inserted. Please note, to avoid short battery life the battery should be removed from this unit when not required for testing or preparation.

Main PCB Component Side Main PCB Track Side RF PCB Component Side RF PCB Track Side

REPORT ON THE CERTIFICATION TESTING OF A TUNSTALL ELECTRONICS Ltd PR275 FALL DETECTOR WITH RESPECT TO THE FCC RULES CFR 47, PART 15.231 September 2007 INTENTIONAL RADIATOR SPECIFICATION TEST REPORT NO: RU1374/8333 COPY NO: 2 ISSUE NO: 1 FCC ID: G2X66004 REPORT ON THE CERTIFICATION TESTING OF A TUNSTALL ELECTRONICS Ltd PR275 FALL DETECTOR WITH RESPECT TO THE FCC RULES CFR 47, PART 15.231 September 2007 INTENTIONAL RADIATOR SPECIFICATION TEST DATE: 1 st – 10 th January 2008 TESTED BY: D WINSTANLEY APPROVED BY: J CHARTERS RADIO SECTION LEADER DATE: 29 th January 2008 Distribution: Copy Nos: 1. Tunstall Electronics Ltd 2. FCC EVALUATION LABORATORIES 3. TRL Compliance Ltd THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF335U iss03B RU1374/8333 Page 3 of 32 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 4 APPLICANT’S SUMMARY 5 EQUIPMENT TEST CONDITIONS 6 TESTS REQUIRED 6 TEST RESULTS 7 - 10 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Transmitter front view PHOTOGRAPH No. 3: Transmitter rear view PHOTOGRAPH No. 4: RF PCB track side PHOTOGRAPH No. 5: RF PCB component side PHOTOGRAPH No. 6: Control PCB track side PHOTOGRAPH No. 7: Control PCB component side APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B MEASUREMENT UNCERTAINTY C TEST EQUIPMENT CALIBRATION D BAND OCCUPANCY PLOT E EMISSIONS GRAPH(S) F TRANSMITTER TIMING PULSES G Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. 4. The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. RF335U iss03B RU1374/8333 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: G2X66004 PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 15.231 September 2007 TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: PR275 Fall Detector EQUIPMENT MODEL No s : 66004/07 66004/08 Grey Case Black Case ITU: EMISSION CODE: 89k0F1D EQUIPMENT TYPE: Periodic Transmitter PRODUCT USE: Personal Care Monitoring & Alarm System CARRIER EMISSION: 5559.04 μV/m @ 3m ANTENNA TYPE: Integral ALTERNATIVE ANTENNA: Not applicable BAND OF OPERATION: 312 MHz CHANNEL SPACING: Not applicable, wideband NUMBER OF CHANNELS: 1 FREQUENCY GENERATION: SAW Resonator [ ] Crystal [X] Synthesiser [ ] MODULATION METHOD: Amplitude [ ] Digital [X] Angle [ ] POWER SOURCE(s): +6Vdc TEST DATE(s): 1 st – 10 th January 2008 ORDER No(s): 102738 APPLICANT: Tunstall Electronics Ltd ADDRESS: Whitley Lodge Whitley Bridge Yorkshire DN14 0HR TESTED BY: D WINSTANLEY APPROVED BY: J CHARTERS RADIO SECTION LEADER RF335U iss03B RU1374/8333 Page 5 of 32 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): PR275 Fall Detector EQUIPMENT TYPE: Periodic Transmitter PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 15.231 September 2007 TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 102738 APPLICANT’S CONTACT PERSON(s): Mr Colin Cassidy E-mail address: [email protected] APPLICANT: Tunstall Electronics Ltd ADDRESS: Whitley Lodge Whitley Bridge Yorkshire DN14 0HR TEL: +44 (0) 1977 661234 FAX: +44 (0) 1977 662452 EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL Compliance Ltd UKAS ACCREDITATION No: 0728 TEST DATE(s) 1 st – 10 th January 2008 TEST REPORT No: RU1374/8333 RF335U iss03B RU1374/8333 Page 6 of 32 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART DETECTOR APPLICABILITY Intentional Emission Frequency: 15.231(b) Quasi Peak Yes Intentional Emission Field Strength: 15.231(b) Quasi Peak Yes Intentional Emission Band Occupancy: 15.231(c) Peak Yes Intentional Emission ERP (mW): - - No Spurious Emissions – Conducted: 15.207 - No Spurious Emissions – Radiated <1000MHz: 15.231(b) 15.209 Quasi Peak Yes Spurious Emissions – Radiated >1000MHz: 15.231(b) 15.209 Quasi Peak Average Yes Maximum Frequency of Search: 15.33 - Yes Antenna Arrangements Integral: 15.203 - Yes Antenna Arrangements External Connector: 15.204 - N/A Restricted Bands 15.205 - Yes Extrapolation Factor 15.31(f) - Yes 2. Product Use: Personal Care Monitoring & Alarm System 3. Emission Designator: 89k0F1D 4. Duty Cycle: <100% 5. Transmitter bit or pulse rate and level: 1000bps 6. Temperatures: Ambient (Tnom) 4.6 o C 7. Supply Voltages: Vnom +6Vdc Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [X] Two channel [ ] 8. Equipment Category: Multi-channel [ ] Narrowband [ ] Wideband [X] 9. Channel spacing: RF335U iss03B RU1374/8333 Page 7 of 32 TRANSMITTER TESTS TRANSMITTER SPURIOUS EMISSIONS – RADIATED – PART 15.209 Ambient temperature = 16 o C(<1GHz) 3m measurements <1GHz [X] Relative humidity = 63% (<1GHz), 3m measurements >1GHz [X] Conditions = Open Area Test Site (OATS) 3m extrapolated from 1m [ ] Supply voltage = +6Vdc Channel number = 1 Bottom Channel FREQ. (MHz) MEAS Rx (dBμV) CABLE LOSS (dB) ANT FACT. (dB/m) PRE AMP (dB) FIELD ST’GH (dBμV/m) FIELD ST’GH (μV/m) LIMIT (μV/m) 30MHz - 88MHz note 12 88MHz - 216MHz note 12 216MHz - 960MHz note 12 960MHz - 1GHz note 12 1GHz - 4GHz 1247.995 1560.025 (r) 2187.971 2496.014(r) 2808.054 (r) 47.5 46.9 43.7 43.7 38.9 0.9 1.0 1.2 2.5 1.9 24.9 25.1 27.9 28.8 29.5 36.4 35.3 35.0 35.0 35.3 36.9 37.7 37.8 40.0 35.0 69.9 76.7 77.6 100.0 56.2 555 500 555 500 500 30MHz to 88MHz 100μV/m @ 3m 88MHz to 216MHz 150μV/m @ 3m 216MHz to 960MHz 200μV/m @ 3m 960MHz to 1GHz 500μV/m @ 3m Limits 1GHz to 4GHz 500μV/m @ 3m Notes: 1 Results quoted are extrapolated as indicated 2 Emissions were searched to: (x) 1000MHz inclusive, as per Part 15.33a 3 Extrapolation factor 9.5dB from 1m to 3m, as per Part 15.31f 4 Measurements >1GHz @ 1m as per Part 15.31f(1) 5 Receiver detector >1GHz = CISPR,…
