G2X-6460409A312 Flood Detector type 64604/09

D6707035A 312 FLOOD DETECTOR Part Number (64604/09) USER INSTRUCTIONS The 312 Flood Detector has been designed to detect a leak or flood from a bath, sink, washing machine etc. How it works On the underside of the detector, there are 3 metal probes. When water is detected, the buzzer will so und. To prevent any false calls, for example from condensation, the probes are NOT in contact with the floor. Alarm Call Three seconds after the flood/leak has been detected an alarm will be raised via the personal emergency response unit (e.g. T4000). Buzzer The buzzer will sound for as long as water is detected. The buzzer will also sound once a minute for a short time (beep) if the detector battery is becoming low (in the same manner as a battery powered Smoke Detector). Battery The unit must be powered from a PP3 9V alkaline battery. The battery should be changed every 12 months. Test Call It is recommended that you test your Fl ood Detector at regular intervals (for example once a month). To do this, place the Flood Detector on a damp towel or flannel (NOTE: do not immerse in water). A call will be raised. Tell the staff at the monitoring centre that you are making a test. INSTALLATION INSTRUCTIONS Programming Assign the 312 Flood Detector to the T 4000 unit using the appropriate user or programming guide. The test call described previously will initiate radio transmission. Positioning The 312 Flood Detector must be placed on a flat surface with the Tunstall label uppermost and close to the item being monitored (e.g. bath, washing machine etc) where a flood/leak is likely to occur. NOTICES The 312 Flood Detector has been approved to the following applicable standards. New Zealand and Australia Approvals AS/NZ 4268:2003 N72 Canada RSS210 issue 6 sept 2005 IC 1231A-6460409A This equipment meets the applicable Industry Canada Equipment Technical Specifications. This is confirmed by the registration number. The abbreviation, IC, before the registration number signifies that registration was performed based on a Declarat ion of Conformity indicating that Industry Canada Technical Specifications were met. It does not im ply that Industry Canada approved the equipment. USA - FCC Approvals This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not o ccur in a particular installation. If this equipment does cause harmful interference to radio or television reception, wh ich can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment in to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Flood detector (Part Number 64604/09) FCC ID: G2X-6460409A This Device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interf erence that may cause undesired operation. Warning Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

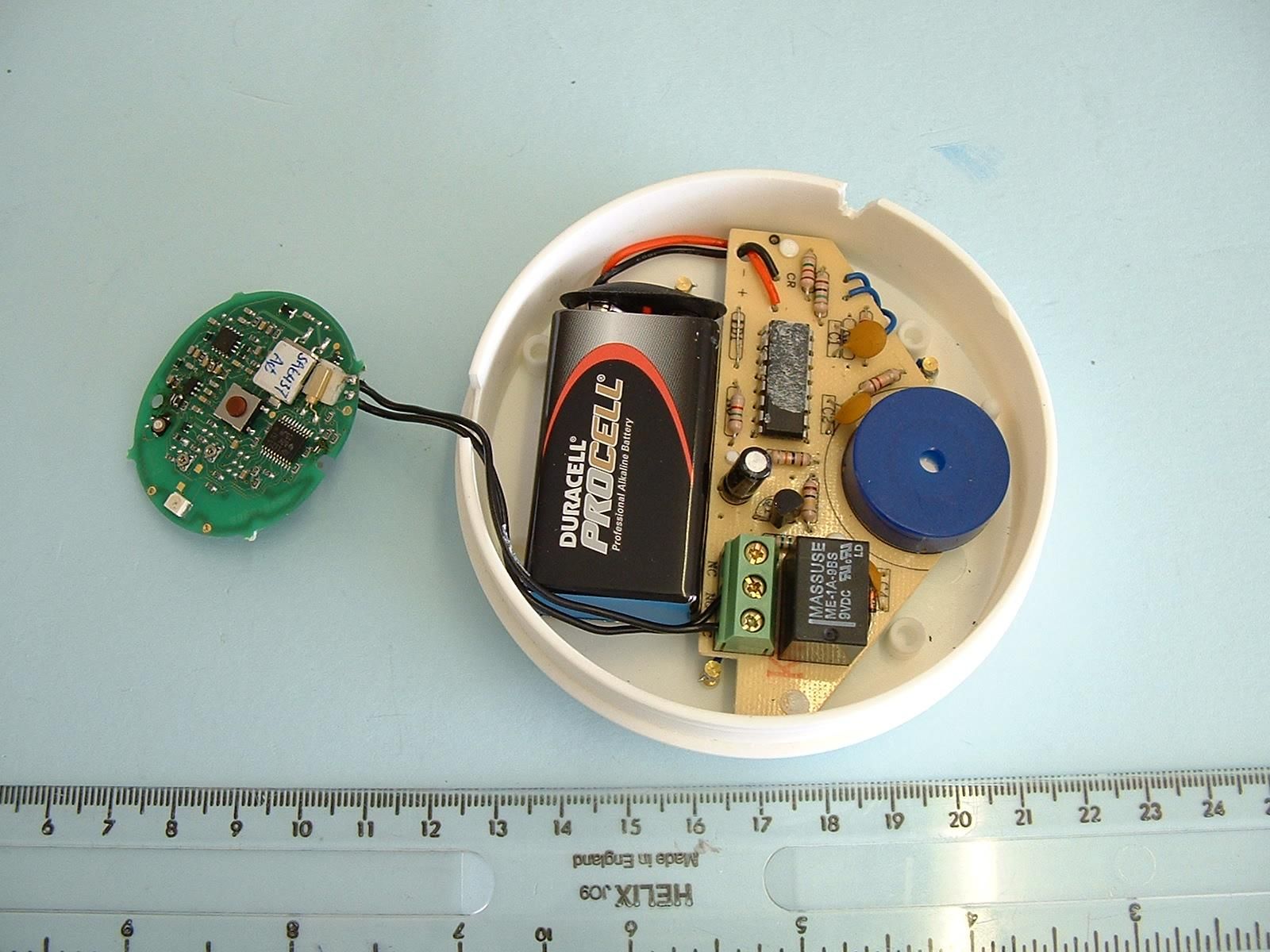

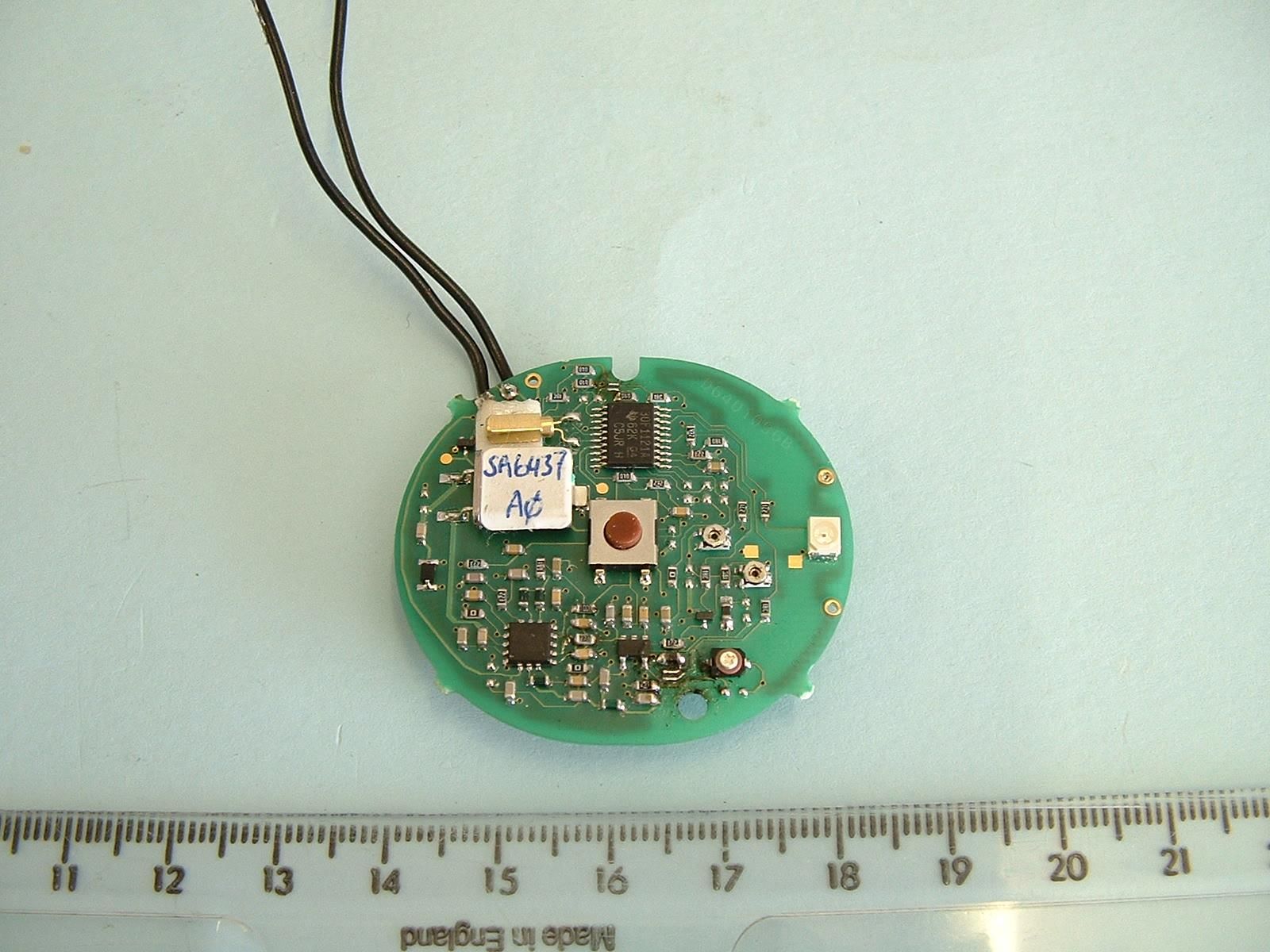

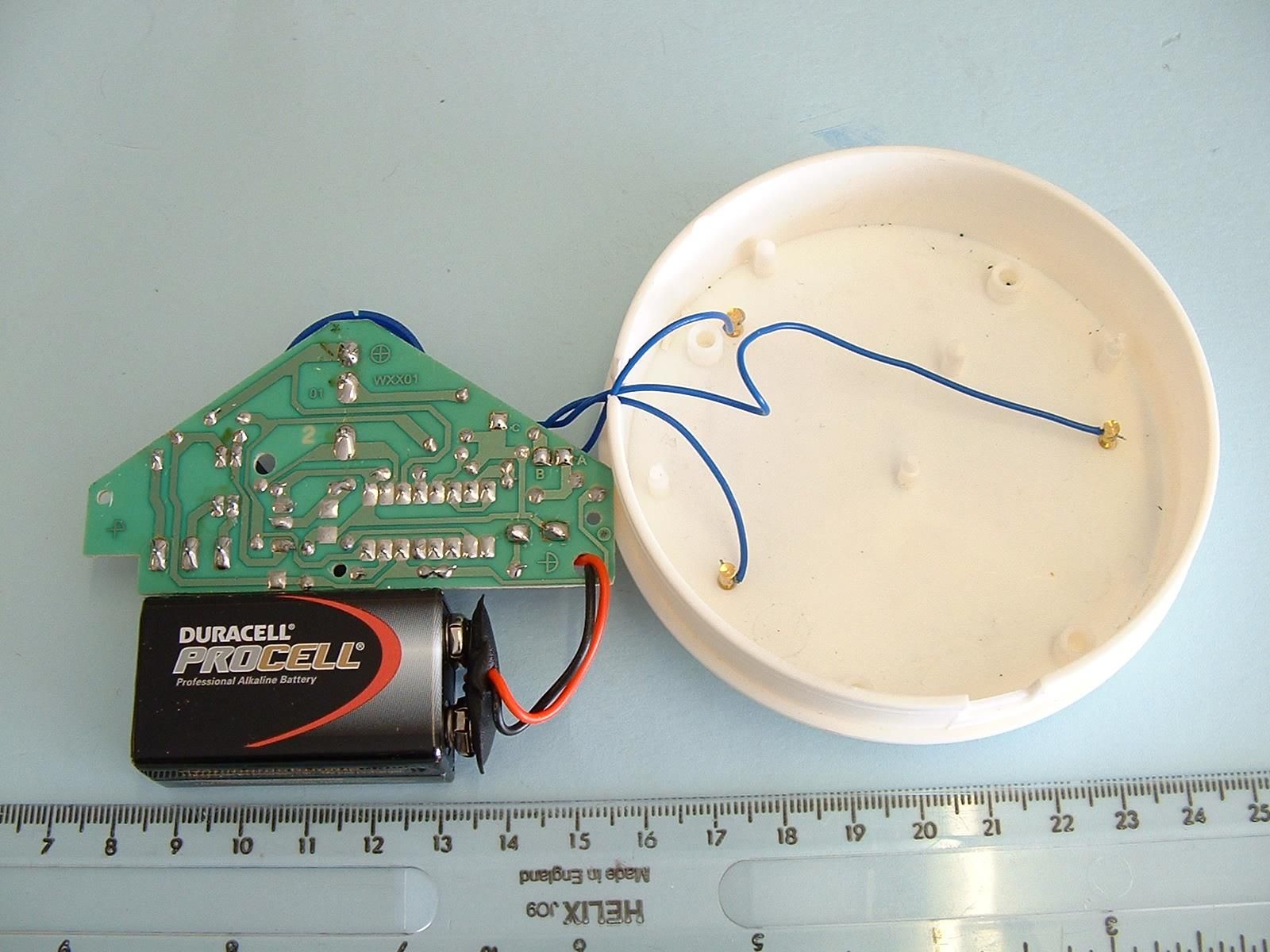

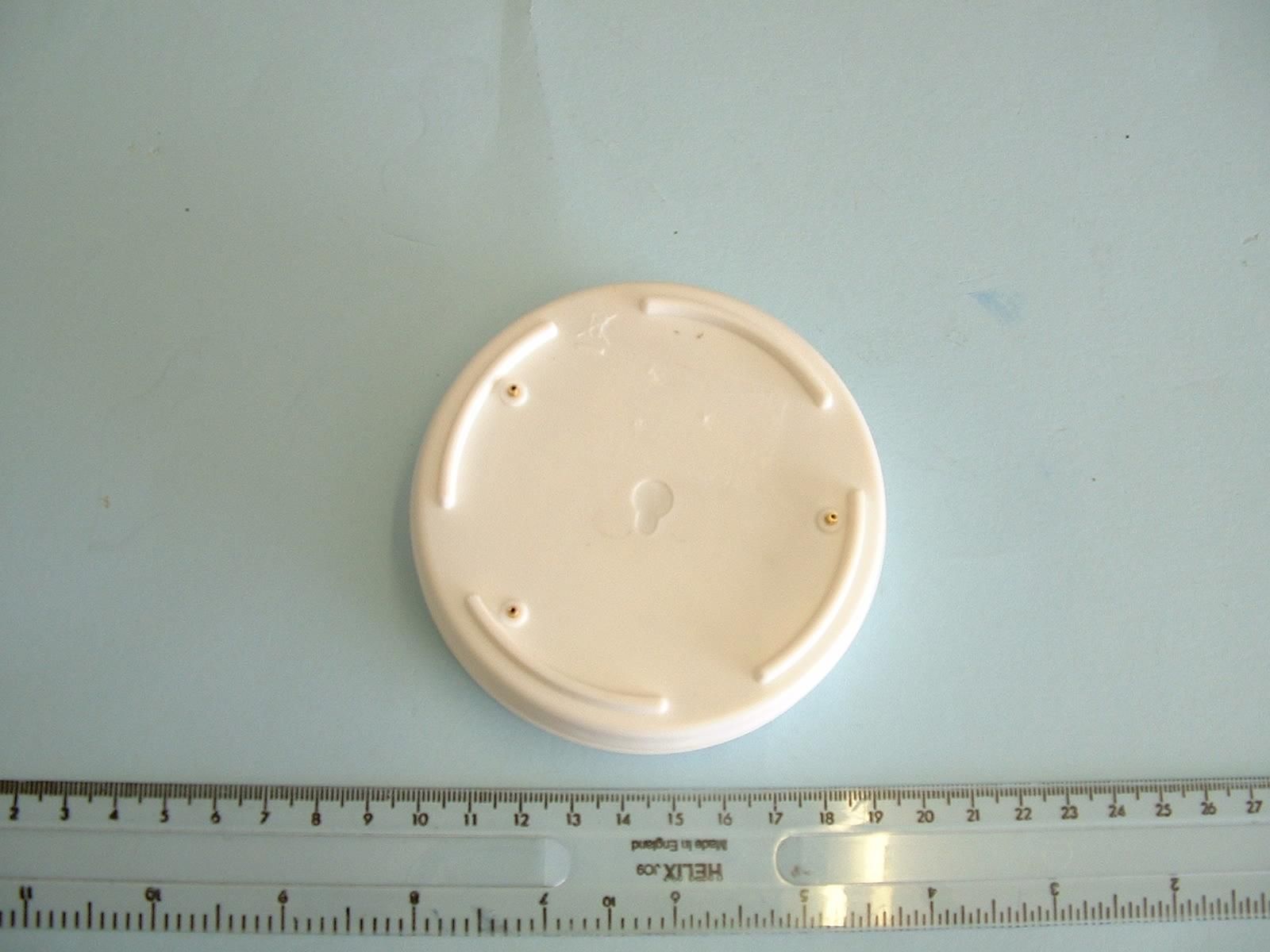

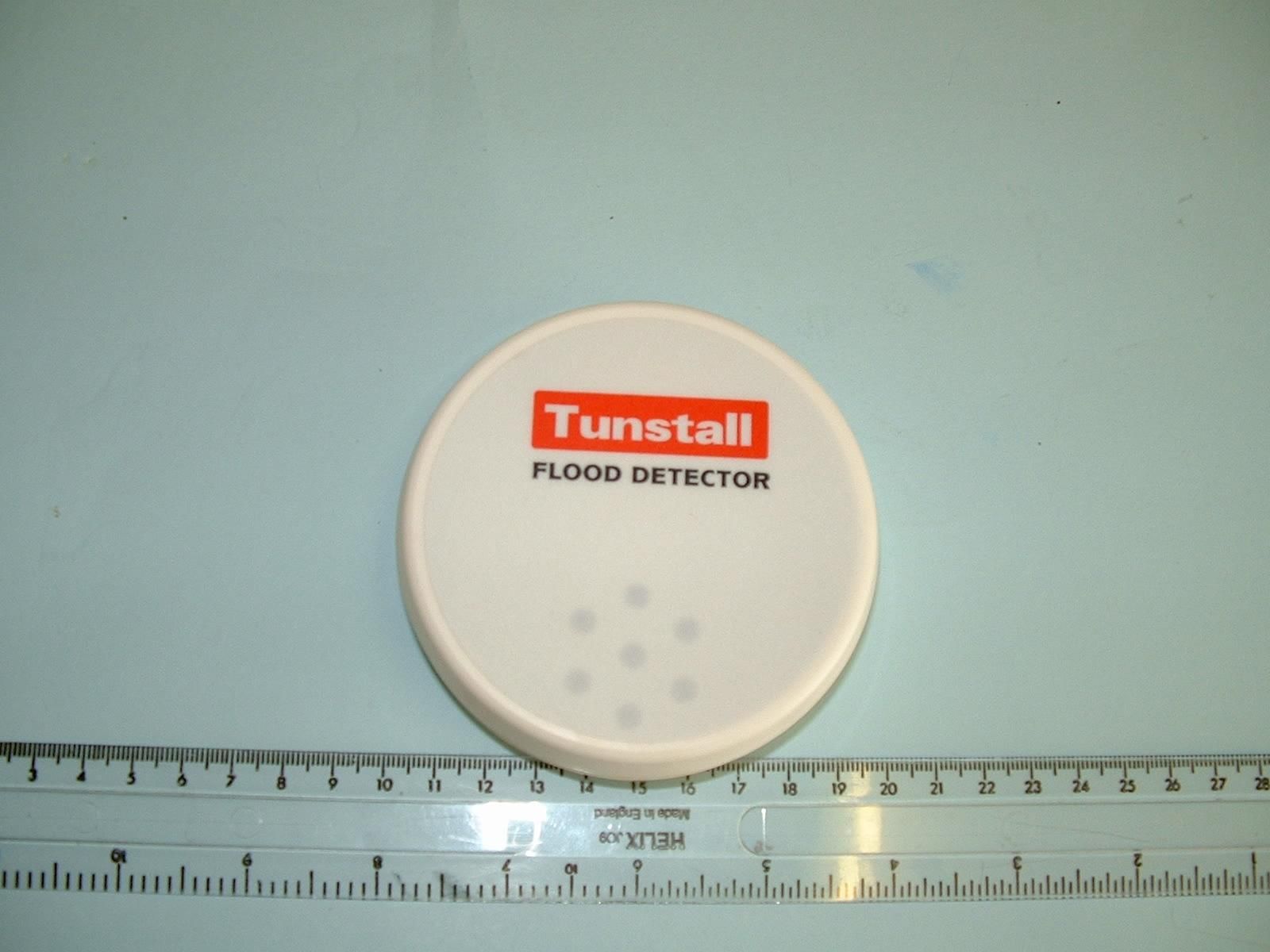

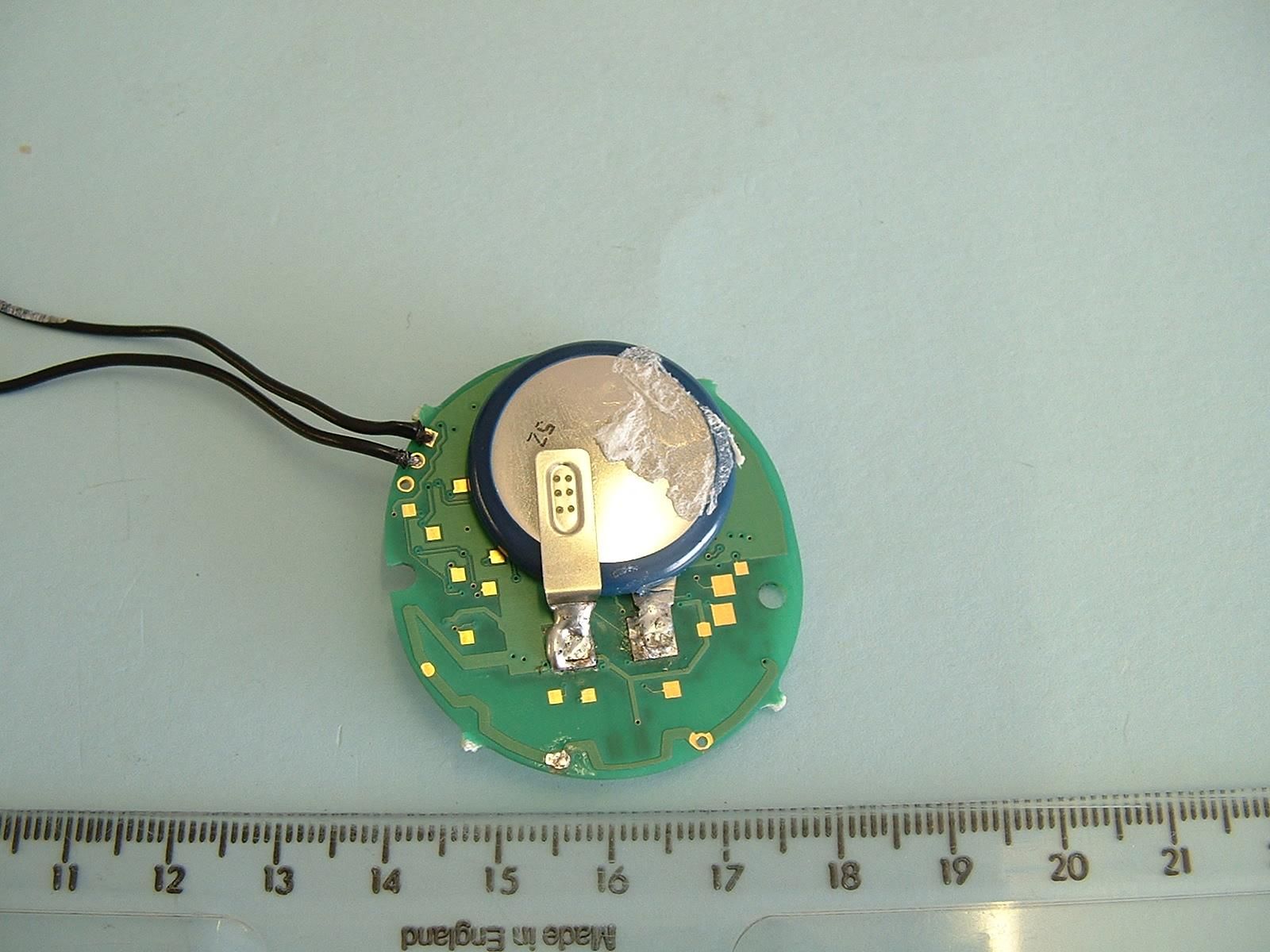

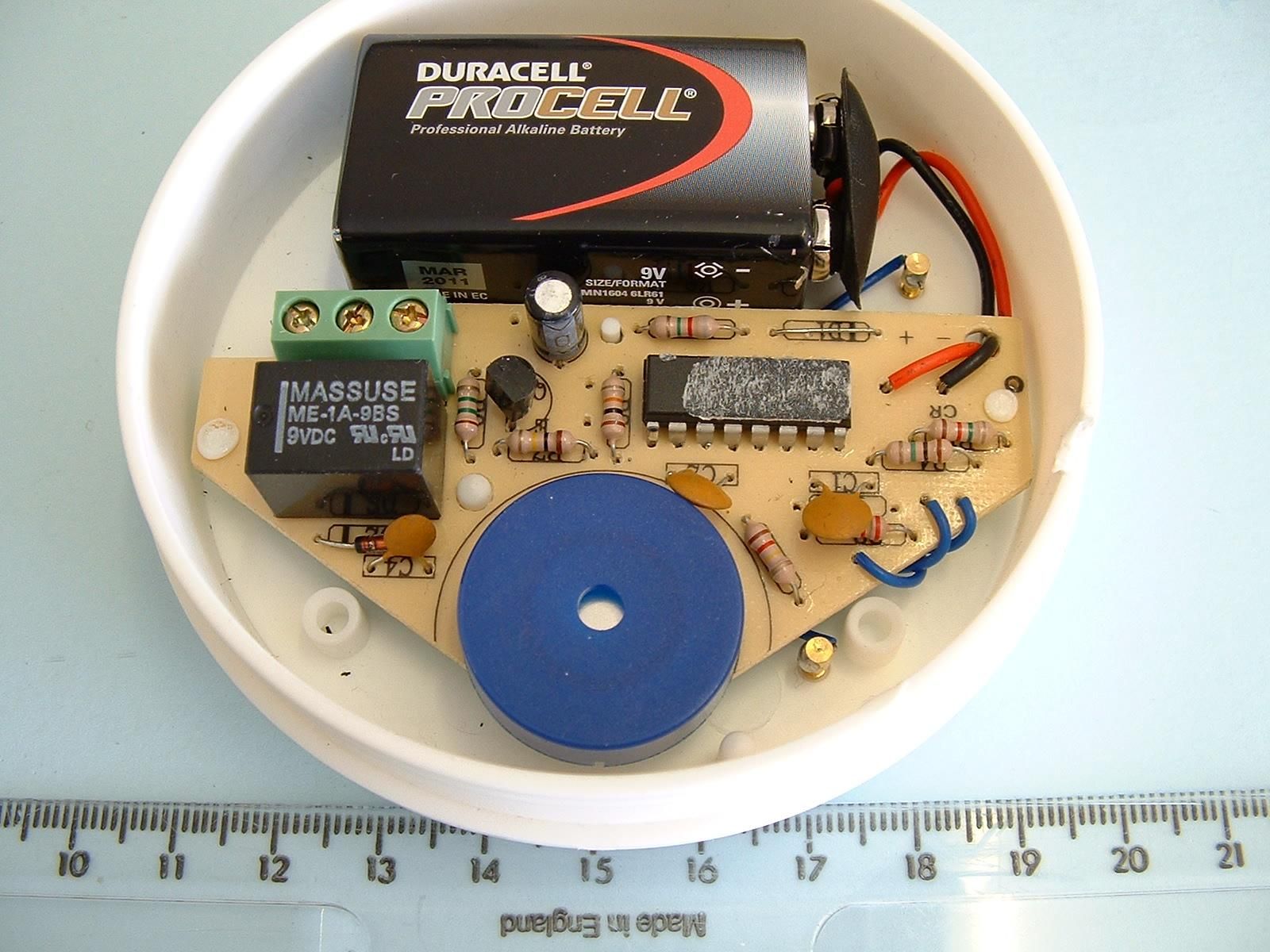

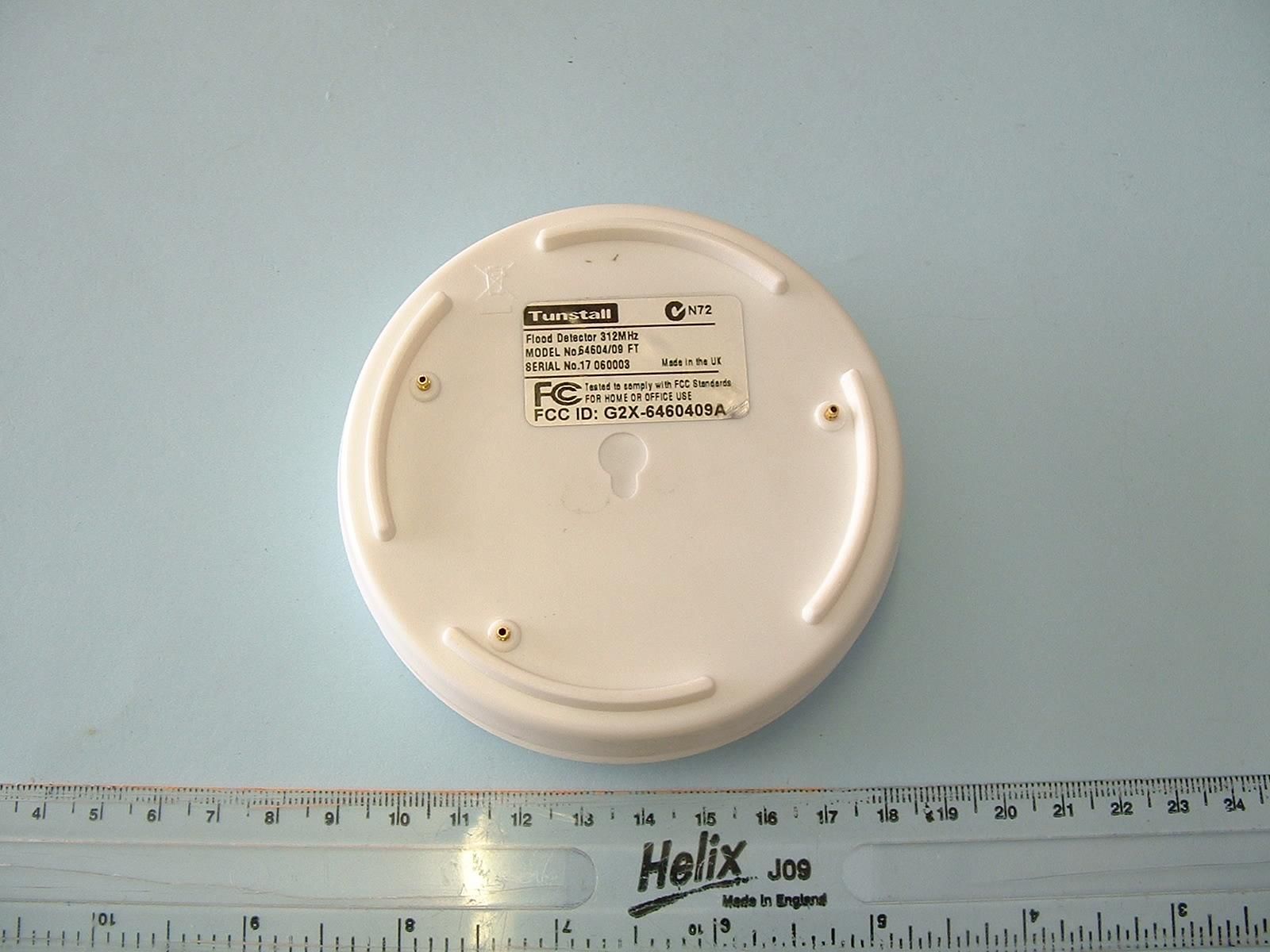

TRL COMPLIANCE LTD M OSS VIEW NIPE LANE UP HOLLAND WEST LANCASHIRE WN8 9PY UNITED KINGDOM T ELEPHONE +44 (0)1695 556666 FAX +44 (0)1695 557077 E-MAIL [email protected] www.trlcompliance.com 0728 TEST REPORT NO: RU1242/7026 COPY NO: 1 ISSUE NO: 1 FCC IDS: G2X-6460409A REPORT ON THE CERTIFICATION TESTING OF A TUNSTALL TELECOM Ltd FLOOD SENSOR WITH RESPECT TO THE FCC RULES CFR 47, PART 15.231 February 2006 INTENTIONAL RADIATOR SPECIFICATION TEST DATE: 19 th – 26 th May 2006 TESTED BY: D WINSTANLEY APPROVED BY: P GREEN EMC PRODUCT MANAGER DATE: 12 th June 2006 Distribution: Copy Nos: 1. Tunstall Telecom Ltd 2. FCC EVALUATION LABORATORIES 3. TRL Compliance Ltd THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE TRL RF335U iss01B RU1242/7026 Page 2 of 27 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6-9 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Top view PHOTOGRAPH No. 3: Bottom view PHOTOGRAPH No. 4: Control PCB & transmitter PCB PHOTOGRAPH No. 5: Control PCB component side PHOTOGRAPH No. 6: RF PCB track side battery removed PHOTOGRAPH No. 7: RF PCB component side APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B BAND OCCUPANCY PLOT C TRANSMITTER TIMING PULSES D EQUIPMENT CALIBRATION E MEASUREMENT UNCERTAINTY F Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. 4. The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. TRL RF335U iss01B RU1242/7026 Page 3 of 27 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: G2X-6460409A PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 15.231 February 2006 TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: Flood Sensor EQUIPMENT SERIAL No: 1706003 ITU: EMISSION CODE: 20k5F1D EQUIPMENT TYPE: Flood Sensor PRODUCT USE: Personal Care Monitoring & Alarm System CARRIER EMISSION: 3273.4 μV/m @ 3m ANTENNA TYPE: Integral ALTERNATIVE ANTENNA: Not Applicable FREQUENCY OF OPERATION: 312 MHz CHANNEL SPACING: Not applicable, wideband NUMBER OF CHANNELS: 1 FREQUENCY GENERATION: SAW Resonator [ ] Crystal [X] Synthesiser [ ] MODULATION METHOD: Amplitude [ ] Digital [X] Angle [ ] POWER SOURCE(s): +3Vdc TEST DATE(s): 19 th – 26 th May 2006 ORDER No(s): 57359 APPLICANT: Tunstall Telecom Ltd ADDRESS: Whitley Lodge Whitley Bridge Yorkshire DN14 0HR TESTED BY: D WINSTANLEY APPROVED BY: P GREEN EMC PRODUCT MANAGER TRL RF335U iss01B RU1242/7026 Page 4 of 27 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): Flood Sensor EQUIPMENT TYPE: Flood Monitoring Sensor SERIAL NUMBER OF EUT: 1706003 PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 15.231 February 2006 TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 57359 APPLICANT’S CONTACT PERSON(s): Mr C Marcus E-mail address: [email protected] APPLICANT: Tunstall Telecom Ltd ADDRESS: Whitley Lodge Whitley Bridge Yorkshire DN14 0HR TEL: +44 (0) 1977 661234 FAX: +44 (0) 1977 662452 EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL Compliance UKAS ACCREDITATION No: 0728 TEST DATE(s): 19 th – 26 th May 2006 TEST REPORT No: RU1242/7026 TRL RF335U iss01B RU1242/7026 Page 5 of 27 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART DETECTOR APPLICABILITY Intentional Emission Frequency: 15.231(b) Quasi Peak Yes Intentional Emission Field Strength: 15.231(b) Quasi Peak Yes Intentional Emission Band Occupancy: 15.231(c) Peak Yes Intentional Emission ERP (mW): - - No Spurious Emissions – Conducted: 15.207 - No Spurious Emissions – Radiated <1000MHz: 15.231(b) 15.209 Quasi Peak Yes Spurious Emissions – Radiated >1000MHz: 15.231(b) 15.209 Peak Average Yes Maximum Frequency of Search: 15.33 - Yes Antenna Arrangements Integral: 15.203 - Yes Antenna Arrangements External Connector: 15.204 - N/A Restricted Bands 15.205 - Yes Extrapolation Factor 15.31(f) - Yes 2. Product Use: Personal Care Monitoring & Alarm System 3. Emission Designator: 20k5F1D 4. Duty Cycle: <100% 5. Transmitter bit or pulse rate and level: 1000bps 6. Temperatures: Ambient (Tnom) 14 o C 7. Supply Voltages: Vnom +3Vdc Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [X] Two channel [ ] 8. Equipment Category: Multi-channel [ ] Narrowband [ ] Wideband [X] 9. Channel spacing: TRL RF335U iss01B RU1242/7026 Page 6 of 27 TRANSMITTER TESTS TRANSMITTER SPURIOUS EMISSIONS – RADIATED – PART 15.209 Ambient temperature = 14 o C(<1GHz) 3m measurements <1GHz [X] Relative humidity = 35% (<1GHz), 0.3m measurements >1GHz [X] Conditions = Open Area Test Site (OATS) 3m extrapolated from 0.3m [X] Supply voltage = +3Vdc Channel number = 1 FREQ (MHz) MEAS Rx (dBμV) CABLE LOSS (dB) ANT FACT FIELD STRENGTH (dBμV/m) EXTRAP FACTOR (dB) FIELD STRENGTH (μV/m) Limit (μV/m) 30MHz - 88MHz 88MHz - 216MHz 216MHz - 960MHz 960MHz - 1GHz 1GHz - 5GHz 1248.006 1560.080 1872.010 2184.016 2496.010(r) 22.96 29.36 21.55 21.69 26.93 0.30 0.30 0.31 0.39 0.53 24.3 25.5 26.0 27.8 28.0 47.56 55.16 47.86 49.88 55.46 20 20 20 20 20 23.8 57.3 24.7 31.2 59.3 592 592 592 592 500 1.705MHz to 30MHz 30μV/m @ 30m 30MHz to 88MHz 100μV/m @ 3m 88MHz to 216MHz 150μV/m @ 3m 216MHz to 960MHz 200μV/m @ 3m 960MHz to 1GHz 500μV/m @ 3m Limits 1GHz to 5GHz 500μV/m @ 3m Notes: 1 Results quoted are extrapolated as indicated. 2 Emissions were searched to: (x) 1000MHz inclusive, as per Part 15.33a. 3 Extrapolation factor 20dB from 0.3m to 3m, as per Part 15.31f. 4 Measurements >1GHz @ 0.3m as per Part 15.31f(1). 5 Receiver detector <1GHz = CISPR, Quasi-Peak, 120kHz bandwidth. 6 Receiver detector >1GHz = Peak Ho…

Text truncated - open the document above for the full version.

TRL RF335U iss01B RU1242/7026 Page 11 of 27 PHOTOGRAPH No. 1 TEST SETUP
