G2X6460402Radio Pull Cord type 64604/02

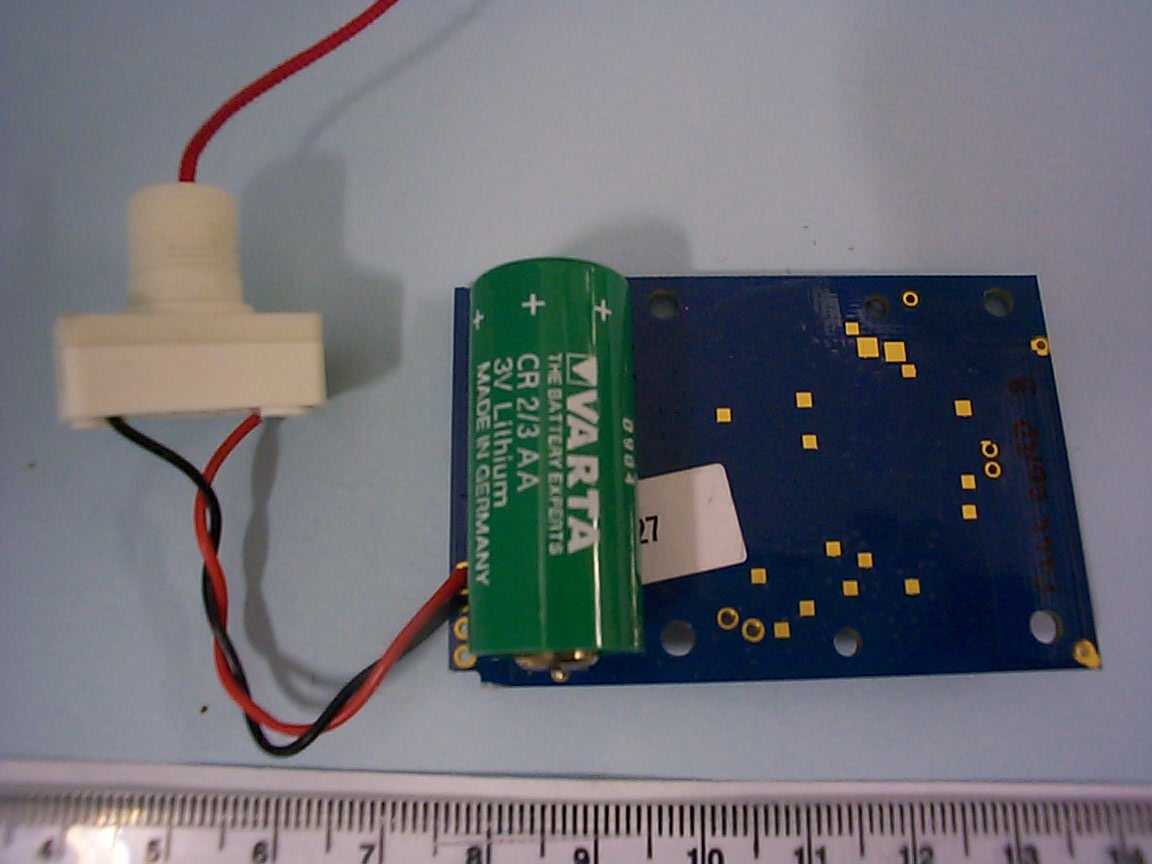

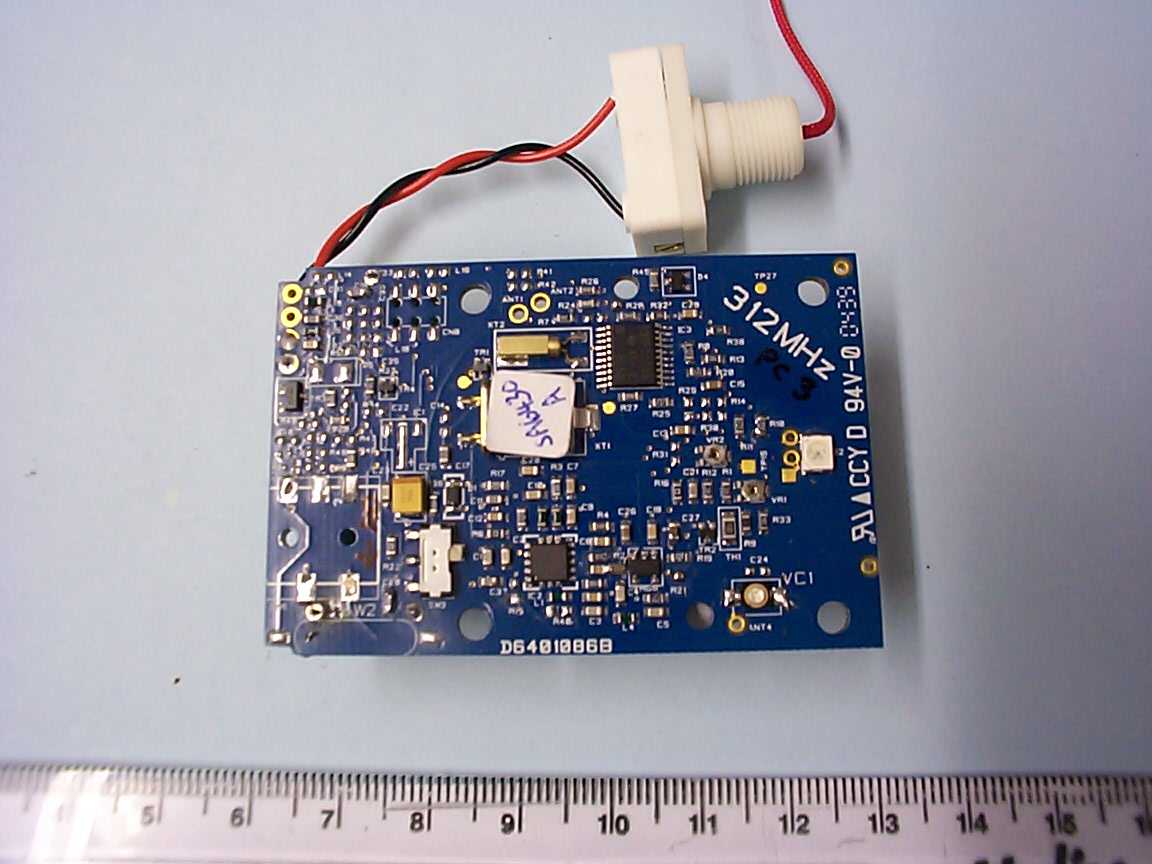

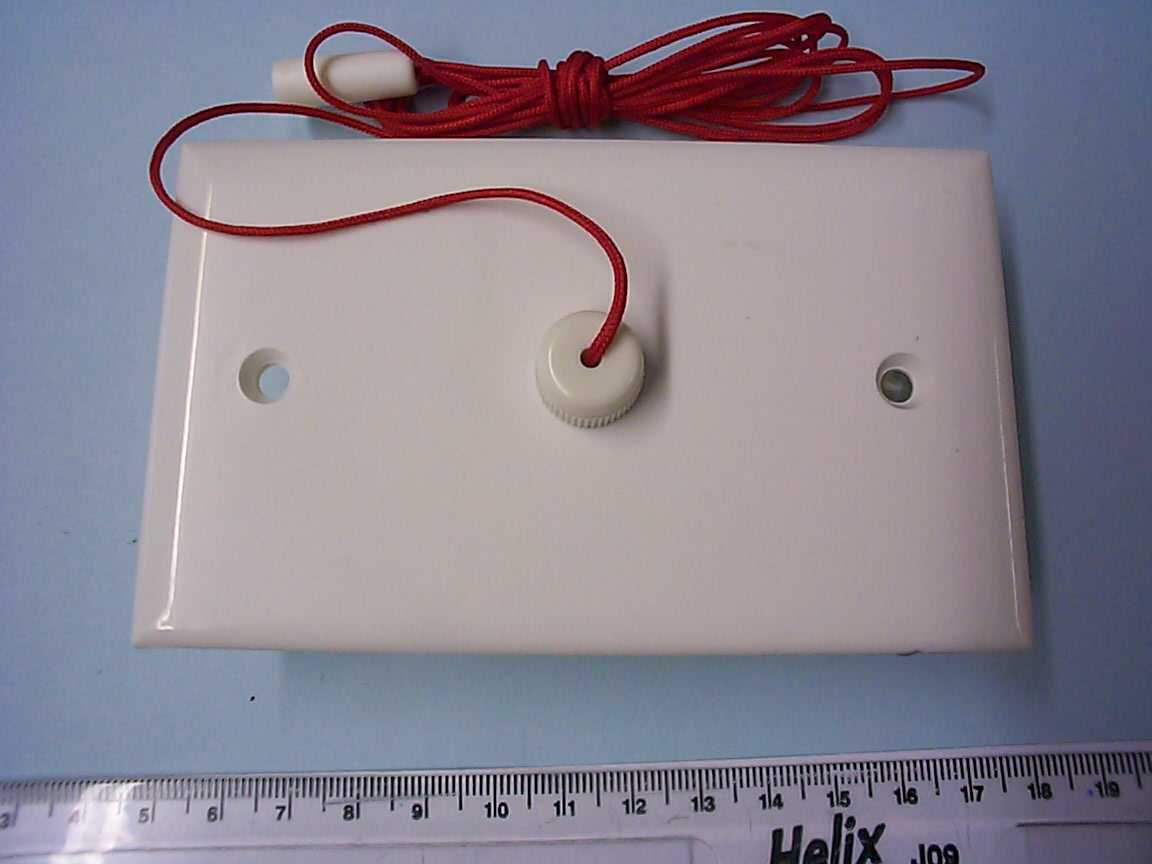

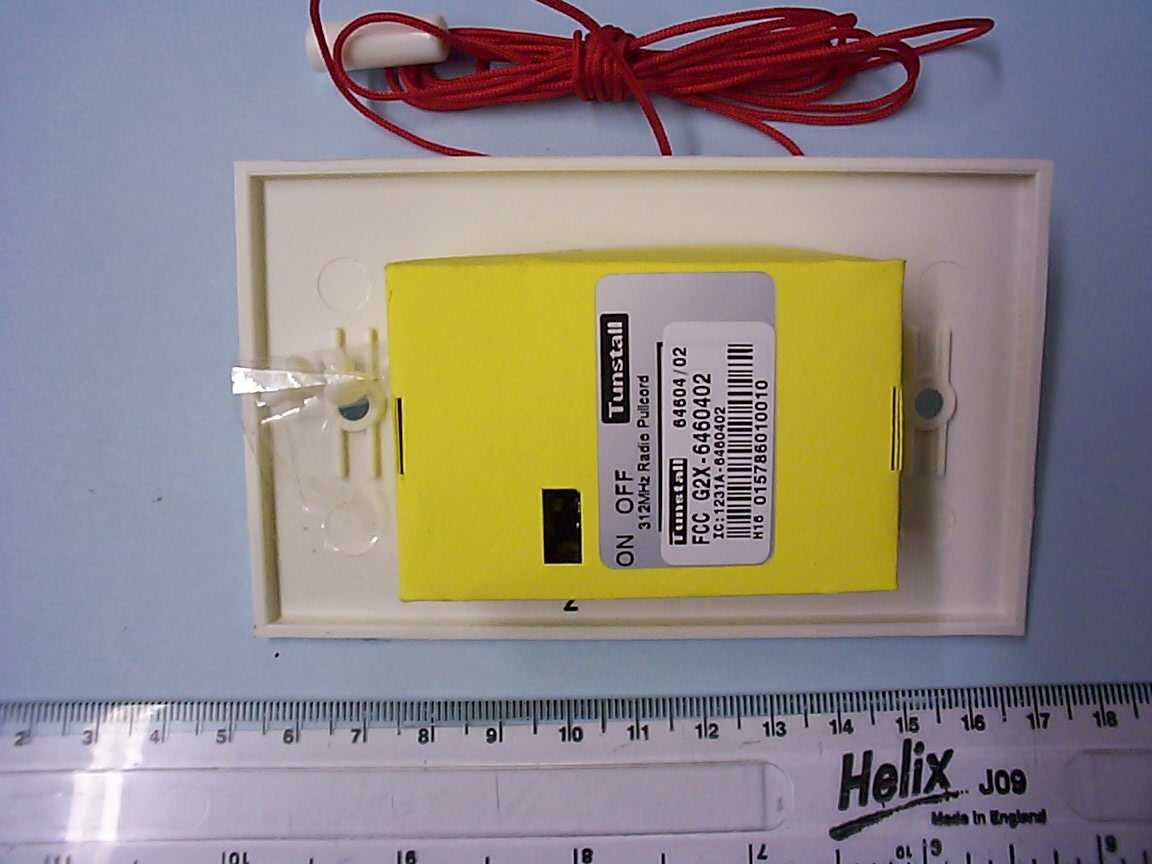

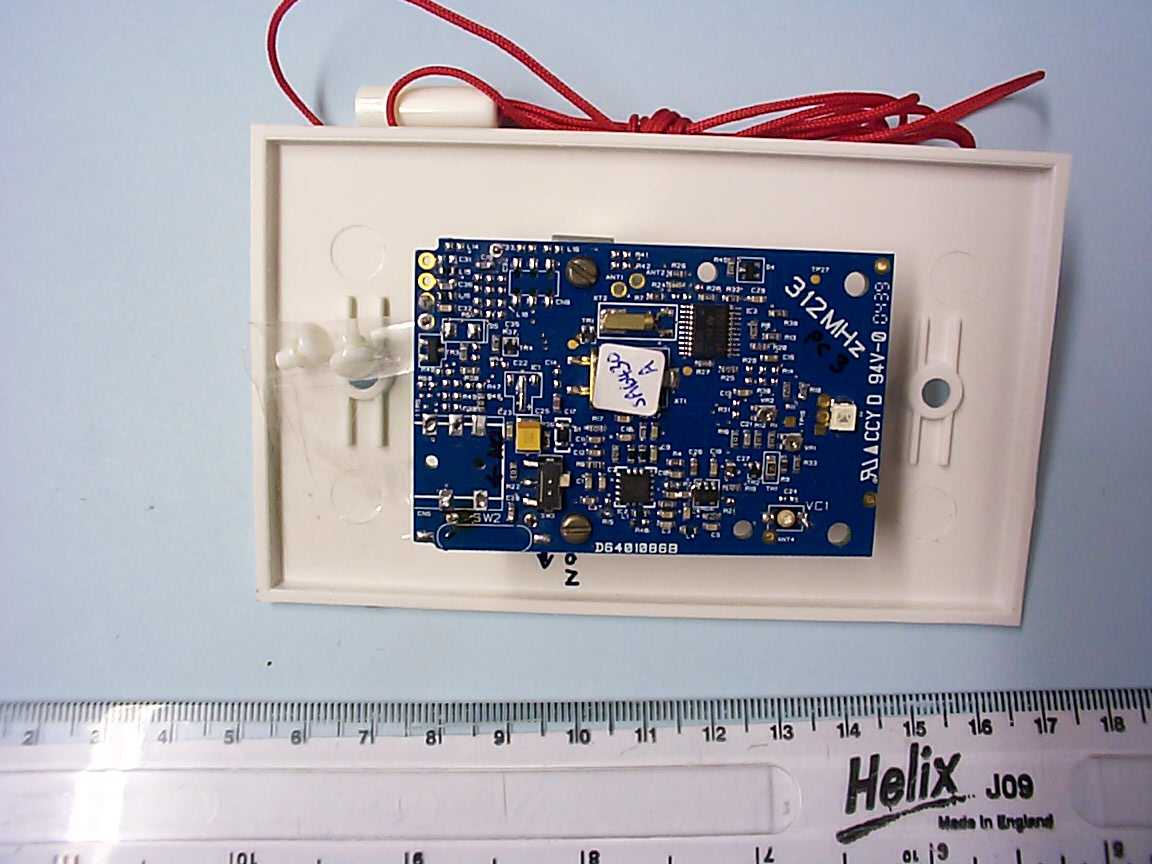

TRL C OMPLIANCE S ERVICES L TD EMC D IVISION M OSS V IEW N IPE L ANE U P H OLLAND W EST L ANCASHIRE WN8 9PY U NITED K INGDOM T ELEPHONE +44 (0)1695 556666 F AX +44 (0)1695 557077 E- MAIL [email protected] www.trlcompliance.com 0728 FS 21805 TEST REPORT NO: RU1140/5827 COPY NO: 2 ISSUE NO: 1 FCC ID: G2X-6460402 REPORT ON THE CERTIFICATION TESTING OF A TUNSTALL ELECTRONICS LIMITED RADIO PULLCORD WITH RESPECT TO THE FCC RULES CFR 47, PART 15.231 INTENTIONAL RADIATOR SPECIFICATION TEST DATE: 11 th October 2004 – 12 th October 2004 TESTED BY: D WINSTANLEY APPROVED BY: P GREEN EMC PRODUCT MANAGER DATE: 15/11/04 Distribution: Copy Nos: 1. TUNSTALL ELECTRONICS LIMITED 2. FCC EVALUATION LABORATORIES 3. TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF335U iss03 RU1140/5827 Page 2 of 25 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS 6-9 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Transmitter front view PHOTOGRAPH No. 3: Transmitter rear view with cover PHOTOGRAPH No. 4: Transmitter rear view without cover PHOTOGRAPH No. 5: Transmitter PCB track side PHOTOGRAPH No. 6: Transmitter PCB component side APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B BAND OCCUPANCY PLOT(s) C TRANSMITTER ON TIME D Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. 4. The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. RF335U iss03 RU1140/5827 Page 3 of 25 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: G2X-6460402 PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 15.231 TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: Radio Pullcord EQUIPMENT SERIAL No: Engineering Sample ITU EMISSION CODE: 344kF1D PRODUCT USE: Nurse/help call CARRIER EMISSION: 3715.4 μV/m @ 3m ANTENNA TYPE: Integral ALTERNATIVE ANTENNA: Not applicable CHANNEL SPACING: Wideband NUMBER OF CHANNELS: 1 FREQUENCY GENERATION: SAW Resonator [ ] Crystal [ ] Synthesiser [X] MODULATION METHOD: Amplitude [ ] Digital [X] Angle [ ] POWER SOURCE(s): 3Vdc TEST DATE(s): 11 th October 2004 – 12 th October 2004 ORDER No(s): 258234 APPLICANT: Tunstall Electronics Limited ADDRESS: Whitley Lodge Whitley Bridge Yorkshire DN14 0HR TESTED BY: D WINSTANLEY APPROVED BY: P GREEN EMC PRODUCT MANAGER RF335U iss03 RU1140/5827 Page 4 of 25 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): Radio Pullcord SERIAL NUMBER OF EUT: Engineering Sample PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 15.231 TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 258234 APPLICANT’S CONTACT PERSON(s): Mr R Cooper E-mail address: [email protected] APPLICANT: Tunstall Electronics Limited ADDRESS: Whitley Lodge Whitley Bridge Yorkshire DN14 0HR TEL: +44 (0) 1977 661234 FAX: +44 (0) 1977 662452 MANUFACTURER: Tunstall Electronics Limited EUT(s) COUNTRY OF ORIGIN: United Kingdom TEST LABORATORY: TRL EMC UKAS ACCREDITATION No: 0728 TEST DATE(s) 11 th October 2004 – 12 th October 2004 TEST REPORT No: RU1140/5827 RF335U iss03 RU1140/5827 Page 5 of 25 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART DETECTOR APPLICABILITY Intentional Emission Frequency: 15.231(b) Quasi Peak Yes Intentional Emission Field Strength: 15.231(b) Quasi Peak Yes Intentional Emission Band Occupancy: 15.231(c) Peak Yes Intentional Emission ERP (mW): - - No Spurious Emissions – Conducted: 15.207 - No Spurious Emissions – Radiated <1000MHz: 15.231(b) 15.209 Quasi Peak Yes Spurious Emissions – Radiated >1000MHz: 15.231(b) 15.209 Quasi Peak Average Yes Maximum Frequency of Search: 15.33 - Yes Antenna Arrangements Integral: 15.203 - Yes Antenna Arrangements External Connector: 15.204 - N/A Restricted Bands 15.205 - Yes Extrapolation Factor 15.31(f) - N/A 2. Product Use: Nurse/help call 3. Emission Designator: 344kF1D 4. Duty Cycle: < 1% 5. Transmitter bit or pulse rate and level: 1000 bps 6. Temperatures: Ambient (Tnom) 14 o C 7. Supply Voltages: Vnom +3Vdc Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [X] Two channel [ ] 8. Equipment Category: Multi-channel [ ] Narrowband [ ] Wideband [X] 9. Channel spacing: RF335U iss03 RU1140/5827 Page 6 of 25 TRANSMITTER TESTS TRANSMITTER SPURIOUS EMISSIONS – RADIATED – PART 15.321(b) & 15.209 Ambient temperature = 14 o C(<1GHz) 3m measurements <1GHz [X] Relative humidity = 49% (<1GHz), 0.3m measurements >1GHz [X] Conditions = Open Area Test Site (OATS) 3m extrapolated from 0.3m [X] Supply voltage = +3Vdc Channel number = 1 Frequency Bands (MHz) FREQ. (MHz) MEAS. Rx. (dBμV) CABLE LOSS (dB) ANT FACT. FIELD STRENGTH (dBμV/m) EXTRAP. FACTOR (dB) FIELD STRENGTH (μV/m) Limit (μV/m) 30 - 88 88 - 216 216 - 960 624.0 936.0 29.9 24.85 3.0 4.0 20.5 24.95 53.4 53.8 - - 467.74 489.78 592 592 960 - 1000 1000 - 5000 1248 1560(R) 1872 2183 2496(R) 2808(R) 3120 41.1 42.42 40.23 41.26 27.01 27.38 24.24 0.83 0.89 0.87 0.93 1.01 0.97 1.08 25.3 25.8 26.9 28.2 28.7 29.6 30.9 67.23 69.11 68.00 70.39 56.72 57.95 56.22 20 20 20 20 20 20 20 229.88 285.43 251.19 330.75 68.55 78.98 64.71 592 500 592 592 500 500 592 1.705MHz to 30MHz 30μV/m @ 30m 30MHz to 88MHz 100μV/m @ 3m 88MHz to 216MHz 150μV/m @ 3m 216MHz to 960MHz 200μV/m @ 3m 960MHz to 1GHz 500μV/m @ 3m Limits 1GHz to 5GHz 500μV/m @ 3m Notes: 1 Results quoted are extrapolated as indicated 2 Emissions were searched to: (x) 1000MHz inclusive, as per Part 15.33a 3 Extrapolation factor 20dB from 0.3m to 3m, as per Part 15.31f 4 Measurements >1GHz @ 0.3m as per Part 15.31f(1) 5 Receiver detector >1GHz = CISPR, Quasi-Peak, 1…

Text truncated - open the document above for the full version.

RF335U iss03RU1140/5827Page 11 of 25 PHOTOGRAPH No. 1TEST SETUP
