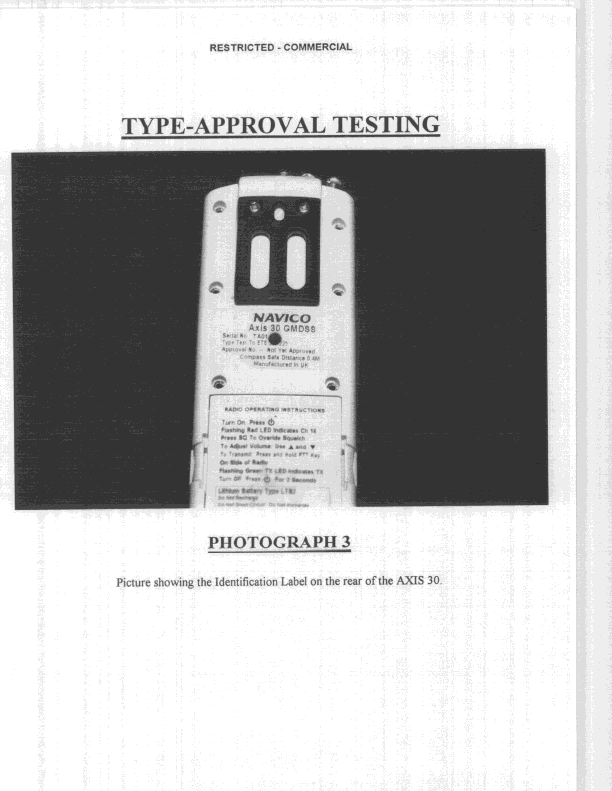

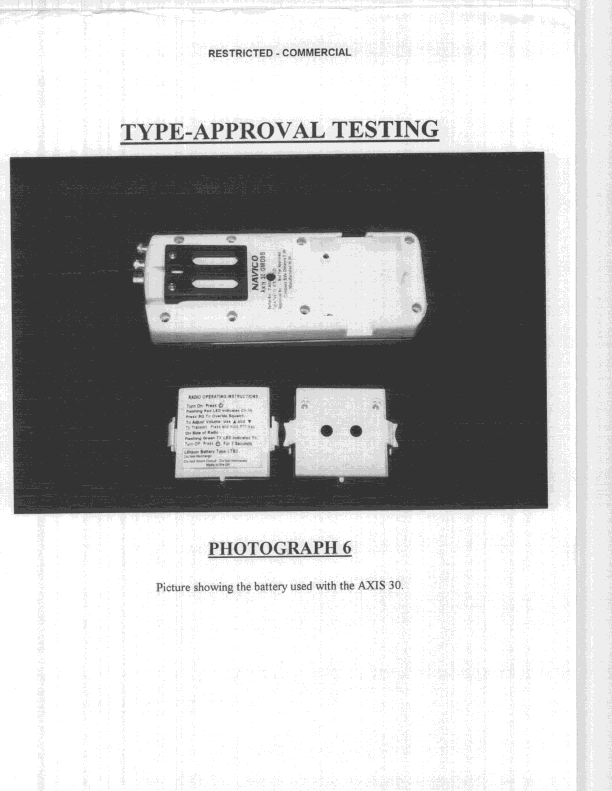

Test Report: AX30 Additional tests were carried out on a sample AX30 to Code of Federal Regulations Book 47 part 2 paragraph 989(c)(1) and 995(a)(2) and (b) The results are shown below. Paragraph 2.989 Occupied Bandwidth. Method: The sample radio was connected to an AF source and modulation meter. The AF frequency was set to 2500Hz and the modulation level set to 50% of the maximum level (2.5kHz). The level was increased by 16dB and the AF frequency was varied to search for the maximum deviation. The Spectrum was then displayed on a spectrum analyser and the results plotted. Test Equipment: AF sourceRohde & Schwarz CMT18/8/98 Modulation MeterRohde & Schwarz CMT18/8/98 Spectrum AnalyserRohde & Schwarz FSAS6/10/98 Results: -70 -60 -50 -40 -30 -20 -10 0 10 20 30 156.58156.6156.62156.64156.66156.68156.7156.72 Level dBmLimit The Occupied Bandwidth meets the requirements of Part 80.211(f). Paragraph 2.995 Frequency Stability Method: The sample radio was placed in an environmental chamber and left over night at - 20°C to stabilise the temperature. The frequency was measured at 10°C intervals, allowing 10 minutes to change temperature and 30 minutes for the unit under test to stabilise. Test Equipment VoltageIso Tech IDM68 TemperatureFluke 52 Digital Thermometer28/7/98 FrequencyRohde & Schwarz CMT18/8/98 Test Results: Temp CFrequency MHz Offset Hzppm -20 156.799500-500-3.19 -10 156.8002202201.40 0 156.8002202201.40 10 156.800010100.06 20 156.799750-250-1.59 30 156.799340-660-4.21 40 156.798980-1020-6.51 50 156.798740-1260-8.04 60 156.798650-1350-8.61 Frequency error -15 -10 -5 0 5 10 15 -20-10 0 102030405060 Ax30 error - ppm The Transmitter frequency tolerance meets the requirements of Part 80.209(a)
