H2WCASA4TCeiling Fan/Light Remote Control

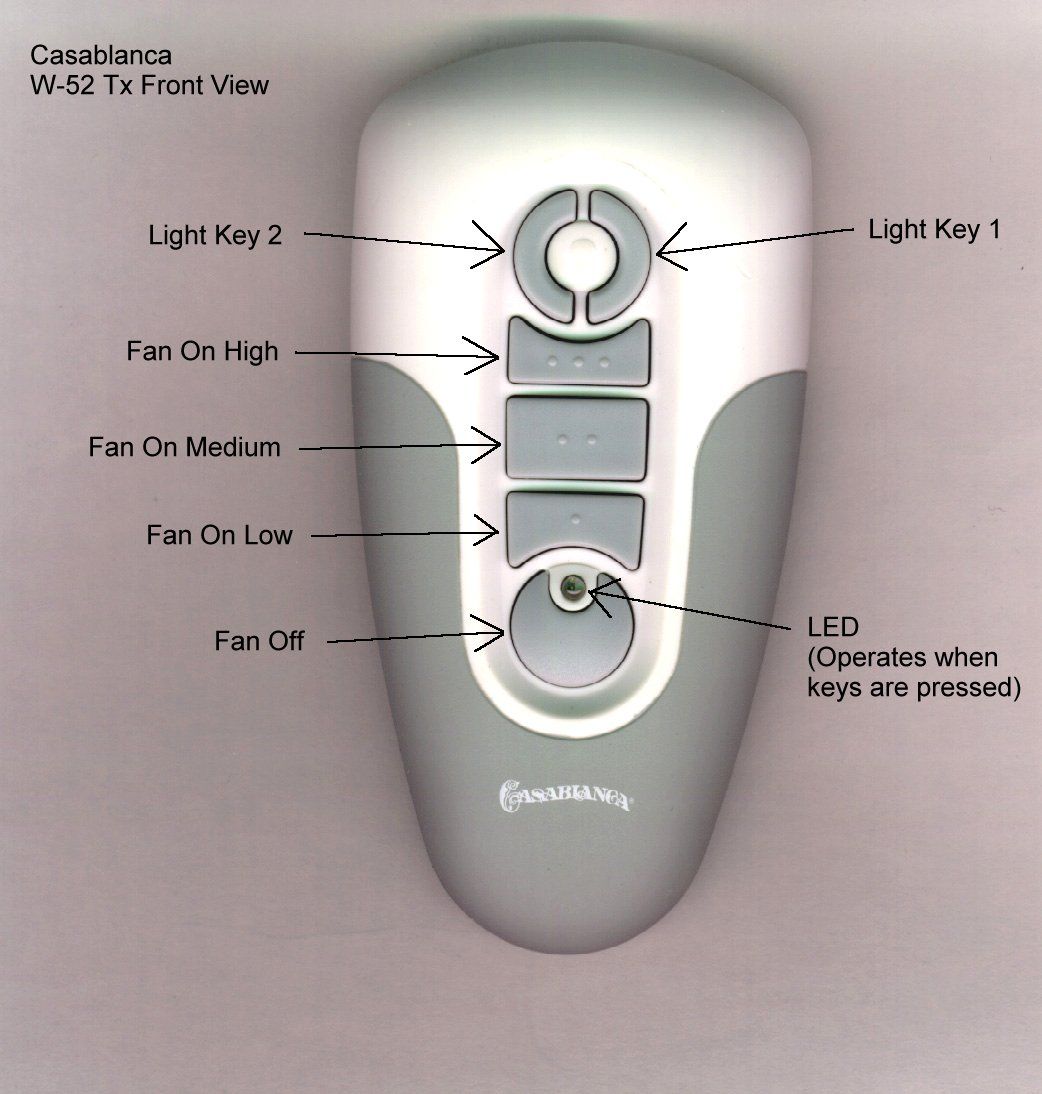

1 ADAPT•TOUCH™ ADAPT•TOUCH™ Remote Fan & Light Control Model W-52 Ratings: 120 VAC, 60 Hz, 1.0 Amp Fan 300 Watts incandescent light Receiver Weight: 6 oz. READ AND SAVE THESE INSTRUCTIONS CAUTION: RISK OF ELECTRICAL SHOCK! All wiring must be performed in accordance with national and local electrical codes. If you are unfamiliar with the wiring codes, you should use a qualified electrician. To avoid overheating and possible damage to other equip- ment, do not install control to a receptacle, fluorescent light fixture, motor operated appliance, or transformer- supplied appliance. Use only to control one paddle-blade ceiling fan and attached incandescent light fixture. NOTES: 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interfer- ence that may cause undesired operation. 2. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. 3. For use only with Casablanca 3-Speed ceiling fans that use the Hang•Tru® canopy mounting system. Not for use with other brands of ceiling fans. 4. Medium and Low fan speeds are determined by the Adapt•Touch™ control and thus may vary from the factory settings due to normal motor variations. BEFORE INSTALLING THE ADAPT•TOUCH™ CONTROL Step 1. Use the pull-chain switch to set the fan speed to the HIGH position before installation. Do not use the pull-chain to change the fan speed after installation, as damage to your ceiling fan or Adapt•Touch™ control may result. The speed of the fan should only be changed by the Adapt•Touch™ control. Step 2. Set the ceiling fan light kit to the ON position before installation. The light level should only be changed by the Adapt•Touch™ control. P/N: 8943170 P/D: DEC99PDG 2 Step 3. Disconnect power to the ceiling fan and light kit at the main electric panel. Remove fuse or move circuit breaker to the OFF position. Step 4. IMPORTANT! Before installing this control, change the factory default dip switch settings to your own unique code. Be sure the dip switch positions of the transmitter and receiver match, or the ceiling fan will not function. Select different combinations of dip switches to prevent misoperation due to other remote control fans, garage door openers, etc. Step 5a. If you are installing the remote control with a new fan installation, complete the fan installation according to its instructions, up to the point of installing the Hang•Tru® canopy. Step 5b. If the fan is already installed, reverse the installa- tion procedure to remove the ceiling fan and Hang•Tru® canopy from the Crossbar Mounting Bracket. CONNECTING RECEIVER AND HOUSE WIRING Step 6. Use the 2 large wire nuts supplied to connect the black and white wires on the top of the receiver to the house wiring. Place each of the bare ends of wire next to each other, then secure with a large wire nut. Test the connection by pulling on the wire nut. (FIG. 2) • The BLACK receiver wire connects to the BLACK HOT wire in the ceiling outlet box. • The WHITE receiver wire connects to the WHITE NEU- TRAL wire in the ceiling outlet box. Step 7. Push the wire nuts through the center opening in the Crossbar Mounting Bracket, so they will not interfere with the canopy and receiver installation. Route the house ground wire and the Crossbar Mounting Bracket ground wire through the hole in the center of the receiver. (FIG. 3) INSTALLING RECEIVER IN THE CANOPY Step 8. Place the Adapt•Touch TM receiver in the Hang•Tru® canopy with the receiver open side facing the canopy opening. The receiver will align itself on the screw openings in the bottom of the canopy. Step 9. Refer to the “Canopy Installation” section of the ceiling fan manual for directions on installing the canopy screws and lock washers. (FIG. 4) Step 10. Refer to the “Hanging the Fan” section of the ceiling fan manual for directions on hanging the fan inside the canopy. Note that the Blue wire of the fan should NOT be capped, as the Adapt•Touch TM will use this wire for light control. NOTE: Do not allow wires to be pinched between the edge of the Crossbar Mounting Bracket and Receiver. RECEIVER INSTALLATION PREPARATION TIP: When aligning the canopy to the bracket, install the canopy screw through the canopy open- ing first. Install the other three canopy screws. Then remove the canopy screw for use in Step 14. RECEIVERTRANSMITTER (BACK SIDE, BATTERY HATCH REMOVED) CANOPY OPENING GREEN GROUND WIRES WHITE WIRE BLUE WIRE BLACK WIRE ANTENNA GREEN GROUND WIRES WHITE WIRE BLUE WIRE BLACK WIRE ANTENNA 3 ADAPT•TOUCH™ ANTENNA INSTALLED IN DOWNROD CONNECTING RECEIVER AND FAN WIRING Step 12. Use a large wire nut to connect the house ground to the Mounting Bracket ground wire and ceiling fan ground wire. Use the 3 small wire nuts supplied to connect the 3 receiver wires to the 3 fan wires. Each wire is color coded to match the fan. Place each of the bare ends…

Text truncated - open the document above for the full version.

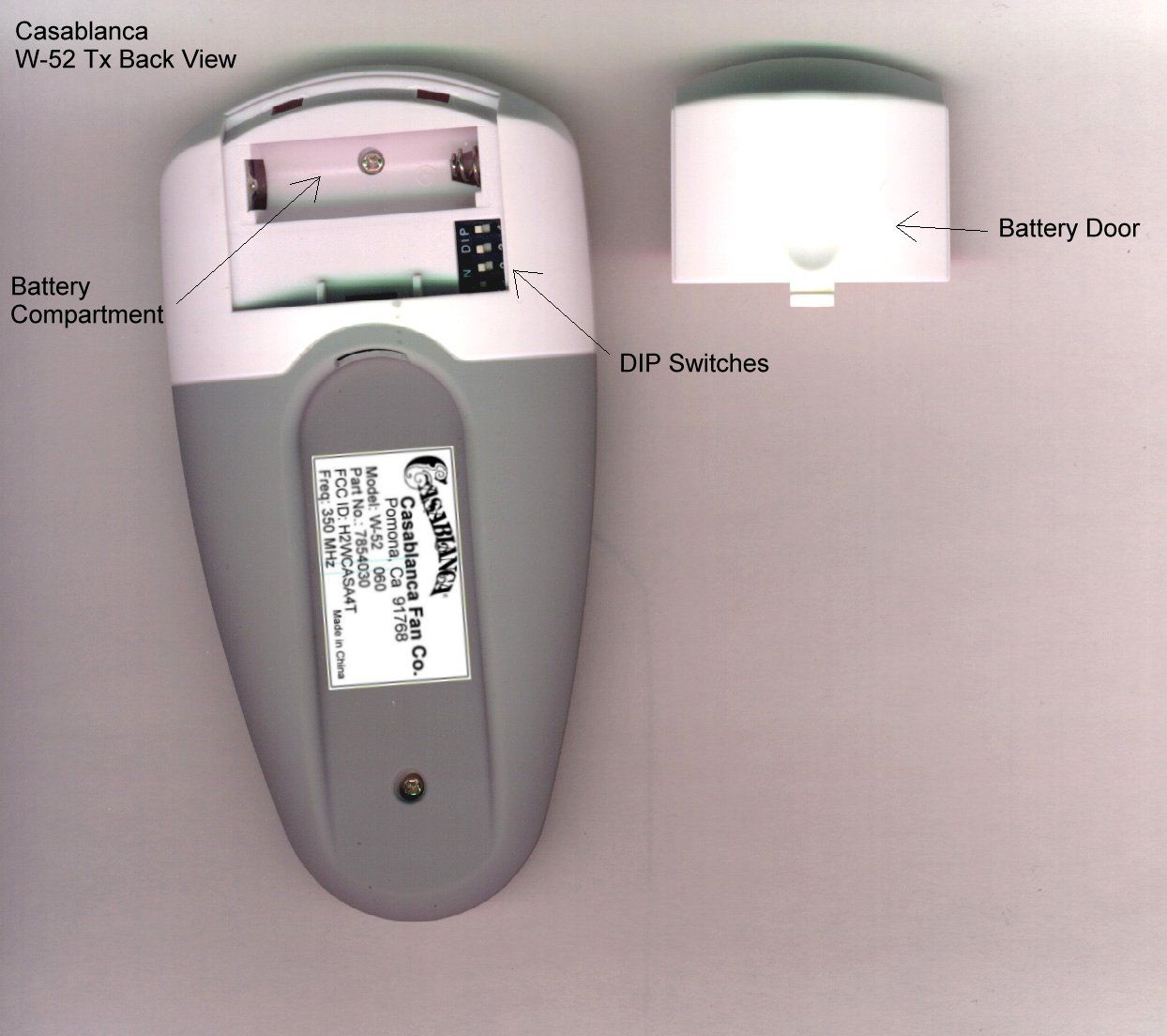

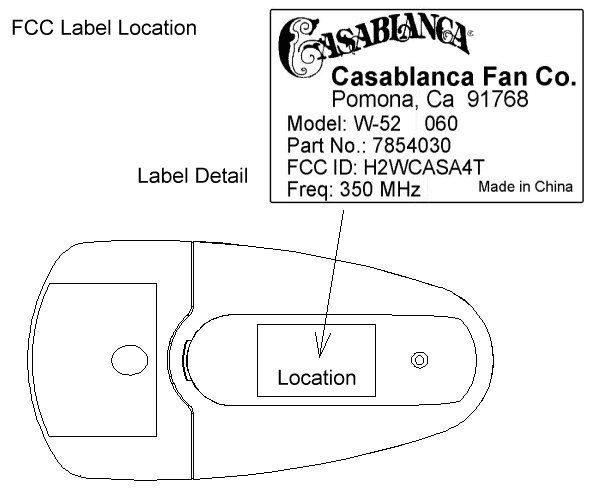

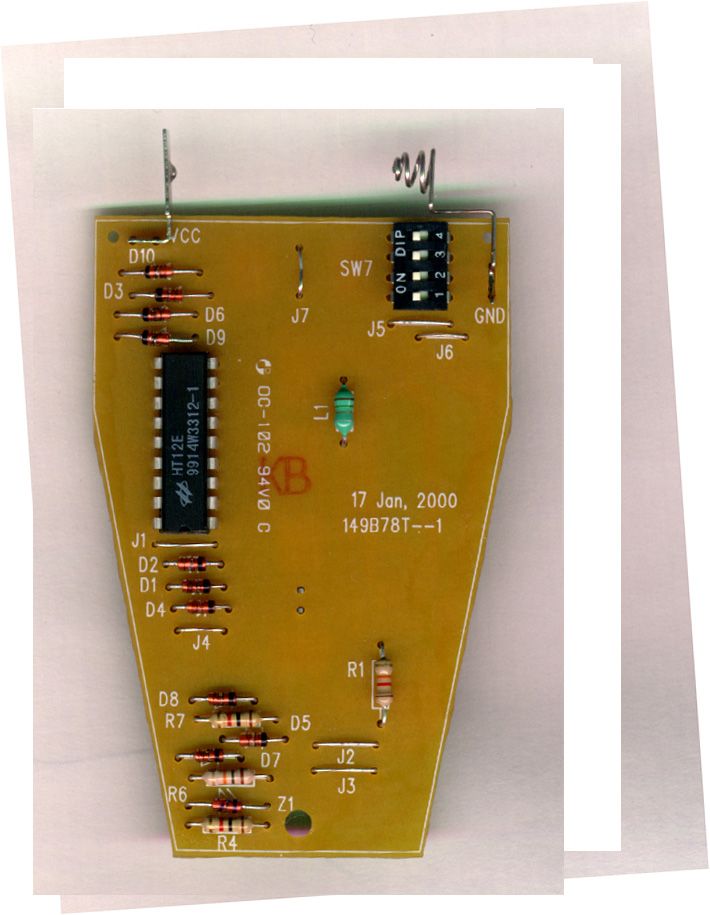

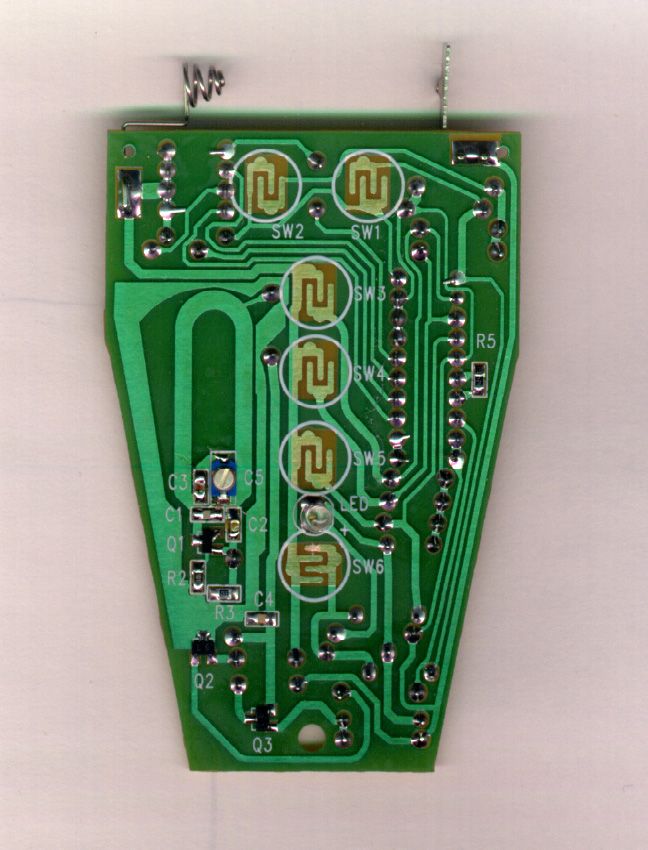

Project: 99RT13567 File: MC1180 Report: 000153 Date: March 05, 2000 Model: W-52 Casablanca Fan Controller Transmitter Test Report On Electromagnetic Compatibility Testing Hunter Fan Memphis, TN USA Copyright  2000 Underwriters Laboratories Inc. Underwriters Laboratories Inc. authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. Project: 99RT13567Underwriters Laboratories, Inc.Issued: 03/05/00 File: MC1180Test Report on Electromagnetic CompatibilityPage 2 of 49 Test Report: 000153 Test Report Details: Tests Performed By: Underwriters Laboratories Inc. 12 Laboratory Drive Research Triangle Park, NC 27709 Tests Performed For: Hunter Fan 2500 Frisco Avenue Memphis, TN 38114 USA Applicant Contact: Mr. Steve Bias - FAX Test Report Number: 000153 Test Report Date: March 05, 2000 Product Type: Low-Powered Transmitter Model Number: W-52 Sample Serial Number: Unserialized sample Sample Tag Number: S99LB546B EUT Category: Special EUT Type: Hand-held Sample Receive Date: February 08, 2000 Testing Start Date: February 08, 2000 Date Testing Complete: March 05, 2000 Underwriters Laboratories Inc. reports apply only to the specific samples tested under stated test conditions. All samples tested were in good operating condition throughout the entire test program. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. Underwriters Laboratories Inc. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Underwriters Laboratories Inc. issued reports. This report shall not be used to claim, constitute or imply product certification, approval, or endorsement by NVLAP or any agency of the US government. This report may contain data which is not covered by the NVLAP accreditation. Only data which is noted under Remarks of Summary of Testing as being NVLAP Accredited Data can be considered to be covered by the NVLAP accreditation. Project: 99RT13567Underwriters Laboratories, Inc.Issued: 03/05/00 File: MC1180Test Report on Electromagnetic CompatibilityPage 3 of 49 Test Report: 000153 Summary of Testing: TestTest NameComplyDoes NotSee #Test Requirement/SpecificationComplyRemark 1Radiated Disturbance Emissions - Occupied BandwidthX-1 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C Section 15.231 2Radiated Disturbance Emissions - Peak-to-Average RatioN/AN/A 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C Section 15.231 3Radiated Disturbance Emissions - 9 kHz to 30 MHzX-1 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C Section 15.209 4Radiated Disturbance Emissions - 30 to 1000 MHz Electric FieldX-1 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C Section 15.231 5Radiated Disturbance Emissions - 1 to 3.5 GHz Electric FieldX-1 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C Section 15.231 Remarks: 1)The EUT was found to comply with FCC Part 15 Section 15.231 rules for manually operated transmitters. Results can also be considered applicable to Canadian RSS-210 Issue 2, Rev.1 Section 6.1. Conclusion: The tests listed in the Summary of Testing section of this report have been performed and the results recorded by Underwriters Laboratories Inc. in accordance with the procedures stated in each test requirement and specification. The test list was determined by the Applicant as being applicable to the Equipment Under Test. As a result, the subject product has been verified to comply or not comply as noted in the Summary of Testing with each test specification. The test results relate only to the items tested. Project: 99RT13567Underwriters Laboratories, Inc.Issued: 03/05/00 File: MC1180Test Report on Electromagnetic CompatibilityPage 4 of 49 Test Report: 000153 Test Facilities: Test Location A) 10-Meter Anechoic Chamber (Industry Canada - IC 2953, NVLAP - 200246-0, VCCI - R-722) Constructed by Lindgren RF Enclosures, this room consists of a 17.9 by 12 by 8.3 m (inside clearance) shielded room lined with TDK absorber material. The walls, floor (conducting ground plane) and ceiling are constructed of double sided galvanized sheet steel supported by 19 mm thick particle board. The interior walls and ceiling are covered with 10 by 10 cm, 4.6 mm thick ferrite tiles and partially covered with polystyrene absorber cones. Removable floor tiles and cones covering the floor between the EUT and antenna are provided when RF immunity testing is performed. Room is provided with a 4.0 m diameter embedded turntable and a 1.2 by 2.1 m and 2.4 by 2.4 m double knife edge doors for access. Also, the room is fed electrical EUT power via permanently installed filters and is provided with a permanently mounted video surveillance camera. A remotely controllable antenna mast is located in the room for positioning the measuring antenna from 1 to 4 m above the ground plane. Test Location B) Compact Anechoic Chamber Constructed by Lindgren RF Enclosures, this room consists of a 6 by 3 by 2.9 m (inside clearance) shielded room lined with TDK absorber material. The walls, floor (conducting ground plane) and ceiling are constructed of double sided galvanized sheet steel supported by 19 mm thick particle board. The interior walls and ceiling are covered with 10 by 10 cm, 4.6 mm thick ferrite tiles and partially covered with polystyrene absorber cones. Removable floor tiles and cones covering the floor between the EUT and antenna are provided when RF immunity testing is performed. Room is provided with a 1.5 m diameter embedded turntable and a 1.2 by 2.1 m double knife edge door for access. Also, the room is fed electrical EUT power via permanently installed filters and is provided with a permanently mounted video surveillance camera. Test Location C) RF Shielded Room (VCCI - C-744, NVLAP - 200246-0) Constructed by Lindgren RF Enclosures, this room consists of a 7.3 by 4.3 by 2.7 m (inside clearance) shielded room.…

Text truncated - open the document above for the full version.
