HE7ETGINFANT TAG

EXI HALO User Manual980-000002-000  EXI Wireless Systems Inc.32March 2000 Revision 5.0 User Manual March 2000 Table of Contents EXI HALO User Manual980-000002-000  EXI Wireless Systems Inc.32March 2000 Revision 5.0 P 1.LIMITED WARRANTY.....................................................................................................................3 P 2.RECORD OF CHANGES..................................................................................................................4 P 3.FCC REGULATIONS........................................................................................................................5 P 4.SYSTEM MAINTENANCE................................................................................................................6 1.SYSTEM INTRODUCTION..................................................................................................................9 1.1.S YSTEM C OMPONENTS ......................................................................................................................9 1.2.T ERMS USED IN THIS DO CUMEN T ........................................................................................................9 1.3.C O MPUTER D ISPLAY C ONVENTIONS ................................................................................................10 2.USER LEVEL.......................................................................................................................................11 2.1.A DMITTING A P ATIENT .....................................................................................................................11 2.2.D ISCHARGING A P ATIENT .................................................................................................................14 2.3.S ILENCING AND A CCEPTING A LARMS ..............................................................................................16 2.4.“N URSE S AVER ” AND “L O ITERIN G ” F EATURES .................................................................................18 3.SUPERVISOR LEVEL.........................................................................................................................19 3.1.A CCESSING S UPERVISOR L EVEL .......................................................................................................19 3.2.E XITING S UPERVISOR L EVEL ............................................................................................................20 4.ACTIVITY LOG MANAGEMENT.....................................................................................................21 4.1.A CTIVITY L OGS ................................................................................................................................21 4.2.N AVIGATING THE ACTIVITY LOG .......................................................................................................22 4.3.A DDING A S UPERVISOR ANNOTATION TO AN ALARM ........................................................................22 4.4.B ACKING UP A CTIVITY L OGS ...........................................................................................................23 5.MANAGING TAGS..............................................................................................................................24 5.1.T AGS ...............................................................................................................................................24 5.2.A DDING A NEW P-T AG TO THE SYSTEM ............................................................................................25 5.3.D ELETIN G A P-T AG FRO M THE SYSTEM .............................................................................................26 5.4.D ISABLING A P-T AG .........................................................................................................................27 5.5.U NASSIGNING A P-T AG ....................................................................................................................27 5.6.E DITING A P-T AG R ECO RD ...............................................................................................................28 5.7.P RINTING .........................................................................................................................................28 6.MANAGING SYSTEM USERS...........................................................................................................29 6.1.A DDIN G A N EW USER TO THE SYSTEM ...............................................................................................30 6.2.D ELETIN G A USER FRO M THE SYSTEM ...............................................................................................31 6.3.D ISABLIN G A SYSTEM USER ..............................................................................................................31 6.4.E DITIN G A SYSTEM USER ACCESS ......................................................................................................31 7.SHUTTING AND RESTARTING THE SYSTEM.............................................................................32 7.1.S HUTTING DOWN .............................................................................................................................32 7.2.R ESTARTIN G THE SYSTEM .................................................................................................................32 P 1. Limited Warranty EXI HALO User Manual980-000002-000  EXI Wireless Systems Inc.32March 2000 Revision 5.0 EXI Wireless Systems Inc. (“EXI”) hereby warrants the product(s) accompanying this limited warranty (the “Product(s)”) to be free of defects in materials and workmanship for a period of two years (excluding any batteries that may be added to or used in conjunction with the Products(s)) from the date of delivery of the original purchase of the Product(s) subject to the limiting conditions set forth below, provided that EXI has received notification of such defects no later than …

Text truncated - open the document above for the full version.

Offices In Hull (UK), Ottawa (Canada), Dallas (USA) And Arnhem (The Netherlands) March 29, 2000 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 USA KTL 3325 River Road RR #5 Ottawa, Ontario Canada K1V 1H2 Tel: 613-737-9680 Fax: 613-737-9691 Toll Free: 1-800-563-6336 Email: [email protected] Internet: www.ktl.com Dear Sir/Madam:Our File Ref. 9R02321 FCC ID: HE7ETG Applicant: EXI Wireless Systems Inc. Equipment: Halo Infant Tag/ECO Tag FCC Confirmation no.: EA97186 We have successfully electronically filed all the required documentation for an application for certification in accordance with FCC Part 15 on the above mentioned equipment, March 29, 2000. Enclosed, please find a cheque in the amount of $940.00 US, a copy of FCC Remittance Form 159, a copy of the FCC Form 731 confirmation number and a copy of the list of exhibits. If you require additional information, please do not hesitate to contact me at 1-800-563-6336 (extension 232). Thank you in advance for your assistance in this matter. Sincerely, Ruby Dulmage Regulatory Submissions Clerk KTL Ottawa Inc. [email protected] Encl.

EXI Wireless SystemsModel No.: Halo Infant/ECO tag CANADA: TBDFCC ID: HE7 ETG * This device complies with Part 15 of the FCC Rules. Operation is subject to the following two rules: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Made in Canada

1. Cases and markings The following diagram, Figure 3, illustrates the two cases that will be used for these tags. In addition the diagrams show where the FCC identifications will appear on the respective tags Battery facing upwards Battery facing upwards Top case PCA Bottom case Infant case ECO case eXI eXI FCC ID: HE7 ETG FCC ID: HE7 ETG Top View Side View Bottom View Figure 3: Cases and Markings for the Infant and ECO tags

Technical Memo TO: KTL FM: Chris Chattaway DATE:March 29, 2000 SUBJECT: Technical Description of the Halo Infant/ECO Tag Documnt Number: 970-000009-000 1. Introduction The purpose of this memo is to give a top-level technical description of the Infant/ECO tag. The tag is used with the EXI Halo protection system. The following description outlines the operation of the tag. The tag comes in two forms, Infant (umbilical tag) and the ECO (wrist strap). The infant tag is intended to go onto an infant’s umbilical cord and can be identified by the post protruding from the bottom side of the case. The other case is applied to a patient with a wrist strap and has a figure eight look to it. Both units will be using the same electronics. 1. Operation The Infant/ECO tag is an RF transceiver that responds to a 307 KHz channel on a 433.92 MHz channel. The tag upon entering a 307 KHz field wakes up and communicates its serial number to the controller (base station). The controller, over the 307 KHz field (channel), transmits wakeup and respond commands to the tag and also initiates and controls the serial number interrogation. The Infant/ECO tag only operates when in the 307 KHz field. When a tag enters the field the tag is prompted to power up (wake up) by the 307 KHz field. Once powered up the tag will respond to the next wake up word with a 350μs pulse. This pulse prompts the controller to issue the serial number interrogation protocol command (bit by bit) and the serial number is extracted from the tag by the controller. The attached figure 1 illustrates this communication. For more information on the bit by bit protocol please refer to document “Bit-by-Bit Interrogation: Protocol Description” document number 970-000001-000 Figure 1: Bit by Bit communication example Now that the tag in the field is identified the controller must periodically check to see if the tag is still in the field. Every 12 sec. the tag will wake up and respond with a 350μs pulse when it sees a respond command. This communication is show n in figure 2. This communication will continue until the controller issues a reset command and re-interrogates all the tags in the field (once per minute). This behavior is detailed in the document “Halo communication Protocol” document number 970-000002-000. Figure 2: Respond Communication Example 2. Cases and markings The following diagram, Figure 3, illustrates the two cases that will be used for these tags. In addition the diagrams show where the FCC identifications will appear on the respective tags Battery facing upwards Battery facing upwards Top case PCA Bottom case Infant case ECO case eXI eXI FCC ID: HE7 ETG FCC ID: HE7 ETG Top View Side View Bottom View Figure 3: Cases and Markings for the Infant and ECO tags

Technical Memo TO: KTL FM: Chris Chattaway Date: May 30, 2000 Subject: Technical Description of the Halo Infant/ECO Tag Document Number: 970-000009-000 Rev. 2.0 1. Introduction The purpose of this memo is to give a top-level technical description of the Infant/ECO tag. The tag is used with the EXI Halo protection system. The following sections describe the form and operation of the infant and ECO tags. 2. Operation The Infant/ECO tag is an RF transceiver that receives a 307 KHz signal and replies with a 433.92 MHz signal. The tag upon entering a 307 KHz field wakes up and communicates its serial number to the controller (base station). The controller, over the 307 KHz field (channel), transmits wakeup and respond commands to the tag and also initiates and controls the serial number interrogation. The Infant/ECO tag only operates when in the 307 KHz field. When a tag enters the field it is prompted to power up by the wake up word that is transmitted by the controller (over 307 KHz field). Once powered up the tag will respond to the next wake up word with a 350μs pulse. This pulse prompts the controller to issue the serial number interrogation protocol command (bit by bit) and the serial number is extracted from the tag by the controller. Figure 1and Figure 2 illustrate this communication. The top traces show the output from the tag (433.92 MHz) and the bottom traces show the transmissions from the controller (307 KHz). The entire communication takes approximately 120ms (this time varies slightly from tag to tag based on the serial number). Figure 2 illustrates that the tag transmitter is working for approximately 80 ms of these 120 ms. For more information on the bit by bit protocol please refer to document “Bit-by-Bit Interrogation: Protocol Description” document number 970-000001-000. Now that the tag in the field is identified, the controller must periodically check to see if the tag is still in the field. Approximately every 12 sec. the tag will wake up and respond with a 350μs pulse when it sees the controller transmit a respond command. This communication is shown in Figure 3 and Figure 4. Figure 3 shows a bit by bit communication followed by a respond 11.47 seconds later and Figure 4 illustrates in detail the respond communication pulse. The respond communication will continue until the controller issues a reset command and re-interrogates all the tags in the field. The reset and re-interrogation occurs once per minute. Once again this behavior is detailed in the document “Halo communication Protocol” document number 970- 000002-000. Figure 1: Bit by Bit communication example 1 Figure 2: Bit by Bit communication example 2 Figure 3: Bit By Bit communication followed by first respond Figure 4: Respond Communication Example 3. Cases and markings The tag comes in two forms, Infant (umbilical tag) and the ECO (wrist strap). The infant tag is intended to go onto an infant’s umbilical cord and can be identified by the post protruding from the bottom side of the case. The other case is applied to a patient with a wrist strap. Both units will be using the same electronics. The following diagram, Figure 5, illustrates the two cases that will be used for these tags. The diagrams show where the FCC identifications will appear on the respective tags Battery facing upwards Battery facing upwards Top case PCA Bottom case Infant case ECO case e XI FCC ID: HE7 ETG FCC ID: HE7 ETG Top View Side View Bottom View e XI Figure 5: Cases and Markings for the Infant and ECO tags

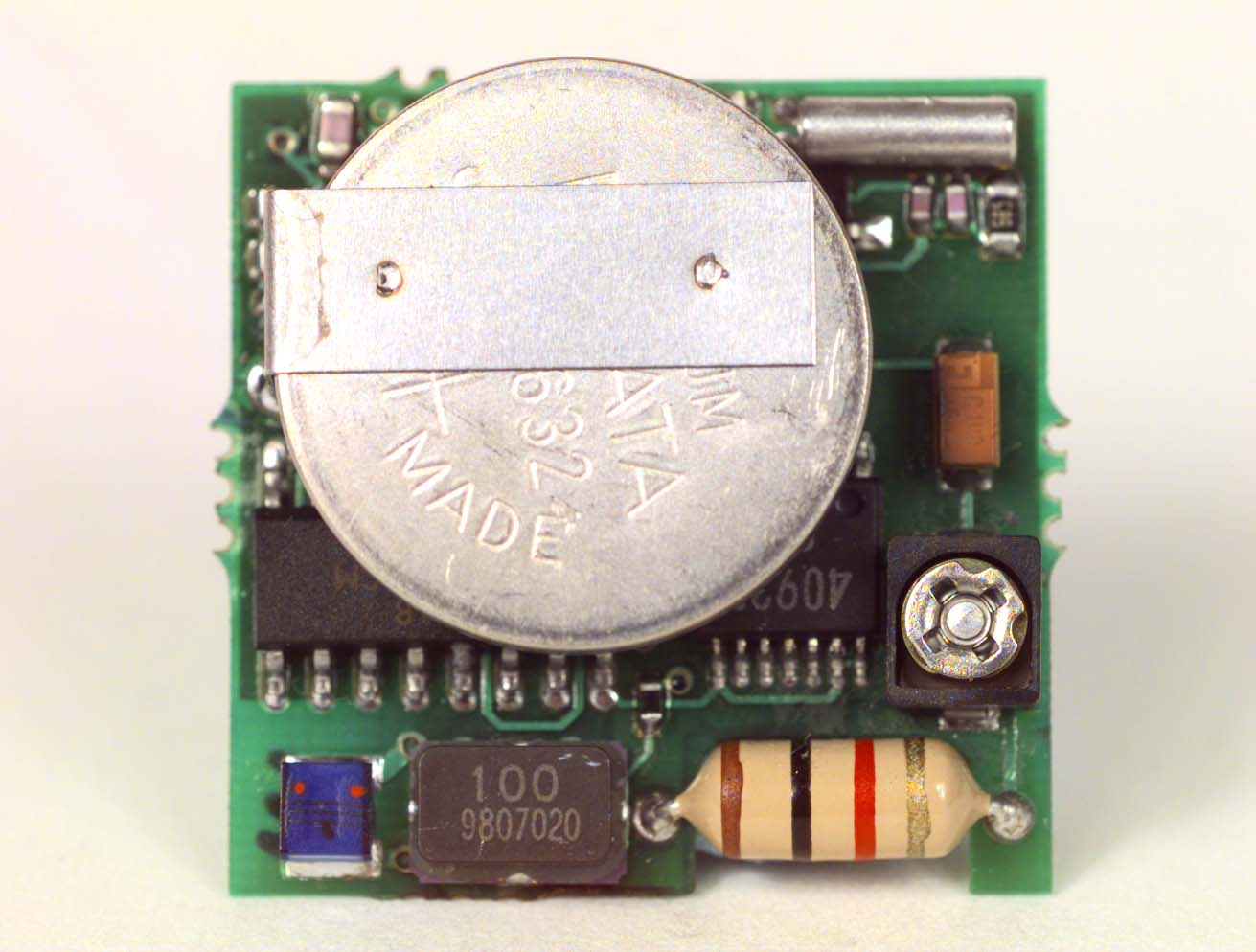

EXI Wireless Systems Confidential infant tag BOM 3/29/00 Item Qty. Ref. Part PCB Footprint Part #/man. Alt Part #/man. 1 1 A1 All capacitors are type NPO unless otherwise noted 2 1 A2 All resistors, capacitors, and inductors have 5% tolerances unless otherwise noted 3 1 A3 All capacitor voltages are 16v or greater unless otherwise noted 4 1 BT1 CR1632 FH CR1616&CR1632-2PIN same/Renata 5 3 C1,C2,C17 100n X7R C_0603S 6 2 C11,C3 2.2n C_0603S 7 2 C4,C5 47p C_0402S 8 2 C6,C10 470p C_0603S 9 1 C7 100p C_0402S 10 1 C8 27p C_0402S 11 1 C9 7-50p SM/4X4.5_TRM_CAP TZBX4R500AA110T00/Murata 12 1 C12 220p c_0402s 13 1 C13 8.2p c_0402s 14 1 C14 56p C_0402S 15 1 C15 3.9p C_0402S 16 1 C16 12p C_0402S 17 1 C18 47n X7R C_0603S 18 1 C19 820p C_0603S 19 1 C20 1uF Tantlum TANT_C_3216 20 2 C23,C21 10p C_0402S 21 1 C22 33p C_0402S 22 1 L1 1m CTC-0118-102 CTC-0118-102/Coiltech 23 1 L2 22nH L_1008S 1008cs-220xjbc/Coilcraft 24 3 Q1,Q3,Q5 MMBT2484LT1 SM/SOT23_123 same/Motorola 25 1 Q2 MMBT5087LT1 SM/SOT23_123 same/motorola 26 1 Q4 MMBTH10LT1 SM/SOT23_123 same/motorola 27 2 R1,R2 10k R_0402S 28 13 R3,R4,R5,R6,R8,R9,R10, 10Meg R_0603S R11,R12,R19,R23,R25,R29 29 6 R7,R13,R16,R17,R20,R27 2.2Meg R_0402S 30 2 R14,R15 0 ohm R_0402S 31 2 R18,R26 4.75Meg 1% R_0603S 32 1 R21 100K R_0402S 33 1 R22 820 ohm R_0402S 34 1 R24 1.5Meg R_0402S 35 1 R28 470k R_0402S 36 1 R30 6.8Meg R_0603S 37 2 U1,U3 MBT3904DW1T1 SOT363 same/Motorola SMBT3904S/Infineon 38 2 U2,U7 MBT3946DW1T1 SOT363 same/Motorola SMBT3904PN/Infineon 39 2 U4,U5 MBT3906DW1T1 SOT363 same/Motorola SMBT3906S/Infineon 40 1 U6 BU4093BFV ROHM 4093BFV BU4093BFV/Rohm 41 1 U8 CD4017BCM SOG.050/16/WG.244/L.400 Same/Fairchild MC14017BD/Motorola 42 1 U9 12LC508A-04/SN PIC 12LC508A-04/SN same/Microchip 43 1 Y1 RO2101A - 433.92MHz RFM-SM2 Same/RFM 44 1 Y2 C-2 83.000KC-P EA 83KHZ Same/Epson America 1 of 1

Component Notes: (These notes will appear in the BOM) Vcc A2All resistors, capacitors, and inductors have 5% tolerances unless otherwise notedNote: Shielding is required between the RF and digital sectionsto ensure that high frequency components of the digital signalsare not coupled into the receiver. A ground plane between the twocircuits (layers) should be sufficient to provide this shielding.A3All capacitor voltages are 16v or greater unless otherwise noted RD1 B 13 Friday, February 04, 2000 Halo Infant/ECO Tag 911-000007-000 Confidential EXI Wireless SystemsTitleSize Document Number Rev Date: Sheet of RF<Value> RD VccGndRx Tx A1All capacitors are type NPO unless otherwise noted Revision Status: RxTx Digital<Value> Vcc Gnd Rx Tx RD Design Notes:Tx Section Gnd 1. Initial Halo compatibleInfant tag designNote: Components in the Tx section must be kept close to theirrespective ends of the antenna to ensure a working transmitter. Inaddition, traces connecting these componets should be of a widthto avoid stray inductances. In addition the grounds of C15, C16,and Y1 should be as physically close as possible, ideally a singlepoint. RD Rx R610Meg C17 100n X7R U2BMBT3946DW1T1 6 2 1 C447p C13 8.2p U3AMBT3904DW1T1 3 5 4 C112.2n R510Meg C15 3.9p C547p C12220p R14 0 ohm U4AMBT3906DW1T1 3 5 4 Q3MMBT2484LT1 3 1 2 U2AMBT3946DW1T1 3 5 4 Q2MMBT5087LT1 3 1 2 R12 10Meg R310Meg U1AMBT3904DW1T1 3 5 4 R72.2Meg R22 820 ohm C6470p Tx Section C97-50p C32.2n C10470p Rx_PWR1 Q1MMBT2484LT1 3 1 2 R172.2Meg Gnd R202.2Meg R21 100K C16 12p C1100n X7R R132.2Meg R150 ohm R1010Meg L222nH R810Meg Y1 RO2101A - 433.92MHz C1456p R210k Gnd R110k R910Meg Vcc C7100p R1910Meg Rx_PWR2 L11m R410Meg Q4MMBTH10LT1 3 1 2 RD Note: Components in this section must be kept close to their respective endsof the antenna to ensure a working transmitter. In addition, traces connectingthese componets should be of a width to avoid stray inductances. The groundsof C15, C16, and Y1 should be as physically close as possible, ideally asingle point. Vcc C827p R18 4.75Meg 1% U1BMBT3904DW1T1 6 2 1 BT1CR1216 FH, CR1616 FH, CR1632 FH 123 R162.2Meg R1110Meg Tx U3BMBT3904DW1T1 6 2 1 RD1 B 23 Tuesday, March 14, 2000 Halo Infant/ECO Tag - RF CCT.911-000007-000 EXI Wireless Systems ConfidentialTitleSize Document Number Rev Date: Sheet of Rx C2100n X7R C1847n X7R U8CD4017BCM 141315 32471015691112 16 8 CLKENARST Q0Q1Q2Q3Q4Q5Q6Q7Q8Q9 CO VDD VSS R30 6.8Meg C21 10p Rx Gnd Rx U5BMBT3906DW1T1 6 2 1 C23 10p Hold_Pwr R264.75Meg 1% R2310Meg RD Gnd Tx U6ABU4093BFV 12 3 Vcc C2233p C201uF Tantlum U7BMBT3946DW1T1 6 2 1 U5AMBT3906DW1T1 3 5 4 U9 12C508-04/SM 1 23 7654 8 VDD OSC1OSC2 GP0GP1GP2GP3 GND R272.2Meg U4BMBT3906DW1T1 6 2 1 Tx U6BBU4093BFV 56 4 R241.5Meg U7AMBT3946DW1T1 3 5 4 Vcc R2510Meg U6DBU4093BFV 1312 714 11 Rx_MP RD1 B 33 Tuesday, February 22, 2000 Halo Infant/ECO Tag - Digital Circui 911-000007-000 EXI Wireless Systems ConfidentialTitleSize Document Number Rev Date: Sheet of R28 470k R29 10Meg U6CBU4093BFV 89 10 Q5MMBT2484LT1 3 1 2 C19 820p RD Y2 C-2 83.000KC-P

Master: ktlPT15231 Date: October 8, 1999 KTL Test Report:9R02321 Applicant:EXI Wireless Systems Inc. Suite 100-13551 Commerce Parkway Richmond, BC V6V 2L1 Equipment Under Test:Infant Tag (E.U.T.) FCC ID:HE7ETG In Accordance With:FCC Part 15, Subpart C For Low Power Transmitters Operating Periodically In The Band 40.66 - 40.77 MHz And Above 70 MHz Tested By:KTL Ottawa Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: R. Grant, Wireless Group Manager Date: Total Number of Pages:18 KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R02321 EQUIPMENT: Patient Tag FCC ID: HE7ETG Page 2 of 16 Table of Contents Section 1. Summary of Test Results.............................................................................................3 Section 2. Equipment Under Test (E.U.T.).................................................................................. 5 Section 3. Occupied Bandwidth...................................................................................................9 Section 4. Periodic Alternate Field Strength Requirements ....................................................... 11 Section 5.Block Diagrams.......................................................................................................... 14 Section 6.Test Equipment List...................................................................................................16 Annex A Restricted Bands........................................................................................................A1 KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R02321 EQUIPMENT: Patient Tag FCC ID: HE7ETG Page 3 of 16 Section 1.Summary of Test Results Manufacturer:EXI Wireless Systems Inc. Model No.:None Serial No.:None Date Received In Laboratory: March 22, 2000 KTL Identification No.: Item #9 & #10 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C, Paragraph 15.231. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit DS C Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 TESTED BY: _____________________________________ DATE: ___________________ Kevin Carr, Technologist KTL Ottawa Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. KTL Ottawa Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R02321 EQUIPMENT: Patient Tag FCC ID: HE7ETG Page 4 of 16 Summary Of Test Data Name of TestParagraph NumberResults Transmission Requirements15.231(a)Not Applicable Radiated Emissions15.231(b)Not Applicable Occupied Bandwidth15.231(c)Complies Frequency Tolerance15.231(d)Not Applicable Periodic Alternate Field Strength Requirements15.231(e)Complies Powerline Conducted Emissions15.207Not Applicable Footnotes For N/A’s: 15.207Battery Powered 15.231(d)Does Not Operate In 40.66-40.70 MHz Band 15.231(b)(a) Applicant Meets 15.231(e) Requirements Test Conditions: Indoor Temperature: 27 °C Humidity:35 % Outdoor Temperature: 20 °C Humidity:35 % KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R02321 EQUIPMENT: Patient Tag FCC ID: HE7ETG Page 5 of 16 Section 2.Equipment Under Test (E.U.T.) General Equipment Information Frequency Range: 433.92 (Fixed) Operating Frequency(ies) of Sample: 433.92 (Fixed) Type of Emission: Pulse Amplitude Modulation Emission Designator: 69K2K1D Supply Power Requirement: 3 Vdc Battery Duty Cycle Calculation: 20 Log       100 28340.0 x = 20.4 dB KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R02321 EQUIPMENT: Patient Tag FCC ID: HE7ETG Page 6 of 16 Configuration of the Equipment Under Test SA Occupied Bandwidth & Duty Cycle Hayo Controller Rx Antenna SRA Exciter Antenna E.U.T. KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R02321 EQUIPMENT: Patient Tag FCC ID: HE7ETG Page 7 of 16 KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R02321 EQUIPMENT: Patient Tag FCC ID: HE7ETG Page 8 of 16 KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R02321 EQUIPMENT: Patient Tag FCC ID: HE7ETG Page 9 of 16 Section 3.Occupied Bandwidth NAME OF TEST: Occupied BandwidthPARA. NO.: 15.231(c) TESTED BY: Kevin CarrDATE: March 22, 2000 Minimum Standard: 15.231(c) The bandwidth of the emission shall be no wider than 0.25% of the center frequency for devices operating above 70 MHz and below 900 MHz. For devices operating above 900 MHz, the emission shall be no wider than 0.5% of the center frequency. Bandwidth is determined at the points 20 dB down from the modulated carrier. Test Results: Complies. See attached graph. Test Data: See attached graph. KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R02321 EQUIPMENT: Patient Tag FCC ID: HE7ETG Page 10 of 16 KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R02321 EQUIPMENT: Patient Tag FCC ID: HE7ETG Page 11 of 16 Section 4.Periodic Alternate Field Strength Requirements NAME OF TEST: Periodic Alternate Field Strength RequirementsPARA. NO.: 15.231(e) TESTED BY: Kevin Carr…

Text truncated - open the document above for the full version.

Master: ktlPT15231 Date: October 8, 1999 KTL Test Report:9R02321 Applicant:EXI Wireless Systems Inc. Suite 100-13551 Commerce Parkway Richmond, BC V6V 2L1 Equipment Under Test:Infant Tag (E.U.T.) FCC ID:HE7ETG In Accordance With:FCC Part 15, Subpart C For Low Power Transmitters Operating Periodically In The Band 40.66 - 40.77 MHz And Above 70 MHz Tested By:KTL Ottawa Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: R. Grant, Wireless Group Manager Date: Total Number of Pages:18 KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R02321 EQUIPMENT: Patient Tag FCC ID: HE7ETG Page 2 of 16 Table of Contents Section 1. Summary of Test Results.............................................................................................3 Section 2. Equipment Under Test (E.U.T.).................................................................................. 5 Section 3. Occupied Bandwidth...................................................................................................9 Section 4. Periodic Alternate Field Strength Requirements ....................................................... 11 Section 5.Block Diagrams.......................................................................................................... 14 Section 6.Test Equipment List...................................................................................................16 Annex A Restricted Bands........................................................................................................A1 KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R02321 EQUIPMENT: Patient Tag FCC ID: HE7ETG Page 3 of 16 Section 1.Summary of Test Results Manufacturer:EXI Wireless Systems Inc. Model No.:None Serial No.:None Date Received In Laboratory: March 22, 2000 KTL Identification No.: Item #9 & #10 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C, Paragraph 15.231. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit DS C Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 TESTED BY: _____________________________________ DATE: ___________________ Kevin Carr, Technologist KTL Ottawa Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. KTL Ottawa Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R02321 EQUIPMENT: Patient Tag FCC ID: HE7ETG Page 4 of 16 Summary Of Test Data Name of TestParagraph NumberResults Transmission Requirements15.231(a)Not Applicable Radiated Emissions15.231(b)Not Applicable Occupied Bandwidth15.231(c)Complies Frequency Tolerance15.231(d)Not Applicable Periodic Alternate Field Strength Requirements15.231(e)Complies Powerline Conducted Emissions15.207Not Applicable Footnotes For N/A’s: 15.207Battery Powered 15.231(d)Does Not Operate In 40.66-40.70 MHz Band 15.231(b)(a) Applicant Meets 15.231(e) Requirements Test Conditions: Indoor Temperature: 27 °C Humidity:35 % Outdoor Temperature: 20 °C Humidity:35 % KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R02321 EQUIPMENT: Patient Tag FCC ID: HE7ETG Page 5 of 16 Section 2.Equipment Under Test (E.U.T.) General Equipment Information Frequency Range: 433.92 (Fixed) Operating Frequency(ies) of Sample: 433.92 (Fixed) Type of Emission: Pulse Amplitude Modulation Emission Designator: 69K2K1D Supply Power Requirement: 3 Vdc Battery Duty Cycle Calculation: 20 Log       100 28340.0 x = 20.4 dB KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R02321 EQUIPMENT: Patient Tag FCC ID: HE7ETG Page 6 of 16 Configuration of the Equipment Under Test SA Occupied Bandwidth & Duty Cycle Hayo Controller Rx Antenna SRA Exciter Antenna E.U.T. KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R02321 EQUIPMENT: Patient Tag FCC ID: HE7ETG Page 7 of 16 KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 9R02321 EQUIPMENT: Patient Tag…
