HE7VACRVERIGUARRD ACCESS CONTROL READER

For technical support:• 1.866.559.6275• [email protected] www.verichipcorp.com © 2005 VeriChip Corporation. All rights reserved. Microsoft®, Windows ® , and HyperTerminal® are registered trademarks of Microsoft Corporation. Specifications and documentation subject to change without notice. Installation Guide Access Control Reader Installation Guide: Access Control Reader Installation Guide for the Access Control Reader Contents ListSystem VerificationVeriChip™ systems are designed to assist staff in providing a high degree of safety forpeople and therefore should only be used as a component of a comprehensivesecurity program of policies, procedures, and processes. As with every security system,VeriChip highly recommends regular system operational checks to verify functional integrity. FCC Regulations This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:( 1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant toPart 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmfulinterference in a residential installation. This equipment generates and can radiate radio frequency energyand, if not installed and used in accordance with the instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference will not occur in a particularinstallation. If this equipment does cause harmful interference to radio or television reception, which canbe determined by turning the equipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures. • Reorient or relocate the receiving antenna • Increase the separation between the equipment and Receiver • Connect the equipment into an outlet on a circuit different from that to which the Receiver is connected • Consult the dealer or an experienced radio/TV technician for help ModificationsAny changes or modifications not expressly approved by VeriChip Corporation for compliance could voidthe user’s authority to operate the equipment. Cautions and Warnings This product is designed to meet the requirements for Class 2 circuits operatingfrom a non-hazardous secondary power source limited to 240 VA. Cablingmaterials must be selected for the installation environment in accordance withthe applicable jurisdictional codes. Item Quantity Access Control Reader 1 which contains the sub-assemblies: • ACR Controller Module 1 • ACR Panel Antenna module 1 Page 1 PN: 981-000293-000 R1.3 Notes Page 22 PN: 981-000293-000 R1.3 Installation Guide: Access Control Reader Installation Guide: Access Control Reader Notes Page 21 PN: 981-000293-000 R1.3 EU Waste Electrical and Electronic Equipment
The equipment that you bought has required the extraction and use of natural resources for its production. It may contain hazardous substances that couldimpact health and the environment.
In order to avoid the dissemination of those substances in our environment and todiminish the pressure on the natural resources, we encourage you to use theappropriate take-back systems. Those systems will reuse or recycle most of thematerials of your end life equipment in a sound way.
You can also contact us for more information on the environmental performances of our products. Functional Description The VeriChip™ Access Control Reader (ACR) is a wall mounted Antenna andController Module. The ACR detects the VeriChip™ implantable microchip,and extracts its unique identification. The ACR then sends both themicrochip identification and its own identity number to one or more outputs depending on the ACR configuration. The VeriChip ACR can:
Work with new or existing VeriChip installations such as VeriGuard™ bycommunicating over the RS485 network
Integrate into third party access control systems
Operate as a stand alone reader
The crossed-out wheeled bin symbol invites you to use those systems.
If you need more information on the collection, reuse and recycling systems, please contact your local or regional waste administration. Page 2 PN: 981-000293-000 R1.3 Installation Guide: Access Control Reader Installation Guide: Access Control Reader Controller Module DescriptionThe Controller Module provides power, network, inputs and Antenna connections.Power is connected to the 12 pin wiring connector which also provides normallyclosed (NC) relay inputs and a door contact input. See Table 1.As shown in Figure 1 the Controller Module has a 12 pin and aN RS232 connector.These provide the following three network connections:
An RS-485 network connection through the 12 pin wiring connector;
A Wiegand output also through the 12 pin connector; and,
An RS232 output. Figure 1: Controller Module Wiring ConnectionsThe LED in Figure 1 signals network communication and power status.Table 1: ACR 12 Pin Wiring Connector Pin # Label Type Description 1 V in DC Power In 500 mA @ 24 VDC ± 10% 2 GND Power ground 3 RS485+ RS485 Network • RS485 Sub-Network headed by Area Controller Hub. • 16 nodes, 230 kBytes/s 4 Gnd RS485 Ground 5 RS485- RS485 Network 12 Pin Wiring Connector RS232 Connector LED Page 3 PN: 981-000293-000 R1.3 Notes Page 20 PN: 981-000293-000 R1.3 Installation Guide: Access Control Reader Installation Guide: Access Control Reader Document Control Document Number: 981-000293-000 Date Rev # Comments 7 Feb. 06 R1.1 Released for testing. 3 Mar. 06 R1.2 Graphics added. Installation instructions expanded. 9 Mar. 06 R1.3 Antenna tuning instructions added. Page 19 PN: 981-000293-000 R1.3 The Antenna cable plugs into the connector shown in Figure 2. Figure 2: Controller Module Antenna Connection Antenna DescriptionThe Antenna can be mounted indoors either on a surface or inside a wall.A 10 ft. (3 m) pow…

Text truncated - open the document above for the full version.

55 44 33 22 11 D D C C B B A A TitleSize Document Number Rev Date: Sheet of 912-000018-000 1.00 VeriGuard Access Control Reader (VACR) A 1 1 Monday, May 15, 2006 TitleSize Document Number Rev Date: Sheet of 912-000018-000 1.00 VeriGuard Access Control Reader (VACR) A 1 1 Monday, May 15, 2006 TitleSize Document Number Rev Date: Sheet of 912-000018-000 1.00 VeriGuard Access Control Reader (VACR) A 1 1 Monday, May 15, 2006 VeriChip Corporation 5V REG15V REGLM7805LM350 MOSFET DRIVER LM2725 IRF7303 O/P DRIVER XFR COUPLER CAP TUNING CIRCUIT 134.2 KHZ ANTENNA (AIR LOOP) SYSTEM CLOCK REFERENCE CLOCK 20 MHZ uP uP BTMEGA168-TQFP DEMODULATOR LOW PASS FILTER(Fc = 8 KHz) DATA SLICER COMMODATION SWITCH BUZZER RS485 XCVRRS232 I/P BUFFER RELAY DRIVER & O/P 24V DC POWERCTLR I/P +5V DC VTX (14.8v) Antenna ok RX-BLANK RX-DATA BUZZER DRIVER Relay NORelay COMRelay NC Satellite Port Serial PortWiegand Port Mode Sel1Mode Sel2 VOLTAGE DIVIDER

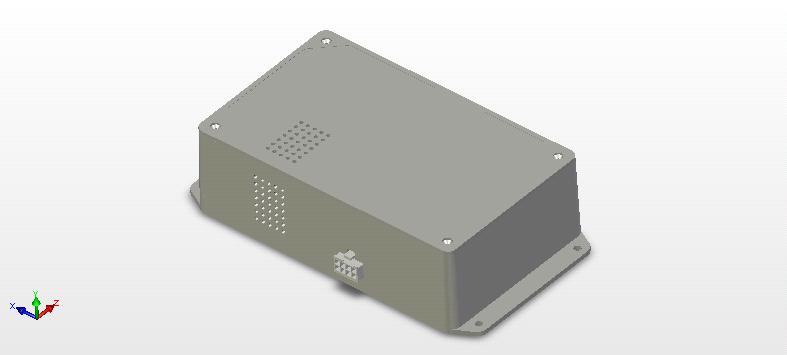

PTDR Unit and Antenna Assy CAD model

Manufacturing Test Procedure (2005-10) 931-000080-000 PTDR Controller Module Rev 1.0 Page 1 of 12 16/05/06 CONFIDENTIAL – VeriChip Systems Inc. MANUFACTURING PROGRAMMING AND TEST PROCEDURE PTDR Controller Module Rev 1.0 – January 16 2006 Document Number: 931-000080-000 Project Number: 2005-10 Manufacturing Test Procedure (2005-10) 931-000080-000 PTDR Controller Module Rev 1.0 Page 2 of 12 16/05/06 CONFIDENTIAL – VeriChip Systems Inc. Revisions Revision Date Changed by Description 1.00 Jan 16, 2006 E. Kaplounovski First release Manufacturing Test Procedure (2005-10) 931-000080-000 PTDR Controller Module Rev 1.0 Page 3 of 12 16/05/06 CONFIDENTIAL – VeriChip Systems Inc. Glossary of Abbreviations and Acronyms LED – light-emitting diode DUT – device under test ECO – engineering change order Manufacturing Test Procedure (2005-10) 931-000080-000 PTDR Controller Module Rev 1.0 Page 4 of 12 16/05/06 CONFIDENTIAL – VeriChip Systems Inc. MANUFACTURING PROGRAMMING AND TEST PROCEDURE ................................................. 1 Revisions ..................................................................................................................................... 2 Scope and Objectives...................................................................................................................... 5 1 Test Conditions and Equipment.............................................................................................. 6 1.1 Normal Test Conditions.................................................................................................. 6 1.2 Recommended Test Equipment..................................................................................... 6 2 Test Setup and Configuration ................................................................................................. 7 2.1 Test setup preparationi .................................................................................................. 7 2.2 Software installation and configuration .......................................................................... 8 3 Initial DC test........................................................................................................................... 9 4 FLASH Programming..............................................................................................................9 5 Functional Test ..................................................................................................................... 10 5.1 LF Exciter and Receiver ............................................................................................... 10 5.2 Serial Number Programming........................................................................................ 10 5.3 Door Switch and Relay................................................................................................. 11 5.4 Wiegand Output ........................................................................................................... 11 5.5 Option Jumpers ............................................................................................................ 11 6 Conclusion ............................................................................................................................ 12 Manufacturing Test Procedure (2005-10) 931-000080-000 PTDR Controller Module Rev 1.0 Page 5 of 12 16/05/06 CONFIDENTIAL – VeriChip Systems Inc. Scope and Objectives This document applies to the Passive Door Tag Reader Controller Module 1.0, Project 2005-10. It defines tests that should be performed on all the units leaving the production facility. This procedure applies to pilot and subsequent production runs. This document describes all steps and procedures required to program the firmware into the DUT and perform functional testing. This procedure is instrumental in product quality assurance. The vendor is responsible for following it precisely and implementing all required changes (as specified in the ECOs) in a timely and orderly fashion. Reference documents: 600-000290-000 – BOM 911-000091-000 – Schematic diagram 380-000091-000 – PCB design files Manufacturing Test Procedure (2005-10) 931-000080-000 PTDR Controller Module Rev 1.0 Page 6 of 12 16/05/06 CONFIDENTIAL – VeriChip Systems Inc. 1 Test Conditions and Equipment 1.1 Normal Test Conditions All tests are to be conducted under the following conditions: Temperature: Normal Ambient (20 o to 28 o C) Voltage: 24.0 Volt +/- 1.0 Volt Functional testing of this device involves generating and receiving LF signals. Therefore, to facilitate successful testing, the following measures are important: - The DUT’s antenna should be located at least 1m away from any electronic or electrical device. This includes computers, monitors, power adapters, oscilloscopes, etc. - The test area should be clear of all electrical equipment not directly involved in testing. 1.2 Recommended Test Equipment Standard equipment: Equivalent test equipment may be substituted DC Power supply for DUT GPS-3030D Digital multi-meter Wavetek 23XT Personal computer (Windows 2000, XP) 1 USB-RS485 serial adapter capable of 230400bps 1 Oscilloscope TEK TDS3054 Atmel serial programmer AVRISP The vendor is expected to procure the standard equipment. Non-standard test equipment The non-standard test equipment consists of: - Serial cable with two DB-9 connectors (M and F); - 2-conductor power cable (1m) for connecting the DUT to power supply; - SPST toggle switch with two flying leads for emulating the door switch contact; - Verichip passive implantable tag; - Verichip PTDR Panel Antenna. Manufacturing Test Procedure (2005-10) 931-000080-000 PTDR Controller Module Rev 1.0 Page 7 of 12 16/05/06 CONFIDENTIAL – VeriChip Systems Inc. 2 Test Setup and Configuration 2.1 Test setup preparationi 1 D C I N + 2 4 V + - POWER SUPPLY 24VDC PANEL ANTENNA 3 R S 4 8 5 + 2 G N D 5 R S 4 8 5 - 4 G N D 7 R E L A Y C O M 6 R E L A Y N . O . 9 W I E G A N D 0 8 R E L A Y N . C . 1 1 I N P U T …

Text truncated - open the document above for the full version.

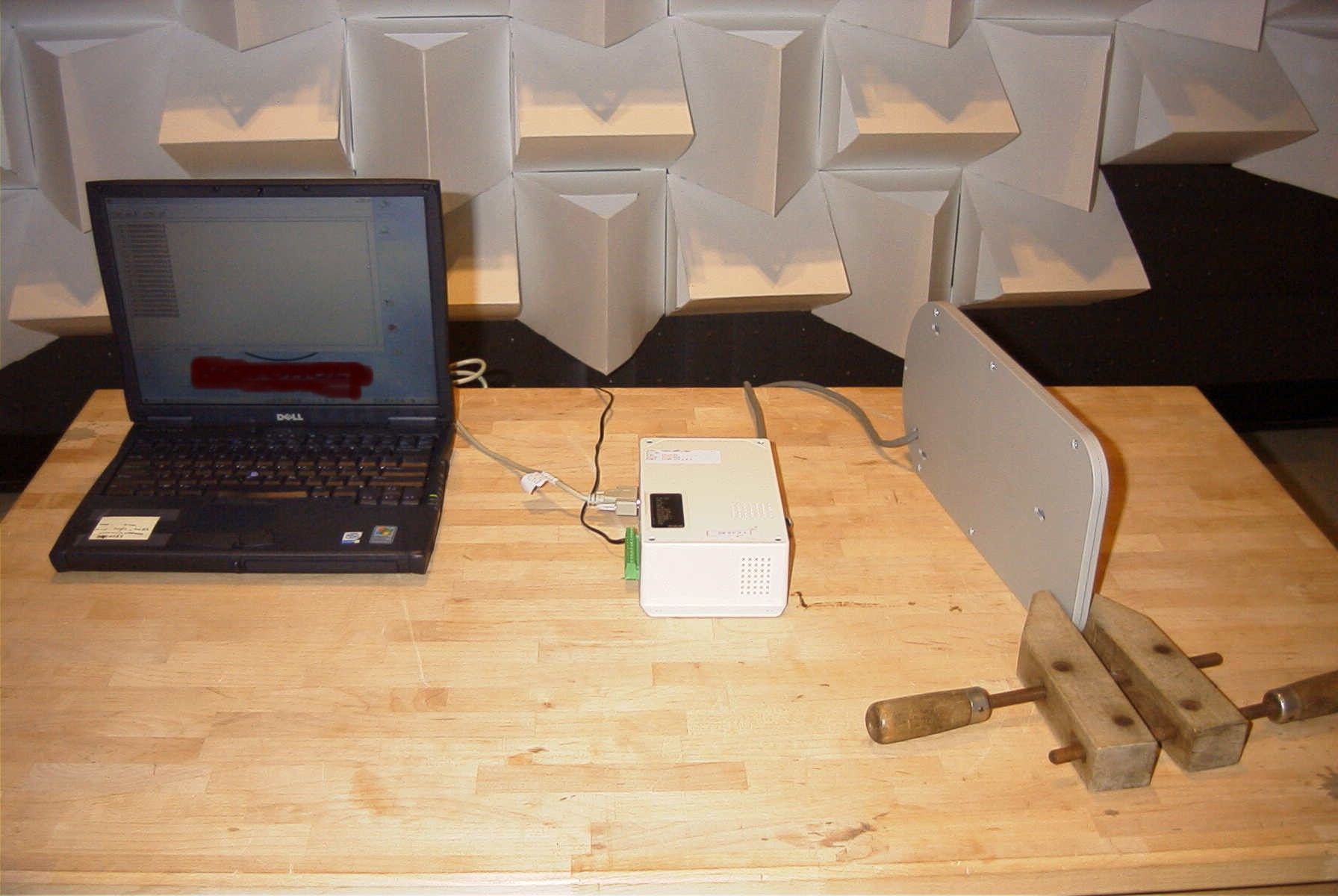

FCC PART 15 SUB PART C LOW POWER TRANSMITTER TEST REPORT APPLICANT VERICHIP CORP. 13551 COMMERCE PARKWAY SUITE 100 RICHMOND BRITISH COLUMBIA V6V 2L1 CANADA TEL 800-667-9689 FCC ID: HE7VACR MODEL NUMBER VACR PRODUCT DESCRIPTION VeriGuard Access Control Reader DATE SAMPLE RECEIVED 4/24/2006 DATE TESTED 4/24/2006 TESTED BY Joseph Scoglio APPROVED BY Mario de Aranzeta TIMCO REPORT NO. 229AUT6 TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Applicant: Verichip Corp. FCC ID: HE7VACR Report: V:\V\VERICHIP\229AUT6\229AUT6TestReport.doc Page 2 of 17 TABLE OF CONTENTS STATEMENT OF COMPLIANCE..................................................... 3 GENERAL INFORMATION......................................................... 4 TEST EQUIPMENT LIST......................................................... 5 RADIATION INTERFERENCE...................................................... 7 RADIATED SPURIOUS EMISSIONS................................................. 8 OCCUPIED BANDWIDTH.......................................................... 9 POWER LINE CONDUCTED INTERFERENCE.......................................... 11 Applicant: Verichip Corp. FCC ID: HE7VACR Report: V:\V\VERICHIP\229AUT6\229AUT6TestReport.doc Page 3 of 17 STATEMENT OF COMPLIANCE This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report and demonstrate that the equipment complies with the appropriate standards. No modifications were made to the equipment during testing in order to demonstrate compliance with these standards. I attest that the necessary measurements were made by me or under my supervision, at TIMCO ENGINEERING, INC. located at 849 N.W. State Road 45, Newberry, Florida 32669. Authorized by: Mario de Aranzeta Signature: Function: Engineer Date: May 3, 2006 Tested by: Joseph Scoglio Signature: on file Date: April 24, 2006 Applicant: Verichip Corp. FCC ID: HE7VACR Report: V:\V\VERICHIP\229AUT6\229AUT6TestReport.doc Page 4 of 17 GENERAL INFORMATION EUT SPECIFICATION The test results relate only to the items tested. FCC ID HE7VACR IC Label 2877A-VACR Model Number VACR Serial Number N/A Product Description VeriGuard Access Control Reader Operating Frequency Under 1705 kHz Primary Power 110Vac/50Hz EUT Power Secondary Power N/A Prototype Pre-Production Test Item Production Fixed Mobile Type of Equipment Portable Antenna N/A Antenna Connector N/A MODIFICATION TO THE DUT No modification was made to the DUT during testing. TEST CONDITION Normal temperature and humidity TEST EXERCISE (e.g software description, test signal, etc.) The EUT was set in continuous transmit mode of operation. TEST STANDARDS ANSI C63.4 - 2003 Applicant: Verichip Corp. FCC ID: HE7VACR Report: V:\V\VERICHIP\229AUT6\229AUT6TestReport.doc Page 5 of 17 TEST EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 Biconnical Antenna Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Biconnical Antenna Eaton 94455-1 1096 CAL 8/17/04 8/17/06 Biconnical Antenna Electro- Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 CAL 4/13/05 4/13/07 Blue Tower RF Preselector HP 85685A 2926A00983 CAL 9/5/05 9/5/07 Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/13/05 4/13/07 LISN Electro- Metrics ANS-25/2 2604 CAL 8/27/04 8/27/06 LISN Electro- Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Log-Periodic Antenna Eaton 96005 1243 CAL 12/14/05 12/14/07 Passive Loop Antenna EMC Test Systems EMCO 6512 9706-1211 CHAR 7/10/04 7/10/06 Applicant: Verichip Corp. FCC ID: HE7VACR Report: V:\V\VERICHIP\229AUT6\229AUT6TestReport.doc Page 6 of 17 TEST PROCEDURES RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-2003 using a HEWLETT PACKARD spectrum analyzer with a pre-selector. In the frequency range 10 kHz to 30 MHz the RBW was 10 kHz and from 30-1000 MHz the RBW of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 77ºF with a humidity of 62%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Pre-selector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m OCCUPIED BANDWIDTH: A small sample of the transmitter output was fed into the spectrum analyzer and the above photo was taken. The vertical scale is set to -10 dBm per division. The horizontal scale is set to 5 kHz per division. ANSI C63.4-2003 Section 8.2.1 MEASUREMENT PROCEDURES: The EUT was placed on a non-conducting table 80 cm above the ground plane with the EUT located in the center of the table. With the antenna vertical a preliminary scan was done at 1 meters distance, the EUT was moved to a 3.0-meter distance and the antenna height varied and also placed in a horizontal position. The frequency was scanned from 9.0 kHz to 1.0 GHz. When an emission was found, the table was rotated to produce the maximum signal strength. The EUT was measured in three (3) orthogonal planes. The unit was measured at TIMCO ENGINEERING, INC. located at 849 N.W. State Road 45 Newberry, Florida 32669. Applicant: Verichip Co…
