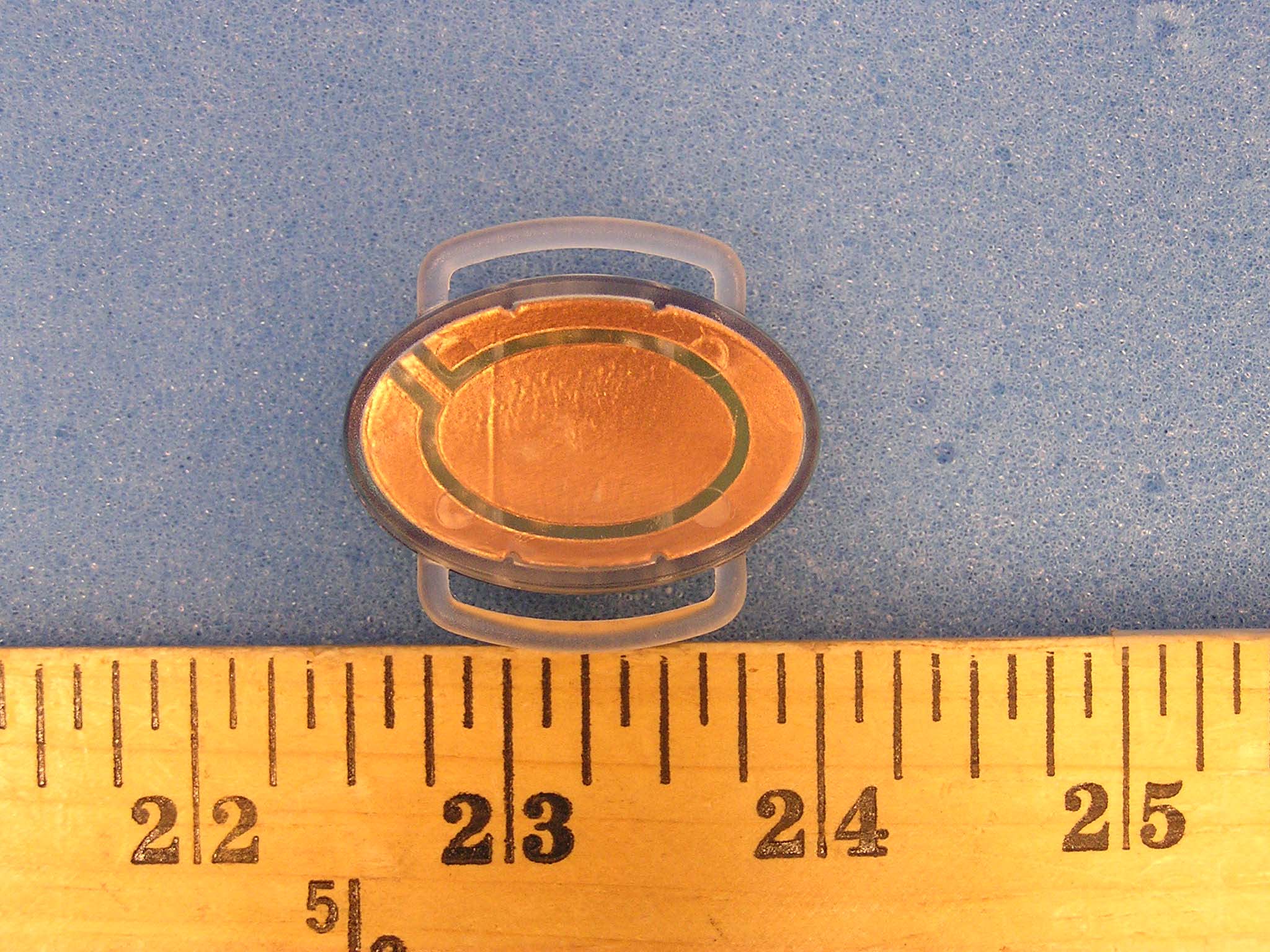

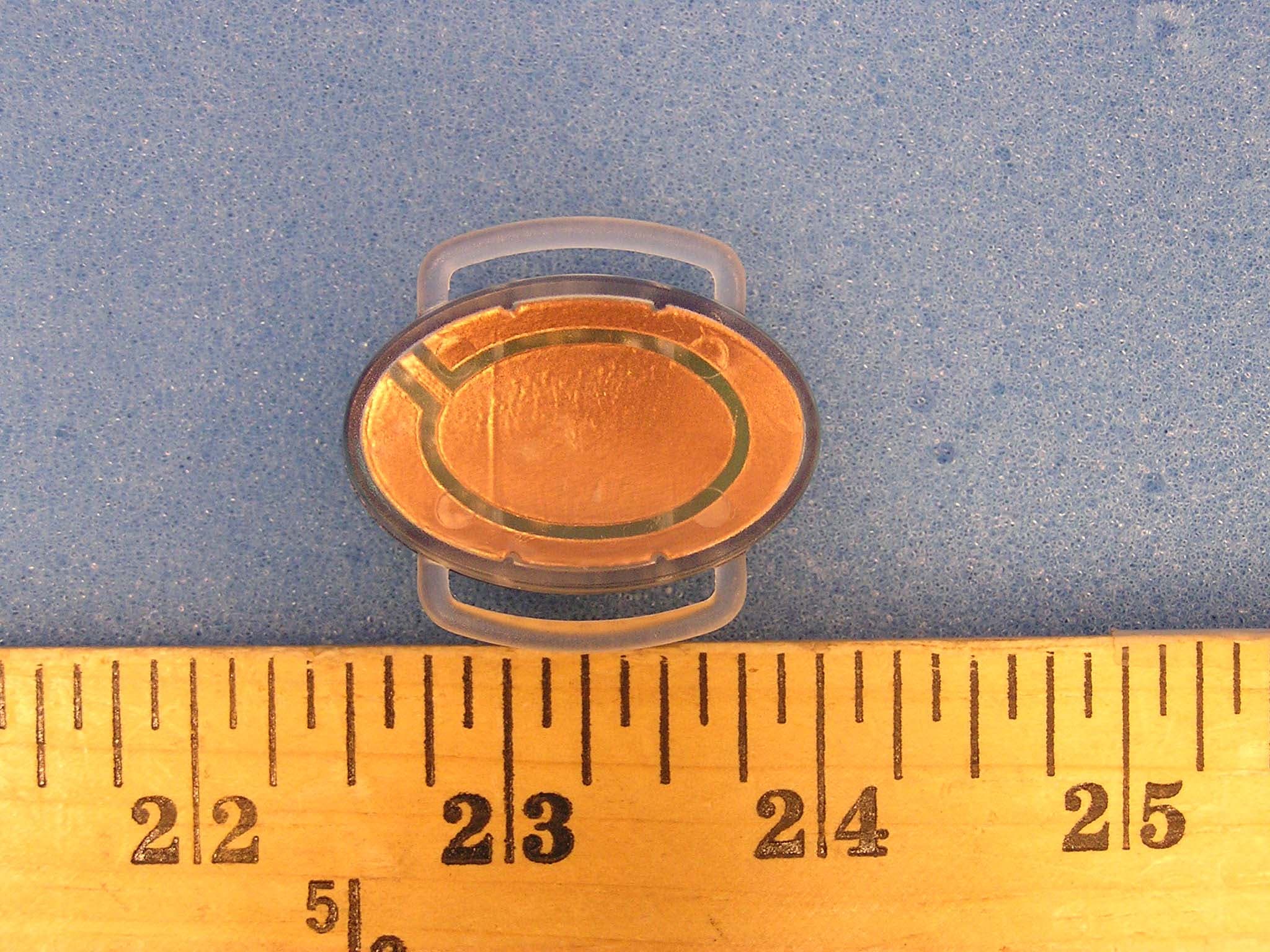

HE7ITGRFID Tag

100-13551 Commerce Parkway Richmond, BC Canada V6V 2L1 Toll Free (800) 667-9689 Phone (604) 207-7760 Fax (604) 207-7765 E-mail: [email protected] www.exi.com © September 2004, eXI Wireless Inc. Specifications subject to change without notice. 980-000037-000R1.00 Infant Tag User Guide INFANT TAG OVERVIEW Infant TagAR4TA02-00P Infant Tag w/ Tag PulseAR4TA01-00P As an essential part of the HALO Infant Protection System™, the Infant Tag helps to protect and identify infants in your care. Each tag is labeled with a unique serial number and expiry date for easy, accurate identification. The bottom of the tag is curved to ensure a snug and comfortable fit. Tag pulse technology allows tags to emit periodic signals to the HALO system that allow facilities to accurately track and locate infants. Infant Tags are available with and without tag pulse technology. APPLICATION Proper banding will limit the incidence of nuisance alarms. A properly fastened strap should keep the bottom of the Infant Tag against the infant’s skin, but it should neither restrict the infant’s circulation nor cause discomfort or chafing. eXI recommends using either the Velcro Strap or the Stockinette to attach the Infant Tag. However, other options are available. For more information, contact your dealer or eXI directly. STEP 1: APPLY SECURE STRIP* Secure StripAR3SS01-000 (Roll of 1000 pre-cut adhesives) •Hold Infant Tag with top uppermost •Remove Secure Strip from tape by slightly bending tape, allowing strip to separate •Center strip on bottom of tag and press firmly into place •Follow instructions for type of strap used STEP 2: BANDING Velcro StrapAR3WS01-VLC (Pack of 10) •Insert velcro tab end of strap through one arm of tag. Guide it from top to bottom of tag, with tan color next to the infant’s skin •Pull taut •Peel backing from Secure Strip •Place tag on infant’s calf or upper arm •Guide tab end through tag’s other arm •Fold tab back over arm to adhere velcro to strap Stockinette (S - 1.25”)AR3WS01-SML Stockinette (M - 1.625”)AR3WS01-MED Stockinette (L - 2”)AR2WSD1-SOC (Bag of 50) •Peel backing from Secure Strip •Place tag on infant’s calf or upper arm •Center stockinette over tag Coban (3M product available from medical supply companies) •Peel backing from Secure Strip •Place tag on infant’s calf or upper arm •Wrap Coban around tag, covering the tag completely; ensure that you do not wrap the Coban too tightly CLEANING TAG S In order to disinfect without causing damage to the tags, use one of the following cleaning methods: METHOD 1 •Scrub each tag with germicidal solution of approximately 60 seconds Note: Phenolic or iodine base solution is preferred •Wipe each tag individually (using a new alcohol wipe for each) •Allow tag to dry for 30 seconds METHOD 2 •Use cold sterilization in Cidex or Totacide Note: Do not immerse tags for more than 30 minutes METHOD 3 •Use gas diffusion sterilization methods Note: Battery leakage may occur if tags are exposed to heat in excess of 57°C (135°F) Important: Tags are incompatible with disinfectants containing Glycol Ether. STRAPS The Velcro Strap and the Stockinette are disposable and intended for single use, which eliminates the need for sterilization and disinfection. If need be, the Velcro Strap will withstand hand washing. STORAGE Tag RackAGETR02-000 Store tags in eXI’s Tag Rack at room temperature. The Tag Rack holds up to 42 curved Infant Tags. Regularly rotate your tag inventory so that tags are used evenly. ORDER INFORMATION To re-order tags, secure strips, or bands, contact your dealer or eXI directly. Use the order numbers in bold and italics to ensure you get exactly what you need. *Optional Top Arm Arm Curved Bottom - Sensing Surface eXI Wireless SystemsModel No.: Infant Tag IC: 2877A-ITGFCC ID: HE7ITG * This device complies with Part 15 of the FCC Rules. Operation is subject to the following two rules: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.Made in Canada

September 17, 2004 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: In reference to the application under FCC ID: HE7ITG, and pursuant to Sections 0.457(d)(l)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of the accompanying information as outlined below: Schematics Block Diagram Theory of Operation. These documents contain detailed system and equipment description and related information about the product that EXI Wireless Systems Inc. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, EXI Wireless Systems Inc. considers that this information would be of benefit to its competitors, and that disclosure of the information would be of benefit to its competitors, and that disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely Yours, Bruce R. Barlow, NPI Engineer EXI Wireless Systems Inc . Suite 100 13551 Commerce Parkway Richmond, BC Canada V6V 2L1 Phone (604) 207-7760 1-800-667-9689 Fax (604) 207-7765 e-mail: [email protected] www.exi.com

PROPOSED FCC ID LABEL AND LOCATION EXI WIRELESS SYSTEMS INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: HE7ITG FCC ID LABEL LOCATION

FCC PART 15 SUBPART C CERTIFICATION REPORT FOR RFID TAG MODEL: INFANT TAG FCC ID NO: HE7ITG REPORT NO: 04U2971-1 ISSUE DATE: SEPTEMBER 16,2004 Prepared for EXI WIRELESS SYSTEMS INC. SUITE 100, 13551 COMMERCE PARKWAY RICHMOND, BC CANADA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 04U2971-1 DATE: SEPTEMBER 16, 2004 EUT: RFID TAG FCC ID: HE7ITG COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE....................................3 3. TEST FACILITY..................................................4 4. MEASUREMENT STANDARD........................................4 5. TEST METHODOLOGY............................................4 6. MEASUREMENT EQUIPMENT USED..................................4 7. POWERLINE RFI LIMIT............................................5 8. RADIATED EMISSION LIMITS.......................................5 9. SYSTEM TEST CONFIGURATION.....................................6 10. TEST PROCEDURE..............................................7 11. EQUIPMENT MODIFICATIONS......................................9 12. TEST RESULT.................................................10 12.1 MAXIMUM MODULATION PERCENTAGE (M%).......................10 12.2 EMISSION BANDWIDTH.........................................10 TEST DATA • Maximum Modulation Percentage Plot • Emission Bandwidth Plot • Radiated Emission Worksheet for Peak Measurement • Radiated Emission Worksheet for Average Measurement ATTACHMENT • EUT Photographs • Proposed FCC ID Label • Schematics & Block Diagram • User Manual REPORT NO: 04U2971-1 DATE: SEPTEMBER 16, 2004 EUT: RFID TAG FCC ID: HE7ITG Page 3 of 23 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. VERIFICATION OF COMPLIANCE COMPANY NAME : EXI WIRELESS SYSTEMS INC. SUITE 100, 13551 COMMERCE PARKWAY RICHMOND BC, CANADA EUT DESCRIPTION : RFID TAG MODEL NO : Infant Tag FCC ID : HE7ITG DATE TESTED : 9-16-2004 REPORT NUMBER : 04U2971-1 TYPE OF EQUIPMENT RF TAGS EQUIPMENT TYPE 433.92MHz TRANSMITTER MEASUREMENT PROCEDURE ANSI C63.4 / 2001 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by Compliance Certification Services for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. Tested By: CHIN PANG EMC TECHNICIAN COMPLIANCE CERTIFICATION SERVICES Approved & Released By: THU CHAN EMC SUPERVISOR COMPLIANCE CERTIFICATION SERVICES REPORT NO: 04U2971-1 DATE: SEPTEMBER 16, 2004 EUT: RFID TAG FCC ID: HE7ITG Page 4 of 23 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. PRODUCT DESCRIPTION Fundamental Frequency 433.92 MHz Power Source 3V Battery Transmitting Time Periodic > 5 seconds Associated Receiver NA Manufacturer EXI Wireless Systems Inc. 3. TEST FACILITY The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27,1994. 4. MEASUREMENT STANDARD The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/2001. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) 6. MEASUREMENT EQUIPMENT USED TEST EQUIPMENT LIST Name of EquipmentManufacturerModel No.Serial No.Due Date Antenna, Loop 9 kHz ~ 30 MHzEMCO65029202-27224/23/2005 Spectrum Analyzer 20 Hz ~ 44 GHzAgilentE4446AUS420702201/13/2005 Antenna, Horn 1 ~ 18 GHzEMCO311567172/4/2005 Amplifier 1-26GHzMITEQNSP2600-SP9243414/25/2005 EMI Receiver, 9 kHz ~ 2.9 GHzHP8542E3942A0028611/20/2004 RF Filter SectionHP85420E3705A0025611/20/2004 Bilog AntennaARALPB-2520/ANA9/3/2005 SA Display Section 2HP85662A2816A166962/22/2005 Quasi-Peak AdaptorHP85650A2811A011552/22/2005 SA RF Section 1.5GHzHP85680B2814A042272/22/2005 REPORT NO: 04U2971-1 DATE: SEPTEMBER 16, 2004 EUT: RFID TAG FCC ID: HE7ITG Page 5 of 23 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408…

Text truncated - open the document above for the full version.

REPORT NO: 04U2971-1 DATE: SEPTEMBER 16, 2004 EUT: RFID TAG FCC ID: HE7ITG Page 6 of 23 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X.Y, and Z axis. To activate continuous transmission, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up X-Axis Y-Axis Z-Axis
