HE7MT2RFID Tag Reader

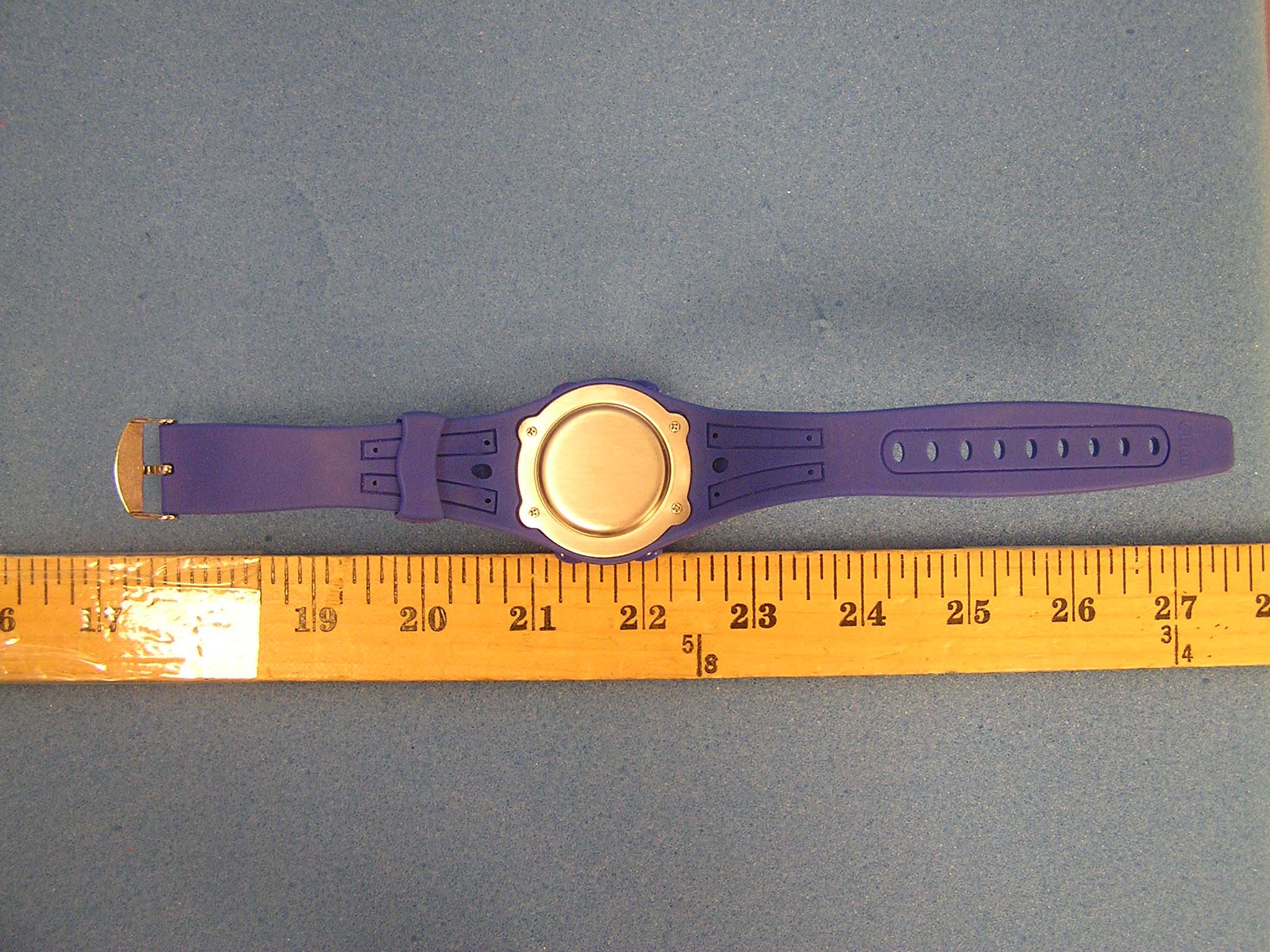

HALO ANGELMATCH-USER GUIDE 980-000036-000R1.00 1 OVERVIEW HALO AngelMatch can be used anywhere and anytime to confirm the match between a mother and her baby. A simple press of a button provides instant audible and visual confirmation. HALO AngelMatch can be easily expanded at any time by adding more Mother tags and Wrist tags. COMPONENTS: HALO AngelMatch requires a Wrist Tag and a Mother tag: Wrist tag Mother Tag Wrist Tag Strap Extra Wrist Tag straps can be ordered through your dealer or eXI. Alternatively, they can be ordered directly from the manufacturer. Please contact your dealer or eXI for more information. Securing pin & flap Create Bond Button Verify Button LEDs HALO ANGELMATCH USER GUIDE 980-000036-000R1.00 2 2 BONDING MOTHER TAG WITH THE WRIST TAG The first step is to bond the Mother Tag with the Wrist Tag(s). The Mother Tag has the capability of handling multiple births (twin, triplets etc.) and can be bonded with up to eight Wrist Tags. 1. When the mother and the baby/babies are ready, take one mother tag and as many Wrist Tags as are required. 2. Attach the Wrist Tag to the baby*. 3. Press both buttons (Create and Verify) on the Mother Tag and hold them pressed down for 5 seconds. The LED briefly displays a red light but will then start flashing green. 4. When five seconds have passed, the tag beeps and a solid red light is displayed. Release the Create button, but keep the Verify button pressed down; a solid green light is now displayed. 5. After releasing the Create button, you now have five seconds to press the Create button again. Both the green and the red LEDs will start flashing and the tag is now in bonding mode. 6. Without letting go of the button, place the Wrist Tag so that it is within 12 inches of the Mother Tag. The Mother Tag will now bond with the Wrist Tag. 7. A beeping sound will confirm the successful bond between Mother tag and Wrist Tag. The Mother Tag will briefly display a green light to confirm the bond. 8. If more than one Wrist Tag is to be bonded with the same Mother tag, make sure that the Mother tag button is kept pressed down. Do not release buttons between Wrist Tags**. Point the Mother Tag to the next Wrist Tag to be bonded. 9. When all tags are successfully bonded with the Mother tag, let go of the button on the Mother Tag. *Note: The bonding can be done either before or after attaching the tag to the infant, depending on preference and hospital policies and type of tags (Wrist Tag should be attached prior to bonding.) **Note: If the button is released by mistake before all tags are bonded, the process has to be started over from the beginning. During the bonding process of multiple Wrist Tags, keep them about three feet from each other. HALO ANGELMATCH USER GUIDE 980-000036-000R1.00 3 3 ATTACHING THE TAG TO THE BABY Hold the tag with the top (Blue) uppermost and thread the strap through one Tag arm, across the bottom of the Tag and through the other arm. Place the strap around the baby’s wrist or leg and insert the securing pin in an appropriate position on the strap. Fold over the securing flap and press firmly so that the securing pin snaps in place. Make sure the strap is not restricting circulation, or it will potentially cause chaffing. HALO ANGELMATCH USER GUIDE 980-000036-000R1.00 4 4 MATCHING MOTHER WITH BABY Anytime and anywhere the mother or hospital staff want to confirm the match between the mother and a baby, the following steps apply: Bring the baby and the mother tags together so that they are within 12 inches of proximity. ƒ Press the Verify tag button and release. ƒ If there is a match, a ‘good match’ melody will play and the LED on the mother tag will display a green light. ƒ If there is a mismatch, a ‘bad match’ melody will play and the LED on the mother tag will display a red light. Take immediate action according to hospital policies and procedures. 12 inches HALO ANGELMATCH USER GUIDE 980-000036-000R1.00 5 5 DISCHARGE When the mother and the baby are ready to leave the hospital, simply release the Wrist Tag by cutting the strap. The Wrist Tag(s) will remain bonded with the mother tag until the next bonding process, which will clear the mother tag memory and enter new tag(s). It is recommended that the mother tag is re- bonded with the Wrist Tag(s) every time HALO AngelMatch is assigned to a mother and her baby. To clean the Mother Tag and Wrist Tag, please follow Care Guidelines below. 6 CARE GUIDELINES ‰ The Wrist Tag is fully submersible in water (up to 5 ft) and will withstand cleaning. Use one of the following cleaning methods: METHOD 1 ƒ Scrub each tag with germicidal solution for approximately 60 seconds. Note: Phenolic or iodine based solution is preferred ƒ Wipe each tag individually (using a new alcohol wipe for each) ƒ Allow tag to dry for 30 seconds METHOD 2 ƒ Use cold sterilization in Cidex or Totacide Note: Do not immerse tags for more than 30 minutes METHOD 3 ƒ Use gas diffusion sterilization methods. Note: Battery leakage may occur if tags are exposed to heat in excess of 57°C (135°F) ‰ The Mother tag can be cleaned by spraying a germicidal solution over the tag and then wiping it down using individual alcohol wipes for each tag. The mother tag should not be fully submersed in water. ‰ The Tag straps are single-use and disposable. Upon discharge of the baby, the strap is released by cutting it with scissors. Important: Tags are incompatible with disinfectants containing Glycol Ether. HALO ANGELMATCH USER GUIDE 980-000036-000R1.00 6 FCC Regulations This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. eXI Wireless Systems Model No.: Wrist …

Text truncated - open the document above for the full version.

September 17, 2004 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: In reference to the application under FCC ID: HE7MT2, and pursuant to Sections 0.457(d)(l)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of the accompanying information as outlined below: Schematics Block Diagram Theory of Operation. These documents contain detailed system and equipment description and related information about the product that EXI Wireless Systems Inc. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, EXI Wireless Systems Inc. considers that this information would be of benefit to its competitors, and that disclosure of the information would be of benefit to its competitors, and that disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely Yours, Bruce R. Barlow, NPI Engineer EXI Wireless Systems Inc . Suite 100 13551 Commerce Parkway Richmond, BC Canada V6V 2L1 Phone (604) 207-7760 1-800-667-9689 Fax (604) 207-7765 e-mail: [email protected] www.exi.com

1 Helen Zhao From:Claire Hoque Sent:Thursday, September 30, 2004 12:26 PM To:Helen Zhao Cc:Mike Kuo; Thu Chan; Nancy Omron; Julia Luke Subject:RE: EXI WIRELESS SYSTEMS INC., FCC ID: HE7MT2, Assessment NO.: AN04T4217, Notice# 1 04U2979-1 FCC report revised.p... Hi Helen, Here are the answers. Question #1: Based upon Theory of Operation provided, this device is using two fundamental frequencies and operating in two different technical rule parts and in two different device category. At 307kHz operation, this device shall comply with 15.209 general technical requirement and the device category is "DCD - Part 15 low power transmitter below 1.705MHz." At 433.92MHz, this device shall comply with 15.231(e) technical requirement and the device category is "DSR-Part15 Remote Control/Security Device Transceiver". This application shall be filed as composite device under one FCC ID number. Two submissions are necessary, one is for DCD, the other is for DSR. <answer>pls see the other application AN04T4227. Question #2: Based upon Theory of Operation provided, this device is a 433.92 MHz transceiver. The receiver function is subject to FCC verification. Please confirm the verification has been done on this device. <answer>pls review the revised report as attached. Thanks, Claire -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Tuesday, September 28, 2004 11:29 AM To: Helen Zhao Subject: EXI WIRELESS SYSTEMS INC., FCC ID: HE7MT2, Assessment NO.: AN04T4217, Notice#1 Question #1: Based upon Theory of Operation provided, this device is using two fundamental frequencies and operating in two different technical rule parts and in two different device category. At 307kHz operation, this device shall comply with 15.209 general technical requirement and the device category is "DCD - Part 15 low power transmitter below 1.705MHz." At 433.92MHz, this device shall comply with 15.231(e) technical requirement and the device category is "DSR-Part15 Remote Control/Security Device Transceiver". This application shall be filed as composite device under one FCC ID number. Two submissions are necessary, one is for DCD, the other is for DSR. Question #2: Based upon Theory of Operation provided, this device is a 433.92 MHz transceiver. The receiver function is subject to FCC verification. Please confirm the verification has been done on this device. 2 Best regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

MOTHER TAG2 FCC ID: HE7MT2 Industry Canada ID: 2877A-ITG FCC LABEL PLACEMENT (WITH SN LABEL PLACED) FCC LABEL FORMAT

FCC PART 15 SUBPART C CERTIFICATION REPORT FOR RFID TAG READER MODEL: MTAG2 FCC ID NO: HE7MT2 REPORT NO: 04U2979-1 ISSUE DATE: SEPTEMBER 17,2004 Prepared for EXI WIRELESS SYSTEMS INC. SUITE 100, 13551 COMMERCE PARKWAY RICHMOND, BC, CANADA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 04U2979-1 DATE: SEPTEMBER 17, 2004 EUT: RFID TAG READER FCC ID: HE7MT2 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE....................................3 2. PRODUCT DESCRIPTION...........................................4 3. TEST FACILITY..................................................4 4. MEASUREMENT STANDARD........................................4 5. TEST METHODOLOGY............................................4 6. MEASUREMENT EQUIPMENT USED..................................4 7. POWERLINE RFI LIMIT............................................5 8. RADIATED EMISSION LIMITS.......................................5 9. SYSTEM TEST CONFIGURATION.....................................6 10. TEST PROCEDURE...............................................7 11. EQUIPMENT MODIFICATIONS......................................9 12. TEST RESULT.................................................10 12.1 MAXIMUM MODULATION PERCENTAGE (M%).......................10 12.2 EMISSION BANDWIDTH.........................................10 TEST DATA • Maximum Modulation Percentage Plot • Emission Bandwidth Plot • Radiated Emission Worksheet for Peak Measurement • Radiated Emission Worksheet for Average Measurement ATTACHMENT • EUT Photographs • Proposed FCC ID Label • Schematics & Block Diagram • User Manual REPORT NO: 04U2979-1 DATE: SEPTEMBER 17, 2004 EUT: RFID TAG READER FCC ID: HE7MT2 Page 3 of 26 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. VERIFICATION OF COMPLIANCE COMPANY NAME : EXI WIRELESS SYSTEMS INC. SUITE 100, 13551 COMMERCE PARKWAY RICHMOND BC, CANADA EUT DESCRIPTION : RFID TAG READER MODEL NO : MTAG2 FCC ID : HE7MT2 DATE TESTED : 9-16-2004 REPORT NUMBER : 04U2979-1 TYPE OF EQUIPMENT RF TAGS EQUIPMENT TYPE TRANSCEIVER: 433.92MHz, TRANSMITTER: 307KHz MEASUREMENT PROCEDURE ANSI C63.4 / 2001 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by Compliance Certification Services for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. Tested By: CHIN PANG EMC TECHNICIAN COMPLIANCE CERTIFICATION SERVICES Approved & Released By: THU CHAN EMC SUPERVISOR COMPLIANCE CERTIFICATION SERVICES REPORT NO: 04U2979-1 DATE: SEPTEMBER 17, 2004 EUT: RFID TAG READER FCC ID: HE7MT2 Page 4 of 26 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. PRODUCT DESCRIPTION Fundamental Frequency 433.92 MHz / 307kHz Power Source 3V Battery Transmitting Time Periodic > 5 seconds Associated Receiver NA Manufacturer EXI Wireless Systems Inc. 3. TEST FACILITY The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27,1994. 4. MEASUREMENT STANDARD The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/2001. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) 6. MEASUREMENT EQUIPMENT USED TEST EQUIPMENT LIST Name of EquipmentManufacturerModel No.Serial No.Due Date Antenna, Loop 9 kHz ~ 30 MHzEMCO65029202-27224/23/2005 Spectrum Analyzer 20 Hz ~ 44 GHzAgilentE4446AUS420702201/13/2005 Antenna, Horn 1 ~ 18 GHzEMCO311567172/4/2005 Amplifier 1-26GHzMITEQNSP2600-SP9243414/25/2005 EMI Receiver, 9 kHz ~ 2.9 GHzHP8542E3942A0028611/20/2004 RF Filter SectionHP85420E3705A0025611/20/2004 Bilog AntennaARALPB-2520/ANA9/3/2005 SA Display Section 2HP85662A2816A166962/22/2005 Quasi-Peak AdaptorHP85650A2811A011552/22/2005 SA RF Section 1.5GHzHP85680B2814A042272/22/2005 REPORT NO: 04U2979-1 DATE: SEPTEMBER 17, 2004 EUT: RFID TAG READER FCC ID: HE7MT2 Page 5 of 26 C…

Text truncated - open the document above for the full version.

REPORT NO: 04U2979-1 DATE: SEPTEMBER 17, 2004 EUT: RFID TAG READER FCC ID: HE7MT2 Page 6 of 23 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X.Y, and Z axis. To activate continuous transmission, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up X-Axis Y-Axis Z-Axis
