HE7MTGPortable RFID Tag Reader

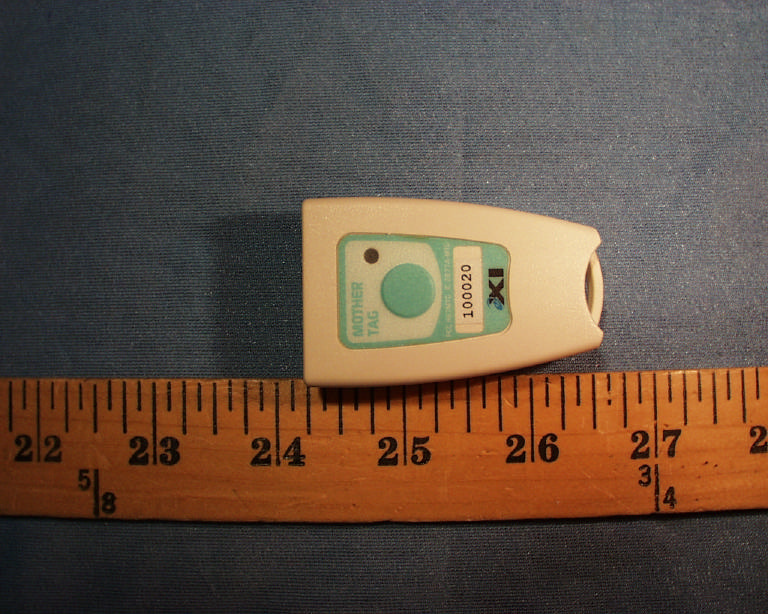

HALO ANGELMATCH-USER GUIDE 980-000032-000R1.01 1 OVERVIEW HALO AngelMatch can be used anywhere and anytime to confirm the match between a mother and her baby. A simple press of a button provides instant audible and visual confirmation. HALO AngelMatch can be easily expanded at any time by adding more mother tags and infant tags. COMPONENTS: HALO AngelMatch includes five (5) infant tags and five (5) mother tags. The bundle also includes ten (10) straps for the infant tags and five (5) lanyard straps for the mother tags. Infant tag Mother Tag Lanyard strap for Mother Tag* Infant Tag Strap *Other strap types such as breakaway straps, pullout/retractable cords, clip-ons, etc. can be used for the mother tag depending on hospital preference. The straps shipped could be of slightly different model than the one shown on picture. Extra infant tag straps and lanyards can be ordered through your dealer or eXI. Alternatively, they can be ordered directly from the manufacturer. Please contact your dealer or eXI for more information. LED Button Securing pin & flap HALO ANGELMATCH USER GUIDE 980-000032-000R1.01 2 2 BONDING MOTHER TAG WITH THE INFANT TAG The first step is to bond the mother tag with the infant tag(s). The mother tag has the capability of handling multiple births (twin, triplets etc.) and can be bonded with up to eight infant tags. 1. When the mother and the baby/babies are ready, take one mother tag and as many infant tags as are required. 2. Hold the mother tag with the button facing upwards. Make sure you have the infant tags readily available. 4. When 5 seconds have expired, the tag will beep and the LED will change from flashing green to solid red. You now have 5 seconds to release the button. 3. Press the button on the mother tag and hold it pressed down for 5 seconds. A beeping sound will indicate when five seconds have passed. 5. When the button is released the tag will beep and the LED will change from solid red to solid green. You now have 5 seconds to press and hold the button again. HALO ANGELMATCH USER GUIDE 980-000032-000R1.01 3 8. A beeping sound will confirm the successful bond between mother tag and infant tag. 9. If more than one infant tag is to be bonded with the same mother tag, make sure that the mother tag button is kept pressed down. Do not release the button between infant tags*. Point the mother tag to the next infant tag to be bonded. 10. When all tags are successfully bonded with the mother tag, let go of the button on the mother tag. 11. Attach the infant tag to the baby and give the mother tag to the mother**. *Note: If the button is released by mistake before all tags are bonded, the process has to be started over from the beginning and all tags need to be re-bonded. During the bonding process of multiple infant tags, keep them about three feet from each other. **Note: The bonding can be done either before or after attaching the tag to the infant, depending on preference and hospital policies. The infant tag(s) will remain bonded with the mother tag until the next bonding process, which will clear the mother tag memory and enter new tag(s). 7. Without letting go of the button, place the infant tag so that it is within 12 inches of the mother tag. The mother tag will now bond with the infant tag. 6. Press and hold the button again. The tag will beep and the LED will change to flashing orange. The tag is now in bonding mode. HALO ANGELMATCH USER GUIDE 980-000032-000R1.01 4 3 ATTACHING THE TAG TO THE BABY Hold the tag with the top (Blue) uppermost and thread the strap through one Tag arm, across the bottom of the Tag and through the other arm. Place the strap around the baby’s wrist or leg and insert the securing pin in an appropriate position on the strap. Fold over the securing flap and press firmly so that the securing pin snaps in place. Make sure the strap is not restricting circulation, or it will potentially cause chaffing. HALO ANGELMATCH USER GUIDE 980-000032-000R1.01 5 4 MATCHING MOTHER WITH BABY Anytime and anywhere the mother or hospital staff want to confirm the match between the mother and a baby, the following steps apply: 2. Press the mother tag button and release. 1. Bring the baby and the mothe r tags together so that they are within 12 inches of proximity. 3. If there is a match, a ‘good match’ melody will play and the LED on the mother tag will display a solid green light. 4. If there is a mismatch, a ‘bad match’ melody will play and the LED on the mother tag will display a solid red light. Take immediate action according to hospital policies and procedures. HALO ANGELMATCH USER GUIDE 980-000032-000R1.01 6 5 DISCHARGE When the mother and the baby are ready to leave the hospital, simply release the infant tag by cutting the strap. The infant tag(s) will remain bonded with the mother tag until the next bonding process, which will clear the mother tag memory and enter new tag(s). It is recommended that the mother tag is re- bonded with the infant tag(s) every time HALO AngelMatch is assigned to a mother and her baby. To clean the mother tag and infant tag, please follow Care Guidelines below. 6 CARE GUIDELINES ‰ The Infant tag is fully submersible in water (up to 5 ft) and will withstand cleaning. Use one of the following cleaning methods: METHOD 1 ƒ Scrub each tag with germicidal solution for approximately 60 seconds. Note: Phenolic or iodine based solution is preferred ƒ Wipe each tag individually (using a new alcohol wipe for each) ƒ Allow tag to dry for 30 seconds METHOD 2 ƒ Use cold sterilization in Cidex or Totacide Note: Do not immerse tags for more than 30 minutes METHOD 3 ƒ Use gas diffusion sterilization methods. Note: Battery leakage may occur if tags are exposed to heat in excess of 57°C (135°F) ‰ The Mother tag can be cleaned by spraying a germicidal solution over the tag and then wiping it down using individual alcohol wipes for each tag. The mother tag should not be fully submersed in water. ‰ The Tag straps are single-use and d…

Text truncated - open the document above for the full version.

From: Claire Hoque Sent: Thursday, August 14, 2003 5:42 PM To: Mike Kuo Cc: Anne Liang; Thu Chan Subject: RE: EXI Wireless System FCC ID:HE7MTG, AN03T3159 Hi Mike, Here are the answers: Question #1: This device is using two fundamental frequencies which are operating in two different technical rule parts and in two different device category. At 307kHz operation, this device shall be complied with 15.209 general technical requirement and the device category is DCD-" Part 15 low power transmitter below 1.705MHz." At 433.92MHz, this device shall be complied with 15.231(e) technical requirement and the device category is DSC-Part15 security/remote control transmitter". Based upon the theory of operation, this application shall be filed as composite device under one FCC ID number. Two applications shall be filed, one is under DCD and the other one is DSC. <ANSWER> EXI is aware of the composite application and agreed to pay the second submission fee. Question #2: For 307kHz measurement procedures, loop antenna shall be used. Loop antenna is included in the measurement instrumentation equipment list and there is no measurement procedure provided. Please provide description on how the 307kHz measurement was performed. <ANSWER> Pls see p.7 of the revised report. Thanks, Claire

PROPOSED FCC ID LABEL AND LOCATION EXI WIRELESS SYSTEMS INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: HE7MTG FCC ID LABEL LOCATION

FCC PART 15 SUBPART C CERTIFICATION REPORT FOR PORTABLE RFID TAG READER MODEL: MOTHER TAG FCC ID NO: HE7MTG REPORT NO: 03U2096-1 ISSUE DATE: JULY 22, 2003 Prepared for EXI WIRELESS SYSTEMS INC. SUITE 100, 13551 COMMERCE PARKWAY RICHMOND, BC CANADA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 03U2096-1 DATE: JULY 22, 2003 EUT: PORTABLE RFID TAG READER FCC ID: HE7MTG COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE....................................3 2. PRODUCT DESCRIPTION..........................................4 3. TEST FACILITY.................................................4 4. MEASUREMENT STANDARD.......................................4 5. TEST METHODOLOGY............................................4 6. MEASUREMENT EQUIPMENT USED..................................4 7. POWERLINE RFI LIMIT............................................5 8. RADIATED EMISSION LIMITS.......................................5 9. SYSTEM TEST CONFIGURATION....................................6 10. TEST PROCEDURE..............................................7 11. EQUIPMENT MODIFICATIONS.....................................9 12. TEST RESULT.................................................10 TEST DATA • Maximum Modulation Percentage Plot • Emission Bandwidth Plot • Radiated Emission Worksheet for Peak Measurement • Radiated Emission Worksheet for Average Measurement ATTACHMENT REPORT NO: 03U2096-1 DATE: JULY 22, 2003 EUT: PORTABLE RFID TAG READER FCC ID: HE7MTG COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. • EUT Photographs • Proposed FCC ID Label • Schematics & Block Diagram • User Manual REPORT NO: 03U2096-1 DATE: JULY 22, 2003 EUT: PORTABLE RFID TAG READER FCC ID: HE7MTG Page 3 of 26 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. VERIFICATION OF COMPLIANCE COMPANY NAME : EXI WIRELESS SYSTEMS INC. SUITE 100, 13551 COMMERCE PARKWAY RICHMOND BC, CANADA EUT DESCRIPTION : PORTABLE RFID TAG READER MODEL NO : MOTHER TAG FCC ID : HE7MTG DATE TESTED : 7-22-2003 REPORT NUMBER : 03U2096-1 TYPE OF EQUIPMENT RF TAGS EQUIPMENT TYPE 307KHz / 433.92MHz TRANSCEIVERS MEASUREMENT PROCEDURE ANSI C63.4 / 2001 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by Compliance Certification Services for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. Tested By: CHIN PANG EMC TECHNICIAN COMPLIANCE CERTIFICATION SERVICES Approved & Released By: THU CHAN EMC SUPERVISOR COMPLIANCE CERTIFICATION SERVICES REPORT NO: 03U2096-1 DATE: JULY 22, 2003 EUT: PORTABLE RFID TAG READER FCC ID: HE7MTG Page 4 of 26 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. PRODUCT DESCRIPTION Fundamental Frequency 307KHz / 433.92 MHz Power Source 3V Battery Transmitting Time Periodic > 5 seconds Associated Receiver NA Manufacturer EXI Wireless Systems Inc. 3. TEST FACILITY The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27,1994. 4. MEASUREMENT STANDARD The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/2001. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) 6. MEASUREMENT EQUIPMENT USED TEST EQUIPMENT LIST Name of EquipmentManufacturerModel No.Serial No.Due Date Antenna, Loop 9 kHz ~ 30 MHzEMCO65029202-27224/23/2004 SA Display Section 2HP85662A2816A166965/22/2004 SA RF Section, 1.5 GHzHP85680B2732A036615/22/2004 Quasi-Peak AdaptorHP85650A2811A011555/22/2004 Antenna, Bilog ChaseCBL6112B25863/6/2004 Spectrum AnalyzerAgilentE4446ANA1/13/200…

Text truncated - open the document above for the full version.

REPORT NO: 03U2096-1 DATE: JULY 22, 2003 EUT: PORTABLE RFID TAG READER FCC ID: HE7MTG Page 6 of 26 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X.Y, and Z axis. To activate continuous transmission, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up X-Axis Y-Axis Z-Axis
