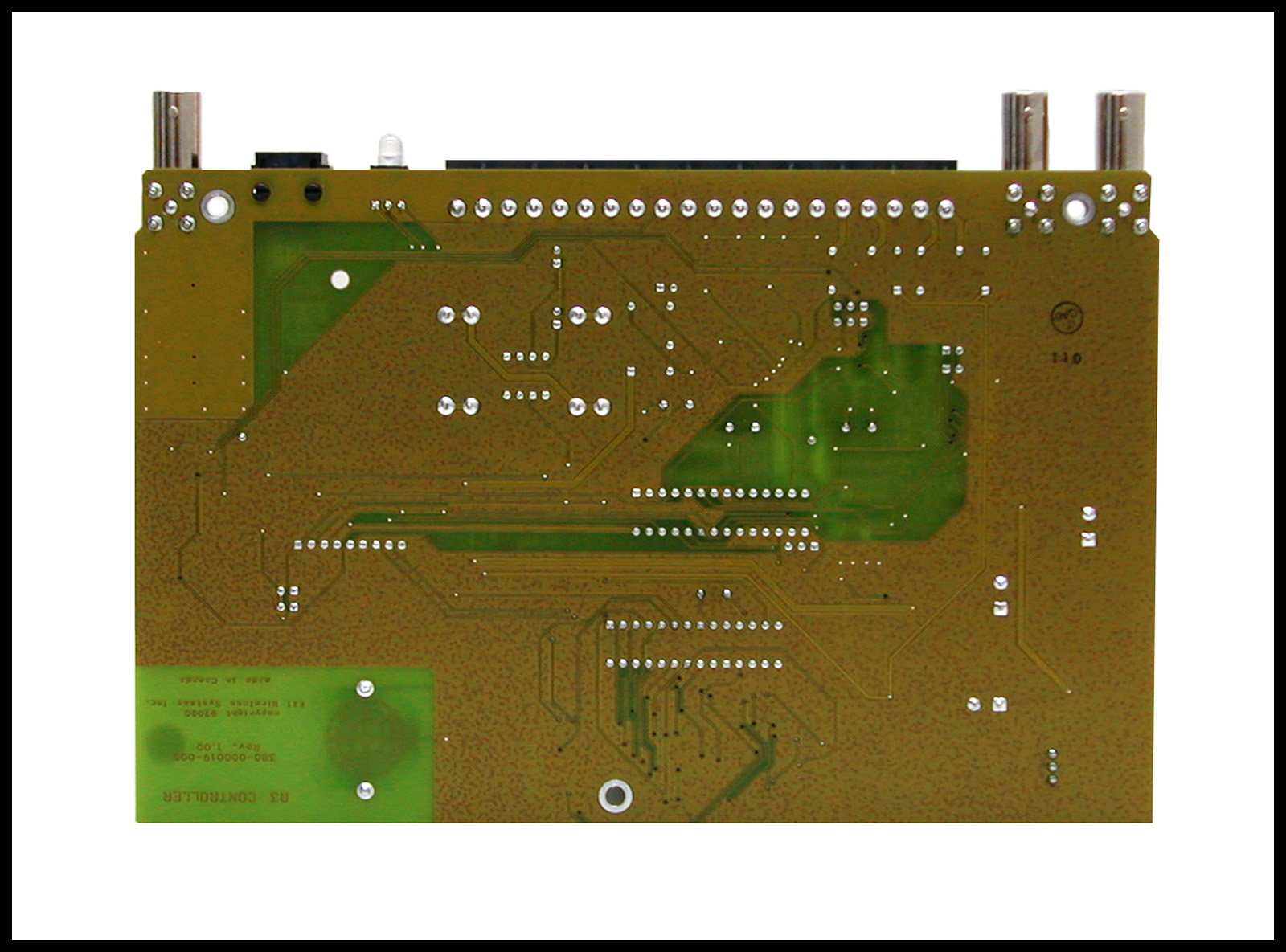

HE7R3CR3 CONTROLLER

Revision 2.0 Installation and Operations Manual March 2000 © Copyright 1999, EXI Wireless Systems Inc. All rights reserved. EXI HALO Installation & Operation Manual 981-000003-000 EXI Wireless Systems2March 2000 Revision 2.0 Table of Contents 1.LIMITED WARRANTY..............................................................................................................................4 2.RECORD OF CHANGES............................................................................................................................6 3.FCC REGULATIONS..................................................................................................................................7 4.INTRODUCTION........................................................................................................................................8 4.1.ABOUT HALO INFANT PROTECTION SYSTEM.............................................................................................8 4.2.SYSTEM COMPONENTS.............................................................................................................................9 4.2.1.Door Control Package (Networked) – SR2C01N..............................................................................9 4.2.2.Elevator Package (Networked) – SR2L01N......................................................................................9 4.2.3.HALO Receiver Package (Networked) - SR2R01N.........................................................................10 4.2.4.Power Supply................................................................................................................................10 4.2.5.HALO Console..............................................................................................................................11 5.INSTALLATION.......................................................................................................................................12 5.1.OVERVIEW TO INSTALLING THE HALO SYSTEM.....................................................................................12 5.2.SYSTEM WIRING...............................................................................................................................12 5.2.1.Cabling Type.................................................................................................................................13 5.3.SYSTEM CONNECTION....................................................................................................................14 5.4.DOOR CONTROL...............................................................................................................................15 5.5.LOCATION FOR SRA EXCITER ANTENNAS...................................................................................15 5.6.LOCATING THE RECEIVER ANTENNA..........................................................................................17 5.7.FINALIZE CONTROLLER INSTALLATION.....................................................................................18 5.8.INSTALLING RECEIVERS.................................................................................................................20 5.8.1.Threshold Switch...........................................................................................................................21 5.9.RS-485 INTERFACE MODULE (RIM).......................................................................................................22 5.9.1.RIM LED Status............................................................................................................................22 5.10.INSTALLING ELEVATOR CONTROLLERS..................................................................................23 5.10.1.CONTROLLER CABINET INSTALLATION...................................................................................24 5.10.2.LOCATION FOR SRA-E EXCITER ANTENNAS............................................................................25 5.10.3.Elevator Receive (RX) Antenna......................................................................................................26 5.10.4.Audible Alarm Module...................................................................................................................26 5.10.5.Keypad..........................................................................................................................................26 5.10.6.“Door not Closed” Contact...........................................................................................................27 5.10.7.Door Control and Fire Alarm Supervision.....................................................................................27 5.10.8.System Adjustment and Testing......................................................................................................28 5.11.SYSTEM GROUNDING CONSIDERATIONS.................................................................................28 6.PC NETWORKED INSTALLATION.......................................................................................................29 7.THEORY OF OPERATION......................................................................................................................31 7.1.TAG COMMUNICATIONS.........................................................................................................................31 7.2.HALO SYSTEM COMMUNICATIONS........................................................................................................31 7.3.HALO CONTROLLER........................................................................................................................32 7.4.KEYPAD..............................................................................................................................................33 7.5.HALO RECEIVER...............................................................................................................................35 7.6.ELEVATOR CONTROLLER......................…

Text truncated - open the document above for the full version.

000000

100000

Master: PT15209 Date: February 25, 2001 Test Report:1R03610.2 Applicant:EXI Wireless Systems Inc. Suite 100 – 13551 Commerce Pk. Richmond, BC V6V 2L1 Equipment Under Test:R3 Controller (EUT) FCC ID:HE7R3C In Accordance With:FCC Part 15, Subpart C, Paragraph 15.209 General Limits For Low Power Transmitters Tested By:Nemko Canada Inc. (Formerly KTL Ottawa Inc.) 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: G. Westwell, Wireless Technologist Date: Total Number of Pages:16 Nemko Canada Inc. FCC PART 15, SUBPART C PARAGRAPH 15.209 PROJECT NO.: 1R03610.2 EQUIPMENT: R3 Controller FCC ID: HE7R3C Page 2 of 16 Table Of Contents Section 1. Summary Of Test Results......................................................................................... 3 Section 2. General Equipment Specification ........................................................................... 5 Section 3. Powerline Conducted Emissions............................................................................. 6 Section 4. Radiated Emissions................................................................................................. 10 Section 5. Occupied Bandwidth.............................................................................................. 14 Section 6. Test Equipment List ............................................................................................... 16 Annex A Test Diagrams ........................................................................................................ A1 Nemko Canada Inc. FCC PART 15, SUBPART C PARAGRAPH 15.209 PROJECT NO.: 1R03610.2 EQUIPMENT: R3 Controller FCC ID: HE7R3C Page 3 of 16 Section 1.Summary Of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15, Subpart C for low power devices. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated Emissions were made on an open area test site. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit DXT Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 TESTED BY: _____________________________________ DATE: ___________________ Russell Grant, Wireless Group Manager Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc. FCC PART 15, SUBPART C PARAGRAPH 15.209 PROJECT NO.: 1R03610.2 EQUIPMENT: R3 Controller FCC ID: HE7R3C Page 4 of 16 Summary Of Test Data Name Of TestPara. No.Result Powerline Conducted Emissions15.207Complies Radiated Emissions15.209Complies Occupied BandwidthNot SpecifiedN/A Nemko Canada Inc. FCC PART 15, SUBPART C PARAGRAPH 15.209 PROJECT NO.: 1R03610.2 EQUIPMENT: R3 Controller FCC ID: HE7R3C Page 5 of 16 Section 2.General Equipment Specification Date Received In Laboratory:March 5, 2001 Nemko Identification No.:Item #1 Frequency Range:Tx 307kHz, Rx 433.92MHz Modulation:Pulse Modulation Emission Designator:14K7L1D Integral Antenna YesNo Note:BNC Connector Professionally Installed. Nemko Canada Inc. FCC PART 15, SUBPART C PARAGRAPH 15.209 PROJECT NO.: 1R03610.2 EQUIPMENT: R3 Controller FCC ID: HE7R3C Page 6 of 16 Section 3.Powerline Conducted Emissions Para. No.: 15.207 Test Performed By: Russell GrantDate of Test: March 13, 2001 Minimum Standard: FrequencyMaximum Powerline Conducted RF Voltage (MHz) ( μ μμ μ V)(dB μ μμ μ V) 0.45 - 30.025048 Test Results:Complies. See attached graph(s). Measurement Data:See attached graph(s). Method of Measurement:(Procedure ANSI C63.4-1992) Measurements were made using a spectrum analyzer with 10 kHz RBW, Peak Detector. Any emissions that are close to the limit are measured using a test receiver with 10 kHz bandwidth, CISPR Quasi-Peak Detector. Nemko Canada Inc. FCC PART 15, SUBPART C PARAGRAPH 15.209 PROJECT NO.: 1R03610.2 EQUIPMENT: R3 Controller FCC ID: HE7R3C Page 7 of 16 Nemko Canada Inc. FCC PART 15, SUBPART C PARAGRAPH 15.209 PROJECT NO.: 1R03610.2 EQUIPMENT: R3 Controller FCC ID: HE7R3C Page 8 of 16 Nemko Canada Inc. FCC PART 15, SUBPART C PARAGRAPH 15.209 PROJECT NO.: 1R03610.2 EQUIPMENT: R3 Controller FCC ID: HE7R3C Page 9 of 16 Powerline Conducted Photographs (Worst Case Configuration) Side View Rear View Nemko Canada Inc. FCC PART 15, SUBPART C PARAGRAPH 15.209 PROJECT NO.: 1R03610.2 EQUIPMENT: R3 Controller FCC ID: HE7R3C Page 10 of 16 Section 4.Radiated Emissions Para. No.: 15.209 Test Performed By: Russell GrantDate of Test: March 13, 2001 Minimum Standard:The field strength of emissions from the device shall not exceed the following limits. Fundamental (MHz) Field Strength ( μ μμ μ V/m) Field Strength (dB μ μμ μ V) 0.009 - 0.4902400/F(kHz) @ 300m— 0.490 - 1.70524000/F(kHz) @ 30m— 1.705 - 3030 @ 30m— 30 - 8810040.0 88 - 21615043.5 216 - 96020046.0 Above 96050054.0 Test Results:Complies. The worst-case emission level is –0.4 dBμV/m @ 3m at 0.307 MHz. This is 18.3 dB below the specification limit. Measurement Data:(Procedure ANSI C63.4-1992) Nemko Canada Inc. FCC PART 15, SUBPART C PARAGRAPH 15.209 PROJECT NO.: 1R03610.2 EQUIPMENT: R3 Controller FCC ID: HE7R3C Page 11 of 16 Test Data - Radiated Emissions Peak Detector,10 kHz RBW Frequency Of Emission (MHz) Received Signal (dB μ μμ μ V) Extrapolation Factor (dB) Field Strength (dB μ μμ μ V/m) Limit (dB μ μμ μ V/m) Margin (dB) 0.307-0.417.918.3 0.61444.0-40.04…
