User Manual - INTRODUCTION Copyright  2003 - eXI Wireless Systems Inc. Page XX 980-000003 – 002. R1.01 TAG LINK The eXI  Tag Link device automates tag administration by providing a localized eLink between the Halo or Assetrac application software and the targeted tag device. The Tag Link communicates directly with the system computer through a serial port and may be powered by an internal 9 volt battery or accessory AC wall adapter. The Tag Link enables the software application to transparently interact with the tags. Tag Link Views PHOTO ILLUS: TAG LINK WITH PTAG WITH LED HIGHLIGHTED PHOTO ILLUS: TAG LINK WITH MOTHER TAG User Manual - INTRODUCTION Copyright  2003 - eXI Wireless Systems Inc. Page XX 980-000003 – 002. R1.01 Tag Link Range The communication range for Tag Link is designed to be typically less than 12 inches. Therefore, it is recommended that the tags be located within 6 to 12 inches of Tag Link. Those tags with ‘off body’ sensor must be placed on the front panel in the marked area. This will assure that the alarm TIC message is not transmitted. Tag Link Functions The following table lists the functions that are performed transparently in response to commands from the application software: COMMAND TAG LINK ACTION LED Power Up Powers up from sleep mode none Power Down Return to sleep mode immediately or after 30 seconds if no application command none Check RF Noise Measures and reports interference at 307 kHz Measures and reports interference at 433.92 MHz Green Flashes Red Flashes Test Tag TIF Interrogates tag and returns ID and tag status See next table Test Tag TIC Tag Link waits for TIC signal from specified tag See next table Set TLM Tag Link issues eLink TLM set command See next table Disable TLM Tag Link issues eLink TLM disable command See next table Check TLM Tag Link queries tag and reports rate to application See next table Assign MTAG Reads Mother Tag ID and assigns dynamic ID See next table MTAG Bond Sends baby tag ID(s) to Mother Tag, Mother Tag is then bonded to the assigned tag(s) See next table Each operation is performed for a maximum of 10 seconds. During application the following audio-visual signals are output: ACTION BEEPER LED’s Command received Very short beep None Command succeeded Longer beep random Command failed 4 short beeps Both briefly on User Manual - SUPERVISOR Copyright  2003 - eXI Wireless Systems Inc. Page 137 980-000003 – 002. R1.01 Restricted Rights eXI's commercial software and commercial computer software documentation is provided to United States Government agencies in accordance with the terms of this Agreement, and per subparagraph "(c)" of the "Commercial Computer Software - Restricted Rights" clause at FAR 52.227-19 (June 1987). For DOD agencies, the restrictions set forth in the "Technical Data-Commercial Items" clause at DFARS 252.227-7015 (Nov 1995) shall also apply. FCC Regulations This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. eXI Wireless Systems Model No.: Tag Link CANADA: 287710217261A FCC ID: HE7TGL * This device complies with Part 15 of the FCC Rules. Operation is subject to the following two rules: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Made in Canada

August 29, 2003 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Re: Request for Confidentiality In reference to the application under FCC ID: HE7TGL, and pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of the accompanying information as outlined below: Schematics Block diagram Theory of operations The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Bruce Barlow NPI Engineer EXI Wireless Systems Inc. Suite 100 13551 Commerce Parkway Richmond, BC Canada V6V 2L1 Phone (604) 207-7760 1-800-667-9689 Fax (604) 207-7765 e-mail: [email protected] www.exi.com

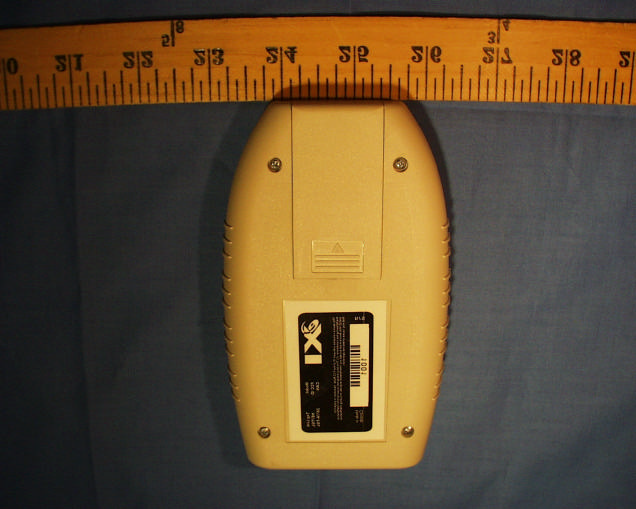

REPORT NO: 03U2119-1 DATE: August 04, 2003 EUT: 307KHz / 433.92 MHz Transceiver FCC ID: HE7TGL Page 20 of 24 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. EUT PHOTOGRAPHS REPORT NO: 03U2119-1 DATE: August 04, 2003 EUT: 307KHz / 433.92 MHz Transceiver FCC ID: HE7TGL Page 21 of 24 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. REPORT NO: 03U2119-1 DATE: August 04, 2003 EUT: 307KHz / 433.92 MHz Transceiver FCC ID: HE7TGL Page 22 of 24 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document.

PROPOSED FCC ID LABEL AND LOCATION EXI WIRELESS SYSTEMS INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: HE7TGL FCC ID LABEL LOCATION

REPORT NO: 03U2119-1 DATE: August 04, 2003 EUT: 307KHz / 433.92 MHz Transceiver FCC ID: HE7TGL Page 23 of 24 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. REPORT NO: 03U2119-1 DATE: August 04, 2003 EUT: 307KHz / 433.92 MHz Transceiver FCC ID: HE7TGL Page 24 of 24 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. END OF REPORT

FCC PART 15 SUBPART C CERTIFICATION REPORT FOR 307KHz/433.92 MHz Transceiver MODEL: TAG LINK FCC ID NO: HE7TGL REPORT NO: 03U2119-1 ISSUE DATE: AUGUST 04, 2003 Prepared for EXI WIRELESS SYSTEMS INC. SUITE 100, 13551 COMMERCE PARKWAY RICHMOND, BC CANADA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 03U2119-1 DATE: August 04, 2003 EUT: 307KHz / 433.92 MHz Transceiver FCC ID: HE7TGL COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE.......Error! Bookmark not defined. 3. TEST FACILITY...............................................4 4. MEASUREMENT STANDARD........................................4 5. TEST METHODOLOGY............................................4 6. MEASUREMENT EQUIPMENT USED..................................4 7. POWERLINE RFI LIMIT.........................................5 8. RADIATED EMISSION LIMITS....................................5 9. SYSTEM TEST CONFIGURATION...................................6 10. TEST PROCEDURE.............................................7 11. EQUIPMENT MODIFICATIONS....................................9 12. TEST RESULT...............................................10 TEST DATA • Maximum Modulation Percentage Plot • Emission Bandwidth Plot • Radiated Emission Worksheet for Peak Measurement • Radiated Emission Worksheet for Average Measurement ATTACHMENT • EUT Photographs REPORT NO: 03U2119-1 DATE: August 04, 2003 EUT: 307KHz / 433.92 MHz Transceiver FCC ID: HE7TGL COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. • Proposed FCC ID Label • Schematics & Block Diagram • User Manual REPORT NO: 03U2119-1 DATE: August 04, 2003 EUT: 307KHz / 433.92 MHz Transceiver FCC ID: HE7TGL Page 3 of 24 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. VERIFICATION OF COMPLIANCE COMPANY NAME : EXI WIRELESS SYSTEMS INC. SUITE 100, 13551 COMMERCE PARKWAY RICHMOND BC, V6V 2L1 CANADA EUT DESCRIPTION : 307KHz / 433.92 MHz TRANSCEIVER MODEL NO : TAG LINK FCC ID : HE7TGL DATE TESTED : 8-04-2003 TYPE OF EQUIPMENT RF TAGS EQUIPMENT TYPE 307KHz / 433.92MHz TRANSCEIVERS MEASUREMENT PROCEDURE ANSI C63.4 / 2001 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 The above equipment was tested by Compliance Certification Services for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. Tested By: CHIN PANG EMC TECHNICIAN COMPLIANCE CERTIFICATION SERVICES Approved & Released By: THU CHAN EMC SUPERVISOR COMPLIANCE CERTIFICATION SERVICES REPORT NO: 03U2119-1 DATE: August 04, 2003 EUT: 307KHz / 433.92 MHz Transceiver FCC ID: HE7TGL Page 4 of 24 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. PRODUCT DESCRIPTION Fundamental Frequency 307KHz / 433.92 MHz Power Source 9V Battery Transmitting Time Periodic > 5 seconds Associated Receiver NA Manufacturer EXI Wireless Systems Inc. 3. TEST FACILITY The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27,1994. 4. MEASUREMENT STANDARD The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/2001. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) 6. MEASUREMENT EQUIPMENT USED TEST EQUIPMENT LIST Name of EquipmentManufacturerModel No.Serial No.Due Date Antenna, Loop 9 kHz ~ 30 MHzEMCO65029202-27224/23/2004 SA Display Section 2HP85662A2816A166965/22/2004 SA RF Section, 1.5 GHzHP85680B2732A036615/22/2004 Quasi-Peak AdaptorHP85650A2811A011555/22/2004 Antenna, Bilog ChaseCBL6112B25863/6/2004 Spectrum AnalyzerAgilentE4446ANA1/13/2004 Pream…

Text truncated - open the document above for the full version.

REPORT NO: 03U2119-1 DATE: August 04, 2003 EUT: 307KHz / 433.92 MHz Transceiver FCC ID: HE7TGL Page 6 of 24 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO:CCSUP4020B 561F MONTEREY RD., MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 9. SYSTEM TEST CONFIGURATION Use a block of foam and combined it with EUT wrapping rubber band around it. This way it can test X.Y, and Z axis. To activate continuous transmission, place a small plastic block between rubber band and EUT push button. Radiated Open Site Test Set-up X-Axis Y-Axis Z-Axis
