HE7TTGTag Tester

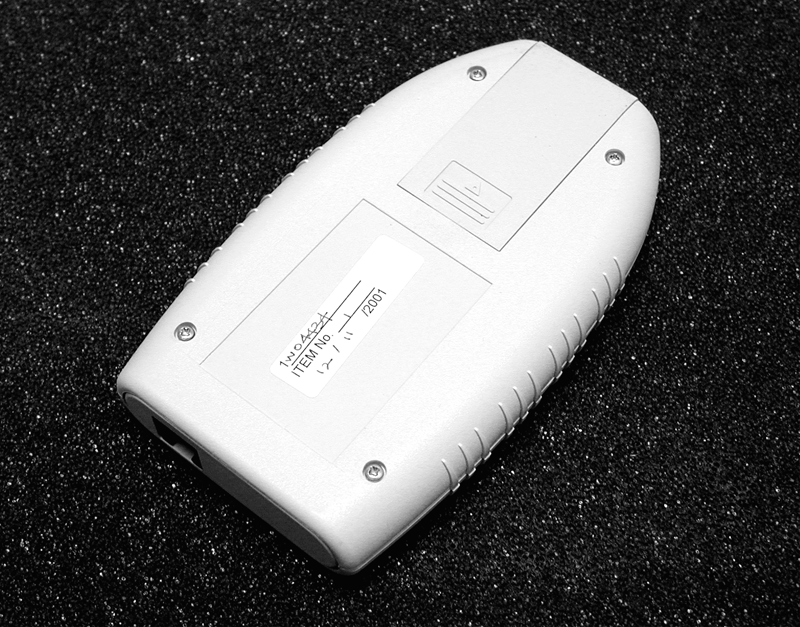

980-000010-000R1.01 eLink Tag Tester - User Guide Computer Serial Interface (Future option) 9V Alkaline Battery Battery Cover Replace only with Alkaline Battery 1 Tag Tester Functions 2 Rear View And Battery Replacement The Tag Tester performs the following functions: • Reads the unique ID of a tag, by generating an RF field (Tag In Field – TIF). • Tests the Tamper mechanism of a tag (Tag Initiated Communications – TIC). • Reads the battery status for the tag (Good or bad only). Tag Tamper Test Indicator 2 Lines by 12 Characters backlit Liquid Crystal Display Scroll Down Button Scroll Up Button Cancel Entry and Power OFF Button Accept Entry, Power ON and Backlight Button Tag ID Test Indicator 6” Field Pattern Tag is best read about 6” under Tester. Tags may also be placed adjacent to Tester, with Tester laying on flat surface 3 Tag Read Range 980-000010-000R1.01 eLink Tag Tester - User Guide 4 Tag Tester Operation 2001 eXI Wireless Systems Inc. All rights reserved. eXI and the eXI logo, RoamAlert, RoamAlert Plus and eLink! are either trademarks or registered trademarks of eXI Wireless Systems inc. Specifications subject to change without notice eXI Wireless Systems Inc. Suite 100 - 13551 Commerce Parkway Richmond, BC Canada V6V 2L1 1-800-667-9689 (North America only) Telephone +1 (604) 207-7760 Hold down the “Accept” button for one second Press “Accept” for testing a tag If Tag is not detected in 30 seconds If Tag is detected, and the tag battery is low Operate the Tamper mechanism on the tag Tamper mechanism failed Begin next Test Tamper Detected Approximately 2 seconds after power up The Tester automatically powers down after 60 seconds of inactivity. Pressing the “Cancel” button for 3 seconds also turns off the unit. Tag Tester 9V Battery low condition is reported on the display for 2 seconds, after which the screen will revert back to the previous function. Holding down the “Accept” button for 3 seconds enables the display backlight. NOTICE Any changes or modifications to the eLink Tag Tester that have not been approved by EXI Wireless Systems Inc. could void the user’s authority to operate this device.

Barry Quinlan From: "Ruby Dulmage" <[email protected]> To: "Barry Quinlan - Curtis-Straus" <[email protected]> Sent: Wednesday, January 09, 2002 10:14 AM Attach: Tag Tester User Guide R094.pdf Sub ject: Fw: EXI Wireless Systems FCC ID: HE7TTG Page 1 of 3 1/22/2002 Good morning Barry: Here are the answers to your questions: 1. ‘Label Details’ – The labels are manufactured using the Brother International Corp. P-touch Pro label maker, Model PT 9200PC with the type TZ tape. They are a laminated peel and stick label. 2. Attached is the revised user guide with the 15.21 statement included. 3. Yes, new batteries were used for testing. 4. Yes, we confirm that the device was rotated through three axis. I trust the above will enable you to complete this submission. Thanks, Ruby Ruby Dulmage Submissions Specialist Nemko Canada Inc. [email protected] Tel: 613-737-9680 x 232 Fax: 613-737-9691 ----- Original Message ----- From: Bruce Barlow To: 'Ruby Dulmage' Cc: 'Darren Quist' Sent: January 8, 2002 5:42 PM Subject: RE: EXI Wireless Systems FCC ID: HE7TTG Ruby, Re: 1) ‘Label Details’ – The labels are manufactured using the Brother International Corp. P-touch Pro label maker, Model PT 9200PC with the type TZ tape. I don’t have material details, but I would expect Curtis-Straus to be cognizant of this product. Re: 2) attached is the User Guide with the added notice regarding modification of the device. Regards, Bruce Bruce R. Barlow, P.Eng. Document Control [email protected] EXI Wireless Systems Inc. ph: 604-207-7760 ext. 115 fax: 604-207-7765 READER BEWARE: Unencrypted, unsigned Internet e-mail is inherently insecure. Internet messages may be corrupted, incomplete, miss-directed or may incorrectly identify the sender. Therefore, nothing in this message or attachments may be considered legally binding. THIS MESSAGE IS ONLY INTENDED FOR THE USE OF THE INDIVIDUAL OR ENTITY TO WHICH IT IS ADDRESSED AND MAY BE PRIVILEGED. If you are not the intended recipient or their authorized agent, you may not forward or copy this information and must delete or destroy all copies of this message and attachments received. If you have received this communication in error, please notify us by telephone at (604) 207-7760. -----Original Message----- From: Ruby Dulmage [mailto:[email protected]] Sent: January 8, 2002 11:24 AM To: Bruce Barlow - EXI Subject: Fw: EXI Wireless Systems FCC ID: HE7TTG Importance: High Good afternoon Bruce: Happy New Year to you! I received the following email from Curtis-Straus this afternoon (see below). Please provide me the answer to question 1. For question 2, please add the 15.21 statement to your users guide and email it to me. I have attached 15.21 for your reference. We will answer questions 3 & 4. Thanks, Ruby Ruby Dulmage Submissions Specialist Nemko Canada Inc. [email protected] Tel: 613-737-9680 x 232 Fax: 613-737-9691 ----- Original Message ----- From: Barry C. Quinlan To: Ruby Dulmage Sent: January 8, 2002 1:11 PM Subject: EXI Wireless Systems FCC ID: HE7TTG Hi Ruby, We have completed our review of the application and have identified the following issues: 1. Please supply details of the label material and adhesive so we can check compliance with 2.925. Page 2 of 3 1/22/2002 2. The user manual does not contain the 15.21 statement. 3. Please confirm new batteries were used for the testing. 4. Please confirm that the device was rotated through three axis to maximize emissions. Best regards Barry C. Quinlan Certification & Telecom Manager ------------------------------------------------------------------------------- Curtis-Straus LLC Voice: 978.486.8880 x270 527 Great Road Fax: 978.486.8828 Littleton, MA 01460 http://www.curtis -straus.com -------------------------------------------------------------------------------- Page 3 of 3 1/22/2002

Tag Tester FCC & IC Identification Label EXI Wireless Systems Inc. Scale: Approximately 1:1

Master: PT15209 Date: December 12, 2001 Test Report:1W04434.1 Applicant:EXI Wireless Systems Inc. Suite 100 – 13551 Commerce Pk. Richmond, B.C. V6V 2L1 Equipment Under Test:eLink Tag Tester (EUT) FCC ID:HE7TTG In Accordance With:FCC Part 15, Subpart C, 15.209 Tested By:Nemko Canada Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: G. Westwell, Wireless Technologist Date:December 18, 2001 Total Number of Pages:11 Authorized Copy:Soft Copy Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 1W04434.1 EQUIPMENT: eLink Tag Tester FCC ID: HE7TTG Page 2 of 11 Table Of Contents Section 1. Summary Of Test Results.....................................................................................3 Section 2. General Equipment Specification........................................................................5 Section 3. Radiated Emissions...............................................................................................7 Section 4. Block Diagrams...................................................................................................10 Section 5. Test Equipment List...........................................................................................11 Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 1W04434.1 EQUIPMENT: eLink Tag Tester FCC ID: HE7TTG Page 3 of 11 Section 1.Summary Of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15, Subpart C for low power devices. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated Emissions were made on an open area test site. A description of the test facility in on file with the FCC. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. TESTED BY: DATE: December 18, 2001 Russell Grant, Wireless Group Manager Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. The results apply only to the samples tested. Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 1W04434.1 EQUIPMENT: eLink Tag Tester FCC ID: HE7TTG Page 4 of 11 Summary Of Test Data Name Of TestPara. No.Result Powerline Conducted Emissions15.207N/A Radiated Emissions15.209Complies Footnotes For N/A’s:Batteries Test Conditions: IndoorTemperature:22 °C Humidity:52 % OutdoorTemperature:20 °C Humidity:56 % Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 1W04434.1 EQUIPMENT: eLink Tag Tester FCC ID: HE7TTG Page 5 of 11 Section 2.General Equipment Specification Manufacturer: EXI Wireless Systems Inc. Model No.: eLink Serial No.: None Date Received In Laboratory: December 11, 2001 Nemko Identification No.: Item #1 Tx: Fixed 307 kHz Rx: 433.92 Tuned RF Uses no LO or IF Pulse Width Modulated 65K3L1D 9VDC Battery Powered EUT Configuration: EUT 2m Cable, Terminated DB9 Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 1W04434.1 EQUIPMENT: eLink Tag Tester FCC ID: HE7TTG Page 6 of 11 Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 1W04434.1 EQUIPMENT: eLink Tag Tester FCC ID: HE7TTG Page 7 of 11 Section 3.Radiated Emissions Para. No.: 15.209 Test Performed By: Russell GrantDate of Test: December 12, 2001 Minimum Standard: Fundamental (MHz) Field Strength (μμV/m) Field Strength (dBμμV) 0.009 - 0.4902400/F(kHz) @ 300m— 0.490 - 1.70524000/F(kHz) @ 30m— 1.705 - 3030 @ 30m— 30 - 8810040.0 88 - 21615043.5 216 - 96020046.0 Above 96050054.0 Test Results:Complies. Measurement Data:See attached table. The spectrum was searched up to 2 GHz. Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 1W04434.1 EQUIPMENT: eLink Tag Tester FCC ID: HE7TTG Page 8 of 11 Radiated Emissions Table Frequency of Emission (MHz) 1 m Reading (dBuV) 2 m Reading (dBuV) Extrapolated Field Strength (dBuV/m) Limit (dBuV/m) Margin (dB) 0.3077759-71.117.989.0 0.6147355-15.331.847.2 0.9217657-17.228.345.5 1.2287051-23.225.849.1 1.5356647-27.223.951.1 1.8426043-23.429.553.0 2.1496143-27.329.556.9 2.4565638-32.329.561.9 2.7635942-24.429.554.0 3.07055*-4.129.533.6 3.37756*-3.129.532.6 3.68452*-7.129.536.6 3.99154*-5.129.534.6 4.29851*-8.129.537.6 4.60552*-7.129.536.6 4.91250*-9.129.538.6 5.21950*-9.129.538.6 5.52645*-14.129.543.6 5.83348*-11.129.540.6 6.14044*-15.129.544.6 6.44747*-12.129.541.6 6.75443*-16.129.545.6 7.06147*-12.129.541.6 7.67545*-14.129.543.6 8.28943*-16.129.545.6 8.90342*-17.129.546.6 9.51742*-17.129.546.6 Notes: Measured spectrum analyzer RBW=VBW=10kHz, Peak Detector Fundamental at 307 kHz was extrapolated to 300 m All unwanted emissions extrapolated to 30 m * denotes emissions which were extrapolated using inverse square law extrapolation of 40 db/decade otherwise measurements were extrapolated from readings at 1 and 2 m Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 1W04434.1 EQUIPMENT: eLink Tag Tester FCC ID: HE7TTG Page 9 of 11 Radiated Emissions Photographs Nemko Canada Inc.FCC PART 15, SUBPART C, 15.209 PROJECT NO.: 1W04434.1 EQUIPMENT: eLink Tag Tester FCC ID: HE7TTG Page 10 of 11 Section 4.Block Diagrams Radiated Prescan SPECTRUM ANALYZER AND PLOTTER OR TEST RECEIVER COMPUTER ANTENNA EUT SHIELDED ROOM Test Site For Radiated Emissions 3 METERS E.U.T. NON-CONDUCTING TURN-TA…

Text truncated - open the document above for the full version.

Radiated Emissions Photographs
