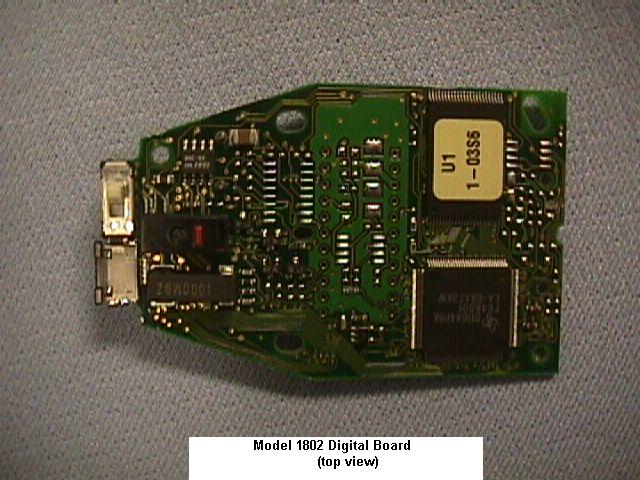

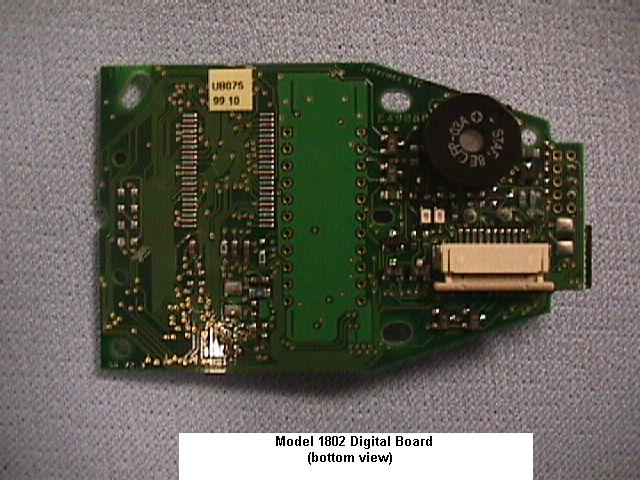

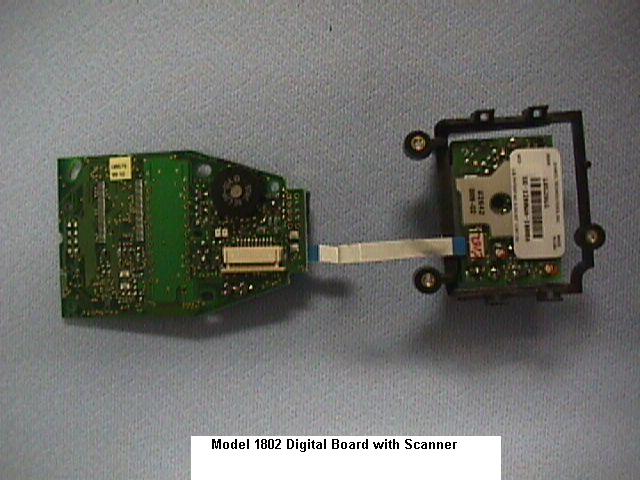

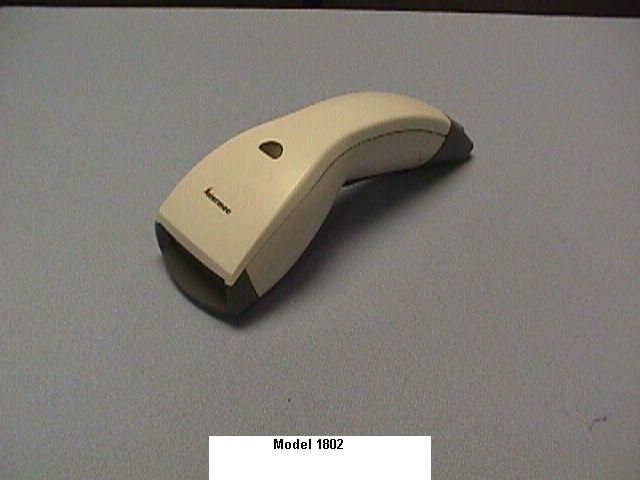

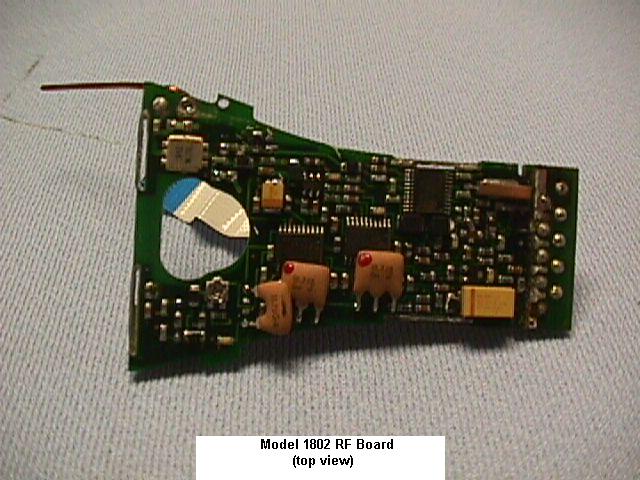

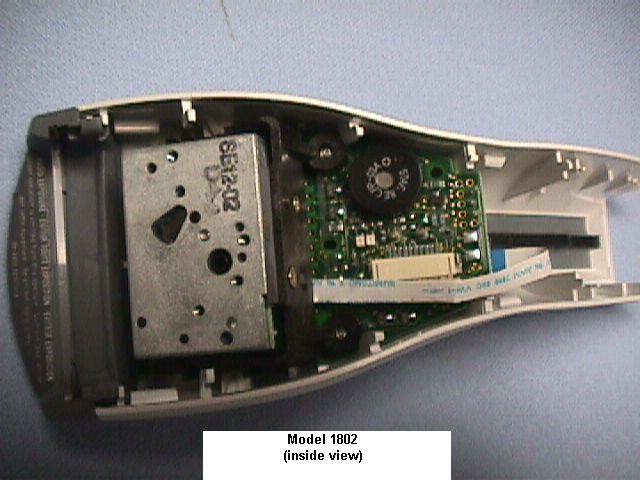

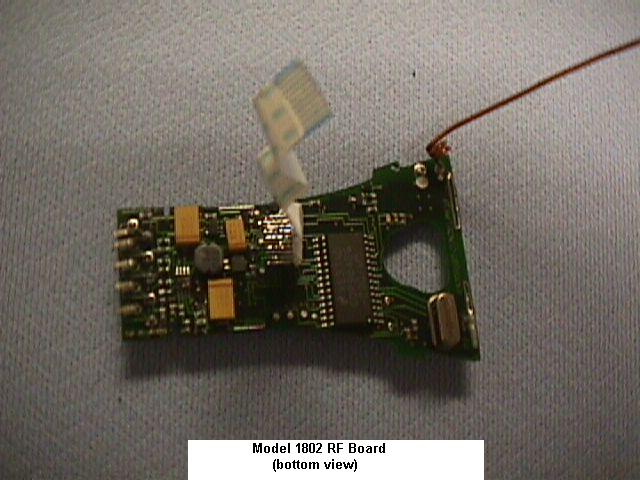

HN21802-900Wireless Scanner

Manual Supplement For Users in the United States and Canada Place this supplement in your manual. This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that can cause undesired operation. Federal Communications Commission Compliance This equipment is intended for operation in a commercial environment, in compliance with the requirements for a Class A digital device, pursuant to Part 15 of the FCC Rules, and it must not be used in a residential environment; however, it has also been tested and found to comply with the more stringent requirements for a Class B device, pursuant to Part 15 of the FCC Rules. It generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instruction manual, it may cause interference to radio communications. If this equipment causes interference, the user will be required to correct the interference at the user’s own expense. Note: In order to maintain compliance with FCC Rules, the input/output (I/O) cables that interconnect between the device and any peripheral must be as specified by Intermec. Industry Canada Compliance This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. This device requires a radio license, unless it is used totally inside a building. (The user must obtain this license.) Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Cet appareil exige une license radio à moins d’être entièrement installé dans un bâtiment. (L’utilisateur doit obtenir cette license.) Caution Changes or modifications not expressly approved by Intermec could void the user’s authority to operate this equipment.

Model 1802 Regulatory Information Label Model 1802 Regulatory Information Label Location Bottom View of the 1802 Scanner

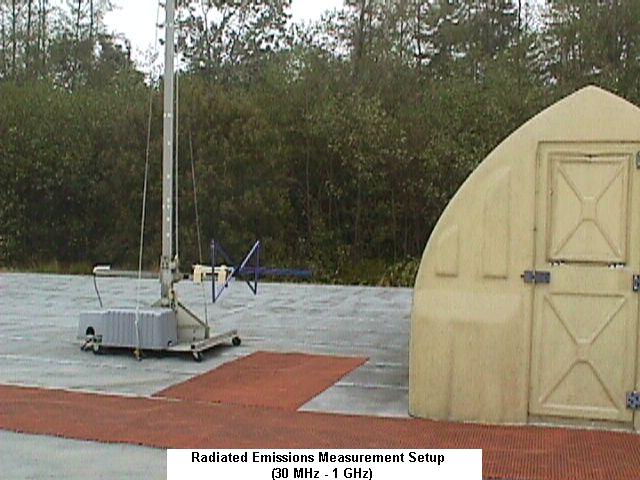

EMC MEASUREMENT/TECHNICAL REPORT FOR PART 15.249 APPLICATION MANUFACTURER : Intermec Corp. PRODUCT: MODEL 1802 Wireless Scanner FCC ID: HN21802-900 October 19, 1999 This report concerns : (check one) Original grant___X___ Class II change _______ *Class B verification_______ Class A verification_______ **Class I change_______ Equipment type: 900 MHz Transceiver Limits used: (check one) CISPR 22 __for digital emissions portion Part 15 __for RF portion Measurement procedure used is ANSI C63.4-1992 unless another is specified. Other test procedure: _______________________________________________________ This report is based on the measurements on Model 1802 . EUT Serial number: PBSAC-002 . Report reviewed and approved by Kursat Eroglu, EMC Engineer ____________ 6001 36 th Ave. W Everett WA 98203 Phone: 425 356 1765 Fax: 425 348 2633 E-Mail [email protected] Do not bind or staple this report. A horizontal rubber band plus paper clip at top of document is preferred. *Not to be filed with Equipment Authorization Branch of FCC unless requested. Intermec Safety and Compliance Group 2 Table of Contents 1 GENERAL INFORMATION.........................................................................................3 1.1 Summary of Test Results.............................................................................3 1.2 Product Description......................................................................................3 1.3 Antenna.......................................................................................................3 1.4 Class A Justification.....................................................................................3 1.5 Related Submittal(s)/Grant(s)........................................................................3 2 TEST CONDITIONS....................................................................................................4 2.1 Tested System Details.................................................................................4 2.2 Block Diagram of Tested System.................................................................4 2.3 Test Methodology........................................................................................4 2.4 Test Facility.................................................................................................4 2.5 Test Summary.............................................................................................5 2.6 Environmental Conditions............................................................................5 3 PRODUCT LABELING................................................................................................5 3.1 Location of Label on EUT.............................................................................5 3.2.1 FCC ID Label for Model 1802....................................................................5 4 TEST EQUIPMENT.....................................................................................................6 4.1 Test Equipment............................................................................................6 4.2 Accessories..................................................................................................6 5 TEST DATA AND RESULTS.......................................................................................7 5.1 Maximum Peak Power ................................................................................7 5.2.1 Radiated Emissions (Unintentional)...........................................................9 5.2.2 Radiated Emissions (Tx Spurious)............................................................10 5.2.3 Radiated Emissions (Rx Spurious)............................................................11 Intermec Safety and Compliance Group 3 1 GENERAL INFORMATION 1.1 Summary of Test Results Model 1802 was tested to the requirements of Part 15.249 of the FCC Rules for 900 MHz band transceivers to verify its compliance. As can be seen in section 6 of this report, the product passed all tests with comfortable margins beyond test instrument tolerances. 1.2 Product Description Model 1802 is a barcode scanner with a 900 MHz transceiver to relay the barcode information through a base station to a host device. It has two configurations 1802 SR has a laser scan engine and 1802 ST has a CCD scanner. They both use the same transceiver module, which uses one of the 10 channels in the 906 – 910 MHz band with a ~ -10 dBm output power. Detailed pictures of the product and the circuit boards are attached in section 7. Power level, frequency range and channel characteristics are not user adjustable. 1.3 Antenna A wire antenna is hardwired to the output of the transceiver and fastened inside the plastic enclosure as shown in the attached antenna and product drawings. 1.4 Class A Justification Intermec serves industrial customers such as warehouses, factories, storage facilities etc. Since this product will be used in similar environments for inventory control and not in residential environments it falls under Part 15 Class A for digital emissions. 1.5 Related Submittal(s)/Grant(s) An application for the second component of the wireless scanner system, Model 9735 Base Station, which uses the same transceiver, has been made under FCC ID: HN29735-900. Intermec Safety and Compliance Group 4 2 Test Conditions 2.1 Tested System Details The product was put into transmit modes. To achieve worst case conditions for the radiated emissions, different product position per ANSI C63.4 were tried. Accessories: Model Number (Serial Number) FCC ID DescriptionConnection N.A.N.A.N.A.N.A 2.2 Block Diagram of Tested System scanner Base Station Host connection 110 V .............................. power connection 2.3 Test Methodology Digital emissions tests were performed according to the procedures in ANSI C63.4- 1992. For radio performance tests procedures given in Part 15 (paragraphs 109, 247, 205, 209) and described in “Test Procedure Hints” , published b…
