HN2UAPRFID-24

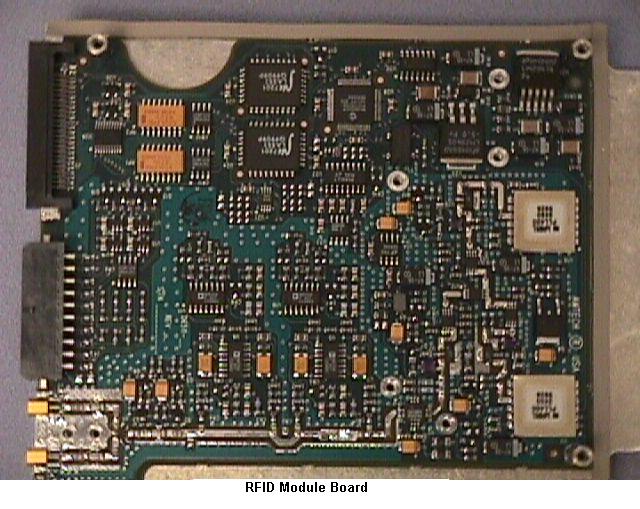

P R O D U C T P R O F I L E Amtech Systems DivisionAmtech Systems Division Features •Fixed reader/programmer board set designed for integration into OEM controller or as option to Intermec 2100 UAP •Provides RFID data collection integrated into local area network when configured as option to Intermec 2100 UAP •Spread-spectrum frequency- hopping RFID reader/ programmer board set coexists with RF data collection network •Wired or wireless connection through 2100 UAP •Rugged industrial environment design •Unlicensed RFID readers and tags using Intellitag 500 series microwave OEM products can be integrated for use in applications that require read ranges up to 2.5 meters (8.2 ft) Intellitag 500 reader/programmer board sets are offered for integration into radio frequency identification (RFID) solutions requiring read range, multitag sort, read/write, and memory capacity not provided by older, less flexible proximity technology. The fixed reader/programmer board set is designed as an option for the Intermec 2100 Universal Access Point (UAP), but it may be integrated into other microcontroller-based systems. Readers can be programmed for read only or read/write operation. A powerful anticollision algorithm allows tags up to 50 tags per second to be scanned, regardless of the number of tags in the read zone. Intermec's Amtech Systems Division, with over a decade of success designing, producing, installing, and supporting RFID solutions worldwide, is developing a range of Intellitag 500 RFID inserts, tags, scanners, and programmer subsystems for availability beginning in 1999. These products are available to Intermec systems integration partners in established transportation and security-access RFID applications, as well as growing applications in supply- chain management, retail operations, manufacturing, logistics, health care, and many more. READER PRODUCTS Intellitag 500 Series Microwave OEM Reader Products ® S P E C I F I C A T I O N S North America • 6001 36th Avenue West • P.O. Box 4280 • Everett, Washington 98203-9280 • 1 (800) 347-2636 tel • 1 (319) 369-3324 fax • Norand Mobile Systems Division • 550 2nd Street S.E. • Cedar Rapids, Iowa 52401 • 1 (800) 452-2757 tel • 1 (319) 369-3453 fax • Amtech Systems Division • 19111 Dallas Parkway, Suite 300 • Dallas, Texas 75287-3106 • 1 (800) 923-4824 toll-free • 1 (972) 733-6600 tel • 1 (972) 733-6699 fax Europe/Middle East/Africa • Sovereign House • Vastern Road • Reading, Berkshire,RG1 8BT • United Kingdom • +44 118 987 9400 tel • +44 118 987 9401 fax Asia/Pacific/Latin America • 6001 36th Avenue West • P.O. Box 4280 • Everett, Washington 98203-9280 • 1 (800) 347-2636 tel • 1 (319) 369-3324 fax • AmtechSystems Division • 19111 Dallas Parkway, Suite 300 • Dallas, Texas 75287-3106 • 1 (800) 923-4824 toll-free • 1 (214) 360-9436 tel • 1 (972) 733-6699 fax Label Products and Supplies - North America • 1 (513) 874-5882 tel • 1 (513) 874-8487 fax • or 1 (800) 227-9947 tel • 1 (800) 227-1707 fax • Latin America/Asia Pacific • 1 (513) 870-7930 Int’l phone • 1 (513) 874-3613 Int’l fax • Europe/Middle East/Africa +31 24 372 3100 tel • +31 24 378 0070 fax Worldwide Fax Document Retrieval Service • 1 (650) 556-8447 tel • 1 (800) 755-5505 (North America Only) Internet • www.intermec.com E-mail • [email protected] © 1999 Amtech Systems Corporation. (Amtech Systems Corporation is a wholly owned subsidiary of Intermec Technologies Corporation.) All rights reserved. Amtech is a registered trademark of Amtech Systems Corporation. All other trademarks listed are the property of their respective owners. Contents subject to change. Printed in the U.S.A. Where Information Gets Down To Business ™ Intellitag 500 Series Microwave OEM Reader Products ® COMMUNICATIONS Frequency Fixed reader/programmer board set only: 2.45 GHz unlicensed FCC spread-spectrum frequency-hopping Intermec 2100 UAP with fixed reader/programmer module: 2.45 GHz unlicensed FCC spread- spectrum frequency-hopping Interfaces Fixed reader/programmer board set: serial interface 2100 UAP: 10BaseT 10Base2 (Optional)900MHz, 2.45 GHz OpenAir™, IEEE 802.11 Direct Sequence, or IEEE 802.11 Frequency Hopping RFLAN SOFTWARE FEATURES Protocols Fixed reader/programmer board set: Intermec ASD interface specification Intermec 2100 UAP with fixed reader/programmer module: available software fully supports the ANS NCITS 256 -1999 for item management Data Rate Read 8 bytes of data from a tag in less than 12 ms Write a single byte of data to a tag in less than 25 ms Multitag Access User-specified groups within a population of tags can be selected, read from, and/or written to using multitag access commands. POWER REQUIREMENTS Fixed Reader/Programmer Board Set Only 8 VDC 2100 UAP 100-240 VAC auto-ranging ENVIRONMENTAL Operating Temperature 0ºC to +50ºC (+32ºF to +122ºF) Storage Temperature -20ºC to +70ºC (+4ºF to +158ºF) OPTIONS General-Purpose Input/Output Circuits (reader/programmer) Interfaces for input and output circuits to monitor sensors and control other devices READ/WRITE PERFORMANCE Read/write performance varies with RFID inserts, tags, and antenna configurations. Sample dual antenna configuration is illustrated below. Read/Write Ranges Write ranges are approximately 70% of the effective read ranges of the RFID inserts. Read Range Examples Ranges are listed below for RFID inserts using frequency-hopping FCC unlicensed operation reader and dual antennas. 1.8 Meters (5.9 ft): 2.45 GHz 6 x 30 x.5 mm (.24 x 1.18 x .02 in) RFID insert 2.5 Meters (8.2 ft): 2.45 GHz 10 x 60 x .5 mm (.39 x 2.36 x .02 in) RFID insert 411461-003 8/99

P/N 06XXXX-001 Important 2100 Information! (For 900 MHz and 2.4 GHz RFID Modules) Contents For Users in the United States and Canada...................................................................................2 2 2100 Manual Supplement For Users in the United States and Canada Place this supplement in your manual. This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that can cause undesired operation. Federal Communications Commission Compliance This equipment is intended for operation in a commercial environment, in compliance with the requirements for a Class A digital device, pursuant to Part 15 of the FCC Rules, and it must not be used in a residential environment; however, it has also been tested and found to comply with the more stringent requirements for a Class B device, pursuant to Part 15 of the FCC Rules. It generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instruction manual, it may cause interference to radio communications. If this equipment causes interference, the user will be required to correct the interference at the user’s own expense. Note: In order to maintain compliance with FCC Rules, the input/output (I/O) cables that interconnect between the device and any peripheral must be as specified by Intermec. Installation Warning: FCC regulations limit exposure to radiofrequency (RF) radiation. To comply with these regulations, this device must be installed in such a way that the operators of this device will not be closer than 7 cm (2.75 inches) from the cover on the antenna assembly under normal operation conditions. While the device is on, the operator’s body and parts of the body such as eyes, hands, or head, must be 7 cm (2.75 inches) or farther from the cover of the antenna assembly. The installer should also protect him/herself from RF exposure by not operating the device while they are closer than the distance mentioned above. FCC regulations also require that the antenna assembly of this device be installed in accordance with the installation procedures in this manual to allow the operator to comply with this limit. Operator Warning: FCC regulations limit exposure to radiofrequency (RF) radiation. To comply with these regulations, the operators of this device must maintain adistance of at least 7 cm (2.75 inches) from the cover on the antenna assembly under normal operation conditions. While the device is on, the operator’s body and parts of the body such as eyes, hands, or head, must be 7 cm (2.75 inches) or farther from the cover of the antenna assembly. 3 2100 Manual Supplement For Users in the United States and Canada (cont.) Industry Canada Compliance This Class B digital apparatus meets all requirements of the Canadian Interference- Causing Equipment Regulations. This device requires a radio license, unless it is used totally inside a building. (The user must obtain this license.) Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Cet appareil exige une license radio à moins d’être entièrement installé dans un bâtiment. (L’utilisateur doit obtenir cette license.) Safety Agency Approvals This device is UL Listed and CSA Certified. Caution Changes or modifications not expressly approved by Intermec could void the user’s authority to operate this equipment. P/N 06XXXX-001

P/N 06XXXX-001 Important 2100 Information! (For 900 MHz and 2.4 GHz RFID Modules) Contents For Users in the United States and Canada....................................................................................2 2 2100 Manual Supplement For Users in the United States and Canada Place this supplement in your manual. This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that can cause undesired operation. Federal Communications Commission Compliance This equipment is intended for operation in a commercial environment, in compliance with the requirements for a Class A digital device, pursuant to Part 15 of the FCC Rules, and it must not be used in a residential environment; however, it has also been tested and found to comply with the more stringent requirements for a Class B device, pursuant to Part 15 of the FCC Rules. It generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instruction manual, it may cause interference to radio communications. If this equipment causes interference, the user will be required to correct the interference at the user’s own expense. Note: In order to maintain compliance with FCC Rules, the input/output (I/O) cables that interconnect between the device and any peripheral must be as specified by Intermec. Installation Warning: FCC regulations limit exposure to radiofrequency (RF) radiation. To comply with these regulations, this device must be installed in such a way that the operators of this device will not be closer than 20 cm (8 inches) from the cover on the antenna assembly under normal operation conditions. While the device is operating, the operator’s body and parts of the body such as eyes, hands, or head, must be 20 cm (8 inches) or farther from the cover of the antenna assembly. The installer should also protect him/herself from RF exposure by not operating the device while they are closer than the distance mentioned above. FCC regulations also require that the antenna assembly of this device be installed in accordance with the installation procedures in this manual to allow the operator to comply with this limit. Operator Warning: FCC regulations limit exposure to radiofrequency (RF) radiation. To comply with these regulations, the operators of this device must maintain adistance of at least 20 cm (8 inches) from the cover on the antenna assembly under normal operation conditions. While the device is on, the operator’s body and parts of the body such as eyes, hands, or head, must be 20 cm (8 inches) or farther from the cover of the antenna assembly. 3 2100 Manual Supplement For Users in the United States and Canada (cont.) Industry Canada Compliance This Class B digital apparatus meets all requirements of the Canadian Interference- Causing Equipment Regulations. This device requires a radio license, unless it is used totally inside a building. (The user must obtain this license.) Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Cet appareil exige une license radio à moins d’être entièrement installé dans un bâtiment. (L’utilisateur doit obtenir cette license.) Safety Agency Approvals This device is UL Listed and CSA Certified. Caution Changes or modifications not expressly approved by Intermec could void the user’s authority to operate this equipment. P/N 06XXXX-001

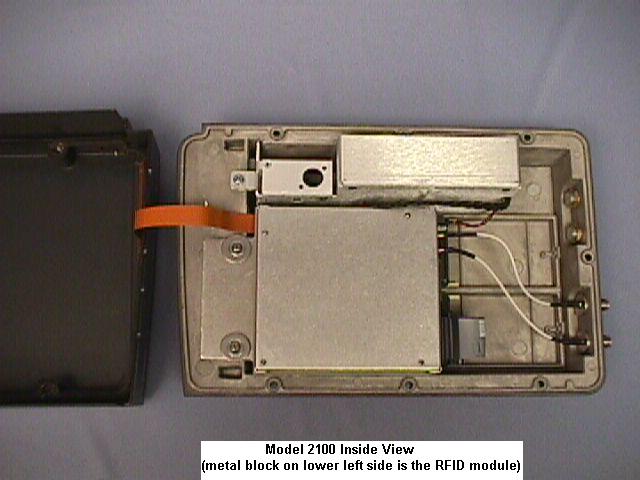

RF Label: Following label will be affixed to the bottom of the host device Model 2100 when configured with the 2.4 GHz RFID module. Model 2100 (RFID) Configuration: 2100C61XXXA04 FCC ID: HN2UAPRFID-24 Canada: 1223 XXX XXX RSS/CNR 210 ICES-003 This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that can cause undesired operation. See Manual. Referéz vous à la documentation.

P/N 06XXXX-001 Important 2100 Information! (For 900 MHz and 2.4 GHz RFID Modules) Contents For Users in the United States and Canada..............................................................................................................2 2 2100 Manual Supplement For Users in the United States and Canada Place this supplement in your manual. This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that can cause undesired operation. Federal Communications Commission Compliance This equipment is intended for operation in a commercial environment, in compliance with the requirements for a Class A digital device, pursuant to Part 15 of the FCC Rules, and it must not be used in a residential environment; however, it has also been tested and found to comply with the more stringent requirements for a Class B device, pursuant to Part 15 of the FCC Rules. It generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instruction manual, it may cause interference to radio communications. If this equipment causes interference, the user will be required to correct the interference at the user’s own expense. Note: In order to maintain compliance with FCC Rules, the input/output (I/O) cables that interconnect between the device and any peripheral must be as specified by Intermec. Warning: FCC regulations limit exposure to radiofrequency (RF) radiation. To comply with these regulations, operators of this device must maintain a distance of at least 7 cm (2.75 inches) from the cover on the antenna assembly (The cover on the antenna is the dome shaped surface). While the device is on, the operator’s body and parts of the body such as eyes, hands, or head, must be 7 cm (2.75 inches) or farther from the cover of the antenna assembly. FCC regulations also require that the antenna assembly of this device be installed in accordance with the installation procedures in this manual to allow the operator to comply with this limit. Caution Changes or modifications not expressly approved by Intermec could void the user’s authority to operate this equipment. 3 2100 Manual Supplement For Users in the United States and Canada (cont.) Industry Canada Compliance This Class B digital apparatus meets all requirements of the Canadian Interference- Causing Equipment Regulations. This device requires a radio license, unless it is used totally inside a building. (The user must obtain this license.) Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Cet appareil exige une license radio à moins d’être entièrement installé dans un bâtiment. (L’utilisateur doit obtenir cette license.) Safety Agency Approvals This device is UL Listed and CSA Certified. P/N 06XXXX-001

P/N 06XXXX-001 Important 2100 Information! (For 900 MHz and 2.4 GHz RFID Modules) Contents For Users in the United States and Canada....................................................................................2 2 2100 Manual Supplement For Users in the United States and Canada Place this supplement in your manual. This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that can cause undesired operation. Federal Communications Commission Compliance This equipment is intended for operation in a commercial environment, in compliance with the requirements for a Class A digital device, pursuant to Part 15 of the FCC Rules, and it must not be used in a residential environment; however, it has also been tested and found to comply with the more stringent requirements for a Class B device, pursuant to Part 15 of the FCC Rules. It generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instruction manual, it may cause interference to radio communications. If this equipment causes interference, the user will be required to correct the interference at the user’s own expense. Note: In order to maintain compliance with FCC Rules, the input/output (I/O) cables that interconnect between the device and any peripheral must be as specified by Intermec. Warning: FCC regulations limit exposure to radiofrequency (RF) radiation. To comply with these regulations, operators of this device must maintain a distance of at least 20 cm (8 inches) from the cover on the antenna assembly (The cover on the antenna is the dome shaped surface). While the device is on, the operator’s body and parts of the body such as eyes, hands, or head, must be 20 cm (8 inches) or farther from the cover of the antenna assembly. FCC regulations also require that the antenna assembly of this device be installed in accordance with the installation procedures in this manual to allow the operator to comply with this limit. Caution Changes or modifications not expressly approved by Intermec could void the user’s authority to operate this equipment. 3 2100 Manual Supplement For Users in the United States and Canada (cont.) Industry Canada Compliance This Class B digital apparatus meets all requirements of the Canadian Interference- Causing Equipment Regulations. This device requires a radio license, unless it is used totally inside a building. (The user must obtain this license.) Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Cet appareil exige une license radio à moins d’être entièrement installé dans un bâtiment. (L’utilisateur doit obtenir cette license.) Safety Agency Approvals This device is UL Listed and CSA Certified. P/N 06XXXX-001

Warning: FCC regulations limit exposure to radio frequency (RF) radiation. To comply with these regulations, operators of this device must maintain a distance of at least 20 cm (8 inches) from the cover on the antenna assembly (The cover on the antenna is the dome shaped surface). While the device is on, the operator’s body and parts of the body such as eyes, hands, or head, must be 20 cm (8 inches) or farther from the cover of the antenna assembly. FCC regulations also require that the antenna assembly of this device be installed in accordance with the installation procedures in this manual to allow the operator to comply with this limit.

Dear Mr. Chan, Since Mr. Dichoso requested the response to the information request about RF exposure issues to be kept in the RF Exposure Info folder, I am generating this pdf file and uploading it as exhibit instead of responding via the email. 1) We agree with your assessment in item one. Our compliance should be through the calculations and measures we took as explained below. 2) As the test report shows, the maximum output power was 427 mW. The nominal antenna gain is 5.5 dBi at the maximum point (90 degrees to the antenna surface). With the distance of 20 cm we used in our warnings the peak power density can be found using the formula P D = P T * G T / 4πd 2 . Using the above given numbers, the power density turns out to be 0.1 mW/cm 2 , which is comfortably below the limit for uncontrolled environments. Considering this is the peal power density and the average power density will be much lower during normal operation conditions and it is also valid for only the peak direction of the antenna gain, the harmlessness of our product becomes obvious. Therefore, we believe the 20 cm distance warning to the installers and users should provide more than adequate protection. As you can see in the new uploaded Manual Supplement which is included with each unit for installers and operators, the warnings have been clearly stated. 3) The product will always be installed by trained Intermec personnel or trained resellers and never by the users. Therefore it is considered a “professional installation” category product. Again as you can see in the revised Manual Supplement installers as well as operators are warned about the effects of RF exposure, despite the relatively low power density. I hope, the answers above satisfy your requirements. Please feel free to contact us, if you have any further questions. Sincerely, Kursat Eroglu, MSEE Sr. EMC Engineer Intermec Technologies Corp.

March 20, 2000 Dear Mr. Chen, Since Mr. Dichoso requested I place our response into the RF Expo folder, I am also including this letter. I would like to apologize for the misunderstanding in our recent response. Due to a misinterpretation on our part, we placed the wrong distances in our Manuals. I have corrected those and revised the warnings for installers and users with the 20 cm warning. As I explained before, this product is intended for industrial controlled environment installations. It will only be installed by trained Intermec personnel. Our training guidelines include RF safety issues such as keeping the installers and users away from the antenna. Please let me know, if you have any further questions regarding this product. Sincerely, Kursat Eroglu, MSEE Sr. EMC Engineer

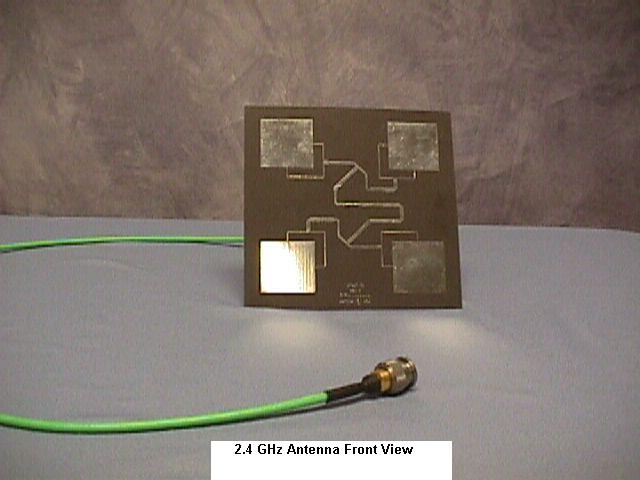

2.4 GHz Antenna Board Design 2.4 GHz Antenna Background Plane

2.45 GHz Antenna Enclosure

2.4 GHz Antenna Board Design 2.4 GHz Antenna Background Plane

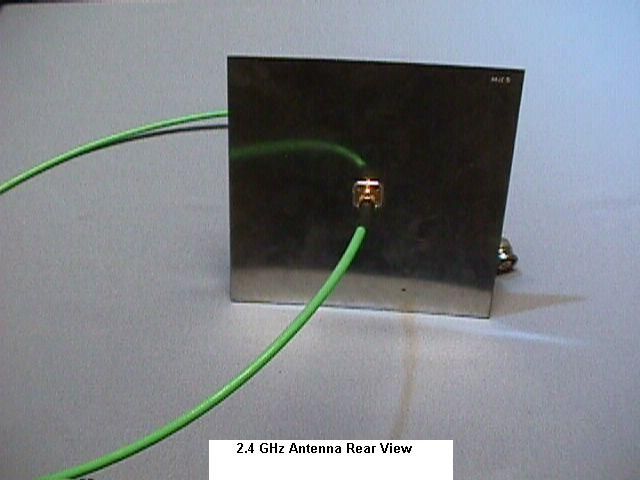

Antenna Part Number: 07467-01 Antenna Gain:6 dBi Antenna Connector:SMA (*) (*) To comply with the FCC’s and Industry Canada’s unique connector requirements, the antenna contains an RFID tag directly wired to the antenna connector. When the transceiver module is activated, it transmits a signal into the antenna cable checking for the correct code from the RFID tag on the antenna. If the module does not receive the correct code back, it will not transmit under any circumstance. This feature prevents users from using antennas or cables other than the Intermec specified, certified antennas and cables.

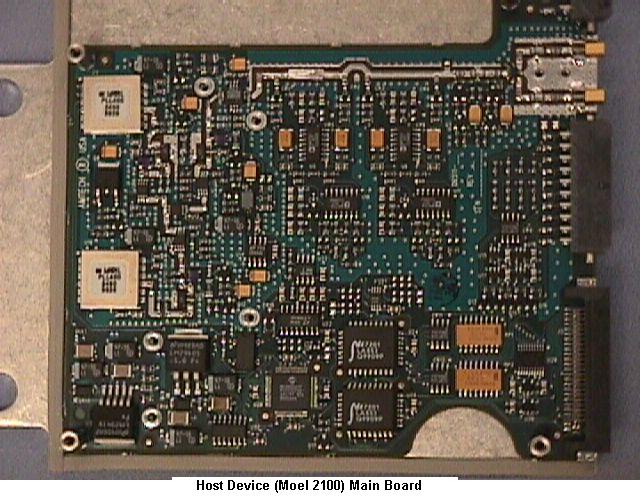

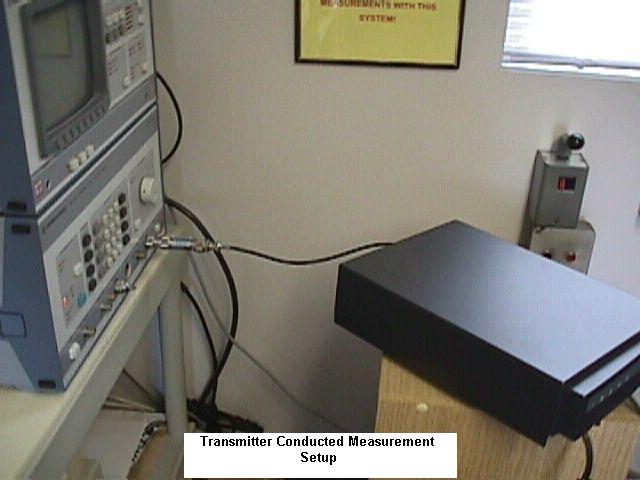

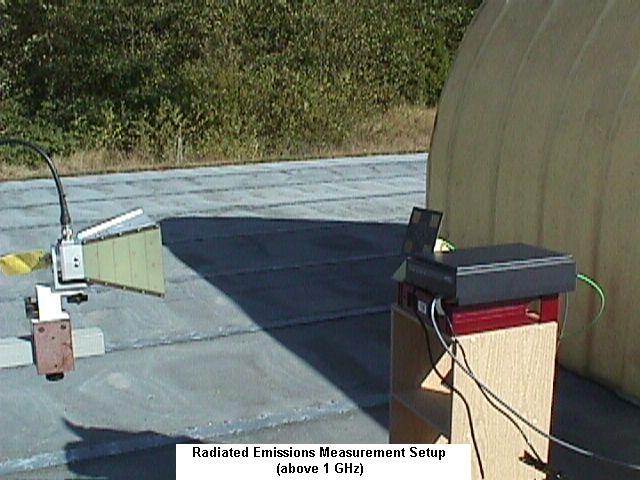

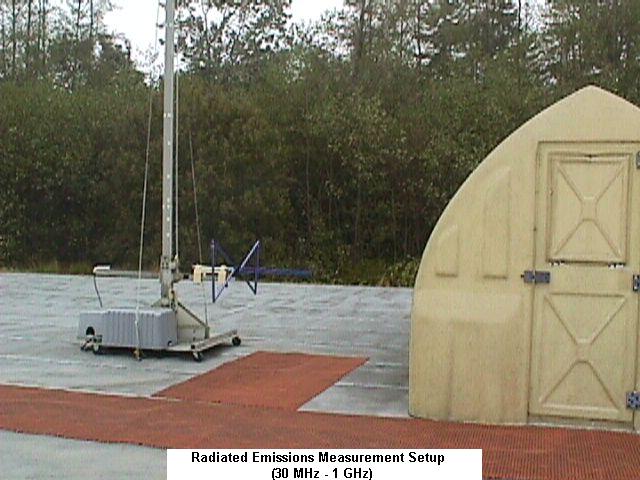

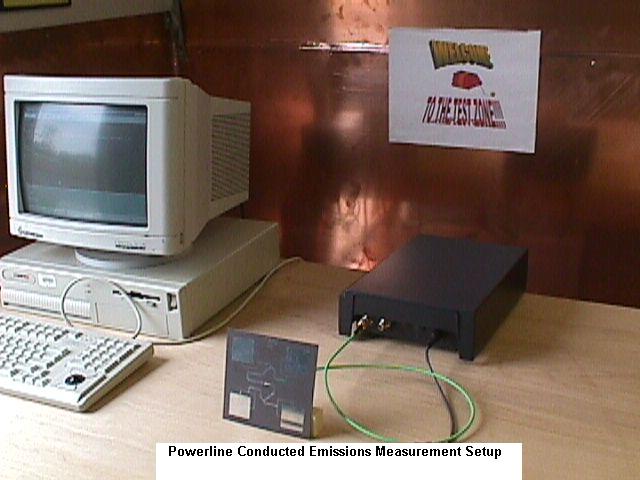

EMC MEASUREMENT/TECHNICAL REPORT FOR PART 15.247 APPLICATION MANUFACTURER : Intermec Corp. PRODUCT: MODEL 2100 with 2.4 GHz RFID Module Configuration: 2100C61XXXA04 FCC ID: HN2UAPRFID-24 October 15, 1999 This report concerns : (check one) Original grant___X___ Class II change _______ *Class B verification_____X__ Class A verification_______ **Class I change_______ Equipment type: 2.4 GHz Spread Spectrum Transceiver Limits used: (check one) CISPR 22 __for digital emissions portion Part 15 __for RF portion Measurement procedure used is ANSI C63.4-1992 unless another is specified. Other test procedure: _______________________________________________________ This report is based on the measurements on Model 2100 . EUT Serial number: 245T5034. Report reviewed and approved by Kursat Eroglu, EMC Engineer ____________ 6001 36 th Ave. W Everett WA 98203 Phone: 206 356 1765 Fax: 206 348 2633 E-Mail [email protected] Do not bind or staple this report. A horizontal rubber band plus paper clip at top of document is preferred. *Not to be filed with Equipment Authorization Branch of FCC unless requested. Intermec Safety and Compliance Group 2 Table of Contents 1 GENERAL INFORMATION.........................................................................................3 1.1 Summary of Test Results.............................................................................3 1.2 Product Description......................................................................................3 1.3 Antenna System...........................................................................................3 1.4 Class A Justification.....................................................................................3 1.5 Related Submittal(s)/Grant(s)........................................................................3 2 TEST CONDITIONS....................................................................................................4 2.1 Tested System Details.................................................................................4 2.2 Block Diagram of Tested System.................................................................4 2.3 Test Methodology.........................................................................................4 2.4 Test Facility.................................................................................................4 2.5 Test Summary.............................................................................................5 2.6 Environmental Conditions............................................................................5 3 PRODUCT LABELING................................................................................................5 3.1 Location of Label on EUT.............................................................................5 4 TEST EQUIPMENT.....................................................................................................6 4.1 Test Equipment............................................................................................6 4.2 Accessories..................................................................................................6 5 TEST DATA AND RESULTS.......................................................................................7 5.1 Band Usage and Dwell Time........................................................................7 5.2 Peak Power Measurement...........................................................................7 5.3 Channel Bandwidth Measurement................................................................12 5.4 Conducted Out-of-Band Emissions...............................................................12 5.5 Radiated Emissions......................................................................................18 5.6 Conducted Powerline Emissions...................................................................19 Intermec Safety and Compliance Group 3 1 GENERAL INFORMATION 1.1 Summary of Test Results Model 2100 with 2.4 GHz RFID module was tested to the requirements of Part 15.247 of the FCC Rules for 2.4 GHz band spread spectrum transceivers to verify its compliance. The product passed all tests with comfortable margins beyond test instrument tolerances. 1.2 Product Description Model 2100 with 2.4 GHz RFID module is an RFID configuration of our Model 2100 Universal Access Point, which contains a 2.4 GHz RFID reader module. The module uses 2.4 GHz spread spectrum signals to interrogate, and program RFID tags. The module has a sheet metal enclosure inside the v-cast metal enclosure of Model 2100. It uses two 6 dB patch antennas alternatively. Detailed pictures of the product and the circuit boards are in the attaced exhibits. Power levels, frequency ranges and channel characteristics are not user adjustable. 1.3 Antenna System Model 2100 with 2.4 GHz RFID module uses two 6 dB patch antennas alternatively for spacial and polarization diversity. The antennas are connected through a TNC connector to the transmitter. Compliance with part 15.203 is achieved by an integrated RFID tag on the antenna, which identifies the antenna and is hardwired to the transmission cable. When the product is turned on it transmits an interrogation signal to the antenna. If it cannot identify the antenna through the transmission cable, it will not operate. Since the identification is made through the transmission cable only, no other antennas can be used with the product. 1.4 Class A Justification Intermec serves industrial customers such as warehouses, factories, storage facilities etc. Since this ruggedized product is used in these environments it falls under Part 15 Class A for digital emissions. 1.5 Related Submittal(s)/Grant(s) The same design of this transceiver using 2.4 GHz was certified by the FCC to IBM in 1997 under the FCC identifier ANORFID-2000. Intermec Safety and Compliance Group 4 2 Test Conditions 2.1 Tested System Details The product was put into transmit modes (continuous for an…

Text truncated - open the document above for the full version.

Intermec Safety and Compliance Group 8 Intermec Safety and Compliance Group 9 Intermec Safety and Compliance Group 10 Intermec Safety and Compliance Group 11 Intermec Safety and Compliance Group 12 5 TEST DATA AND RESULTS (continued) 5.3 Channel Bandwidth Measurement 5.3.1 Procedure The EUT was put into a continuous transmit mode. The analyzer was set to a 1 MHz span around the selected channel with 100 kHz resolution bandwidth and 100 kHz video bandwidth. The analyzer was put into m…
