J26-530009MMDS Wireless Modem, 530009

V V i i p p e e r r M M o o d d e e m m U U s s e e r r G G u u i i d d e e For use with all Viper Modem models Part Number 132440 Revision A March 6, 2003 Proprietary All information disclosed by this document is the proprietary property of California Amplifier, Inc. and is protected by copyright, trademark, and/or trade secret laws. All rights therein are expressly reserved. California Amplifier, Inc. Viper Modem User Guide Part #132440 Rev A 2 March 6, 2003 TABLE OF CONTENTS P ERMISSIONS, TRADEMARKS & DISTRIBUTION..........................................................................................3 SAFETY......................................................................................................................................................4 R EGULATORY INFORMATION.....................................................................................................................5 B ATTERY PRECAUTIONS............................................................................................................................6 INTRODUCTION.......................................................................................................................................7 PACKAGE INVENTORY .........................................................................................................................7 VIPER MODELS........................................................................................................................................7 O PERATING FREQUENCIES.........................................................................................................................8 C OMPUTER CONNECTIONS.........................................................................................................................8 MINIMUM COMPUTING REQUIREMENTS ......................................................................................9 PHYSICAL CHARACTERISTICS ........................................................................................................10 INSTALLING AN ETHERNET MODEM ............................................................................................11 INSTALLING A USB MODEM..............................................................................................................13 ACCESSING THE INTERNET ..............................................................................................................17 TROUBLESHOOTING ...........................................................................................................................18 I NDICATOR LIGHTS..................................................................................................................................18 INSTALLING CALAMP MONITOR..............................................................................................................19 USING CALAMP MONITOR.......................................................................................................................23 UNINSTALLING CALAMP MONITOR ..............................................................................................26 INSTALLING & CHARGING THE BATTERY ..................................................................................27 CARE & MAINTENANCE .....................................................................................................................28 California Amplifier, Inc. Viper Modem User Guide Part # 132440 Rev A 3 March 6, 2003 Permissions, Trademarks & Distribution Copyright © 2001 - 2003, California Amplifier, Inc. All information contained herein and disclosed by this document is confidential and the proprietary property of California Amplifier, Inc. and all rights therein are expressly reserved. Acceptance of this material signifies agreement by the recipient that the information contained in this document is confidential and that it will be used solely for the purposes set forth herein. Acceptance of this material signifies agreement by the recipient that it will not be used, reproduced in whole or in part, disclosed, distributed, or conveyed to others in any manner or by any means – graphic, electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval systems – without the express written permission of California Amplifier, Inc. CalAmp, the CalAmp logo and Viper are trademarks of California Amplifier, Inc. Other product and company names mentioned herein may be trademarks and/or service marks of their respective owners. Except for the hardware warranty, nothing herein constitutes any representation, warranty, assurance, or guaranty of any kind. Because of continuing developments and improvements in design, manufacturing, and deployment, material in this document is subject to change without notification and does not represent any commitment or obligation on the part of California Amplifier, Inc. California Amplifier, Inc. shall have no liability for any error or damages resulting from the use of this document. All CalAmp logos and trademarks are the property of California Amplifier, Inc. Unauthorized usage is strictly prohibited without the express written permission of California Amplifier, Inc.  2001 - 2003 California Amplifier, Inc. All rights reserved. California Amplifier, Inc. Viper Modem User Guide Part #132440 Rev A 4 March 6, 2003 Safety When using CalAmp Viper electronic equipment, always follow basic safety precautions to reduce the risk of electrical shock, fire, and injury to people and/or property. Follow all warnings and instructions that come with the equipment. 1. Do not use the equipment while you are in a bathtub, shower, pool, or spa. Exposure of the equipment to water could cause severe electrical shock or serious damage to the equipment. 2. Do not immerse the equipment in any type of liquid. Use a damp cloth and if needed, water and a mild detergent to clean the plastic shell. Unplug the equipment from the power source before cle…

Text truncated - open the document above for the full version.

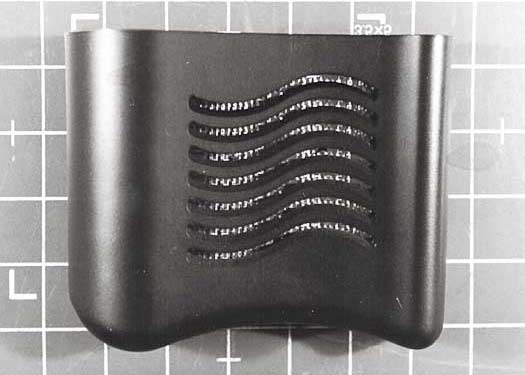

Front Back Right Side Left Side Top Bottom

Label Placement Bottom View Made in the U.S.A. Camarillo, CA PAT. PENDING MMDS WIRELESS MODEM (2596-2686 MHz) PART NO.: 530009 EID: FCC ID: J26-530009 VDC: 6V, 2.2A S/N: XXXXXXXXXXXX C+A Label Dimension: 2.5”x 0.75” Label Dimension: 2.9”x0.9”

REVISIONS UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES TOLERANCES ARE: FRACTIONS DECIMALS ANGLES ±1/32 .XX ±.01 ±0°30’ XXX ± .005 USED ON elec. file: 132439_1.doc MATERIAL FINISH DRAWN: CHECKED: ISSUED: TITLE DO NOT SCALE DRAWING SIZE CAGE CODE DWG NO. REV A 6T925 C+A SHEET 1 OF 1 SCALE WEIGHT ITEM NO. QTY REQD IDENTIFYING NO. DESCRIPTION 1 1 79808 LABEL, BLANK, WHITE, W/CAI LOGO, 2.9 X .90” NOTES: APPLICABLE STANDARDS/SPECIFICATIONS: MIL-STD-100E, ENGINEERING DRAWING PRACTICES. ANSI Y14.5M-82, DIMENSIONS AND TOLERANCES. REV ECO NO. DESCRIPTION DATE APPROVED 1 PRELIMINARY A. ANGELES 3/7/03 132439 1 LABEL, MARKING, MMDS WIRELESS MODEM, USB, VIPER Made in the U.S.A. Camarillo, CA PAT. PENDING MMDS WIRELESS MODEM (2596-2686 MHz) PART NO.: 530009 EID: FCC ID: J26-530009 VDC: 6V, 2.2A S/N: XXXXXXXXXXXX C+A 1/1 1 Form No: L11041/A 530009

PCB Assembly Removed from Enclosure Top of PCB Assembly Bottom of PCB Assembly

Shields Removed from PCB Assembly Front of Board Back of PCB

MMDS Wireless Modem Operational Description 3/7/03 1. Introduction: This product is a wireless Modem operating over the MMDS licensed band. The Modem, also known as Transceiver or Customer Premise Equipment (CPE) is based on TDD transmission mode utilizing a proprietary CDMA technology with Spread Spectrum coding techniques. The user interface to the Modem is via a USB or Ethernet port that is directly connected to the PC. The device requires a wall mount AC power supply which provides 6V DC at about 2A transmit peak power. When operated within the range of a wireless service provider, the Modem is authenticated by the base station. Once this is completed, the Base Station will then control the Modem by assigning a channel frequency and power at which the Modem will be transmitting. Depending on the distance and quality of signal received, the Modem will dynamically adjust the transmit power and modulation density to insure a robust wireless link. The Modem consists of the following five major blocks: a. Transmitter b. Receiver c. Digital/Modem d. Antenna Switch e. Local Oscillators Following is a brief description of each section: a. Transmitter: This section is comprised of the Digital to Analog (DAC) device which is fed from the digital section of the Modem. The DAC converts the parallel data stream (bits) to quadrature I/Q base band signals which are then modulated by an IF LO carrier of 350 MHz. The modulated IF channel is then amplified and channel-filtered using a high selectivity SAW filter. Further IF gain amplification is implemented to achieve a desired IF signal level prior to the second up conversion. An RF mixer up converter is then used to convert the IF carrier to the desired RF transmit carrier. This RF signal is then further filtered and amplified through the Power Amplifier (PA). Following the PA is an RF band pass filter which insures spectrally complaint out-of-band emissions. The RF signal is then transmitted to one of three patch antennas. The Antenna selection is done by the Digital section of the Modem which determines the optimal antenna selection. b. Receiver: The receive section consists of the same diversity Antenna section described above, an RF band pass filter acting as an image reject filter, and then the LNA section which establishes the sensitivity of the Modem. Additional amplification is done in the RF section prior to down converting the received RF channel to the desired IF frequency of 350 MHz. The IF signal is then further amplified then filtered using a SAW filter. The filtered IF channel then enters the demodulator device which converts the analog signal to I/Q components of the base band signals. These signals are then decoded and converted to the digital data stream using an Analog-to-Digital device (ADC). The output of the ADC is then processed by the digital section of the Modem. c. Digital/Modem Section: The Digital section is comprised of Digital Signal Processors (DSP), Flash, SRAM, USB (or Ethernet) controller, and other logic circuits to support Modem function. The Digital section decodes received data and determines the optimal Antenna to receive or transmit the RF signal. Further, the digital section generates the data stream fed to the DAC which in turn generates the I/Q base band signals to the modulator. d. Antenna Switch Section: The Antenna switch section is comprised of three antennas combined by a switching PIN diode scheme which selects any one of the three antennas at a time. The selection of the desired antenna is determined by the Digital sections based on received signal quality. Only one antenna is transmitting or receiving at any one time. e. Local Oscillators: There are two local oscillators that are used for both dual up and down conversion in the Modem. Both oscillators are synthesized and phase- locked to a single Temperature Compensated Crystal Oscillator (TCXO) of 16 MHz. The IF Local Oscillator (IF LO) is fixed at 700 MHz (which is later divided by two to feed the Modulator and Demodulator IF LO at 350 MHz). The RF LO is tuned by the Modem for the desired receive or transmit RF channel. The RF LO tuning BW is 2246-2336 MHz.

2.1033(c)(9) TUNE-UP PROCEDURE The CPE does not require any tuning or adjustment by the user. The CPE is tuned and set at the factory. Both power and channel frequency are set by the wireless operator Base Station. No user interface is required except for power up or down and connecting the CPE to a computer via the USB or Ethernet port.

Page 1 of 33 Report No.: FC03-011 CALIFORNIA AMPLIFIER TEST REPORT FOR THE MMDS WIRELESS MODEM, 530009 FCC PART 21 COMPLIANCE DATE OF ISSUE: MARCH 3, 2003 PREPARED FOR: California Amplifier 460 Calle San Pablo Camarillo, CA 93012 PREPARED BY: Mary Ellen Clayton CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 P.O. No.: 28079 W.O. No.: 80082 Date of test: February 27-28, 2003 Report No.: FC03-011 This report contains a total of 33 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 33 Report No.: FC03-011 TABLE OF CONTENTS Administrative Information .............................................................................................3 Summary of Results .........................................................................................................4 Conditions for Compliance ..............................................................................................4 Approvals .........................................................................................................................4 Equipment Under Test (EUT) Description ......................................................................5 Equipment Under Test .....................................................................................................5 Peripheral Devices ...........................................................................................................5 Measurement Uncertainty ................................................................................................5 Temperature and Humidity During Testing.....................................................................6 2.1033(c)(3) User’s Manual.............................................................................................6 2.1033(c)(4) Type of Emissions ......................................................................................6 2.1033(c)(5) Frequency Range ........................................................................................6 2.1033(c)(6) Operating Power .........................................................................................6 2.1033(c)(7) Maximum Power Rating .............................................................................6 2.1033(c)(8) DC Voltages................................................................................................6 2.1033(c)(9) Tune-Up Procedure.....................................................................................7 2.1033(c)(10) Schematics and Circuitry Description ......................................................7 2.1033(c)(11) Label and Placement .................................................................................7 2.1033(c)(12) Submittal Photos .......................................................................................7 2.1033(c)(13) Modulation Information............................................................................7 2.1033(c)(14)/2.1046/21.904(d) - RF Power Output .......................................................8 2.1033(c)(14)/2.1047(b) - Modulation - Audio Frequency Response .............................9 2.1033(c)(14)/2.1047(b) - Modulation Limiting Response .............................................9 2.1033(c)(14)/2.1049(i)/21.908(d) - Occupied Bandwidth..............................................9 2.1033(c)(14)/2.1051/21.908(d) - Spurious Emissions at Antenna Terminal .................22 2.1033(c)(14)/2.1053/21.908(d) - Field Strength of Spurious Radiation ........................28 2.1033(c)(14)/2.1055/21.101 - Frequency Stability ........................................................30 1.1307 - MPE Calculations ..............................................................................................33 Page 3 of 33 Report No.: FC03-011 ADMINISTRATIVE INFORMATION DATE OF TEST: February 27-28, 2003 DATE OF RECEIPT: February 27, 2003 PURPOSE OF TEST: To demonstrate the compliance of the MMDS Wireless Modem, 530009 with the requirements for FCC Part 21 devices. TEST METHOD: FCC Part 21 FREQUENCY RANGE TESTED: 9 kHz – 27 GHz MANUFACTURER: California Amplifier 460 Calle San Pablo Camarillo, CA 93012 REPRESENTATIVE: Nader Barakat TEST LOCATION: CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 Page 4 of 33 Report No.: FC03-011 SUMMARY OF RESULTS As received, the California Amplifier MMDS Wireless Modem, 530009 was found to be fully compliant with the following standards and specifications: United States ! FCC Part 21 CONDITIONS FOR COMPLIANCE No modifications to the EUT were necessary to comply. APPROVALS QUALITY ASSURANCE:TEST PERSONNEL: Steve Behm, Director of Engineering Services and Quality Assurance Monika Brandle, EMC Test Engineer Joyce Walker, Quality Assurance Administrative Manager Mike Wilkinson, Lab Manager Page 5 of 33 Report No.: FC03-011 EQUIPMENT UNDER TEST (EUT) DESCRIPTION The MMDS Wireless Modem, 530009 tested by CKC Laboratories was a production unit. EQUIPMENT UNDER TEST MMDS Wireless Modem Manuf: California Amplifier Model: 530009 Serial: 022703-001 FCC ID: J26-530009 (pending) PERIPHERAL DEVICES The EUT was tested with the following peripheral device(s): Fan Manuf: Panaflo Model: FBK-08A12H Serial: 5A10TL1A FCC ID: DoC Power Supply Manuf: HP Model: 6205C Serial: 2228A-01775 FCC ID: NA Monitor Manuf: IBM Model: P50 Serial: 08-69550 FCC ID: DoC Mouse Manuf: Compaq Model: Intellimouse 1.2A PS/2 Compatible Serial: 63618-OEM-0918021-54599 FCC ID: DoC Keyboard Manuf: Compaq Model: SK-2850 Serial: B23240ACP1862K FCC ID: DoC Computer Manuf: Compaq Model: Prosignia Desktop Serial: 6008DJ3PA155 FCC ID: DoC MEASUREMENT UNCERTAINTY TESTHIGHEST UNCERTAINTY Radiated Emissions+/- 2.94 dB Note: Reported uncertainties represent expanded uncertainties expressed at approximately the 95% confidence level using a coverage factor of k=2…
