J26-PC-UC-2OSMAC Base Station

Peoplefinder II On-Site Communications System 7M303-1 Rev A3 User Manual Firmware Version 307D90 CalAmp Corp 1401 N. Rice Avenue Oxnard, CA 93030 PH: 805-987-9000 Fax: 805-987-8359 Email: [email protected] «ProductName» User Manual 7M303-1 Rev A2 Page 2 Table Of Contents 1 Installation ...................................................................................................................................................... 5 1.1 Environment ........................................................................................................................................... 5 1.2 Licensing ................................................................................................................................................ 5 1.3 Radio Communication Interference ........................................................................................................ 5 1.4 Locating the Peoplefinder II ........................................................................................................................... 5 1.5 Unit Setup ............................................................................................................................................... 5 2 Local Operation .............................................................................................................................................. 6 2.1 Overview ................................................................................................................................................ 6 2.2 Keypad .................................................................................................................................................... 7 2.3 External Keyboard .................................................................................................................................. 7 2.4 Display .................................................................................................................................................... 8 2.5 Sending a page ........................................................................................................................................ 8 2.6 Group Page ............................................................................................................................................. 9 2.7 Tone Paging to Alphanumeric or Numeric Pagers ................................................................................. 9 2.8 2-way Data Communication ................................................................................................................... 9 2.9 2-way voice communications ................................................................................................................. 9 2.10 Alarm Pages ............................................................................................................................................ 9 3 Two-way Radio Operation ........................................................................................................................... 10 3.1 Sending Pages from the Two-Way Radio ............................................................................................. 10 3.2 Unit Setup ............................................................................................................................................. 11 3.3 Configuration Mode ............................................................................................................................. 13 4 Program Mode .............................................................................................................................................. 16 4.1 Assign Pager ......................................................................................................................................... 16 4.2 Assigning a Group ................................................................................................................................ 17 4.3 Sending Test Pages ............................................................................................................................... 19 4.4 Alarm Pages .......................................................................................................................................... 19 5 Diagnostics ................................................................................................................................................... 20 5.1 Built-in Diagnostics .............................................................................................................................. 20 5.2 Remote Diagnostics .............................................................................................................................. 20 6 Serial Port Protocols ..................................................................................................................................... 21 6.1 TAP ...................................................................................................................................................... 21 6.2 TAP Protocol Issues ............................................................................................................................. 23 6.3 Sending Multiple-Line Pages ............................................................................................................... 24 6.4 Computing the Checksum..................................................................................................................... 24 6.5 COMP1 ................................................................................................................................................. 24 6.6 COMP2 ................................................................................................................................................. 25 «ProductName» User Manual 7M303-1 Rev A2 Page 3 6.7 ASCII control characters ............................................…

Text truncated - open the document above for the full version.

299 Johnson Avenue, Suite 110 Waseca, MN 56093 Tel (507) 833‐8819 www.calamp.com May 17, 2012 American Certification Body, Inc. 6731 Whittier Ave. Suite C110 McLean, VA 22101 Attestation Acknowledgement In accordance with KDB634817 Grant Listing Policy D01 V02 R04 which states: * Contiguous frequency listings for covering and reducing multiple listings that include frequencies that are not listed in the rule part applied under, or not described for authorized use in item d (i-iii), are acceptable if the filing is accompanied by an attestation letter from the grantee acknowledging that the device will be programmed only for the frequencies authorized in item d or allowed by the rule parts applied under. This attestation letter must list the authorized use and the exact frequencies allowed for each rule part applied under, ensuring understanding and compliance with the rules and correct programming of the device. As an alternative to listing the exact frequencies, the grantee provides an additional statement acknowledging that the FCC rules are violated if the device operates on unauthorized frequencies. CalAmp acknowledges the FCC rules will be violated if this device is programmed on unauthorized frequencies 454-456MHz. This device is professionally installed and will only be programmed on frequencies allowed by Part 90. Dated this 17 th day of May, 2012 By: ______________ ______Russell Cook______ (Signature) (Print name) Title: _______Director of Engineering_____ email: [email protected]_______ On behalf of: CalAmp Wireless Networks Corporation (Company Name) Telephone: _____612-642-2127_____________

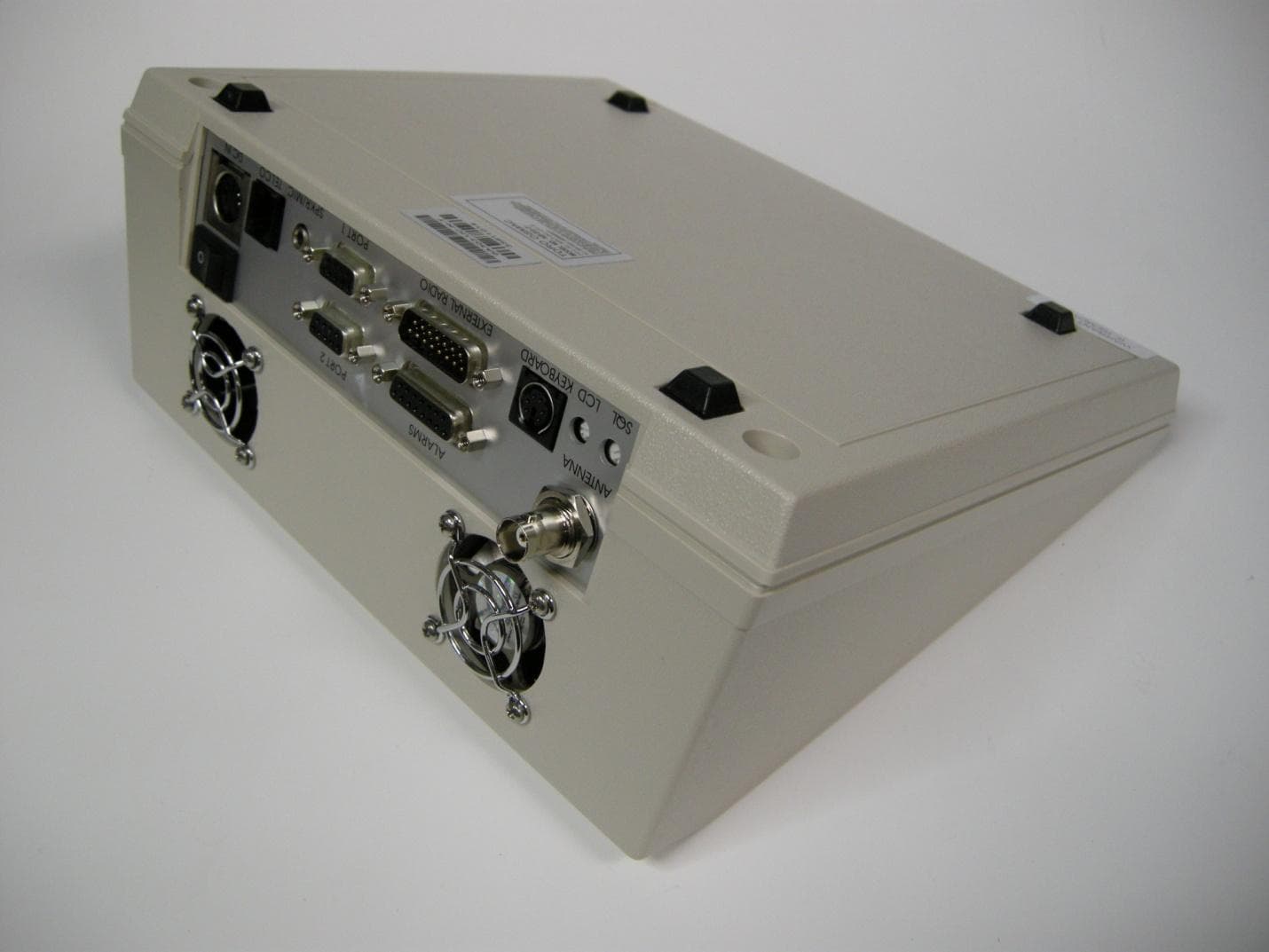

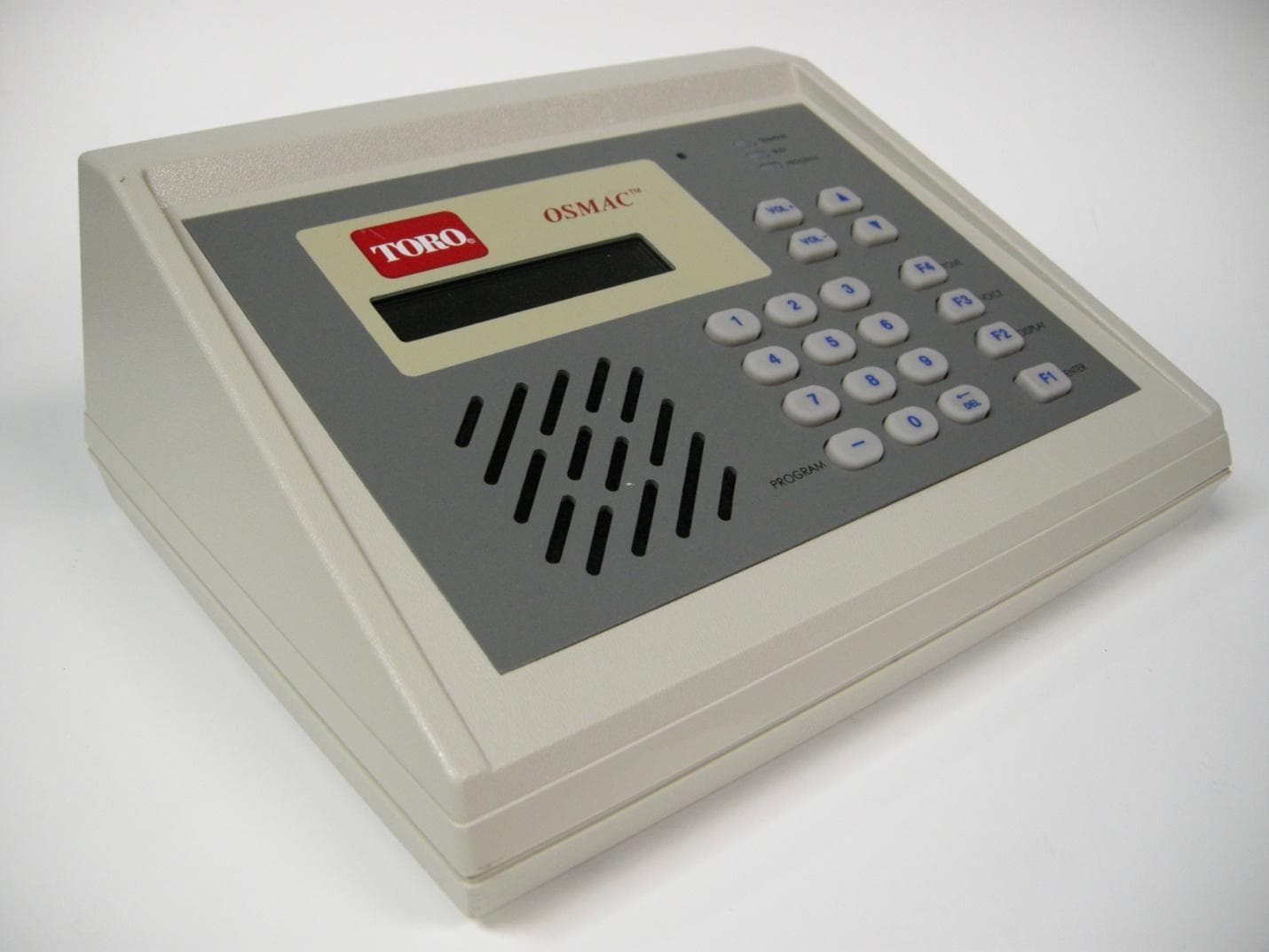

External Photos: Top, Left, Front External Photos: Bottom, Right, Back External Photos: Back Connections

EUT Exposed Controller PCB Controller PCB Shield Removed Controller PCB TX Module Removed TX Module 6 TX Module Exposed Top TX Module Exposed Bottom TX PCB Shield Removed Top TX PCB Shield Removed Bottom

!" # $% &'() *+,-./0.1 2 .3+ 45 6789:;<=;>;? @AB@ C DEFGHIFE J K+LM11MNO/3P.Q1+1O*P*PK+O/P+,/.1.RS0*PT+/P* U V(W(X(Y Z ( [('\ ] Y&^ _ X `aY Z ^\ _ Y b +., 2 ./+1cd0+1eKfe.,,O+,R+P+ePPK,+*KM1R 1+g+1 U b +., 2 ./+1hijiM/P,.*P U b k lb +e+Og+.0ROM1+g+1 U b5mb !.0ROMQO.* U bn ki J icc+/eMR+1+g+1 U bn42 .3O/3R.P.1+g+1 U b45" MOe+1OTOP+, U bml -Oe,MoKM/+3.O/ U bp k J +1eM.0ROMPMP,./*TOPP+,1+g+1 U bmqJ +1eM1O/+R,Og+,1+g+1 U @ABA #rsIGHIF$tuvHCDtH %!&!&%"'#'$%&(''() 5U woo1xjioMN+,PMPK+0/OP U iM//+ePPK+*+,gOe+TM/OPM,PMPK+wy J oM,P U k U jMN/1M.RPK+z1.*KeMR+PMPK+0/OPOLOPO*/MP.1,+.Rxo,M3,.TT+R U {M1RRMN/PK+|}|~+xNKO1+ oMN+,O/30oPK+0/OPPM+/P+,z1.*KeMR+o,M3,.TTO/3TMR+ U c++PK+*+ePOM/M/|zO,TN.,+ ) oR.PO/3|LM,.RROPOM/.1O/LM,T.POM/ U nU wRS0*PPK+hijeM/P,.*PeM/P,M1M/PK+,+.,o./+1MLPK+0/OP U %!&!&!)%*+,*#''$-%.' J KO*o,Me+R0,+.**0T+*.o,Mo+,1xP0/+RP,./*e+Og+,O*O/*P.11+RO/PK+0/OP U+ M0NO11/++R.ji oMN+,*M0,e+*+,gOe+TM/OPM,M*eO11M*eMo+./Rj " - U z011cx*P+Tj+gO.POM/ /pUl ~{,LM,NOR+}Q./R g+,*OM/*./Rzcj / k Up ~{,LM,/.,,MN}Q./Rg+,*OM/* U j+o+/RO/30oM/PK+Pxo+Q./RNORPKMLPK+ P,./*e+Og+,0*+RxM0NO11K.g+PMT.~+*1O3KP1xROLL+,+/P.RS0*PT+/P* U 5U2 ,M3,.TPK+0/OP0*P,./*TOP./R,+e+Og+L,+d0+/eO+* U jO*.Q1+*0Q}.0ROQ1+*O3/.1O/3 U k U c+PPK+ J !Q./RNORPKPM1NOR+Q./R2M,|/.,,MNQ./R|R+o+/RO/3M/PK+Q./RNORPKMLPK+ P,./*e+Og+,0/OPO/*P.11+R U nU€ +/+,.P+./ b ze.,,O+,M/PK+,+e+Og+L,+d0+/ex 5 ~{,PM/+ ml zcj /n ~{,-NOR+Q./R0/OP*.f 5Up ~{, U -/.,,MNQ./R0/OP*. b z1+g+1 5l 0 "U 4U wRS0*P b5m LM,. 5Up" o}o- pnl T "b -c.*O3/.1M/ J2‚U pU wRS0*PPK+ b z3+/+,.PM,PM Unp 0 "U wRS0*PPK+*d0+1eK-1Me.P+RM/PK+,+.,o./+1.*MPK.PPK+ e.,,O+,R+P+ePh ƒ jO*M/./R*MPK.POP3M+*MLLNK+/PK+ b z1+g+1O*Q+1MN U k p 0 "U !" # $% &'() *+,-./0.1 2 .3+ 4 5 6789:;<=;>;? ! !!"#"#$$%&#'()##*%###+,#&$-# @AB +/+,.C+./ D EF.,,G+,H/CI+,+F+GJ+K,+L0+/FMN @ OP'CH/+N QRS ETU .V OP'W @AX OP' AD E 1+J+1 @R 0 (A 5 A YH//+FCCI+ Z[ \Y]1G/+CHCI+ D ).0^GH_MIH1^G/3CI+ @ _0CCH/^H`/H/aH`+,0aCH_,G/3b0aCI+ C+*CcH^+NCI+/+/C+,CI+a.**`H,^./^a,+** Q E @ ./^E5 A VA d^e0*C DQf *C+1FH1G/+1+J+1+KH,.1+J+1HK /@V ^gcH/CI+1G/+ A 4A UG*._1+CI+ D ).0^GH_Ma,+**G/3E5C`GF+cH,+ AB +/+,.C+.U Z -ECH/+K,HcCI+_Ma,+**G/3 V ./^CI+/E 4A XA( +,GKMCI.CCI+1G/+1+J+1G*_+C`++/b @X ./^b @ 5^gc AZ I+/a,+**CI+U]hi.,,H`CHC0,/HKKCI+ U Z -E A ! !,"#"#$$%&#'()##*"')%01+&&$-# @A T+CCI+*+,JGF+cH/GCH,CHc+.*0,+CI+C,./*cGCC+,j*E-^+JG.CGH/ A 5 AB +/+,.C+.5 XRR P'CH/+H/CHCI+ Z[ \Y]1G/+K,Hc./+ k C+,/.1C+*CG/*C,0c+/C`GCI.aH`+,1+J+1 HK 2X ^gcG/CH QRR HIc* A VA YH//+FCCI+ Z[ \Y]CHCI+C,./*cGCC+,_Ma,+**G/3E @ NCI+/a,+**E5C`GF+CHO+MCI+C,./*cGCC+, A 4A d^e0*C DX 5F1HFO`G*+KH,c. k Gc0c3.G/NCI+/.^e0*C D4@ *1GcGC+,+KH, 4AX OP'W5 A 5 X OP'^+JG.CGH/ A XA d^e0*CCI+ Z[ \Y]*G3/.1CH.aH`+,1+J+1HKb @X ^gc A QA d^e0*C DX 5*HCI.CCI+^+JG.CGH/G*.CI.1K*F.1+*5 A 5 X OP'W @A@ 5 X OP'+ A ! !3-)4+%4&$-5")&+$% @AZ 0,/CI+0/GCHKK A 5 AB +/+,.C+. @ 5 RR _.0^a.3G/3C+*C*G3/.1_MIH1^G/3CI+ @ _0CCH/^H`/0aH/aH`+,0aNCI+/ +/C+,G/3CI+a.**`H,^./^a,+**G/3 Q@ 5 A Ta+FGKM./]iCGc+HK VRRRR cT./^./]EECGc+HK R cT A VA d^e0*C DV4 KH, X OP'W5 AX OP'* R CHa+.O+^+JG.CGH/ A 4AZ 0,/HKKCI+aH`+,CHCI+0/GC A ! !67$+##&$-5")&+$%89"9.. @AZ 0,/CI+0/GC_.FOH/ A 5 A l+MCI+C,./*cGCC+,0*G/3CI+E V O+M A d^e0*C D@QR *HCI+F.,,G+,G*H/K,+L0+/FM A VA d^e0*C DQR *cGF3.G/+KH, V OP'W @AX OP'^+JG.CGH/`I+/*a+.OG/3G/CHCI+cGF`GCI./H,c.1JHGF+ 1+J+1K,Hc.^G*C./F+HK._H0C @ KHHC.`.M A 4A[ /._1+. @RR P'Y Z YTT+/FH^+,H/CI+C,./*cGCK,+L0+/FM A XA l+MCI+C,./*cGCC+,`GCICI+E V O+M A d^e0*C DV 5KH, XRR P'W5 XR P'^+JG.CGH/HKCI+Y Z YTTCH/+ A QA -+.*0,+CI+C,./*cGCC+,j*aH`+,1+J+1CHJ+,GKMCI.CGCG**+CCHCI+^+*G,+^1+J+1`GCICI+G/C+,/.1 e0ca+,* A

RF Exposure Compliance Requirements IntegraTR UHF Wireless Radio Modem FCC Rule: 1.1307, 1.1310, 2.1091 (b) (d), 2.1093 IC Rule: RSS 119 Section 9, RSS-102 Section 2.2 Description of Compliance: The OSMAC base station is intended for use in the Irrigation Monitoring and Control. It will be professionally installed using a 2.5 dBi gain antenna in such a way that a minimum separation distance of more than 33.8 cm will be maintained between the radiating structure and any person to be classified as a mobile. Note: It is the responsibility of the user to guarantee compliance with the FCC MPE regulations when operating this device in a way other than described above. Antenna Gain vs. Recommended Safety Distance Antenna Gain 2.5 dBi Min Safety Distance (max power) 33.8 cm Limits for General Population/Uncontrolled Exposure: Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (mins) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f2) 30 30-300 27.5 0.073 0.2 30 300-1500 --- --- f (MHz)/1500 (MHz) 30 1500-100000 --- --- 1.0 30 Environmental Specification: f(MHz)/(1500 mW/cm 2 ) 450.0 MHz/(1500 MHz mW/cm 2 ) = 0.3 mW/cm 2 (worst case) S = (PG)/(4πR 2 ) (OET Bulletin 65) Where: S = Power Density (mW/cm 2 ) P = Power input to the antenna (mW) G = Power Gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna (cm) Distance Calculation for 2.5dBi antenna: R = √((PG)/(4πS)) Antenna Gain: 2.5 dBi 10 (2.5 dBi/10) = 1.78 Power input to Antenna +20% = 33.81dBm Power input to the Antenna: 33.81dBm = 10 (33.81dBm/10) = 2400 mW R = √((2400mW*1.78)/(4π*0.3 mW/cm 2 )) = 33.66 cm (Minimum Distance) Minimum Distance Rounded Up = 33.8cm Minimum Distance

Rev 2 Page 1 of 37 CalAmp Wireless Networks Corp. 299 Johnson Avenue, Suite 110 Waseca, MN 56093-0833 USA Phone: 507-833-8819 Fax: 507-833-6748 FCC / IC Certification Application For The OSMAC Toro UHF Base Station FCC ID: J26-PC-UC-2 IC ID: 773B-NBBS01 Rev 2 Page 2 of 37 Table Of Contents Test 1: Transmitter Rated Output Power 3 FCC: 2.1046 (a) (c) IC: RSS-119 5.4 Test 2: Transmitter Spurious and Harmonic Output 4 FCC: 2.1051, 90.210 (d)(3) IC: RSS-119 5.8.3 Test 3: Transient Frequency Behavior 7 FCC: 90.214, IC: RSS-119 5.9 Test 4: Frequency Stability with Variation in Supply Voltage 11 FCC: 2.1055 (d)(1), 90.213 (a) IC: RSS-Gen 4.7, RSS-119 5.3 Test 5: Frequency Stability with Variation in Ambient Temperature 13 FCC: 2.1055 (a) (b), 90.213 (a) IC: RSS-Gen 4.7, RSS-119 5.3 Test 6: Transmitter Occupied Bandwidth - Setup 16 12.5 kHz Half Channel Mask D, 9600bps (8K90F1D) 18 FCC: 2.202, 90.209 (b)(5), 90.210(d), 2.1049 (c) (1) IC: RSS-119 5.8.3 12.5 kHz Half Channel Mask D, 2400bps (7K42F3D) 22 FCC: 2.202, 90.209 (b)(5), 90.210(d), 2.1049 (c)(1) IC: RSS-119 5.8.3 12.5 kHz Half Channel Mask D, Voice (9K83F3E) 26 FCC: 2.202, 90.209 (b)(5), 90.210(d), 2.1049 (c)(1) IC: RSS-119 5.8.3 Test 7: Field Strength of Spurious Radiation 29 FCC: 2.1053, 90.210 (d,3) IC: RSS-119 5.8.4, 5.8.3 Test 9: Audio Frequency Response 33 FCC: 2.1033 (c)(14); 2.1047(b) Test 10: Modulation Limiting Response 35 FCC: 2.1033 (c)(14); 2.1047(b) Calibration Information 37 Rev 2 Page 3 of 37 NAME OF TEST: Transmitter Rated Power Output RULE PART NUMBER: 2.1046 (a) (c) IC: RSS-119 5.4 TEST RESULTS: See results below TEST CONDITIONS: Standard Test Conditions TEST EQUIPMENT: 50-Ohm Attenuator, Bird 50-A-FFN-20 / 20 dB / 50 Watt Digital Multimeter, Fluke 87 Power Meter, Model HP-8901B TEST SET-UP: TEST RESULTS: Frequency ( MHz ) DC Voltage at Final ( Vdc ) DC Current into Final ( Adc ) DC Power into Final ( W ) RF Power Output ( W ) 450 13.0 0.90 11.7 2.018 460 13.0 0.95 12.4 1.953 470 13.0 1.01 13.1 1.891 TEST UNIT ATTENUATOR POWER METER POWER SUPPLY DIGITAL MULTIMETER Rev 2 Page 4 of 37 NAME OF TEST: Transmitter Spurious and Harmonic Outputs RULE PART NUMBER: 2.1051, 90.210 (d,3) IC: RSS-119 5.8.3 MINIMUM STANDARDS: For 2 Watts: 50+10Log 10 (2 Watts) = -53.0 dBc or -70dBc, whichever is the lesser attenuation. TEST RESULTS: Meets minimum standards ( see data on following pages ) TEST CONDITIONS: Standard Test Conditions, 25 C RF Voltage measured at antenna terminals TEST PROCEDURE: TIA/EIA – 603-C TEST EQUIPMENT: 50-Ohm Attenuator, Narda 765-10 / 10 dB / 50 Watts 50-Ohm Attenuator, Bird 10-A-MFN-10 / 10 dB / 10 Watts Spectrum Analyzer, HP-8563E Reference Generator, Agilent E8257D High Pass Filter, Mini Circuits VHF-740, Fc = 740 MHz TEST SET-UP: MEASUREMENT PROCEDURE: 1. The transmitter carrier output frequency is 450.000, 460.000, and 470.000 MHz. 2. The carrier reference was established on the spectrum analyzer with the filter by-pass in place. Then the spectrum was scanned from DC to 2 Fc. Finally, the high pass filter was inserted to null the carrier fundamental and extend the range of the spectrum analyzer for harmonic measurements above 2 Fc. 3. At each spurious frequency, generation substitution was used to establish the true spurious level. 4. The spectrum was scanned to the 10 th harmonic of the highest internally generated frequency. Filter By-Pass TEST UNIT ATTENUATORS HIGH PASS FILTER POWER SUPPLY SPECTRUM ANALYZER REFERENCE GENERATOR POWER METER Rev 2 Page 5 of 37 Tuned Frequency 450.0 MHz Power 2 Watts Min. Specification -20.0 dBm Worse Case -52.75 dBm Spurious Relation to Spurious Frequency (MHz) Carrier Level (dBm) 900 2 fo -52.75 1350 3 fo -70.79 1800 4 fo -64.08 2250 5 fo -80.32 2700 6 fo -88.25 3150 7 fo -67.10 3600 8 fo -72.49 4050 9 fo -86.43 4500 10 fo -63.94 Tuned Frequency 460.0 MHz Power 2 Watts Min. Specification -20.0 dBm Worse Case -53.14 dBm Spurious Relation to Spurious Frequency (MHz) Carrier Level (dBm) 920 2 fo -53.14 1380 3 fo -70.01 1840 4 fo -72.92 2300 5 fo -79.76 2760 6 fo -87.73 3220 7 fo -70.2 3680 8 fo -76.91 4140 9 fo -82.74 4600 10 fo -77.85 Rev 2 Page 6 of 37 Tuned Frequency 470.0 MHz Power 2 Watts Min. Specification -20.0 dBm Worse Case -61.64 dBm Spurious Relation to Spurious Frequency (MHz) Carrier Level (dBm) 940 2 fo -61.64 1410 3 fo -70.92 1880 4 fo -78.44 2350 5 fo -77.5 2820 6 fo -76.87 3290 7 fo -76.58 3760 8 fo -84.86 4230 9 fo -79.31 4700 10 fo -94.18 Rev 2 Page 7 of 37 NAME OF TEST: Transient Frequency Behavior RULE PART NUMBER: 90.214 RSS-119 5.9 MINIMUM STANDARD: 12.5 kHz channel (used worst case numbers from 450.0 to 470.0 MHz) TIME INTERVAL MAXIMUM FREQUENCY DIFFERENCE (kHz) TIME (ms) T1 +/- 12.5 10 T2 +/- 6.25 25 T3 +/- 12.5 10 TEST RESULTS: Meets minimum standards, see data on following pages TEST CONDITIONS: RF Power Level = 2 Watts Standard Test Conditions, 25 C TEST PROCEDURE: TIA/EIA – 603-C TEST EQUIPMENT: 50-Ohm Attenuator, Bird Electronics Model 50-A-FFN-20 (20dB, 50W) 50-Ohm Attenuator, Bird Electronics Model 10-A-MFN-10 (10dB, 10W) Modulation Domain Analyzer, HP-53310A Power Meter, Model HP436 TEST UNIT MODULATION DOMAIN ANALYZER ATTENUATOR(s) POWER METER Rev 2 Page 8 of 37 Frequency : 450.000000 MHz Power: 2 W Key-Down Key-up Rev 2 Page 9 of 37 Frequency : 460.000000 MHz Power: 2 W Key-Down Key-up Rev 2 Page 10 of 37 Frequency : 470.000000 MHz Power: 2 W Key-Down Key-up Rev 2 Page 11 of 37 NAME OF TEST: Frequency Stability with Variation in Supply Voltage RULE PART NUMBER: 2.1055 (d)(1), 90.213 (a) RSS-Gen 4.7, RSS-119 5.3 MINIMUM STANDARD: Shall not exceed 1.50 ppm. TEST RESULTS: Meets minimum standard, see data on following page TEST CONDITIONS: Standard Test Conditions, 25 C TEST EQUIPMENT: Frequency Counter, HP 8901A Modulation Analyzer Digital Voltmeter, Fluke Model 8012A 50-Ohm Attenuator, Bird Electronics Model 50-A-FFN-20 (20dB, 50W) 50-Ohm Attenuator, Bird Electronics Model 10-A-MFN-10 (10dB, 10W) TEST SET-UP: Rev 2 Page 12 of 37 Channel Frequen…

Text truncated - open the document above for the full version.

TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 Rev. 011411 EMC TEST REPORT Test Report No. WC1203002 Date of issue: 29 March 2012 Manufacturer Calamp Wireless Networks Corporation Address 299 Johnson Avenue Suite 110 Waseca MN 56093 Name of Equipment Toro OSMAC Base Station Model No(s) Tested NB-BS-01 Serial No(s) Tested 33911014 Test Result  Compliant Non-compliant TÜV SÜD America Inc reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. TÜV SÜD America Inc shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD America Inc issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report shall not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the US government. TÜV SÜD America Inc and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NARTE, and VCCI. Test Report WC12030021 of 36 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 Rev. 011411 REVISION RECORD REVISION TOTAL NUMBER OF PAGES DATE DESCRIPTION 36 29 March 2012 Initial Release Test Report WC12030022 of 36 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 Rev. 011411 TEST REPORT CONTENTS Page(s) Revision Record 2 Directory 3 Test Regulations / Test Methodology 4 Environmental Conditions / Measurement Uncertainty 5 Test Results, Data, and Photos Conducted emissions –AC Power Line 150 kHz - 30 MHz 6 - 12 Conducted emissions - Telecommunication Cables 150 kHz - 30 MHz 13 Radiated emissions 30 MHz - 1000 MHz 14 - 21 Radiated emissions 1 GHz – 2 GHz 22 - 24 EUT Test Operation Mode 25 Deviations from standard / Summary 26 Appendix A Test Setup Drawing(s) 27 - 28 Appendix B Constructional Data Form(s) and/or Product Information Form(s) 29 - 36 Test Report WC12030023 of 36 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 Rev. 011411 EMC TEST REGULATIONS: The tests were performed according to following regulations:  - FCC  - Class A  - Class B  - Canada ICES-003, Issue 4: 2004  - Class A  - Class B Test Methodology Conducted and radiated emission testing is performed according to the procedures in ANSI C63.4-2003. In compliance with FCC Docket 92-152, "Harmonization of Rules for Digital Devices Incorporate International Standards", testing for FCC compliance may be done following the ANSI C63.4-2003 procedures and using the CISPR 22 Limits. Test Report WC12030024 of 36 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 Rev. 011411 ENVIRONMENTAL CONDITIONS IN THE LAB Actual Temperature: : 15 °C Relative Humidity : 60 % Atmospheric pressure : 98 kPa POWER SUPPLY UTILIZED Power supply system : 110 VAC / 60 Hz / 1 Measurement Uncertainty The test system for conducted emissions is defined as the LISN, tuned receiver or spectrum analyzer, and coaxial cable. This test system has a measurement uncertainty of ±1.8 dB. The test system for radiated emissions is defined as the antenna, the pre-amplifier, the spectrum analyzer and the coaxial cable. This test system has a measurement uncertainty of ±4.8 dB. The equipment comprising the test systems is calibrated on an annual basis. SIGN EXPLANATIONS  - not applicable  - applicable Test Report WC12030025 of 36 TÜV SÜD AMERICA INC19333 Wild Mountain Road Taylors Falls MN 55084-1786 Tel: 651 638 0297 Fax: 651 638 0298 Rev. 011411 Emissions Test Conditions: CONDUCTED EMISSIONS (Interference Voltage) AC Power Lines The measurements were performed at the following TÜV SÜD America test location:  - Test not applicable  - Wild River Lab Large Test Site (Open Area Test Site)  - Wild River Lab Small Test Site (Open Area Test Site)  - Wild River Shield Room 1 - Anechoic ferrite-lined shielded room (7.3m x 3.7m x 3.7m) or (24’ x 12’ x 12’)  - Wild River Shield Room 2 - Shielded room (3.7m x 3.5m x 2.4m) or (12’ x 11.5’ x 8’)  - Oakwood Lab (Open Area Test Site)  - New Brighton Lab Shielded Room  - Tabletop equipment is placed on a non-conducting table 80 centimeters above the floor, 40 centimeters from a vertical ground plane.  - Floor standing equipment is placed directly on the turntable/ground plane. Test equipment used: TUV ID Model Manufacturer Description Serial Cal Due WRLE02416 3825/2 Electro-Mechanics (EMCO) 50  LISN 8812-1437 Code B 23-Feb-13 WRLE02534 ESHS-20 Rohde & Schwarz EMI Receiver 9kHz-30MHz 837055/003 15-Jun-12 WRLE10863 N/A TÜV SÜD America Inc Test Companion Software Version 3.4.71 N/A Code B 07-Oct-12 Cal Code B = Calibration verification performed internally. Cal Code Y = Calibration not required when used with other calibrated equipment. All measurement instrumentation is traceable to the National Institute of Standards and Technology and is calibrated according to internal procedure. The measurements are performed using a receiver, which has CISPR characteristic bandwidth and quasi-peak/average detection, and a Line Impedance Stabilization Network (LISN), with 50 /50 H (CISPR 16-1-1) characteristics. Test specification: Frequency - range :  - 150 kHz to 30 MHz EUT Power :  - 50 Hz  - 100 VAC  - 230 VAC  - 380 VAC EUT Power :  - 60 Hz  - 100 VAC  - 110 VAC  - 208 VAC  - 220 VAC  - 480 VAC Test Results - Conducted emissions 150 kHz - 30 MHz The requirements are  - N/A  - MET  - NOT MET Minimum margin of compliance (Averag…
