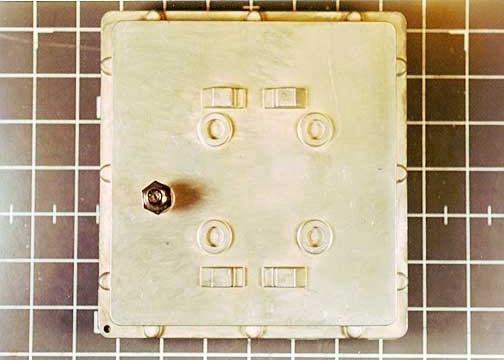

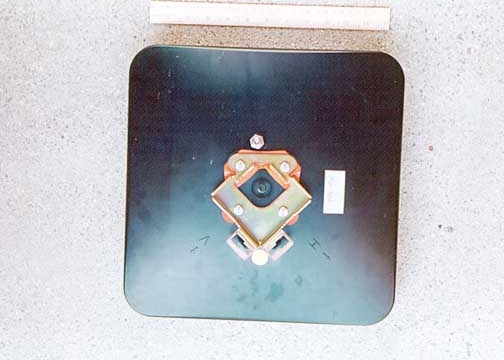

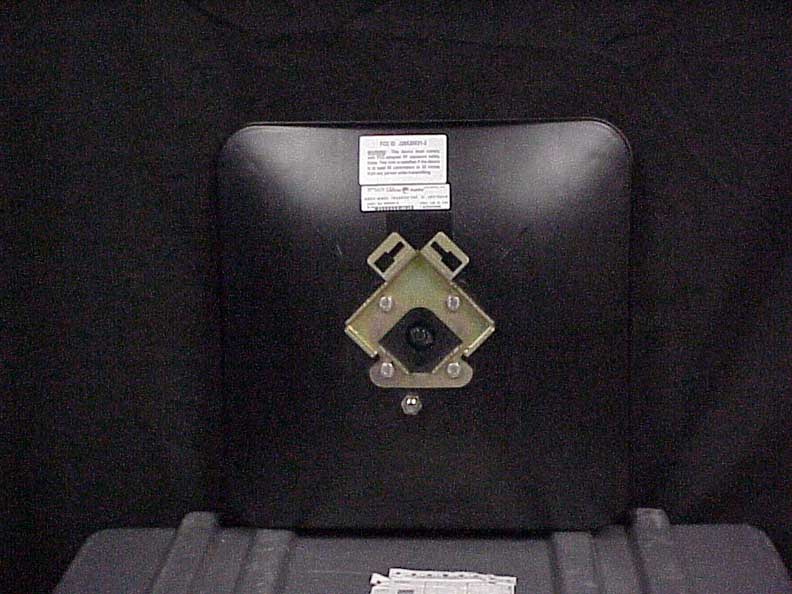

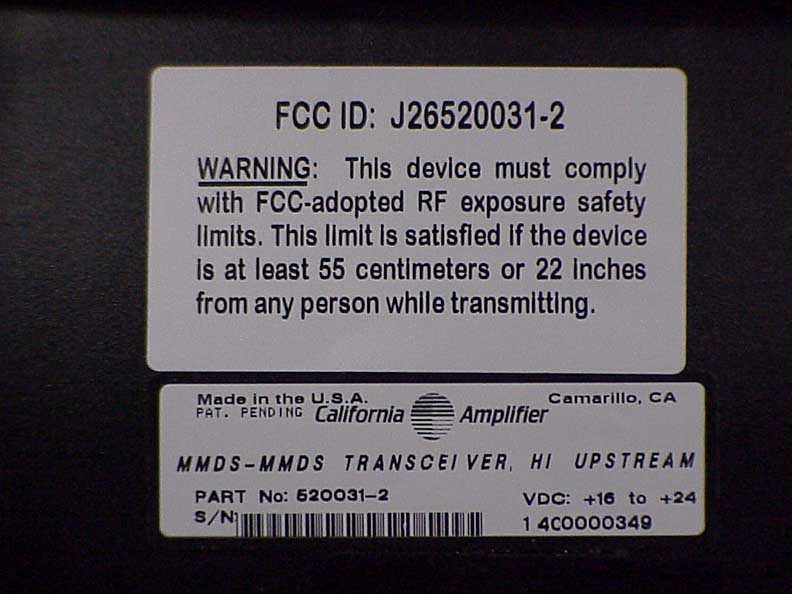

J26520031-2MMDS/MMDS Low TX In-Band Transceiver

P/N: 131908/A Revised: 9/1/00 C+A 1 C+A TRANSCEIVER INSTALLATION GUIDE ____________________________________________________ The installation of California Amplifier transceiver products should only be done by qualified personnel, and should be under the direct guidelines of the system operator. These installation instructions apply to California Amplifier products only. Use of these instructions to install other manufacturer’s products may result in unknown hazards, damage and/or unacceptable performance. The information contained in this applications note is intended to assist the operator in developing a set of installation guidelines and operating practices for the field personnel skilled in installing roof top subscriber equipment. California Amplifier accepts no responsibility for claims of injury, death, destruction of property or loss of television service related to improper installation, or installation of equipment by staff not skilled in installing roof top cable television equipment. 460 Calle San Pablo, Camarillo, California 93012 USA PH: (805) 987-9000 Fax (805) 987-8359 P/N: 131908/A Revised: 9/1/00 C+A 2 GENERAL INSTALLATION INSTRUCTIONS FOR TRANSCEIVER NOTE to System Operator: California Amplifier family of Transceiver products has been designed for installation by a licensed or qualified installer with experience in installing wireless antennas. NOTE to INSTALLER: 1. Installation and operation of this family of Transceiver products require full compliance with FCC-adopted radio frequency exposure limits. It is in the responsibility of the installer to install these devices and their associated antennas so that RF exposure does not exceed 1.0mW/cm 2 . The following table summarizes the minimum distance required to satisfy these requirements. Limits, Minimum P/NIntegrated Planar (17 dBi)Standalone (when used with 24 dBi) 520005-1N/A26 in. (66 cm) 520004-1N/A 48 in. (122 cm) 520006-1N/A26 in. (66 cm) 520007-222 in. (55 cm)N/A 520024-222 in. (55 cm)N/A 520004-222 in. (55 cm)N/A 520006-222 in. (55 cm)N/A 520010-222 in. (55 cm)N/A 520010-1N/A48 in. (122 cm) 520031-222 in. (55 cm)N/A 520031-1N/A48 in. (122 cm) 2. When installing a standalone Transceiver, orient the FCC RF exposure label is facing the front of the Antenna This is a mandatory requirement by the FCC to comply with RF exposure compliance requirements. The label should not be obstructed when installation is complete. This will allow the warning label to be visible and readable. This is a mandatory requirement by the FCC to comply with RF exposure compliance requirements P/N: 131908/A Revised: 9/1/00 C+A 3 INSTALLATION PRACTICES In a customer installation, there are several factors that must be considered before the installation can take place: Signal contour strength and direction of the transmitting source, seasonal interference’s such as foliage and trees, aesthetics of the outdoor installation, system performance and overall customer satisfaction with the final product. In each case the customer wants the very best signal quality with a minimum of construction and aesthetic impact to their home or business. This will dictate the use of a variety of antenna configurations in order to perform the task of providing adequate signal strength while maintaining low visual impact. The order of visual impact follows the height and size of the antenna. A wall or gutter mount will present a very low visual profile. This if followed by a short roof or chimney mount. When higher gain or foliage clearance is needed, then a tree mount or mast mount should be considered. The following mounts are described and their general application: Wall or Standoff Mount: These are used in high signal density areas where antenna aesthetics is of concern. It offers great flexibility in mounting angles and locations. The stand-off arms mount from the wall and or the eave and support the mast in the vertical position. The mast may be short in length so as to place the antenna above the roof line or a telescoping mast may be used in conjunction with a ground plate to extend the antenna height to above the roof peak. P/N: 131908/A Revised: 9/1/00 C+A 4 Roof Mounts : The same basic hardware used for wall and eave mounts is used for a roof mount. This mounting bracket and pole is adjustable in the vertical plane and will raise the antenna about 24” above the mounting location. The bracket must be secured into a structural member, not simply into siding or shingles. All points of attachment must be properly waterproofed. Chimney Mounts: Chimney mounts are one of the easiest types of mounts to install. In the application of brick-type chimneys, a dual band strap mount is best. The proper strap will securely fasten the mounting bracket and antenna. For wood over metal construction chimney, a version of the wall mount is best. Make sure the anchor bolts attach to a supporting stud member and not just the fascia board. P/N: 131908/A Revised: 9/1/00 C+A 5 Tripod Mount : The tripod mount offers ease of installation, stable mounting structure, and signal visibility. It is however, bulky and not very aesthetic. The tripod mount comes in 3, 5, 10 and 15-foot sections. As with the roof mount installation, the mounting bolts must always be attached to roof joists and be properly sealed. Tree Mounts: In regions of the country with heavy foliage, tree mounts are popular. This is a highly specialized installation and is beyond the scope of this installation guide. Specific instructions and practices can only be formatted by the individual operator in their region (not pictured). Every installation must adhere to company policies, applicable specifications and drawings of the system operator. This requirement includes: the choice of antennas, the weatherproofing of all connections, all penetrations into the building and all grounding procedures, both at the antenna mount and at the point of drop entry into the building. INSTALLATION PLANNING In addition to meetin…

Text truncated - open the document above for the full version.

460 Calle San Pablo • Camarillo, California 93012 USA Tel: (805) 987-9000 • Fax: (805) 482-5842 • www.calamp.com September 10, 2001 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen, This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. California Amplifier, Inc. would like the following documents regarding this submission for FCC ID: J26520031-2 to be kept confidential. 1. Schematics The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Fred Sturm President & CEO California Amplifier, Inc. My Doc ume nts /Sheri/FCC Confid e ntia lity Form 460 Calle San Pablo • Camarillo, California 93012 USA Tel: (805) 987-9000 • Fax: (805) 482-5842 • www.calamp.com

FORM NO: 11040/A UNLESS OTHERWISE SPEC IFIED DIMENSIONS ARE IN INCHES. TOLERANC ES: FRACTIONS DECIMALSAN GL E S ±1/32.XX ±.01±0°30’ .XXX ± .005 NEXT ASSY MODEL DRAWN: DATE : CHECK: DATE : ENGR: DATE : OTHER: DATE : SHEET 1 OF 2 C+A MATERIAL: FINISH: TITLE DO NOT SCALE DRAWING SIZE CAGE CODE DWG NO. REV. A6T925 SCALE WEIGHT APPLICATION REVISIONS NEXT ASSYUSED ONREVDESCRIPTION DATEAPPROVED 520010-1A L.CUEVAS4/16/01 S. NIMER10/24/00 SPEC SHEET, MMDS-MMDS TRANSCEIVER, HI UPSTREAM 1 M520010-1A ELEC. FILE : M520010-1F.doc N/A Above specifications subjec t to change without notice. World Headquarters : 460 Calle San Pablo, Camari llo, CA, USA 93012 Tel: 805/987-9000 Fax: 805/987-8359 Latin America Sales : California Amplifier do Brazil, Tel & Fax: 55/12-341-2264 Europe, Middle East & Africa Sales : Cal Amp sarl Paris, Tel: 33/1 49 19 89 20 Fax: 33/1 48 64 52 55 SPEC FORM: M520010-1 REV: F DATE: 5/01 Form 11040/ADATE & TIME PRINTED: 10/5/01 4:40 PM C+A MMDS-MMDS TRANSCEIVER (High Upstream) PART NUMBER: 520010-1A Dow nconverter Specifications: (Rx) RF Input Frequency ........................................................................ 2500 - 2602 MHz IF Output Frequency ....................................................................... 222 – 324 MHz Local Oscillator Stability................................................................... 2278 MHz; ± 70 KHz over temp Gain .............................................................................................. 28 ± 5 dB (-30° to +60° C) Gain Flatness (over temperature) ..................................................... 3.5 dB typical; 5 dB Max. (full band) Noise Figure ................................................................................... 4 dB Typ.; 5.5 dB Max. (25° C) Output 3rd Order Intercept (2 MHz spacing) ...................................... 24 dBm PCS Rejection ................................................................................ 80 dB (60 dB pre-LNA) WCS Rejection ............................................................................... 80 dB (50 dB pre-LNA) Out-of-Band Rejection ..................................................................... 40 dB at 2750 MHz ....................................................................................... 40 dB at 2450 MHz Upconverter Specifications: (Tx) IF Input Frequency........................................................................... 21.75 – 63.75 MHz RF Output Frequency....................................................................... 2644 – 2686 MHz Local Oscillator Frequency............................................................... 2468 MHz; ±15 KHz over temp ....................................................................................... (-30°C to +60°C) Gain Set ....................................................................................... 22 ± 3 dB (25° C) Gain Variation ................................................................................ ±3 dB (-30° to +60° C) Output IP3 (500 KHz spacing).......................................................... +35 dBm (25° C) P1dB....................................................................................... +24 dBm (25° C) Output Transmit Noise ( Tx ON ) .................................................... .-110 dBm/Hz Output Spurious (at +22 dBm Tx output) ........................................... -50 dBc in-band; -60 dBc out-of-band Out put Power Blanking: Turn OFF Threshold Level......................................................... -52 ± 6 dBm @ IF Input (-30 ° to +60 ° C) General Specifications: Phase Noise (both Rx and Tx) .......................................................... -65 dBc/Hz @ 100 Hz ...................................................................................... -85 dBc/Hz @ 1 KHz ...................................................................................... -93 dBc/Hz @ 10 KHz ...................................................................................... -98 dBc/Hz @ 100 KHz IF Connector (Rx Out / Tx In) ......................................................... F-Type, 75 Ohm RF Connector (Rx In/Tx Out).......................................................... N – Type, 50 Ohm Tx IF Return Loss .......................................................................... -7 dB Max. DC Supply...................................................................................... 16 to 24 Volts DC @ 750 mA Mechanical Specifications: Dimensions .................................................................................... 8.85 x 8.85 x 2.85 in. Weight ........................................................................................... 5.6 lbs. (with mount) Environmental: Moisture .................................................................................... Environmentally sealed Operating Temperature ............................................................. -40°C to + 60°C

FORM NO: 11040/A UNLESS OTHERWISE SPEC IFIED DIMENSIONS ARE IN INCHES. TOLERANC ES: FRACTIONS DECIMALSAN GL E S ±1/32.XX ±.01±0°30’ .XXX ± .005 NEXT ASSY MODEL DRAWN: DATE : CHECK: DATE : ENGR: DATE : OTHER: DATE : SHEET 1 OF 3 C+A MATERIAL: FINISH: TITLE DO NOT SCALE DRAWING SIZE CAGE CODE DWG NO. REV. A 6T925 SCALE WEIGHT APPLICATIONREVISIONS NEXT ASSYUSED ONREVDESCRIPTION DATEAPPROVED 520010-2A A. ANGELES8/29/01 SPEC SHEET, MMDS-MMDS INTG PLANAR XCEIVER, HI UPSTREAM B M520010-2A ELEC. FILE : M520010-2AB.doc N/A Above specifications subjec t to change without notice. World Headquarters : 460 Calle San Pablo, Camari llo, CA, USA 93012 Tel: 805/987-9000 Fax: 805/987-8359 Latin America Sales: California Amplifier do Brazil, Tel: 55/11 3849 8273 FAX: 55/11 3849 2807 Europe, Middle East & Africa Sales : Cal Amp sarl Paris, Tel: 33/1 49 19 89 20 Fax: 33/1 48 64 52 55 SPEC FORM: M520010-2A REV: B DATE: 10/01 Form 11040/ADATE & TIME PRINTED: 10/5/01 4:41 PM C+A MMDS-MMDS INTEGRATED PLANAR TRANSCEIVER PART NUMBER520010-2A Dow nconverter Specifications: (Rx) RF Input Frequency ...................................................................... 2500 - 2602 MHz IF Output Frequency ..................................................................... 222 – 324 MHz Local Oscillator Stability ................................................................. 2278 MHz; ± 75 KHz over temp Gain ............................................................................................. 28 ± 5 dB (-30° to +60° C) Gain Flatness ................................................................................ 3.5 dB Typical; 4.5 dB Max. Noise Figure .................................................................................. 4 dB Typical.; 5.5 dB Max. (25° C) Output 3rd Order Intercept ............................................................. 24 dBm PCS Rejection ............................................................................... 80 dB (60 dB pre-LNA) WCS Rejection .............................................................................. 80 dB (50 dB pre-LNA) Out-of-Band Rejection ................................................................... 40 dB at 2750 MHz ...................................................................................................... 40 dB at 2450 MHz Upconverter Specifications: (T x) IF Input Frequency......................................................................... 21.75 – 63.75 MHz RF Output Frequency..................................................................... 2644 – 2686 MHz Local Oscillator Frequency ............................................................ 2468 MHz; ±15 KHz over temp, ....................................................................................... (-30°C to +60°C) Gain Set ....................................................................................... 22 ± 3 dB (25° C) Gain Variation ............................................................................... ±3 dB (-30° to +60° C) Output IP3 ..................................................................................... +35 dBm (25° C) P1dB....................................................................................... +24 dBm (25° C) Output Transmit Noise ( Tx ON ) .................................................. .-110 dBm/Hz Output Spurious (at +22 dBm Tx output) ........................................ -50 dBc in-band; -60 dBc out-of-band Out put Power Blanking: Turn OFF Threshold Level......................................................... -52 ± 6 dBm @ IF Input General Specifications: Phase Noise (both Rx and Tx)........................................................ -65 dBc/Hz @ 100 Hz ...................................................................................................... -85 dBc/Hz @ 1 KHz ...................................................................................................... -93 dBc/Hz @ 10 KHz ..................................................................................................... -98 dBc/Hz @ 100 KHz IF Connector (Rx out / Tx In) .......................................................... F-Type, 75 Ohm Tx IF Return Loss .......................................................................... -7 dB Max. DC Supply...................................................................................... 16 to 24 Volts DC @ 750 mA Above specifications subjec t to change without notice. World Headquarters : 460 Calle San Pablo, Camari llo, CA, USA 93012 Tel: 805/987-9000 Fax: 805/987-8359 Latin America Sales: California Amplifier do Brazil, Tel: 55/11 3849 8273 FAX: 55/11 3849 2807 Europe, Middle East & Africa Sales : Cal Amp sarl Paris, Tel: 33/1 49 19 89 20 Fax: 33/1 48 64 52 55 SPEC FORM: M520010-2A REV: B DATE: 10/01 Form 11040/ADATE & TIME PRINTED: 10/5/01 4:41 PM C+A MMDS-MMDS INTEGRATED PLANAR TRANSCEIVER PART NUMBER520010-2A Antenna Specifications : Frequency Bandwidth..................................................................... 2500 - 2686 MHz Gain ............................................................................................... 17 dBi ± 1 dB 3 dB Beam width ............................................................................ 18.5°± 1.5° 1 st Side Lobe (relative to main beam) ............................................. 17 dB Max., 20 dB Typ. Cross Polarization .......................................................................... -30 dB Max. Pattern Interference Rejection (>60°) ............................................. 20 dB Min. Mechanical Specifications : Dimensions .................................................................................... 13.5 x 13.5 x 3.5 in. Weight ........................................................................................... 7 lbs. (with mount) Environmental: Moisture .................................................................................... Environmentally sealed Ope…

Text truncated - open the document above for the full version.

Page 6 of 41 Report No.: FC01-068A 2.1033(c)(3) USER’S MANUAL The necessary information is contained in a separate document. 2.1033(c)(4) TYPE OF EMISSIONS The emissions designator for the MMDS/MMDS Low TX In-Band Transceiver is 5M00M1D. 2.1033(c)(5) FREQUENCY RANGE The transmitter operates at 2500-2542 MHz and the receiver operates at 2584-2686 MHz. 2.1033(c)(6) OPERATING POWER The minimum operating power is –47dBm at the input with a maximum of 25 dBm. 2.1033(c)(7) MAXIMUM POWER RATING The maximum power rating as defined in the applicable rule part is +63.26 dBm. 2.1033(c)(8) DC VOLTAGES The DC voltage applied is 550mA at 6V. 2.1033(c)(9) TUNE-UP PROCEDURE No tuning is required for specific power levels. 2.1033(c)(10) SCHEMATICS AND CIRCUITRY DESCRIPTION The necessary information is contained in a separate document.

Page 1 of 41 Report No.: FC01-068A CALIFORNIA AMPLIFIER, INC. ADDENDUM TO REPORT FC01-068 FOR THE MMDS/MMDS LOW TX IN-BAND TRANSCEIVER, 520031-1 AND 520031-2 FCC PART 21 AND FCC PART 15 SUBPART B SECTION 15.107 COMPLIANCE DATE OF ISSUE: SEPTEMBER 28, 2001 PREPARED FOR: California Amplifier, Inc. 460 Calle San Pablo Camarillo, CA 93033 PREPARED BY: Joyce Walker CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 P.O. No.: 24035 W.O. No.: 77604 Date of test: September 19, 2001 Report No.: FC01-068A This report contains a total of 41 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. Page 2 of 41 Report No.: FC01-068A TABLE OF CONTENTS Administrative Information ............................................................................................. 3 Summary of Results......................................................................................................... 4 Modifications Required for Compliance ......................................................................... 4 Approvals......................................................................................................................... 4 Equipment Under Test (EUT) Description...................................................................... 5 Equipment Under Test..................................................................................................... 5 Peripheral Devices ........................................................................................................... 5 Temperature and Humidity During Testing .................................................................... 5 2.1033(c)(3) User’s Manual ............................................................................................ 6 2.1033(c)(4) Type of Emissions ...................................................................................... 6 2.1033(c)(5) Frequency Range ........................................................................................ 6 2.1033(c)(6) Operating Power ......................................................................................... 6 2.1033(c)(7) Maximum Power Rating............................................................................. 6 2.1033(c)(8) DC Voltages ............................................................................................... 6 2.1033(c)(9) Tune-Up Procedure .................................................................................... 6 2.1033(c)(10) Schematics and Circuitry Description ...................................................... 6 2.1033(c)(11) Label and Placement................................................................................. 7 2.1033(c)(12) Submittal Photos....................................................................................... 7 2.1033(c)(13) Modulation Information ........................................................................... 7 2.1033(c)(14)/2.1046/21.904(d) - RF Power Output...................................................... 8 2.1033(c)(14)/2.1047(b) - Modulation Characteristics - Audio Frequency Response ........ 11 2.1033(c)(14)/2.1047(b) - Modulation Characteristics - Modulation Limiting Response.. 11 2.1033(c)(14)/2.1049(i)/21.908(d) - Occupied Bandwidth ............................................. 12 2.1033(c)(14)/2.1051/21.908(d) - Spurious Emissions at Antenna Terminal ................. 16 2.1033(c)(14)/2.1053/21.908(d) - Field Strength of Spurious Radiation ........................ 20 2.1033(c)(14)/2.1055/21.101 - Frequency Stability ........................................................ 34 15.207 – AC Conducted Emissions................................................................................. 35 Page 3 of 41 Report No.: FC01-068A CKC Laboratories, Inc. has received Certificates of Accreditation from the following agencies: A2LA (USA); DATech (Germany); BSMI (Taiwan); Nemko (Norway); and GOST (Russia). CKC Laboratories, Inc has received test site Registration Acceptance from the following agencies: FCC (USA); VCCI (Japan); and Industry Canada. CKC Laboratories, Inc. has received Letters of Acceptance through an MRA for the following agencies: ACA/NATA (Australia); SABS (South Africa); SWEDAC (Sweden); Radio Communications Agency (RA); HOKLAS (Hong Kong); Bakom (Swiss); BIPT (Belgium); Denmark Telestyrelsen; RvA (Netherlands); SEE (Luxembourg) SITTEL (Bolivia); and UKAS (UK). ADMINISTRATIVE INFORMATION DATE OF TEST: September 19, 2001 DATE OF RECEIPT: September 19, 2001 PURPOSE OF TEST: To demonstrate the compliance of the MMDS/MMDS Low TX In-Band Transceiver, 520031-1 and 520031-2 with the requirements for FCC Part 21 and FCC Part 15 Subpart B Section 15.107 Class B devices. This addendum is to correct minor errors in the report on pages 6, 8, 9 and 20-22. TEST METHOD: Part 21 and ANSI C63.4 (1992) MANUFACTURER: California Amplifier, Inc. 460 Calle San Pablo Camarillo, CA 93033 REPRESENTATIVE: Shawn Aleman TEST LOCATION: CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 Page 4 of 41 Report No.: FC01-068A SUMMARY OF RESULTS As received, the California Amplifier, Inc. MMDS/MMDS Low TX In-Band Transceiver, 520031-1 and 520031-2 was found to be fully compliant with the following standards and specifications: United States ! FCC Part 21 ! FCC Part 15 Subpart B Section 15.107 Class B ! ANSI C63.4 (1992) method The results in this report apply only to the items tested, as identified herein. MODIFICATIONS REQUIRED FOR COMPLIANCE No modifications were required for compliance APPROVALS QUALITY ASSURANCE:TEST PERSONNEL: Dennis Ward, Quality ManagerRandy Clark, EMC Engineer Page 5 of 41 Report No.: FC01-068A EQUIPMENT UNDER TEST (EUT) DESCRIPTION The MMDS/MMDS Low TX In-Band Transceivers tested by CKC Laboratories were production units. The difference between the two models is that the 520031-1 has an antenna connector and the 520031-2 does not have an…

Text truncated - open the document above for the full version.

California Amplifier Model Number: 520031-2 Date of test: 9/20/01 21.101 Frequency Stability Allowed Tolerance:±0.001% or 15kHz 2331.2941 MHz ± 15kHz Temperature LO frequency (MHz) Delta Frequency ( kHz) -30°C2331.29320.9 -20°C2331.29241.7 -10°C2331.29073.4 0°C2331.28934.7 +10°C2331.28845.7 +20°C2331.28796.2 +30°C2331.28726.9 +40°C2331.28647.7 +50°C2331.28618.0 +60°C2331.28746.7 Test Equipment Used: Temperature Testing EquipmentManufacturerModelSerialCal Date DueCal Lab Signal GeneratorHP8648C3642u01490 9/18/02Micro Precision Spectrum AnalyzerHP8563E89209/24/02Agilent Temperature Chamber BMA, Inc.11697/25/02Micro Precision
