J26520010-2MMD-MMDS Transceiver

P/N: 131908/A Revised: 9/1/00 C+A 1 C+A TRANSCEIVER INSTALLATION GUIDE ____________________________________________________ The installation of California Amplifier transceiver products should only be done by qualified personnel, and should be under the direct guidelines of the system operator. These installation instructions apply to California Amplifier products only. Use of these instructions to install other manufacturer’s products may result in unknown hazards, damage and/or unacceptable performance. The information contained in this applications note is intended to assist the operator in developing a set of installation guidelines and operating practices for the field personnel skilled in installing roof top subscriber equipment. California Amplifier accepts no responsibility for claims of injury, death, destruction of property or loss of television service related to improper installation, or installation of equipment by staff not skilled in installing roof top cable television equipment. 460 Calle San Pablo, Camarillo, California 93012 USA PH: (805) 987-9000 Fax (805) 987-8359 P/N: 131908/A Revised: 9/1/00 C+A 2 GENERAL INSTALLATION INSTRUCTIONS FOR TRANSCEIVER NOTE to System Operator: California Amplifier family of Transceiver products has been designed for installation by a licensed or qualified installer with experience in installing wireless antennas. NOTE to INSTALLER: 1. Installation and operation of this family of Transceiver products require full compliance with FCC-adopted radio frequency exposure limits. It is in the responsibility of the installer to install these devices and their associated antennas so that RF exposure does not exceed 1.0mW/cm 2 . The following table summarizes the minimum distance required to satisfy these requirements. Limits, Minimum P/NIntegrated Planar (17 dBi)Standalone (when used with 24 dBi) 520005-1N/A26 in. (66 cm) 520004-1N/A 48 in. (122 cm) 520006-1N/A26 in. (66 cm) 520007-222 in. (55 cm)N/A 520024-222 in. (55 cm)N/A 520004-222 in. (55 cm)N/A 520006-222 in. (55 cm)N/A 520010-222 in. (55 cm)N/A 520010-1N/A48 in. (122 cm) 2. When installing a standalone Transceiver, orient the FCC RF exposure label is facing the front of the Antenna This is a mandatory requirement by the FCC to comply with RF exposure compliance requirements. The label should not be obstructed when installation is complete. This will allow the warning label to be visible and readable. This is a mandatory requirement by the FCC to comply with RF exposure compliance requirements P/N: 131908/A Revised: 9/1/00 C+A 3 INSTALLATION PRACTICES In a customer installation, there are several factors that must be considered before the installation can take place: Signal contour strength and direction of the transmitting source, seasonal interference’s such as foliage and trees, aesthetics of the outdoor installation, system performance and overall customer satisfaction with the final product. In each case the customer wants the very best signal quality with a minimum of construction and aesthetic impact to their home or business. This will dictate the use of a variety of antenna configurations in order to perform the task of providing adequate signal strength while maintaining low visual impact. The order of visual impact follows the height and size of the antenna. A wall or gutter mount will present a very low visual profile. This if followed by a short roof or chimney mount. When higher gain or foliage clearance is needed, then a tree mount or mast mount should be considered. The following mounts are described and their general application: Wall or Standoff Mount: These are used in high signal density areas where antenna aesthetics is of concern. It offers great flexibility in mounting angles and locations. The stand-off arms mount from the wall and or the eave and support the mast in the vertical position. The mast may be short in length so as to place the antenna above the roof line or a telescoping mast may be used in conjunction with a ground plate to extend the antenna height to above the roof peak. Roof Mounts : The same basic hardware used for wall and eave mounts is used for a roof mount. This mounting bracket and pole is adjustable in the vertical plane and will P/N: 131908/A Revised: 9/1/00 C+A 4 raise the antenna about 24” above the mounting location. The bracket must be secured into a structural member, not simply into siding or shingles. All points of attachment must be properly waterproofed. Chimney Mounts: Chimney mounts are one of the easiest types of mounts to install. In the application of brick-type chimneys, a dual band strap mount is best. The proper strap will securely fasten the mounting bracket and antenna. For wood over metal construction chimney, a version of the wall mount is best. Make sure the anchor bolts attach to a supporting stud member and not just the fascia board. P/N: 131908/A Revised: 9/1/00 C+A 5 Tripod Mount : The tripod mount offers ease of installation, stable mounting structure, and signal visibility. It is however, bulky and not very aesthetic. The tripod mount comes in 3, 5, 10 and 15-foot sections. As with the roof mount installation, the mounting bolts must always be attached to roof joists and be properly sealed. Tree Mounts: In regions of the country with heavy foliage, tree mounts are popular. This is a highly specialized installation and is beyond the scope of this installation guide. Specific instructions and practices can only be formatted by the individual operator in their region (not pictured). Every installation must adhere to company policies, applicable specifications and drawings of the system operator. This requirement includes: the choice of antennas, the weatherproofing of all connections, all penetrations into the building and all grounding procedures, both at the antenna mount and at the point of drop entry into the building. INSTALLATION PLANNING In addition to meeting the highest standards of quality and workmanship, a…

Text truncated - open the document above for the full version.

-22 dB Integrated MMDS/MMDS Transceiver Block Diagram (520010-1) (Upstream) 2-3-2000 -1 dB -2 dB From Modem: -44 to +9 dBm -4 dB -6 dB 2 n d LO BPF -2 dB -2 dB MGA81563 Ga in: 12 Vc/Ic: 3/40 P1dB: 14 7 dBm 10 dBm Ga in: 12N.F: 6OIP3: 40 2-Pole MDS BPF Ga in: 1.5N.F: -1.5OIP3: 100 3-Pole MDS BPF Power Amp RF M ic ro RF2126 MDS Dr ive r Amp RF212 8 Pad Ga in Adj. 2 nd Mixer Hittite HMC272 IF AMP NE1678GV Pad Ga in Adj. Pad Ga in Ad j . 116-128 MHz BPF 1 st LO Notch F ilte r 116-128 MHz BPF 1 st Mixer HMC272 Pad Ga in Ad j . 14-26 MHz BPF Ga in: 30N.F: 7OIP3: 36 Ga in: -3N.F: 3OIP3: 100 Ga in: -2N.F: 2OIP3: 100 Ga in: -8N.F: 8OIP3: 16 Ga in: -2N.F: 2OIP3: 100 Pad Ga in Adj. Ga in: -2N.F: 2OIP3: 100 Ga in: -2N.F: 2OIP3: 100 Ga in: -2N.F: 2OIP3: 100 Ga in: 22N.F: 6OIP3: 29 Ga in: -2N.F: 2OIP3: 100 Ga in: -2N.F: 2OIP3: 100 Ga in: -7N.F: 7OIP3: 6 Ga in: -2N.F: 2OIP3: 100 Ga in: -2N.F: 2OIP3: 100 Ga in: -2N.F: 2OIP3: 100 Pad Ga in Ad j . Pad Ga in Ad j . To RF Di p le xer Lo g A mp Comparator Pad Ga in Adj. Ga in: -2N.F: 2OIP3: 100 PLL ASIC NE68139 LO Buffer +12 dBm TCXO 38.5625 MHz To PA/Driver Blanking PA Blank. Power Divide ÷ 4 ÷ 4 LPF 160 MHz Switch Ckt. -1 dB -7 dB -7 dB UPB585 Pin (dBm): -15 to +5 UPB1509 Pin (dBm): -20 to -5 -14 dBm UPC2792TBGa in: 20P1dB: 0VC/IC : 5/25 UPC2776 Ga in: 22 Vc/Ic: 5.5/30 P1dB: 9 1 st LO Buff. Dr i ve r Bl a nk . VCO2468 MHz 154 .25MHz 2468 MHz 154 .25MHz 176-218MHz 2644-2686MHz 2644-2686MHz

460 Calle San Pablo • Camarillo, California 93012 USA Tel: (805) 987-9000 • Fax: (805) 482-5842 • www.calamp.com March 13, 2001 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen, This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. California Amplifier, Inc. would like the following documents regarding this submission for FCC ID J26520010-1 and J26520010-2 to be kept confidential. 1. Schematics The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Fred Sturm President & CEO California Amplifier, Inc. My Doc ume nts /Sheri/FCC Confid e ntia lity Form

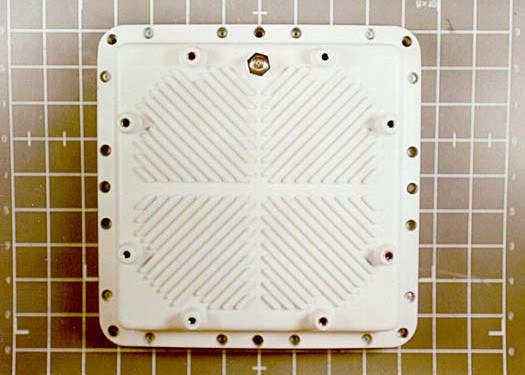

520010-1 Front 520010-1 Back 520010-2 – Front 520010-2 – Back

Inside Back Inside Back Close-up of Right Side Inside Back Close-up of Left Side Inside Back Close-up of Tuner Portion Back of PCB, in Quarters Back of PCB, in Quarters Back of PCB, in Quarters Back of PCB, in Quarters PCB Front

FORM NO: 11040/A UNLESS OTHERWISE SPEC IFIED DIMENSIONS ARE IN INCHES. TOLERANC ES: FRACTIONS DECIMALSAN GL E S ±1/32.XX ±.01±0°30’ .XXX ± .005 NEXT ASSY MODEL DRAWN: DATE : CHECK: DATE : ENGR: DATE : OTHER: DATE : SHEET 1 OF 2 C+A MATERIAL: FINISH: TITLE DO NOT SCALE DRAWING SIZE CAGE CODE DWG NO. REV. A6T925 SCALE WEIGHT APPLICATION REVISIONS NEXT ASSYUSED ONREVDESCRIPTION DATEAPPROVED 520010-1 E. SCHARA10/23/00 E. EBDANE11/10/00 S. NIMER10/24/00 SPEC SHEET, MMDS-MMDS TRANSCEIVER, HI UPSTREAM C M520010-1 ELEC. FILE : M520010-1C.doc N/A 520010-1CAdd LO Frequency/ECO#591872/12/01S. ALEMAN Above specifications subjec t to change without notice. World Headquarters : 460 Calle San Pablo, Camari llo, CA, USA 93012 Tel: 805/987-9000 Fax: 805/987-8359 Latin America Sales : California Amplifier do Brazil, Tel & Fax: 55/12-341-2264 Europe, Middle East & Africa Sales : Cal Amp sarl Paris, Tel: 33/1 49 19 89 20 Fax: 33/1 48 64 52 55 SPEC FORM: M520010-1 REV: C DATE: 2/01 Form 11040/ADATE & TIME PRINTED: 4/23/01 7:13 AM C+A MMDS-MMDS TRANSCEIVER (High Upstream) PART NUMBER: 520010-1 Dow nconverter Specifications: (Rx) RF Input Frequency ........................................................................ 2500 - 2602 MHz IF Output Frequency ....................................................................... 222 – 324 MHz Local Oscillator Stability................................................................... ± 50 KHz over temp, ± 75 KHz over 5 years Gain .............................................................................................. 32 ± 5 dB (-40° to +60° C) Gain Flatness (over temperature) ..................................................... 3.5 dB typical; 5 dB Max. (full band) Noise Figure ................................................................................... 4 dB Typ.; 5 dB Max. (25° C) Output 3rd Order Intercept (2 MHz spacing) ...................................... 24 dBm PCS Rejection ................................................................................ 95 dB (60 dB pre-LNA) WCS Rejection ............................................................................... 80 dB (50 dB pre-LNA) Out-of-Band Rejection ..................................................................... 50 dB at 2750 MHz ....................................................................................... 40 dB at 2450 MHz Upconverter Specifications: (Tx) IF Input Frequency........................................................................... 21.75 – 63.75 MHz RF Output Frequency....................................................................... 2644 – 2686 MHz Local Oscillator Frequency............................................................... 2468 MHz; ±15 KHz over temp ....................................................................................... (-30°C to +60°C) Gain Set ....................................................................................... 22 ± 2 dB (25° C) Gain Variation ................................................................................ ±3 dB (-30° to +60° C) Output IP3 (500 KHz spacing).......................................................... +35 dBm (25° C) P1dB....................................................................................... +24 dBm (25° C) Output Transmit Noise ( Tx ON ) .................................................... .-115 dBm/Hz Output Spurious (at +22 dBm Tx output) ........................................... -50 dBc in-band; -60 dBc out-of-band Out put Power Blanking: Turn OFF Threshold Level......................................................... -52 ± 6 dBm @ IF Input (-30 ° to +60 ° C) Turn OFF Time ......................................................................... 4 msec. General Specifications: Phase Noise (both Rx and Tx) .......................................................... -65 dBc/Hz @ 100 Hz ...................................................................................... -85 dBc/Hz @ 1 KHz ...................................................................................... -93 dBc/Hz @ 10 KHz ...................................................................................... -98 dBc/Hz @ 100 KHz IF Connector (Rx Out / Tx In) ......................................................... F-Type, 75 Ohm RF Connector (Rx In/Tx Out).......................................................... N – Type, 50 Ohm Tx/Rx IF Return Loss ..................................................................... -7 dB Max. DC Supply...................................................................................... 16 to 24 Volts DC @ 750 mA Mechanical Specifications: Dimensions .................................................................................... 8.85 x 8.85 x 2.85 in. Weight ........................................................................................... 5.6 lbs. (with mount) Environmental: Moisture .................................................................................... Environmentally sealed Operating Temperature ............................................................. -40°C to + 60°C

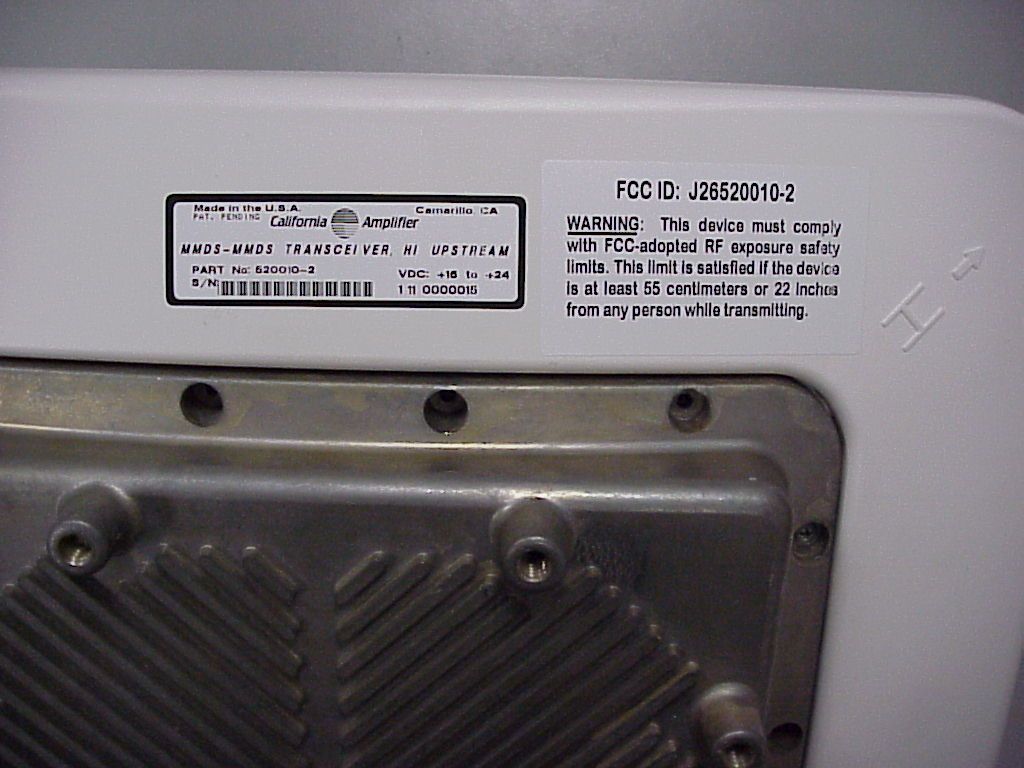

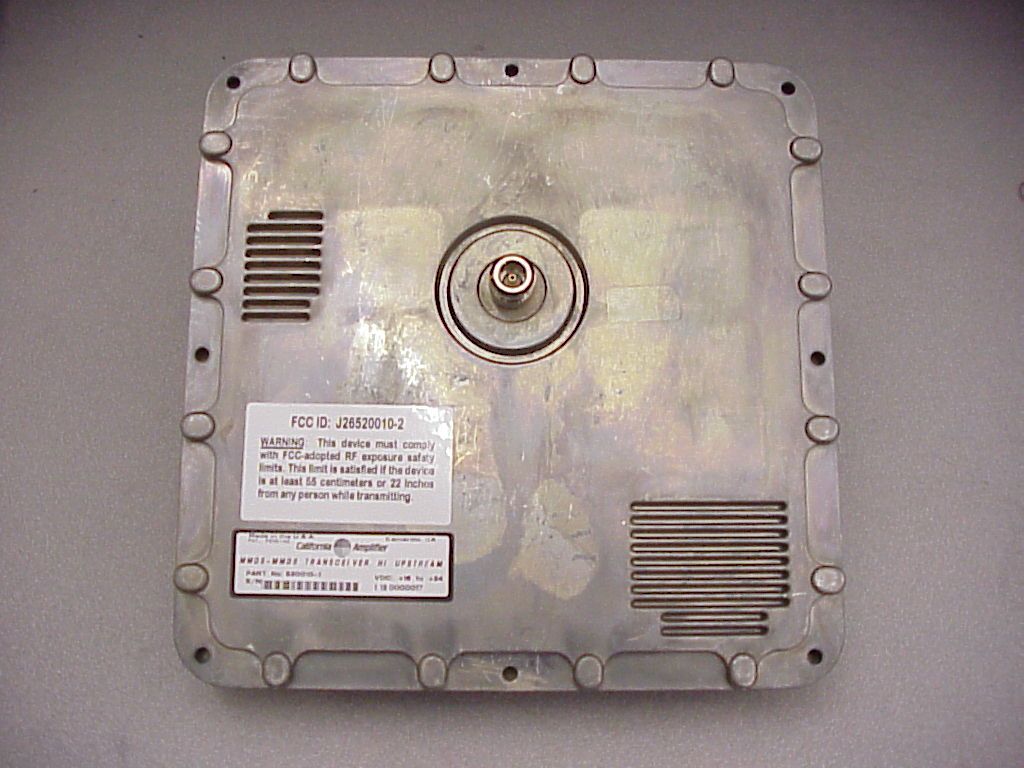

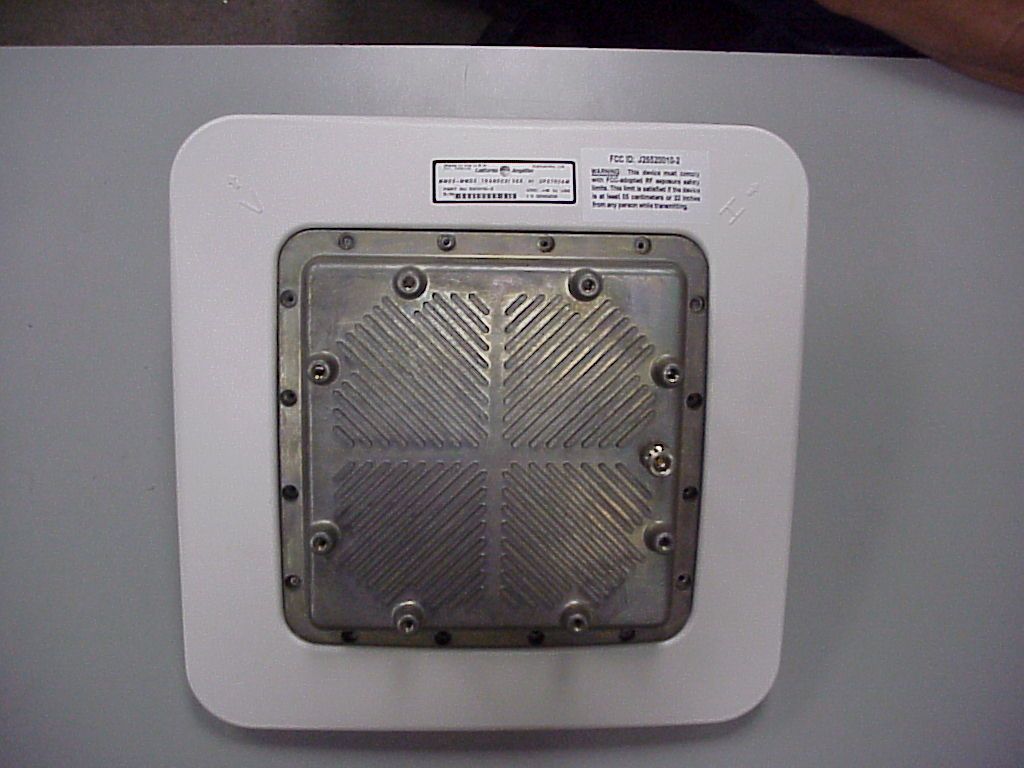

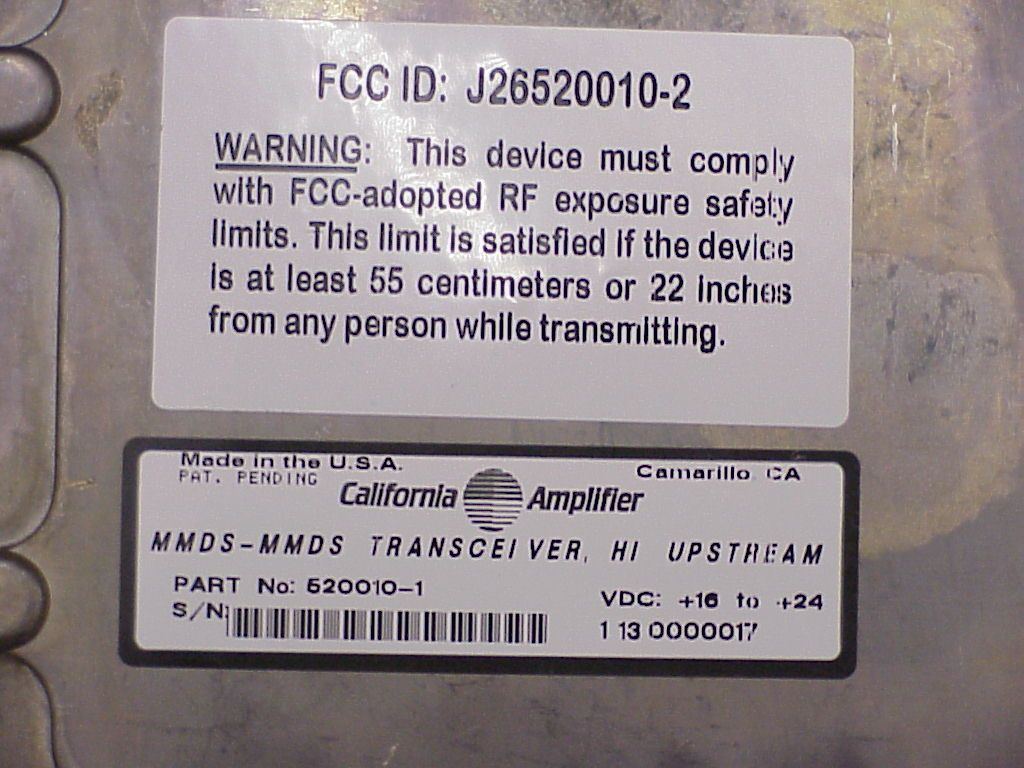

145800 Page 1 of 2 2.1033(c)(1)Name of applicant: California Amplifier, Inc. 2.1033 (c)(2)FCC identifier. J26520010-2 2.1033(c)(3) Manual: Document uploaded. 2.1033(c)(4)Type or types of emission: 5M00M1D 2.1033(c)(5)Frequency Range: 2644-2686 MHz 2.1033(c)(6)Range of operating power values or specific operating power levels, and description of any means provided for variation of operating power: +25 dBm +/- 1dB 2.1033(c)(7) Maximum power rating as defined in the applicable part(s) of the rules. 140 dBuV or 2 watts 2.1033(c)(8)The dc voltages applied to and dc currents into the several elements of the final radio frequency amplifying device for normal operation over the power range. 550mA@ 6V 2.1033(c)(9)Tune-up procedure over the power range, or at specific operating power levels. No tunning required for specific power level 2.1033(c)(10)A schematic diagram and a description of all circuitry and devices provided for determining and stabilizing frequency, for suppression of spurious radiation, for limiting modulation, and for limiting power. Document(s) uploaded. Note: hold confidential. 145800 Page 2 of 2 2.1033(c)(11) A photograph or drawing of the equipment identification plate or label showing the information to be placed thereon. Document(s) uploaded. 2.1033(c)(12)Photographs (8” x 10”) of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, if any, and labels for controls and meters and sufficient views of the internal construction to define component placement and chassis assembly. Insofar as these requirements are met by photographs or drawings contained in instruction manuals supplied with the certification request, additional photographs are necessary only to complete the required showing. Document(s) uploaded. 2.1033(c)(13)For equipment employing digital modulation techniques, a detailed description of the modulation system to be used, including the response characteristics (frequency, phase and amplitude) of any filters provided, and a description of the modulating wavetrain, shall be submitted for the maximum rated conditions under which the equipment will be operated. This device is not a modulator and therefore this does not pertain to it.

Report No: FC01-009 Page 1 of 42 CALIFORNIA AMPLIFIER TEST REPORT FOR THE MMDS-MMDS TRANSCIEVER, 520010-1 AND 5200010-2 FCC PART 21 COMPLIANCE DATE OF ISSUE: MARCH 6, 2000 PREPARED FOR: California Amplifier, Inc. 460 Calle San Pablo Camarillo, CA 93012 P.O. No: 22823 W.O. No: 75897 PREPARED BY: Joyce Walker [email protected] CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 Date of test: January 23-25, 2001 Report No: FC01-009 This report contains a total of 42 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. Report No: FC01-009 Page 2 of 42 TABLE OF CONTENTS FOR PART 21 CERTIFICATION TEST REPORT Administrative Information .............................................................................................................3 Summary Of Results........................................................................................................................4 Measurement Uncertainty................................................................................................................4 EUT Operating Frequency...............................................................................................................4 Approvals.........................................................................................................................................4 Equipment Under Test (EUT) Description......................................................................................5 2.1033(c)(5) – Frequency Range .....................................................................................................5 2.1033(c)(7) – Maximum Power Rating..........................................................................................5 2.1033(c)(14)/2.1046/21.107/21.904(b)/21.909(g)(2) - RF Power Output ....................................6 2.1033(c)(14)/2.1047(a) - Modulation Characteristics - Audio Frequency Response ..................12 2.1033(c)(14)/2.1047(b) - Modulation Characteristics – Modulation Limiting Response............12 2.1033(c)(14)/2.1049(i)/21.105/21.905 - Occupied Bandwidth...................................................13 2.1033(c)(14)/2.1051/21.106/21.905 - Spurious Emissions At Antenna Terminal.......................19 2.1033(c)(14)/2.1053/21.106/21.905 - Field Strength of Spurious Radiation...............................25 2.1033(c)(14)/2.1055/21.101 - Frequency Stability ......................................................................38 Appendix A: Information About Test Data Sheet Headers ...........................................................41 Report No: FC01-009 Page 3 of 42 ADMINISTRATIVE INFORMATION DATE OF TEST: January 23-25, 2001 DATE OF RCEIPT: January 23, 2001 PURPOSE OF TEST: To demonstrate the compliance of the MMDS-MMDS Transciever, 520010-1 and 5200010-2, with the requirements for FCC Part 21 devices. TEST METHOD: FCC Part 2 and 21 MANUFACTURER: California Amplifier, Inc. 460 Calle San Pablo Camarillo, CA 93012 REPRESENTATIVE: Shawn Aleman TEST LOCATION: CKC Laboratories, Inc. 5473A Clouds Rest, Mariposa, CA 95338 FREQUENCY RANGE TESTED: 30 MHz - 26 GHz Report No: FC01-009 Page 4 of 42 SUMMARY OF RESULTS The California Amplifier MMDS-MMDS Transciever, 520010-1 and 5200010-2, was tested in accordance with FCC Part 21 devices. As received, the above equipment was found to be fully compliant with the limits of FCC Part 21 devices. The results in this report apply only to the items tested, as identified herein. MEASUREMENT UNCERTAINTY Associated with data in this report is a ±4dB measurement uncertainty. EUT OPERATING FREQUENCY The EUT was operating at 2644-2686 MHz. TEMPERATURE AND HUMIDITY DURING TESTING The temperature during testing was within +15°C and + 35°C. The relative humidity was between 20% and 75%. APPROVALS QUALITY ASSURANCE:TEST PERSONNEL: Dennis Ward, Quality ManagerRandy Clark, EMC Engineer Chuck Kendall, EMC/Lab Manager Report No: FC01-009 Page 5 of 42 EQUIPMENT UNDER TEST (EUT) DESCRIPTION MMDS-MMDS transceiver. The model 520010-1 a transmitter inside a case to be used with a parabolic antenna. The model 520010-2 is the enclosed transmitter set inside a planar antenna sold as one unit. EQUIPMENT UNDER TEST: Power Supply Manuf: California Amplifier Model: 71441 Serial: N/A FCC ID: N/A (UL) MMDS-MMDS Transceiver Manuf: California Amplifier Model: 520010-1 Serial: 1040014449 FCC ID: J26 (pending) MMDS-MMDS Transceiver Manuf: California Amplifier Model: 520010-2 Serial: 1050049441 FCC ID: J26 (pending) The EUT was tested with the following peripheral device(s): Signal Generator Manuf: HP Model: E4437B Serial: US39260148 FCC ID: N/A 2.1033(c)(5) – Frequency Range 2644-2686 MHz 2.1033(c)(7) – Maximum Power Rating Maximum power rating as defined in the operating part(s) of the rules. 22 dBm or 158.5 mW Report No: FC01-009 Page 6 of 42 2.1033(c)(14)/2.1046/21.107/21.904(b)/21.909(g)(2) - RF POWER OUTPUT The emission designator is: Customer has not provided at this time. Test data Sheets: Specification: FCC 21.909(g)(2) Work Order #: 75897 Date: 01/23/2001 Test Type: RF Power Output Time: 18:18:54 Equipment: MMDS-MMDS Transceiver Sequence#: 1 Manufacturer:Cal AmpTested By: Randal Clark Model:520010-1 S/N:1040014449 Equipment Used During Testing: FunctionS/NCalibration DateCal Due DateAsset # Spectrum Analyzer RF Section 2209A014011/03/200011/03/2001490 Spectrum Analyzer Display2403A082411/03/200011/03/2001489 QP Adapter2811A012611/03/200011/03/2001478 HF Cable, AndrewFSJ1-50A05/10/0005/10/01N/A Equipment Under Test (* = EUT): FunctionManufacturerModel #S/N Power SupplyCal Amp71441N/A MMDS-MMDS Transceiver*Cal Amp520010-11040014449 Support Devices: FunctionManufacturerModel #S/N Signal GeneratorHPE4437BUS39260148 Test Conditions / Notes: EUT is an MMDS Transceiver operating on 2644-2686 MHz. Power is supplied through a transformer (22VDC). The input signal is obtained from the HP signal generator. Fundamental at ante…

Text truncated - open the document above for the full version.

SETUP PHOTOGRAPH SHOWING RF POWER OUTPUT Transmitter with Planar Antenna SETUP PHOTOGRAPH SHOWING SPURIOUS EMISSIONS AT ANTENNA TERMINAL Antenna Conducted SETUP PHOTOGRAPH SHOWING RF SPURIOUS EMISSIONS AT ANTENNA TERMINAL Antenna Conducted SETUP PHOTOGRAPH SHOWING FIELD STRENGTH OF SPURIOUS EMISSIONS Transmitter with Parabolic Antenna SETUP PHOTOGRAPH SHOWING FIELD STRENGTH OF SPURIOUS EMISSIONS Transmitter with Planar Antenna SETUP PHOTOGRAPH SHOWING FIELD STRENGTH OF SPURIOUS EMISSIONS Transmitter with Parabolic Antenna SETUP PHOTOGRAPH SHOWING FIELD STRENGTH OF SPURIOUS EMISSIONS Transmitter with Planar Antenna SETUP PHOTOGRAPH SHOWING FIELD STRENGTH OF SPURIOUS EMISSIONS Transmitter with Parabolic Antenna SETUP PHOTOGRAPH SHOWING FIELD STRENGTH OF SPURIOUS EMISSIONS Transmitter with Parabolic Antenna SETUP PHOTOGRAPH SHOWING FREQUENCY STABILITY
