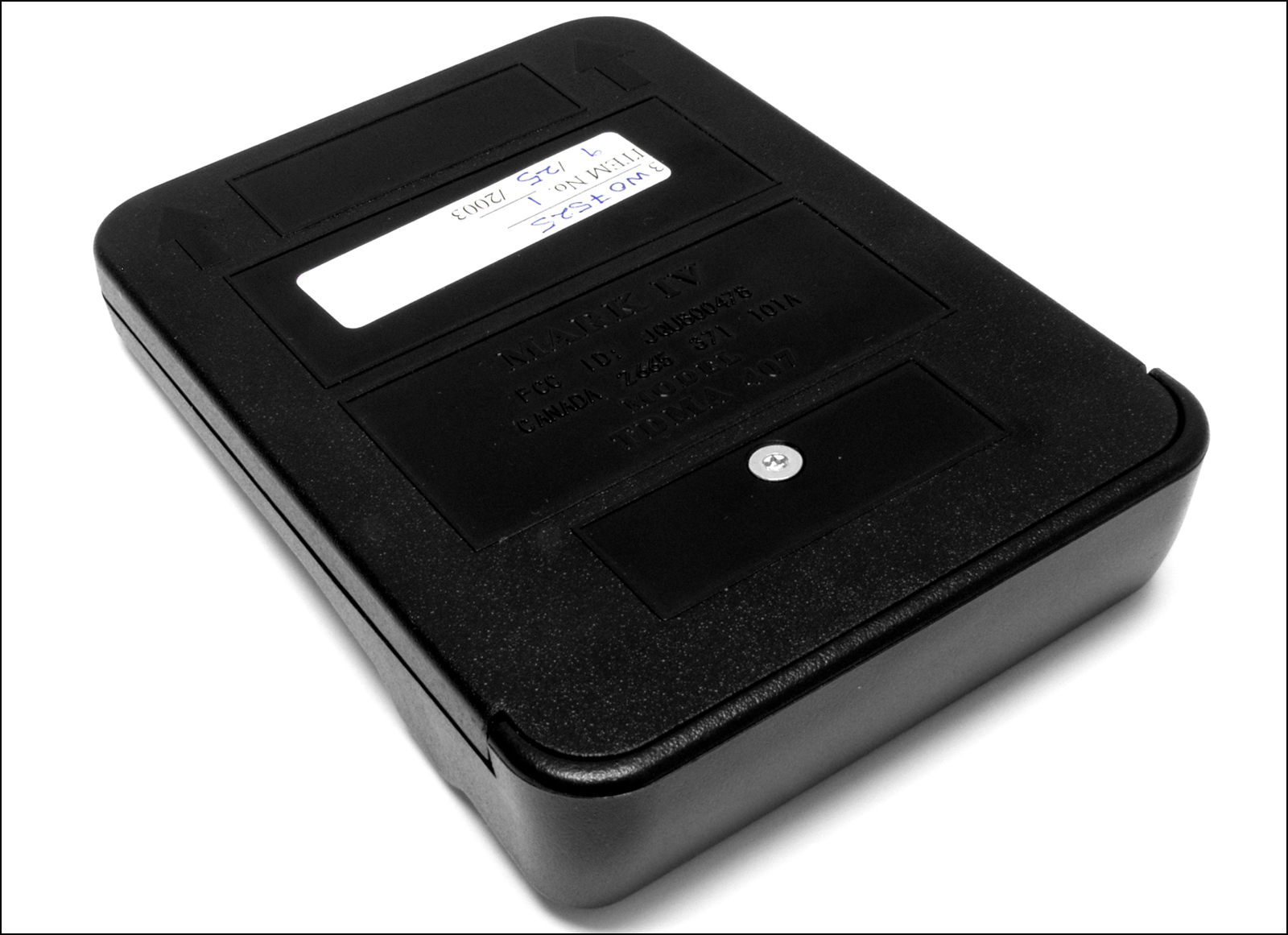

JQU801283Handheld Tag Reader

Handheld Reader (HHR) – Owners manual A316000-855 file: HHR Owners manual Rev. A ©2003 MKIV IVHS IAG FPT IAG FPT Best OK Not OK Description: The handheld reader (HHR) by itself performs as an IAG tag functional verifier and CRC status checker. Audible and visual indicators provide recognition of the tag status. How to read a tag. The tag must be an IAG tag or have an IAG compatible data format. Place the tag to be read underneath the handheld reader, see Fig. 2. Press the push button switch for about 1 second and release it. The LEDs and audible tone indicate the tag status as follows: audible tone push button switch red, yellow, green LEDs Table 1- LED and tone status indications Red Yellow Green Tone Tag status off off off 2 short beeps tag not read off off on steady for 5 seconds 4 short beeps tag is OK flashing off off on steady for 5 seconds tag data is faulty, CRC is in error off flashing off 8 long beeps Some data OK but CRC is in error Fig. 2 - Position the HHR over the tag to be read Note: it is best to have the arrows on the antennae surfaces of both the reader and the tag aligned in the same direction and “opposed”. Hold the HHR about 1-8 inches away from the tag surface. Press the push button switch for about 1 second and release it. If the tag is not read, move the HHR closer to the tag and try again. Note: the HHR reads only IAG d formatted tags. ata HHR Specifications (P/N 801283-247) Manual revisions Note: specifications are subject to change without notice. Rev Date Type Description A1 24-Sept-03 none Initial release A2 7-Oct-03 add HHR part number A3 10-Oct-03 add FCC Advisement A4 29-Oct-03 change FCC Advisements • FCC ID: JQU801283 • Operating temperature range: 0°C to 45°C. • Storage temperature range: -40°C to +85°C for up to 24 hours • Humidity: 5% through 95% R.H. (non-condensing). • Shock and vibration: designed for portable use only. • Operating life (battery): 2+ years, under normal use • Dimensions: width 80 mm, length 110 mm, depth 13 mm to 23 mm • Weight: 107 grams FCC Advisements MARK IV FCC ID: JQU 801283 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and, 2. this device must accept any interference received, including interference that may cause undesired operation. Warning: changes and/or modifications not expressly approved by Mark IV Industries Ltd. could void the user’s authority to operate the equipment.

Hand held Re ader (HHR) PDA Ki t – O w n e rs man u al A31 600 0-8 5 3 Hand held Re ader (HHR) PDA Ki t – O w n e rs man u a l A31 600 0-8 5 3 Serial po rt – RS232 cab les © The HHR “direct to PDA ca ble”, pa rt nu mber 8 012 82 -001 c o nnec ts the HHR direc t ly to the PDA 16 pin “cha rge r ba se ” port. The 9 pin “D” female co nne ctor on th e PDA cha r ge r ba se cabl e co nne cts to the HHR “DB9 adapte r ca ble ” , part num be r 8012 82 -00 2 . FC C A d vi sem e nts Warning : ch ange s and/or m odifi cation not expre ssly approved by Mark IV Industri e s Ltd . could void the use r ’ s authority to operate the equipm en t. HHR Specifications (P/N 801283-247) Note: specific a t ions are su bj e c t to change w i thout notic e. • F CC ID: JQU8012 83 • Operatin g temperatur e ran g e : 0 ° C to 45 ° C. • Storage temp e r ature ran ge: -40 ° C to +85 ° C for up to 24 ho urs • Humid i t y : 5 % throu gh 9 5 % R. H. (non-co nde nsin g). • Shock an d vibr ation: des ig ned for portable us e onl y. • Operatin g life ( batter y ): 2+ y e ars, under n o r m al use (< 15 0 transactio n s/da y) • Dimens io ns: w i dth 80 mm, len g th 110 mm, d epth 13 mm to 23 mm • W e ight: 107 grams (not incl ud ing ca bles) Manual revisions R e v D a t e (ddmm y y ) T y p e Descripti o n @4 6-Oct-03 non e DRAF T not for rele ase yet A2 9-Oct-03 add HHR an d kit ite m part number s A 3 2 1 - O c t - 0 3 a d d F CC Advisem e n t A 4 2 9 - O c t - 0 3 chan g e F CC Advisem e n t s Descripti on: The h and hel d re ade r (HHR) by itself perfo rms a s a tag fun c tional ve rifier and CRC sta t us ch ecke r. Audible an d visual indi cat o rs provid e reco gnition of the tag status. The se rial po rt may be co nne cted to a PDA to displ a y an d log an y su cc es sf ully c aptu r ed tag data. Rea der software for the PDA is su ppli ed on on e disk ette in the HHR sy st em kit . The PDA dat a logs may be uplo aded t o a “ho s t” comput er. Ho w t o verify / read a tag. The tag mu st be an IAG tag or have an IAG com patible d a ta format. Place the ta g to be rea d unde rne a th the han dhel d rea der, see Fig. 2. Press the pu sh b u tton switch for abo u t 1 se con d a nd relea s e it. The LEDs a nd au dible tone in d i cate the tag status a s follo ws: Ta ble 1- LED a n d tone st atus indic a tions R e d Y e l l o w G r e e n T o n e T a g statu s o f f o f f o f f 2 s h o r t bee p s tag not rea d , tr y ag ain o f f o f f on stead y for 5 seconds 4 short bee ps tag is OK flashi n g o f f o f f on stead y for 5 seconds tag data is fault y o f f f l a s h i n g o f f 8 lon g be e p s data rea d but CRC is in err o r serial port audible ton e red, y e llo w , green LEDs push button sw i t c h M A R K IV FCC ID : J Q U 80 1283 This device com p lies w i th part 15 of the FC C Rule s. Oper ation is subject to the follow i ng t w o condition s: 1. This device may not cause harmf ul interference, a nd, 2. this device must accept an y interf erence received, including interference that ma y cause undesired op eration. file: HHR Kit Ow n e rs ma nua l Rev. A 2003 MKIV IVHS Hand held Re ader (HHR) PDA Ki t – O w n e rs man u al A31 600 0-8 5 3 Hand held Re ader (HHR) PDA Ki t – O w n e rs man u a l A31 600 0-8 5 3 Fig. 2 - Position the HHR over the tag to be read Note: it is best to have the arrows on the antenna e su rface s of both the read er a nd th e tag aligne d in the same d i rectio n and “oppo se d”. © IA G F P T I A G FP T Be s t OK No t OK Hold the HHR abo ut 1-8 i n ch es a w ay from the tag. Use the PDA “ Re ques t Ta g Data Bu tto n ” to initiate the tag read. If the tag is not re ad, move the HHR cl oser to the tag and try again. Refer to the “ HH R-P D A O p erat or’s m a nual ” do cum ent A31600 0-854 suppli ed in your HHR syst em kit. HHR Sy stem Kit (excl udi ng docume nts): Q t y P / N De s c r i p t i o n 1 8012 83-247 Han d Hel d Reade r 1 8012 82-001 Cabl e, HHR to PDA dire ct 1 8018 28-002 Cabl e, DB9 a dapter 1 7007 31-008 diskette with HHR prog ra m for downlo ad to PDA System co nn ection s fo r p r ogram do wnload to PDA pow er pa ck po w e r mains PDA RS-2 32 PDA base System co nn ection s fo r read , d i sp lay, co llect data tag HH R PDA RS-2 32 801 282- 0 0 1 S y s t em connect i ons HHR direct to a PDA. or tag HH R PDA RS-2 32 801 282-0 02 S y stem conne cti ons HHR to a P D A s e t i n i t s charger base. pow er pa ck po w e r mai n s PDA b ase 1. Take all tag readin g s with the PDA attached an d store the data. Note: 801 282 -002 i s the HHR a dapte r cable. 801 282 -001 is the HHR to PDA dire ct co nne ction cabl e. (See t he id entity photos on the last pa ge.) System co nn ection s fo r data upload to a host pow er pa ck po w e r mains PDA RS-2 32 PDA b ase 2. Re-co nne ct the PDA to the host compu t er to upload t he stored dat a. Notes: Refer to the “ HH R-P D A O p erator’s m a nual ” (d ocum ent A31600 0-854 sup p lied in yo ur HHR syste m kit) for u s e of the PDA when you want to: • read a tag a n d immediatel y display the data on the P D A • review the re cords of all ta gs in the PDA databa se • “bea m” the ta g databa se to another P D A • uploa d the tag databa se from the PDA to a “ho s t” co mputer • download th e HHRea der p r og ram to the PDA from a PC file: HHR Kit Ow n e rs ma nua l Rev. A 2003 MKIV IVHS

Master: PT15-SubC-15249 Date: October 17, 2001 Test Report: 3W07525 Applicant: Mark IV Industries 6020 Ambler Drive Mississauga, Ontario L4W 2P1 Equipment Under Test: Mark IV IVHS Division (EUT) 915.0MHz Handheld Reader In Accordance With: FCC Part 15, Subpart C, 15.249 Tested By: Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: Kevin Carr, EMC Specialist Date: 8 October 2003 Total Number of Pages: 13 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.249 PROJECT NO.:3W07525 EQUIPMENT: 915MHz Handheld Reader Page 2 of 13 Table Of Contents Section 1. Summary Of Test Results ...................................................................................3 Section 2. General Equipment Specification ......................................................................5 Section 3. Radiated Emissions .............................................................................................7 Section 4. Block Diagrams..................................................................................................12 Section 5. Test Equipment List ..........................................................................................13 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.249 PROJECT NO.:3W07525 EQUIPMENT: 915MHz Handheld Reader Page 3 of 13 Section 1. Summary Of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15.249. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated Emissions were made on an open area test site. A description of the test facility is on file with the FCC. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. TESTED BY: ______________________________ DATE: 8 October 2003 Glen Westwell, Wireless Technologist Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc. FCC PART 15, SUBPART C, 15.249 PROJECT NO.:3W07525 EQUIPMENT: 915MHz Handheld Reader Page 4 of 13 Summary Of Test Data Name Of Test Para. No. Result Conducted Emissions 15.207 N/A Radiated Emissions 15.249 Complies Note: This device is DC powered. Test Conditions: Indoor Temperature: 21°C Humidity: 38% Outdoor Temperature: 15°C Humidity: 44% Nemko Canada Inc. FCC PART 15, SUBPART C, 15.249 PROJECT NO.:3W07525 EQUIPMENT: 915MHz Handheld Reader Page 5 of 13 Section 2. General Equipment Specification Manufacturer: Mark IV Industries Model No.: 915MHz Handheld Reader Serial No.: 2665 371 101A Date Received In Laboratory: 25 Sept. 2003 Nemko Identification No.: #1 Frequency Range: 915.75MHz (fixed) Number of Channels: 1 Modulation: AM, On-Off Keying Nemko Canada Inc. FCC PART 15, SUBPART C, 15.249 PROJECT NO.:3W07525 EQUIPMENT: 915MHz Handheld Reader Page 6 of 13 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.249 PROJECT NO.:3W07525 EQUIPMENT: 915MHz Handheld Reader Page 7 of 13 Section 3. Radiated Emissions Para. No.: 15.249 Test Performed By: Glen Westwell Date of Test: 7 Oct 2003 Minimum Standard: Fundamental (MHz) Field Strength (mV/m) Field Strength (dBμV) Harmonic (mV/m) Harmonic (dBμV) 902-928 50 94 0.5 54 Test Results: Measurement Data: See attached tabulated data. Duty Cycle Correction: -20dB. •This devices was searched on 3 orthogonal axis, from 30MHz to the 10 th harmonic. •This device was searched with fresh batteries installed. •All emissions within 20dB of the limit were reported. Nemko Canada Inc. FCC PART 15, SUBPART C, 15.249 PROJECT NO.:3W07525 EQUIPMENT: 915MHz Handheld Reader Page 8 of 13 Transmitter Duty Cycle Duty Cycle Corection Factor = 10log(9x20uS/100mS) = -27.5dB, therefore –20dB. Nemko Canada Inc. FCC PART 15, SUBPART C, 15.249 PROJECT NO.:3W07525 EQUIPMENT: 915MHz Handheld Reader Page 9 of 13 Lower Band Edge Upper Band Edge Nemko Canada Inc. FCC PART 15, SUBPART C, 15.249 PROJECT NO.:3W07525 EQUIPMENT: 915MHz Handheld Reader Page 10 of 13 Test Distance (meters) : 3 Range: A Receiver: Spectrum Analyzer 8564E RBW(kHz): 100/1000 Detector: Peak Freq. (MHz) Ant. * Pol. (V/ H) RCVD Signal (dBμV) Ant. Factor (dB) Amp. Gain (dB) Duty Cycle Correction (dB) Field Strength (dBμV/m) Limit (dBμV/m) Margin (dB) 915.75 LP1 V 69.2 27.0 -20.0 76.2 94.0 17.8 915.75 LP1 H 74.3 27.7 -20.0 82.0 94.0 12.0 1831.5000 Horn2 V 78.5 32.4 46.6 -20.0 44.3 54.0 9.7 1831.5000 Horn2 H 77.2 32.8 46.6 -20.0 43.4 54.0 10.6 2747.2500 Horn2 V 93.0 35.8 56.6 -20.0 52.2 54.0 1.8 2747.2500 Horn2 H 93.8 35.6 56.6 -20.0 52.8 54.0 1.2 3663.0000 Horn2 V 82.3 39.7 54.9 -20.0 47.0 54.0 7.0 3663.0000 Horn2 H 73.8 39.7 54.9 -20.0 38.6 54.0 15.4 4578.7500 Horn2 V 71.3 41.8 53.3 -20.0 39.8 54.0 14.2 4578.7500 Horn2 H 75.0 42.0 53.3 -20.0 43.7 54.0 10.3 5494.5000 Horn2 V 70.7 43.1 51.2 -20.0 42.7 54.0 11.3 5494.5000 Horn2 H 72.3 43.3 51.2 -20.0 44.5 54.0 9.5 Notes: L/P = Log-Periodic Nemko Canada Inc. FCC PART 15, SUBPART C, 15.249 PROJECT NO.:3W07525 EQUIPMENT: 915MHz Handheld Reader Page 11 of 13 Radiated Emissions Set Up Nemko Canada Inc. FCC PART 15, SUBPART C, 15.249 PROJECT NO.:3W07525 EQUIPMENT: 915MHz Handheld Reader Page 12 of 13 Section 4. Block Diagrams Test Site For Radiated Emissions The spectrum was search up to the 10 th harmonic of the fundamental frequency of operation. 3 METERS EUT NON-CONDUCTING TURN-TABLE 0.8 METER VARIABLE SEARCH HEIGHT (1 TO 4 m) TO TEST RECEIVER/SPECTRUM ANALYZER SEARCH ANTENNA Nemko Canada Inc. FCC PA…

Text truncated - open the document above for the full version.

Nemko Canada Inc. FCC PART 15, SUBPART C, 15.249 PROJECT NO.:3W07525 EQUIPMENT: 915MHz Handheld Reader Page 11 of 13 Radiated Emissions Set Up
