JQU802477TRP-8100

KAPSCH TRAFFICCOM CANADA INC.

Click to zoom

Application Details

Equipment Class: LMS - Part 90 Location & Monitoring Transmitter
Date of Grant: Jun 15, 2014
Application Purpose: Original Equipment
Date of Application: Jun 15, 2014
Equipment Note: TRP-8100
Frequency Range: 914.40000000 - 915.60000000
Company: KAPSCH TRAFFICCOM CANADA INC.
Country: Canada

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

TRP-8100 Interior Transponder Mounting Instructions for passenger vehicles The TRP-8100 transponder mounts in passenger vehicles on the windshield. LEDs on the side of the transponder provide transaction feedback. Mount the transponder with the LEDs vis ible to the driver. Preferred Mounting Location Alternate Mounting Location top of windshield 6 in.6 in. 6 in. rear view mirror centerline of mirror 2 in. centerline of mirror and transponder transponder LEDs rear view mirror approx. 1 in. TRP-8100 Transponder Mounting Instructions Select a mounting location, ensuring the LEDs are visible to the driver. The preferred mounting location is centered and to the left behind the rear view mirror, leaving approximately 1 in. of the left side of the transponder visible. Requirements  For reliable operation of the transponder, the vehicle must be equipped with only one transponder while passing through a toll facility. Other transponders present in or on the vehicle must be switched o or enclosed in an RF shield.  The mounting location must provide direct line-of-sight communication between the transponder and the toll facility overhead antenna.  Apply Dual Lock™ fasteners in accordance with 3M™ document 70-0709-4029-4. If the transponder cannot be mounted in the preferred mounting location, mount the transponder anywhere within the alternate mounting area shown below: Kapsch TracCom IVHS TRP-8100 Transponder - Rear View 1. Clean the mounting location in accordance with 3M document 70-0709-4029-4. 2. Remove the protective backing from the two Dual Lock fasteners and press the transponder onto the mounting location, ensuring the status LEDs on the left side of the transponder are facing the driver. Maintain the pressure for approximately 15 seconds to ensure a good bond. 80 1850- 023 rev A1. ©Kapsch TracCom IVHS. A ll rights r eserv ed. Su bject to alteration w ith out n otice. 3. Remove the transponder by lifting any corner with sucient force to separate the Dual Lock strips. Do not reuse the Dual Lock strips if removing them from the windshield. Obtain new strips as required. Kapsch TracCom IVHS | 6020 Ambler Drive | Mississauga, Ontario L4W 2P1 | CANADA | Phone +1 905 624 3020 | Fax +1 905 625 6197 54 S. Commerce Way, Suite 100 | Bethlehem, PA 18017 | Phone +1 610 419 1479 | Fax +1 610 419 1489 E-Mail [email protected] | [email protected] | www.kapsch.net Kapsch Group The Kapsch Group and its entities Kapsch TracCom, Kapsch CarrierCom and Kapsch BusinessCom are specialised in the future-oriented market segments of Intelligent Transportation Systems (ITS) and Information and Communication Technology (ICT). Kapsch. Always one step ahead. Dual Lock fasteners

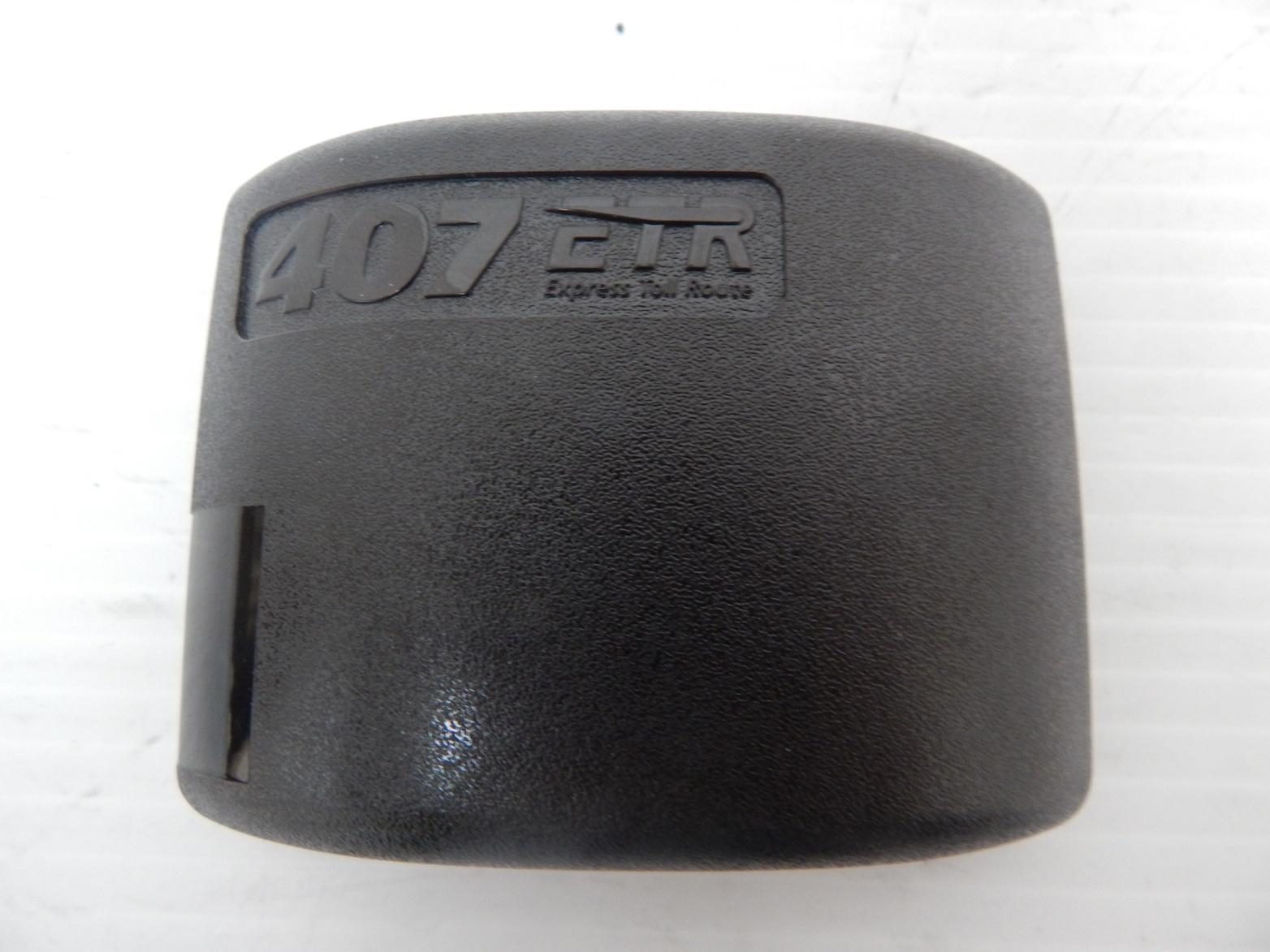

External Photos

ID Label/Location Info

Kapsch TrafficCom Canada Inc. These drawings and specifications contain confidential and proprietary information and are the property of Kapsch TrafficCom Canada Inc. and are issued in strict confidence and will be kept confidential and used solely for the purpose intended and for no other purpose and shall not be transmitted, reproduced, copied, and/or used as the basis for manufacture or sale of apparatus unless otherwise agreed to in writing by Kapsch TrafficCom Canada Inc. Product Brand Name: TRP-8100 Model Number: 802477-TAB Date: March 31, 2014 Subject: Label Format and Location Label Format and Location Page 2 Kapsch TrafficCom Canada Inc. These drawings and specifications contain confidential and proprietary information and are the property of Kapsch TrafficCom Canada Inc. and are issued in strict confidence and will be kept confidential and used solely for the purpose intended and for no other purpose and shall not be transmitted, reproduced, copied, and/or used as the basis for manufacture or sale of apparatus unless otherwise agreed to in writing by Kapsch TrafficCom Canada Inc. Label Size

Internal Photos

Test Report

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation FCC 90 M and RSS-137.docx; Date: May 2014 SCC Accredited LAB LAB Accrédité CCN TM ONE WORLDOURAPPROVAL Test report 252445-1TRFWL Date of issue: June 13, 2014 Applicant: Kapsch TrafficCom Canada Inc. Product: TRP-8100 Model 802477-TAB FCC ID: IC Registration number: JQU802477 2665A-802477 Specifications:  FCC Part 90, Subpart M LMS operations in the 902–928 MHz band  RSS-137 Issue 2, February 2009 Location and Monitoring Service in the Band 902–928 MHz Report reference ID: 252445-1TRFWL Page 2 of 25 Test location Company name: Nemko Canada Inc. Address: 303 River Road City: Ottawa Province: Ontario Postal code: K1V 1H2 Country: Canada Telephone: +1 613 737 9680 Facsimile: +1 613 737 9691 Toll free: +1 800 563 6336 Website: www.nemko.com Site number: FCC: 176392; IC: 2040A-4 (3 m semi anechoic chamber) Tested by: Kevin Rose, Wireless/EMC Specialist Reviewed by: Andrey Adelberg, Senior Wireless/EMC Specialist Date: June 13, 2014 Signature: Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Copyright notification Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. © Nemko Canada Inc. Report reference ID: 252445-1TRFWL Page 3 of 25 Table of contents Table of contents .......................................................................................................................................................................................................... 3 Section 1. Report summary ................................................................................................................................................................................. 4 1.1 Applicant/Manufacturer........................................................................................................................................................................................... 4 1.2 Test specifications .................................................................................................................................................................................................... 4 1.3 Statement of compliance ......................................................................................................................................................................................... 4 1.4 Exclusions ................................................................................................................................................................................................................. 4 1.5 Test report revision history ...................................................................................................................................................................................... 4 Section 2. Summary of test results ....................................................................................................................................................................... 5 2.1 RSS-Gen, Issue 3, test results.................................................................................................................................................................................... 5 2.2 RSS-137, Issue 2, tests results................................................................................................................................................................................... 5 2.3 FCC Part 90, Subpart I tests results ........................................................................................................................................................................... 5 2.4 FCC Part 90, Subpart M tests results ........................................................................................................................................................................ 5 Section 3. Equipment under test (EUT) details ..................................................................................................................................................... 6 3.1 Sample information .................................................................................................................................................................................................. 6 3.2 EUT information ....................................................................................................................................................................................................... 6 3.3 Technical information .............................................................................................................................................................................................. 6 3.4 Product description and theory of operation ........................................................................................................................................................... 6 3.5 EUT exercise details .................................................................................................................................................................................................. 6 3.6 EUT set…
