JQU802295AANon-multilateral LMS transmitter and receiver

Confidential UM 360450-210 Revision: C Kapsch TrafficCom Canada Inc. 2015 These drawings and specifications contain confidential and proprietary information and are the property of Kapsch TrafficCom Canada Inc. and are issued in strict confidence and will be kept confidential and used solely for the purpose intended and for no other purpose and shall not be transmitted, reproduced, copied, and/or used as the basis for manufacture or sale of apparatus unless otherwise agreed to in writing by Kapsch TrafficCom Canada Inc. FILE: UM 360450-210 REV C JANUS MPR2 OPERATOR-MAINTENANCE MANUAL.DOCX 08/17/2015 11:42 Kapsch TrafficCom JANUS® MULTI-PROTOCOL READER VER. 2 OPERATOR AND MAINTENANCE MANUAL QMS EDITION - ISO9001:2008 DOCUMENT: UM 360450-210 REVISION:C DATE: August 17, 2015 Editor: Michael Kleiza Reviewer Title Reviewer Name Reviewer Signature Systems Engineering Stuart Lewis Stuart Lewis Project Manager Ed Rolo Ed Rolo Product Manager Jaymin Patel Jaymin Patel Software Engineering Manager Dan Terrier Dan Terrier Hardware Engineering Manager Ed Rolo Ed Rolo Technical Services Tim Oaks Tim Oaks Approval VP Research & Development Ed Rolo Ed Rolo VP Systems Engineering Chris Hopkins Chris Hopkins Confidential UM 360450-210 Revision: C © Kapsch TrafficCom Canada Inc. 2015 These drawings and specifications contain confidential and proprietary information and are the property of Kapsch TrafficCom Canada Inc. and are issued in strict confidence and will be kept confidential and used solely for the purpose intended and for no other purpose and shall not be transmitted, reproduced, copied, and/or used as the basis for manufacture or sale of apparatus unless otherwise agreed to in writing by Kapsch TrafficCom Canada Inc. FILE: UM 360450-210 REV C JANUS MPR2 OPERATOR-MAINTENANCE MANUAL.DOCX 08/17/2015 11:42 Kapsch TrafficCom JANUS® MULTI-PROTOCOL READER VER. 2 OPERATOR AND MAINTENANCE MANUAL QMS EDITION - ISO9001:2008 DOCUMENT: UM 360450-210 REVISION:C DATE: August 17, 2015 Kapsch TrafficCom: 6020 AMBLER DRIVE 8201 GREENSBORO DRIVE , SUITE 1002 MISSISSAUGA, ON L4W 2P1 1. MCLEAN, VA 22102 TEL: (905) 624-3025 2. TEL: (703) 885-1976 FAX: (905) 624-4572 3. FAX: (703) 790-9100 Confidential UM 360450-210 Revision: C Page 2 of 288 © Kapsch TrafficCom Canada Inc. 2015 These drawings and specifications contain confidential and proprietary information and are the property of Kapsch TrafficCom Canada Inc. and are issued in strict confidence and will be kept confidential and used solely for the purpose intended and for no other purpose and shall not be transmitted, reproduced, copied, and/or used as the basis for manufacture or sale of apparatus unless otherwise agreed to in writing by Kapsch TrafficCom Canada Inc. FILE: UM 360450-210 REV C JANUS MPR2 OPERATOR-MAINTENANCE MANUAL.DOCX08/17/2015 11:42 Kapsch TrafficCom This Page Intentionally Left Blank _ JANUS ® Multi-Protocol Reader Ver. 2: Table of Contents Confidential UM 360450-210 Revision: C Page 3 of 288 © Kapsch TrafficCom Canada Inc. 2015 These drawings and specifications contain confidential and proprietary information and are the property of Kapsch TrafficCom Canada Inc. and are issued in strict confidence and will be kept confidential and used solely for the purpose intended and for no other purpose and shall not be transmitted, reproduced, copied, and/or used as the basis for manufacture or sale of apparatus unless otherwise agreed to in writing by Kapsch TrafficCom Canada Inc. FILE: UM 360450-210 REV C JANUS MPR2 OPERATOR-MAINTENANCE MANUAL.DOCX08/17/2015 11:42 Kapsch TrafficCom FCC License Notice: This equipment emits RF signals. In order to operate this equipment the customer must obtain a separate FCC Part 90 Site license for each location. In addition, the FCC ID component identification JQU802295 must appear on a label on the front of the RF Modules installed in these Readers. The power output of a module at ambient (P out(amb) ) shall be constrained using internal or external Tx attenuation so that the following is satisfied: P out(amb) <= 43.77 dBmd - G fund ; Where G fund is the net gain from antenna connector on the RF module to the antenna radiated signal. The antenna gain is expressed in dBd. The Power output from the amplifier assembly of a module plus external amplifier at ambient (AmpOut(amb)) shall be constrained using module internal TX attenuation so that the following are both satisfied: AmpOut(amb): <= 39 dBm; and AmpOut(amb): <= 43.77 dBmd - Gfund; where Gfund is the net gain at fundamental frequency from the antenna connection on the amplifier assembly to the antenna radiated signal where the antenna gain is expressed in dBd. The net gain at the second harmonic from the antenna connection on the amplifier assembly to the antenna radiated signal shall be: G2nd <= Gfund - 14dB. NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. _ JANUS ® Multi-Protocol Reader Ver. 2: Table of Contents Confidential UM 360450-210 Revision: C Page 4 of 288 © Kapsch TrafficCom Canada Inc. 2015 These drawings and specifications contain confidential and proprietary information and are the property of Kapsch TrafficCom Canada Inc. and are issued in strict confidence and will be kept confidential and used solely for the purpose intended and for no other purpose and shall not be transmitted, reproduced, copied, and/or used as the basis for manufacture or sale of apparatus unless otherwise agreed to in writing by Kapsch TrafficCom Canada Inc. FILE: UM 360450-210 REV C JANUS MPR2 OPERATOR-MAINTENANCE MANUAL.DOCX08/17/2015 11:42 Kapsch TrafficCom NOTE: IEC 60950-1 and/or EN60950-1, First Edition, Information Technology Equipment – Safety – Part 1: General Requirements require that this equipment must be located in a RESTRICTED ACCESS LOCATION (RAL). Only authorized personnel can have access to the equipment. NOTE: This equipment has been tested and found to comp…

Text truncated - open the document above for the full version.

Page 1 Kapsch TrafficCom Canada Inc. | 6020 Ambler Drive | Mississauga, Ontario L4W 2P1 Canada | Phone 905 624 3020 | Fax 905 624 4572 | www.kapsch.net Product Name: JANUS® MRFM-S with External Amplifier Model: 802295A-A Date: April 30, 2015 Subject: User Manual The JANUS™ MRFM-S with External Amplifier is not supplied as a stand-alone item but is intended for and must be integrated with a Kapsch reader. As such there is no separate user manual for the model; instead it is covered by the user manual for the reader UM 360450-210 which is attached.

Client Kapsch TrafficCom Canada Inc Product MRFM-S with External Amplifier (MRFM-SEA) Standard(s) RSS-137 Issue 2:2009 / FCC Part 90 Subpart M:2015 Page 1 of 1 Report issue date: 5/26/2015 GEMC File #: GEMC-FCC-22693R1 Dear Timco This application contains an external amplifier, HPA915, supplied by Shireen Inc to Kapsch Inc. Shireen Inc wishes to keep the HPA915’s proprietary information confidential and not disclose them to their competitor or the public. Shireen Inc’s FCC and IC requests are contained in the following two files: 1. JQU802295A-A SHIREEN-HPA915 FCC Confidentiality-request.pdf 2. JQU802295A-A SHIREEN-HPA915 IC-Confidential authorization.pdf Shireen Inc’s Confidential materials are named according to Timco’s naming convention but with “SHIREEN-HPA915” immediately after the FCC_ID in the filename. Shireen Inc would like Timco to have a note to the FCC and IC that their proprietary information will not be released. Sincerely, Min Xie Project Engineer

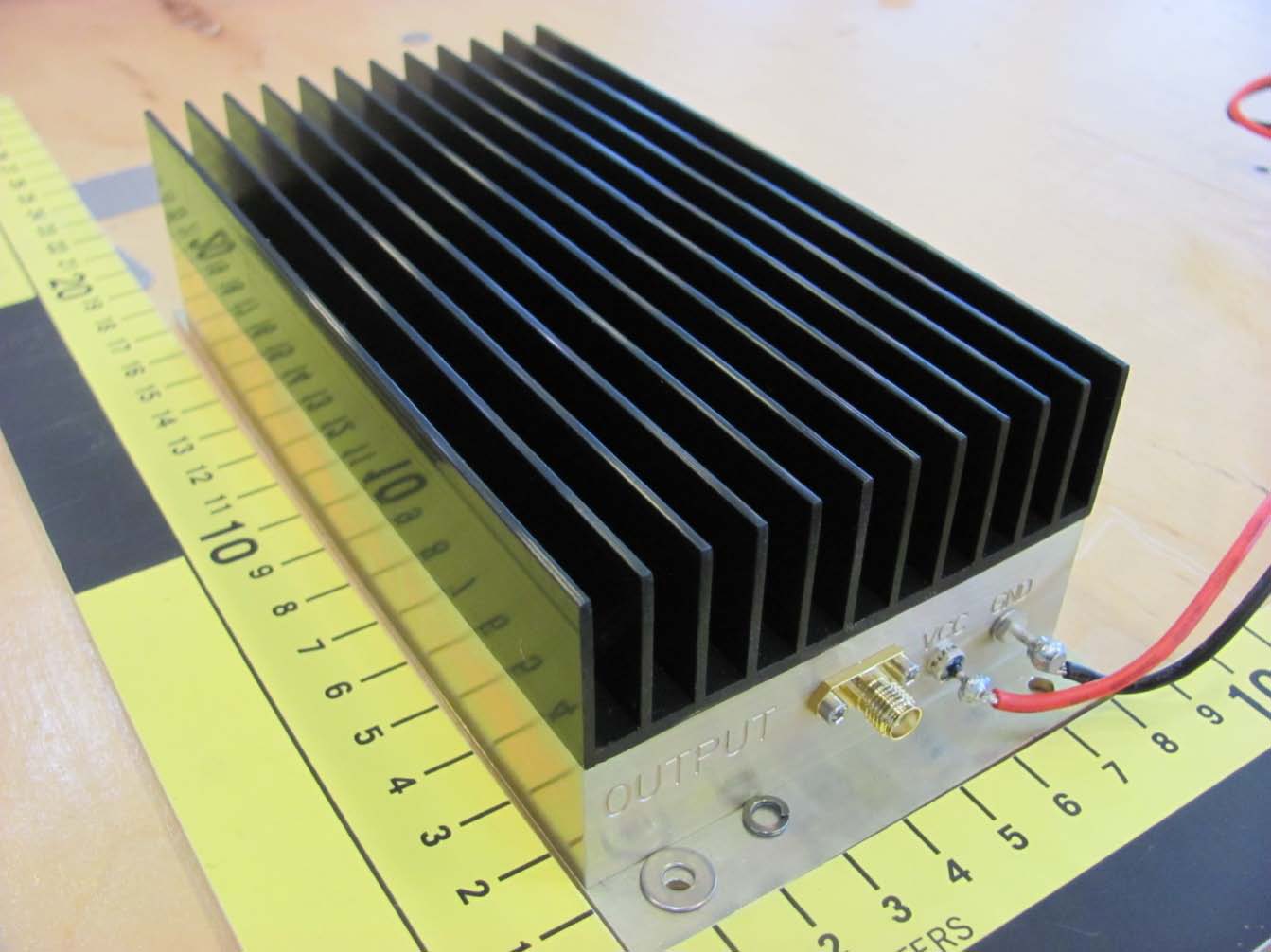

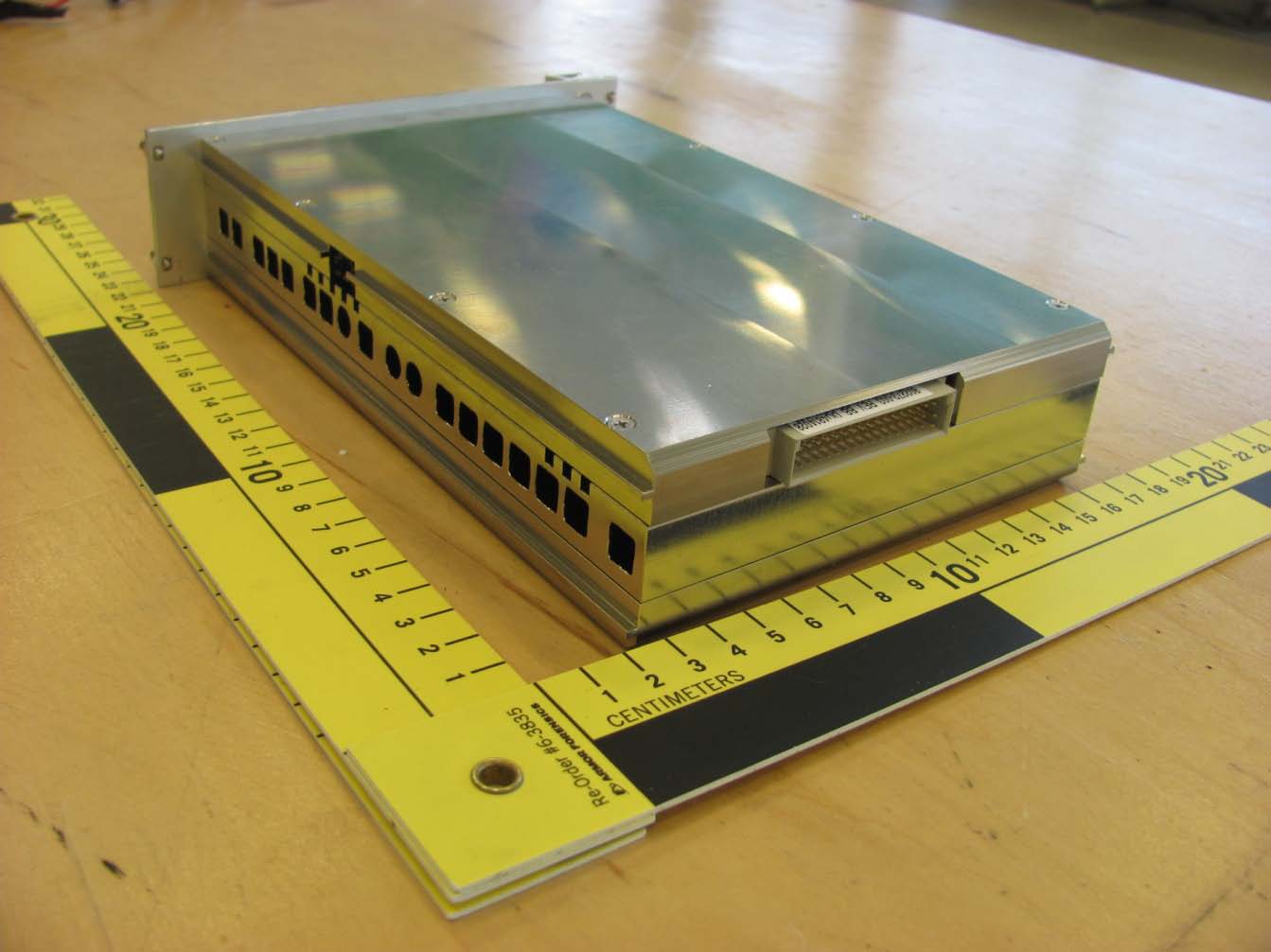

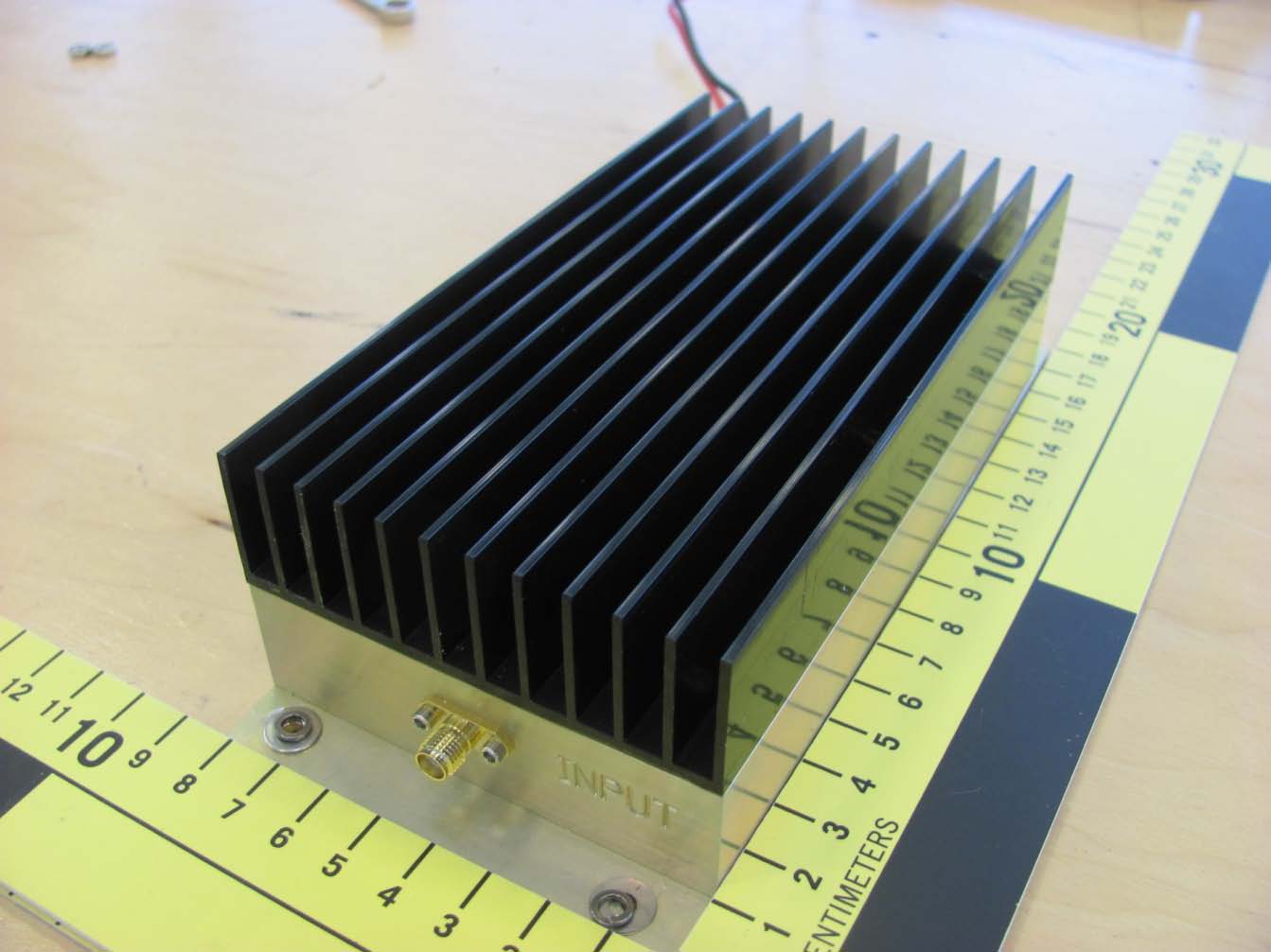

Client Kapsch TrafficCom Canada Inc Product MRMF-S with External Amplifier (MRMF-SEA) Standard(s) RSS-137 Issue 2:2009 / FCC Part 90 Subpart M:2015 Page 1 of 6 Report issue date: 8/2/2015 GEMC File #: GEMC-FCC-22693R1 Illustration 1: 802295A-A part 1 of 2 front view Client Kapsch TrafficCom Canada Inc Product MRMF-S with External Amplifier (MRMF-SEA) Standard(s) RSS-137 Issue 2:2009 / FCC Part 90 Subpart M:2015 Page 2 of 6 Report issue date: 8/2/2015 GEMC File #: GEMC-FCC-22693R1 Illustration 2: 802295A-A part 1 of 2 rear view Client Kapsch TrafficCom Canada Inc Product MRMF-S with External Amplifier (MRMF-SEA) Standard(s) RSS-137 Issue 2:2009 / FCC Part 90 Subpart M:2015 Page 3 of 6 Report issue date: 8/2/2015 GEMC File #: GEMC-FCC-22693R1 Illustration 3: Amplifier used in 802295A-A part 2 of 2, input and side view Client Kapsch TrafficCom Canada Inc Product MRMF-S with External Amplifier (MRMF-SEA) Standard(s) RSS-137 Issue 2:2009 / FCC Part 90 Subpart M:2015 Page 4 of 6 Report issue date: 8/2/2015 GEMC File #: GEMC-FCC-22693R1 Illustration 4: Amplifier used in 802295A-A part 2 of 2, output and side view Client Kapsch TrafficCom Canada Inc Product MRMF-S with External Amplifier (MRMF-SEA) Standard(s) RSS-137 Issue 2:2009 / FCC Part 90 Subpart M:2015 Page 5 of 6 Report issue date: 8/2/2015 GEMC File #: GEMC-FCC-22693R1 Illustration 5: 802295A-A part 2 of 2, Amplifier Assembly Client Kapsch TrafficCom Canada Inc Product MRMF-S with External Amplifier (MRMF-SEA) Standard(s) RSS-137 Issue 2:2009 / FCC Part 90 Subpart M:2015 Page 6 of 6 Report issue date: 8/2/2015 GEMC File #: GEMC-FCC-22693R1 Illustration 6: Two instances of 802295AA were installed in the host.

Page 1 Kapsch TrafficCom Canada Inc. | 6020 Ambler Drive | Mississauga, Ontario L4W 2P1 Canada | Phone 905 624 3020 | Fax 905 624 4572 | www.kapsch.net Product Name: JANUS® MRFM-S with External Amplifier Model: 802295AA Date: June 12, 2015 Subject: Label Format and Location The regulatory identification label (FCC ID and IC) is identical for all the models requested in this application. The model consists of 2 parts (Module and Amplifier Assembly). Each part is labelled to show that they form part of the model. The module label is shown below: This label is located on the front of the MRFM-S transceiver as shown in the following drawing: Page 2 Each amplifier assembly is also marked with the following label. The location of this label on the amplifier assembly is shown below: Page 3

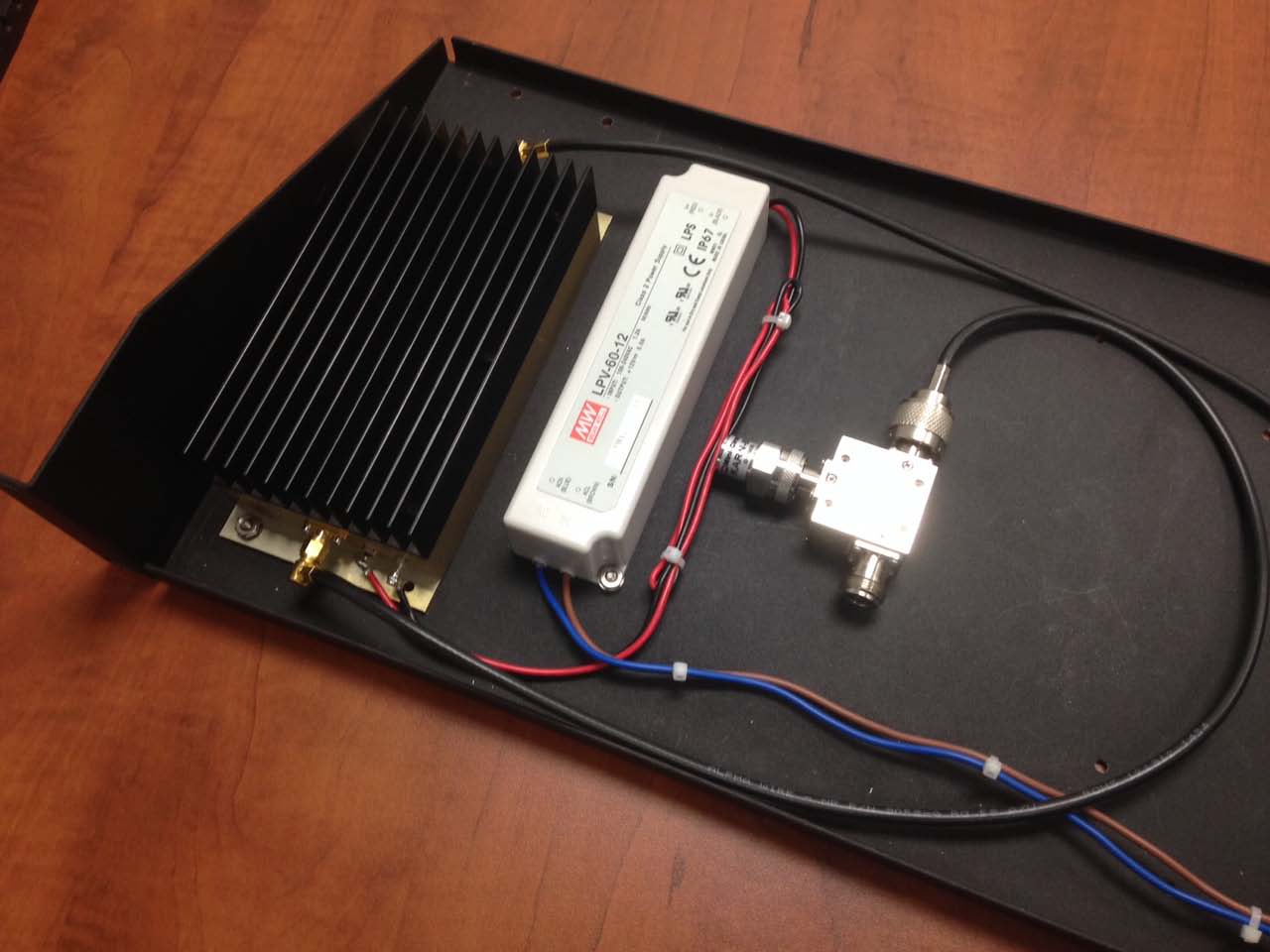

Client Kapsch TrafficCom Canada Inc Product MRMF-S with External Amplifier (MRMF-SEA) Standard(s) RSS-137 Issue 2:2009 / FCC Part 90 Subpart M:2015 Page 1 of 4 Report issue date: 5/26/2015 GEMC File #: GEMC-FCC-22693R1 Receiver PCA Front Photo Client Kapsch TrafficCom Canada Inc Product MRMF-S with External Amplifier (MRMF-SEA) Standard(s) RSS-137 Issue 2:2009 / FCC Part 90 Subpart M:2015 Page 2 of 4 Report issue date: 5/26/2015 GEMC File #: GEMC-FCC-22693R1 Transmitter PCA Front Photo Client Kapsch TrafficCom Canada Inc Product MRMF-S with External Amplifier (MRMF-SEA) Standard(s) RSS-137 Issue 2:2009 / FCC Part 90 Subpart M:2015 Page 3 of 4 Report issue date: 5/26/2015 GEMC File #: GEMC-FCC-22693R1 Transmitter PCA Rear View Photo Client Kapsch TrafficCom Canada Inc Product MRMF-S with External Amplifier (MRMF-SEA) Standard(s) RSS-137 Issue 2:2009 / FCC Part 90 Subpart M:2015 Page 4 of 4 Report issue date: 5/26/2015 GEMC File #: GEMC-FCC-22693R1 External Amplifier Internal View

Client Kapsch TrafficCom Canada Inc Product MRFM-S with External Amplifier (MRFM-SEA) Standard(s) RSS-137 Issue 2:2009 / FCC Part 90 Subpart M:2015 Page 1 of 2 Report issue date: 5/26/2015 GEMC File #: GEMC-FCC-22693R1 Maximum Permissible Exposure Purpose The purpose of this test is to ensure that the RF energy intentionally transmitted, in terms of power density emitted from the EUT at a stated operating distance does not exceed the limits listed below as defined in the applicable test standard, as calculated based upon readings obtained during testing. This helps protect human exposure to excessive RF fields. Limit(s) and Method The limits are defined in FCC 1.1310 Table 1 (B) limits for general public exposure was applied. The limit for the frequency range of 300 MHz to 1500 MHz was applied. This is a limit of 0.61 mW/ cm 2 . Results The distance used for calculations was 100 cm, as this is the minimum distance an operator will be from the EUT during normal operation. The antenna height state in the User Manual is 16 ft. Therefore, no operator will be less than 100 cm from the antenna. The EUT passed the requirements. The worst case calculated power density was 0.39 mW/cm 2 , this is under the 0.61 mW/cm 2 requirement. Client Kapsch TrafficCom Canada Inc Product MRFM-S with External Amplifier (MRFM-SEA) Standard(s) RSS-137 Issue 2:2009 / FCC Part 90 Subpart M:2015 Page 2 of 2 Report issue date: 5/26/2015 GEMC File #: GEMC-FCC-22693R1 Calculations Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:39.73(dBm)Max ERP44.77 Maximum peak output power at antenna input terminal:9397.233106(mW) Antenna gain(typical):7.19(dBi) Maximum EIRP Antenna Gai n (antenna gain + cable loss) 7.19 Maximum antenna gain:5.236004366(numeric) Time Averaging:100(%) Prediction distance:100(cm) Prediction frequency:919.5(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.613(mW/cm^2) Power density at prediction frequency:0.391553(mW/cm^2) Margin of compliance:1.9(dB) This equates to3.915526215W/m^2PASS For informationThis equates to38.42074157V/m 2 4R PG S π =

LAB REGISTRATION #6844A-3 Testing Laboratory Certificate #2555.01 FCC REGISTRATION #377448 R-4023, G-506 T-1246, C-4498 Page 1 of 115 Report issue date: 9/16/2015 GEMC File #:GEMC-FCC-22693R3 © Glo bal EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. This report is based on GEMC Template “FCC 15 247 Rev2.” Global EMC Inc. Labs EMC & RF Test Report As per FCC Part 90 Subpart M:2015 & RSS-137 Issue 2:2009 Location and Monitoring Service (LMS) Operation in the 902 – 928 MHz Band on the MRMF-S with External Amplifier (MRMF- SEA) Min Xie Project Engineer Global EMC Labs Inc 11 Gordon Collins Dr, Gormley, ON, L0H 1G0 Canada Ph: (905) 883-8189 Sanjiv Vyas Project Engineer Global EMC Labs Inc 11 Gordon Collins Dr, Gormley, ON, L0H 1G0 Canada Ph: (905) 883-8189 Testing produced for See Appendix A for full customer & EUT details . Client Kapsch TrafficCom Canada Inc Product MRMF-S with External Amplifier (MRMF-SEA) Standard(s) RSS-137 Issue 2:2009 / FCC Part 90 Subpart M:2015 Page 2 of 115 Report issue date: 9/16/2015 GEMC File #: GEMC-FCC-22693R3 © Glo bal EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Table of Contents Table of Contents ................................................................................................................... 2 Report Scope .......................................................................................................................... 3 Summary ................................................................................................................................ 4 Test Results Summary ....................................................................................................... 5 Justifications, Descriptions, or Deviations......................................................................... 6 Applicable Standards, Specifications and Methods ........................................................... 8 Sample calculation(s) ......................................................................................................... 9 Document Revision Status ................................................................................................. 9 Definitions and Acronyms ................................................................................................... 10 Testing Facility .................................................................................................................... 11 Calibrations and Accreditations ....................................................................................... 11 Testing Environmental Conditions and Dates ................................................................. 12 Detailed Test Results Section .............................................................................................. 13 Output Power and Antenna Heights ................................................................................ 14 Occupied Bandwidth ........................................................................................................ 25 Emission Mask ................................................................................................................. 47 Transmitter Spurious Radiated Emissions ....................................................................... 88 Temperature Frequency Stability ..................................................................................... 97 Appendix A – EUT Summary ............................................................................................ 102 Appendix B – EUT and Test Setup Photographs............................................................... 105 Client Kapsch TrafficCom Canada Inc Product MRMF-S with External Amplifier (MRMF-SEA) Standard(s) RSS-137 Issue 2:2009 / FCC Part 90 Subpart M:2015 Page 3 of 115 Report issue date: 9/16/2015 GEMC File #: GEMC-FCC-22693R3 © Glo bal EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Report Scope This report addresses the EMC verification testing and test results of Kapsch TrafficCom Canada Inc’s MRFM-S with External Amplifier (MRMF-SEA), model 802295AA herein referred to as EUT (Equipment Under Test) performed at Global EMC Labs. The EUT is a standard rack mount unit. The EUT comprises a module that plugs into a 19 inch rack assembly and an amplifier assembly which is mounted on standard 19" tray. The EUT was tested for compliance against the following standards: FCC Part 90 Subpart M:2015 RSS-137 Issue 2:2009 Test procedures, results, justifications, and engineering considerations, if any, follow later in this report. The results contained in this report relate only to the item(s) tested. This report does not imply product endorsement by A2LA or any other accreditation agency, any government, or Global EMC Inc. Opinions/interpretations expressed in this report, if any, are outside the scope of Global EMC Inc accreditation. Any opinions expressed do not necessarily reflect the opinions of Global EMC Inc, unless otherwise stated. Client Kapsch TrafficCom Canada Inc Product MRMF-S with External Amplifier (MRMF-SEA) Standard(s) RSS-137 Issue 2:2009 / FCC Part 90 Subpart M:2015 Page 4 of 115 Report issue date: 9/16/2015 GEMC File #: GEMC-FCC-22693R3 © Glo bal EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Summary The results contained in this report relate only to the item(s) tested. EUT FCC Certification #, FCC ID: JQU802295AA EUT Industry Canada Certification #, IC: 2665A-802295AA EUT Passed all tests performed. Yes (see test results summary) Tests conducted by Min Xie, Sanjiv Vyas Client Kapsch TrafficCom Canada Inc Product MRMF-S with External Amplifier (MRMF-SEA) Standard(s) RSS-137 Issue 2:2009 / FCC Part 90 Subpart M:2015 Page 5 of 115 Report issue date: 9/16/2015 GEMC File #: GEMC-FCC-2269…

Text truncated - open the document above for the full version.

Client Kapsch TrafficCom Canada Inc Product MRMF-S with External Amplifier (MRMF-SEA) Standard(s) RSS-137 Issue 2:2009 / FCC Part 90 Subpart M:2014 Page 1 of 4 Report issue date: 5/26/2015 GEMC File #: GEMC-FCC-22693R1 Illustration 1: 802295A-A Radiated emission setup – photo 1 Note: 4 instances of 802295A-A were present in setup Client Kapsch TrafficCom Canada Inc Product MRMF-S with External Amplifier (MRMF-SEA) Standard(s) RSS-137 Issue 2:2009 / FCC Part 90 Subpart M:2014 Page 2 of 4 Report issue date: 5/26/2015 GEMC File #: GEMC-FCC-22693R1 Illustration 2: 802295A-A Radiated emission setup - photo 2 Note: 4 instances of 802295A-A were present in setup Client Kapsch TrafficCom Canada Inc Product MRMF-S with External Amplifier (MRMF-SEA) Standard(s) RSS-137 Issue 2:2009 / FCC Part 90 Subpart M:2014 Page 3 of 4 Report issue date: 5/26/2015 GEMC File #: GEMC-FCC-22693R1 Illustration 3: 802295A-A Radiated setup - photo 3 Note: 4 instances of 802295A-A were present in setup Client Kapsch TrafficCom Canada Inc Product MRMF-S with External Amplifier (MRMF-SEA) Standard(s) RSS-137 Issue 2:2009 / FCC Part 90 Subpart M:2014 Page 4 of 4 Report issue date: 5/26/2015 GEMC File #: GEMC-FCC-22693R1 Illustration 4: Antenna conducted emission setup
