JQU801604ATDMA Transponder

Info Number 801604A Application / 007 Author Alastair Malarky Date 2011 02 18 To Nemko Canada Inc TDMA Transponder Family – Mounting Instructions The mounting instructions for all vehicle mount models are as per follows.

Info Number 801604A Application / 002 Author Alastair Malarky Date 2011 02 18 To Nemko Canada Inc TDMA Transponder Family – Model Differences References: 801604A Application / 003: TDMA Transponder Family – Operating Description 801604A Application / 004: TDMA Transponder Family – Block Diagram 801604A Application / 005: TDMA Transponder Family – Schematics and Parts Lists The TDMA family of transponders uses a common circuit and will be supplied in the following models: Model Identification 801604A-TAB 801604A-TAB1 802155A-TAB The specific differences between the models are addressed below. 801604A-TAB This model: ∑ omits the optional push button switch (SW1 in schematic 802136-001) ∑ uses the smaller memory micro-controller (U1 in schematic 802136-001) ∑ has model specific firmware that only turns on the LED and buzzer for a short duration (a few seconds). 801604A-TAB1 This model: ∑ omits the optional push button switch (SW1 in schematic 802136-001) ∑ uses the smaller memory micro-controller (U1 in schematic 802136-001) ∑ has model specific firmware that turns on the LED and buzzer for an extended duration (minutes) 802155A-TAB This model: ∑ includes the optional push button switch (SW1 in schematic 802136-001) ∑ uses the larger memory micro-controller (U1 in schematic 802136-001) ∑ has model specific firmware that turns on the LED and buzzer for an extended duration (minutes) and also when the button is pressed.

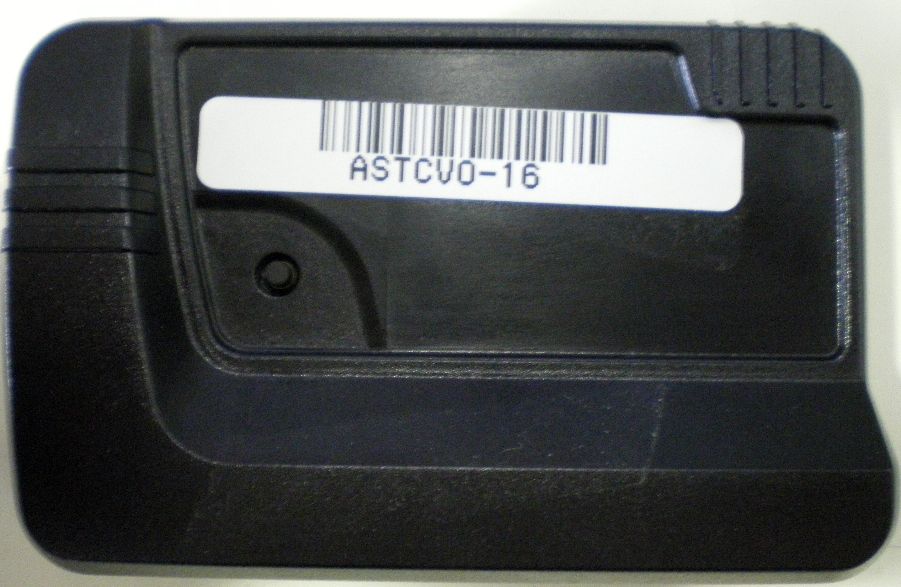

Info Number 801604A Application / 006 Rev2 Author Alastair Malarky Date 2011 03 16 To Nemko Canada Inc TDMA Transponder Family – Label Location References: 801604A Application / 002: TDMA Transponder Family – Model Differences The following defines the label and the location of the label for all models of the TDMA Transponder Family. Label Size 2.0 Width x 1.0 High (inch.) Label Format The figure below shows the label that will be used for the family. Note that (MODEL) is used generically and will be replaced with the specific model number (see Model Differences) for each transponder. MARK IV TDMA MODEL NO: (MODEL) FCC ID: JQU801604A IC: 2665A-801604A This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference Model Specific Labels The specific labels for the individual models requested in this application are shown below: Model 801604A-TAB Model 801604A-TAB1 Model 802155A-TAB Label Location The label is located on the rear of each transponder and is engraved into the unit. The location on the unit rear is shown in the following figure. MARK IV TDMA MODEL NO: 801604A-TAB FCC ID: JQU801604A IC: 2665A-801604A This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference MARK IV TDMA MODEL NO: 801604A-TAB1 FCC ID: JQU801604A IC: 2665A-801604A This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference MARK IV TDMA MODEL NO: 802155A-TAB FCC ID: JQU801604A IC: 2665A-801604A This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference Label Position

www.nemko.com Report Reference ID: 169382-1TRFWL Test specification: Title 47 – Telecommunication Chapter I – Federal Communications Commission Subchapter D – Safety and special radio services Part 90 – Private land mobile services Subpart M – Intelligent transportation systems radio service Section 90.353 – LMS operations in the 902–928 MHz band. Applicant: Kapsch TrafficCom IVHS Corp. 6020 Ambler Drive Mississauga, ON, Canada L4W 2P1 Apparatus: TDMA Transponder FCC ID: JQU801604А Model: 802155A-TAB; 801604A-TAB; 801604A-TAB1 Testing laboratory: Nemko Canada Inc. 303 River Road Ottawa, ON, Canada K1V 1H2 Telephone: (613) 737-9680 Facsimile: (613) 737-9691 Name and title Date Tested by: Andrey Adelberg, Senior Wireless/EMC Specialist March 16, 2011 Reviewed by: David Duchesne, Senior Wireless/EMC Specialist March 16, 2011 Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. Product: TDMA Transponder Nemko Canada Inc., 303 River Rd, Ottawa, ON, Canada, K1V 1H2 Report reference ID: 169382-1TRFWL Page 2 of 27 Table of contents Section 1: Report summary.........................................................................................................................................................3 1.1 Test specification.........................................................................................................................................................3 1.2 Statement of compliance.............................................................................................................................................3 1.3 Exclusions....................................................................................................................................................................3 1.4 Registration number....................................................................................................................................................3 1.5 Test report revision history...........................................................................................................................................3 1.6 Limits of responsibility..................................................................................................................................................3 Section 2: Summary of test results.............................................................................................................................................4 2.1 FCC Part 90 test results..............................................................................................................................................4 Section 3: Equipment under test (EUT) and application details...............................................................................................5 3.1 Product details.............................................................................................................................................................5 3.2 Sample information......................................................................................................................................................5 3.3 EUT technical specifications........................................................................................................................................5 3.4 Operation of the EUT during testing............................................................................................................................5 3.5 EUT setup diagram......................................................................................................................................................6 Section 4: Engineering considerations.......................................................................................................................................7 4.1 Modifications incorporated in the EUT.........................................................................................................................7 4.2 Deviations from laboratory tests procedures................................................................................................................7 4.3 Technical judgment......................................................................................................................................................7 Section 5: Test conditions...........................................................................................................................................................8 5.1 Power source and ambient temperatures....................................................................................................................8 Section 6: Measurement uncertainty..........................................................................................................................................9 Section 7: Test equipment.........................................................................................................................................................10 7.1 Test equipment list.....................................................................................................................................................10 Section 8: Testing data...............................................................................................................................................................11 8.1 Clause 90.205 Effective radiated power of carrier.....................................................................................................11 8.2 Clause 90.209 Occupied bandwidth..........................................................................................................................13 8.3 Clause 90.210 Emission mask...................................................................................................................................16 8.4 Clause 90.210 Spurious emission…
