JQU801660AJanus Interior OBU

Sheet 1 of 5 MARK IV Industries Corp., I.V.H.S. Division JANUS Interior OBUs Mounting Instructions Sheet WARNING: For proper operation the vehicle must be equipped with one and only one properly mounted and presented E-ZPass® IAG Capture Compatible OBU for the duration of passage through an E-ZPass facility. Other E-ZPass IAG Capture Compatible OBUs or transponders present in the vehicle must be enclosed in an RF shield. The JANUS interior OBU is the primary OBU recommended for all vehicles with the exception of the following: • Vehicles fitted with metal oxide or equivalent RF blocking material coated windshields • Vehicles with overhangs obscuring the windshield such as a metallic sun visor • Vehicles with a metallic center divider post on the windshield • Vehicles with concave windshields • Vehicles where the OBU cannot be located within 2 inches on either side of the center of the windshield • Vehicles with non-metallic roofs or soft-tops such as certain types of Convertibles and Jeeps • Vehicles without a windshield center mounted rear-view mirror • Vehicles where the OBU cannot be located within 2 inches from the metal roofline • Vehicles where DMV (state or province equivalent) requirements prevent the use of windshield mount locations An alternate OBU is recommended for these cases. Please contact your nearest Customer Service Center for information on obtaining an alternate OBU and applicable mounting instructions. The following limitations apply to the placement of the JANUS Interior OBU: • For proper operation it is imperative to select the correct OBU mounting location. The selected location must provide for direct line of sight communication between the OBU and the overhead antenna. • In-vehicle or externally mounted Radio Frequency (RF) transmitter antennas operating in the 900 MHz band may interfere with the operation of the OBU. The associated RF transmitters must be switched off for the duration of passage through a toll facility. • Cellular phones, pagers, two-way radios and other mobile handheld communication devices must not be located within 12 inches of the JANUS interior OBU • Metal objects must not be located within 6 inches of the JANUS interior OBU with the exception of the vehicle roof and rear-view mirror • The OBU when mounted must not impact the driver’s visibility of the roadway or otherwise interfere with safe operation of the vehicle. Sheet 2 of 5 JANUS Interior/JANUS Feedback OBU Mounting Instructions for Passenger Vehicles 1. Identify the front face of the OBU. It displays your agency label and two upward-pointing arrows (Fig.-1). This side faces the driver with the arrows pointing toward the roof of your vehicle. 2. Identify the position in your vehicle in which the OBU will be mounted. The preferred location is between the exposed edge of the windshield (roofline) and the rear view mirror post as long as the clearances in Fig.-2 can be maintained. If there is insufficient room, the alternate location shown in Fig.-3 must be used. 3. Having determined the mounting position in your vehicle, clean the inside surface of that section of the windshield if necessary. Now carefully remove the protective backing from the Dual Lock® mounting strips on the rear of the OBU as shown in Fig. 4 and firmly press the rear of the OBU against the glass. Maintain the pressure for about 15 seconds to achieve a good bond. Fig-1: OBU Front Face Fig-2: Preferred Mounting Location Fig-3: Alternate Mounting Location Fig-4: OBU Rear Face The OBU may be removed by lifting any one corner with sufficient pressure to separate the Dual Lock® strips. Do not remove the Dual Lock® from the windshield and reuse it; obtain new strips from your nearest Customer Service Center. ARROWS POINT UP M AR K IV F C C ID : J QU 801630 T his devi ce c omplies with par t 15 of the F C C rules . Oper ation is subjec t to the condition that this device does not cause har mful inter fer ence. IC : 2665A-801630 U N IT ED ST AT ES PAT EN T N os. 4,870,419; 4,937,581; 5,132,687; 5,164,732 5,192,954; 5,196,846 C AN AD A PATEN T N os. 1,165,427; 1,248,613 D UAL LOC K® STRIP S PEE L OFF B AC K ING Sheet 3 of 5 JANUS Interior Secure OBU/JANUS Feedback Secure OBU Mounting Instructions for Passenger Vehicles These mounting instructions are identical to the instructions for a standard JANUS Interior or JANUS Feedback OBU. The main difference is the application of the Secure Mount bracket on the windshield glass (Fig-5). Fig-5: Securing a JANUS Interior or JANUS Feedback OBU 1. Identify the front face of the OBU. It displays your agency label and two upward-pointing arrows (Fig.-1). This side faces the driver with the arrows pointing toward the roof of your vehicle. 2. Identify the position in your vehicle in which the OBU will be securely mounted. The preferred location is between the exposed edge of the windshield (roofline) and the rear view mirror post as long as the clearances in Fig.-2 can be maintained. If there is insufficient room, the alternate location shown in Fig.-3 must be used. 3. Having determined the mounting position in your vehicle, clean the inside surface of that section of the windshield if necessary. Now carefully remove the protective backing from the Dual Lock® mounting strips on the rear of the OBU as shown in Fig. 4 and firmly press the rear of the OBU against the glass. Maintain the pressure for about 15 seconds to achieve a good bond. 4. Prepare the surface of the windshield for application of the 3M™ VHB™ acrylic foam tape adhesive per the instructions supplied on the last sheet of this document. Next carefully remove the protective backing from the 3M™ VHB™ acrylic foam tape strips on the rear of the secure mount bracket (Fig-5), place the bracket over the OBU and firmly press the rear of the bracket against the glass (Fig-6). Maintain the pressure for about 15 seconds to achieve a good bond. Fig-6: JANUS Interior Secure OBU Assembly The OBU may be removed by: 1. Opening the tamper p…

Text truncated - open the document above for the full version.

Info Number 801660A Application / 002 Author Alastair Malarky Date 2011 07 13 To Nemko Canada Inc JANUS™ Interior OBU Family – Model Differences References: 801660A Application / 003: JANUS™ Interior OBU Family – Operating Description 801660A Application / 004: JANUS™ Interior OBU Family – Block Diagram 801660A Application / 005: JANUS™ Interior OBU Family – Schematics and Parts Lists The JANUS™ Interior family of on-board units uses a common circuit and will be supplied in the following models: Model Identification 801660A-TAB 801970A-TAB 801990A-TAB 802001A-TAB The specific differences between the models are addressed below. 801660A-TAB This model: ∑ Has no micro-controller or peripherals 801970A-TAB This model: ∑ Has the micro-controller ∑ The micro-controller peripherals are LEDs and a buzzer ∑ The case is translucent 801990A-TAB This model: ∑ Has no micro-controller or peripherals ∑ Has a different configuration on protected bits in the ASIC 802001A-TAB This model: ∑ Has the micro-controller ∑ The micro-controller peripheral is a tamper-proof mechanism ∑ The dual-lock attachments are replaced with stronger, permanent adhesive strips

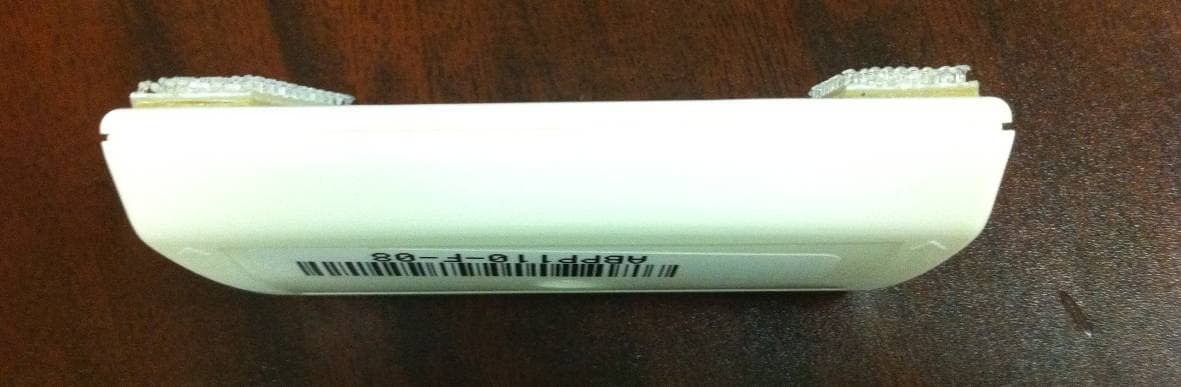

Info Number 801660A Application / 008 Author Alastair Malarky Date 2011 07 22 To Nemko Canada Inc JANUS™ Interior OBU Family – External Photographs Front View Top View Side View Rear View

Info Number 801660A Application / 006 Author Alastair Malarky Date 2011 07 22 To Nemko Canada Inc JANUS™ Interior OBU Family – Label Location The following defines the label and the location of the label for the JANUS™ Interior OBU Family. Label Size For models 801660A-TAB, 801970A-TAB, 801990A-TAB the label is 2.3 (wide) x 1.65 (high) inches on the back of the unit. For model 802001A-TAB the label is distributed over the entire surface of the unit which is 3.66 (wide) x 1.95 (high) inches. Label Location The label is located on the rear of each unit and is engraved into the unit. The unit rear is shown in the following pictures. . Note the pictures do not show the final version of the label text – this is shown in the next section. Rear view of Models: 801660A-TAB, 801970A-TAB, 801990A-TAB Rear view of model 802001A-TAB: Model Specific Labels The specific labels for the individual models requested in this application are shown below: Model 801660A-TAB Model 801970A-TAB FCC ID: JQU801660A This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference. IC: 2665A-801660A UNITED STATES PATENT Nos. 6,219,613; 7,233,260; 7,385,525; 7,479,896; 7,342,500 CANADA PATENT No. 2,344,013 MODEL: 801660A-TAB MODEL: 801970A-TAB CANADA PATENT No. 2,344,013 7,479,896, 7,342,500 6,219,613; 7,233,260; 7,385,525; UNITED STATES PATENT Nos. IC: 2665A-801660A does not cause harmful interference. Operation is subject to the condition that this device This device complies with part 15 of the FCC rules. FCC ID: JQU801660A Model 801990A-TAB Model 802001A-TAB MODEL: 801990A-TAB CANADA PATENT No. 2,344,013 7,479,896; 7,342,500 6,219,613; 7,233,260; 7,385,525; UNITED STATES PATENT Nos. IC: 2665A-801660A does not cause harmful interference. Operation is subject to the condition that this device This device complies with part 15 of the FCC rules. FCC ID: JQU801660A 7,342,500 7,479,896 7,385,525 7,233,260 6,219,613 US PATENT NOs. 2,344,013 IC: 2665A-801660A does not cause harmful interference. FCC rules. Operation is subject to the condition that this device FCC ID: JQU801660A This device complies with part 15 of the CAN PAT 802001A-TAB MODEL:

Info Number 801660A Application / 009 Rev 1 Author Alastair Malarky Date 2011 09 16 To Nemko Canada Inc JANUS™ Interior OBU Family – Internal Photographs PCA Rear Photo and Case Interior – showing board installed PCA Front Photo – Models 801660A-TAB and 801990A-TAB PCA Front Photo – Models 801970A-TAB PCA Front Photo – Models 802001A-TAB

FCC.doc - Date: March 21, 2010 www.nemko.com Compliance test report 180888-1TRFWL Date of issue August 9, 2011 FCC Part 90, Subpart M, Section 90.353 LMS operations in the 902–928 MHz band Applicant Kapsch TrafficCom IVHS Corp. Product JANUS™ Interior OBU Model 801660A-TAB Model variants 801970A-TAB, 801990A-TAB, 802001A-TAB FCC ID JQU801660A Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation SCC Accredited LAB LAB Accrédité CCN TM Report reference ID: 180888-1TRFWL Page 2 of 25 Test location Nemko Canada Inc. 303 River Road Ottawa, ON, K1V 1H2 Canada Telephone +1 613 737 9680 Facsimile +1 613 737 9691 Toll free +1 800 563 6336 Website www.nemko.com Tested by Andrey Adelberg, Senior Wireless/EMC Specialist Reviewed by August 9, 2011 David Duchesne, Senior EMC Specialist Date: Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Copyright notification Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. © Nemko Canada Inc. Report reference ID: 180888-1TRFWL Page 3 of 25 Table of contents Section 1: Report summary ......................................................................................................................................................... 4 1.1 Applicant ...................................................................................................................................................................... 4 1.2 Manufacturer ............................................................................................................................................................... 4 1.3 Test specification ......................................................................................................................................................... 4 1.4 Statement of compliance ............................................................................................................................................. 4 1.5 Exclusions ................................................................................................................................................................... 4 1.6 Site registration number ............................................................................................................................................... 4 1.7 Test report revision history .......................................................................................................................................... 4 Section 2: Summary of test results ............................................................................................................................................. 5 2.1 FCC Part 90, Subpart I tests result summary .............................................................................................................. 5 2.2 FCC Part 90, Subpart M tests result summary ............................................................................................................ 5 Section 3: Equipment under test (EUT) details .......................................................................................................................... 6 3.1 Product details ............................................................................................................................................................. 6 3.2 Product description ...................................................................................................................................................... 6 3.3 Sample information ...................................................................................................................................................... 6 3.4 EUT technical specifications ........................................................................................................................................ 6 3.5 Operation of the EUT during testing ............................................................................................................................ 7 3.6 EUT setup diagram ...................................................................................................................................................... 7 Section 4: Engineering considerations ....................................................................................................................................... 8 4.1 Modifications incorporated in the EUT ......................................................................................................................... 8 4.2 Deviations from laboratory tests procedures ............................................................................................................... 8 4.3 Technical judgment ...................................................................................................................................................... 8 Section 5: Test conditions ........................................................................................................................................................... 9 5.1 Atmospheric conditions ..........................................................................................…
