SKY-4001TH INSTALLATION AND OPERATING INSTRUCTIONS INTRODUCTION SKYTECH’S remote control system was developed to provide a safe, reliable and user-friendly remote control system for gas heating appliances. This all battery system operates independently of household current. The system operates on radio frequencies with a non-directional signals. The SKYTECH’S operating range is approximately 20 feet range. The system operates on one of 256 security codes that are user programmable; the remote receiver’s code must be matched to that of the transmitter prior to initial use. Review THERMO SAFETY SECTION under RECEIVER section. This high temperature safety feature shuts down the appliance when a potentially unsafe condition exists. TRANSMITTER This remote control SYSTEM offers the user a battery-operated remote control that operates most millivolt gas valves used in some heater rated gas logs, gas fireplaces and other gas heating appliances. The transmitter operates on Lithium 3V battery. Before using the transmitter, install the Lithium 3V transmitter batteries into the battery compartment. (Use caution that batteries are installed in the proper direction) KEY SETINGS l ON -Operates unit to on position, Manually ON. l OFF -Operates unit to off position, Manually OFF. l SET -Sets temperature in thermo mod. HOUSE CODE OFF SET BUTTON BATTERY COMPARTMENT OFF BUTTON SET UNIT CODE ON BUTTON ON SET OFF FRONT ON 3 2 BACK 1 LCD – Liquid Crystal Display 1. Display Indicates CURRENT room temperature. 2. OR Indicates degrees Fahrenheit or Celsius. 3. FLAME/ON Indicates burner/valve in operation. 4. THERMO Indicates remote is in THERMO operation. 5. OFF Indicates burner/valve is off. 6. Battery Indicates battery power is low. SETTING / SCALE The factory setting for temperature is . To change this setting to , first l Press the ON key and the OFF key on the transmitter at the same time this will change from to . Follow this same procedure to change from back to . MANUAL FUNCTION To operate the system in the manual “MODE” does the following. ON OPERATION Press the ON key the appliance flame will come on. During this time the LCD screen will show ON. OFF OPERATION Press the OFF key the appliance flame will shut off. During this time the LCD screen will show OFF. F 1 4 THERMO OFF ON 5 3 6 F 2 THERMOSTAT FUNCTION SETTING DESIRED ROOM TEMPERATURE This remote control system can be thermostatically controlled when the transmitter is in the THERMO mode (The word THERMO must be displayed on the screen). To set the THERMO MODE and DESIRED room temperature, Press the SET key until the LCD screen shows the word THERMO, then the remote is in the thermostatic mode. Press and hold the SET key until the desired set temperature is reached, (By pressing and holding the set key the LCD screen set numbers will increase from 45 to 99 then restart over at 45) Next release the SET key. The LCD screen will display the set temperature for 3 seconds and the LCD screen will flash the set temperature for 3 seconds, then the LCD screen will default to display the room temperature. TO CHANGE THE SET TEMPERATURE Press and hold the SET key until the desired set temperature is reached. (By pressing and holding the set key the LCD screen set numbers will increase from 45 to 99 then restart over at 45) Next release the SET key. The LCD screen will display the set temperature for 3 seconds, then will flash the set temperature for 3 seconds, then the LCD screen will default to display the room temperature. Press either ON or OFF key to disengage the thermo mode. The word THERMO on the LCD screen will not show when the thermo is not in operation. NOTE: The highest SET temperature is 99 FAHRENHEIT (37 Celsius) and the lowest temperature is 45 Fahrenheit (8 Celsius) OPERATIONAL NOTES: The Thermo Feature on the transmitter operates the appliance whenever the ROOM TEMPERATURE varies a certain number of degrees from the SET TEMPERATURE. This variation is called the “SWING” or TEMPERATURE DIFFERENTIAL. The F THERMO normal operating cycle of an appliance may be 2-4 times per hour depending on how well the room or home is insulated from the cold or drafts. The factory setting for the “swing number” is 1. This represents a temperature variation of +/-1 F (0.5) between SET temperature and ROOM temperature, which determines when the fireplace will be activated. This function is pre-set at the factory. The transmitter has ON and OFF manual functions that are activated by pressing either button on the face of the transmitter. When a button on the transmitter is pressed the word ON or OFF will appear on the LCD screen to show while the signal is being sent. Upon initial use, there may be a delay of three seconds before the remote receiver will respond to the transmitter. This is part of the system’s design. SKY-4001LCD INSTALLATION AND OPERATING INSTRUCTIONS INTRODUCTION SKYTECH’S remote control system was developed to provide a safe, reliable and user-friendly remote control system for gas heating appliances. This all battery system operates independently of household current. The system operates on radio frequencies with a non-directional signals. The SKYTECH’S operating range is approximately 20 feet range. The system operates on one of 256 security codes that are user programmable; the remote receiver’s code must be matched to that of the transmitter prior to initial use. Review THERMO SAFETY SECTION under RECEIVER section. This high temperature safety feature shuts down the appliance when a potentially unsafe condition exists. TRANSMITTER This remote control SYSTEM offers the user a battery-operated remote control that operates most millivolt gas valves used in some heater rated gas logs, gas fireplaces and other gas heating appliances. The transmitter operates on Lithium 3V battery. Before using the transmitter, install the Lithium 3V transmitter batteries into the battery compartment. (Use caution that batteries are installed in the proper directio…

Text truncated - open the document above for the full version.

3 (1824x2748x16M jpeg)

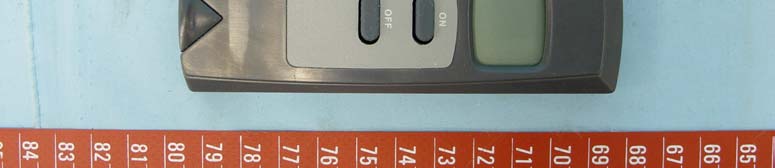

Page 1 CONSTRUCTION PHOTOS OF EUT (Model no.: SKY-4001TH) Page 2 Page 3 (Model no.: SKY-4001LCD) Page 4

PDF created with pdfFactory trial version www.pdffactory.com PDF created with pdfFactory trial version www.pdffactory.com

Page 5 (Model no.: SKY-4001TH) Page 6 Page 7 Page 8 (Model no.: SKY-4001LCD) Page 9 Page 10

FCC ID: K9L-4001THTX Report No.RF940222L01 Operational Description The transmitter of the EUT (Remote control transmitter) is powered by 3Vdc battery. The transmitter uses printed antenna and designed to operate on a fixed frequency at 433.92MHz. The other instruction, please have a look at the users manual. This 433.92MHz transmitter device is operated by manual and activate time is less than 5 second after being released.

FCC ID: K9L-4001THTX Report No.: RF940222L011Report Format Version 2.0.2 FCC TEST REPORT REPORT NO.: RF940222L01 MODEL NO.: SKY-4001TH (refer to page 5 for other model) RECEIVED: Feb. 22, 2005 TESTED: Feb. 23, 2005 ISSUED Apr. 11, 2005 APPLICANT: Skytech II, Inc. ADDRESS: 9230 Conservation Way Fort Wayne, Indiana 46809 ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 26 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: K9L-4001THTX Report No.: RF940222L012Report Format Version 2.0.2 Table of Contents 1.CERTIFICATION ......................................................................................................3 2.SUMMARY OF TEST RESULTS ..............................................................................4 2.1MEASUREMENT UNCERTAINTY ...........................................................................4 3.GENERAL INFORMATION.......................................................................................5 3.1GENERAL DESCRIPTION OF EUT.........................................................................5 3.2DESCRIPTION OF TEST MODES...........................................................................6 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ...................................................... 6 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL: .......................... 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ..........................................8 3.4DESCRIPTION OF SUPPORT UNITS .....................................................................8 4.TEST TYPES AND RESULTS ..................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT ...........................................................9 4.2DEACTIVATION TIME ..............................................................................................9 4.2.1 LIMITS OF DEACTIVATION TIME MEASUREMENT............................................... 9 4.2.2 TEST INSTRUMENTS.............................................................................................. 9 4.2.3 TEST PROCEDURES .............................................................................................. 9 4.2.4 DEVIATION FROM TEST STANDARD .................................................................... 9 4.2.5 TEST SETUP ......................................................................................................... 10 4.2.6 TEST RESULTS ..................................................................................................... 10 4.3RADIATED EMISSION MEASUREMENT ..............................................................12 4.3.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................ 12 4.3.2 TEST INSTRUMENTS............................................................................................ 14 4.3.3 TEST PROCEDURES ............................................................................................ 15 4.3.4 DEVIATION FROM TEST STANDARD .................................................................. 15 4.3.5 TEST SETUP ......................................................................................................... 16 4.3.6 EUT OPERATING CONDITIONS ........................................................................... 16 4.3.7 TEST RESULTS ..................................................................................................... 17 4.420dB OCCUPIED BANDWIDTH MEASUREMENT................................................22 4.4.1 LIMITS OF BAND EDGES MEASUREMENT ........................................................ 22 4.4.2 TEST INSTRUMENTS............................................................................................ 22 4.4.3 TEST PROCEDURES ............................................................................................ 22 4.4.4 DEVIATION FROM TEST STANDARD .................................................................. 22 4.4.5 TEST SETUP ......................................................................................................... 23 4.4.6 TEST RESULTS ..................................................................................................... 23 5.PHOTOGRAPHS OF THE TEST CONFIGURATION.............................................25 6.INFORMATION ON THE TESTING LABORATORIES ...........................................26 FCC ID: K9L-4001THTX Report No.: RF940222L013Report Format Version 2.0.2 1. CERTIFICATION PRODUCT: Remote control transmitter MODEL NO.: SKY-4001TH ( refer to page 5 for other model) BRAND: SKYTECH APPLICANT: Skytech II, Inc. TESTED: Feb. 23, 2005 TEST SAMPLE: R&D SAMPLE STANDARDS: FCC Part 15, Subpart C (Section 15.231), ANSI C63.4-2003 The above equipment (model: SKY-4001TH) have been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Apr. 11, 2005 ( Andrea Hsia ) TECHNICAL ACCEPTANCE:, DATE:Apr. 11, 2005 Responsible for RF ( Gary Chang ) APPROVED BY : , DATE: Apr. 11, 2005 ( Cody Chang, Deputy Manager ) FCC ID: K9L-4001THTX Report No.: RF940222L014Report Format Version 2.0.2 2. SUMMARY OF TEST RESULTS The EUT has been tested accordi…

Text truncated - open the document above for the full version.

FCC ID: K9L-4001THTX Report No.: RF940222L0125Report Format Version 2.0.2 5. PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
