K9LREMOTIONTransmiter

FUNCTIONAL SPECIFICATION COPRECI “ReMotion” TRANSMITTER Revision History Rev. 0: Initial Release. M.R. 7/11/2012. Rev. 1: Following customer review - Changed LCD indication (flashing indicator) for Thermostat Disable and Program Disable Features; Changed factory default THERMO SET Temperature from 45-deg. F to 68- deg. F. M.R. 7/13/2012. Rev. 2: Changed number of LIGHT settings from 0-2 to 0-3 per customer request. M.R. 8/9/2012 Rev. 3: Removed Flame-A setting memory (RX restriction), added requirement for Continuous Pilot ON to be default setting, added requirement for main flame to be ON when activating Continuous Pilot (RX restriction), added Light/Fan/Aux disable features. M.R. 12/13/2012. Rev. 4: Removed manual selection of Continuous Pilot Mode, specified Pilot Method for Manual, Thermostat, and Program modes, changed reaction to 1 st touch of LCD screen (will only illuminate backlight – no reaction to associated Zone function). M.R. 12/21/2012. Rev. 5: Made the factory default for FLAME B, FAN, LIGHTS, and Aux outputs “Disabled” and added reference to “auxiliary module” when referencing these functions. M.R. 5/6/2013. Objective Define basic construction, touch-screen LCD & button layout, and operational parameters for a wireless transmitter to operate the COPRECI “ReMotion” ignition control module & optional auxiliary module. Basic Construction • Transmitter body should be the same construction as current production model ReMotion TX. • Touch-Screen LCD and three push buttons will allow input from users. • LCD screen will provide system status & input feedback to user. • Backlight will illuminate LCD screen for 5 seconds after any user input – the 1 st touch of the LCD screen will only illuminate the backlight (will not respond to associated zone function). • Powered via four AAA sized batteries (6V nominal) with LOW BATTERY INDICATOR (5.0V). Touch-Screen LCD and Button Layout (not-to-scale) MODE Zone SET TEMP Zone ROOM TEMP Zone LIGHT Zone FLAME Zone TI ME/PROG Zone AUX Zone FAN Zone DOWN Button MODE/SET Button UP Button MODE/SET Functional Description Note: All function adjustments will be automatically accepted 15-seconds after pressing a given touch zone or button. The user may press the MODE/SET button to immediately accept the adjustment manually. Day and Time Display • The current day of week and time of day will be continuously displayed in the TIME/PROG Zone (except during Setup operations). • The day of week will be displayed as one of the following: S, M, T, W, T, F, S • The time of day will be in 12-hour AM, 12-hour PM format. Midnight will be displayed as 12:00am. • Day/Time Setup: o Press and hold the MODE Zone for 5 seconds to enter Day/Time Setup. o Press the UP or DOWN Buttons to adjust the day of week (press the MODE/SET Button or wait for 15 seconds for adjustment to be accepted, then enter hour of day adjustment). o Press the UP or DOWN Buttons to adjust the hour of the day. The time will advance in 1-hour increments; AM and PM will change when the hour advances to 12:00 midnight and 12:00 noon respectively (press the MODE/SET Button or wait for 15 seconds for adjustment to be accepted, then enter minute of hour adjustment). o Press the UP or DOWN Buttons to adjust the minute of the hour. The time will advance in 1-minute increments (press the MODE/SET Button or wait for 15 seconds and the transmitter will exit Day/Time Setup and return to normal operation). o LCD Displays – when in Day/Time Setup:
MODE Zone: Blank
ROOM TEMP Zone: Blank
SET TEMP Zone: Bank
LIGHT Zone: Blank
FAN Zone: Blank
TIME/PROG Zone: Day of Week, or Time of Day will Flash
AUX Zone: Blank
FLAME Zone: Blank Pairing • To enter pairing mode press and hold the MODE/SET Button for 10-seconds. • Transmitter will transmit a pairing signal for 20-seconds, then automatically exit pairing mode and return to normal operation. • LCD Displays – When pairing mode is activated: o MODE Zone: Blank o ROOM TEMP Zone: The letters “On” will flash. o SET TEMP Zone: The letter “P” is displayed o LIGHT Zone: Blank o FAN Zone: Blank o TIME/PROG Zone: Blank o AUX Zone: Blank o FLAME Zone: Blank Modes of Operation Operation modes: • MANUAL OFF • MANUAL ON • THERMOSTAT (with optional PROGRAM Mode) The modes may be cycled in the order above by pressing the MODE Zone or the MODE/SET Button. MANUAL OFF Mode: • Transmits flame OFF command. • Pilot Method: Intermittent Pilot Ignition (IPI)/Spark-to-Pilot only (continuous/standing pilot not allowed) o Pilot flame will be turned OFF • LCD Displays: o MODE Zone: OFF is displayed o ROOM TEMP Zone: Measured temperature is displayed o SET TEMP Zone: Blank o LIGHT Zone: LIGHT and light setting level is displayed o FAN Zone: Blank o TIME/PROG Zone: Current day indicator and current time is displayed o AUX Zone: AUX and AUX setting is displayed o FLAME Zone: Blank MANUAL ON Mode: • Transmits flame ON command • Pilot Method: Intermittent Pilot Ignition (IPI)/Spark-to-Pilot only (continuous/standing pilot not allowed) o Pilot flame will be ignited before turn Main Flame ON. • LCD Displays: o MODE Zone: ON is displayed o ROOM TEMP Zone: Measured temperature is displayed o SET TEMP Zone: Blank o LIGHT Zone: LIGHT and light setting level is displayed o FAN Zone: FAN and fan setting level is displayed o TIME/PROG Zone: Current day indicator and current time is displayed o AUX Zone: AUX and AUX setting is displayed o FLAME Zone: A Flame Icon and flame setting level number is displayed THERMOSTAT Mode: • Will cycle flame on and off based on room and set temperatures. Will transmit ON command if SET TEMP (+SWING) is higher than ROOM TEMP and will transmit OFF command if SET TEMP (-SWING) is lower than ROOM TEMP. • Built-in thermostat will measure room temperature. • All programming should be written for deg. F and converted to deg. C when selected. • Temperatures may be displayed in degrees F (factory default) or degrees C. Press the UP and DOWN Buttons simultaneously to ch…

Text truncated - open the document above for the full version.

AGENCY AUTHORIZATION LETTER To whom it may concern: We, the undersigned Skytech II, Inc. , hereby authorize Max Light Technology Co. Ltd. (MLT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15 approval and any communication needed with the national authority. Any and all acts carried out by MLT on our behalf shall have the same effects as acts of our own. For questions regarding the authorization, please contact us. Thank you! Sincerely yours, _____________________________________ (Signature) Original written signature of authorized signer: Christopher Flick / CEO Printed name of authorized signer / Title Date: June 13, 2013

Date: June 13, 2013 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: K9LREMOTION To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: Block Diagrams Schematics Operational Descriptions The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Christopher Flick / CEO _____________________________ (Signature)

Attn: Director of Certification Authority to Act as Agent I appoint Max Light Technology Co., Ltd to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by American TCB, still resides with SKYTECH II, INC. 9230 CONSERVATION WAY, Ft. WAYNE, IN 46809, U.S.A . Date : June 13, 2013 Agency Agreement Expiration Date: (Typically 8-12 months) By: __________________________ Christopher Flick (Signature) (Print name) Title: CEO On behalf of: SKYTECH II, INC. (Company Name) Telephone: 260-459-1703 CANADIAN REPRESENTATIVE LETTER OF ATTESTATION (Multiple Certifications or Registrations sample letter) Canadian Representative Company Name: Coleman & Associates LTD Trade Name: Skytech Systems Canada CN Number: 2439C Contact Name: Mr. Edward Coleman Street Address: 4506 Rowesome Road East, Brockville, Ontario K6T 5T4 Canada City/Province/Zip: Telephone No: 613 341-8695 Fax No: 613 341-8694 Email: [email protected] TO: Industry Canada 3701 Carling Ave., Bldg. 94, Ottawa, ON, K2H 8S2 ATTENTION: Certification and Engineering Bureau This letter is to confirm that we have accepted the responsibility to act as Canadian Representative on behalf of the Applicant noted below for all future Industry Canada certification/registrations obtained during the period of this agreement which ends at the specified date below (if applicable). As Canadian Representative, we are aware of the requirements involved as outlined in Industry Canada applicable documents (RSP-100, Section 3.4 and/or DC-01, Section 7.2). Applicant Company name: Skytech II, Inc. Company Number: 2439A Contact Name: Christopher Flick Address: 9230 Conservation Way, Fort Wayne, IN 46809 U.S.A. Telephone No: 260 459-1703 Fax No: 260 459-1703 Email: [email protected] This Agreement is valid until (expiry date): Signature: Date: June. 13 2013 Signed by (printed name): Edward Coleman American Certification Body Inc. 6731 Whittier Ave. McLean, VA 22101 Acknowledgement of IC Listing Requirements By signing this document, we acknowledge that any information specified on the ACB Application and Agreement Form for Industry Canada Certification Services provided with this application may be provided to Industry Canada. We acknowledge that this information may be posted in the Radio Equipment List (REL) on the Department's Web Site. Additionally, we understand that we must inform ACB of any changes to the information submitted. We further acknowledge that the Certified product shall not be distributed, leased, or offered for sale in Canada prior to its listing on the Industry Canada Radio Equipment List (REL). We are aware that we may verify the status of this listing at the following web address: http://strategis.ic.gc.ca/cgi-bin/sc_mrksv/spectrum/reltelSearch/search.pl?lang=e&db=rel Date: June 13, 2013 By: Christopher Flick (Signature) (Print name) Title: _CEO_______ email: [email protected]_______ On behalf of: Skytech II, Inc. _ (Company Name) Telephone: 260 459-1703 121611-20a RSS-102 Attestation Changes (March 2010) NOTE: The following pages contain RSS-102 ANNEX A, B & C. The following process must now be followed by applicants for IC: excerpt from RSS-102 2.4 Approval Process To obtain approval under this standard, the above-mentioned application for certification shall be accompanied by the duly completed RF technical brief cover sheet (see Annex A) and a properly signed declaration of compliance (see Annex B). However, if the device in question meets the exemption from routine evaluation limits of sections 2.5.1 or 2.5.2, only a signed declaration of compliance needs to be submitted (see Annex C). In addition, submission of the RF exposure technical brief is now required for certification. It shall be accompanied by the completed RF technical brief cover sheet. 121611-20a RSS-102 Annex A ( NOTE: Annex A & B are Required When SAR or RF Evaluation Measurements are Applicable) All Fields must be completed with the requested information or the following codes: N/A for Not Applicable, N/P for Not Performed or N/V for Not Available. Where applicable, check appropriate box. 1. COMPANY NUMBER: 2. MODEL NUMBER: 3. APPLICANT: 4. TYPE OF EVALUATION (Complete the applicable sections): (a) SAR Evaluation: Device Used in the Vicinity of the Human Head; (b) SAR Evaluation: Body-Worn Device; (c) SAR Evaluation: Limb-Worn Device; (d) RF Evaluation Note: The worst-case scenario (i.e. highest measured value obtained) should be reported. (a) SAR Evaluation: Device used in the Vicinity of the Human Head • Multiple transmitters: -Yes -No • Evaluated against exposure limits: -General Public Use -Controlled Use • Duty cycle used in evaluation: % • Standard used for evaluation: • SAR value: W/kg. -Measured -Computed -Calculated (b) SAR Evaluation: Body-Worn Device • Multiple transmitters: -Yes -No • Evaluated against exposure limits: -General Public Use -Controlled Use • Duty cycle used in evaluation: % • Standard used for evaluation: • SAR value: W/kg. -Measured -Computed -Calculated (c) SAR Evaluation: Limb-Worn Device • Multiple transmitters: -Yes -No • Evaluated against exposure limits: -General Public Use -Controlled Use • Duty cycle used in evaluation: % • Standard used for evaluation: • SAR value: W/kg. -Measured -Computed -Calculated (d) RF Evaluation • Evaluated against exposure limits: -General Public Use -Controlled Use • Duty cycle used in evaluation: % • Standard used for evaluation: • …

Text truncated - open the document above for the full version.

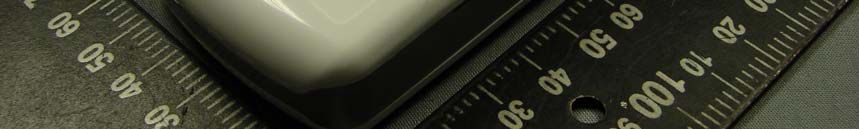

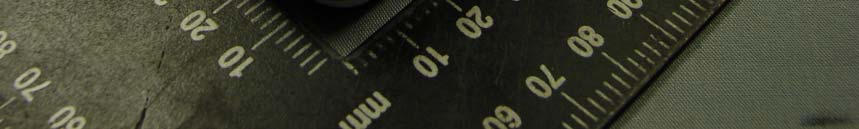

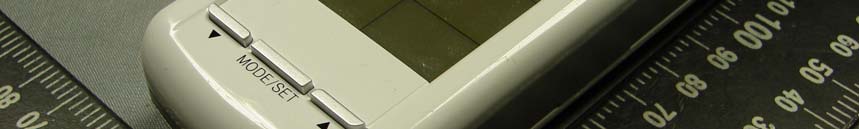

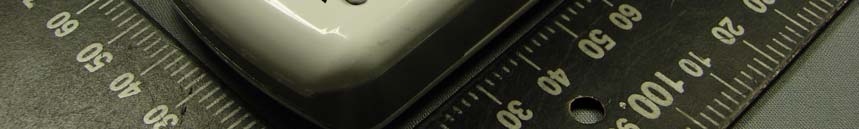

Report Number: MLT1305P15002 Photograph of EUT

Report Number: MLT1305P15002 Label Format: Label Position: Equipment Label 21mmX43mm Rear View This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received , including Interference that may cause undesired operation. Trade Name : Skytech II, Inc. Model No. : ReMotion TX FCC ID: K9LREMOTION

Report Number: MLT1305P15002 Report Number: MLT1305P15002

Page: 1 / 3 Report Number:MLT1305P15002 M M a a x x i i m m u u m m P P e e r r m m i i s s s s i i b b l l e e E E x x p p o o s s u u r r e e 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. Description of EUT Equipment Transmitter Applicant Name Skytech II, Inc. Applicant Address 9230 Conservation Way Fort Wayne, IN 46809 U.S.A Manufacturer Name FEGO Precision Industrial Co.,Ltd Manufacturer Address 947 Lin-Sen Rd.Wu-Fong Tai-Chung 413 Taiwan ROC Model No ReMotion TX FCC ID K9LREMOTION 3. Classification The antenna of this product, under normal use condition, is at least 9.5cm away from the body of the user. Warning statement to the user for keeping at least 9.5cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Remote Control Device. Page: 2 / 3 Report Number:MLT1305P15002 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r^2) Where Pd = power density in mW/cm^2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm (9.5cm) 5. RF Exposure Limit : According to FCC 1. 1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm^2) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 F/300 6 1500-100,000 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 F/1500 30 1500-100,000 1 30 6. Test Result: Frequency (MHz) Max RF Power (mW) TX Antenna Gain (dBi) Testing Result MPE Limit (mW/cm^2) (mW/cm^2) 2415 0.106 2.2 0.0002 1 2445 0.100 2.2 0.0001 1 2475 0.100 2.2 0.0001 1

Page: 1 / 43 Report Number: MLT1305P15002 (FCC : Part 15 Subpart C (15.247) / ANSI C63.4-2003) Classification : (DTS) Digital Transmission System Product :Transmitter Trade Name :Skytech II, Inc. Model No. :ReMotion TX Applicant :Skytech II, Inc. Applicant Address :9230 Conservation Way Fort Wayne, IN 46809 U.S.A Page: 2 / 43 Report Number: MLT1305P15002 Report Number MLT1305P15002 Applicant Skytech II, Inc. Product Transmitter Sample Received Date 2013/5/15 Sample Tested Date 2013/5/15 ～ 2013/6/28 Report Prepared By Jesse Tien Signature Date Prepared 2013/6/28 Report Authorized By Roger Chen Signature Date Authorized 2013/6/28 Test By Max Light Technology Co., Ltd. Room 5, 8F, No.125, Section 3 Roosevelt Road, Taipei, Taiwan., R.O.C. Office : Tel: 886-2-2363-2447 Fax: 886-2-2363-2597 Lab. : Tel: 886-2-2663-3486 Fax: 886-2-2663-3582 It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of our laboratory. Page: 3 / 43 Report Number: MLT1305P15002 Table of Contents : HISTORY OF TEST REPORT ................................................................................................. 4 1. GENERAL............................................................................................................................ 6 2. CONDUCTED EMISSIONS REQUIREMENTS................................................................... 9 3. RADIATED EMISSIONS REQUIREMENTS (BELOW 1GHZ) ........................................... 11 4. MAXIMUM CONDUCTED OUTPUT POWER REQUIREMENTS...................................... 16 5. MINIMUM 6DB RF BANDWIDTH REQUIREMENTS......................................................... 19 6. MAXIMUM POWER DENSITY REQUIREMENTS............................................................. 22 7. OUT OF BAND CONDUCTED SPURIOUS EMISSIONS REQUIREMENTS .................... 25 8. BAND EDGES REQUIREMENTS...................................................................................... 30 9. RADIATED EMISSIONS REQUIREMENTS (ABOVE 1GHZ) ............................................ 34 10. ANTENNA REQUIREMENTS .......................................................................................... 40 APPENDIX I - EUT TEST SETUP ......................................................................................... 41 APPENDIX II - BRAND / TRADE NAME & MODEL NO. MULTIPLE LISTEE ....................... 43 Page: 4 / 43 Report Number: MLT1305P15002 History of Test Report Original Report Issue Date: 2013/6/28 ■ No additional attachment □ additional attachments were issued as in the following record: Attachment No. Issue Date Description MLT1305P15002 2013/6/28 Original report Page: 5 / 43 Report Number: MLT1305P15002 CERTIFICATION We here by verify that : The test data, data evaluation, test procedures and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4-2003. All test were conducted by MLT(Max Light Technology Co., Ltd) Room 5, 8F, No.125, Section 3 Roosevelt Road, Taipei, Taiwan, R.O.C Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with Class B radiated and conducted emission limit of FCC Rules Part 15 Subpart C (15.247). Applicant Name Skytech II, Inc. Applicant Address 9230 Conservation Way Fort Wayne, IN 46809 U.S.A Manufacturer Name FEGO Precision Industrial Co.,Ltd Manufacturer Address 947 Lin-Sen Rd.Wu-Fong Tai-Chung 413 Taiwan ROC Equipment Transmitter Model No ReMotion TX FCC ID K9LREMOTION Report Prepared By Jesse Tien Signature Report Authorized By Roger Chen Signature Page: 6 / 43 Report Number: MLT1305P15002 1. General 1.1 Introduction The following measurement report is submitted on behalf of Skytech II, Inc. In support of a Class B Digital Device certification in accordance with Part2 Subpart J and Part 15 Subpart C of the Commission’s and Regulations. 1.2 Customer Details Applicant Name Skytech II, Inc. Applicant Address 9230 Conservation Way Fort Wayne, IN 46809 U.S.A Manufacturer Name FEGO Precision Industrial Co.,Ltd Manufacturer Address 947 Lin-Sen Rd.Wu-Fong Tai-Chung 413 Taiwan ROC 1.3 Technical data of EUT Equipment Transmitter Model No ReMotion TX FCC ID K9LREMOTION Power Type Battery 6.0V Type of Modulation O-QPSK Carrier Frequency of Each Channel 2415MHz , 2445MHz , 2475MHz Type of Antenna PCB Antenna (F Type) During testing the EUT was operated at Tx mode for each emission measured. This was done in order to ensure that maximum emission levels were attained. Page: 7 / 43 Report Number: MLT1305P15002 1.4 Summary Of Tests 47 CFR Part 15 Subpart C Reference Test Results Note 15.207 Conducted Emission N/A Power by Battery 15.209 Radiated Emission PASS 15.247(c) Transmitter Radiated Emissions PASS 15.247(b) Max. Output Power PASS 15.247(a)(2) 6dB RF Bandwidth PASS 15.247(e) Max. Power Density PASS 15.247(c) Out of Band Conducted Spurious EmissionPASS 15.247(d) Band Edge Measurement PASS 15.203 Antenna Requirement PASS 1.5 Description of Support Equipment The EUT itself forms a system. No support equipment is required for its normal operation. 1.6 Configuration of System Under Test EUT Page: 8 / 43 Report Number: MLT1305P15002 1.7 Test Procedure All measurements contained in this report were performed according to the techniques described in Measurement procedure ANSI C63.4-2003 followed KDB 558074 v03r01. 1.8 General Test Condition The conditions under which the EUT operates were varied to determine their effect on the equipment's emission characteristics. The final configuration of the test system and the mode of operation used during these tests were chosen as that which produced the highest emission levels. However, only those conditions which the EUT was considered likely to encounter in normal use were investigated. The systems radiated and conducted emissions were investigated while the computer…

Text truncated - open the document above for the full version.

Report Number: MLT1305P15002 Photograph of Radiated Measurement Front View of The Test Configuration Rear View of The Test Configuration Report Number: MLT1305P15002 Front View of The Test Configuration Rear View of The Test Configuration
