K9L13XXAREMOTE CONTROL RECEIVER

13XX-A User’s Manual Date:2005-10-11 ¾ Receiver name plate description: ¾ Receiver indicator : 1. “remote”: If receiver control by transmitter then this led will be ON. 2. “Outlet1”: When receiver output 1 ON,then this led will be ON. 3. “Outlet2”: When receiver output 2 ON,then this led will be ON. 4. “Power”:. When receiver get electricity power ,then this led will be ON. ¾ Receiver button : 1. “MODE”: switch receiver output mode. 2. “LEARN”: receiver learn mode use. ¾ Operation: 1. Before use this receiver first need press “LEARN” button to finish learning mode then can operate. Learn step: a. Press “Learn” button, receiver will beep around two second. b. Press transmitter any button ,If receiver have five short beep that mean finish learn mode. 2. Press “MODE” button can switch receiver output mode as below: 3. OFF(outlet1&2 all off)Æ Outlet1 output ON-Æ Outlet2 output ON-Æ Outlet1&outlet2 output ONÆOFF...... 4. If receiver had got three transmitter then it need have “learn clear ID” procedure.Its method is press and hold “Learn” button over 6 second then release button .If ok , receiver will beep three times. ¾ FCC Compliance Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

13XXA RECEIVER BLOCK DIAGRAM AND THERORY DESCRIPTION Date:2005-10-7 BLOCK DIAGRAM: ¾ MCU Electricity power Led display Button input Radio frequence receiver module Outlet output

MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab

Technology Lab Label Format: Label Position: Equipment Label 2.0cmX1.0cm Rear View This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including. Interference that may cause undesired operation. Model No: 13XX-A FCC ID: K9L13XXA

MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab MAX LIGHT Technology Lab

13XXA RECEIVER BLOCK DIAGRAM AND THERORY DESCRIPTION Date:2005-10-7 BLOCK DIAGRAM: ¾ MCU Led display Outlet output Radio frequence receiver module Button input Electricity power THEORY DESCRIPTION: 1. User control receiver action by receiver’s button or get transmitter signal 2. MCU according to command to let receiver LED and output switch according to command..

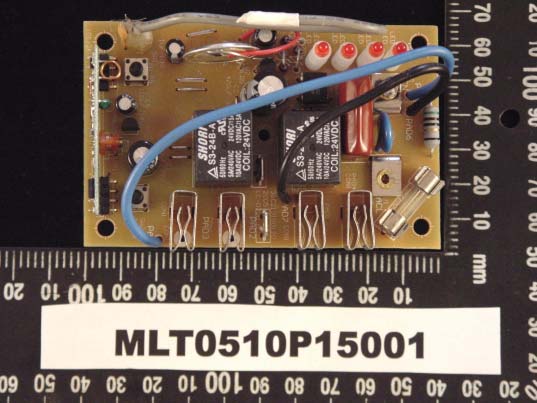

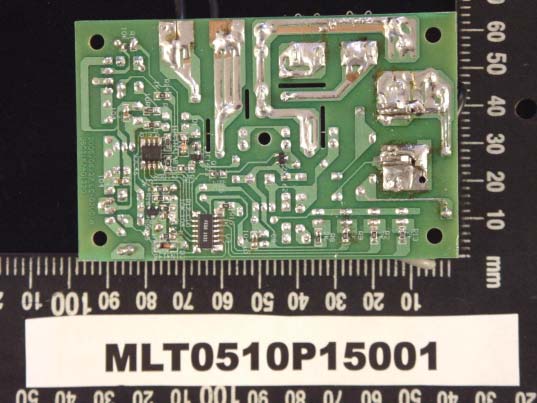

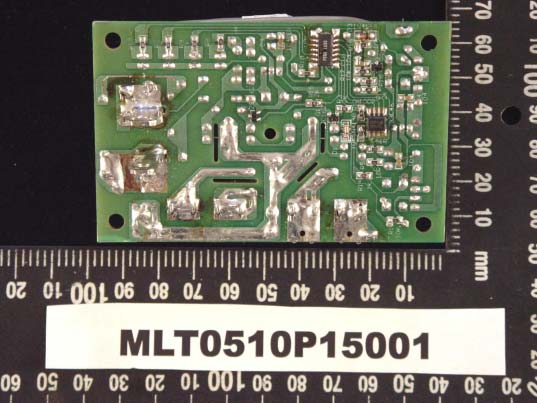

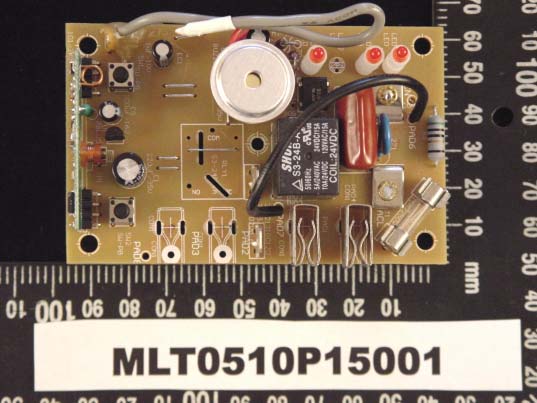

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:7-Oct-2005 Sheet of File:D:\BeenNan\..\bc2131g.schDrawn By: ANT1 ANTENNA R1 10K C1 220uF/35V C3 104 R4 51R IN I GND G OUT O U1 78L05 R5 10R C5 100uF/16V C4 104 24V C7 101/2KV N16 N17 N18 N19 ANT 1 GND 2 GND 3 VCC 4 VCC 5 TEST 6 OUT 7 GND 8 RF1 RF-04A ZNR1 271 R6 50R/1W C8205/250V R7 200K(MF) ZD1 5V6/1W ZD2 5V6/1W C2 470uF/35V C6 220uF/16V VDD24V ACN J1 ACL J2 ACN IN I GND G OUT O U2 78L05 SW1 SW-PB RLY2 S3-24B-1A Q2 2SC1623 R15 2K D2 1N4148 24V N4 N5 HI_OUT R10 1K P50 1 P67 2 P66 3 VDD 4 P65/OSCI 5 P64/OSCO 6 P63/RST/VPP 7 P62/TCC 8 P61 9 P60/INT 10 GND 11 P53 12 P52 13 P51 14 U3 EM78P153 DIO CS CS CLK DIO DIO CLK LED3 HI HI C9 104(G) CS 1 CLK 2 DI 3 DO 4 VSS 5 VCC 8 6 7 U4 93C46 R11 10K R12 100R 93C46 B1 DI104 R9 1K LED2 LED(HI) VDD VDD ACL ACL1 VDD LED2 PWR_LO LED2 K1 K1 SW2 SW-PB R2 1K LED3 LED(?) R13 1K LED4 LED() LED3 LED4 LED4 L2 L3 L4 BZBZ Lo R14 1K CLK RLY1 S3-24B-1A Q1 2SC1623 R3 2K D1 1N4148 24V N2 N3 LO_OUT Lo ACL1 FUSE215A/250V K1,CLKP60-P67 relay 15A/250V. 1800W fuse& zener&7805 Buzzer PAD1 CON1 ACN PAD3 CON1 ACN PAD2 CON1 PAD4 CON1 ACL1 RSTPWR PIN 120VAC ZD3 5V6/1W ZD4 5V6/1W 30VAC VDD LED1 LED R8 10K PAD5 CON1 PAD6 CON1 PAD7 CON1 PAD8 CON1 ACN R18 2K R16 10K Q3 S9015 R17 10K C10 104 VDD D3 1N4148 R19 1M EC1 1uF/10V RESET & POWER LOW RSTPWR_LO RST

Product : Receiver Applicant : SKYTECH II, INC. FCC ID : K9L13XXA Trade Name : SKYTECH II Model No. : 13XX-A (See Appendix II) Report No. : MLT0510P15001 Issue Date : Oct 19, 2005 Test By Max Light Technology Co., Ltd. Room 5, 8F, No.125, Section 3 Roosevelt Road, Taipei, Taiwan, R.O.C. Tel: 886-2-2363-2447 Fax: 886-2-2363-2597 T T h h e e t t e e s s t t r r e e p p o o r r t t c c o o n n s s i i s s t t s s o o f f 3 3 0 0 p p a a g g e e s s i i n n t t o o t t a a l l . . I I t t m m a a y y b b e e d d u u p p l l i i c c a a t t e e d d c c o o m m p p l l e e t t e e l l y y f f o o r r l l e e g g a a l l u u s s e e w w i i t t h h t t h h e e a a l l l l o o w w a a n n c c e e o o f f t t h h e e a a p p p p l l i i c c a a n n t t . . I I t t s s h h a a l l l l n n o o t t b b e e r r e e p p r r o o d d u u c c e e d d e e x x c c e e p p t t i i n n f f u u l l l l , , w w i i t t h h o o u u t t t t h h e e w w r r i i t t t t e e n n a a p p p p r r o o v v a a l l o o f f o o u u r r l l a a b b o o r r a a t t o o r r y y . . MAX LIGHT MEASUREMENT REPORT Page: 2/30 Report Number: MLT0510P15001 FCC ID: K9L13XXA Technology Lab Table of Contents : I. General 4. II. Conducted Emissions Requirements 7. III. Radiated Emissions Requirements 18. Appendix I (EUT Test Setup) 28. Appendix II (Model No.) 30. MAX LIGHT MEASUREMENT REPORT Page: 3/30 Report Number: MLT0510P15001 FCC ID: K9L13XXA Technology Lab CERIFICATION We here by verify that : The test data, data evaluation, test procedures and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003. All test were conducted by MLT (Max Light Technology Co., Ltd) Room 5, 8F, No.125, Section 3 Roosevelt Road, Taipei, Taiwan, R.O.C Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with Class B radiated and conducted emission limit of FCC Rules Part 15 Subpart B. EUT : Receiver Applicant : SKYTECH II, INC. 9230 Conservation Way, Fort Wayne, IN 46809, U.S.A. Manufacturer : FEGO Precision Industrial Co.,Ltd 947 LIN SEN RD.,WU-FENG SHIANG TAICHUNG HSIEN R.O.C. Model No : 13XX-A (See Appendix II) FCC ID : K9L13XXA Prepared by : Approved by : Jesse Tien Roger Chen MAX LIGHT MEASUREMENT REPORT Page: 4/30 Report Number: MLT0510P15001 FCC ID: K9L13XXA Technology Lab I. GENERAL 1.1 Introduction The following measurement report is submitted on behalf of SKYTECH II INC. In support of a Class B Device Certification in accordance with Part2 Subpart J and Part 15 Subpart A And B of the Commission’s and Regulations. The test data, data evaluation, test procedures and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003. ANSI STANDARD C63.4- 2003 SUPER REGENERATIVE RECEIVER: A signal generator was set to the unit under test operating frequency. An un- modulated continuous wave (CW) signal was radiated at the super- regenerative receiver operating frequency to cohere the characteristic broadband emissions from the receiver. EUT : Receiver Applicant : SKYTECH II, INC. 9230 Conservation Way, Fort Wayne, IN 46809, U.S.A. Manufacturer : FEGO Precision Industrial Co. Ltd 947 LIN SEN RD., WU-FENG SHIANG TAICHUNG HSIEN R.O.C. Model No : 13XX-A (See Appendix II) FCC ID : K9L13XXA Power Type : Power By AC 120V / 60Hz During testing the EUT was operated at Testing mode for each emission measured. This was done in order to ensure that maximum emission levels were attained. MAX LIGHT MEASUREMENT REPORT Page: 5/30 Report Number: MLT0510P15001 FCC ID: K9L13XXA Technology Lab 1.2 Description of Support Equipment In order to construct the minimum system which required by the ANSI C63.4: 2003, following equipments were used as the support units. The Receiver itself forms a system. No support equipment is required for its normal operation. 1.3 Configuration of System Under Test During testing the EUT (Receiver)’s one cable was connected to Light bulb, the other Port’s cable was connected to LED and battery box circuit. When the EUT was “ON”, the LED and light bulb were lighting. Power Supply EUT Battery Box (3Vdcx) SW LED Light MAX LIGHT MEASUREMENT REPORT Page: 6/30 Report Number: MLT0510P15001 FCC ID: K9L13XXA Technology Lab 1.4 Test Procedure All measurements contained in this report were performed according to the techniques described in Measurement procedure ANSI C63.4-2003 "Measurement of unIntentional Radiators." 1.5 General Test Condition The conditions under which the EUT operates were varied to determine their effect on the equipment's emission characteristics. The final configuration of the test system and the mode of operation used during these tests were chosen as that which produced the highest emission levels. However, only those conditions which the EUT was considered likely to encounter in normal use were investigated. The system's radiated and conducted emissions were investigated while the EUT keep operating ON and OFF mode by receiving signals from transmitter. The system's physical layout and cabling was randomly arranged to ensure that maximum emission levels were attained. MAX LIGHT MEASUREMENT REPORT Page: 7/30 Report Number: MLT0510P15001 FCC ID: K9L13XXA Technology Lab II. Conducted Emissions Requirements 2.1 General & Setup : The power line conducted emission measurements were performed in a shielded enclosure. The EUT was assembled on a wooden table which is 80 centimeters high, was placed 40 centimeters from the back wall and at least 1 meter from the sidewall. Power was fed to the EUT from the public utility power grid through a line filter and EMCO Model 3825/2 Line Impedance Stabilization Networks (LISN). The LISN housing, measuring instrumentation case, ground plane, etc., were electrically bonded together at the same RF potential. The Spectrum analyzer was connected to the AC line through an isolation transformer…

Text truncated - open the document above for the full version.

MAX LIGHT MEASUREMENT REPORT Page: 19/30 Report Number: MLT0510P15001 FCC ID: K9L13XXA Technology Lab 3.3 Test Configuration: Front View of The Test Configuration (1315-A) MAX LIGHT MEASUREMENT REPORT Page: 20/30 Report Number: MLT0510P15001 FCC ID: K9L13XXA Technology Lab Rear View of The Test Configuration (1315-A) MAX LIGHT MEASUREMENT REPORT Page: 21/30 Report Number: MLT0510P15001 FCC ID: K9L13XXA Technology Lab Front View of The Test Configuration (1320-A) MAX LIGHT MEASUREMENT REPORT Page: 22/30 Report Number: MLT0510P15001 FCC ID: K9L13XXA Technology Lab Rear View of The Test Configuration (1320-A) MAX LIGHT MEASUREMENT REPORT Page: 23/30 Report Number: MLT0510P15001 FCC ID: K9L13XXA Technology Lab Front View of The Test Configuration (1321-A) MAX LIGHT MEASUREMENT REPORT Page: 24/30 Report Number: MLT0510P15001 FCC ID: K9L13XXA Technology Lab Rear View of The Test Configuration (1321)
