K9L3003TRRXWireless Thermostat Receiver

Travis 3003 User’s Manual (Note: The User Manual is for Both Receiver and Transmitter) (Receiver Model No: 3003TR / 3003TR RX) This remote control SYSTEM offers the user a battery-operated remote control that operates most millivolt gas valves used in some heater rated gas logs, gas fireplaces and other gas heating appliances. The transmitter operates on (2) 1.5V AAA batteries. It is recommended that ALKALINE batteries always be used for longer battery life and maximum operational performance. Before using the transmitter， install the (2) AAA transmitter batteries into the battery compartment. (Use caution that batteries are installed in the proper direction) Receiver (Receiver Model No: 3003TR / 3003TR RX) TO WORK WITH TRANSMITTER Put the receiver’s plug in the socket. Connect the Fan / Light / Gas valves to the jack of Receiver Use the transmitter to control the power on/off of Fan / Light / Gas valves. KEY SETINGS  MODE – Changes unit to ON / Thermo / OFF mode position.  UP / DOWN – Changes temperature, time(r) and other functions’ value.  TIMER / FAN / FLAME / LIGHT - Changes each function to enable or disable.  OK - Sets temperature, time(r) and other functions. LCD 1. ON / THERMO / OFF Indicates current mode. 2. ROOM °F OR °C Indicates current room temperature. 3. LIGHT Indicates light/valve in operation. 4. AUX Indicates auxiliary function enable/disable.. 5. FLAME Indicates burner/valve in operation. 6. SET °F OR °C Appears the desired temperature to indicate setting room temperature during the time of setting in the thermo operation. 7. Battery icon Indicates the battery is low or not. 8. FAN Indicates fan/valve in operation. 9. TIMER / TIME Appears the time and the countdown timer. MANUAL FUNCTION Initial Setup Press the “ “ key and the “LIGHT” key on the transmitter at the same time. this will into the initial setup mode. Each function scale setting is changed by “UP” or “DOWN” key. 1. Setting °F / °C Scale The setting is for changing temperature °F / °C. 2. Setting Swing Scale The setting is for swing temperature. 3. Setting Gas Type The setting is for gas type NG / LP. 4. Setting Time The setting is for time. Mode To operate the system in the manual “MODE” does the following. ON OPERATION Press the “MODE” key into the ON mode. The appliance flame and fan will come on. During this time the screen will show ON. All the functions, FAN / FLAME / TIMER, will be active. THERMO OPERATION Press the “MODE” key into the THERMO mode. The transmitter will check the ROOM temperature and SET temperature to decide the situation THERMO ON or THERMO OFF. After 2 seconds the LCD screen will display the situation by temperature detected that is comparing with the SWING temperature scale. OFF OPERATION Press the “MODE” key into the OFF mode. The appliance flame and fan will shut off. During this time the screen will show OFF. All the functions, FAN / FLAME / TIMER, will be shut down exception of LIGHT function. THERMOSTAT FUNCTION SETTING DESIRED ROOM TEMPERATURE This remote control system can be thermostatically controlled when the transmitter is in the THERMO mode. To set the THERMO MODE and DESIRED room temperature， During the THERMO mode, Press “Up” / “DOWN” key the LCD screen set numbers will increase / decrease between 45° and 99°(*) then loop the temperature. THERMO ON situation During this mode the screen will display the set flame/valve and fan/value at the same time enable the functions setting. THERMO OFF situation During the situation the functions, FAN / FLAME / TIMER, will be shut down exception of LIGHT function NOTE: (*) The highest SET temperature is 99° Fahrenheit (32° Celsius) and the lowest temperature is (45° Fahrenheit (6° Celsius) FCC Compliance Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Notice 15.21 Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

AmericanTCB, Inc. 6731 Whittier Avenue, Suite C110 • McLean, Virginia 22101 Ph: (703) 847-4700 • Fax: (703) 847-6888 • www.AmericanTCB.com Date 2007.09.04 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Max Light Technology Co., Ltd Laboratory is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Applicant: Skytech II, Inc. Signature _____________________ Christopher Flick/ CEO • [email protected] 061306 - 1

Date: 19 September 2007 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: K9L3003TRRX To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: Block Diagrams Schematics Operational Descriptions The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Christopher Flick / CEO _____________________________ (Signature) (Notice: Must be signed by applicant contact cited as technical or non-technical contact on the 731 form provided to ATCB, or by the authorized agent if an appropriate authorized agent letter has bee provided. Letters Signed by applicant should be placed on applicant letterhead.)

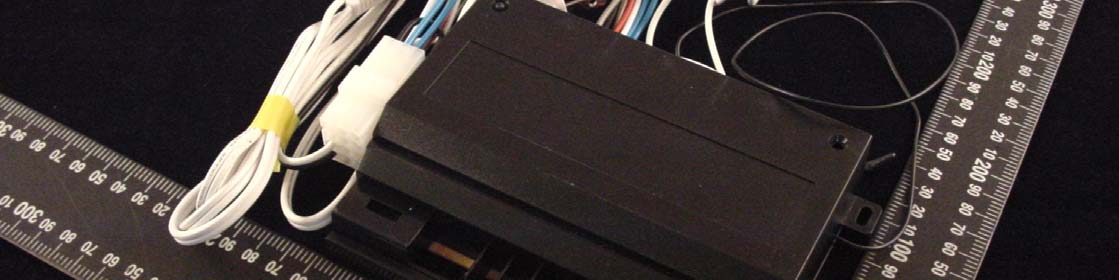

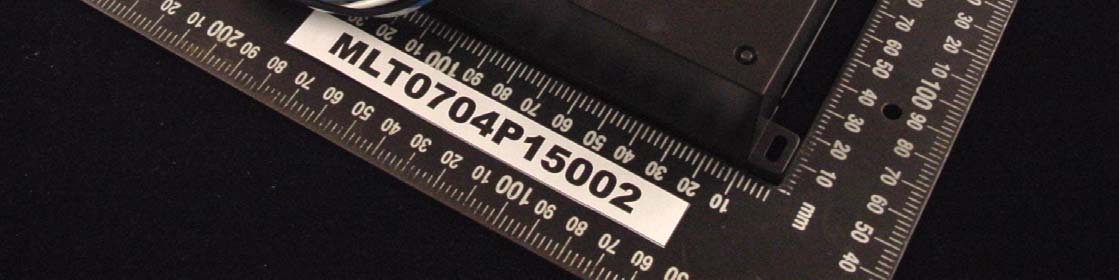

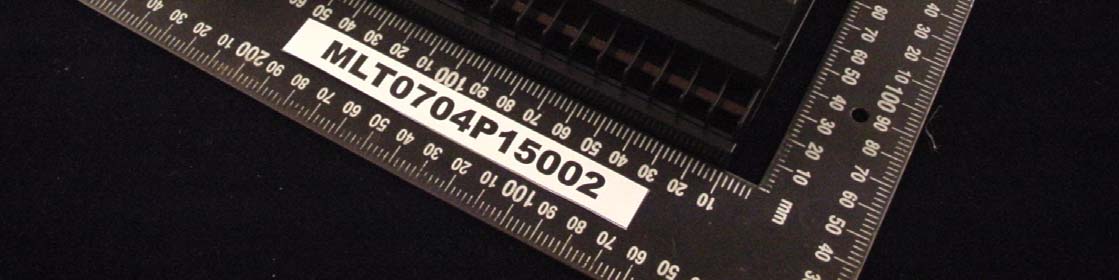

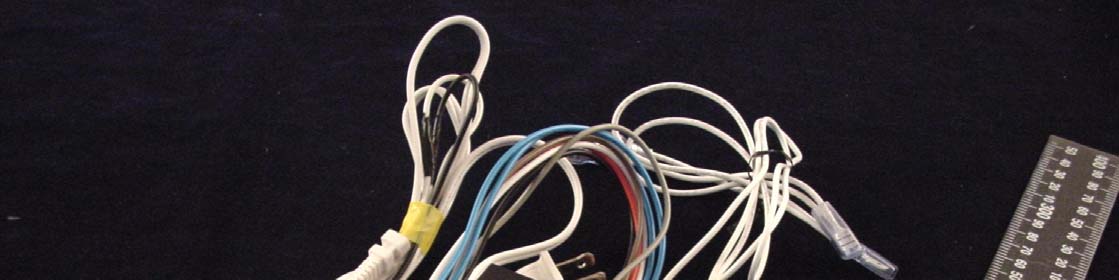

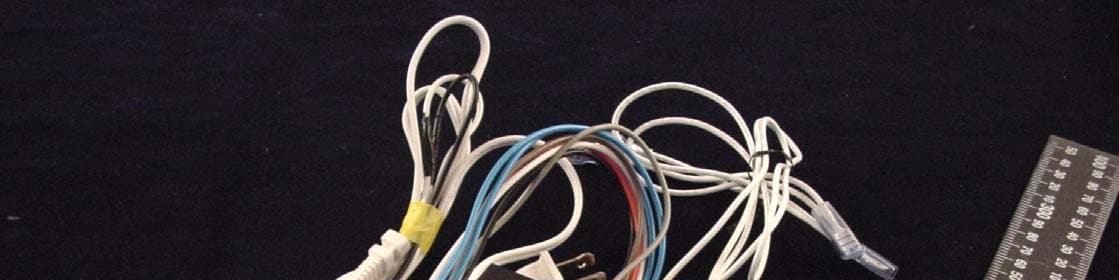

Page:5/9 Report Number: MLT0704P15002 PHOTOGRAPHS OF EUT Page:6/9 Report Number: MLT0704P15002

Report Number: MLT0704P15002 Label Format: Label Position: Equipment Label 2.0cmX1.0cm This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received , including Interference that may cause undesired operation. Model No. : 3003TR / 3003TR RX FCC ID: K9L3003TRRX Rear View

Page:7/9 Report Number: MLT0704CS03003 Page:8/9 Report Number: MLT0704CS03003 Page:9/9 Report Number: MLT0704CS03003

Page: 1/14 Report Number: MLT0704CS03003 (RSS-210 / ANSI C63.4-2003) Product :Receiver Trade Name :SKYTECH II Model No. :3003TR / 3003TR RX Applicant :Skytech II, Inc. Applicant Address :9230 Conservation Way,Ft. Wayne, IN 46809, U.S.A. Page: 2/14 Report Number: MLT0704CS03003 Report Number MLT0704CS03003 Applicant Skytech II, Inc. Product Receiver Sample Received Date 2007/04/10 Report Prepared By Jesse Tien Signature Date Prepared 2007/04/11 ～ 2007/08/27 Report Authorized By Roger Chen Signature Date Authorized 2007/09/28 Test By Max Light Technology Co., Ltd. Room 5, 8F, No.125, Section 3 Roosevelt Road, Taipei, Taiwan., R.O.C. Office : Tel: 886-2-2363-2447 Fax: 886-2-2363-2597 Lab. : Tel: 886-2-2663-3486 Fax: 886-2-2663-3582 I I t t m m a a y y b b e e d d u u p p l l i i c c a a t t e e d d c c o o m m p p l l e e t t e e l l y y f f o o r r l l e e g g a a l l u u s s e e w w i i t t h h t t h h e e a a l l l l o o w w a a n n c c e e o o f f t t h h e e a a p p p p l l i i c c a a n n t t . . I I t t s s h h a a l l l l n n o o t t b b e e r r e e p p r r o o d d u u c c e e d d e e x x c c e e p p t t i i n n f f u u l l l l , , w w i i t t h h o o u u t t t t h h e e w w r r i i t t t t e e n n a a p p p p r r o o v v a a l l o o f f o o u u r r l l a a b b o o r r a a t t o o r r y y . . Page: 3/14 Report Number: MLT0704CS03003 Table of Contents : I. General 5. II. Conducted Emissions Requirements 7. III. Radiated Emissions Requirements 10. Appendix I (EUT Test Setup) 13. Page: 4/14 Report Number: MLT0704CS03003 CERTIFICATION We here by verify that : The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003. All test were conducted by MLT (Max Light Technology Co., Ltd) Room 5, 8F, No.125, Section 3 Roosevelt Road, Taipei, Taiwan, R.O.C Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with radiated and conducted emission limit of ICES-003 and RSS-210 Issue 5 Section 6.1 and 6.3. Applicant Name Skytech II, Inc. Applicant Address 9230 Conservation Way,Ft. Wayne,IN 46809,U.S.A. Manufacturer Name FEGO Precision Industrial Co.,Ltd Manufacturer Address 947 LIN SEN RD., WU-FENG SHIANG TAICHUNG HSIEN R.O.C. Equipment Receiver Model No 3003TR / 3003TR RX IC 2439A-3003TRRX Report Prepared By Jesse Tien Signature Report Authorized By Roger Chen Signature Page: 5/14 Report Number: MLT0704CS03003 I. GENERAL 1.1 Introduction The following measurement report is submitted on behalf of Skytech II, Inc. In support of a Class B Digital Device certification in accordance with ICES-003 and RSS-210 of the Commission’s and Regulations. 1.2 Customer Details Applicant Name Skytech II, Inc. Applicant Address 9230 Conservation Way,Ft. Wayne,IN 46809,U.S.A. Manufacturer Name FEGO Precision Industrial Co., Ltd. Manufacturer Address 947 LIN SEN RD., WU-FENG SHIANG TAICHUNG HSIEN R.O.C. 1.3 Technical data of EUT Equipment Receiver Model No 3003TR / 3003TR RX IC 2439A-3003TRRX Power Type Powered by AC 120V 1.4 Description of Support Equipment The EUT itself forms a system. No support equipment is required for its normal operation. Page: 6/14 Report Number: MLT0704CS03003 1.5 Configuration of System Under Test 1.6 Test Procedure All measurements contained in this report were performed according to the techniques described in Measurement procedure ANSI C63.4: 2003 "Measurement of Intentional Radiators." 1.7 General Test Condition The conditions under which the EUT operates were varied to determine their effect on the equipment's emission characteristics. The final configuration of the test system and the mode of operation used during these tests were chosen as that which produced the highest emission levels. However, only those conditions which the EUT was considered likely to encounter in normal use were investigated. Power Supply EUT Page: 7/14 Report Number: MLT0704CS03003 II. Conducted Emissions Requirements 2.1 General & Setup : The power line conducted emission measurements were performed in a shielded enclosure. The EUT was assembled on a wooden table which is 80 centimeters high, was placed 40 centimeters from the back wall and at least 1 meter from the sidewall. Power was fed to the EUT from the public utility power grid through a line filter and EMCO Model 3825/2 Line Impedance Stabilization Networks (LISN). The LISN housing, measuring instrumentation case, ground plane, etc., were electrically bonded together at the same RF potential. The Spectrum analyzer was connected to the AC line through an isolation transformer. The 50-ohm output of the LISN was connected to the spectrum analyzer directly. Conducted emission levels were in the CISPER quasi-peak detection mode. The analyzer's 6 dB bandwidth was set to 9 KHz. No post-detector video filter was used. The spectrum was scanned from 150 KHz to 30 MHz. The physical arrangement of the test system and associated cabling was varied (within the scope of arrangements likely to be encountered in actual use) to determine the effect on the unit's emanations in amplitude and frequency. All spurious emission frequencies were observed. The highest emission amplitudes relative to the appropriate limit were measured and have been recorded in paragraph 2.6. 2.2 Test Equipment List: Item Mfr/Brand Instruments Serial No. Model/Type No. Calibrated Date Next Cali. Date 1. Agilent Spectrum Analyzer US40240137E7403A 2007/01/19 2008/01/19 2. AFJ EMI Receiver 55090002141ER 55C 2007/04/12 2008/04/12 3. EMCO LISN 2654 3825/2 2007/03/22 2008/03/22 4. SCHAFFNER ISN 16831 ISN T400 2007/04/23 2008/04/23 Page: 8/14 Report Number: MLT0704CS03003 2.4 Test condition: EUT tested in accordance with the specifications given by the manufacturer, and exercised in the most unfavorable manner. 2.5 Conducted Emissions Limits: Limits (dBuV) Frequency range (MHz) Quasi-peak Average 0…
