K9L5001Fireplace Remote Controller

5001 Operation description Date:2007-11-14 Author: Javy Huang z LCD Diagram z LCD Indicator: 1. Low Battery: Battery power is low. Replace batteries within two weeks. 2. Radio Frequency Icon: It will be showed if the RF command is transmitting by manual operation. 3. Room Temperature: Indicates CURRENT room temperature. 4. Manual On: It’s button region for operating the system ON. 5. Child Proof: Lock-out operation of the appliance. 6. Manual Off: It’s button region for operating the system OFF. 7. Manual On Flame Icon: Indicates burner/valve in operation. 8. Reserve Flame Icon : Reserved for providing multiple flame modulation levels by providing a variable current output to specific modulation device. z Button Description: 1) Manual On: Press once, unit comes on in System On. The flame icon appears on screen. 2) Manual Off: Press once, unit comes on in System Off. The flame icon disappeared. 3) Child Proof Lockout：To activate the child-proof lockout feature, press and hold and buttons for 10 seconds, “＂ will briefly appear on screen. z Operation Description: 1) Low Battery ( ) will appear when battery power has dropped significantly. 2) The RF Icon ( ) will be showed if the RF command is transmitting by manual operation. 3) The room temperature always shows on screen, which range between 32 and 99 Fahrenheit. 4) The On ( ) always shows on screen. 5) The Off () always shows on screen. 6) The Child Proof ( ) will appear on screen if the “Lock-out＂ Feature is activation. 7) The Flame icon () , the main flame indicates burner/valve in operation and additional flame is reserved for specific modulation device. z Further Description 1) Radio Frequency range: 303.8MHZ 2) The remote receiver is SR 1001. 3) The remote controller effective distance is above 40 feet. FCC Compliance Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

Attn: Director of Certification Authority to Act as Agent I appoint Max Light Technology Co., Ltd to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by American TCB, still resides with SKYTECH II, INC. 9230 CONSERVATION WAY, Ft. WAYNE, IN 46809, U.S.A . Dated this 30 day of November 20 07 . Agency Agreement Expiration Date: (Typically 8-12 months) By: __________________________ Christopher Flick (Signature) (Print name) Title: CEO On behalf of: SKYTECH II, INC. (Company Name) Telephone: 260-459-1703

Date: 4 December 2007 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: K9L5001 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: Block Diagrams Schematics Operational Descriptions The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Christopher Flick / CEO _____________________________ (Signature) (Notice: Must be signed by applicant contact cited as technical or non-technical contact on the 731 form provided to ATCB, or by the authorized agent if an appropriate authorized agent letter has bee provided. Letters Signed by applicant should be placed on applicant letterhead.)

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 6, 2007 RE: Skytech FCC ID: K9L5001 I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) Please provide an Operational Description for this device. 2.) I have multiple files of the same description: i.e. Test Setup, Test Report, various photos, etc. Can you help me understand why there are so many duplicate files? If some are specifically for Canada and others for FCC, a separate listing of what files should be applied to which filing would be very helpful. 3.) Please provide a Block Diagram of the 303MHz RF module. If this is a single chip transmitter part, it would be helpful if the manufacturer’s specification sheet was provided instead. 4.) It appears that you are seeking approval under 15.231(a). Note that it does not appear that the requirements of 15.231(a)(3) have been demonstrated. This is a difficult section, and is generally not applicable to devices which transmit or act on any kind of received information. In this case it appears that transmission of some kind of signaling to the receiver is occurring. You may instead wish to review 15.231(e) to determine it’s applicability. This has a 3 meter fundamental field strength limit of 66.97dBuV with a spurious level of 46.97dBuV. Please also note it’s equivalent section within RSS-210. William H. Graff President mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

William Graff From: Hermann Kuo [[email protected]] Sent: Wednesday, December 19, 2007 5:19 PM To: 'William Graff'; 'George Chen'; 'Major Chen' Cc: [email protected]; [email protected] Subject: RE: www.AmericanTCB.com ATCB005710 | K9L5001 | 2439A - 5001 | | K9L5001_ATCB005710 12/20/2007 Hi Bill, For question (4), Please read our reply as below. 4.) It appears that you are seeking approval under 15.231(a). Note that it does not appear that the requirements of 15.231(a)(3) have been demonstrated. This is a difficult section, and is generally not applicable to devices which transmit or act on any kind of received information. In this case it appears that transmission of some kind of signaling to the receiver is occurring. You may instead wish to review 15.231(e) to determine it’s applicability. This has a 3 meter fundamental field strength limit of 66.97dBuV with a spurious level of 46.97dBuV. Please also note it’s equivalent section within RSS-210. MLT: We already revised the test report and uploaded to ATCB server. Please help to issue the grant, thank you. Best Regards, Hermann MAX LIGHT TECHNOLOGY CO., LTD TEL: 886-2-2663-3486 FAX: 866-2-2663-3582 Email: [email protected] 071219 This e-mail and any attachment are confidential and intended solely for the use of the individual to whom it is addressed. If you are not the intended recipient, please telephone or email the sender and delete this message and any attachment from your system. Unauthorized publication, use, dissemination, forwarding, printing or copying of this e-mail and its associated attachments is strictly prohibited. From: Hermann Kuo [mailto:[email protected]] Sent: Wednesday, December 12, 2007 11:14 AM To: 'William Graff'; 'George Chen'; 'Major Chen' Cc: '[email protected]'; '[email protected]' Subject: RE: www.AmericanTCB.com ATCB005710 | K9L5001 | 2439A - 5001 | | K9L5001_ATCB005710 Hi Bill, Thanks for your comments. Please read our reply as below, thank you. 1.) Please provide an Operational Description for this device. MLT: We already uploaded operational description to ATCB server. 2.) I have multiple files of the same description: i.e. Test Setup, Test Report, various photos, etc. Can you help me understand why there are so many duplicate files? If some are specifically for Canada and others for FCC, a separate listing of what files should be applied to which filing would be very helpful. MLT: Sorry for the unconvenience. The 4 files with copy(1) are for Canada RSS-210. Generally speaking, the photo, schematic diagram, block diagram, user manual..etc are the same for both FCC ID and Canada RSS-210. To avoid this confuses you again, we will just upload them once on next application wihc include FCC ID and RSS-210. Thanks for your understanding. 3.) Please provide a Block Diagram of the 303MHz RF module. If this is a single chip transmitter part, it would be helpful if the manufacturer’s specification sheet was provided instead. MLT: We already upload the Block diagram to ATCB server. 4.) It appears that you are seeking approval under 15.231(a). Note that it does not appear that the requirements of 15.231(a)(3) have been demonstrated. This is a difficult section, and is generally not applicable to devices which transmit or act on any kind of received information. In this case it appears that transmission of some kind of signaling to the receiver is occurring. You may instead wish to review 15.231(e) to determine it’s applicability. This has a 3 meter fundamental field strength limit of 66.97dBuV with a spurious level of 46.97dBuV. Please also note it’s equivalent section within RSS-210. MLT: This EUT is seeking approval of 15.231. Best Regards, Hermann 12/20/2007 MAX LIGHT TECHNOLOGY CO., LTD TEL: 886-2-2663-3486 FAX: 866-2-2663-3582 Email: [email protected] 071212 This e-mail and any attachment are confidential and intended solely for the use of the individual to whom it is addressed. If you are not the intended recipient, please telephone or email the sender and delete this message and any attachment from your system. Unauthorized publication, use, dissemination, forwarding, printing or copying of this e-mail and its associated attachments is strictly prohibited. -----Original Message----- From: William Graff [mailto:[email protected]] Sent: Thursday, December 06, 2007 3:35 PM To: [email protected]; [email protected]; [email protected] Cc: [email protected] Subject: www.AmericanTCB.com ATCB005710 | K9L5001 | 2439A - 5001 | | K9L5001_ATCB005710 Regarding www.AmericanTCB.com application: ATCB ID: ATCB005710 FCC ID: K9L5001 IC: 2439A - 5001 TCF: Account name: MLTLAB Please see attached comments on this filing. Best Regards, Bill ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~ William H. Graff, NARTE Certified ~ President ~ AmericanTCB, Inc. ~ mailto:[email protected] ~ Corporate Phone: (703) 847-4700 ~ Taiwan Office: (703) 310-6868 12/20/2007 ~ Taiwan Mobile: +886 920399260 ~ SKYPE: whgraff ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ __________ NOD32 2707 (20071206) Information __________ This message was checked by NOD32 antivirus system. http://www.nod32.com.hk 12/20/2007

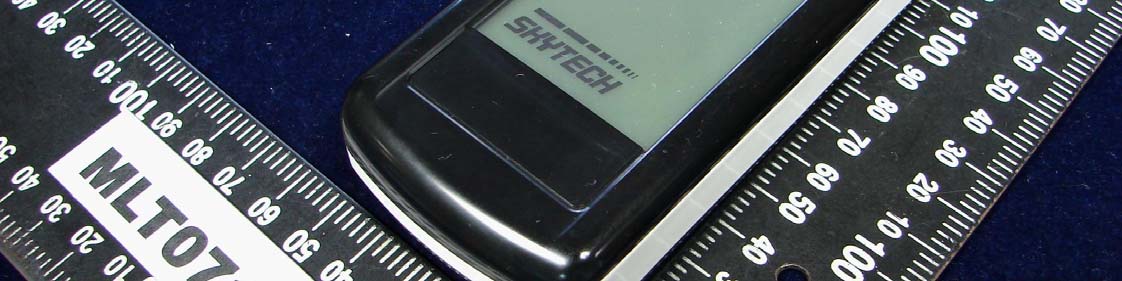

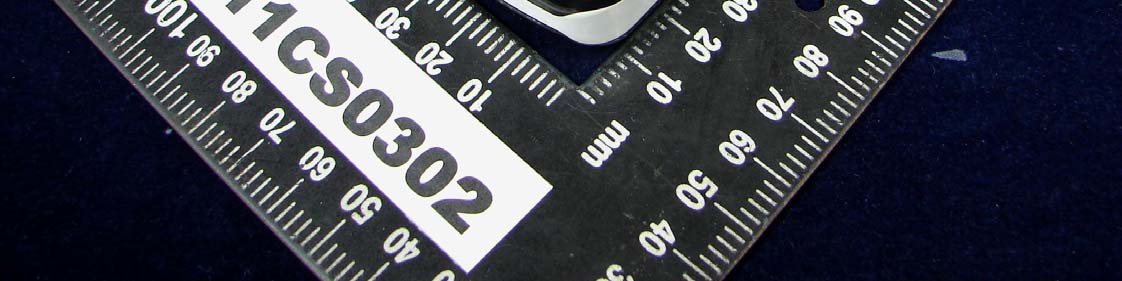

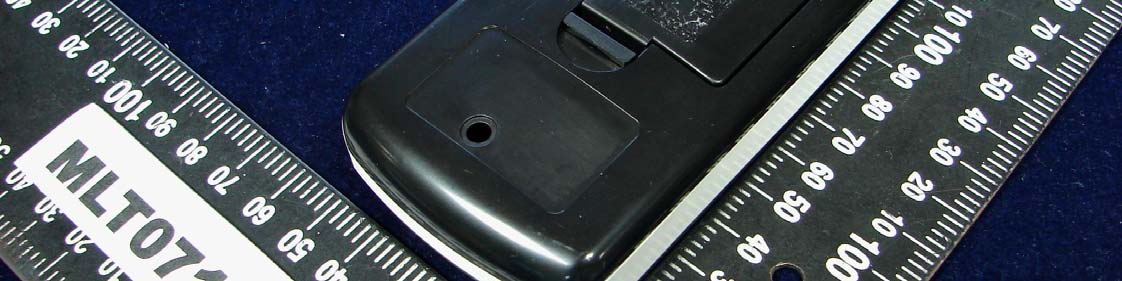

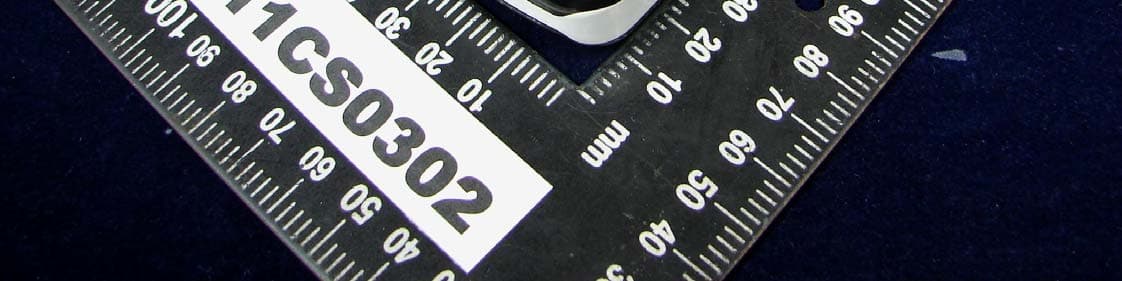

Page:3/7 Report Number: MLT0711CS03002 PHOTOGRAPHS OF EUT SKY-5301 Page:4/7 Report Number: MLT0711CS03002 SKY-5301 Page:9/7 Report Number: MLT0711CS03002 SKY-5001 Page:10/7 Report Number: MLT0711CS03002 SKY-5001

Report Number: MLT0711CS03002 Label Format: Label Position: Equipment Label 3.0cmX2.0cm Rear View

Page:5/7 Report Number: MLT0711CS03002 SKY-5301 Page:6/7 Report Number: MLT0711CS03002 SKY-5301 Page:7/7 Report Number: MLT0711CS03002 SKY-5301 Page:8/7 Report Number: MLT0711CS03002 SKY-5301 Page:11/7 Report Number: MLT0711CS03002 SKY-5001 Page:12/7 Report Number: MLT0711CS03002 SKY-5001 Page:13/7 Report Number: MLT0711CS03002 SKY-5001 Page:14/7 Report Number: MLT0711CS03002 SKY-5001

Page: 1/26 Report Number: MLT0711P15003 (FCC : Part 15 Subpart C / ANSI C63.4-2003) Product :Transmitter Trade Name :Skytech II Model No. :SKY-5001/SKY-5301/SKY-5310/SKY-5010 Applicant :Skytech II, Inc. Applicant Address :9230 Conservation Way,Ft. Wayne, IN 46809, U.S.A. Page: 2/26 Report Number: MLT0711P15003 Report Number MLT0711P15003 Applicant Skytech II, Inc. Product Transmitter Sample Received Date 2007/11/20 Report Prepared By Jesse Tien Signature Date Prepared 2007/11/21 ～ 2007/11/26 Report Authorized By Roger Chen Signature Date Authorized 2007/11/27 Test By Max Light Technology Co., Ltd. Room 5, 8F, No.125, Section 3 Roosevelt Road, Taipei, Taiwan., R.O.C. Office : Tel: 886-2-2363-2447 Fax: 886-2-2363-2597 Lab. : Tel: 886-2-2663-3486 Fax: 886-2-2663-3582 I I t t m m a a y y b b e e d d u u p p l l i i c c a a t t e e d d c c o o m m p p l l e e t t e e l l y y f f o o r r l l e e g g a a l l u u s s e e w w i i t t h h t t h h e e a a l l l l o o w w a a n n c c e e o o f f t t h h e e a a p p p p l l i i c c a a n n t t . . I I t t s s h h a a l l l l n n o o t t b b e e r r e e p p r r o o d d u u c c e e d d e e x x c c e e p p t t i i n n f f u u l l l l , , w w i i t t h h o o u u t t t t h h e e w w r r i i t t t t e e n n a a p p p p r r o o v v a a l l o o f f o o u u r r l l a a b b o o r r a a t t o o r r y y . . Page: 3/26 Report Number: MLT0711P15003 Table of Contents : I. General 5. II. Conducted Emissions Requirements 7 III. Radiated Emissions Requirements 8. IV. Transmitter Bandwidth Measurements 17. V. Transmitter Duty Cycle Measurements 19. VI. Verification of De-activation after 5 seconds 23. Appendix I ( EUT Test Setup ) 26. Page: 4/26 Report Number: MLT0711P15003 CERTIFICATION We here by verify that : The test data, data evaluation, test procedures and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4-2003. All test were conducted by MLT(Max Light Technology Co.,Ltd) Room 5, 8F, No.125, Section 3 Roosevelt Road, Taipei, Taiwan, R.O.C Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with radiated emission limit of FCC Rules Part 15 Subpart C Section 15.231. Applicant Name Skytech II, Inc. Applicant Address 9230 Conservation Way,Ft. Wayne,IN 46809,U.S.A. Manufacturer Name FEGO Precision Industrial Co., Ltd. Manufacturer Address 947 LIN SEN RD., WU-FENG SHIANG TAICHUNG HSIEN R.O.C. Equipment Transmitter Model No SKY-5001 / SKY-5301 / SKY-5310 / SKY-5010 FCC ID K9L5001 Report Prepared By Jesse Tien Signature Report Authorized By Roger Chen Signature Page: 5/26 Report Number: MLT0711P15003 I. GENERAL 1.1 Introduction The following measurement report is submitted on behalf of Skytech II, Inc. In support of an Intentional Periodic Radiator certification in accordance with Part 2 Subpart J and Part 15 Subpart A And C of the Commission’s and Regulations. 1.2 Customer Details Applicant Name Skytech II, Inc. Applicant Address 9230 Conservation Way,Ft. Wayne,IN 46809,U.S.A. Manufacturer Name FEGO Precision Industrial Co., Ltd. Manufacturer Address 947 LIN SEN RD., WU-FENG SHIANG TAICHUNG HSIEN R.O.C. 1.3 Technical data of EUT Equipment Transmitter Model No SKY-5001 / SKY-5301 / SKY-5310 / SKY-5010 FCC ID K9L5001 Power Type Powered by 6V Battery (AAA Size X4). The EUT (SKY-5001 / SKY-5301) is remote transmitter. The operation frequency is 303.8Mhz. Press the button on remote transmitter, can set the Program ON / ON THERMO / THERMO OFF / OFF Continuous Pilot button. Both of two samples have the same circuit and PCB layout, the only difference is model 5301 has 3 fuctions key and 5001 has none, the test result was obtained from the measurement of model 5301. 1.4 Description of Support Equipment The EUT itself forms a system. No support equipment is required for its normal operation. Page: 6/26 Report Number: MLT0711P15003 1.5 Configuration of System Under Test 1.6 Test Procedure All measurements contained in this report were performed according to the techniques described in Measurement procedure ANSI C63.4: 2003 "Measurement of Intentional Radiators." 1.7 General Test Condition The conditions under which the EUT operates were varied to determine their effect on the equipment's emission characteristics. The final configuration of the test system and the mode of operation used during these tests was chosen as that which produced the highest emission levels. However, only those conditions which the EUT was considered likely to encounter in normal use were investigated. EUT Page: 7/26 Report Number: MLT0711P15003 II. Conducted Emissions Requirements The EUT operates solely by the battery. According to the rule of Section 15.207(d), the EUT exempt to the power line conducted test. Page: 8/26 Report Number: MLT0711P15003 III. Radiated Emissions Requirements 3.1 General Configuration: Prior to open-field testing, the EUT was placed in a shielded enclosure and scanned at a close distance to determine its emission characteristics. The physical arrangement of the EUT was varied (within the scope of arrangements likely to be encountered in actual use) to determine the effect on the unit's emanations in amplitude, directivity, and frequency. The exact system configuration which produced the highest emissions was noted so it could be reproduced later during the open-field tests. This was done to ensure that the final measurements would demonstrate the worst-case interference potential of the EUT. 3.2 General Configuration: Final radiation measurements were made on a three-meter, open-field test site. The EUT system was placed on a nonconductive turntable which is 0.8 meters height, top surface 1.0 x 1.5 meter. The spectrum was examined from 250 MHz to 2.5 GHz in order to cover the whole spectrum below 10th harmonic which could generate from the EUT. During the test, EUT was set to transmit continuously & Measurements spectru…

Text truncated - open the document above for the full version.

Page:1/7 Report Number: MLT0711CS03002 Radiated Measurement Photos Front View of The Test Configuration Page:2/7 Report Number: MLT0711CS03002 Rear View of The Test Configuration

5301 Operation description Date: 2007-11-14 Author: Javy Huang z LCD Diagram z LCD Indicator: 1. ON / THERMO / OFF: Indicates operation MODE of system. z ON indicates the system is on, either manually or thermostatically. z OFF indicates the entire system is turned off. z THERMO indicates the system will automatically cycle on/off, depending on programmed. 2. System ON flame: Indicates whether system ON or not. 3. Clock: Indicates the current time in AM/PM. 4. Low Battery: Battery power is low. Replace batteries within two weeks. 5. Reserve Flame Icon : Reserved for providing multiple flame modulation levels by providing a variable current output to specific modulation device. 6. ROOM °F OR °C: Indicates current room temperature. 7. Child Proof: Lock-out operation of the appliance. 8. SET °F OR °C: Appears the desired temperature to indicate setting room temperature during the time of setting in the thermo operation. 9. Timer: Indicates time remaining before system shuts off, when timer-programmed; 9-hour maximum setting. 10. Timer ON/OFF: Indicates whether timer activate or not. 11. Reserve Fan Icon : Reserved for providing multiple fan modulation levels by providing a variable current output to specific modulation device. 1. Button Description: 1) Mode/Set or (Touch Panel Region): To operate the system in the manual mode, ON/ ON THERMO/ THERMO OFF/ OFF. 2) Mode/Set: The Set is activate in Initial Setting mode or Timer Countdown mode that is accept the setting. 3) UP/DOWN: ¾ To adjust the values, Clock/ Timer/ Set Temperature/ Set Swing. ¾ Setting °F / °C scale: Press and hold the UP button and the DOWN button on the transmitter at the same time. Follow this same procedure to change from °C back to °F . When changing between the °F and °C scales, the temperature in the SET frame defaults to the lowest temperature (45°F, or 6°C ). The highest SET temperature is 99°Fahrenheit (32°Celsius). 4) (Touch Panel Region): ¾ To enable/ disable timer in TIMER Countdown mode activate. ¾ Press and hold it for more than two seconds to enter the clock setting and accept the clock setting to quit the clock setting mode. 5) Child Proof Lockout: To activate/disengage the child-proof lockout feature, press and hold and “UP” buttons for 5 seconds, “” will briefly appear/disappear on screen. 6) Swing Setting: Press the and “DOWN” buttons simultaneously to enter Swing Setting mode. z Operation Description: 1. Mode: z ON OPERATION: Press the “MODE” key into the ON mode. The appliance flame will come on. During this time the screen will show ON and System ON flame. The TIMER function will be activated. z THERMO OPERATION: Press the “MODE” key into the THERMO mode. The transmitter will check the ROOM temperature and SET temperature to decide the situation ON THERMO or THERMO OFF. After 2 seconds the LCD screen will display the situation by temperature detected that is comparing with the SWING temperature scale. z OFF OPERATION: Press the “MODE” key into the OFF mode. The appliance flame will shut off. During this time the screen will show OFF. The TIMER function will be shut down. 2. THERMOSTAT FUNCTION: z SETTING DESIRED ROOM TEMPERATURE: This remote control system can be thermostatically controlled when the transmitter is in the THERMO mode. To set the THERMO MODE and DESIRED room temperature, During the THERMO mode, Press “Up” / “DOWN” key the LCD screen set numbers will increase / decrease between 45° and 99° Fahrenheit. z THERMO ON situation: During this mode the screen will display the set flame/valve at the same time enable the TIMER function setting. z THERMO OFF situation: During the situation the TIMER function will be shut down. 3. Setting Swing: z To change the temperature “SWING” setting (1-3), press the TIMER/TIME and DOWN buttons simultaneously to display the current “SWING” setting in the SET TEMP frame. The letter “S” will display in the ROOM TEMP frame on the LCD screen. z Press the UP or DOWN button to change the temperature differential or “SWING” (1-3). See above for 1-3 “SWING” temperature valves. z To store the “swing number press the SET button or allow 15 seconds to lapse, and the new “swing number” will be automatically programmed. 4. Child Proof “Lock-out”: z To activate the “LOCK-OUT” feature, press and hold the UP and TIMER/TIME buttons, together, for 5 seconds. The will appear on the LCD screen. z To disengage the “LOCK-OUT”, press and hold the UP and TIMER buttons, together for 5 seconds or more, and the will disappear from the LCD screen and the transmitter will return to its normal operating condition. 5. Low Battery () will appear when battery power has dropped significantly. 6. The System Icon ( ) will be showed if the system is ON. 7. The room temperature always shows on screen, which range between 32 and 99 Fahrenheit. 8. The Child Proof ( ) will appear on screen if the “Lock-out” Feature is activation. 9. The Flame icon () , the main flame indicates burner/valve in operation and additional flame is reserved for specific modulation device. 10. The Fan icon () is reserved for specific modulation device. z Further Description 1) Radio Frequency range: 303.8MHZ 2) The remote receiver is SR 1001. 3) The remote controller effective distance is above 40 feet. FCC Compliance Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.
